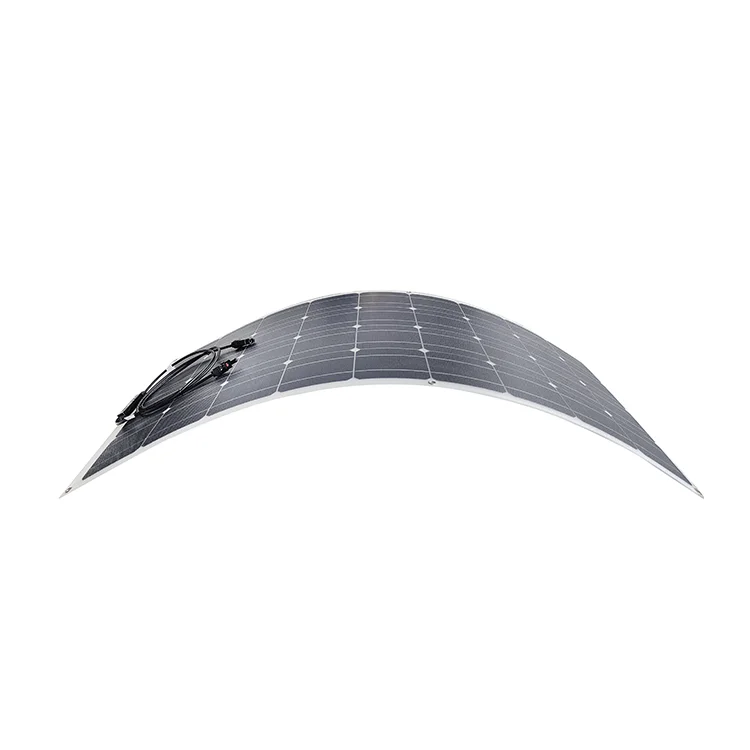

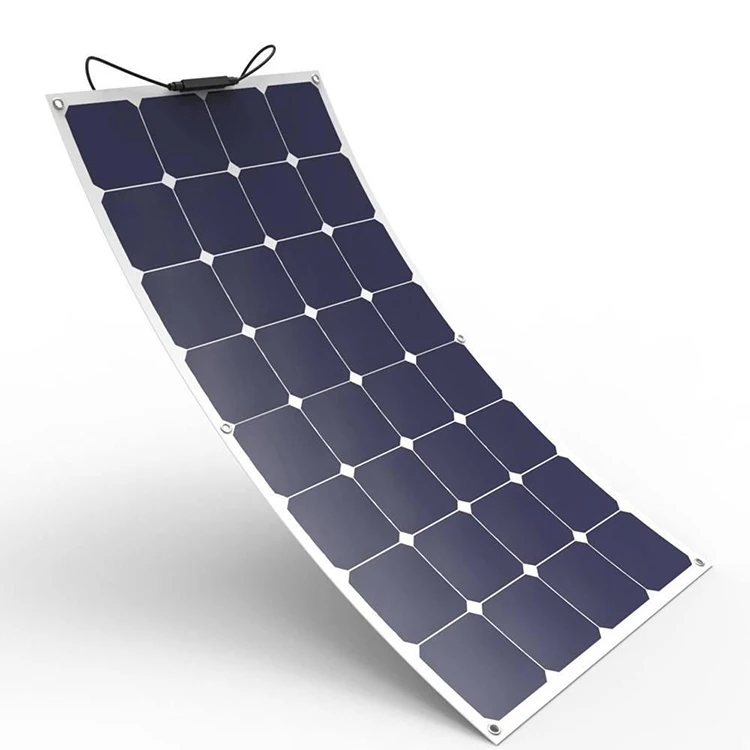

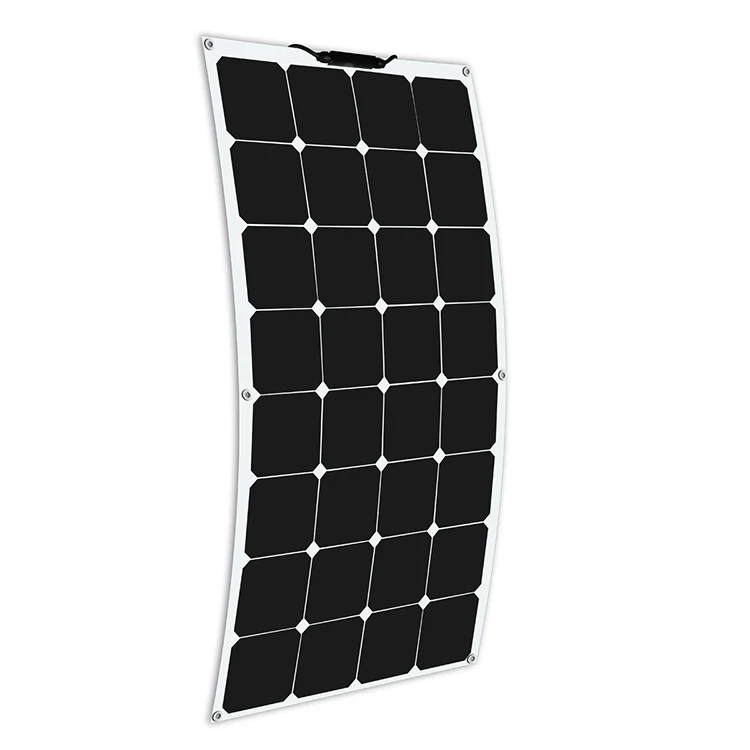

Factory Price Mono Photovoltaic PV 100w Solar Module 50w 200w Semi Flexible Solar Panels
- Category: >>>
- Supplier: Dongguan Sunworth Solar Energy Co. Ltd.
Share on (1600534868733):
Product Overview
Description
Product Description
* The flexible solar panel is ETEF-laminated. ETEF material has higher light transmittance, enhance cell performance and provide a long service life.

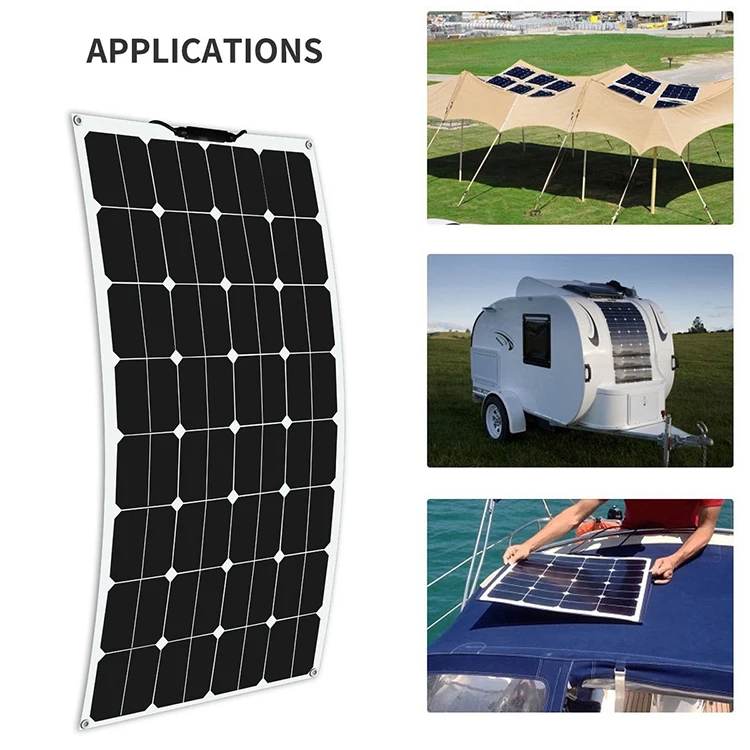

* Ultra-lightweight, ultra thin and flexible, allow for a wide range of applications, for example RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
* The weight is 70% less than conventional solar panels, making transportation and installation a breeze.
* Ultra-lightweight, ultra thin and flexible, allow for a wide range of applications, for example RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
* The weight is 70% less than conventional solar panels, making transportation and installation a breeze.
Product Paramenters | ||||||
Maximum Power (Pmax) | 50w | 100w | 200w | |||
Max Power Voltage (Vmp) | 19.6V | 19.6V | 19.6V | |||
Max Power Current (Imp) | 2.55A | 5.1A | 10.20A | |||
Open Circuit Voltage (Voc) | 23.52V | 23.52V | 23.52V | |||
Short Circuit Current (Isc) | 2.7A | 5.4A | 10.81A | |||
Module Efficiency | 15.67% | 16.83% | 17.45% | |||
Cell Type | 166*166mm | 166*166mm | 166*166mm | |||
Cell Arrangement | 36 (3*12) | 36 (4*9) | 36 (4*9) | |||
Dimensions (W*L*H) | 580*550*3mm | 825*725*3mm | 1580*725*3mm | |||
Weight | 2.5kg | 3.5kg | 6.5kg | |||
Front Cover | 0.3mm, TPT | |||||
Junction Box | IP65-67 Rated | |||||
Output Cables | 2.5mm2, Length 700mm+MC4 | |||||
Operating Tem (oC) | -40~+85 | |||||
Max System Voltage | 1000Vdc | |||||
Max Series Fuse Rating | 15A | |||||
Power Tolerance | ±3% | |||||
*STC Condition: 1000W/m2, 1.5AM and 25oC cell temperature. | ||||||

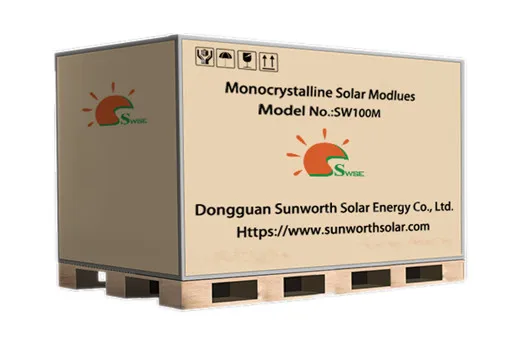

Packing & Delivery
10~100w panel 7pcs per small carton, 100~250w panel 35pcs per big carton.
After we confirmed your batch order, will delivery in 5-10 days. If sample order, can be delivery immediately.
Company Profile
Sunworth solar is a key high-tech enterprise in Dongguan. Since 2005, it has been dedicated to the production, research and development of solar crystalline silicon modules, solar grid-connected systems, solar off-grid systems, solar street lights, and solar application products. The core team has over 10 years of experience in the solar photovoltaic industry.
Sunworth has an advanced crystalline silicon module production workshop and a photovoltaic power system production workshop. The annual production capacity of modules is 100MW, and the annual production capacity of photovoltaic power systems is 100,000 sets.
It is a private enterprise that has fully passed the ISO9001 international quality management system, also has obtained TUV, ETL, CE, CQC, Golden Sun and other international authoritative certifications. Photovoltaic modules and application products are exported to Europe, Africa, Southeast Asia, America and other countries and regions.

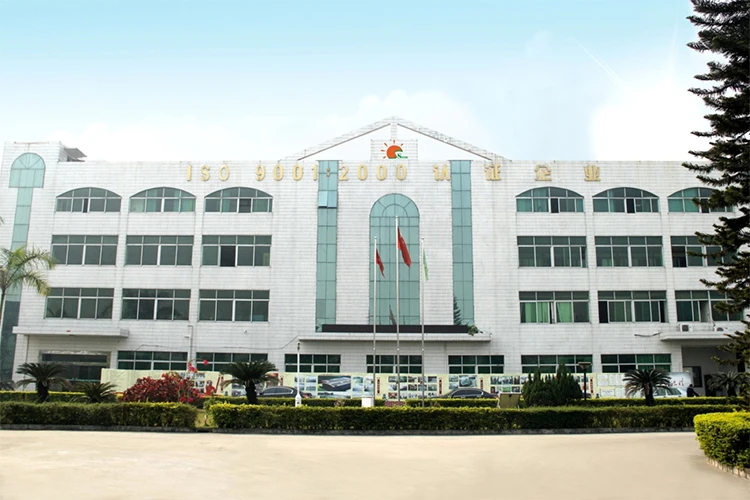

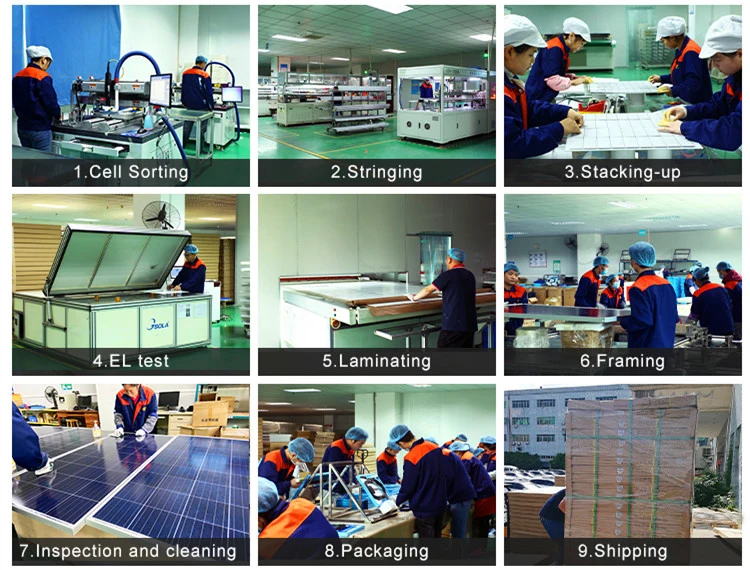

OUR FACTORY
23.4KW Solar System in Gabon
42KW Solar System in Mauritius
20KW Solar System in Bangladesh
20KW Solar System in Malaysia
9KW Solar System in Cambodia
8.7KW Solar System in Myanmar
8MW Solar System of Dajin Power Station
3MW Solar System of Youyu Packaging
3.13MW Solar System of Mia Pv Project
OUR CERTIFICATE
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
