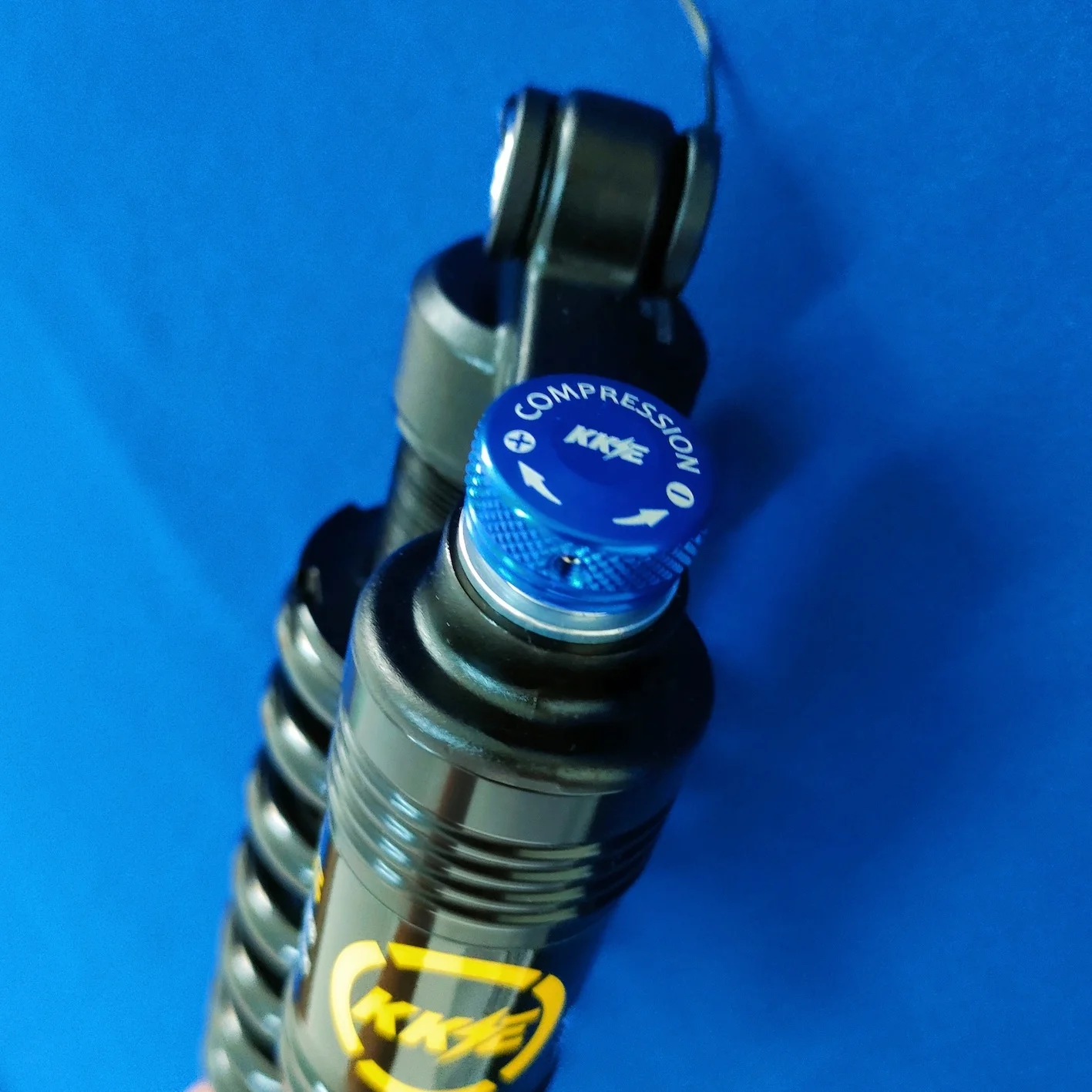

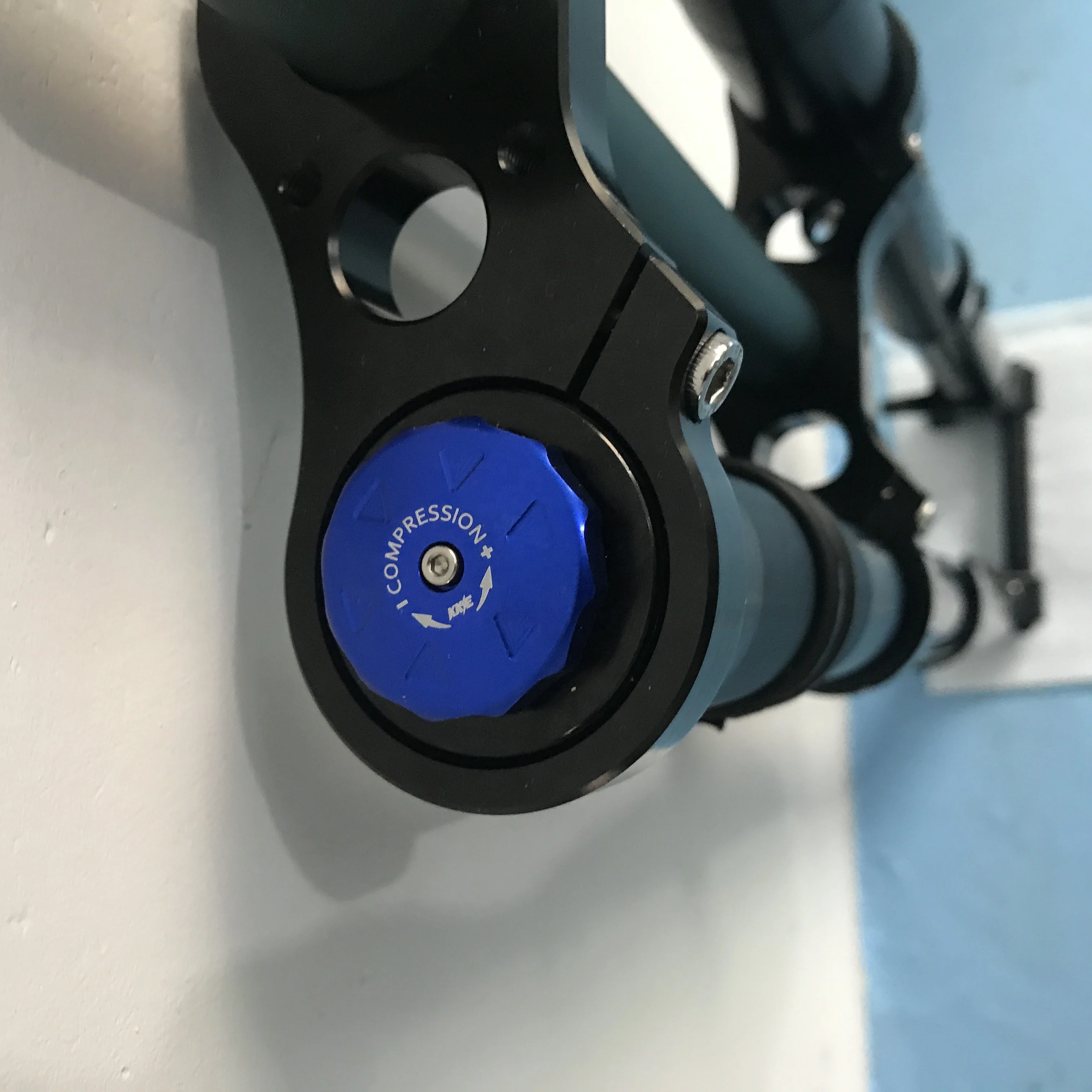

Front and rear suspension for Stealth bomber electric bike/Doodkebike
- Category: >>>
- Supplier: Kunshan Doodle Electromechanical Science-Technology Co. Ltd.
Share on (1600534874365):
Product Overview
Description
Product Description

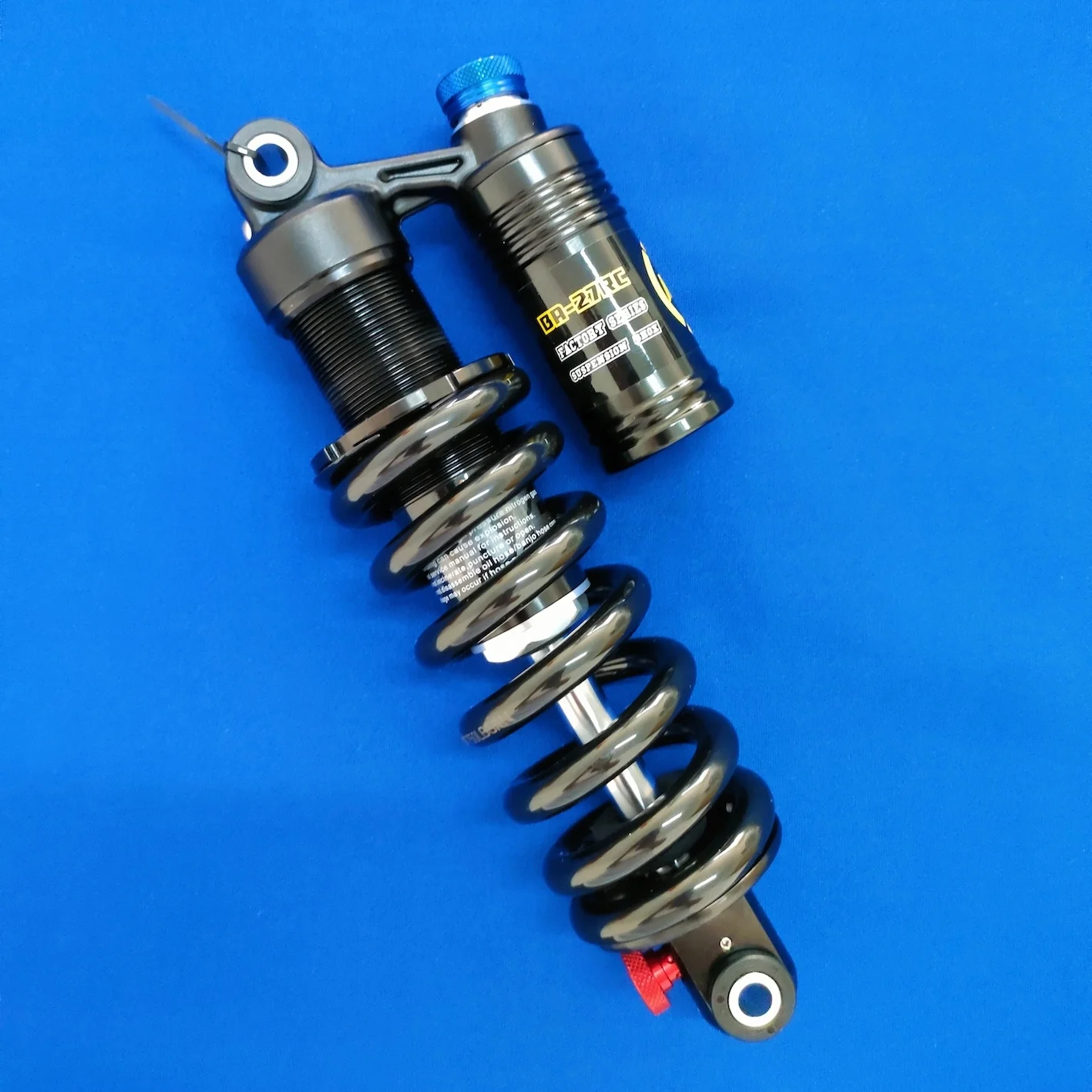

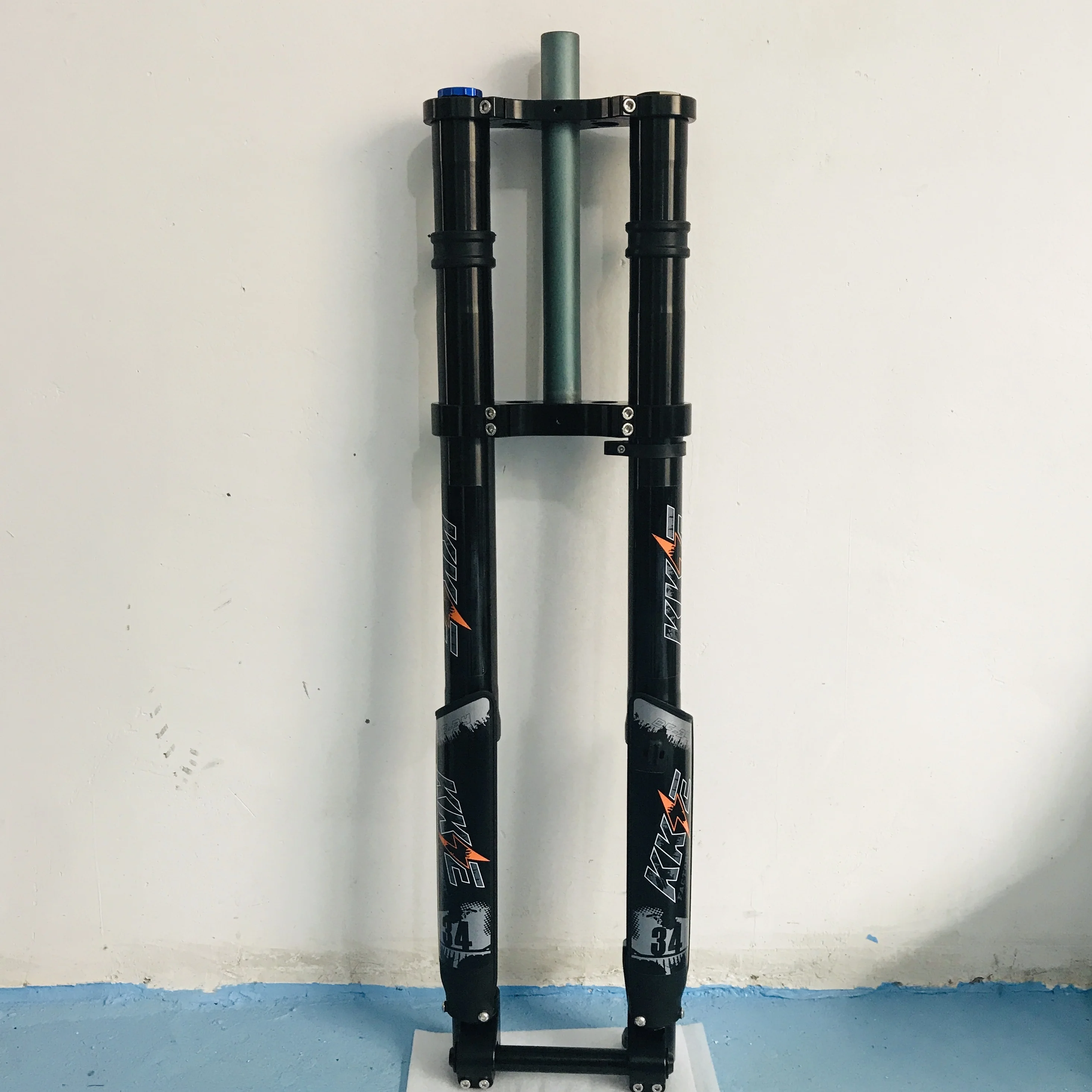

Product Name | Front fork + Rear shock absorber |
Model Number | BA27RC & R110 |

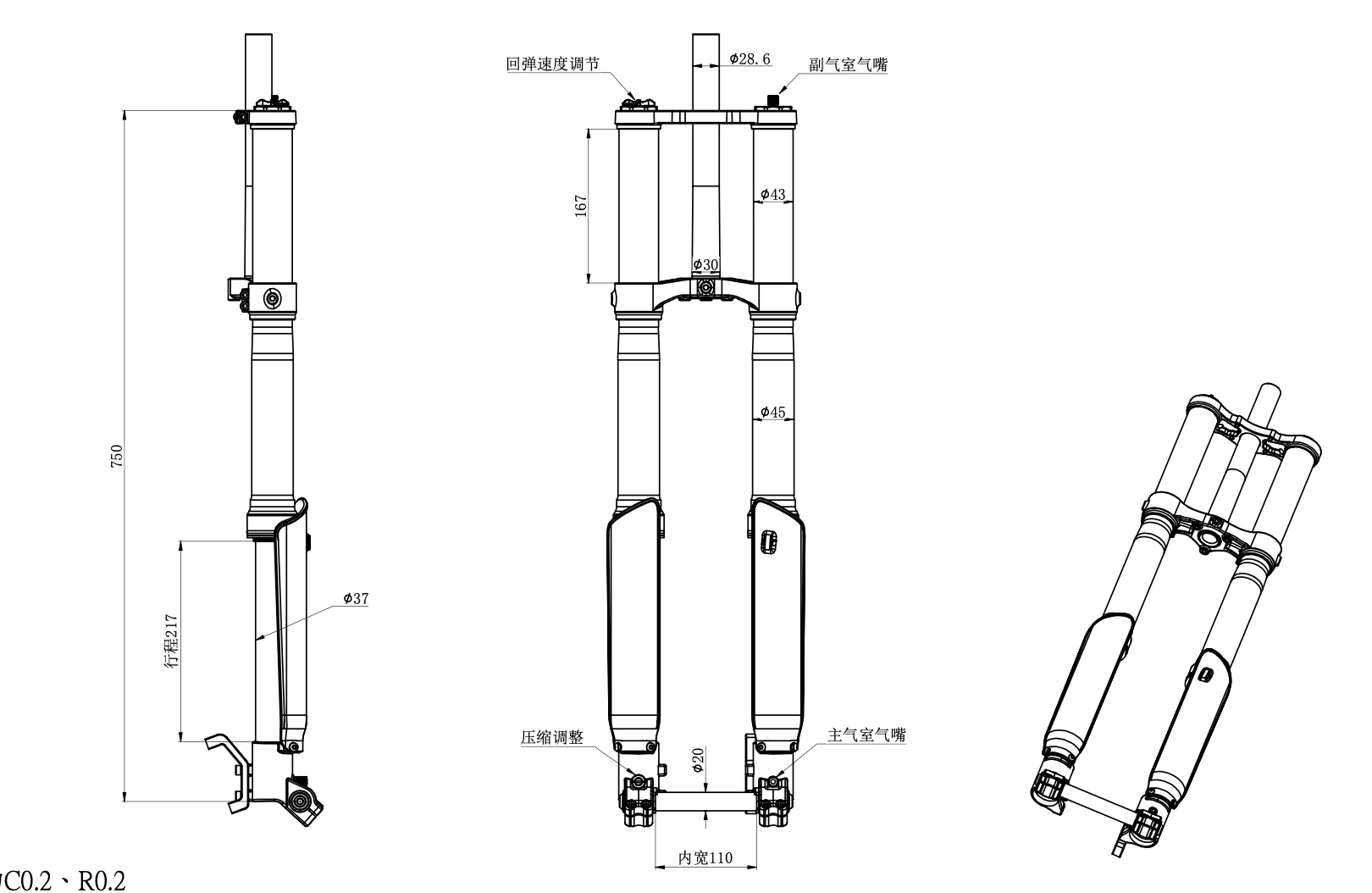

Length | frok:750mm, shock:190-265mm |
Travel | fork 203mm, shock 51-85mm |
Rear shock spring | 750Lbs, Option: 450Lbs |
Feature | Hydraulic + Spring suspension |
Adjustment | Compression/rebound/preload/Big impact |
Weight | Fork 4.3Kg, shock 0.5Kg |
Color | black |
Material | Aluminum Alloy + Steel spring |
Treatment | Dark hard-anodized AL-7075 shock body |
Installation | Rear shock washer 8*20-52mm, front fork: straight steer, 110*20mm thru-axle |
1 Pair | 1Pc rear shock absorber + 1pc front suspension fork |

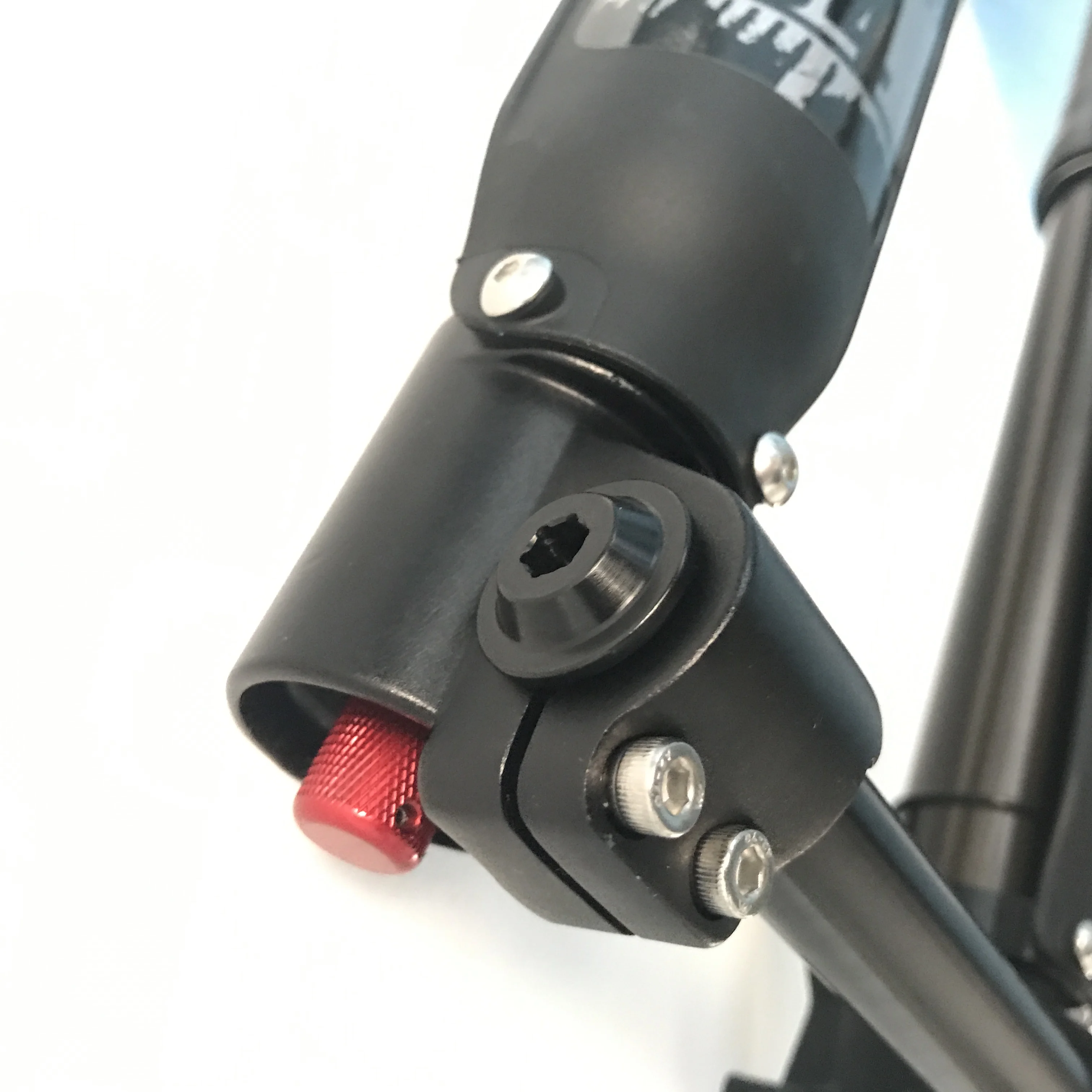

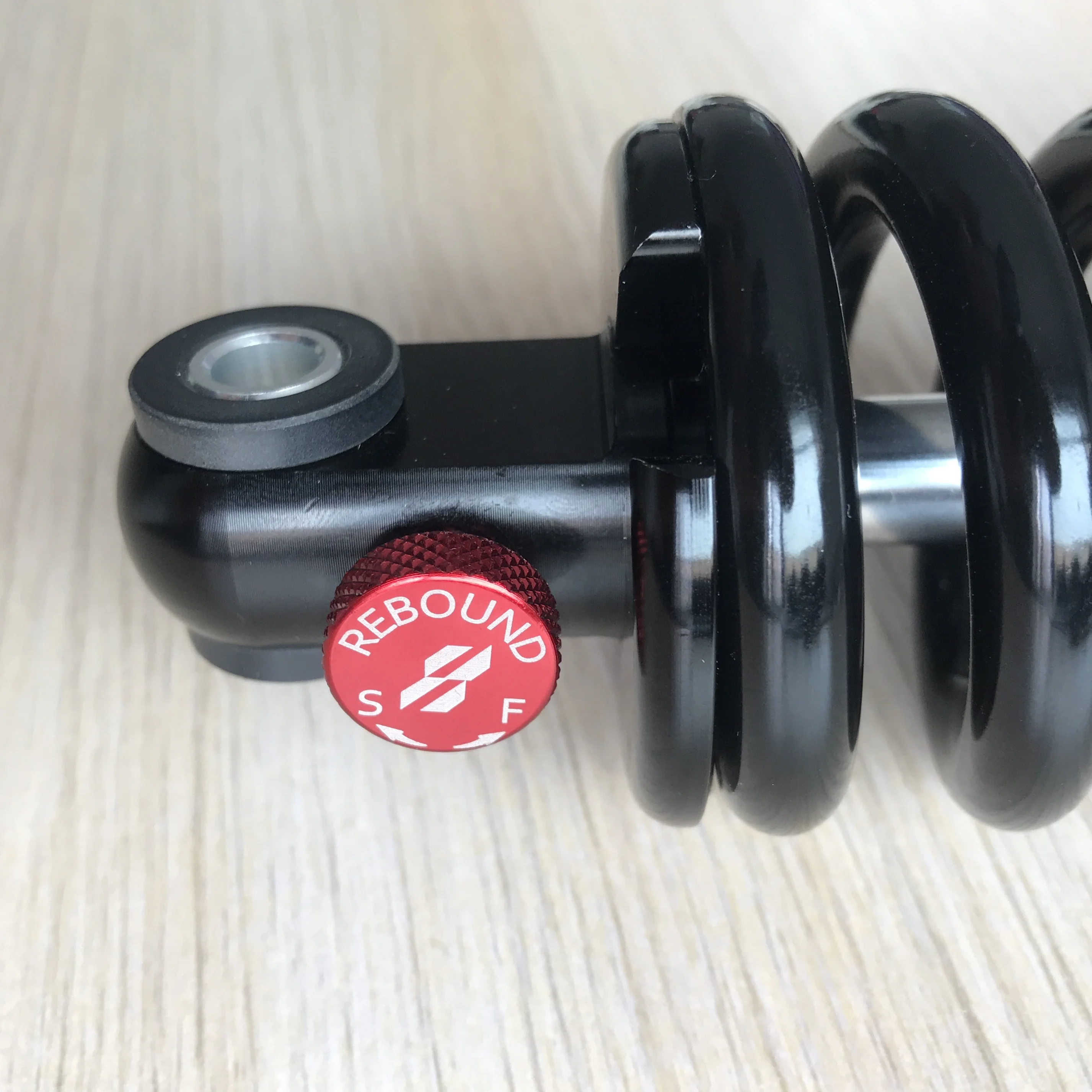

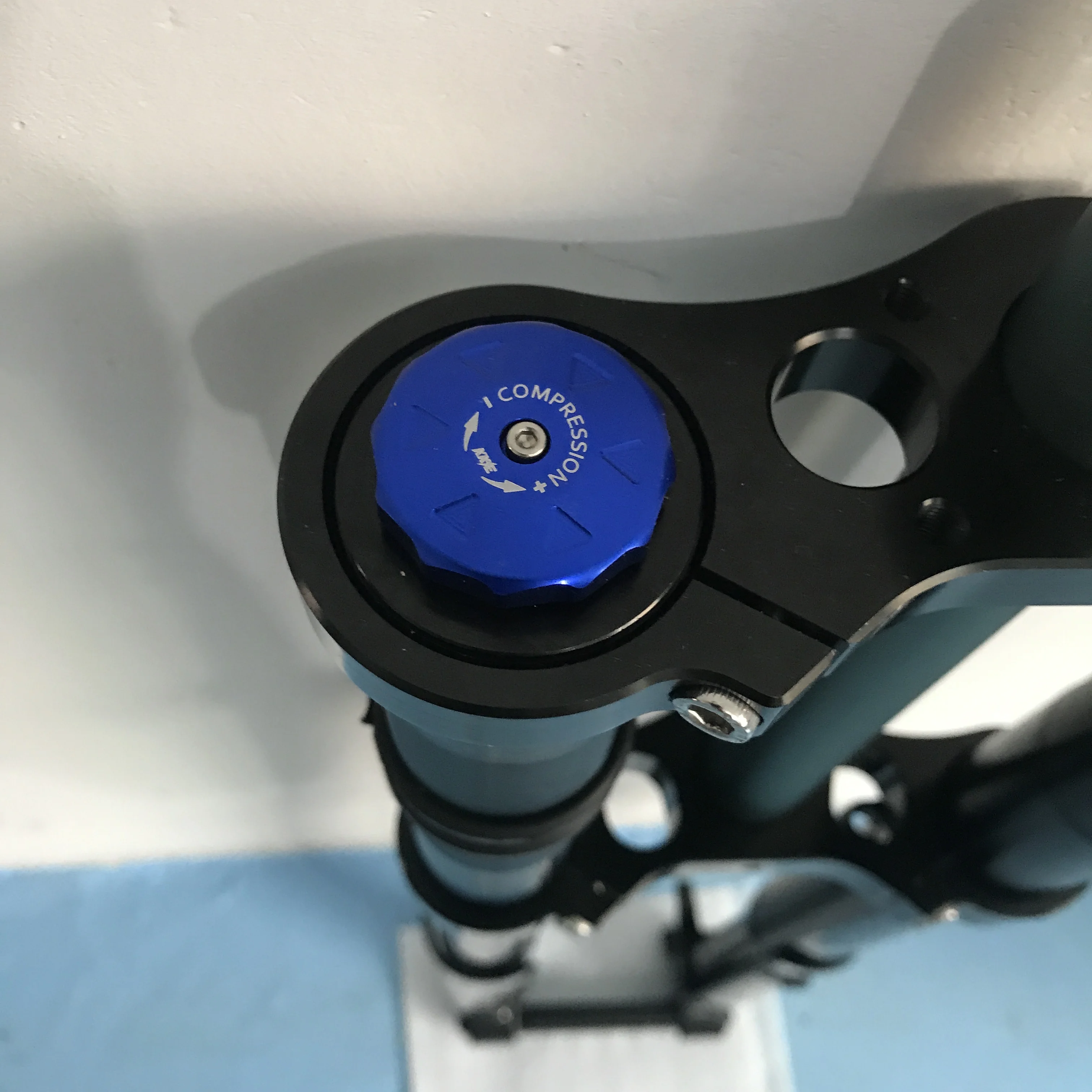

Detailed Images
User Manual
Packing&Shipping
Manufacturing Technique
Customized CNC Machines
28Pcs of high rank customized CNC machines makes customized orders can be taken.
With these machines, the production lead time is shorter and contralable.
With these machines, the production lead time is shorter and contralable.
Strict Material Management
A simple bike part even contains over hundred of small raw material, plus surface treatment, a small suspension does not a simple
product.
With strict raw material management system,
Every order and suspension product will be provided correctly and in order.
product.
With strict raw material management system,
Every order and suspension product will be provided correctly and in order.
Well-Equipped Test Machines
High quanlity suspension products need intensive and massive test before packing and delivery.
Every batch of production will select random suspension products and do test before packing and delivery approval.
Every batch of production will select random suspension products and do test before packing and delivery approval.
Company Introduction
All kinds of parts for bike can be provided by Doodlebike.Main brand can be massive provided is DNM.
DNM has been an integraed part of the suspension industry for more than 40 years.
High quality suspension products, after sale service and tech support.
Distributors are all over the world could help end user get service in the first place.
DNM has been an integraed part of the suspension industry for more than 40 years.
High quality suspension products, after sale service and tech support.
Distributors are all over the world could help end user get service in the first place.
Catalog
FAQ
1. Are you manufacturer?
Yes, factories are in Taiwan and China.
2. What is your delivery time?
All the parts we have at least small quantity in stock. Bulk order delivery time 2-3 months.
3.Can you customize products?
Yes, we can support OEM for customers.
4. Do you have web site?
www.dnmshocks.com
5. Can you send Catalog?
Yes, please dont hesitate to contact us.
6. How can i purchase your product?
Please contact us.
Yes, factories are in Taiwan and China.
2. What is your delivery time?
All the parts we have at least small quantity in stock. Bulk order delivery time 2-3 months.
3.Can you customize products?
Yes, we can support OEM for customers.
4. Do you have web site?
www.dnmshocks.com
5. Can you send Catalog?
Yes, please dont hesitate to contact us.
6. How can i purchase your product?
Please contact us.
