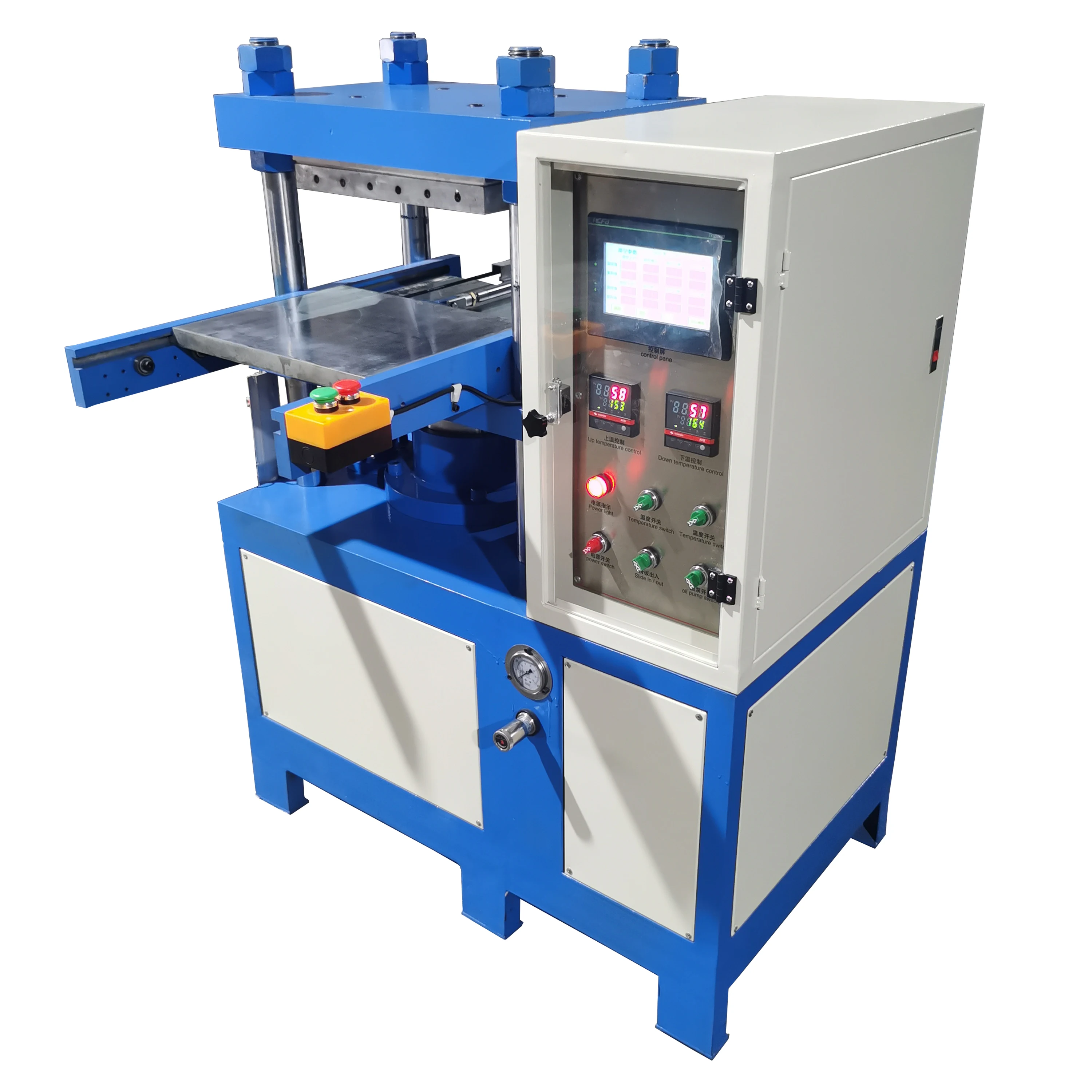

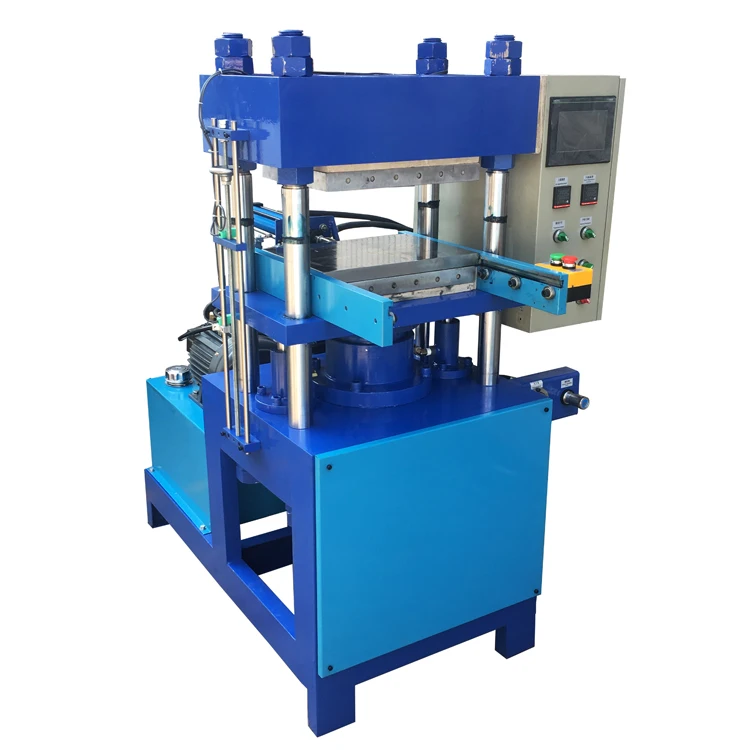

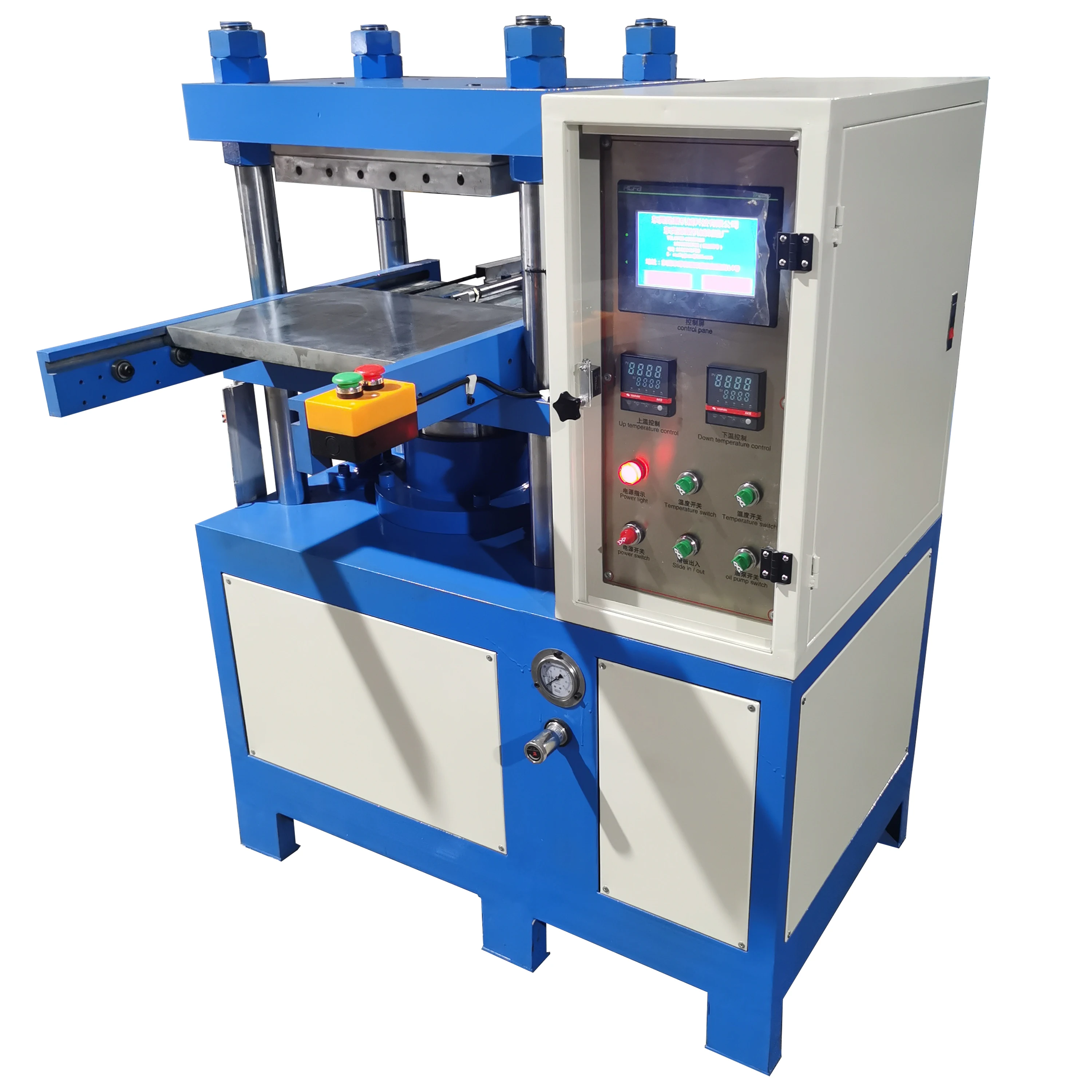

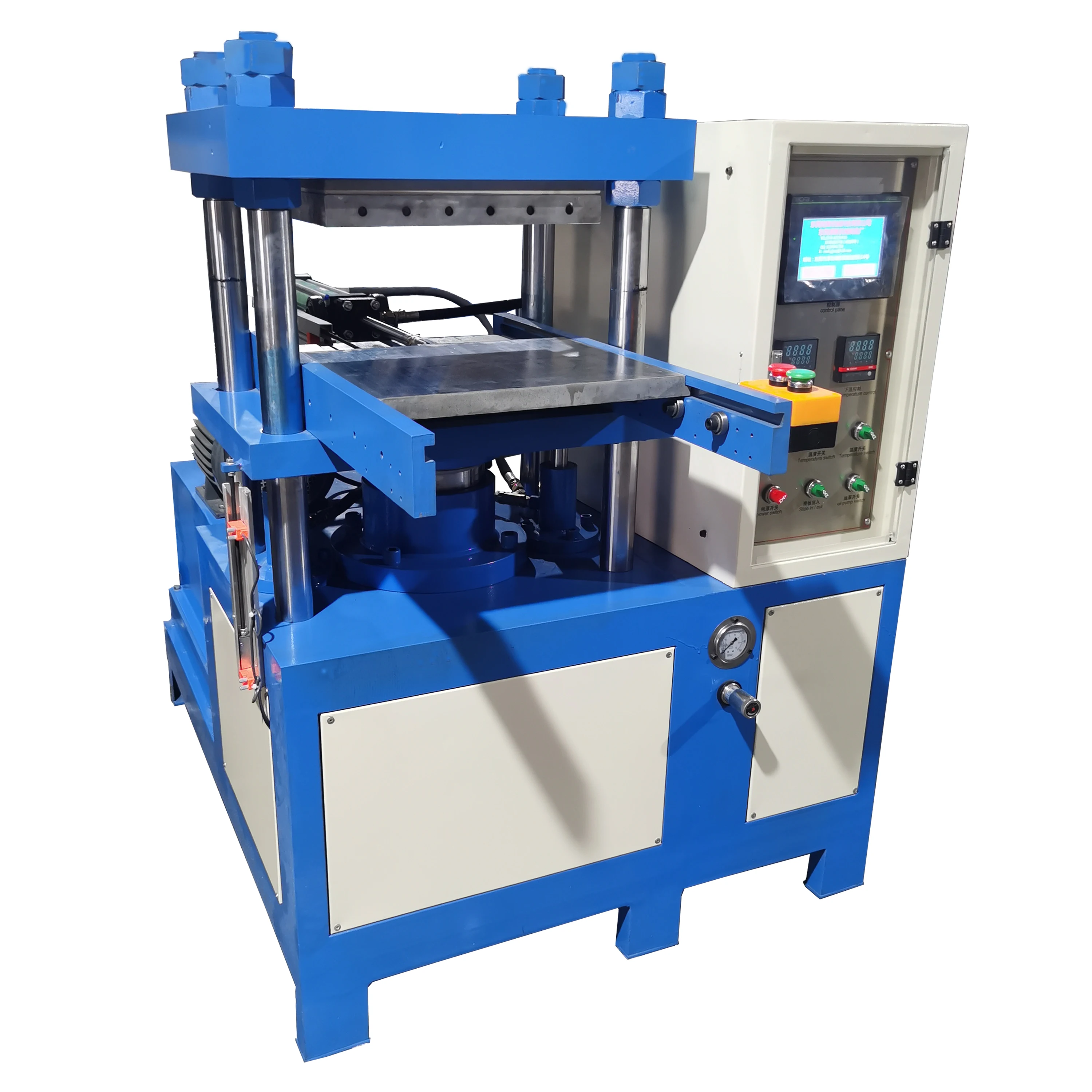

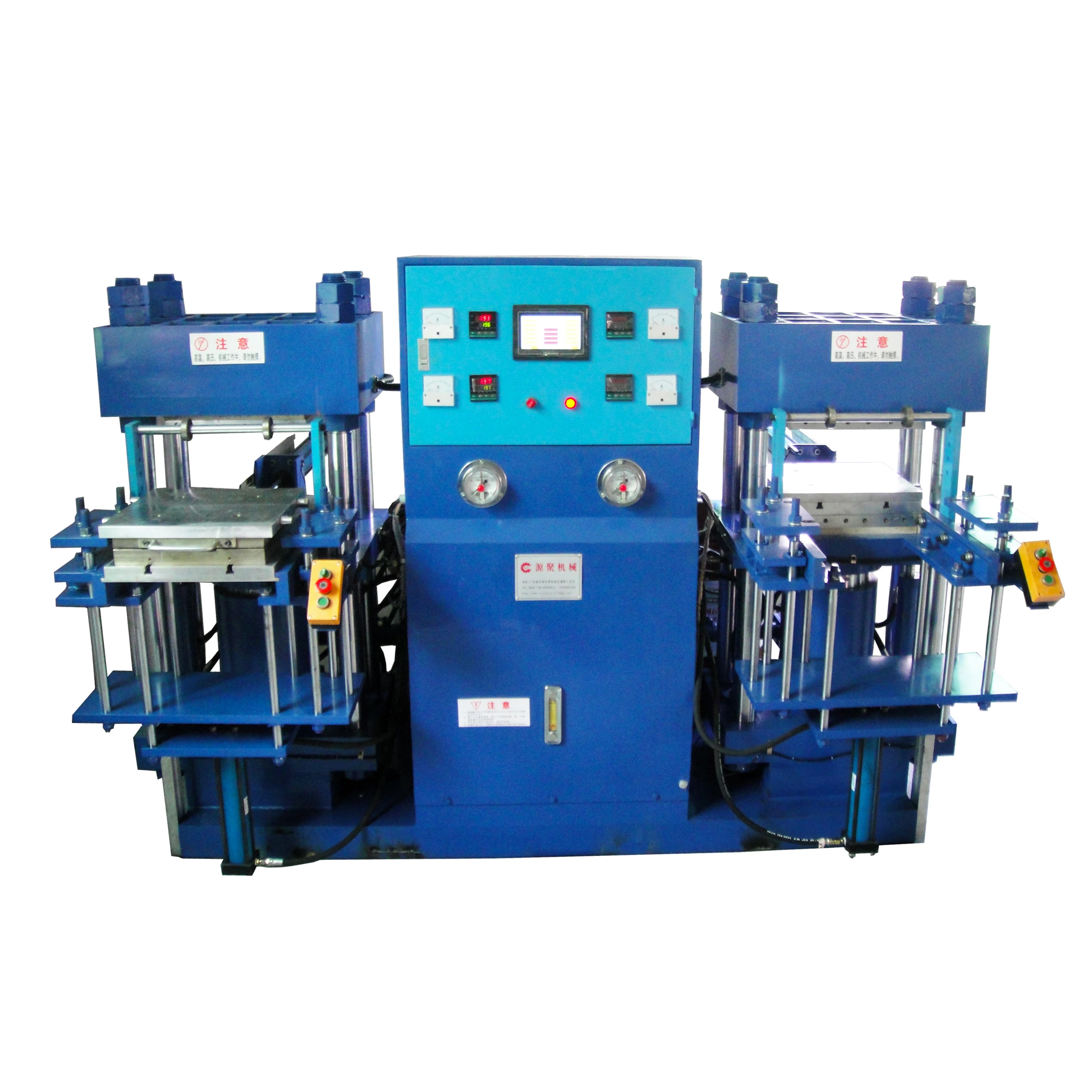

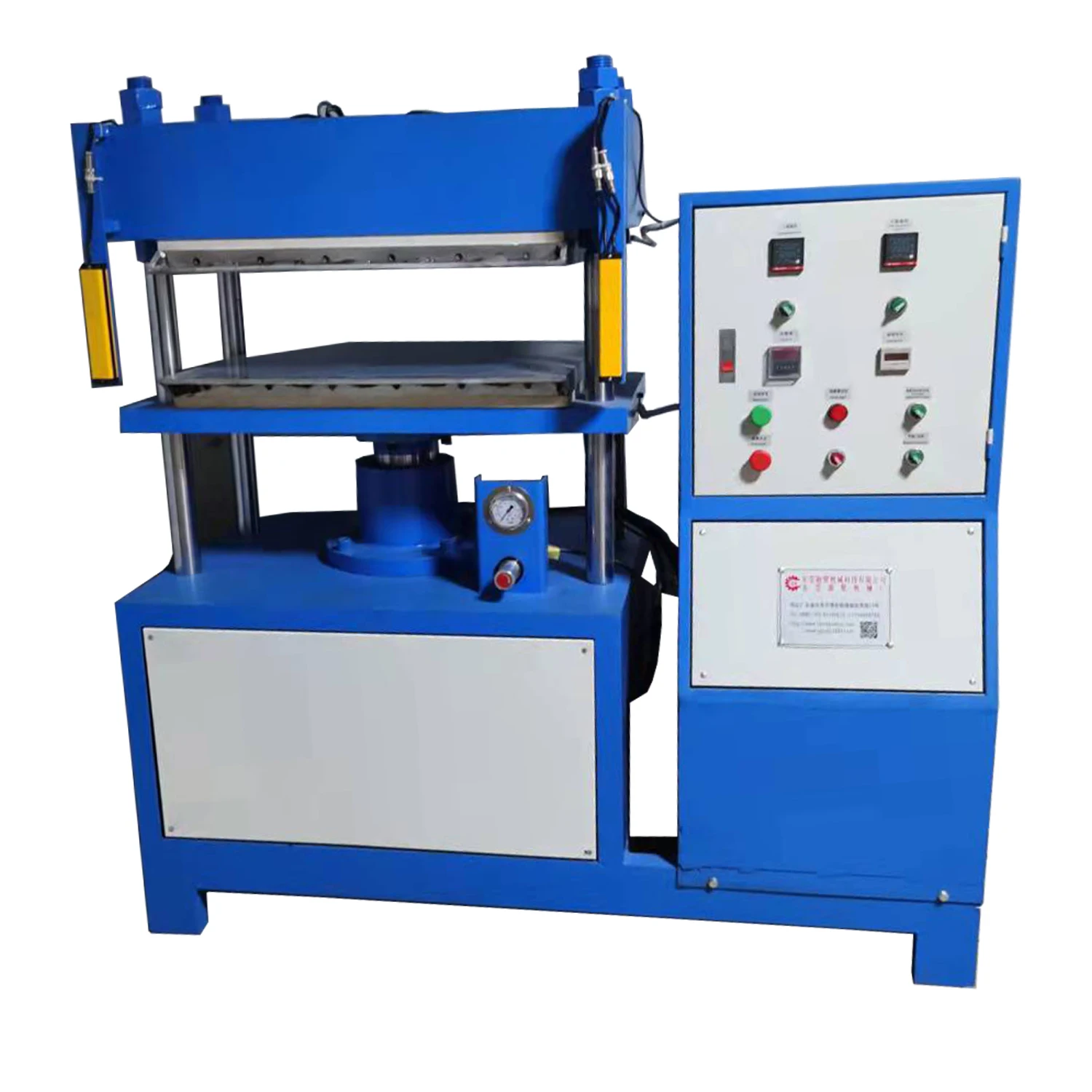

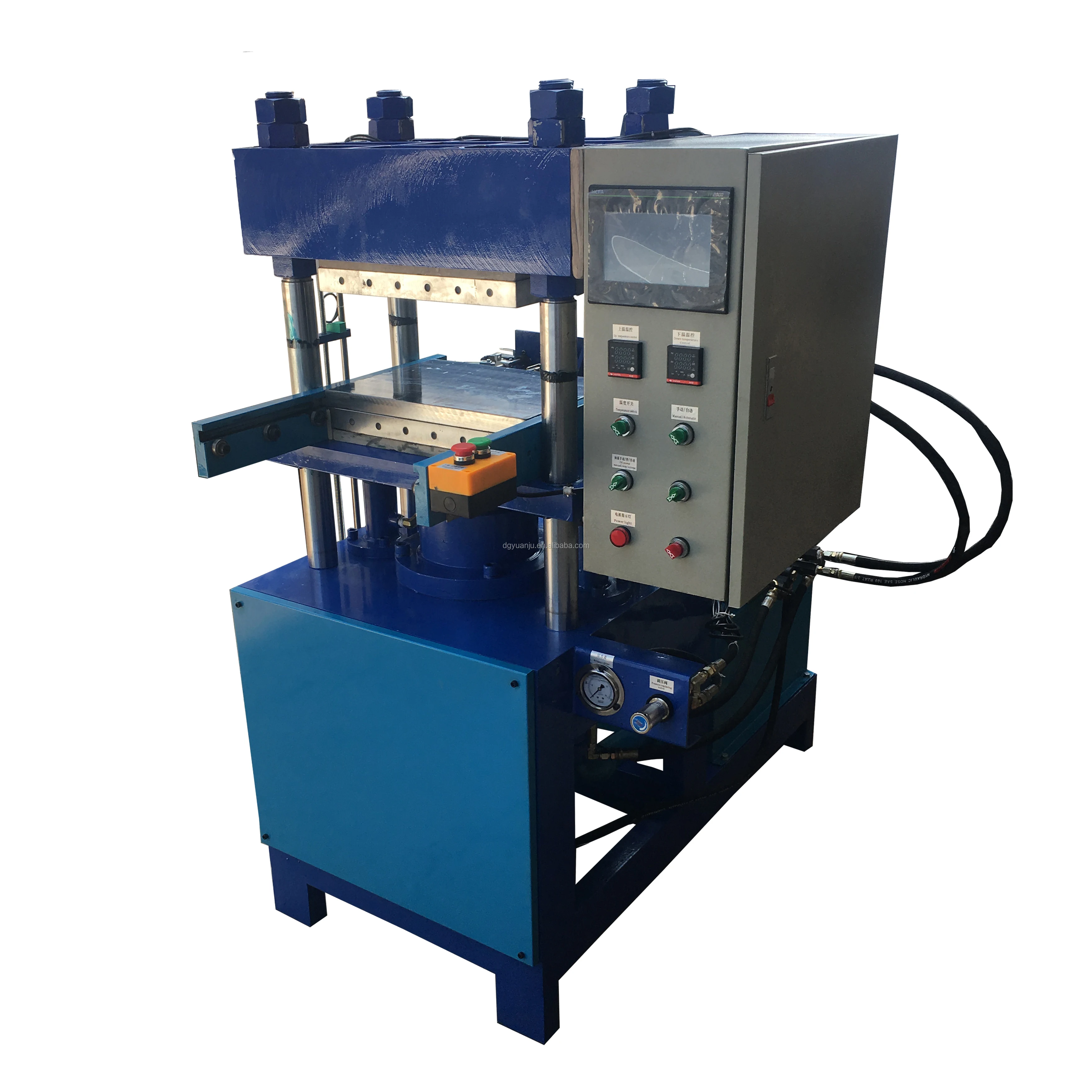

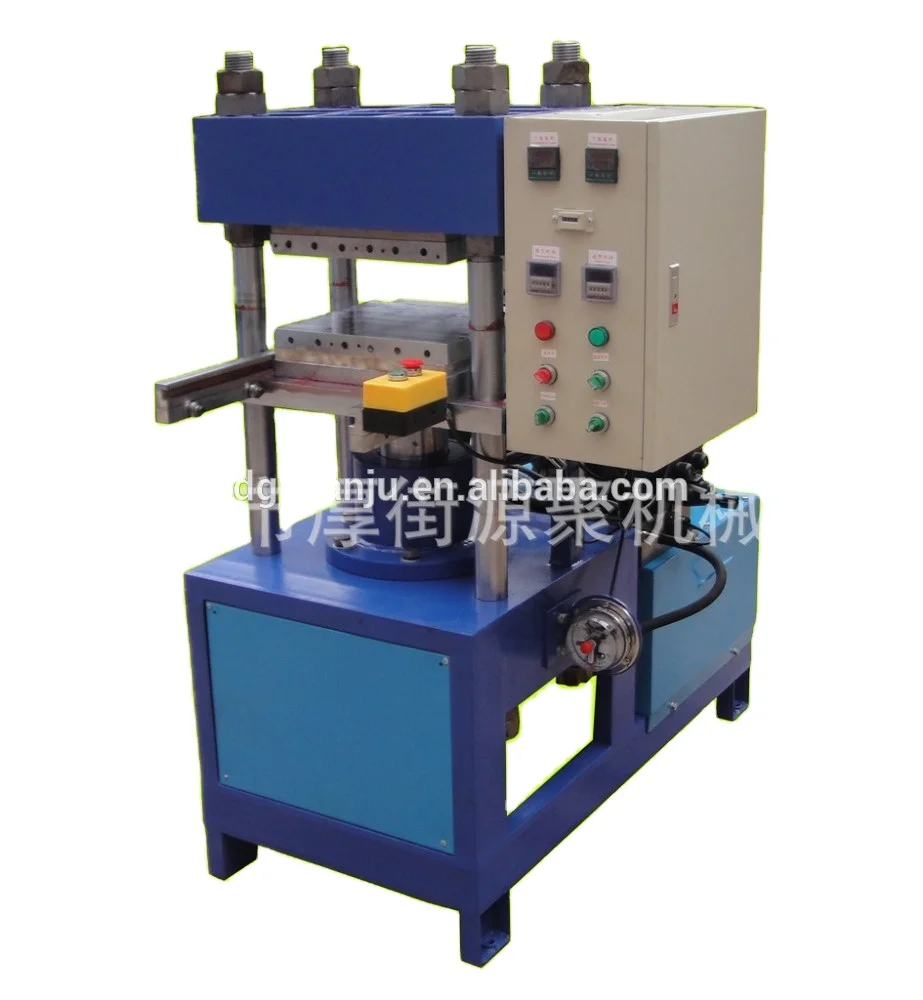

50T vulcanizing machine Silicone label machine Silicone zero wallet machine
- Category: Rubber Product Making Machinery >>>
- Supplier: Dongguan Huojie Yuanju Machine Manufactory
Share on (1600534883352):
Product Overview
Description
Product Overviews
1, This vulcanizing machine for hydraulic machinery, pressure 500 kn
2, The vulcanizing machin adopts high quality hydraulic accessories, oil cylinder, solenoid valve, to ensure that the use of mechanical effect and service life
3.The machine used four pillars on the top, to guarantee the pressure balance
4, In the process of using the mechanical parameters of adjustable,
5, The vulcanizing machine adopts sliding table, mechanical operation more secure and convenient
6, It has automatic pressure maintaining time delay stop function
7,The vulcanizing machine vulcanization tact to temperature control, make the actual temperature and set temperature difference 1 degree
8, The original pressure control emptying type mechanical exhaust, make the machinery to make the yield is higher
9, The machine have one-click control can make the mechanical shape of the product
models | 30T | 40T | 63T |
Temperature regulation | At room temperature ~ 300°C | At room temperature ~ 300°C | At room temperature ~ 300°C |
200°CHeating rate | about15min | about15min | about15min |
Temperature precision | Automatic/±2°C | Automatic/±2°C | Automatic/±2°C |
Machine operation | Relay control circuit | Relay control circuit | PLC touch-screen |
Drive way | hydraulic | hydraulic | hydraulic |
pressure | 10-20Mpa | 10-20Mpa | 10-20Mpa |
power supply | AC380V±5% 50/60HZ | AC380V±5% 50/60HZ | AC380V±5% 50/60HZ |
Power: | 12KW | 15KW | 18KW |
Motor Power | 4KW | 4KW | 5.5KW |
Heating plate distance | 200MM | 200MM | 250MM |
Oil cylinder stroke | 200MM | 200MM | 250MM |
Movement mode of skateboard | Automatic | Automatic | Automatic |
Pressure regulation mode | Pressure relay | Pressure relay | Pressure relay |
Hot pressing time | 0.1S~999S | 0.1S~999S | 0.1S~999S |
Maximum pressure | 300KN | 400KN | 630KN |
Heating plate area | 300×400MM | 300*400MM | 400*450MM |
host volume | 1400×900×1600MM | 1400×1000×1700MM | 1500×800×1700MM |
weight | 1200KG | 1350KG | 1500KG |

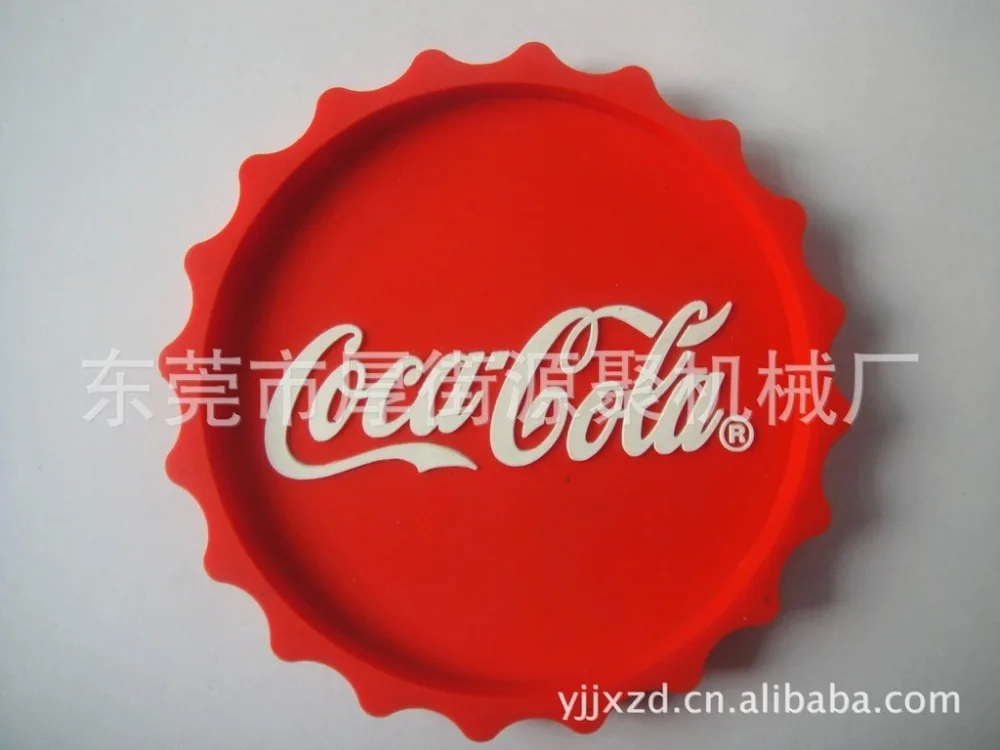

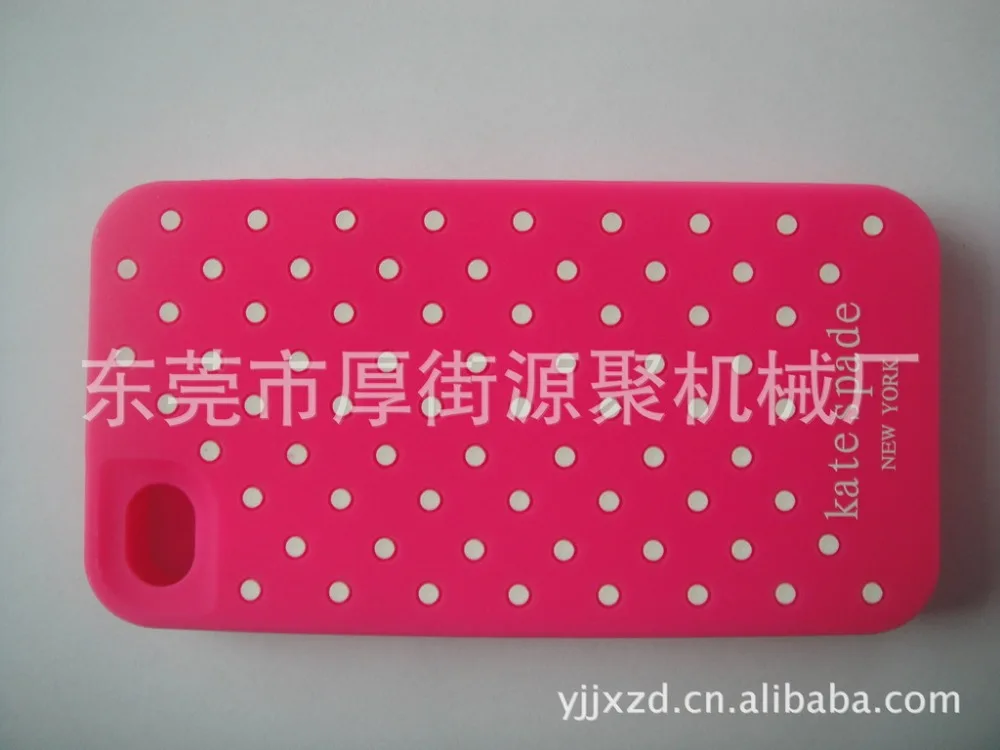

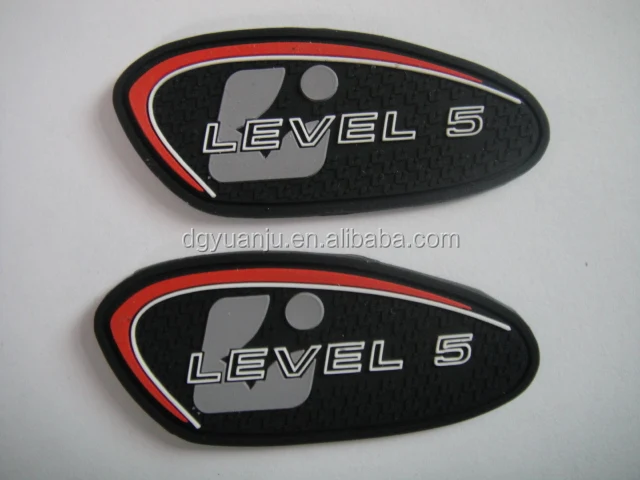

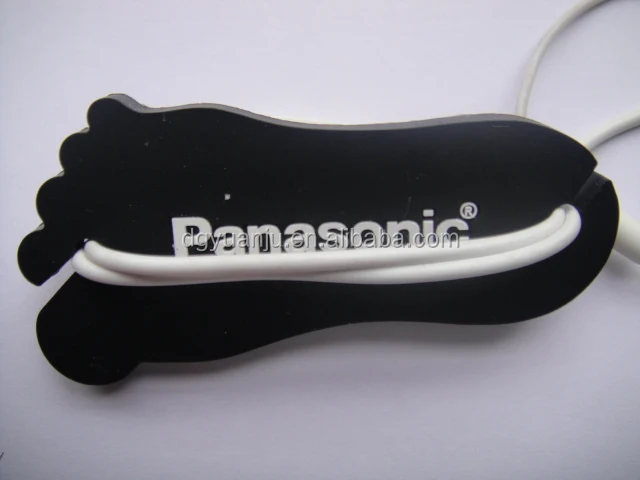

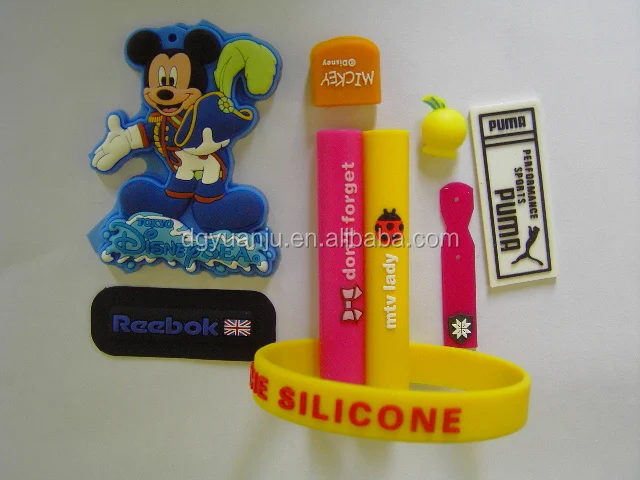

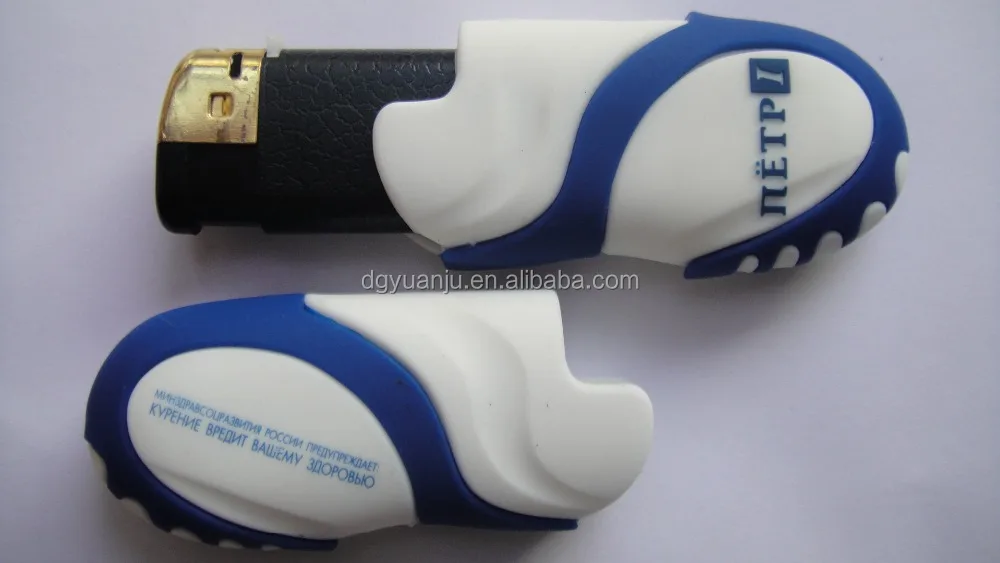

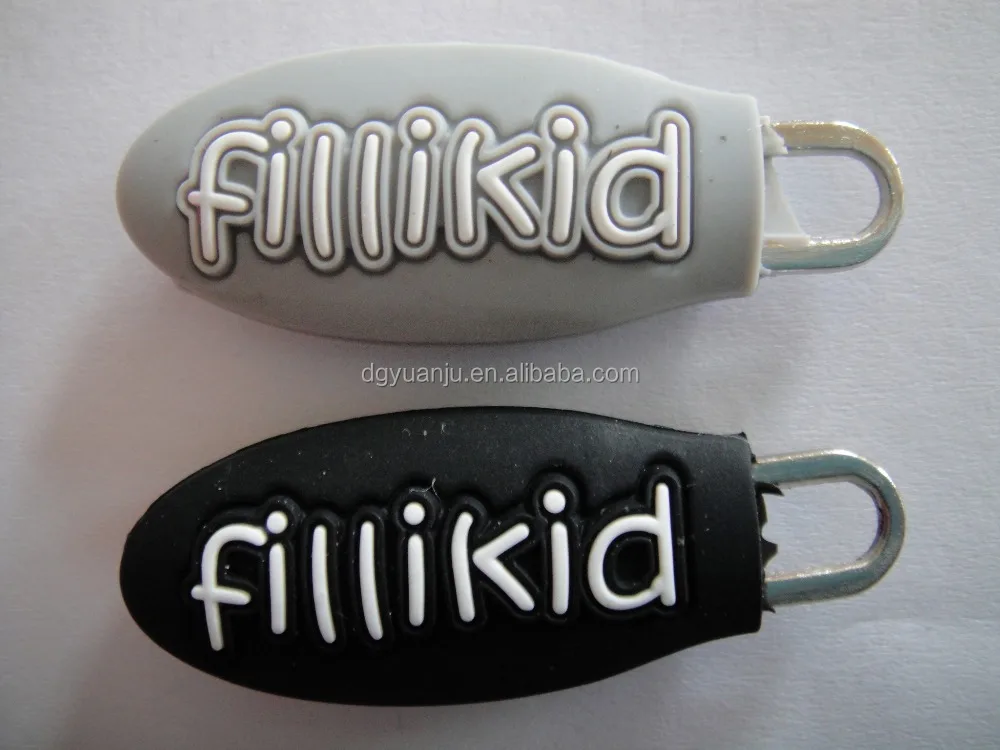

Product Effects
Related Products

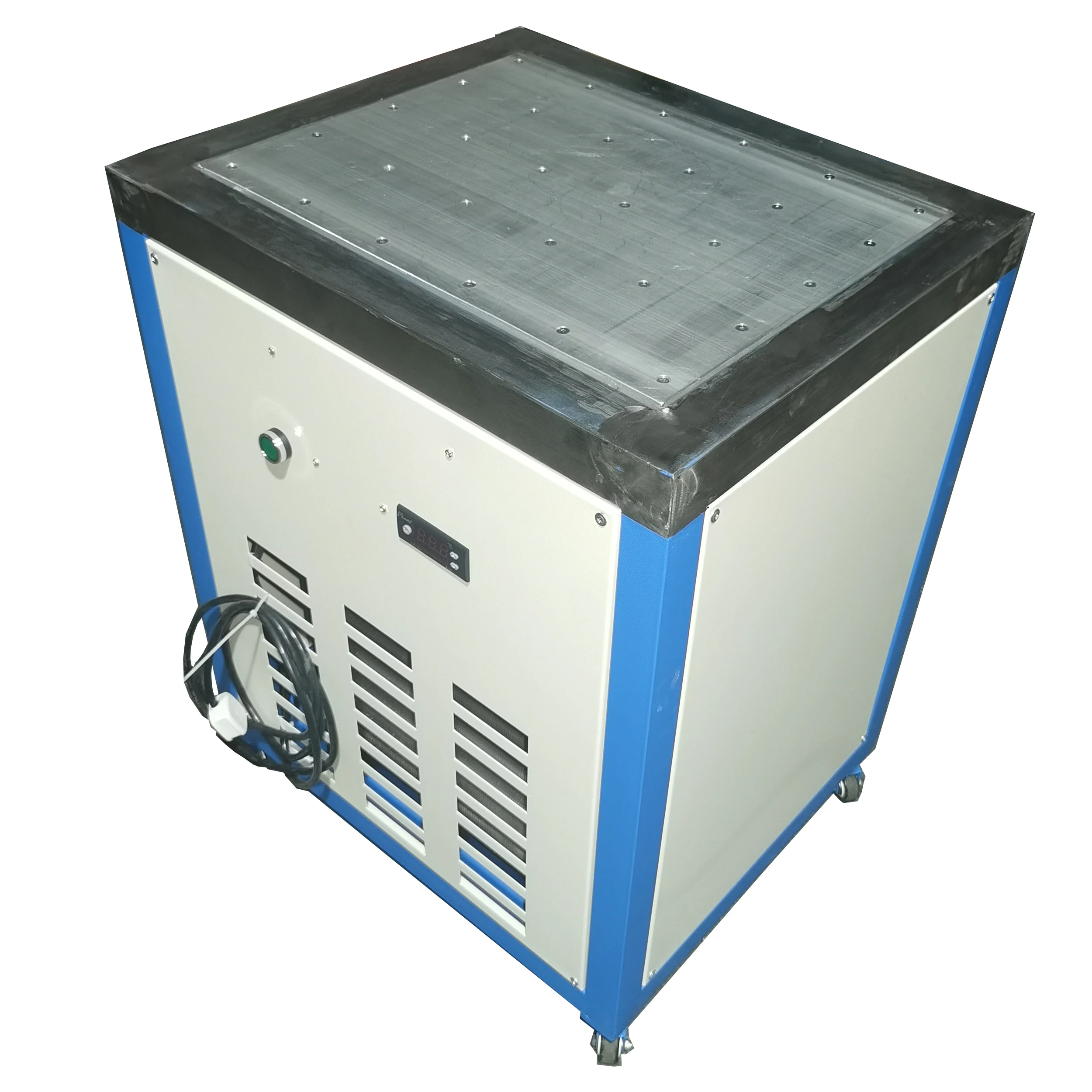

YJ-B05 Table Vacuum Machine
YJ-B07 Mould-Table

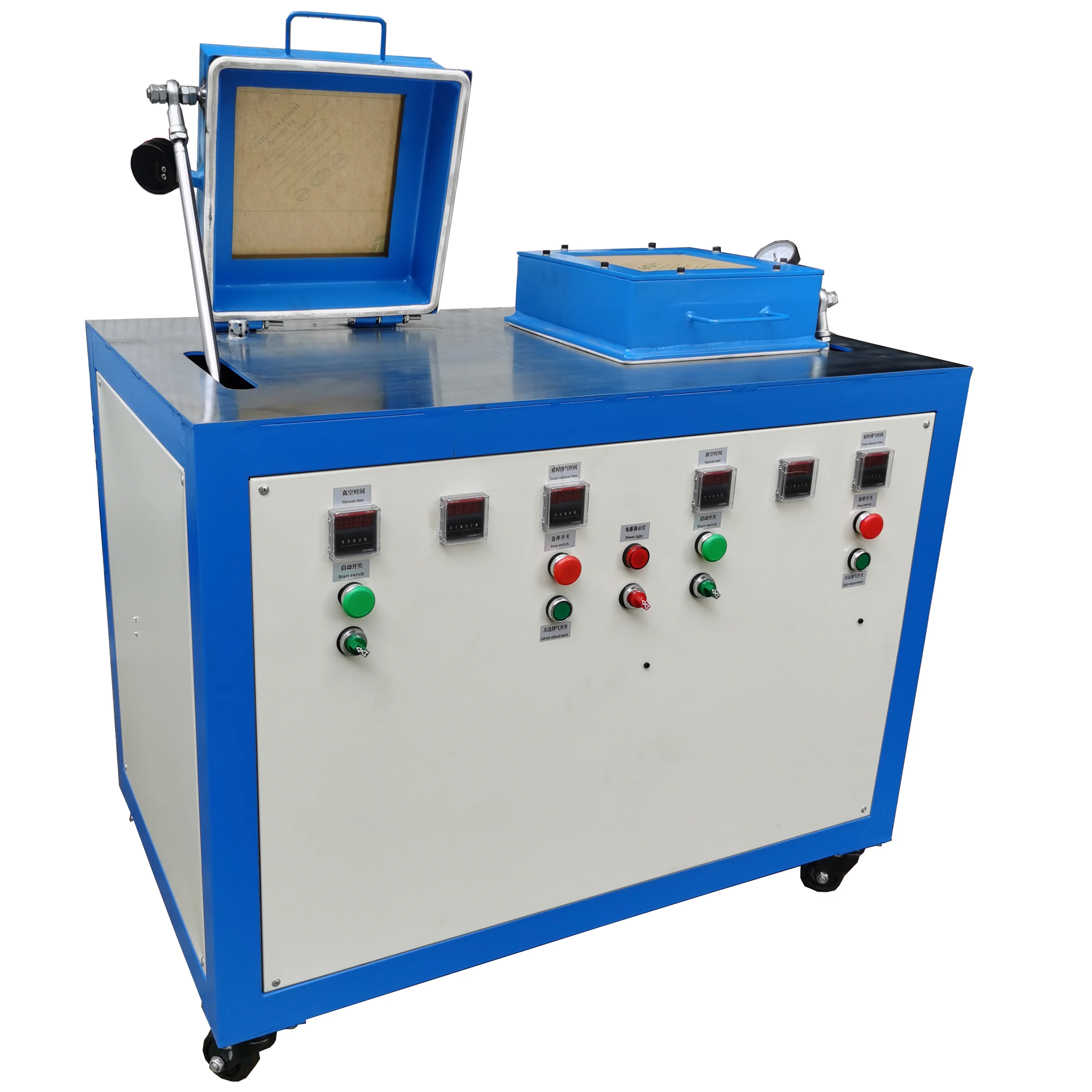

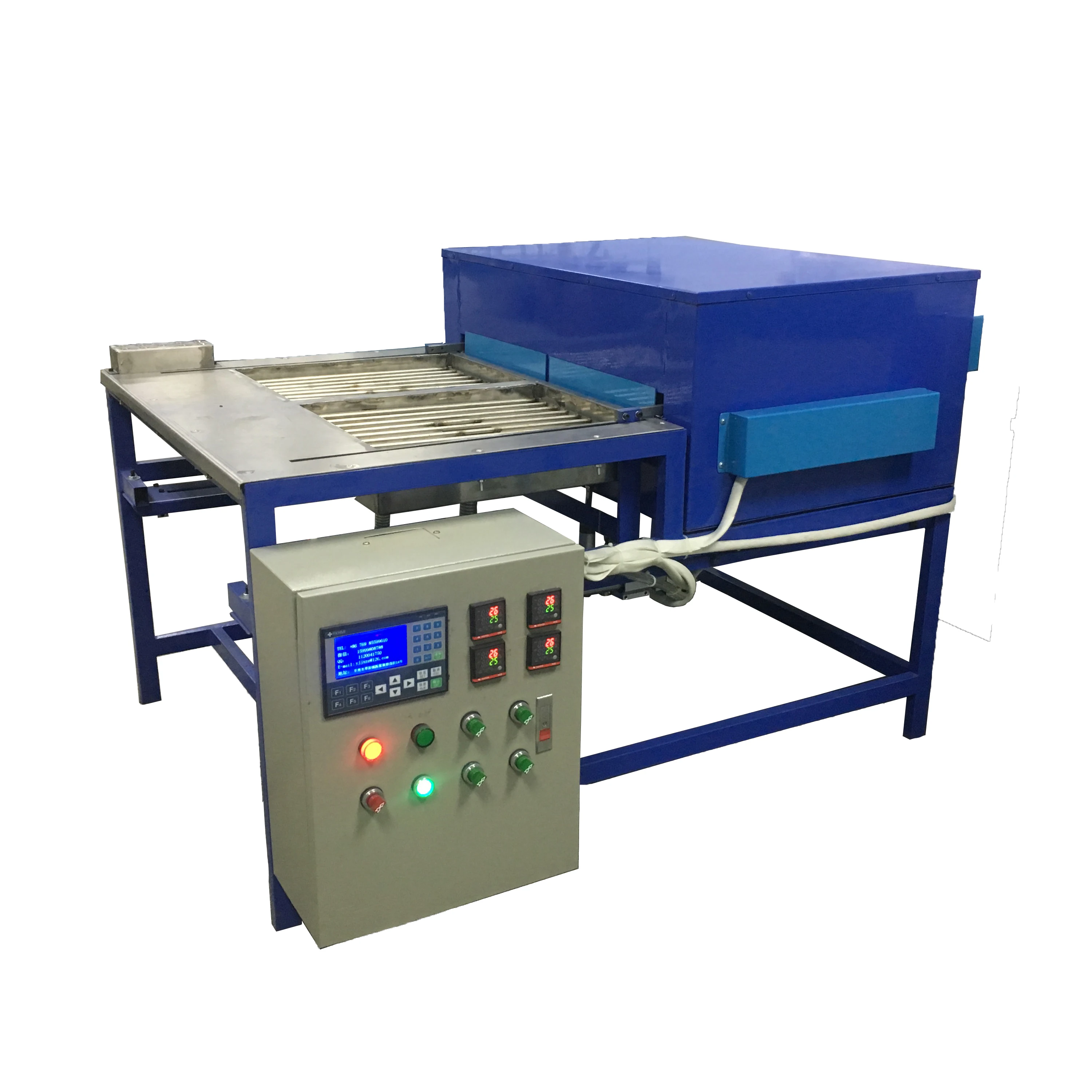

YJ-B08 Automatic Moulb-Baking Table
