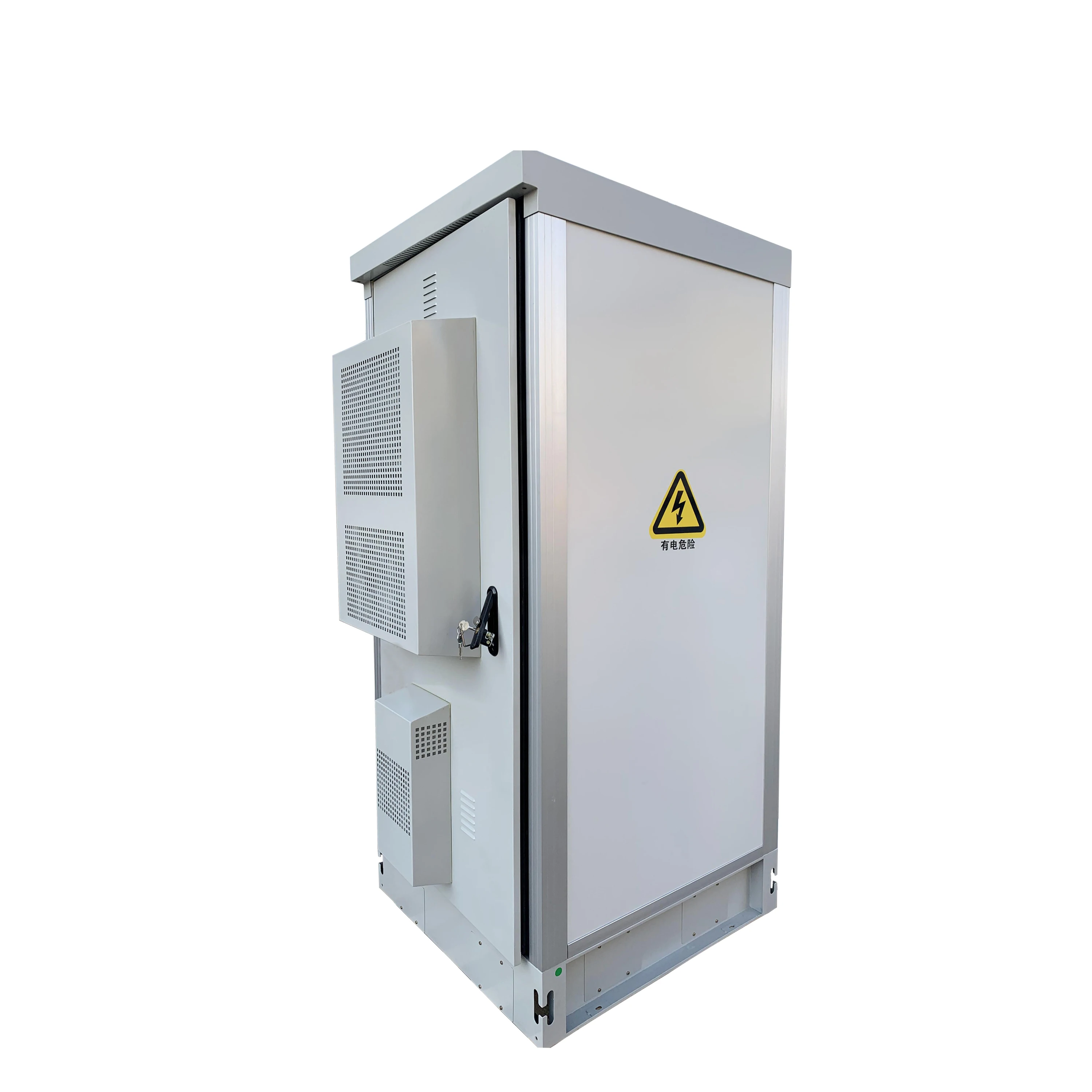

Наружный телекоммуникационный шкаф с кондиционером, шкафы питания IP55, сетевые шкафы
- Category: Network Cabinets >>>
- Supplier: Hebei Mufei Communication Engineering Co. Ltd.
Share on (1600534898012):
Product Overview
Description
Specification
item | value |
Model Number | 600A-2M |
Type | Outdoor communication cabinet |
Place of Origin | Hebei China |
Brand Name | Mufei |
Use | Outdoor |
product name | Base station telecommunication equipment outdoor communication cabinet |
Protection class | IP65 |
External Dimensions | 90*90*200CM |
Certification | ISO, CE, RoHS |
Material | Galvanized Sheet / 304 Stainless Steel / SPCC |
Surface treatment | Painting, plasma electrostatic painting, hot-dip galvanizing, powder coating |
Package | Export standard plywood box + pallet packing |
Product Description

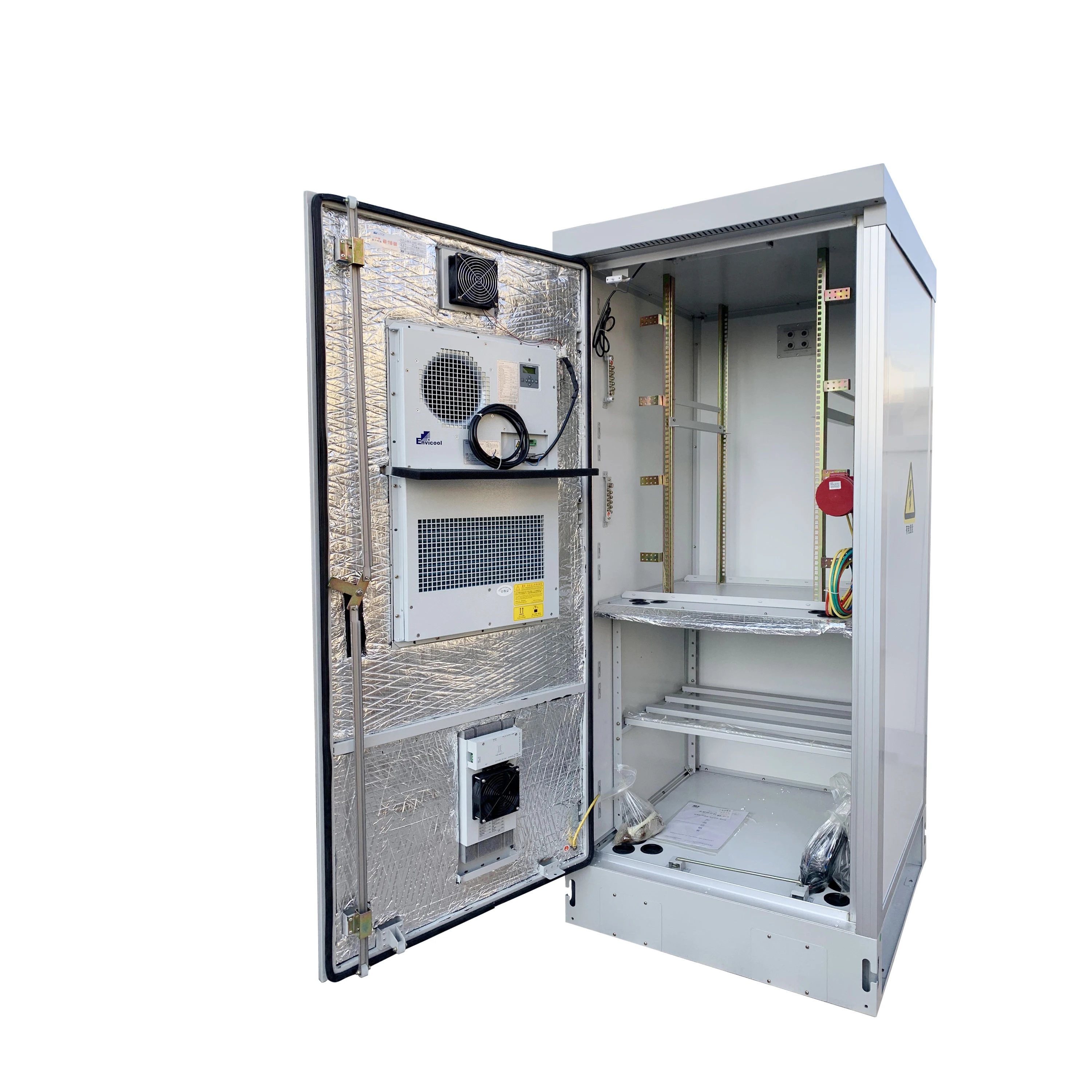

- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other
alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
-Supportcustom-made.
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other
alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
-Supportcustom-made.
Product Features
Attractive powder coat finish
Galvanized steel base
Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

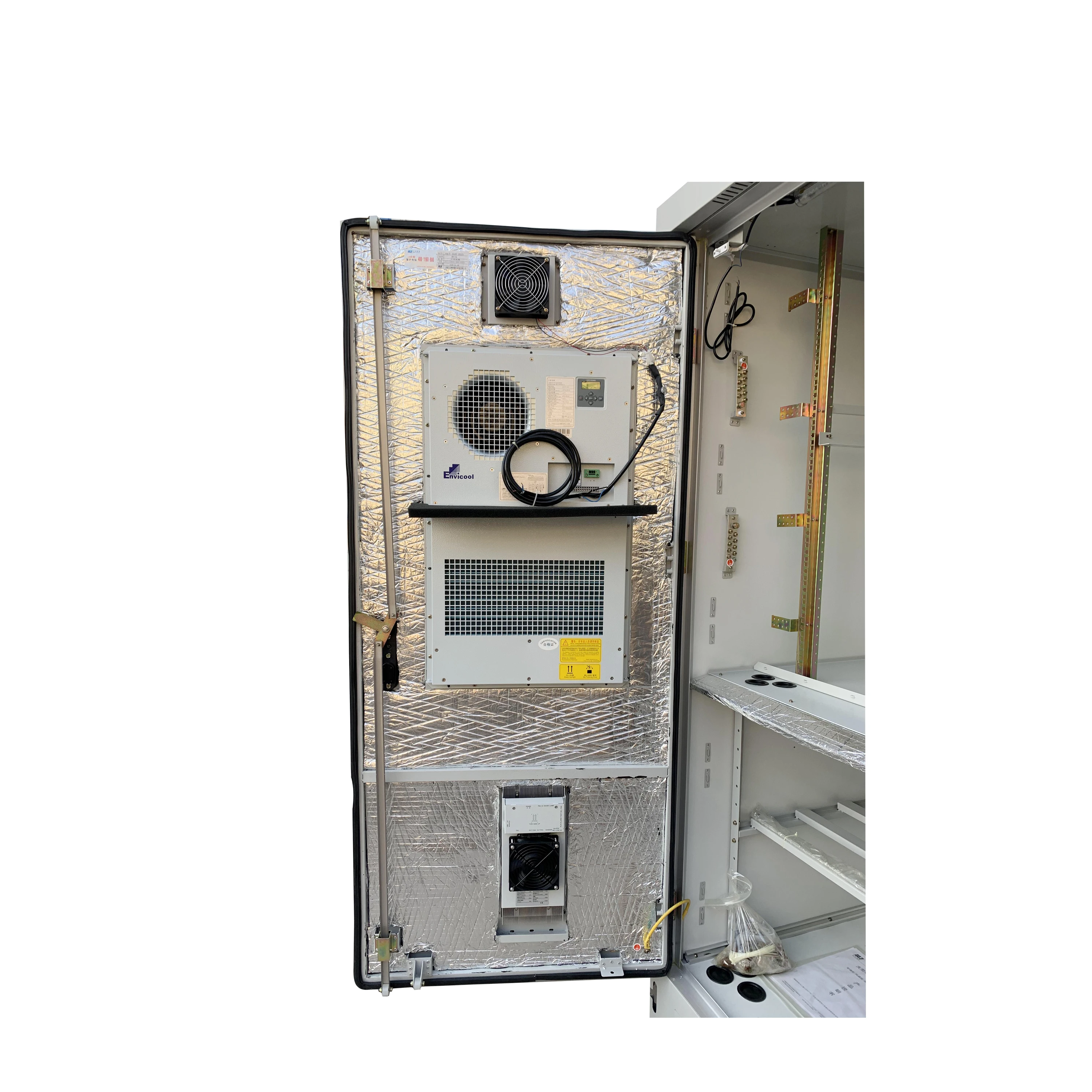

High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test
Galvanized steel base
Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test
Technical Data Sheet
Structure
Internal Dimension(H*W*D) :Standard 800*800*1900mm or any customized size
External Dimension(H*W*D) : Standard 2000*900*900mm or any customized sizeLayout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Materials are Galvanization plate
Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Equipment Installation Method:19" rack
Ingress Protection: IP65/IP55
Noise Level :60-65dB
Temperature Control Cooling :1500w 220VAC air conditioner
way of communication:RS485
Internal Dimension(H*W*D) :Standard 800*800*1900mm or any customized size
External Dimension(H*W*D) : Standard 2000*900*900mm or any customized sizeLayout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Materials are Galvanization plate
Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Equipment Installation Method:19" rack
Ingress Protection: IP65/IP55
Noise Level :60-65dB
Temperature Control Cooling :1500w 220VAC air conditioner
way of communication:RS485
Accessory List(options) | ||||
No. | Item | Specifications | ||
1 | Fan | DC48V, START WORK AT 35°C | ||
3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional | ||
4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. | ||
5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. | ||
6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. | ||
7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. | ||
8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. | ||
9 | Ground Bar | Resistance value: 0.021Ω | ||
10 | Built-in power supply | 150A/200A/300A/400A/500A/600A | ||
11 | Packaging | Wooden case/Export pallet | ||
Cooling System(Optional) | ||||
No. | Item | Specifications | ||
1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w | ||
2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k | ||
3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 100W, 200w, 300w | ||
4 | Fan | DC48V/220V/110V | ||
Company Profile
The Guarantee of High Quality
1 Certification of CE，ROHS，TUV，FCC
2.Strict quality contrller throughout the production process\t
3.Finished products test and overall check\t
4.Relible packing
Reliadle Team
1.Excellent technical team waiting for solve your questions
2.We pay attention to your requirements and production lead time
3.professional recommend for you
4.Good oral and written English make sure fluent communication
5.Any inquiry will be reply in 24hours
1 Certification of CE，ROHS，TUV，FCC
2.Strict quality contrller throughout the production process\t
3.Finished products test and overall check\t
4.Relible packing
Reliadle Team
1.Excellent technical team waiting for solve your questions
2.We pay attention to your requirements and production lead time
3.professional recommend for you
4.Good oral and written English make sure fluent communication
5.Any inquiry will be reply in 24hours
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. What do we do?
A: Hebei mufei Communication Engineering Co., Ltd. is a high-tech enterprise integrating product R & D, production, sales and service. The company is mainly based in Hebei Province, China. The company has strong economic and technical strength. The company's communication products are complete and reliable. They have been highly praised by the majority of users and have been widely used in the communication network.
Q2. How to ensure quality?
A: In the production process, we have professional technicians to control and ensure that the quality of each product is the best. Before delivery, the quality inspection personnel conduct 100% inspection again, and customers can buy at ease.
Q3. What are our products?
A: The company mainly has communication products such as communication power supply, indoor and outdoor cabinets, power modules, feeder optical cables, optical fibers and various optical modules.
Q4: Can customers get sample orders?
A: Yes, you can get sample orders to test our quality. The cost of samples is paid by the customer.
Q5. How long is the delivery date?
A: We will deliver the goods according to the customer's requirements.
Q6. What are the payment types?
A: Payment types mainly include t / T, L / C, PayPal, Western Union remittance, cash or others;
A: Hebei mufei Communication Engineering Co., Ltd. is a high-tech enterprise integrating product R & D, production, sales and service. The company is mainly based in Hebei Province, China. The company has strong economic and technical strength. The company's communication products are complete and reliable. They have been highly praised by the majority of users and have been widely used in the communication network.
Q2. How to ensure quality?
A: In the production process, we have professional technicians to control and ensure that the quality of each product is the best. Before delivery, the quality inspection personnel conduct 100% inspection again, and customers can buy at ease.
Q3. What are our products?
A: The company mainly has communication products such as communication power supply, indoor and outdoor cabinets, power modules, feeder optical cables, optical fibers and various optical modules.
Q4: Can customers get sample orders?
A: Yes, you can get sample orders to test our quality. The cost of samples is paid by the customer.
Q5. How long is the delivery date?
A: We will deliver the goods according to the customer's requirements.
Q6. What are the payment types?
A: Payment types mainly include t / T, L / C, PayPal, Western Union remittance, cash or others;
