Заводская поставка, Лучший термометр для контроля доступа к лицу, SDK mqtt, биометрическая машина для посещаемости лица сотрудника
- Category: >>>
- Supplier: Chengdu Tommi Technology Co. Ltd.
Share on (1600534901161):
Product Overview
Description
Products Description
TS77, 7-inch temperature measurement face recognition access control and time attendance all-in-one terminal

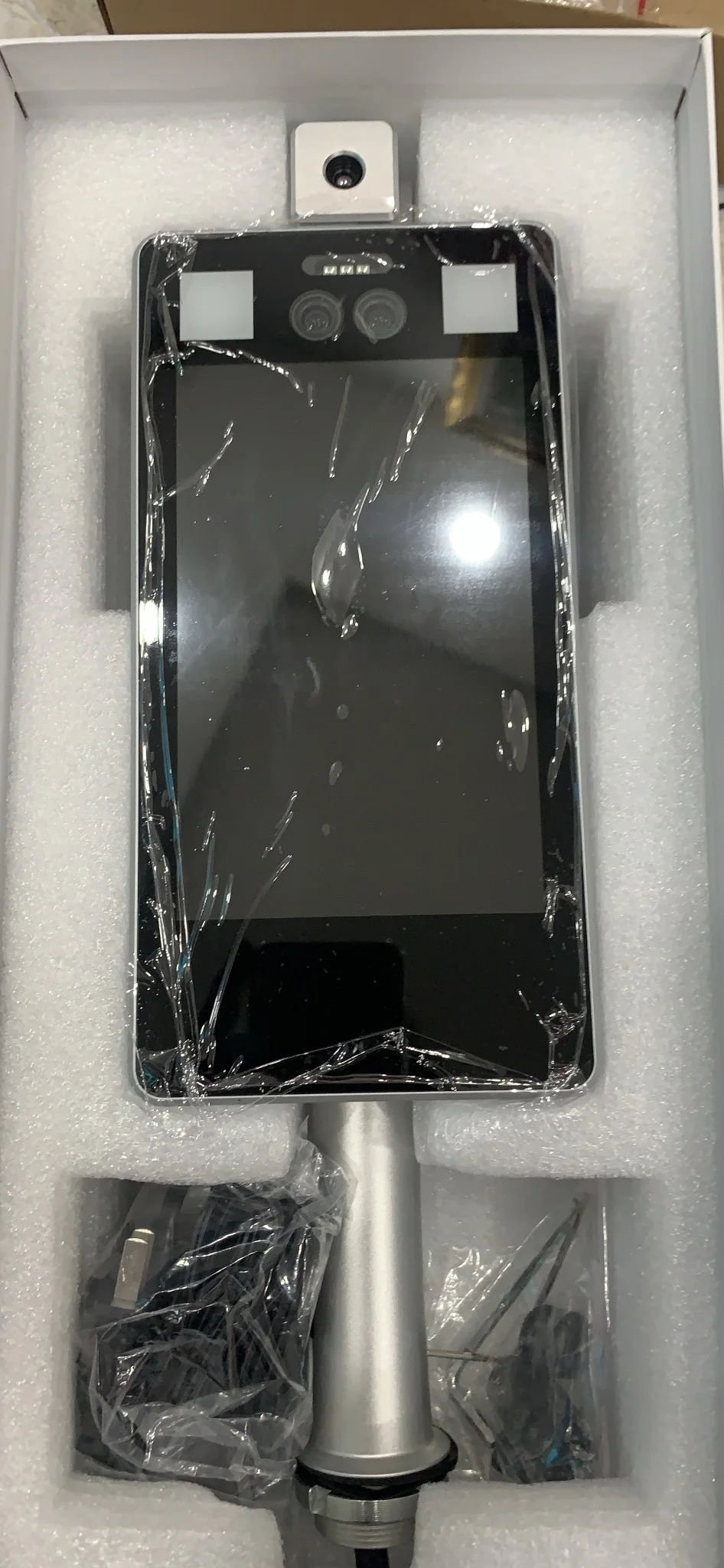

Now there are two product appearances for this model, one has external temperature probe, the other has built-in temperature probe. Customers can choose according to their own preference.
Recommend Combination
Card reader and QR code reader can be added to the face recognition device.
Note: The cost of the added card reader,QR reader and the metal stand is not included in the current price, pls contact us for the price of the stand or specific questions about customized functions.
Three most frequent installations of our face recognition devices are as above.
Note: We offer different standard accessory for each installation, pls inform us which is your preferrable installation before placing your order or before we send out your order.
Specifications
General | ||
Processor | Dual core ARM cortex-a7 @ 900 MHz; NPU:1.0 TOPS | |
OS | Linux | |
Face capacity | 50000 | |
Event capacity | 100000 | |
Screen | ||
Size | 7 inch | |
Type | Optional touch screen | |
Camera | ||
Type | Dual camera | |
Pixel | 2M | |
HDR | support | |
Digital noise reduction | support | |
Face recognition | ||
Detection type | Support live detection | |
Face Recognition rate | 99% | |
Face recognition Speed | ≤80ms | |
Face recognition distance | 0.5-2m | |
Function | ||
Audio prompt | support | |
Secondary development | support | |
Face anti-spoofing | support | |
Video Record & output | support | |
Capture Photo output | support | |
Network function | ||
Network protocol | ONVIF,TCP/IP,HTTP,FTP,485,GB28181,Wiegand,DNS,NTP,MQTT,WEBSOCKET | |
Interface protocol | ONVIF, RTSP,SDK | |
General functions | Heartbeat, password protection, NTP timing | |
Interface | ||
Network interface | RJ45 10m / 100M network adaptive | |
WiFi | Optional | |
Relay signal | support | |
RS485 | support | |
Wiegand | input, output | |
USB | support | |
Others | ||
Power Supply | DC12V 2A | |
working temperature | 0℃-40℃ | |
Working humidity | 0﹪-90﹪ | |
Power consumption (maximum) | ≤12W | |
Application environment | Indoor or windless environment | |
Accessories | Power supply, allen wrench, warranty card, manual | |
Package | ||
size | 195mm*120mm*415mm （external probe) | |
weight | 2300G | |
Warranty | 1 year | |
Certification | CE FCC | |
Temperature measurement | ||
measurement position | forehead | |
Measuring distance | 20-120cm | |
Temperature range | 34-42℃ | |
Temperature response | ≤0.5second | |
Measurement accuracy | 0.01℃ | |
Measurement deviation | ±0.2℃ | |
Buyer Feedback
OEM ODM & Custom Options
Company Profile
Chengdu Tommi Technology Co., Ltd. is an innovative technology company integrating R & D, production and sales. We adopt advanced image analysis algorithm and have fully independent intellectual property rights of face recognition technology. We can do OEM, ODM and try to meet various custom requirements from global customers. Our products cover front-end comparison face recognition cameras, face access control systems, face attendance machines and face temperature measurement instruments. In 2020, our sales volume exceeded 15 million US dollars, which ranked No.1 market share of Hisilicon embedded face recognition terminals. Our products are also exported to the United States, the Middle East, Japan, South Korea, Southeast Asia and other countries with FCC, CE, RoHs and other certificates.
Welcome to choose our face recognition products and discuss solutions with our R&D, Chengdu Tommi technology will serve you wholeheartedly with best quality and service.
Packaging & Shipping
FAQ
1. What is the FAR and FRR?
.FAR: 0.000002% FRR: 0.19%
2. Can your face recognition devices work on African black people?
.FAR: 0.000002% FRR: 0.19%
2. Can your face recognition devices work on African black people?
Yes, we have devices deployed in several African countries and customers feedback our devices work well on adults and they are pleased with the accuracy rate.
3. What programming languages does your device support?
3. What programming languages does your device support?
Our devices can support Java、C++、C# and multiple platform such as Linux,Arm, Windows.
4. Can I use my company logo on both physical product and inside firmware?
Yes, you can. We support customers' requirements of adding logo on the device and firmware.
5. What software do you use with the time attendance?
All our devices come along with our own attendance software.
6. Can I check your SDK file?
Yes, you can contact our customer service to ask for the SDK API file, user manual,etc.
7. What languages does your device support?
English, French, Japanese, Italian, Spanish,Korean, etc, we can add a language in the device and software very quickly.
8. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
9.What can you buy from us?
Face recognition cameras, face access control system, biometric attendance machines,temperature Instrument,etc.
10. Why should you buy from us not from other suppliers?
Our company is the first manufacturer in the world to launch offline dynamic face recognition equipment based on Hisilicon chip, our R&D is very supportive in meeting customers' special requirements, fast response to customers' questions and requests.
4. Can I use my company logo on both physical product and inside firmware?
Yes, you can. We support customers' requirements of adding logo on the device and firmware.
5. What software do you use with the time attendance?
All our devices come along with our own attendance software.
6. Can I check your SDK file?
Yes, you can contact our customer service to ask for the SDK API file, user manual,etc.
7. What languages does your device support?
English, French, Japanese, Italian, Spanish,Korean, etc, we can add a language in the device and software very quickly.
8. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
9.What can you buy from us?
Face recognition cameras, face access control system, biometric attendance machines,temperature Instrument,etc.
10. Why should you buy from us not from other suppliers?
Our company is the first manufacturer in the world to launch offline dynamic face recognition equipment based on Hisilicon chip, our R&D is very supportive in meeting customers' special requirements, fast response to customers' questions and requests.
