JSDSOLAR FACTORY 5KW 5.5KW solar Inverter on grid electric power inverter
- Category: >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd
Share on (1600534910103):
Product Overview
Description
Product Description
5.5kw solar system mppt solar charge controller with solar inverter

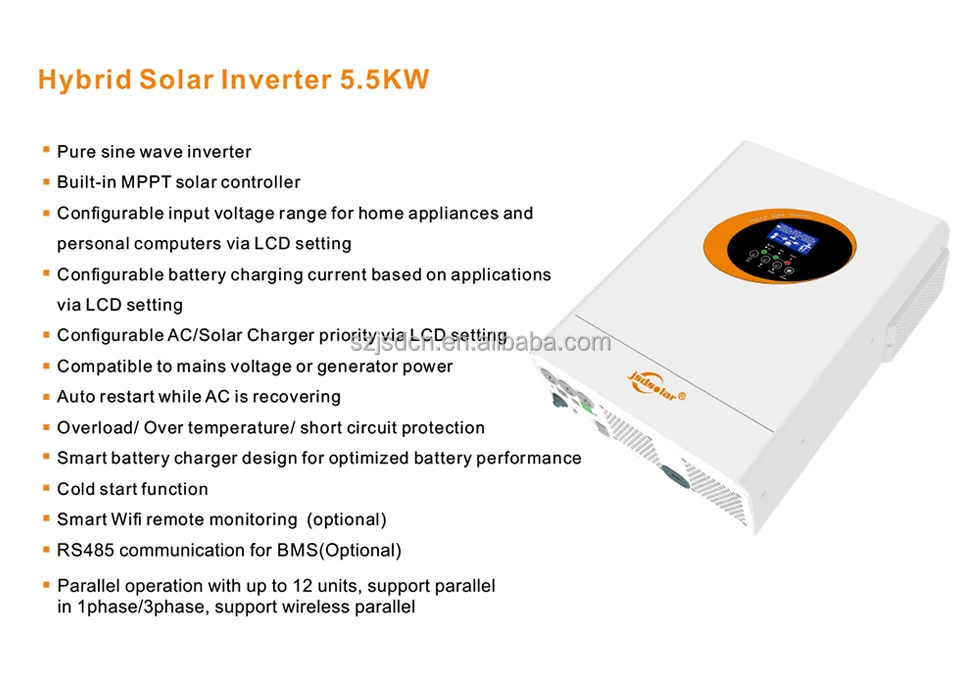

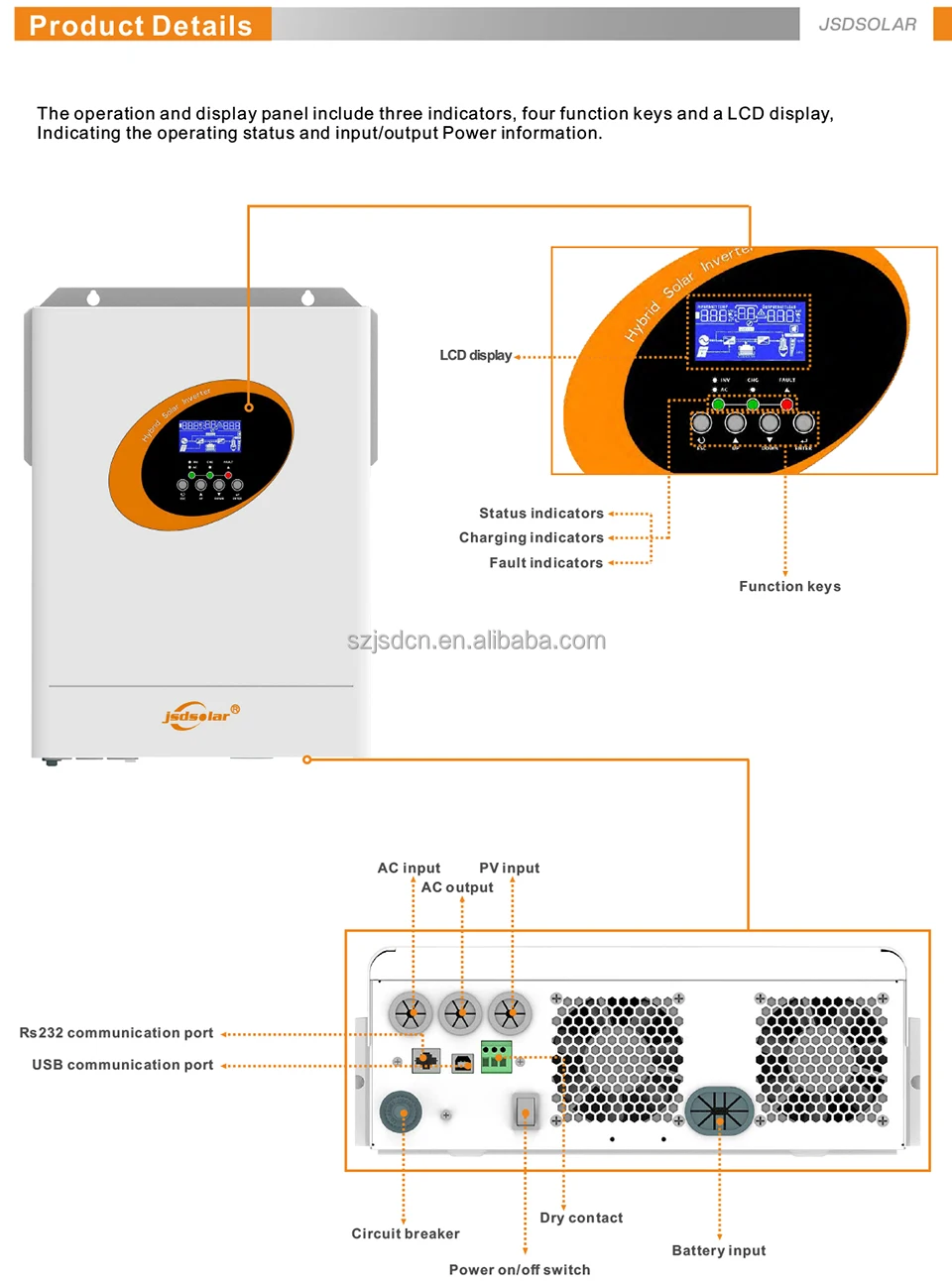

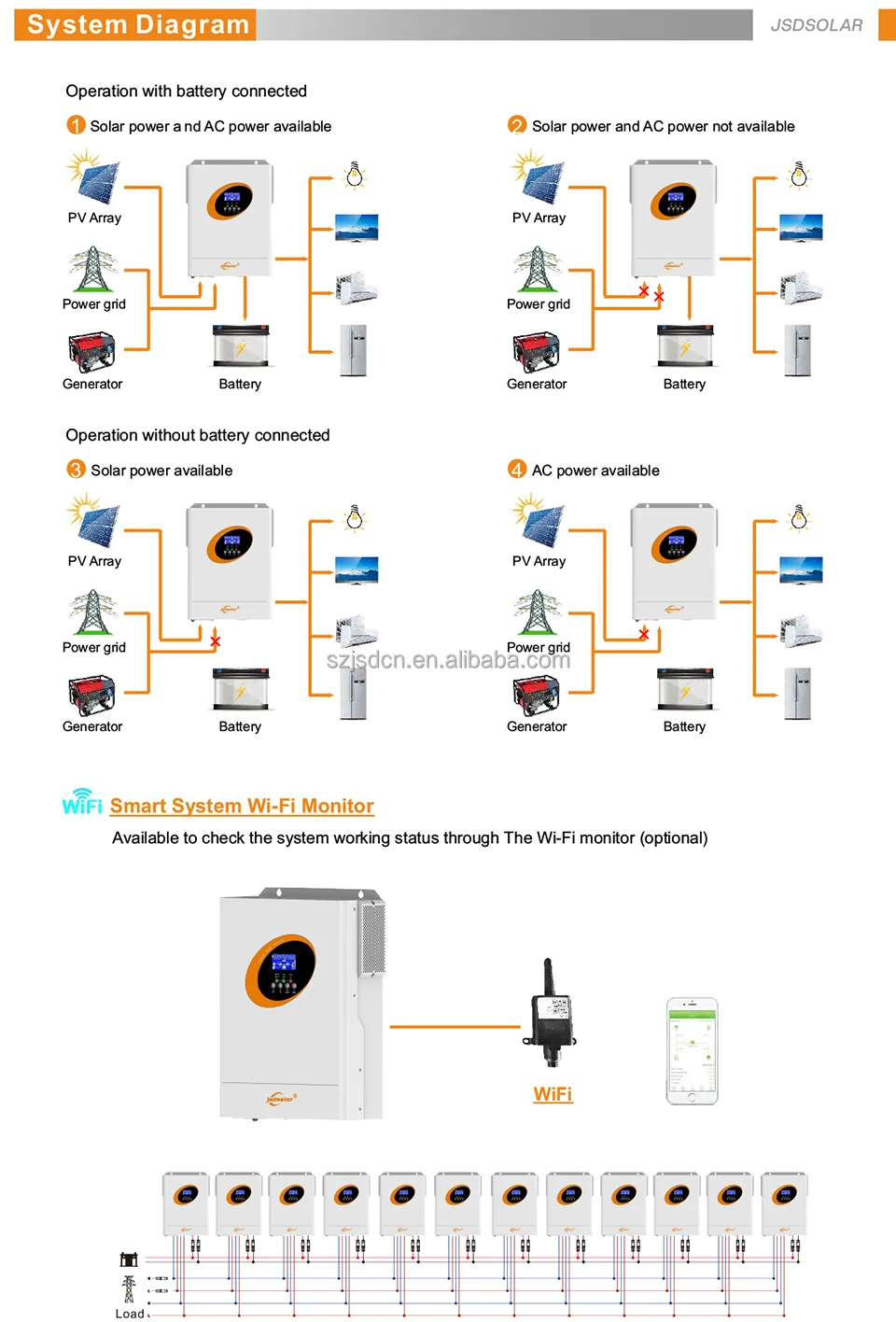

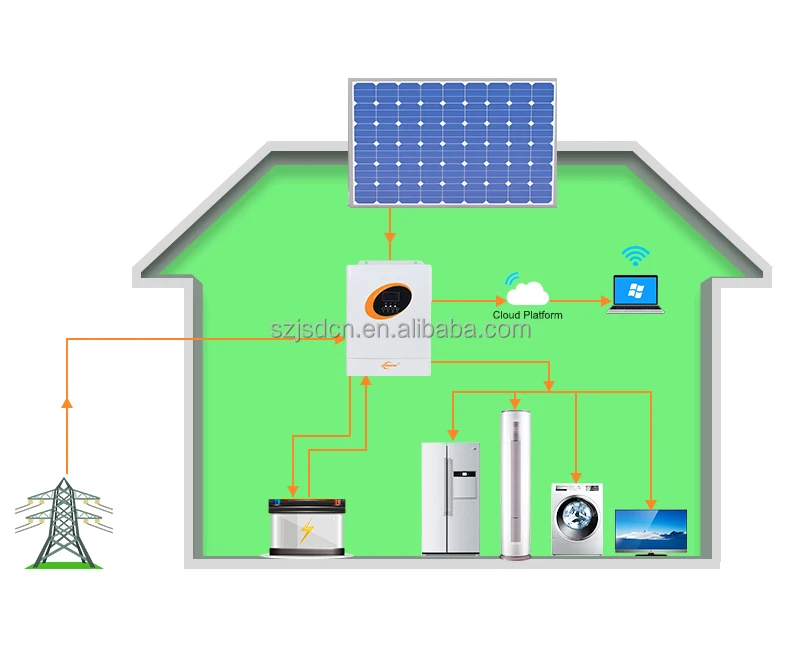

This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.JSDSOLAR FACTORY 2KW 3KW 5KW 5.5KW 10KW 20KW 30KW solar Inverter on grid electric power inverter
This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.JSDSOLAR FACTORY 2KW 3KW 5KW 5.5KW 10KW 20KW 30KW solar Inverter on grid electric power inverter
Specification
MODEL | J5500HP |
Capacity | 5.5KW |
Parallel Capability | YES,12units |
Input | |
Nominal Voltage | 230VAC |
Acceptable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) |
Frequency | 50/60HZ (Auto sensing) |
Output | |
Nominal Voltage | 220/230VAC ± 5% |
Surge Power | 10000VA |
Frequency | 50Hz/60Hz |
Waveform | Pure Sine Wave |
Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) |
Peak Effiffifficiency (PV to INV) | 97% |
Peak Effiffifficiency (Battery to INV) | 93% |
overload Protection | 5s@>=150% load; 10s 110%~150% load |
Crest Factor | 3:1 |
Admissible Power Factor | 0.6~1(inductive or capacitive) |
Battery | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 63 VDC |
Charging Method | CC/CV |
Solar Charge & AC Charge | |
Solar Charge Type | MPPT |
Max. PV Array Power | 5500W |
Max. PV Array Open Circuit Voltage | 500 VDC |
PV Array MPPT Voltage Range | 120VDC~450 VDC |
Maximum Solar Input Current | 18A |
Maximum Solar Charge Current | 100A |
Maximum Solar Charge Current | 60A |
Maximum Charge Current | 100A |

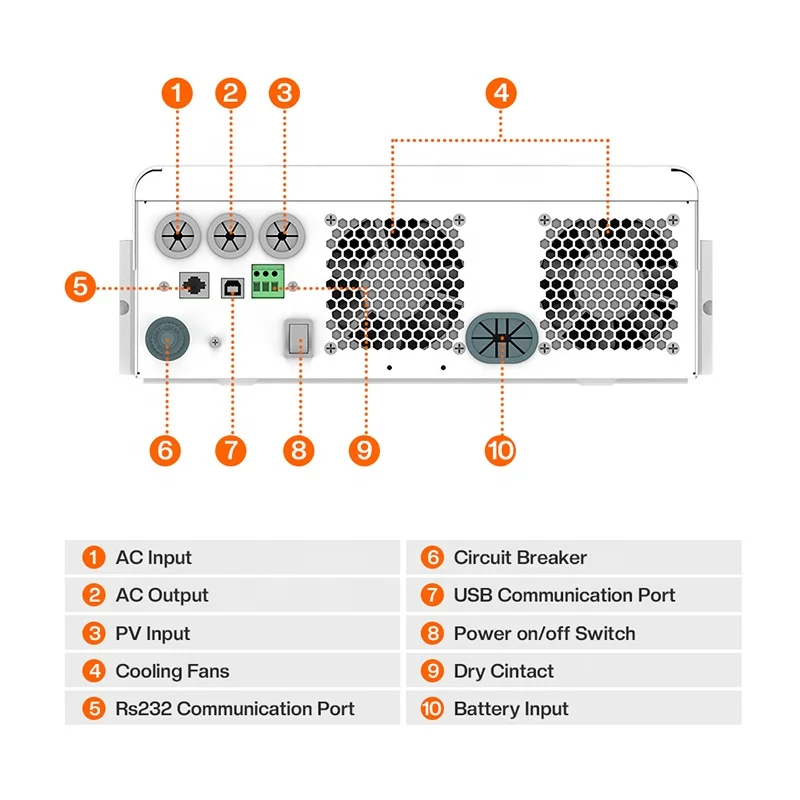

Communication Interface | USB/RS232/Dry-contact |
Environment | |
Operating Temperature | (-10℃~50℃) |
Storage Temperature | (-15℃~60℃) |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Recommend Products
Company Profile
Shenzhen Jinsdon Lighting Technology Co., Ltd. is founded in 2010, located in Shenzhen China.We achieved ISO9001:2008 quality management system certification in 2013 Our solar products have passed CE, FCC, RoHS and National Inspection Certification also have several national patents.We exported to over 50 countries, such as Germany, Japan, UK, USA, South Africa and so on.Jinsdon adheres to the "integrity, professional, and win-win" business philosophy, strive for lean, do a good job in every detail, and make strict product inspection system, to ensure the highest quality and create greater value for customers.Our Mainly Products as below:Integrated solar street light. All in one solar LED street light, Integrated solar garden light with Bluetooth speaker, Integrated solar garden light, Solar Power Wall, Solar Energy Power Supply, Li-ion Battery Pack for solar power,IOT smart solar street light system.
