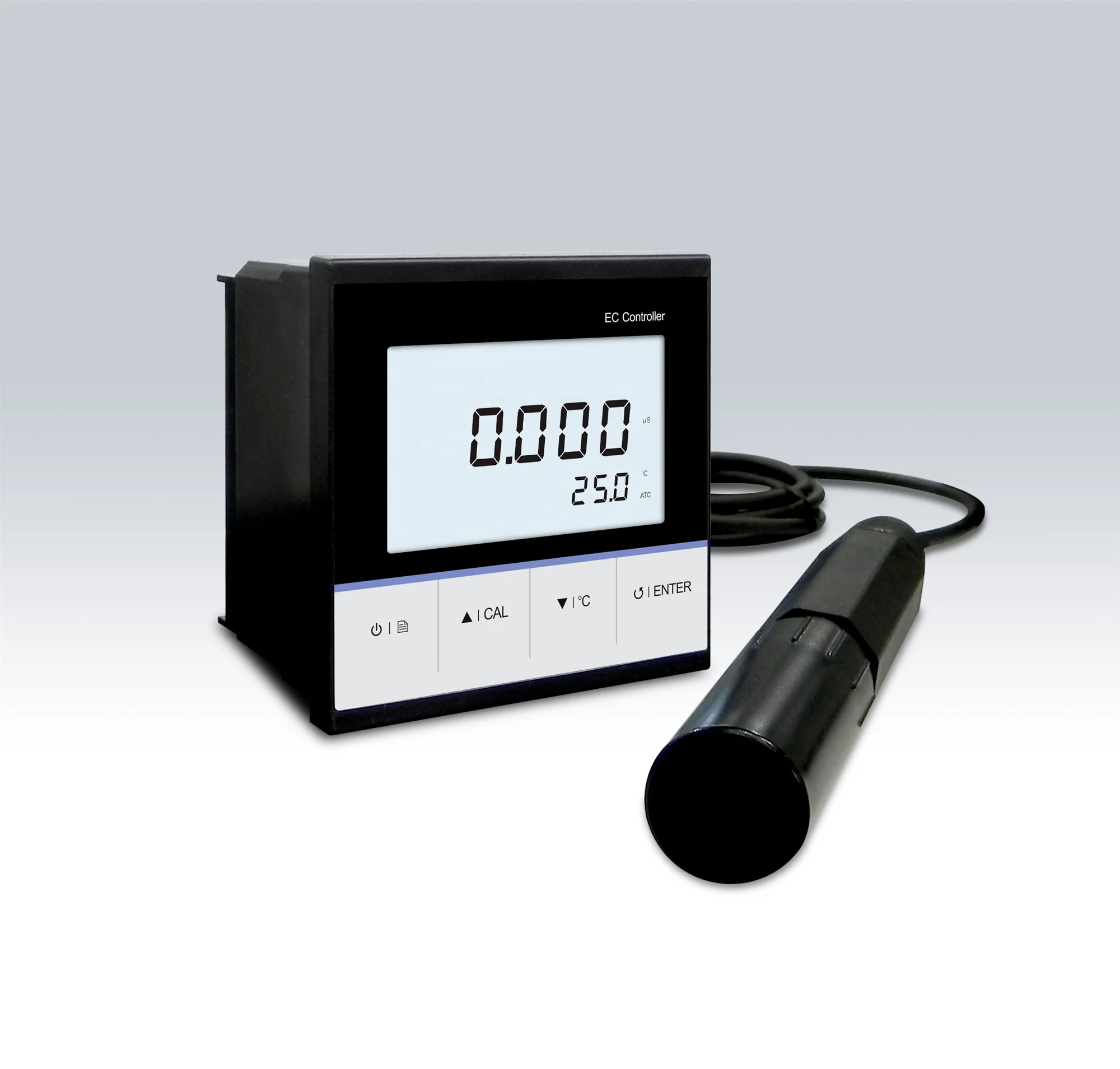

BI-650 Economical Industrial Online Conductivity Meter
Economical industrial online conductivity meter, with TDS measuring function, 3 key calibration, 4 to 20mA signal output, the meter is suitable for chemical, metallurgy, environmental protection, pharmaceutical and food industries to monitor the water conductivity and dissolved total solid value.
Features:
* Economical industrial online conductivity meter with 1-3 point calibration.
* 4 to 20mA signal output, corresponding conductivity value can be selected.
* High or low alarm limit setting, with customizable hysteresis.
* Optional electrode constant (K=0.1/1/10), suitable for wiring different types of conductance electrodes.
* Optional temperature compensation coefficient and TDS conversion factor meet the measurement requirements of different water quality.
* Automatic temperature compensation ensures accurate measurement in full range.
* Manual temperature calibration improves the measurement accuracy of instrument temperature.
* RS485 communication output conforms to the standard specification of industrial instruments.
* 9 functional parameters such as the number of calibration points, electrode constant, temperature compensation coefficient and alarm limit can be defined from the setting menu.
* One-key reset can automatically restore the instrument to the factory default setting.
* 4 to 20mA signal output, corresponding conductivity value can be selected.
* High or low alarm limit setting, with customizable hysteresis.
* Optional electrode constant (K=0.1/1/10), suitable for wiring different types of conductance electrodes.
* Optional temperature compensation coefficient and TDS conversion factor meet the measurement requirements of different water quality.
* Automatic temperature compensation ensures accurate measurement in full range.
* Manual temperature calibration improves the measurement accuracy of instrument temperature.
* RS485 communication output conforms to the standard specification of industrial instruments.
* 9 functional parameters such as the number of calibration points, electrode constant, temperature compensation coefficient and alarm limit can be defined from the setting menu.
* One-key reset can automatically restore the instrument to the factory default setting.
Specification
Electrical conductivity | ||
Measuring range | 0.01～20.00, 200.0, 2000μS/cm, 20.00, 200.0mS/cm | |
Accuracy of measurement | ±1% F.S | |
Display resolution | 0.01, 0.1, 1 | |
Calibration point | 1 to 3 points | |
Use calibration fluid | 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm | |
TDS | ||
Measuring range | 0～10.00, 100.0, 1000ppm, 10.00, 100ppt (Max200ppt) | |
Accuracy of measurement | ±1% F.S | |
Conversion factor | 0.1～1.0 (The default0.5) | |
The temperature | ||
Measuring range | 0～100℃, 32～212℉ | |
Accuracy of measurement | ±1℃ | |
Display resolution | 0.1℃ | |
Communication function | ||
Signal output | 4～20mA, The largest load500Ω | |
High/low alarm setting | 0.02uS/cm～20.0mS/cm | |
Types of communication | RS485 | |
General parameters | ||
Temperature compensation range | 0～100℃, 32～212℉, Manual or automatic | |
Temperature compensation coefficient | 0.0～10.0%/℃ | |
Conductivity cell constant | K=0.1, 1, 10 | |
Normalized temperature | 25℃ | |
Using the environment | 0～60℃, 32～140℉ | |
Power source type | DC24V | |
Overall dimensions | 96(L)×96(W)×75(H)mm | |
Meter weight | 350g | |
Product configuration | The attachment |
BI-650 | IE-50MT Industrial Conductivity Electrode |
Optional accessories
Optional accessories:Project description | Project description |

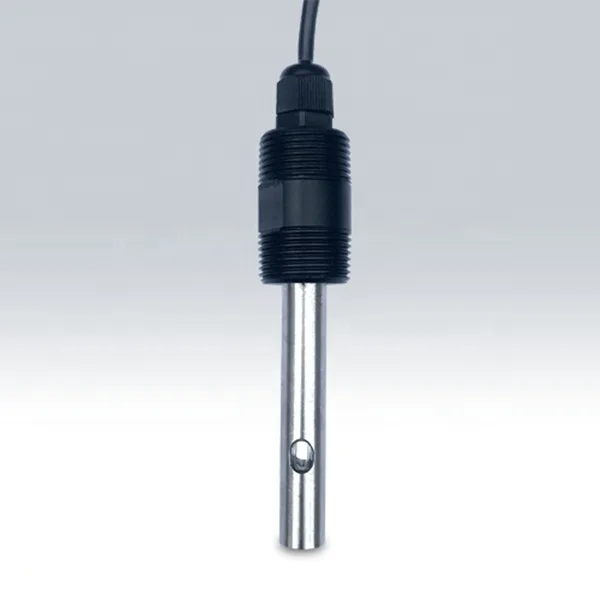

IE-50MT Industrial Conductivity Electrode | Suitable for measuring conventional liquids |
IE-50LT Industrial Conductivity Electrode | Suitable for measuring low conductivity liquids |
IE-50HT Industrial Conductivity Electrode | Suitable for measuring high conductivity liquids |
Conductivity standard liquid | 480 ml /bottle |
