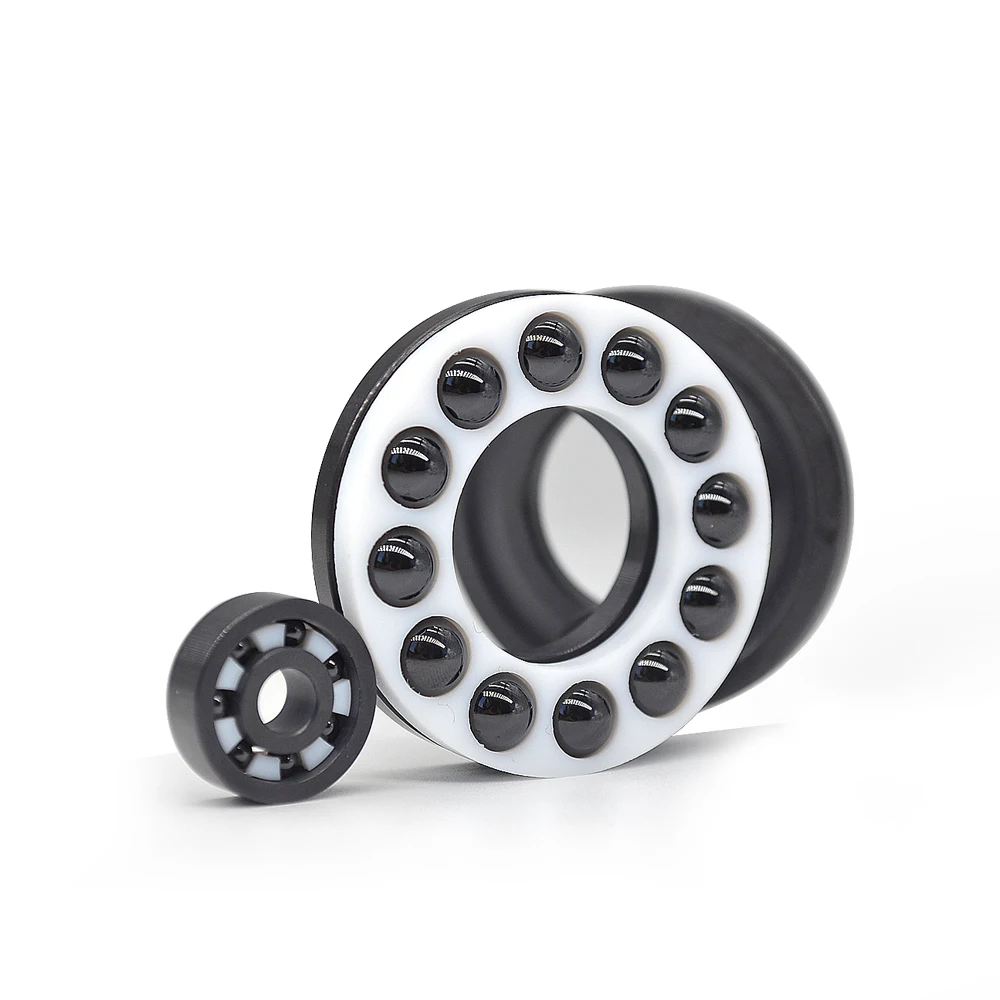

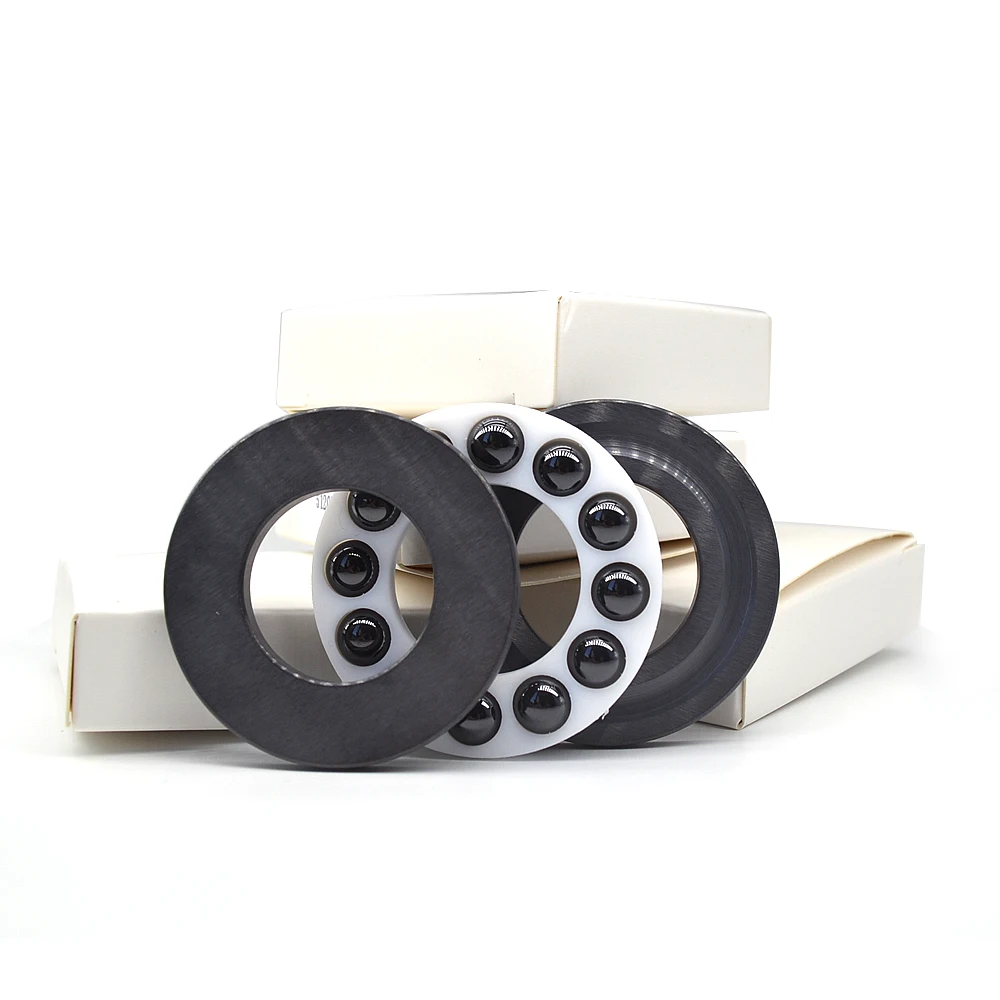

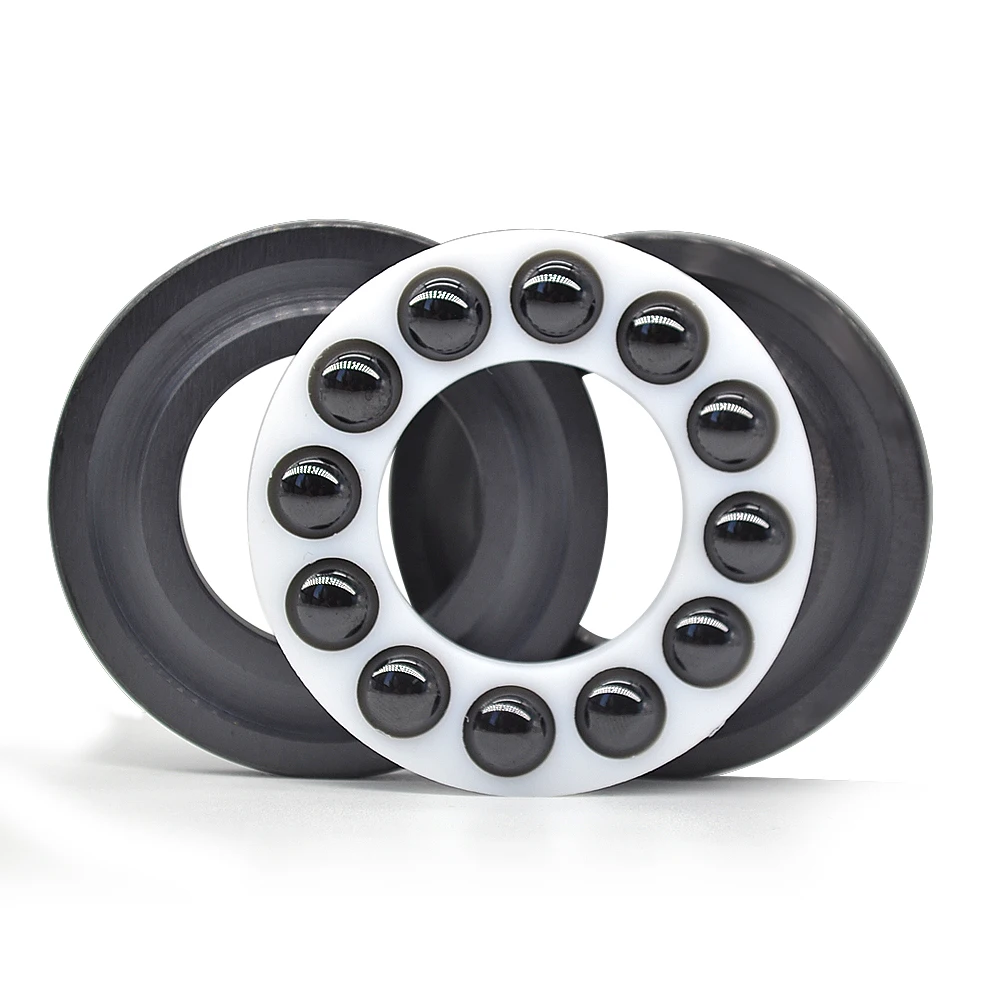

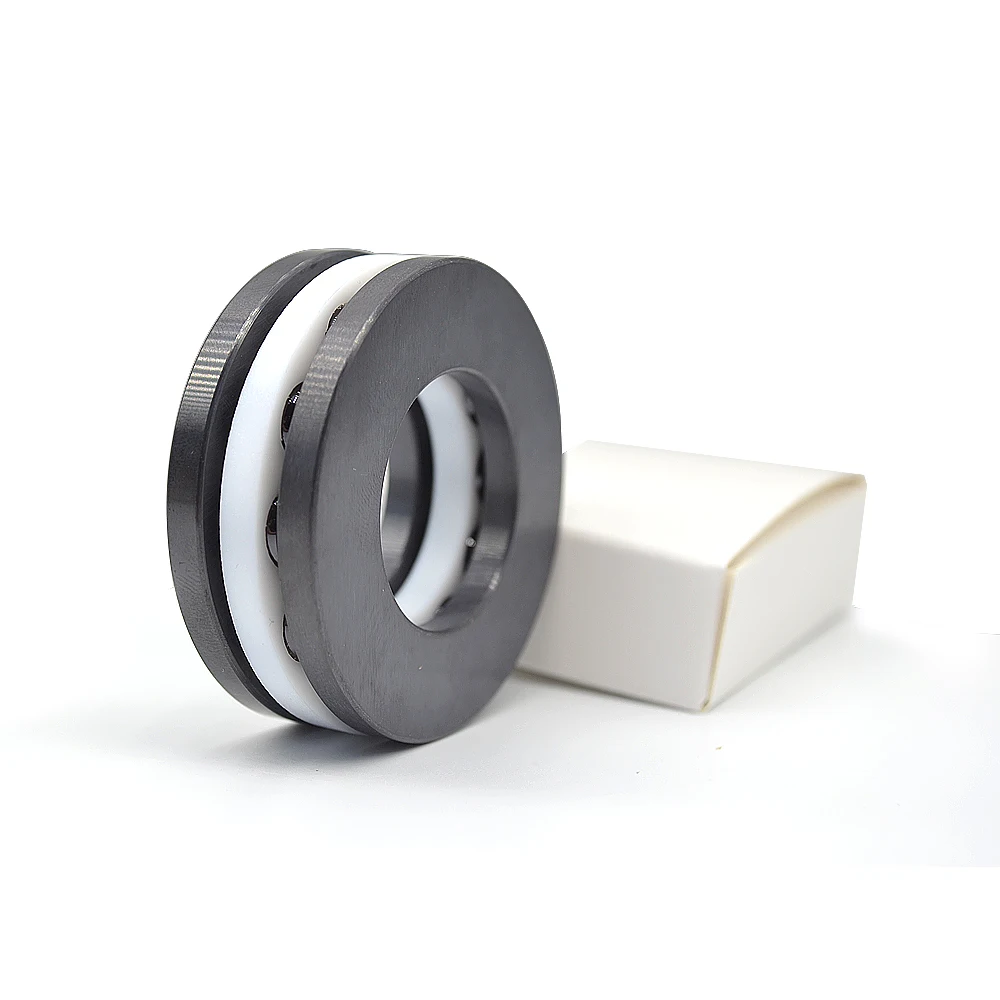

Factory Supply Silicon Nitride Si3N4 Ceramic Single Direction Thrust Ball Bearing 51107 Size 35*52*12mm
- Category: >>>
- Supplier: Shanghai Xiayu Bearing Co. Ltd.
Share on (1600534935186):
Product Overview
Description
Product Description
Thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. thrust ball bearings are separable, ie the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately.

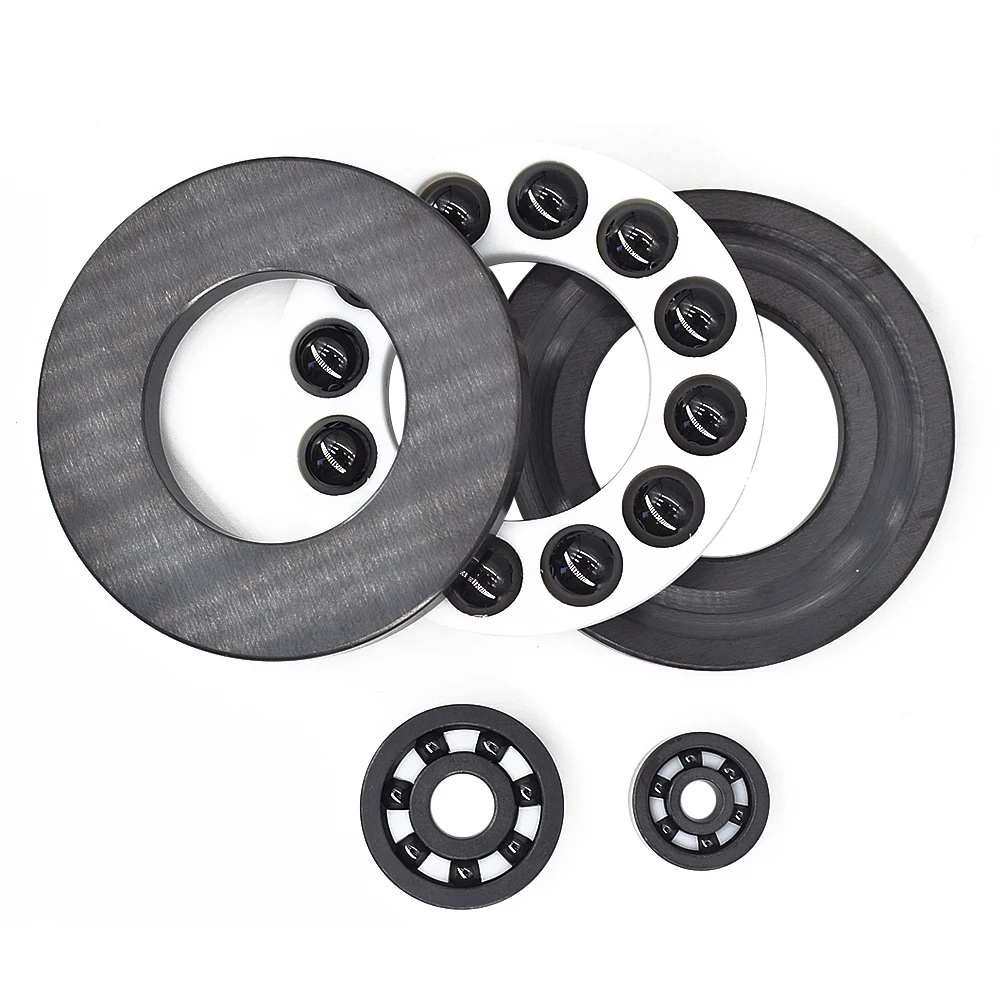

Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assemblies.As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.
Size Information
Name | Thrust Ball Bearings |
Construction | Single Row |
Size | 51107 |
Material | Si3N4 |
Inner Dia | 35mm |
Outter Dia | 52mm |
Thickness | 12mm |
Max Speed(X1000rpm) | 8 |
ABEC Rating | Available in ABEC3/5/7 |
Weight | 58.1g |
Si3N4,ZrO2,Al2O3 and Steel's basical performance date comparision:
ZrO2 | Al2O3 | Si3N4 | Steel | |
Density(g/cm³) | 6.05 | 3.95 | 3.23 | 7.85 |
Coeffcient of Thermal Expansion(10-6/k) | 10.5 | 9.1 | 3.2 | 10 |
Hardness | 1200HV/70HRC | 1800HV/80HRC | 1500-1800HV/75-80HRC | 700HV/62HRC |
Max Temp.(℃） | 550 | 1850 | 800 | 300 |
Non-Lubrication Friction | Small | Small | Small | Large |
