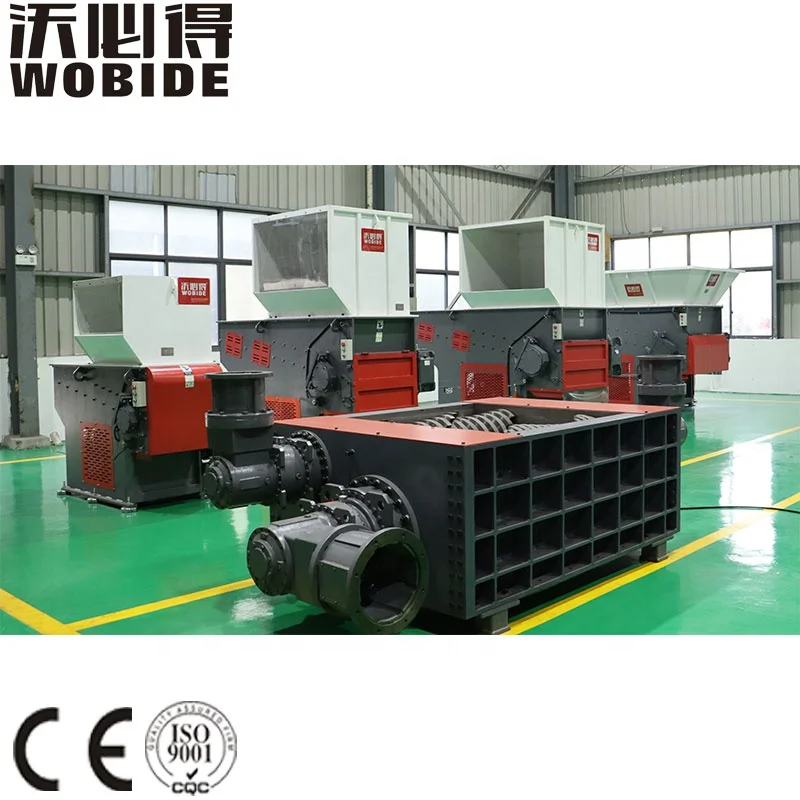

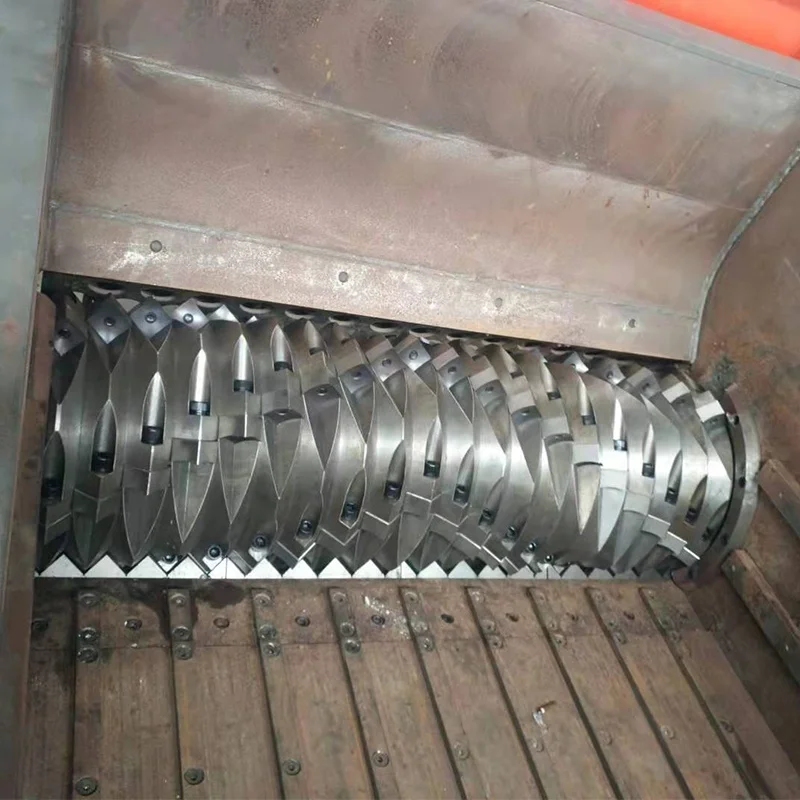

Tire/Paper/Waste/Plastic Shredder/Shredding Machine
- Category: >>>
- Supplier: Wobide Machinery (zhejiang) Co. Ltd.
Share on (1600534938390):
Product Overview
Description
Products Description

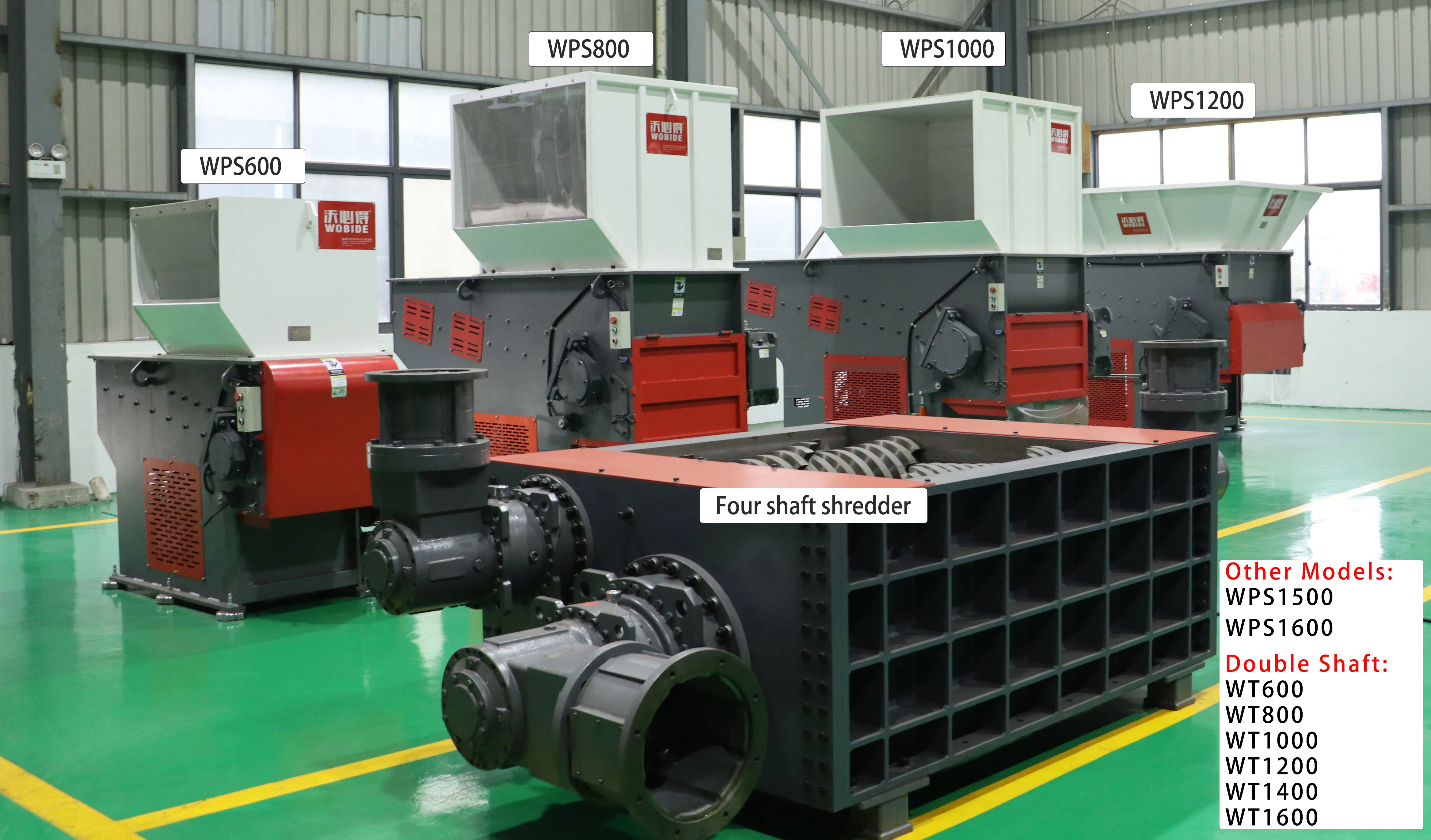

WPS600
WPS800
WPS1000
WPS1200
Model | WPS600 | WPS800 | WPS1000 | WPS1200 | WPS1600 |
Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1600 |
Tactical Diameter(mm) | 280 | 400 | 450 | 450 | 645 |
Main Shaft Speed(rpm) | 78 | 78 | 78 | 78 | 78 |
Ram Travel（mm） | 600 | 800 | 1000 | 1200 | 1600 |
Rotor Blades（pcs） | 39 | 51/57 | 63/92 | 81/116 | 140/156 |
Fixed Blades（pcs） | 2 | 2 | 3 | 4 | 5 |
Motor Power(kw) | 22 | 37 | 55/75 | 75/90 | 75*2 |
Hydraulic Power（kw） | 2 | 3 | 4 | 4 | 5 |
Screen Mesh Diameter (mm) | 30-80 | 30-80 | 30-120 | 30-120 | 30-120 |
Cutting Chamber Dimension (mm) | 600*600 | 800*800 | 1000*1000 | 1200*1250 | 1600*1400 |
Overall Dimension (mm) | 1750*1400*1780 | 2430*1720*2480 | 2880*2180*2570 | 3350*2300*2660 | 3800*3300*3250 |
Weight(kg) | 2800 | 5000 | 7000 | 8000 | 11500 |

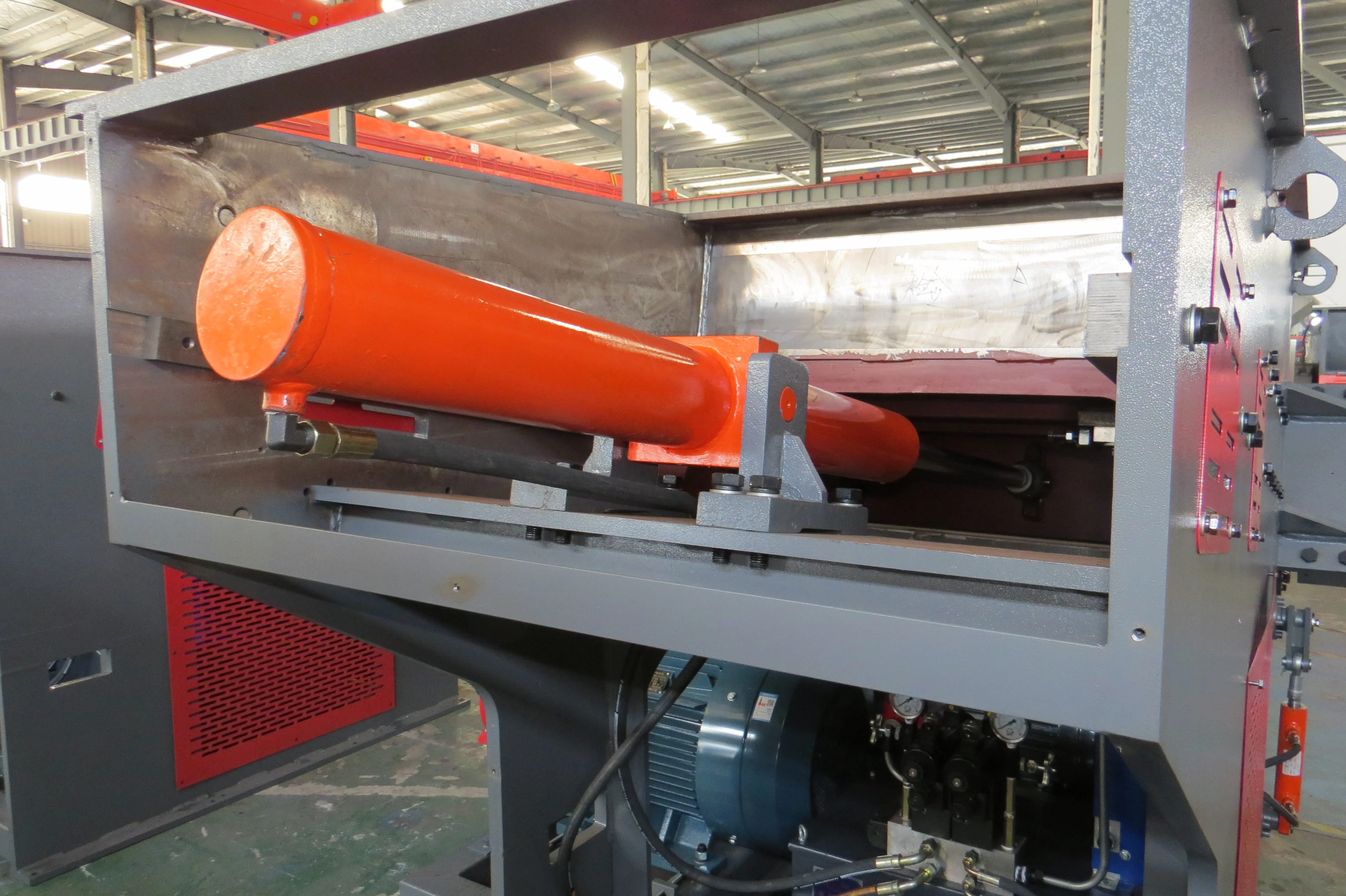

Single-shaft shredders are equipped with a built-in pusher, which makes it a small floor space and a large internal space, is an ideal shredder designed for large-volume materials.
It is suitable for shredding the lefe-over material of injection molding machine, chemical blue barrel, garbage bin, pallet and other large-capacity barrel containers, packaged bundle film, blow molding industry waste, carpet, wood, kitchen and household garbage. Special models can also be designed to customers need.
With Siemens PLC, it can automatically control, stop, reverse and overload automatic reversal. With the advantages of low speed, high torque, low noise and so on.
It is suitable for shredding the lefe-over material of injection molding machine, chemical blue barrel, garbage bin, pallet and other large-capacity barrel containers, packaged bundle film, blow molding industry waste, carpet, wood, kitchen and household garbage. Special models can also be designed to customers need.
With Siemens PLC, it can automatically control, stop, reverse and overload automatic reversal. With the advantages of low speed, high torque, low noise and so on.
Application
Application:
⇨Pieces from injection molding machine
⇨Pieces from injection molding machine
⇨Thick wall plastic sheet
⇨Pipe
⇨Hollow plastic products
⇨Chemical blue barrel
⇨Plastic pallet
⇨Film
⇨Wood
⇨Kitchen and household waste
Details Images

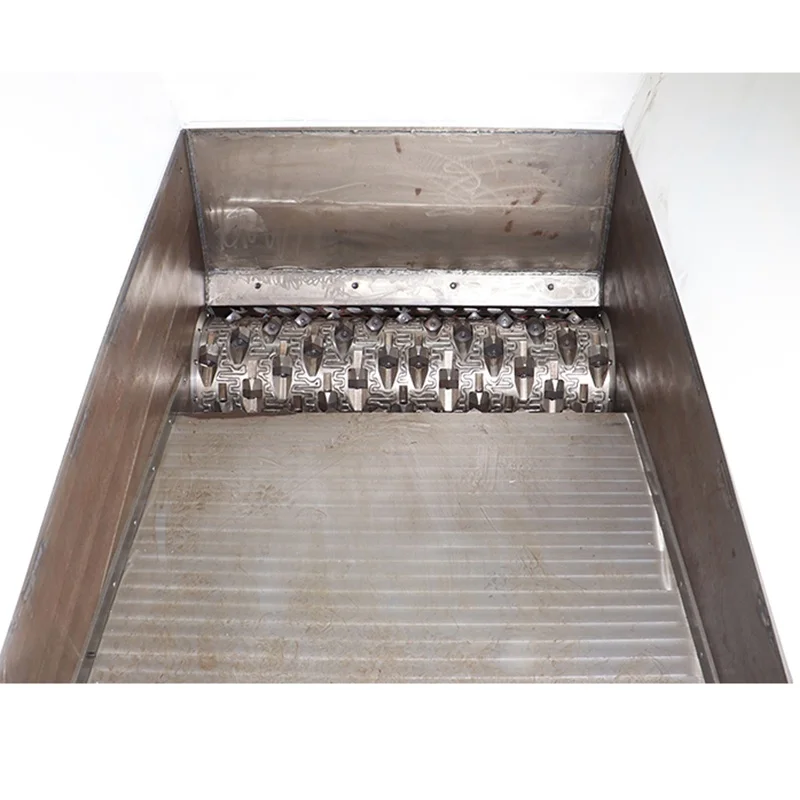

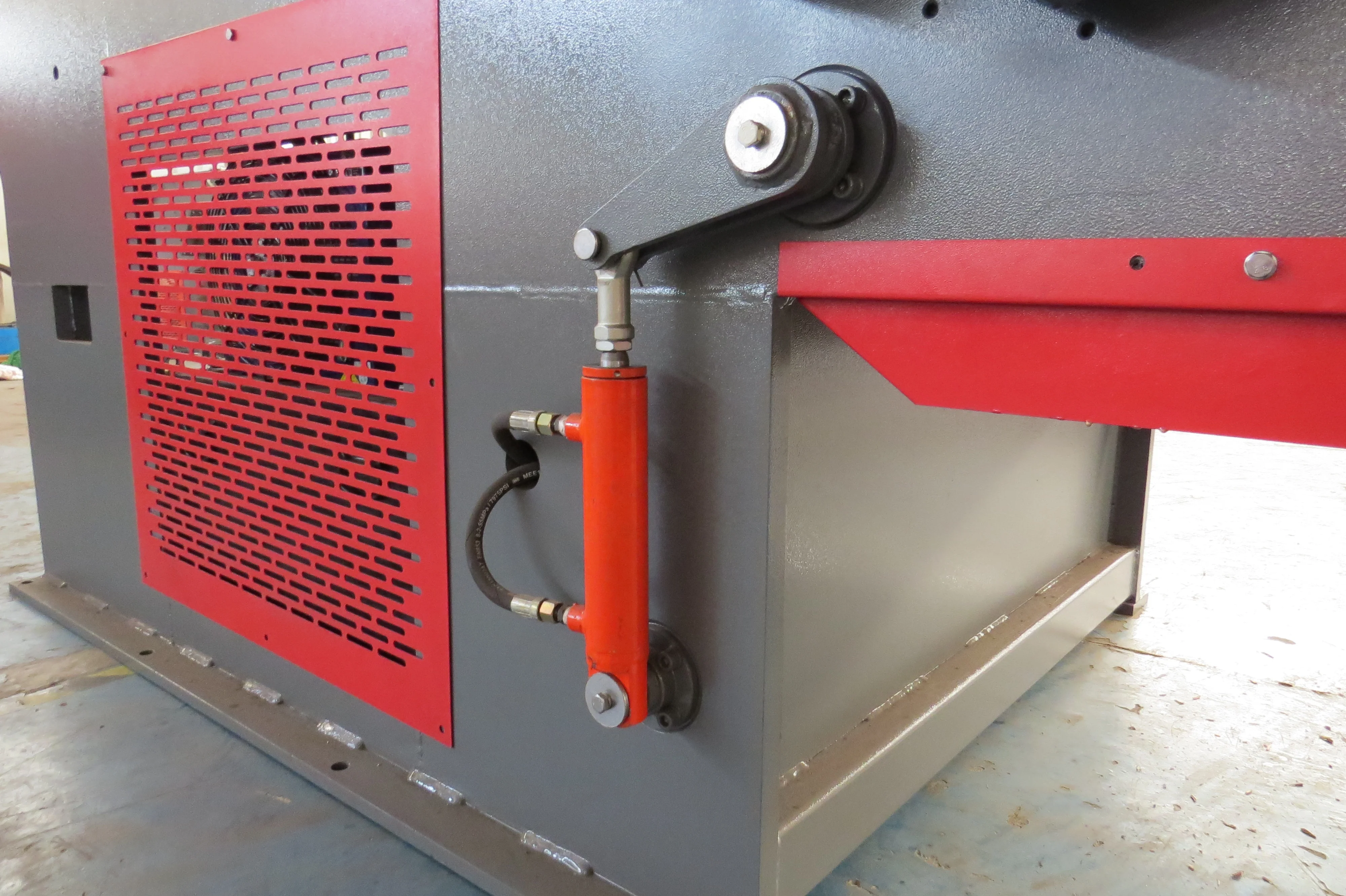

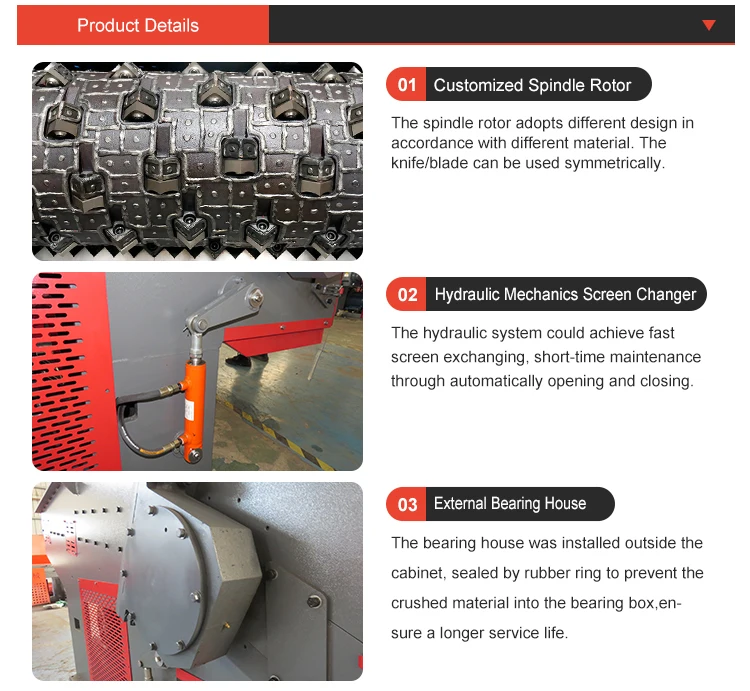

Main Features Of Single Shaft Shredder
Don't leave here,we are the most reliable supplier!!!
We can do:
Plastic crusher/shredder/granulator/recycling washing line
Plastic crusher/shredder/granulator/recycling washing line
We can offer:
customization+high quality+certificate+service
customization+high quality+certificate+service
We have:
25+years experiences
Alibaba Verified Gold Certification Supplier
25+years experiences
Alibaba Verified Gold Certification Supplier
Please tell us:
Type of raw material
Required output per hour
Your budget
Type of raw material
Required output per hour
Your budget
Certifications
More Products
Company Profile
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
