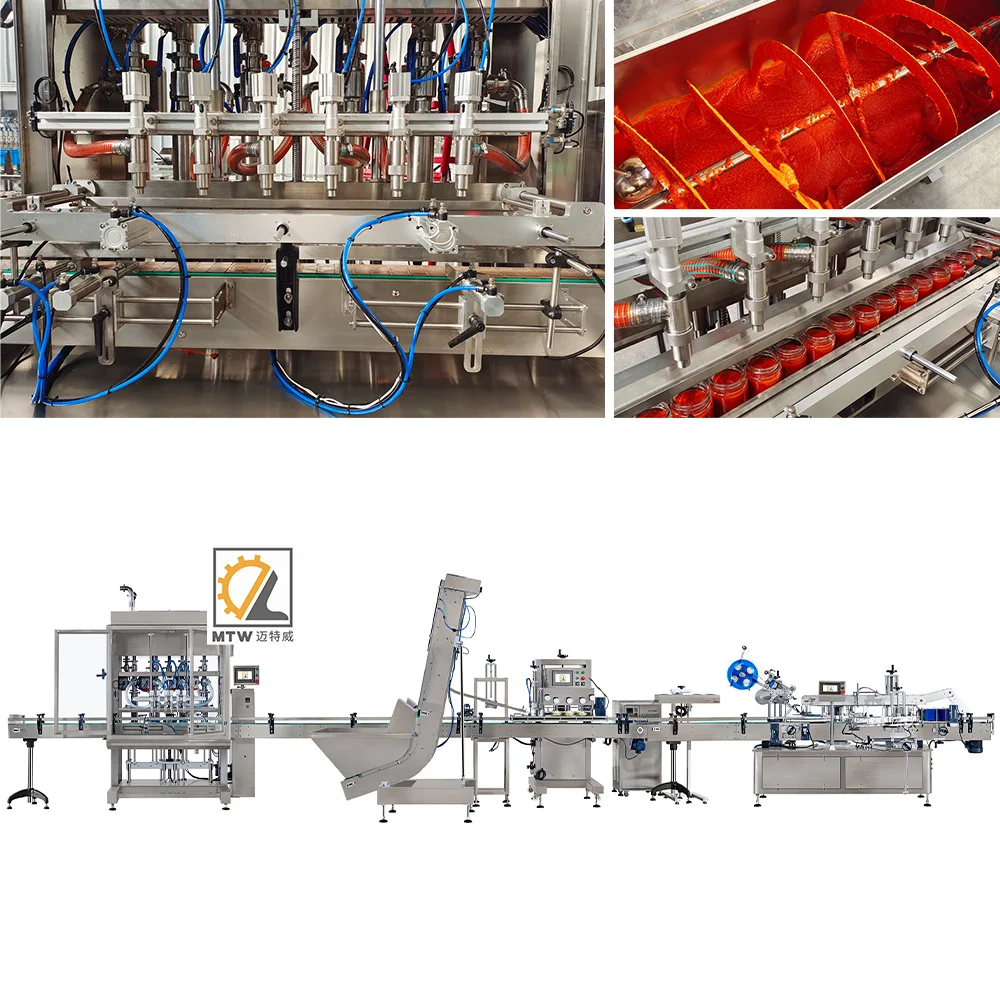

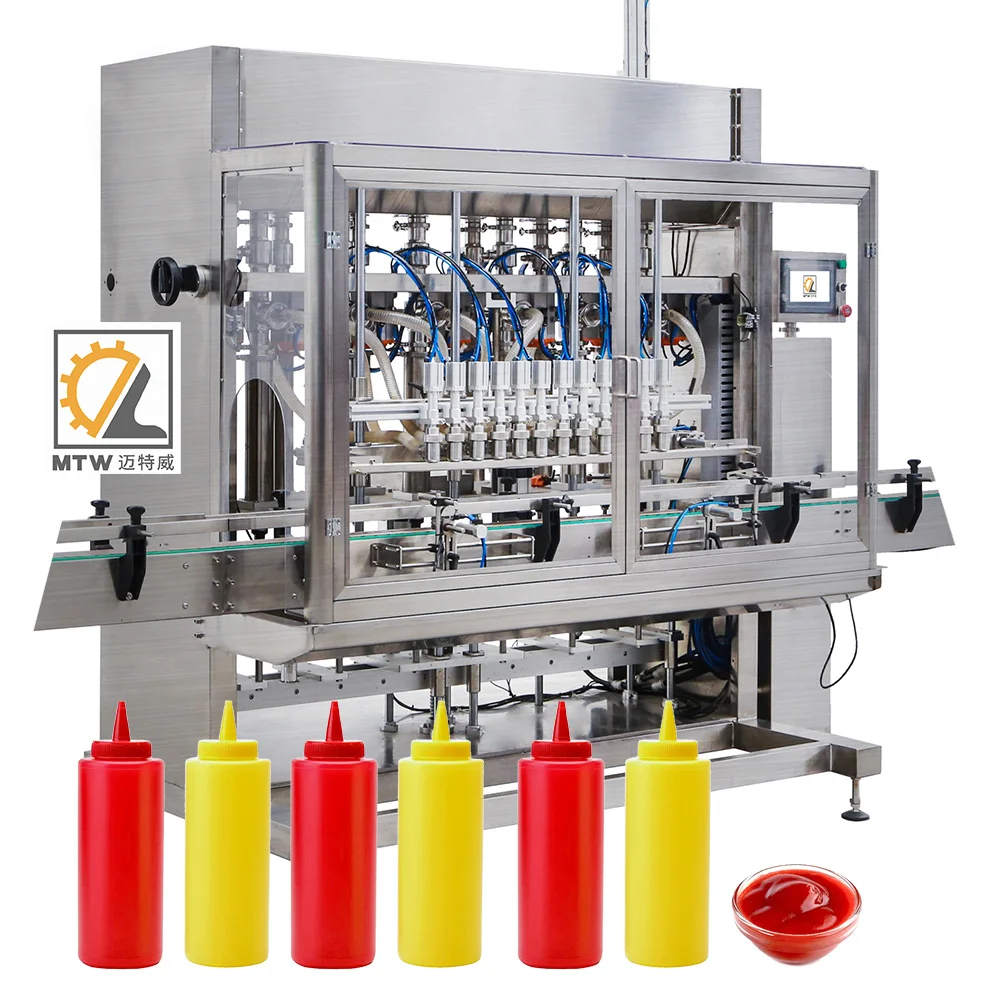

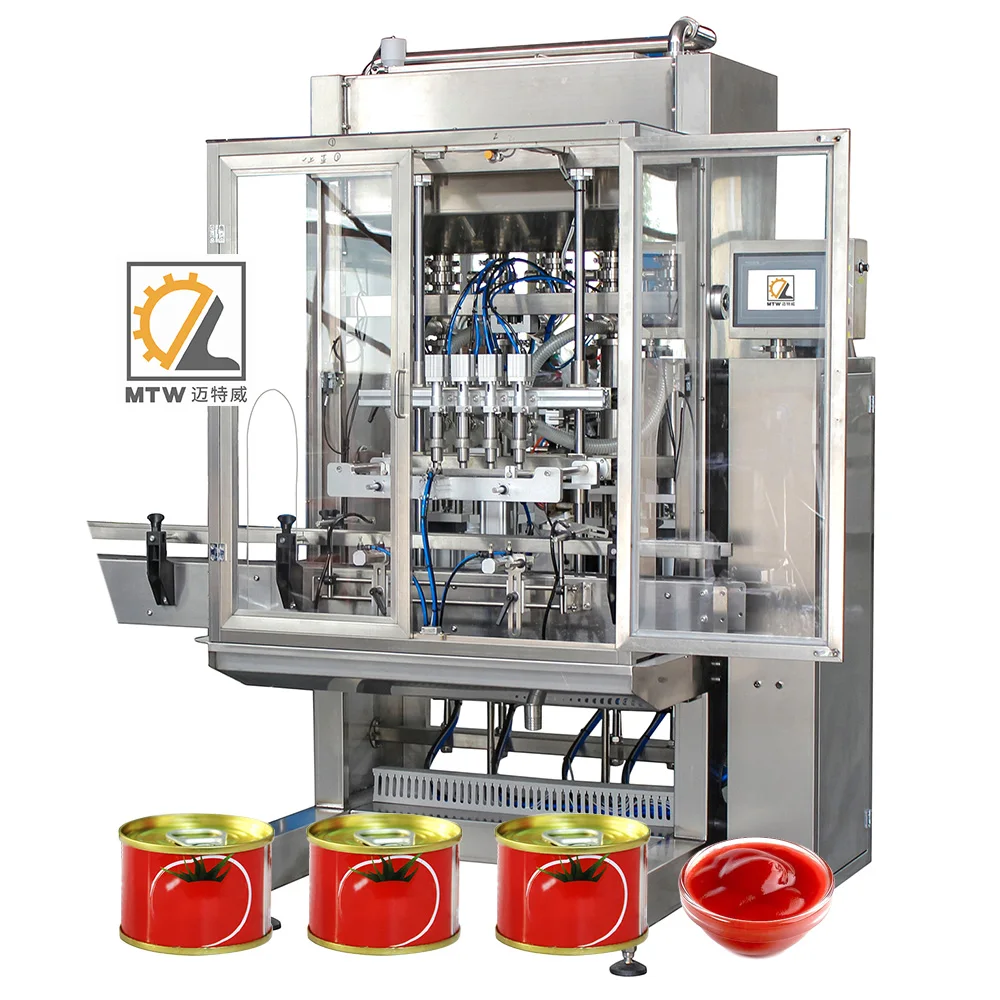

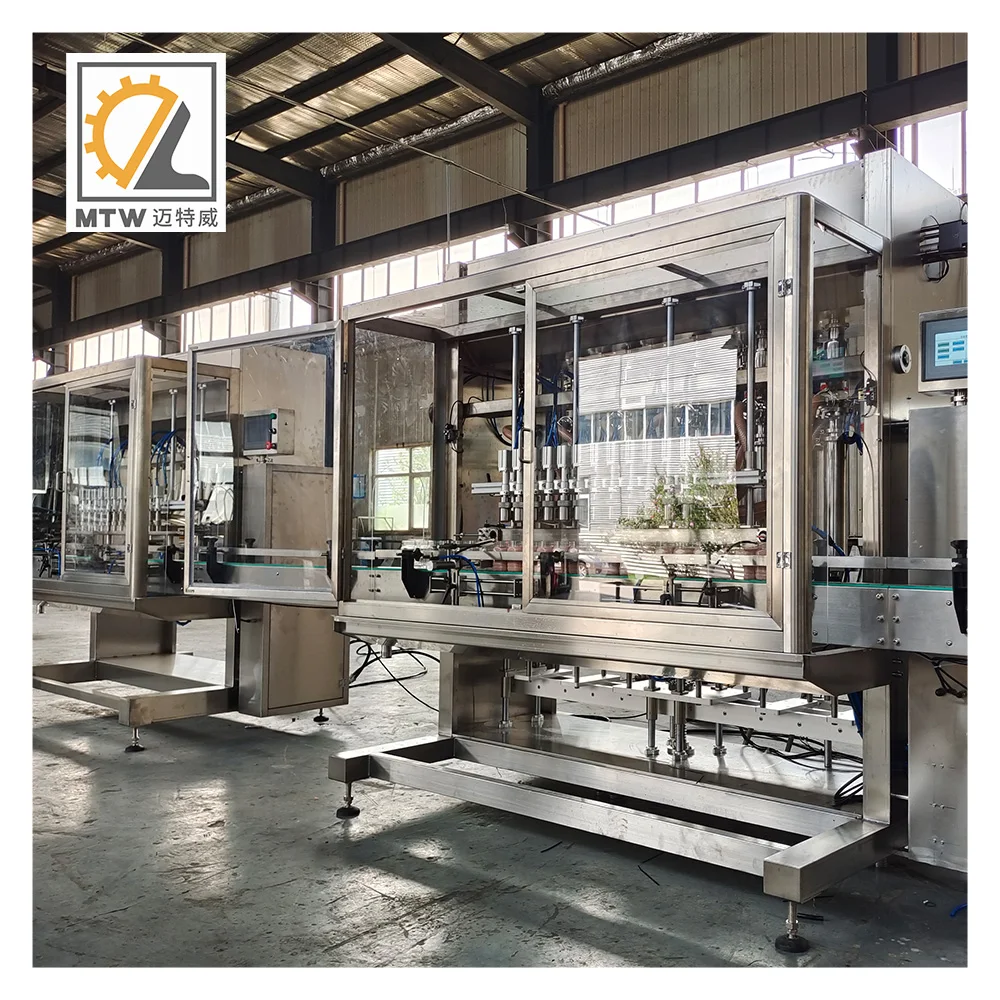

MTW salsa de mermelada tomate maquina de llenado y envasado
- Category: >>>
- Supplier: Tianjin Maitewei Machinery Manufacturing Co. Ltd.
Share on (1600534949227):
Product Overview
Description
Our Advantages

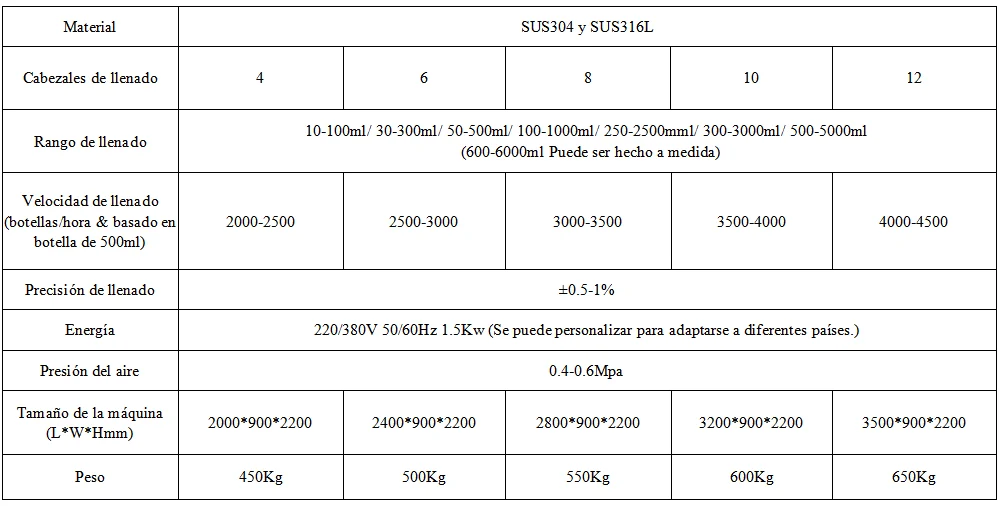

Product Paramenters
Material | SUS304 and SUS316L | ||||||||
Filling heads | 4 | 6 | 8 | 10 | 12 | ||||
Filling range | 10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml (600-6000ml can be tailor made) | ||||||||
Filling speed (bottles/ hour & based on 500ml bottle) | 2000-2500 | 2500-3000 | 3000-3500 | 3500-4000 | 4000-4500 | ||||
Filling precision | ±0.5-1% | ||||||||
Power | 220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries) | ||||||||
Air pressure | 0.4-0.6Mpa | ||||||||
Machine size (L*W*Hmm) | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 | 3500*900*2200 | ||||
Weight | 450Kg | 500Kg | 550Kg | 600Kg | 650Kg | ||||
maquina de llenado y envasado
Product Description
Introduction:

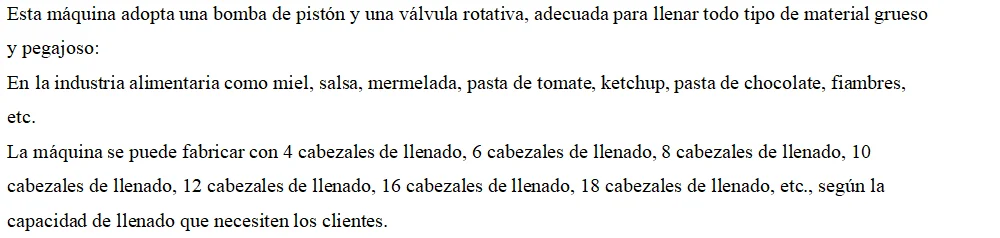

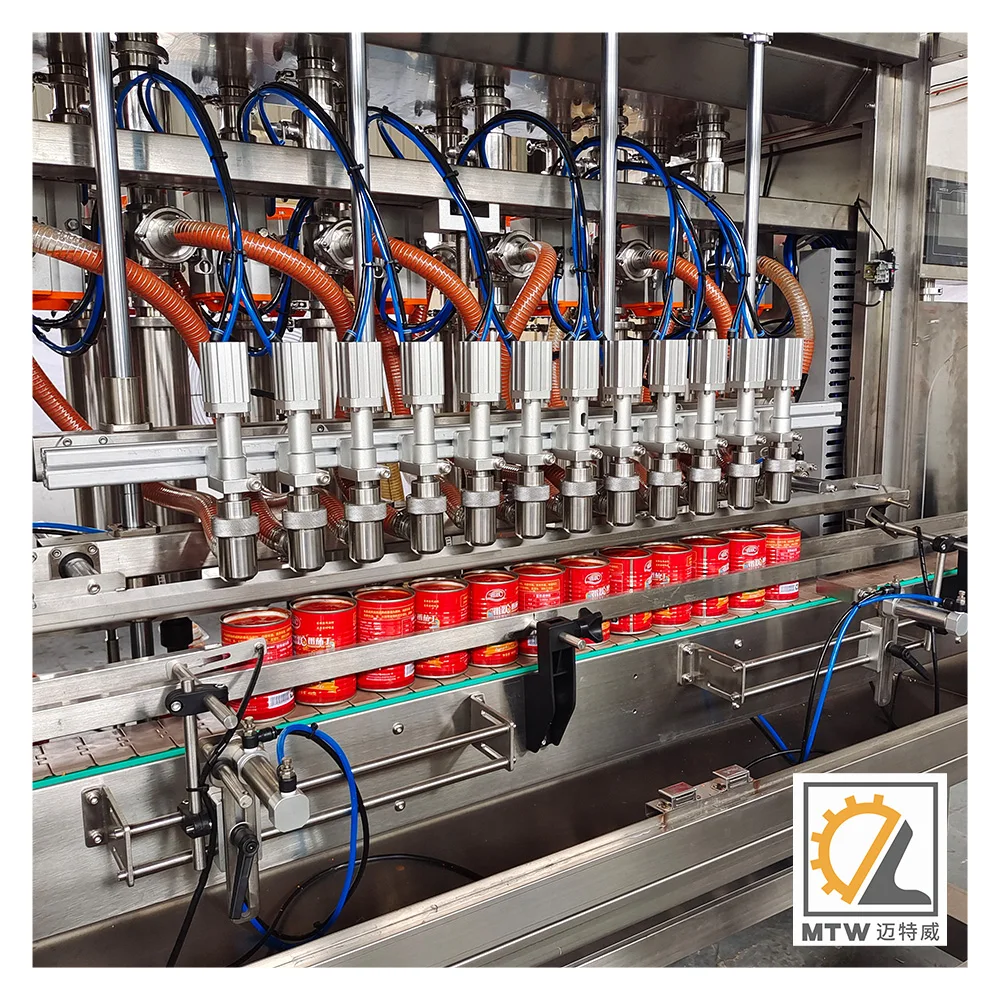

This machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material:
In food industry like, tomato paste, chilli sauce, honey, butter, ketchup lunch meat, mayonnaise, marmadele, etc. The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
In food industry like, tomato paste, chilli sauce, honey, butter, ketchup lunch meat, mayonnaise, marmadele, etc. The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
maquina de llenado y envasado
Features:

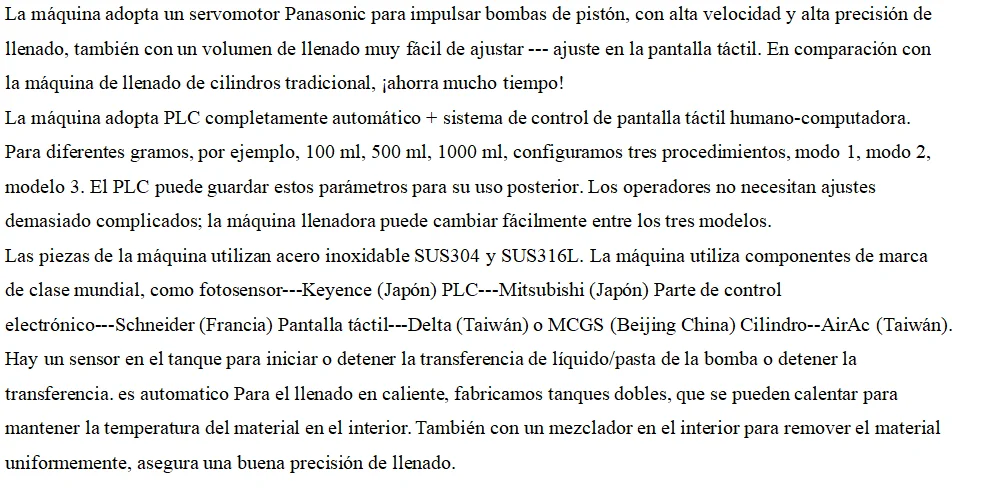

Machine adopts Panasonic servo motor to drive piston pumps, with high speed and high filling accuracy, also with very easy filling volume adjusted---adjusting on touch screen. Compared with traditional cylinder filling machine, it save lots of time!
The machine adopts full-auto PLC + human-computer touch screen control system. For different grams for example, 100ml, 500ml, 1000ml, we set three procedures, mode 1, mode 2, model 3. The PLC can save these parameters for later use. Operators do not need too much complicated adjustments; the filling machine can switch between the three models easily.
Machine parts use stainless steel SUS304 & SUS316L. The machine use world word-class brand components, such as photo sensor---Keyence (Japan) PLC---Mitsubishi (Japan) Electrinic control part---Schneider (France) Touch screen---Delta (Taiwan) Or MCGS(Beijing China) Cylinder--AirAc (Taiwan). There is a sensor on tank to start or stop the pump transfer liquid/ paste or stop transfer. It is automatically. For hot filling, we make double tank, which can be heated to keep temperature for material inside. Also with a mixer inside to stir material even, ensure good filling accuracy.

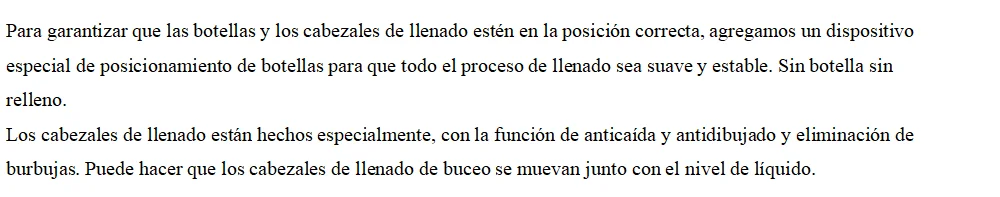

To ensure the bottles and filling heads are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling.
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level.
Machine adopts Panasonic servo motor to drive piston pumps, with high speed and high filling accuracy, also with very easy filling volume adjusted---adjusting on touch screen. Compared with traditional cylinder filling machine, it save lots of time!
The machine adopts full-auto PLC + human-computer touch screen control system. For different grams for example, 100ml, 500ml, 1000ml, we set three procedures, mode 1, mode 2, model 3. The PLC can save these parameters for later use. Operators do not need too much complicated adjustments; the filling machine can switch between the three models easily.
Machine parts use stainless steel SUS304 & SUS316L. The machine use world word-class brand components, such as photo sensor---Keyence (Japan) PLC---Mitsubishi (Japan) Electrinic control part---Schneider (France) Touch screen---Delta (Taiwan) Or MCGS(Beijing China) Cylinder--AirAc (Taiwan). There is a sensor on tank to start or stop the pump transfer liquid/ paste or stop transfer. It is automatically. For hot filling, we make double tank, which can be heated to keep temperature for material inside. Also with a mixer inside to stir material even, ensure good filling accuracy.
To ensure the bottles and filling heads are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling.
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level.
Transaction process
Company profile

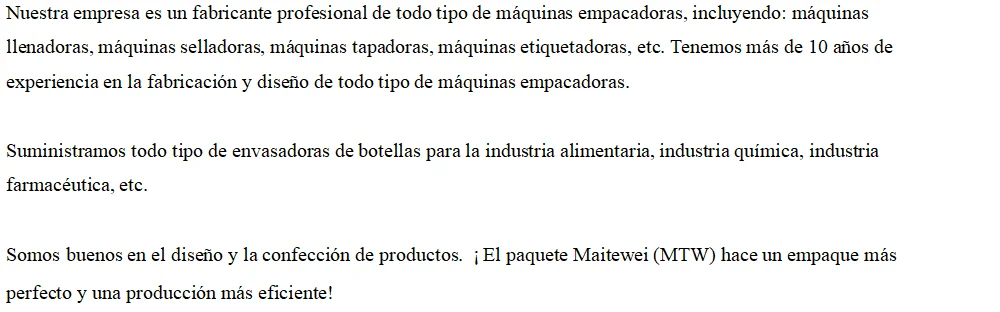

Our company is a professional manufacturer of all kinds of packing machines, including: filling machines, sealing machines, capping machines, labelling machines etc. We have more than 10 years experience in manufacturing and designing all kinds of packing machines.
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
Why Choose Us

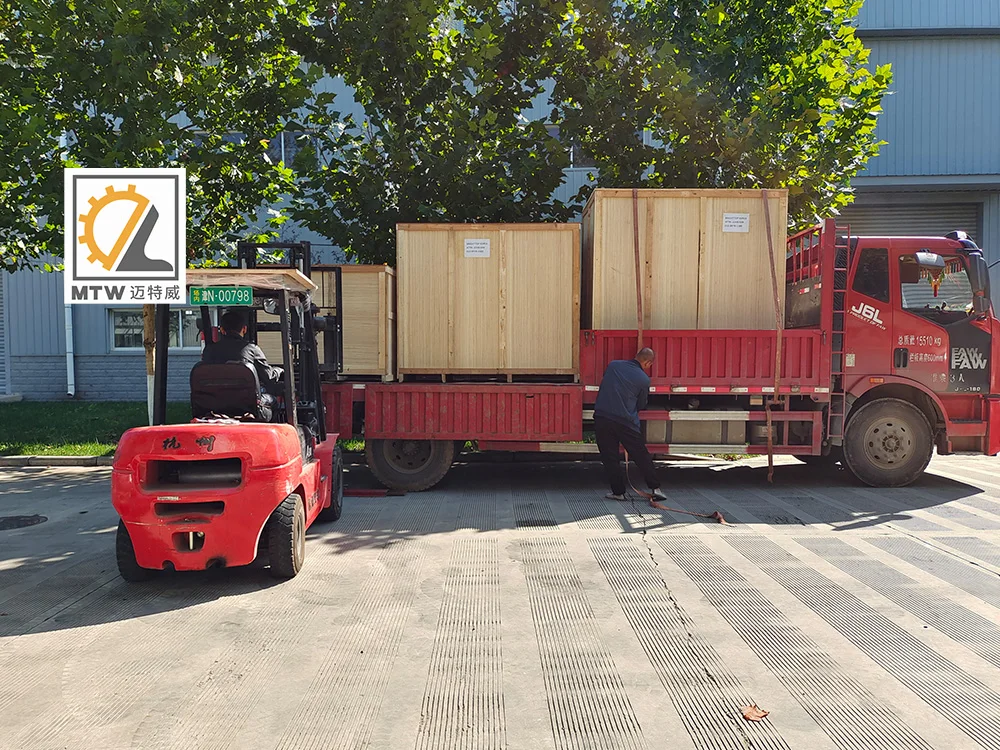

Our logistics
FAQ
1.Can I visit your factory?
Sure, our factory address: Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine, Capping Machine, Labeling Machine.
4. How about the spare parts?
After we deal down all the things, we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, PayPal, Western Union;
Language Spoken: English, Chinese.
Sure, our factory address: Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine, Capping Machine, Labeling Machine.
4. How about the spare parts?
After we deal down all the things, we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, PayPal, Western Union;
Language Spoken: English, Chinese.
