Product Overview
Description
Product Description
1 / Water treatment equipment description.
The methods of water treatment include physical treatment and chemical treatment.

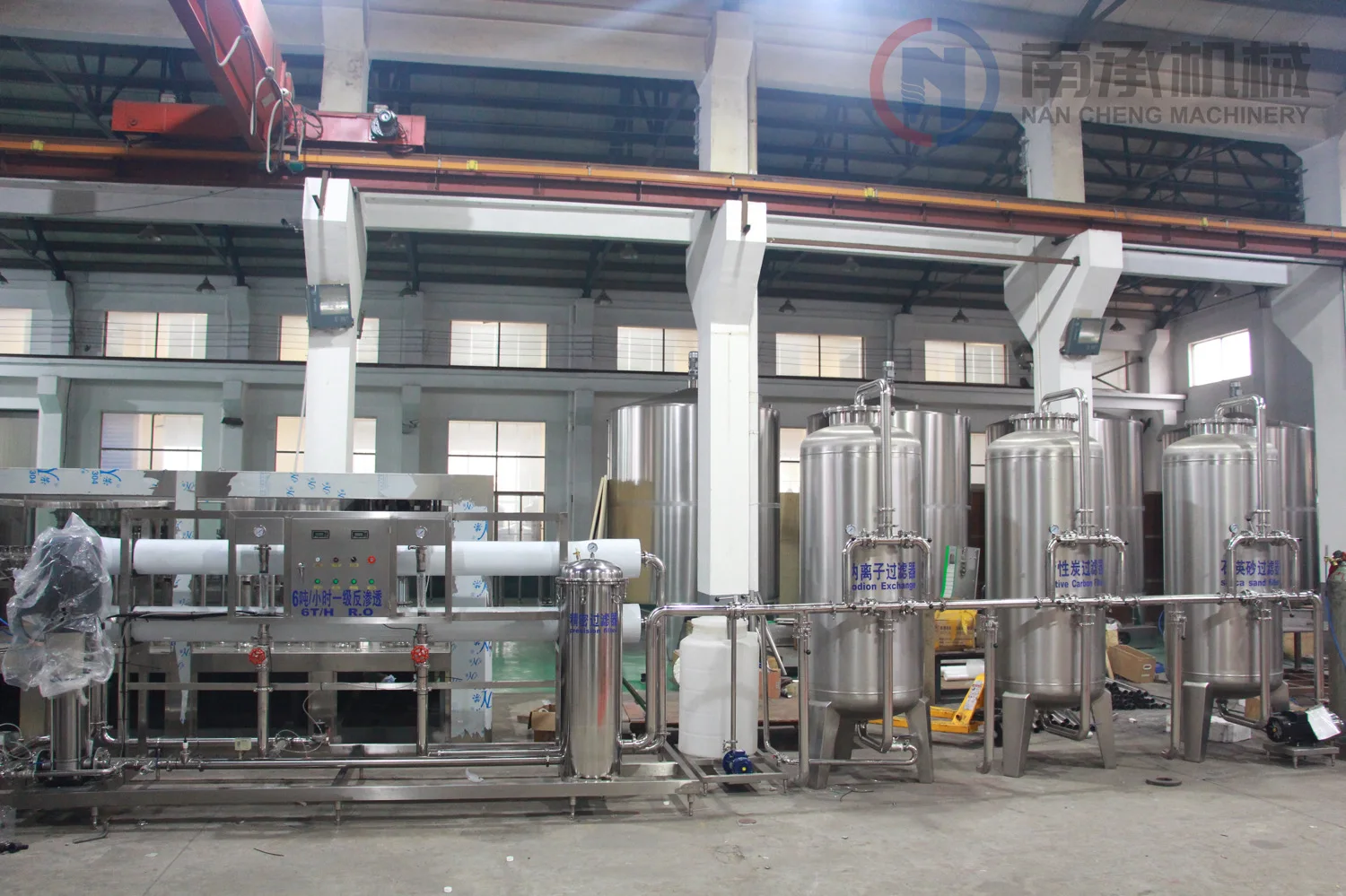

Water Treatment System,also called filtration sterlizer,is the process of purifying the raw water by series equipments and devices to be drinkable.Raw water goes through water treatment system first: raw water pump - multi-media filter - activated carbon filter- precision filter - ultraviolet sterilizer - reverse osmosis device - Ozone generator, then achieve desired standard water quality. Finally, store the treated water in the storage tank.
Water Treatment System,also called filtration sterlizer,is the process of purifying the raw water by series equipments and devices to be drinkable.Raw water goes through water treatment system first: raw water pump - multi-media filter - activated carbon filter- precision filter - ultraviolet sterilizer - reverse osmosis device - Ozone generator, then achieve desired standard water quality. Finally, store the treated water in the storage tank.
Specification

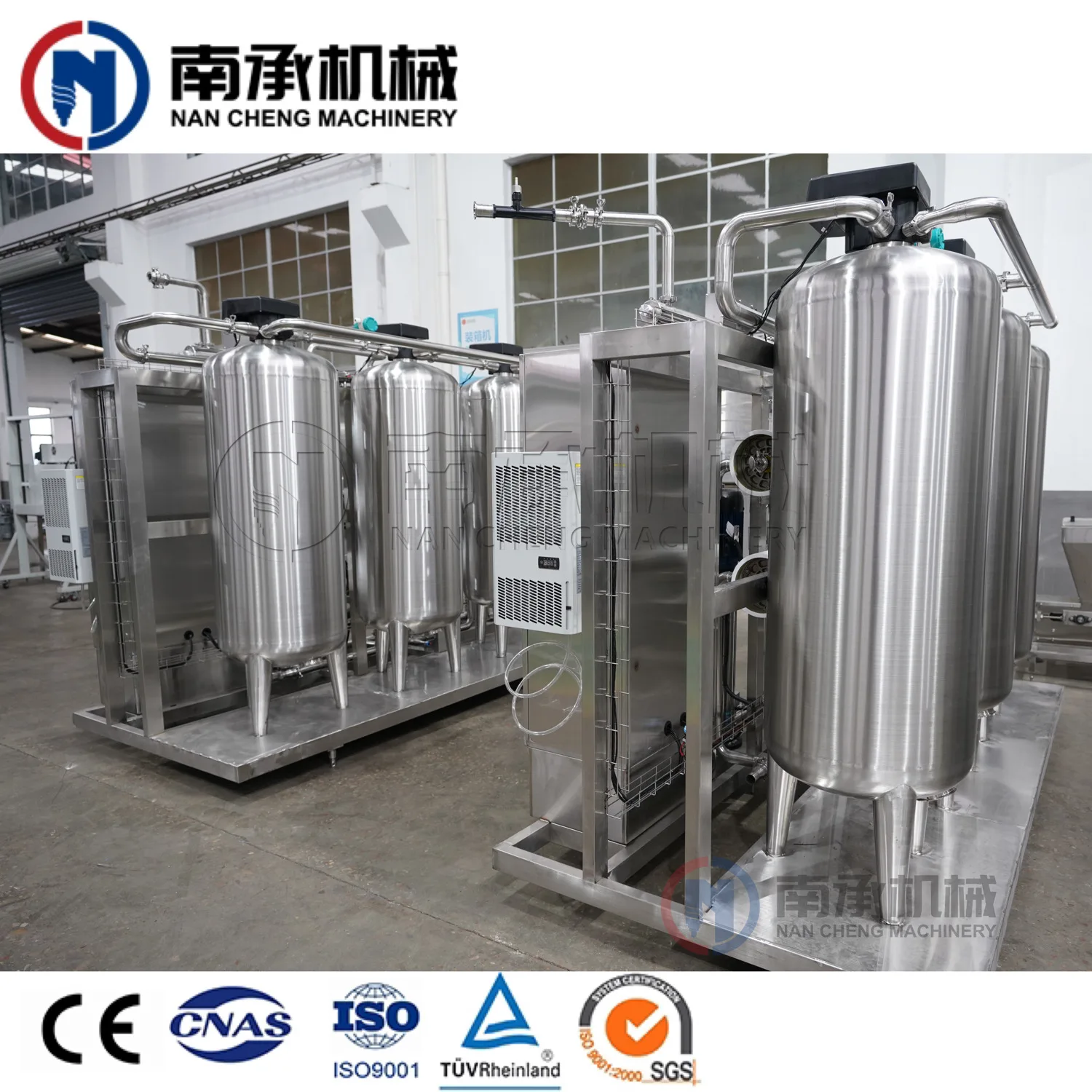

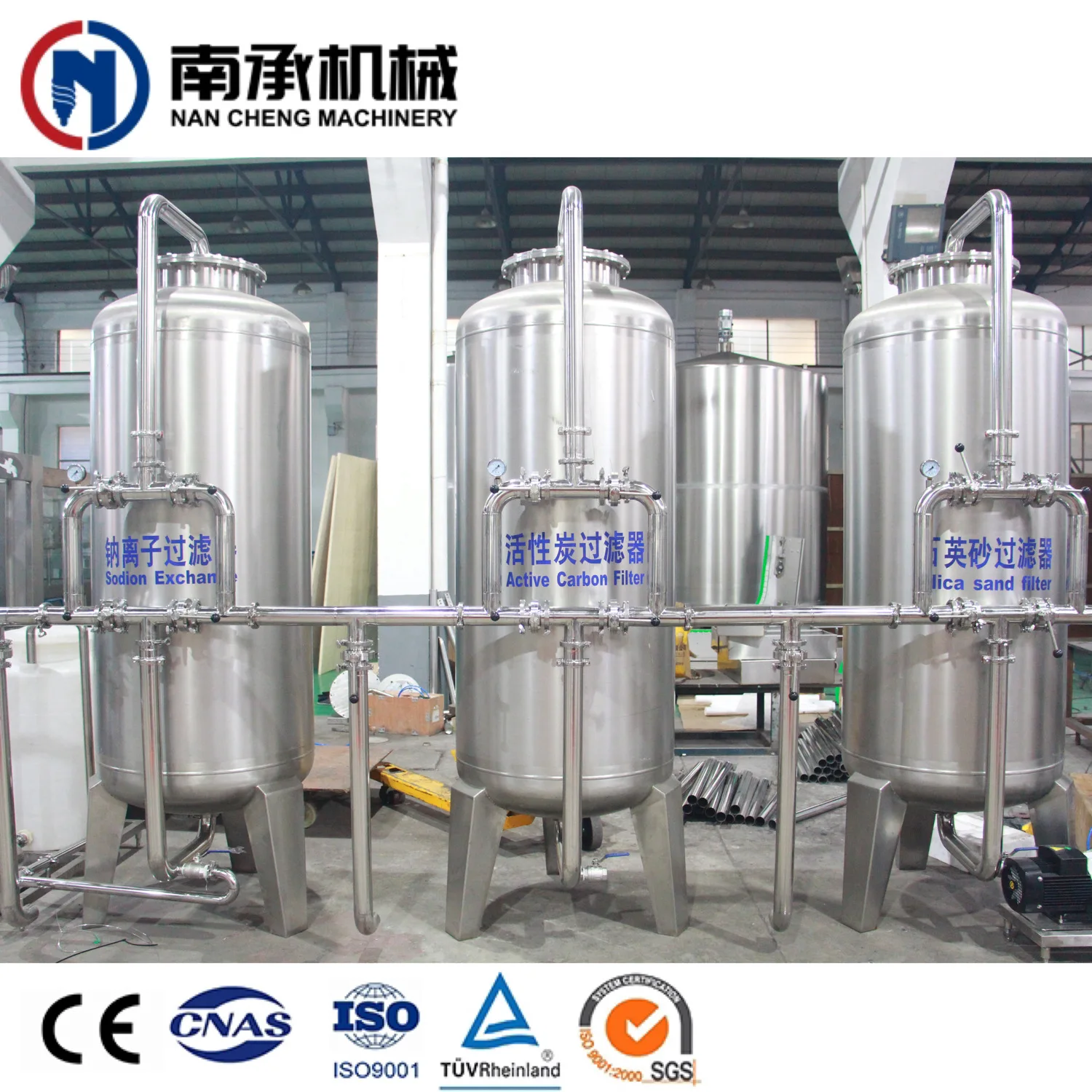

Filtration（Silica sand filter/Activated carbon filter/Sodium ion exchanger）
1.The filter has large flow rate capacity, small volume and dirt holding capacity.
2.It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.
3.The side leakage rate of the filter is small, which greatly improves the filtration quality.
4.The filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.
5.Filter filtration accuracy has been continuously improved and has reached 0.5um.
6.The filter has a wide range of applications, flexible use and various installation method
2.It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.
3.The side leakage rate of the filter is small, which greatly improves the filtration quality.
4.The filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.
5.Filter filtration accuracy has been continuously improved and has reached 0.5um.
6.The filter has a wide range of applications, flexible use and various installation method
Quartz sand
Activated carbon
Sodium ion exchanger

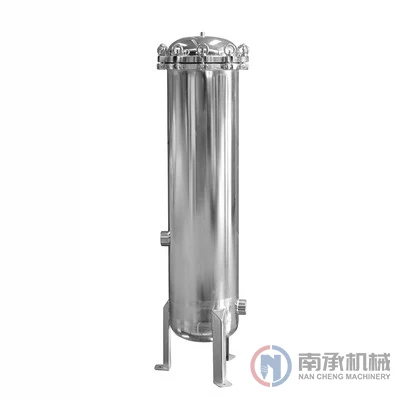

Precision filter
The filter finely filters the water filtered by the first three filters again,
It can ensure that the granularity of the water into reverse osmosis membrane is less than 0.1um.

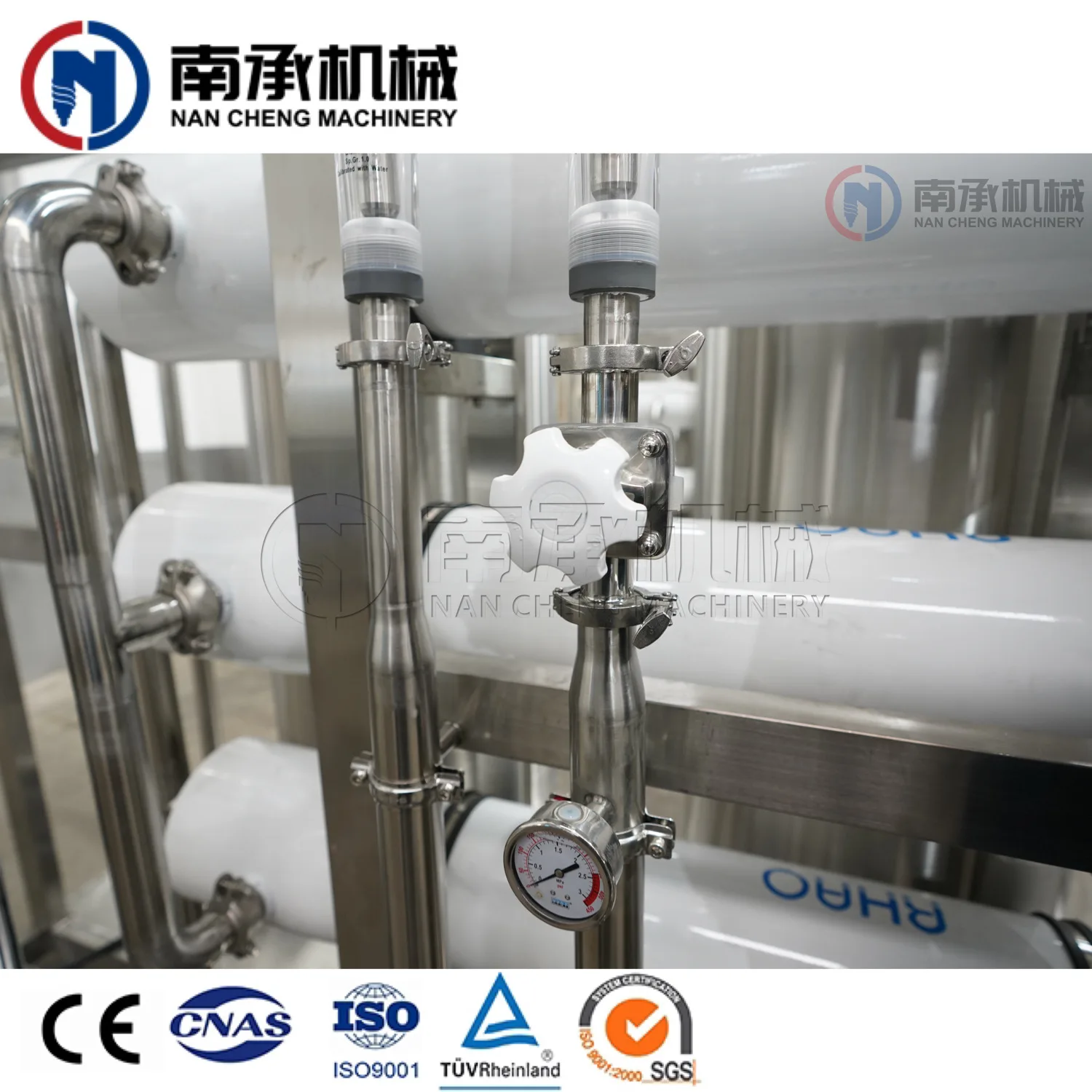

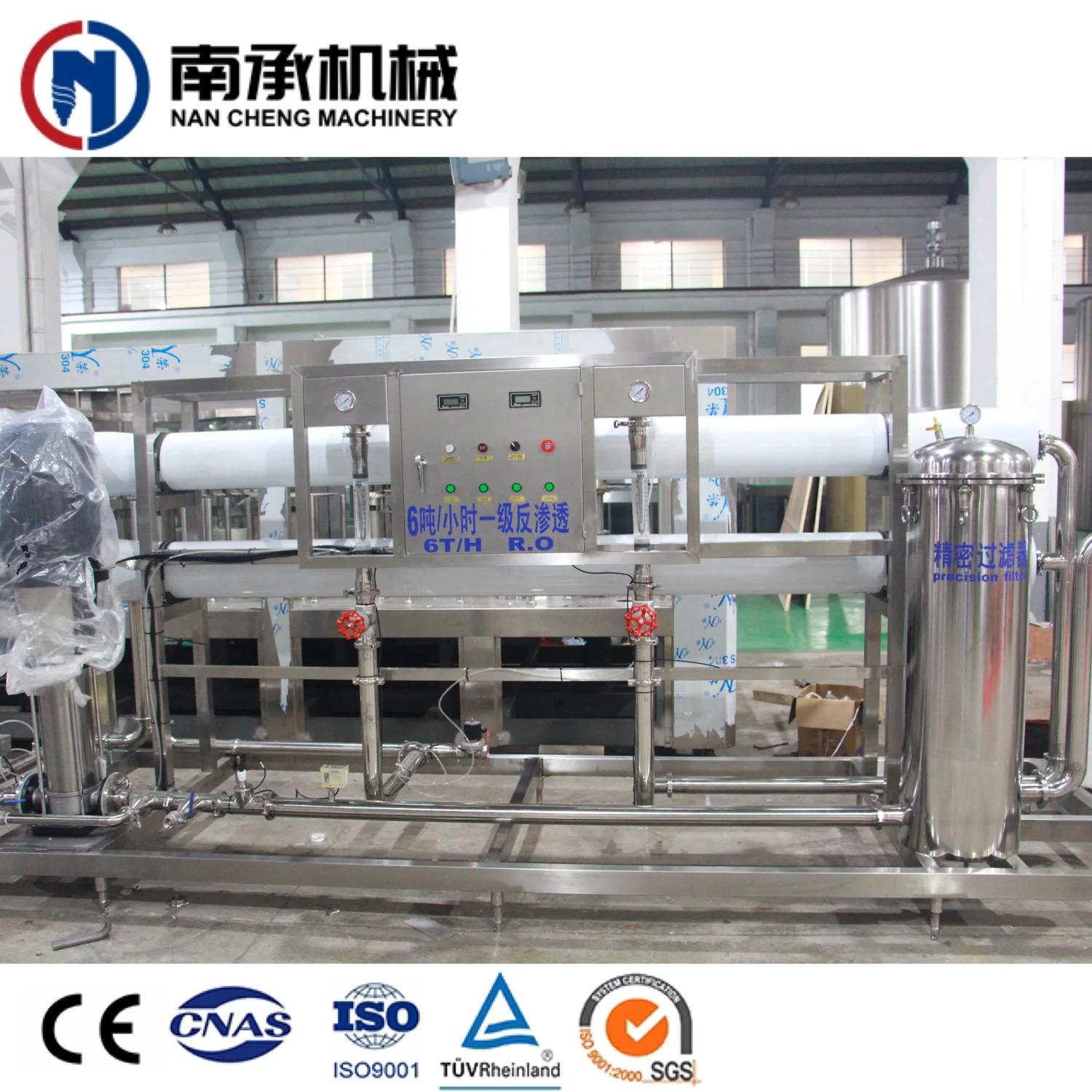

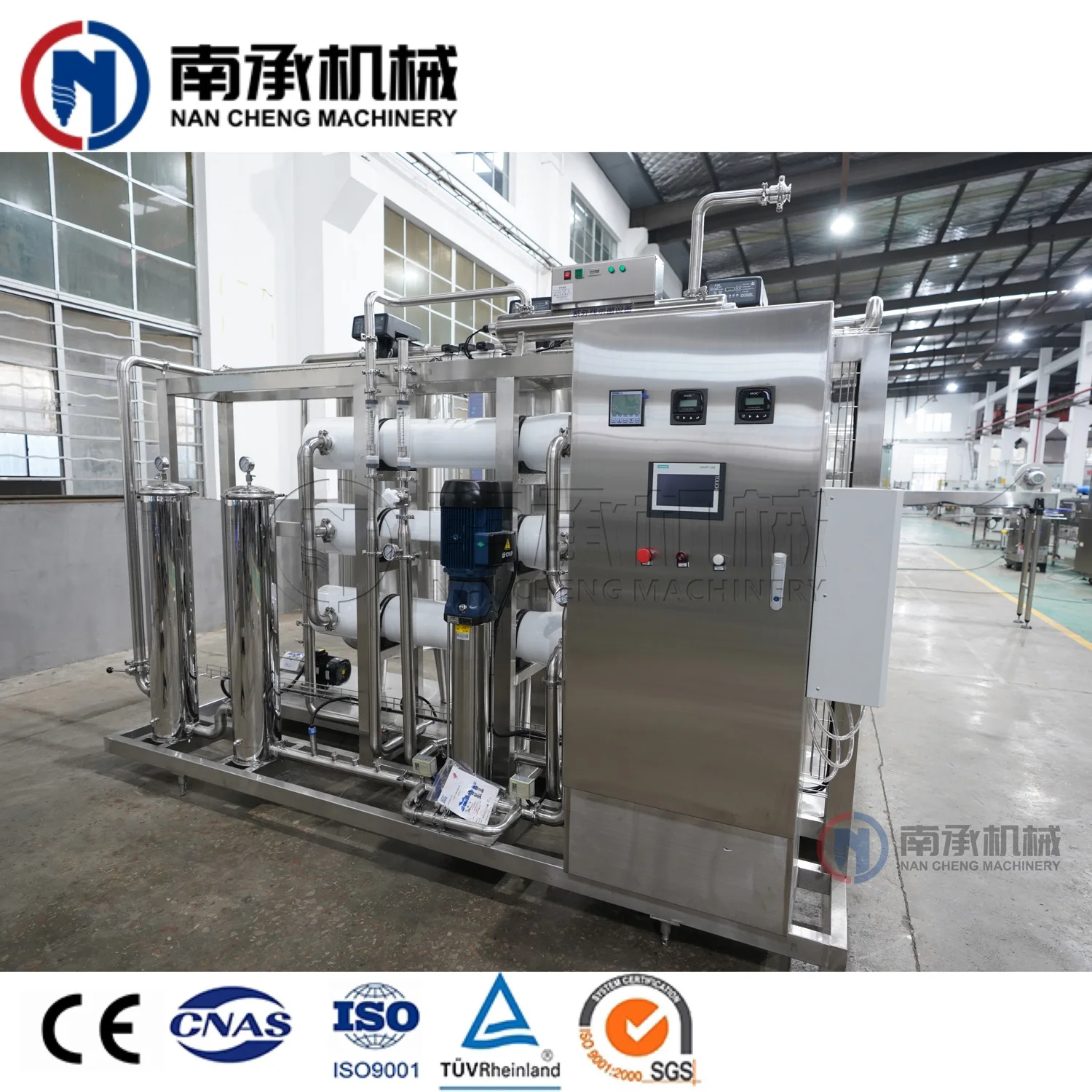

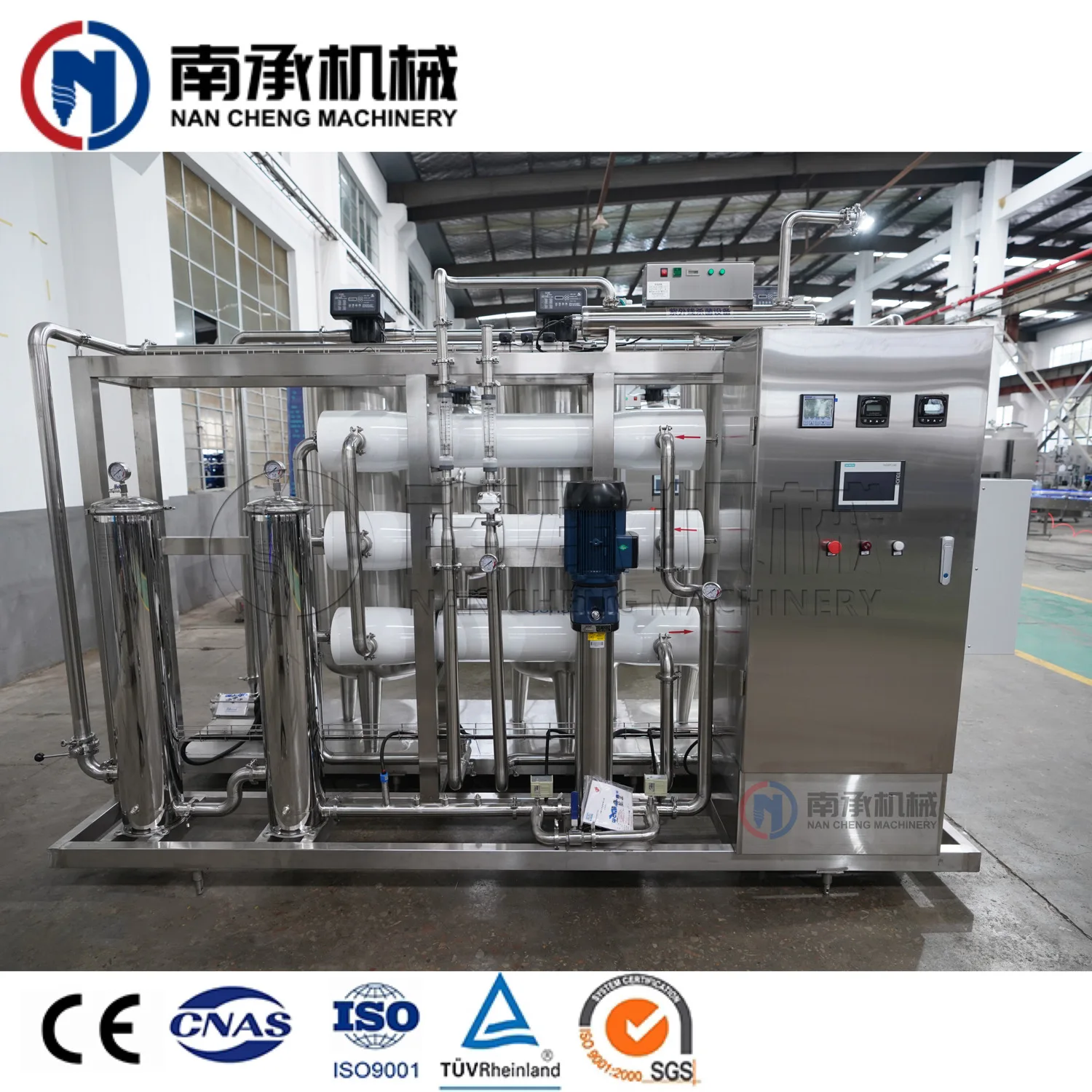

Reverse Osmosis.
Reverse osmosis is a membrane separation technique that uses pressure as a driving force by selecting a function of permeating(semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, the water molecules continuously permeate the membrane. The impurities flowing into the central tube through the product water channel and then flowing out of the water at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.
Rated pressure： | 1.0-1.2Mpa | Working pressure： | 0.8-1.0Mpa |
Salt rejection rate： | 98-99% | Tank dia： | 400mm |
Membrane salt rejection rate： | 99% | PP membrane： | 5 μm |
Voltage: | 380V/220V | Power： | 11KW |
UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.Disinfect tube adopt high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container.Electricity box
Equipped with air conditioning
Technical Parameters
PROJECT | Water Treatment System | ||||||||||||||||
Model | WT-1T | WT-2T | WT-3T | WT-4T | WT-5T | WT-6T | WT-8T | WT-10T | |||||||||
Raw Pump | Power(KW) | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | 1.8 | 3.0 | 4.0 | ||||||||
Quarz sand filter | Flow rate(M3/H) | 2 | 4 | 6 | 8 | 10 | 10 | 12 | 18 | ||||||||
Tank size(MM) | Φ400 x1850x2 | Φ400 x1850x2 | Φ600 x2000x3 | Φ800 x2100x3 | Φ1000 x2900x3 | Φ1000 x2900x3 | Φ1200 x2900x3 | Φ1600 x3100x3 | |||||||||
Quartz sand(kgs) | 200 | 400 | 600 | 750 | 1000 | 1300 | 1600 | 2300 | |||||||||
Activated carbon filter | Flow rate(M3/H) | 2 | 4 | 6 | 8 | 10 | 10 | 12 | 18 | ||||||||
Tank size(MM) | Φ400 x1850x2 | Φ400 x1850x2 | Φ600 x2000x3 | Φ800 x2100x3 | Φ1000 x2900x3 | Φ1000 x2900x3 | Φ1200 x2900x3 | Φ1600 x3100x3 | |||||||||
Activated carbon(kgs) | 100 | 120 | 160 | 220 | 200 | 360 | 450 | 650 | |||||||||
Precision filter | Flow rate(M3/H) | 2 | 4 | 6 | 8 | 10 | 10 | 12 | 18 | ||||||||
PP size | 5μ | 5μ | 5μ | 5μ | 5μ | 5μ | 5μ | 5μ | |||||||||
Production of water (L/h ) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | |||||||||
Recovery rate | 50% | 50% | 50% | 50% | 50% | 60% | 60% | 60% | |||||||||
High pressure pump power (kw) | 1.1 | 3.0 | 4.0 | 5.5 | 5.5 | 7.5 | 11.0 | 15.0 | |||||||||
Membrane | SPA 8040 | SPA 8040 | SPA 8040 | SPA 8040 | SPA 8040 | SPA 8040 | SPA 8040 | SPA 8040 | |||||||||
Recommend Products
Application field:
Preparation of pure water and ultrapure water in industries such as electronics, medical, food, and boiler feed water. Preparation of space water, distilled water and purification of beer and beverage water. Pre-desalting treatment of high pressure boiler feed water. Desalination of seawater and brackish water. Pharmaceutical, textile, chemical, food and other industries for separation,concentration, liquid decolorization for the purpose of the process. The recovery and application of useful substances in aqueous solutions in industrial production. Other separation processes for the purpose of separating bacteria, heat sources,colloidal particles and organic matter.
Packing & Delivery
All shipments are sealed with plastic sheeting and secured with boards and nails for shipping safety.
Company Profile
ZHANGJIAGANG CITY NANCHENG MACHINERY CO., LTD is a professional manufacturer engaged in the research, development, production, sale and service. We are specialized in Water filling production line, juice filling production line, carbonated drinks production line, 5 gallon bottle filling production line and all other auxiliary equipments.
We are located in ZHANGJIAGANG CITY near SHANGHAI with beautiful scenery and convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We have obtained CE, SGS, TUV certificates etc. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Eastern Europe, Southeast Asia, Africa, Eastern Asia, South Asia etc. We hope to have development with people from all over the world and establish a long-term and steady business relation.
We are located in ZHANGJIAGANG CITY near SHANGHAI with beautiful scenery and convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We have obtained CE, SGS, TUV certificates etc. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Eastern Europe, Southeast Asia, Africa, Eastern Asia, South Asia etc. We hope to have development with people from all over the world and establish a long-term and steady business relation.
Certifications
FAQ
Q1:Do you have any reference project?
A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
