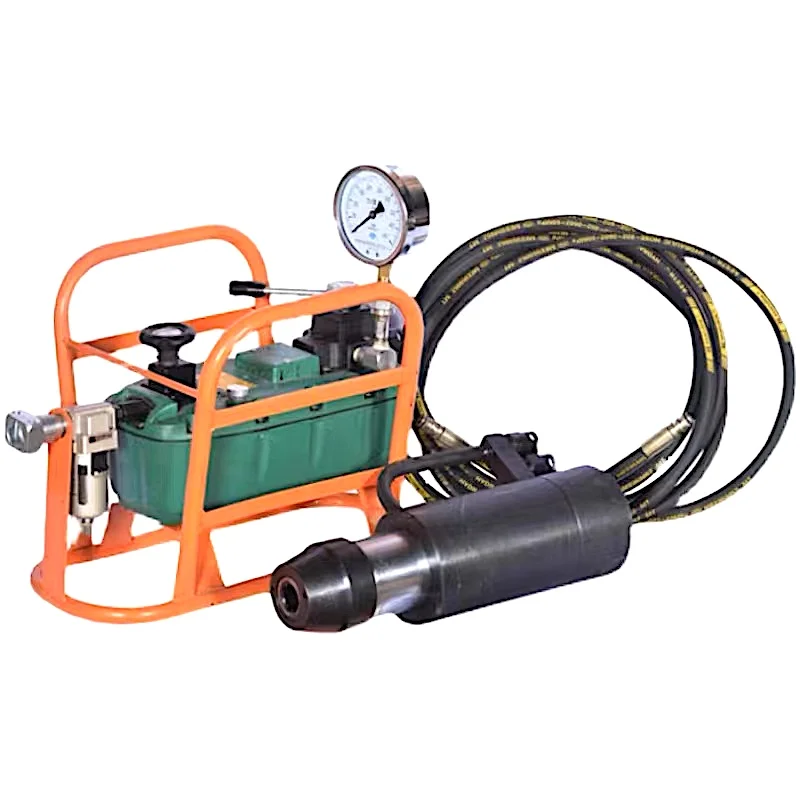

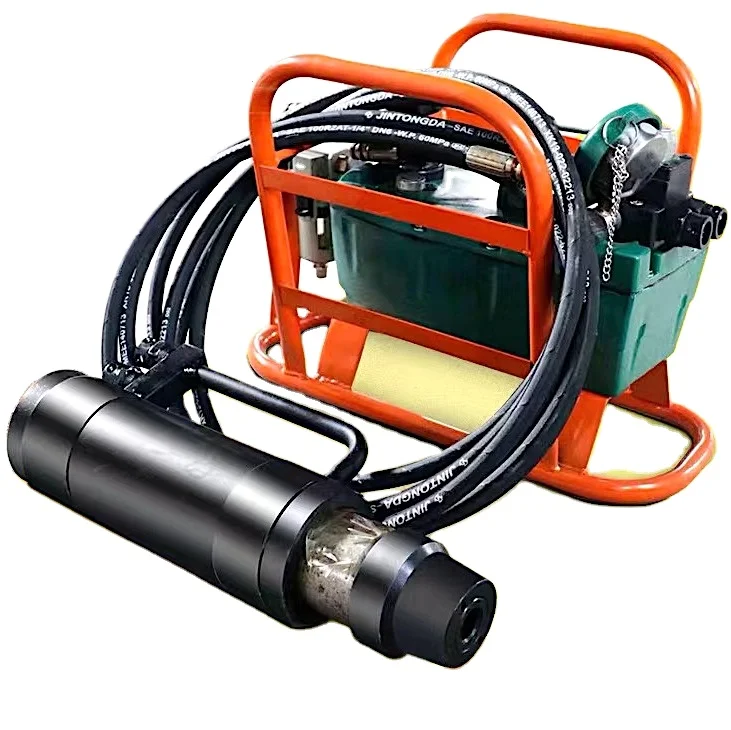

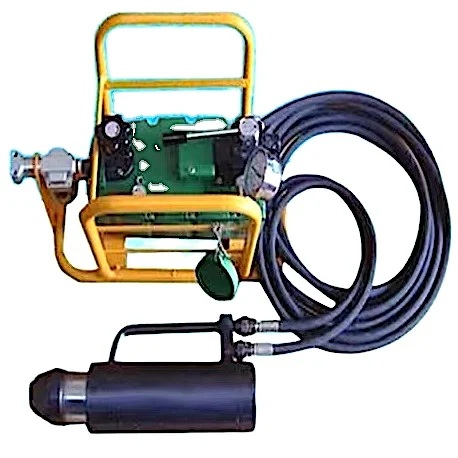

TY8A125 Pneumatic Jacks Pump tensioning cables 21.8mm Strand, 250 KN steel reinforcement, wire and multiple core steel strands

Share on (1600534997640):


Price:

Quantity:


Product Overview

Description

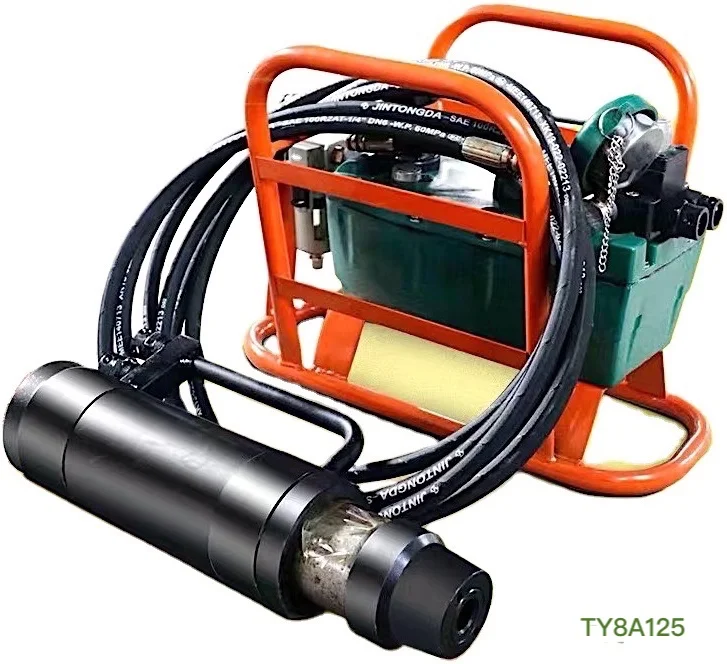

stressing jack 2.jpeg


















































































Model



TY8A125



Model Numbering Designation



8, Fastening Tools
A, Stressing Jacks


1, Single Strand
25, Capacity(250 KN)



Current



Pneumatic



Application



Single Strand



Capacity



250 KN ( 25 T)



Strand



21.8 mm



Center Hole Diameter



24 mm



Gauge



0-360 KN (0-36T)



Gauge Type



Dial



Stroke



150 mm



Bore



50 mm * 2



Air Consumption



31 CFM @ 90PSI



Jack Weight



17 KG (37.4 lb)



Pump Weight



10 KG (22 lb)



Sound Power



112 dB(A)



Tank



2.4 L (0.63 Gal)



Hydraulic Working Pressure



45 MPa (2546 PSI)



Working Flow



0.8 L/Min (0.03CFM)



SKU



359002

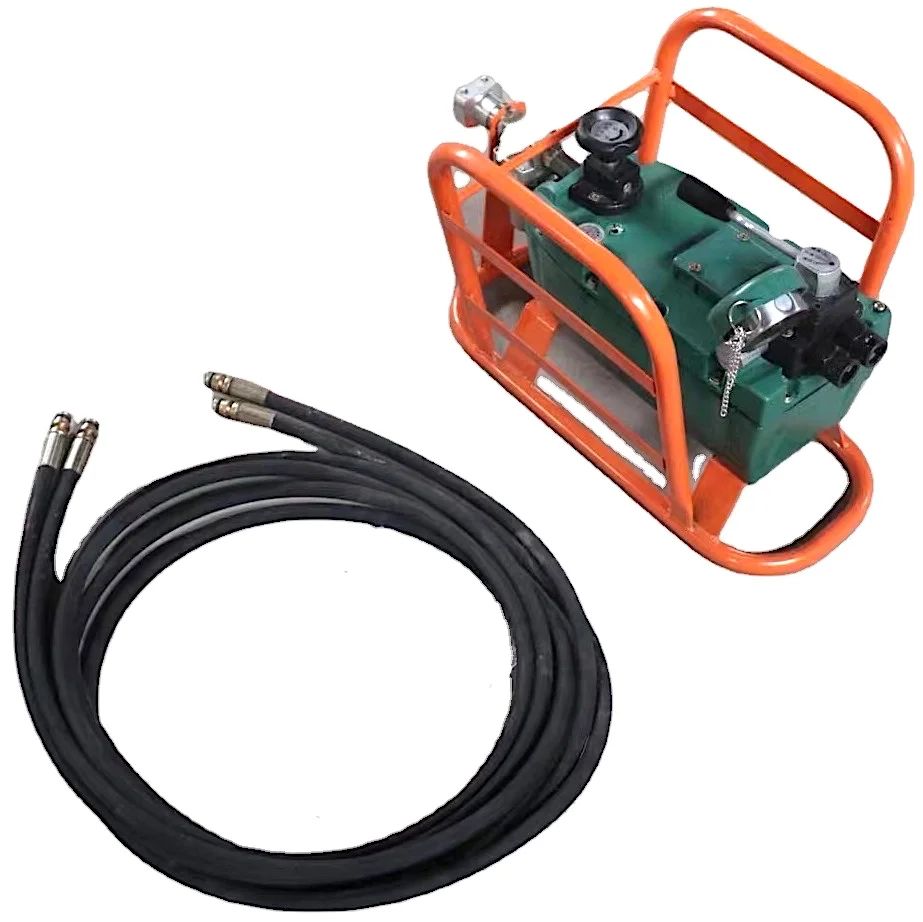

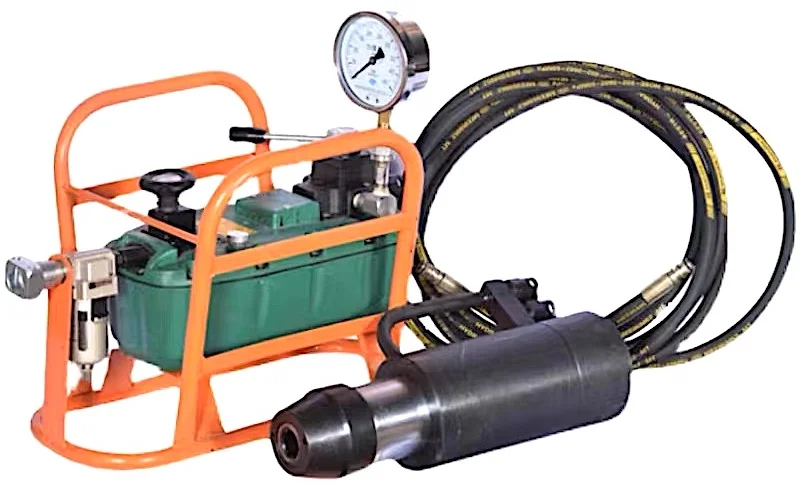

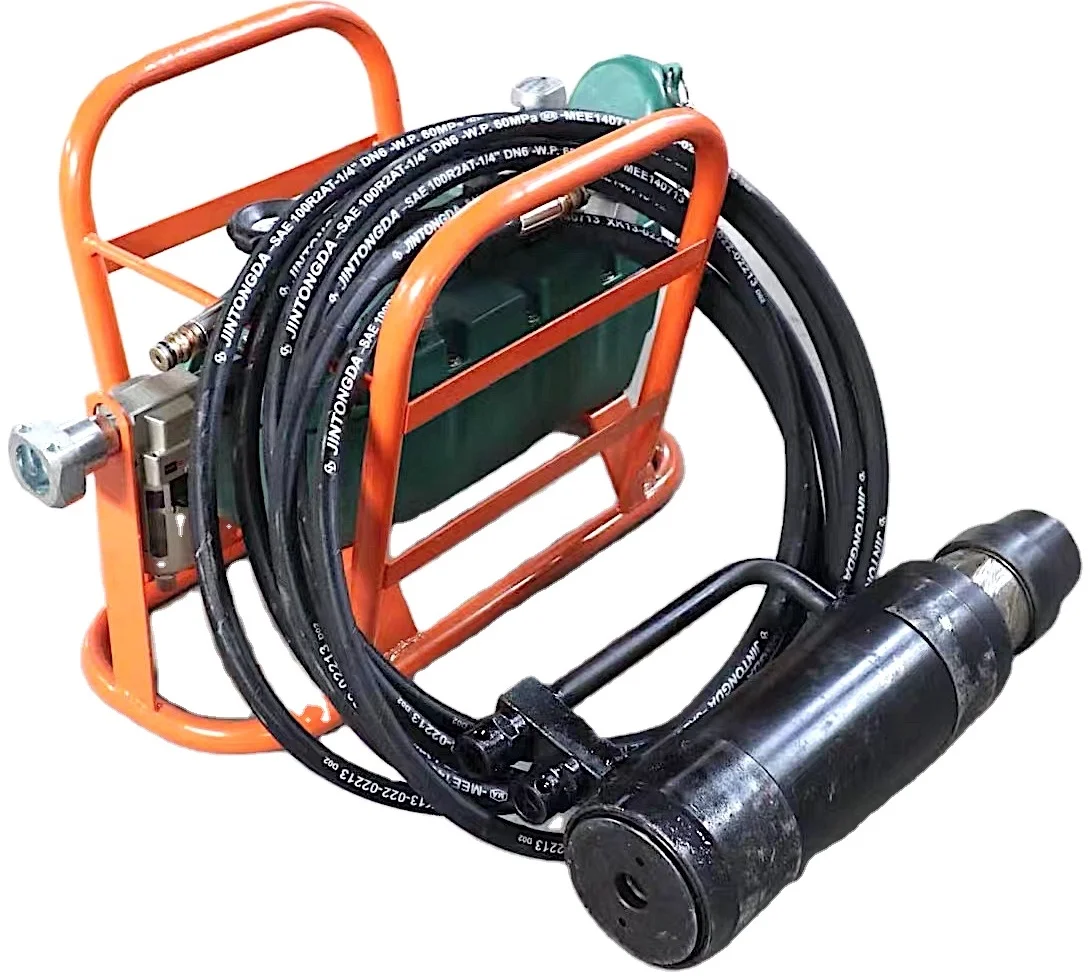

TY8A118 2.jpgHydarulic Streesing Jack.jpegwire jack.jpegfeatures_meitu_86








TY8A125 Tarboya Single strand hydraulic jack is the primary tool for tensioning in the Civil and Construction industries. This jack is ideal for post-tensioning and pre-tensioning. Striking the balance needed between versatility and practicality, it is incredibly rugged while still lightweight and has the capacity to tension strand up to 21.8 mm in diameter.


TY8A125 consists of 1 piece streesing jack, 1 piece hydraulic pump, 1 piece gauge, 1 piece Technical Passport (# 9972278)


Tarboya Fastening Tools Brochure could be downloaded from www.tarboya.comabout us.jpeg




At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !


Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.


Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.


You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.


We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.


Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand. warrantyTarboya warrants TY8A125 Stressing Jack will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.


Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.


Tarboya’s  warranty shall be deemed void in the event of:



  • Improper use of the machine,

  • Use contrary to national or international standards,

  • Incorrect installation,

  • Faulty supply of compressed air or its poor quality

  • Serious deficiencies in maintenance,

  • Unauthorized modifications and/or interventions,

  • Total or partial non-compliance with the instructions included in the manual

  • Exceptional events, natural disasters and others.
