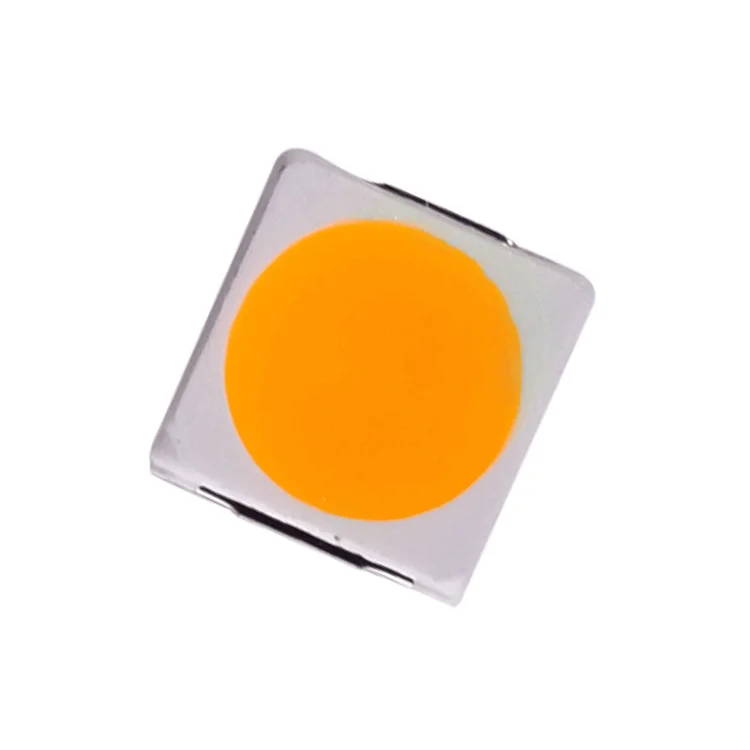

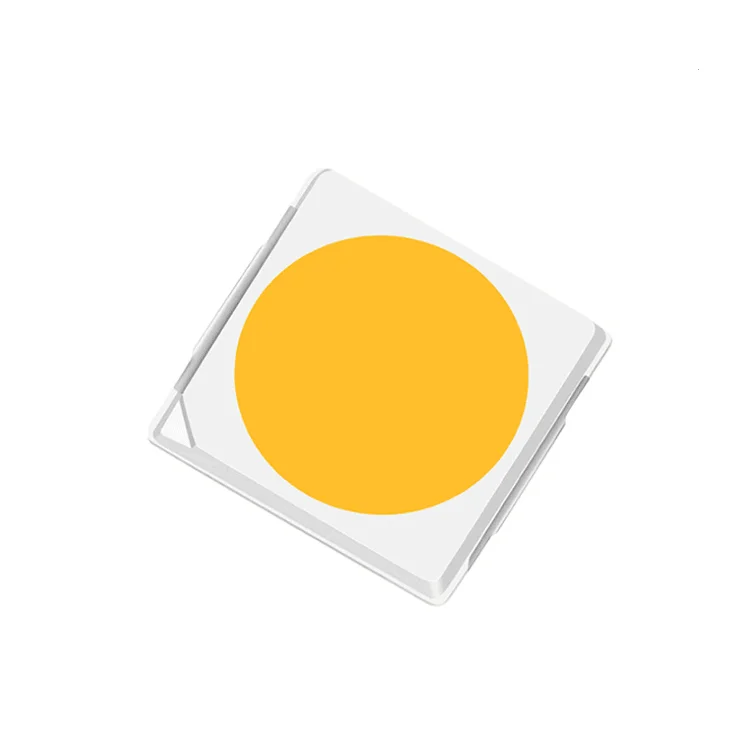

Cheap Price High Power Full Color 3030 Rgb 1.5w Smd 2835 Epistar Chip Led
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600535035554):
Product Overview
Description
Products Description
Applications
1, Indoor lighting applications
2, Flat backlight for LCD switch and symbol
3, Indicator and backlighting for all consumer electronics
Maximum Rating (Ta=25℃)
Parameter | Symbol | Typical | Unit | |||
Power dissipation | Pd | 1200 | mW | |||
DC forward current | IF | 400 | mA | |||
Pulse forward current | IPF*1 | 500 | mA | |||
Reverse voltage | VR | 5 | V | |||
Junction temperature | TJ | 140 | ℃ | |||
Operating temperature range | TOP | -40~120 | ℃ | |||
Storage temperature range | TSTG | -40~120 | ℃ | |||
Soldering temperature | TSD*2 | 260 | ℃ | |||
Thermal resistance junction/ solder point | RTHJ-S | 30 | ℃/W | |||
Electrostatic discharge(HBM) | ESD | 2000 | V | |||
Notes: 1, Duty 1/10, pulse width 0.1ms. 2, The maximum of soldering time is 5 seconds in TSD | ||||||
Typical Product Characteristics (Ta=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||||||
Forward Voltage | VF | 2.8 | - | 3.4 | V | IF= 150mA | ||||||
Luminous Flux | Φ | 80 | 85 | - | LM | IF= 150mA | ||||||
Color Coordinate | X | - | 0.380 | - | - | IF= 150mA | ||||||
Y | - | 0.380 | - | - | IF= 150mA | |||||||
Color Temperature | CCT | - | 4000 | - | K | IF= 150mA | ||||||
Color Rendering Index | CRI | 80 | - | - | - | IF= 150mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR= 5V | ||||||
View Angle | 2θ1/2 | - | 120 | - | Deg | IF= 60mA | ||||||
Notes: 1, Measurement error: Forward Voltage: ±0.1V, Luminous Lumen: ±10%Φ, View Angle: ±5%, Color Coordinate (x, y) ± 0.006, Color Rendering Index: ±5, Color Temperature: ±10% 2, Electrical-optical characteristics (Ta= 25℃). | ||||||||||||

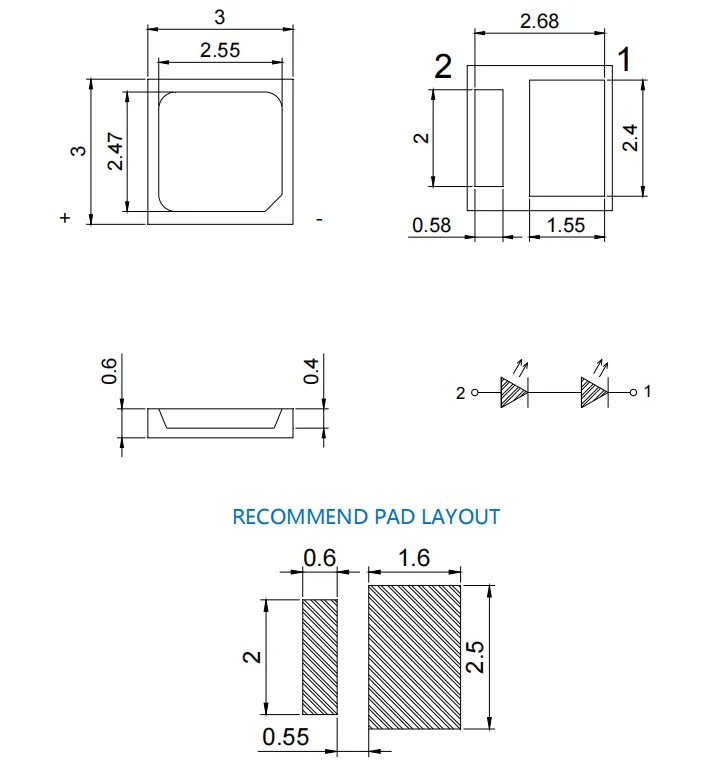

Dimensional Drawing
Notes:
1, All dimensions are in millimeters.
2, Tolerance is ±0.25mm unless otherwise noted.
3, Specifications are subject to change without notice.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
