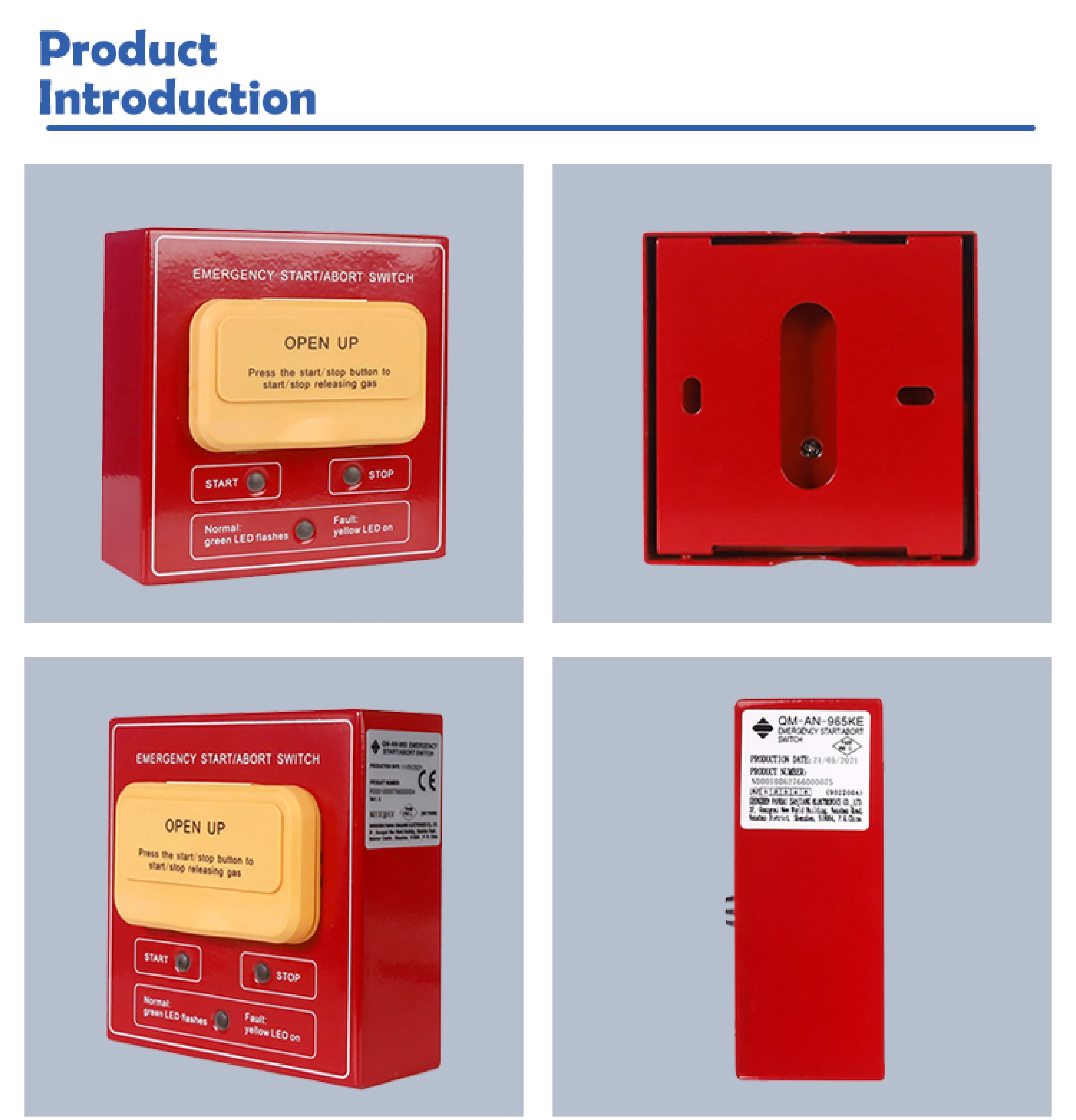

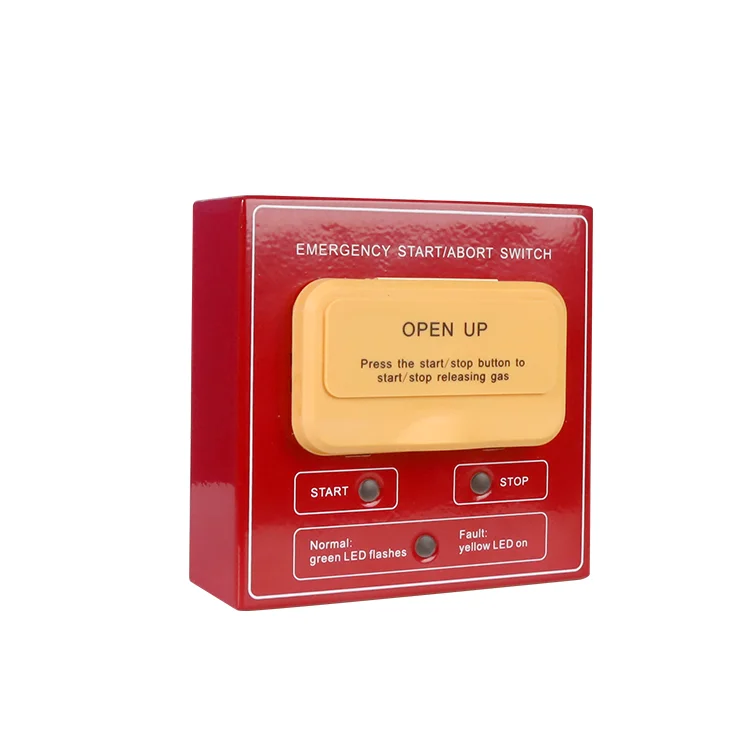

Factory Price Emergency Start/Stop Button for GAS Extinguishing System

24V (pulse modulation)

monitoring state < 600uA, action state < 5mA

Contact capacity

0.05A/12VDC

non-polarity two-bus (L1, L2)

electronic coding, address range 1 ~ 324 is optional

Start mode

manually press the green start button (about 1s)

Indicator

Start indicator, will not lit under normal state, flashes after pressing down, and remains on after receiving the controller confirmation command.
Stop indicator, will not lit under normal state, flashes after pressing, and remains on after receiving the controller confirmation command.
Normal state indicator, the green indicator will flash during normal state.
Fault indicator, when the button fault occurs, the yellow indicator remains on

Operating environment

temperature 0 ℃ ~ + 55 ℃, relative humidity ≤ 95% (40 ℃ ± 2 ℃, no condensation)

Compatible control panel

Gas fire extinguishing control panel
