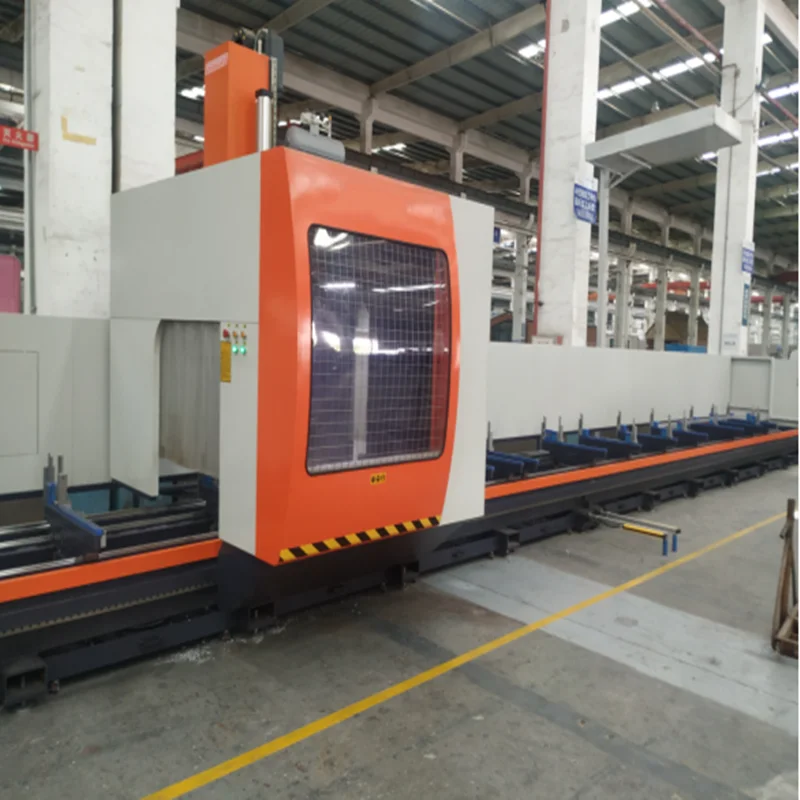

aluminium end mill copy router window aluminum machine cnc 5 axis aluminium profile processing and cutting center

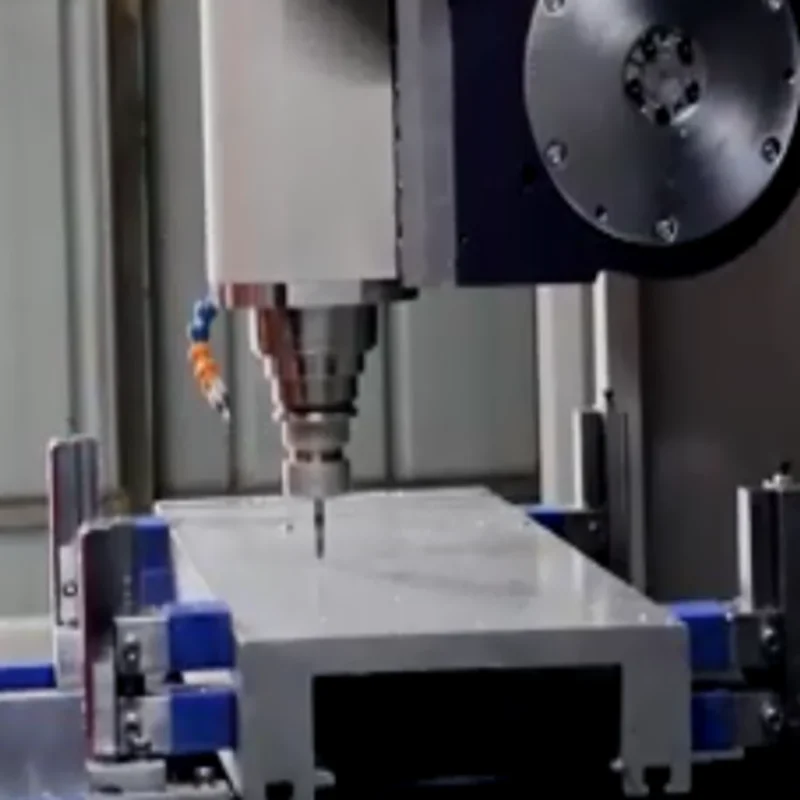

--It uses a CNC double pendulum head with 5 -xis and 5-linkage function, It can complete milling, boring, drilling, tapping thread and cutting      on 5 surface.

--It is suitable for 3-dimensional, 5-axis machining on all kind of industrial aluminum profiles for all kinds of venhicles, rail transportation, and    etc. It can complete all kinds of hole, slot and shape on aluminum profiles.

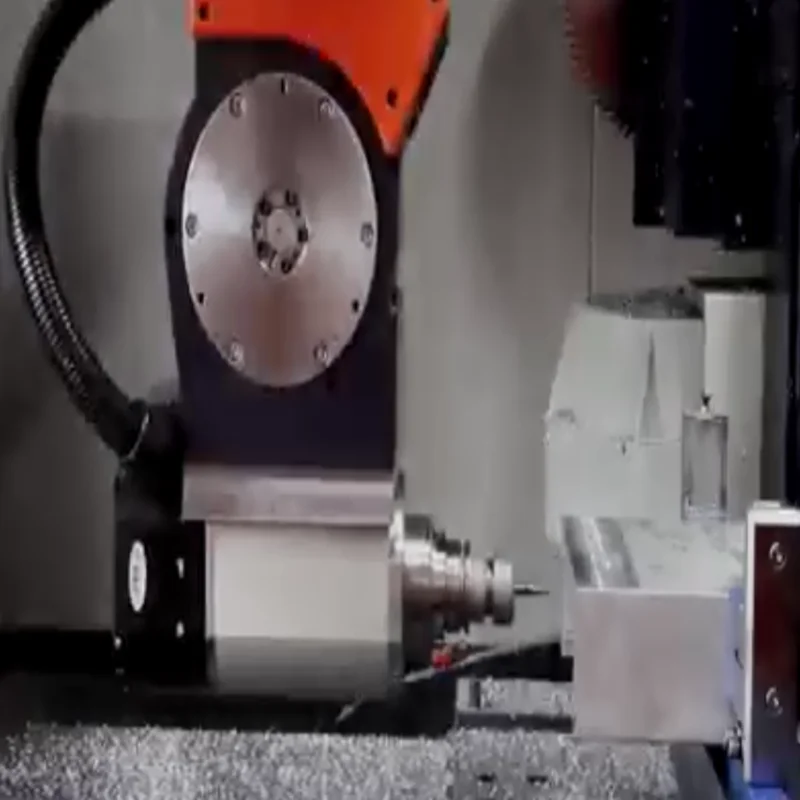

--With a high-precison double pendulum head, with a high-power, high-speed spindle, with the inner conic hol of interface HSK63F, the

  machine has much higher cutting quantity per unit time.

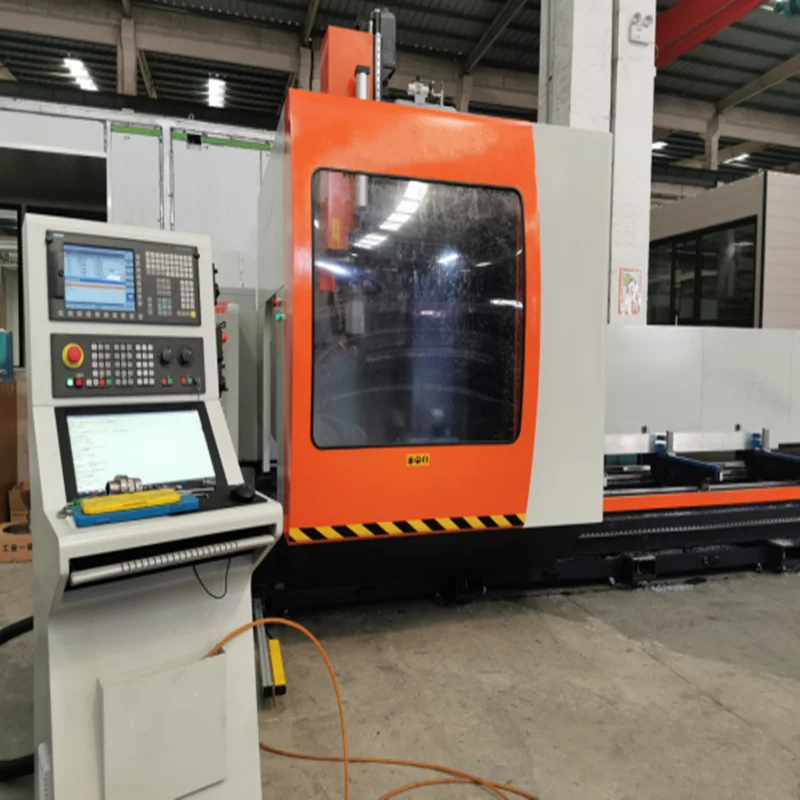

--With high quality CNC system of Italy Osai, it has a good user inerface. It can complete the complex 5-axis machining, and can realize the

   RTCP control(5-axis machining). All CNC are equipped with bus communication of CANOPEN.

--The worktable adopts high-strengh cast iron pieces. The machine body, the beams, the slide,the ram and other key parts are made of steel

   plate welding parts. It is analyzed and calculated by using finite element analysis, which ensure the quality of the optimal stiffness ratio and     excellent static and dynamic performance and thermal properties. The working table of the cast iron is provided with a standard T shaped

  groove, which can facilitate the positioning and installation of various tooling fixtures and workpieces.

--With water circulating cooling system on the electric main shaft, automatic lubricating system on the feed drive, and cooling spray system on

   cutting tool, it guaranteed the reliable operation and precision stability of the machine tool.

--With rotary tool stock of 12 stations, it can change the tools automatically.
