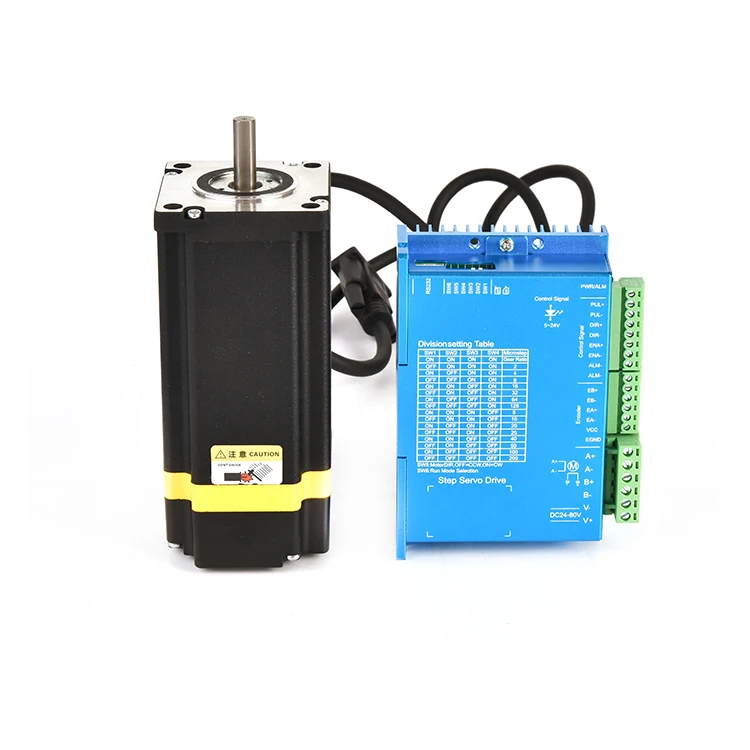

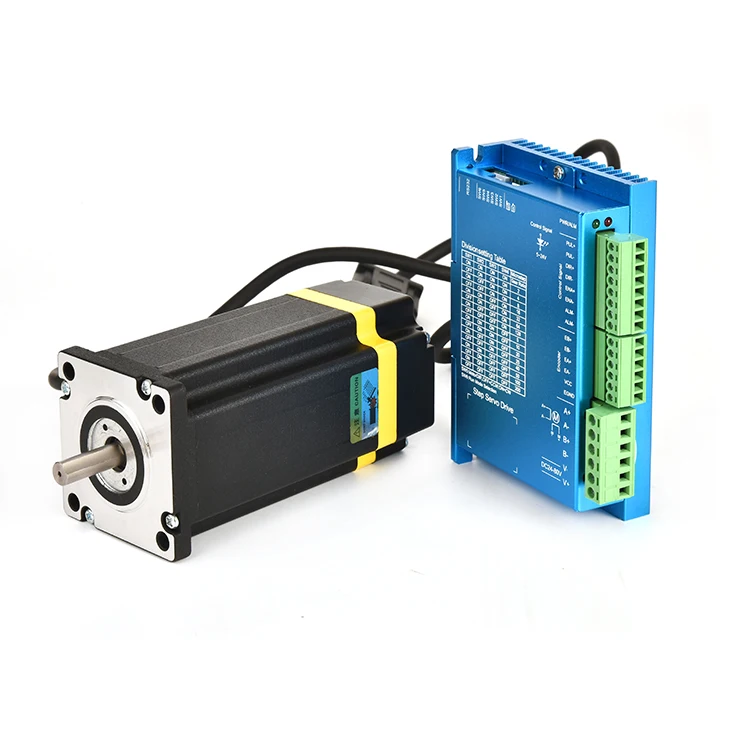

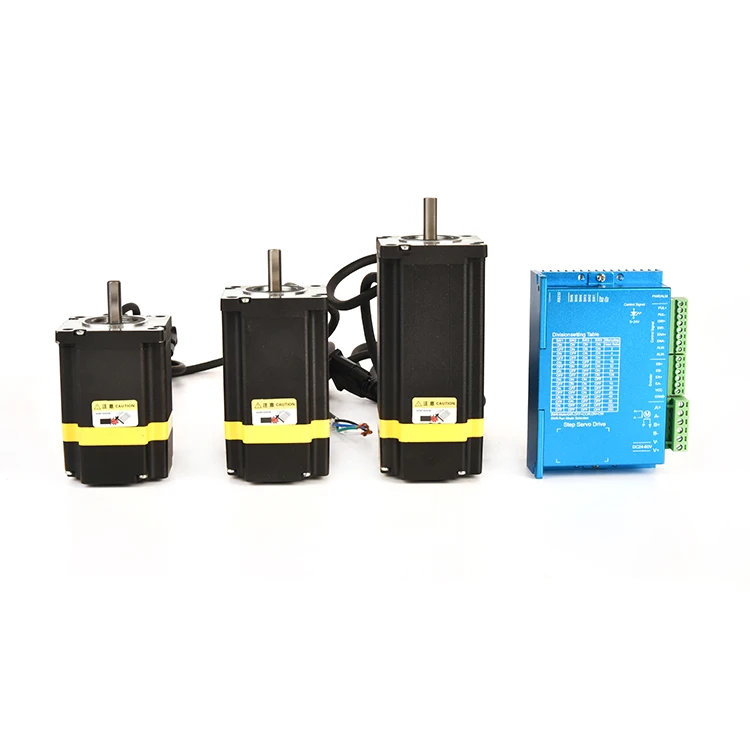

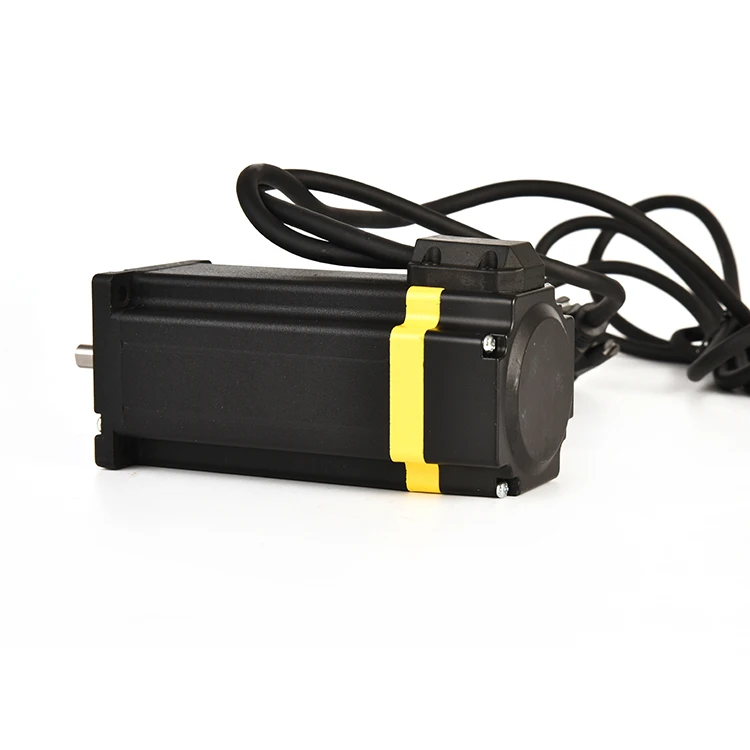

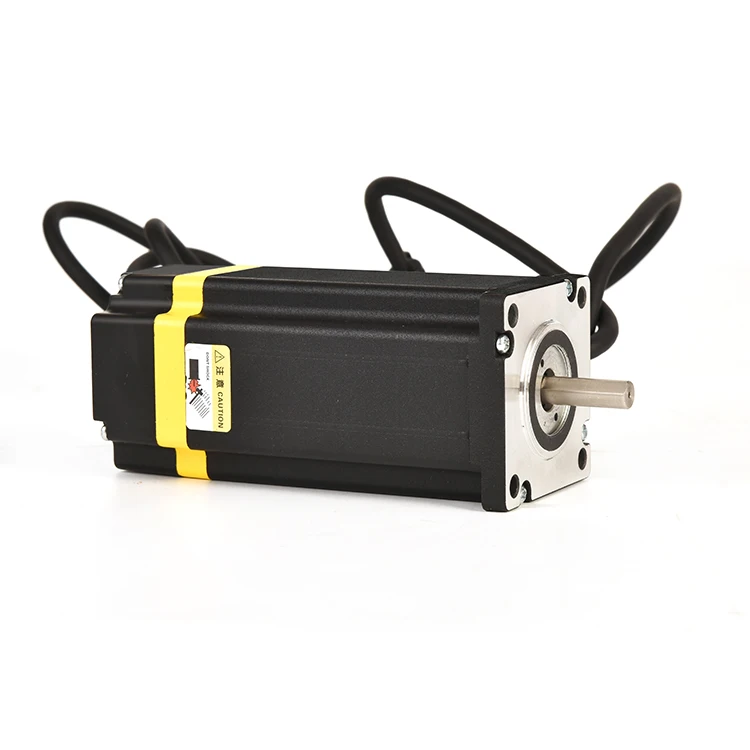

57mm Nema 23 3N.m closed loop with the encoder stepper motor stepping motor with driver kit for CNC machine
- Category: >>>
- Supplier: Changzhou Chuangyi Motor&Electric Appliance Co. Ltd.
Share on (1600535106540):
Product Overview
Description
Product Description
Our closed loop stepper motors with a wide range, good quality, reasonable prices and stylish designs, our closed loop stepper motors are extensively used in automation equipment and other industries.
Our closed loop stepper motors are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Our closed loop stepper motors are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Item | Specifications |
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10%(20℃) |
Inductance Accuracy | ±20%(1KHz) |
Temperature Rise | 80 ℃Max.(rated current,2 phase on) |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Rotation | CW( See from Front Flange) |
Leads | 4 |
Model No. | Stepangl ° | VoltageV | Current A/Phase | Resistance Ω/Phase | Inductance mH/Phase | Hold Torque N.m | Rotor Inertia g-cm2 | Weightkg | Length mm |
57BYG250-41 | 1.8 | 1.2 | 4 | 0.3 | 1.13 | 0.6 | 120 | 0.5 | 41 |
57BYG250-56 | 1.2 | 4 | 0.39 | 1.13 | 1 | 300 | 0.68 | 56 | |
57BYG250-76 | 1.7 | 4 | 0.42 | 1.78 | 2 | 480 | 1.2 | 76 | |
57BYG250-84 | 1.5 | 4 | 0.38 | 2.3 | 2.5 | 530 | 1.25 | 84 | |
57BYG250-112 | 2.5 | 4 | 0.83 | 3.5 | 3 | 800 | 1.78 | 112 |
Product Feature
01. Our company has 20 years of experience in motor production and has fully equipped testing facilities to ensure production quality.
02.The inner rotor adopts German technology, and the surface is coated with imported rotor glue to prevent burrs on the surface after carbon steel oxidation and grinding, which makes the motor noisy.
03.The whole body is made of high-strength metal, which is strong and durable. The side wall has a matte metal texture to increase friction.
04.THigh-quality raw materials and high-specification permanent magnet silicon steel have high positioning accuracy, output torque and fast response speed.
High-quality raw materials and high-specification permanent magnet silicon steel,with high pdsitioning accuracy, output torque,fast response.
Low noise,good dynamic charac-teristics,good quality and reliable.The same dynamic response speed with servo motor,but cheaper than servo motor.
Useing the Japanese Tamagawa 2500 cable encoder,advanced magnetic circuit design and high temperature permanent magnet materials,servo motor running smoothly,the noise is minimal,Suitable for a variety of industrial automation equipment,high precision control applications.
Smooth and low noise, quality assurance, professional and assured.
Product Display
Application: Our products are widely used in many machines such as sewing machine,
3D printing machine,vertical packing machine,CNC Lathe Machine,embroidering machine and so on.
3D printing machine,vertical packing machine,CNC Lathe Machine,embroidering machine and so on.
Related Products
Production Process
About Us
Changzhou Chuangyi Motor&Electric Applicance Co.,Ltd. It is located in Hutang Town, Changzhou City, Jiangsu Province, which specializes in the hybrid stepping motor. Our company was founded in 2002. Our campany carries forward the business philosophy”Customer First, Keeping on Progress”. And we stick to the principle of “Customer First” tio provide good quality service to our customers.
Product packaging
FAQ
1.Q:Are you factory?
A:Yes, we are facotry, and we produce stepper motor for more then 20 years in China.
2.Q: How to select the motor model?
A: Before purchasing,please contact us to confirm the model no and specification to
avoid any misunderstanding.
3.Q: What’s your warranty?
A:Our warranty is 12 months from shipment out of factory.
4.Q:What is your payment way?
A: Sample fee should be fully paid before production,for bulk order,50% advance is
needed and balance after copy of B/L..
5.Q:How can we know the product quality?
A: We suggest you to order a sample. Also, you can send us email for detail photos for
checking if you cannot get enough information in the product page.
A:Yes, we are facotry, and we produce stepper motor for more then 20 years in China.
2.Q: How to select the motor model?
A: Before purchasing,please contact us to confirm the model no and specification to
avoid any misunderstanding.
3.Q: What’s your warranty?
A:Our warranty is 12 months from shipment out of factory.
4.Q:What is your payment way?
A: Sample fee should be fully paid before production,for bulk order,50% advance is
needed and balance after copy of B/L..
5.Q:How can we know the product quality?
A: We suggest you to order a sample. Also, you can send us email for detail photos for
checking if you cannot get enough information in the product page.
