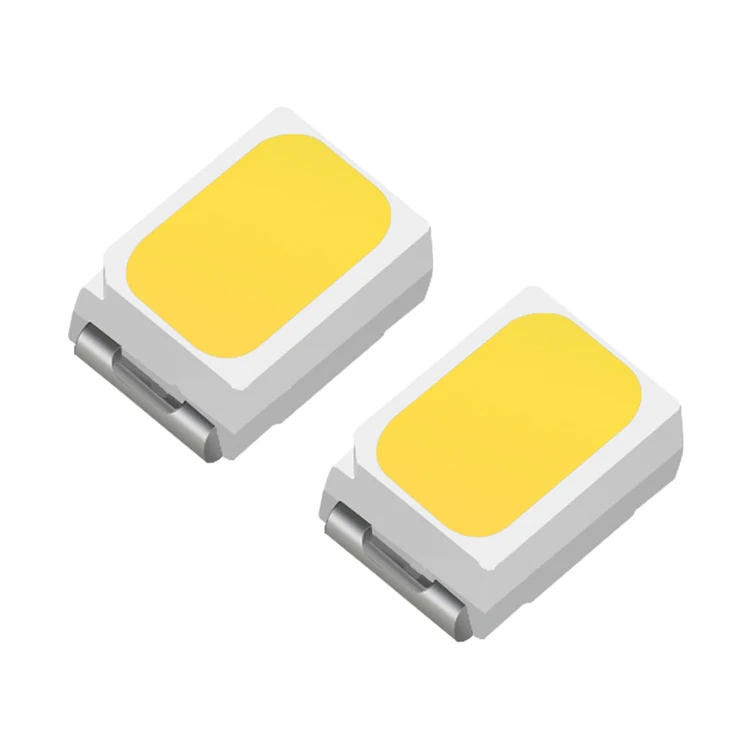

Free Samples Short Lead Time 3020 Led High Quality White 5000K 0.06W 3020 Smd Led
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600535108139):
Product Overview
Description
Products Description
Features
1, 3.0mm×2.0mm SMT LED ,1.3mm Thickness.
2, Low Power Consumption.
3, Viewing Angle 120°.
4, Various Colors And Lens Types Available.

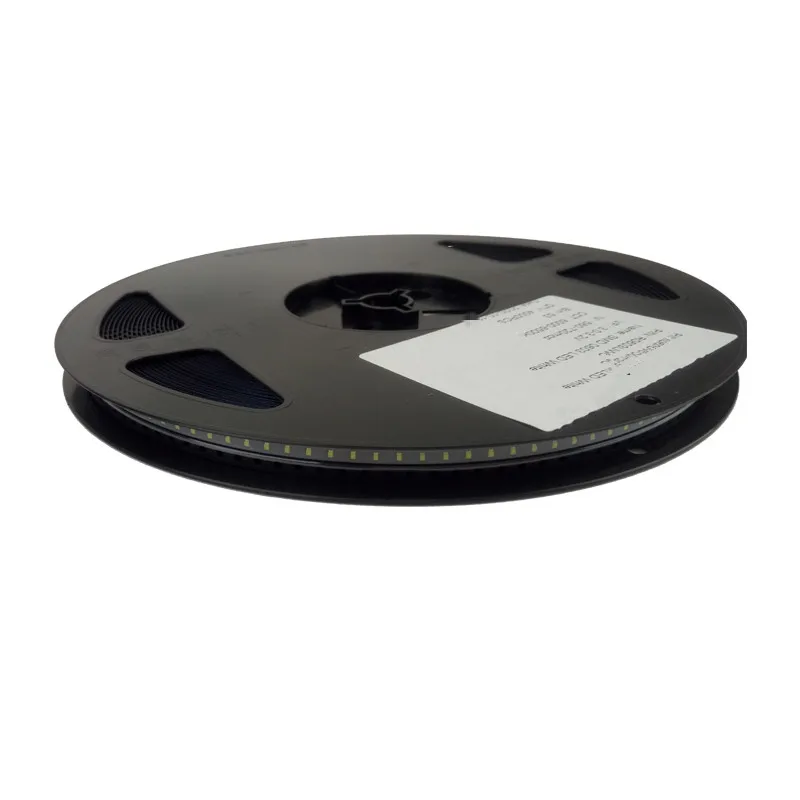

5, Package:3000 Pcs/Reel.
Maximum Rating (Ta=25℃)
Parameter | Symbol | Typical | Unit | |||
DC forward current | IF | 30 | mA | |||
Pulse forward current | IPF | 100 | mA | |||
Reverse voltage | VR | 5 | V | |||
Operating temperature range | TOP | -30~85 | ℃ | |||
Storage temperature range | TSTG | -40~100 | ℃ | |||
Soldering temperature | TSD | 260 for 5sec | ℃ | |||
Notes: 1, Duty 1/10, pulse width 0.1ms. 2, The maximum of soldering time is 5 seconds in TSD | ||||||
Typical Product Characteristics (Ta=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||||||
Forward Voltage | VF | 2.8 | 3.0 | - | V | IF= 20mA | ||||||
Luminous Flux | Φ | 6 | 7.5 | - | LM | IF= 20mA | ||||||
Color Temperature | CCT | 4750 | - | 5250 | - | IF= 20mA | ||||||
Color Rendering Index | CRI | 80 | - | - | % | IF= 20mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR= 5V | ||||||
View Angle | 2θ1/2 | - | 120 | - | Deg | IF= 20mA | ||||||
Notes: Tolerance: Forward Voltage: ±0.1V, Luminous Lumen: ±10%Φ | ||||||||||||

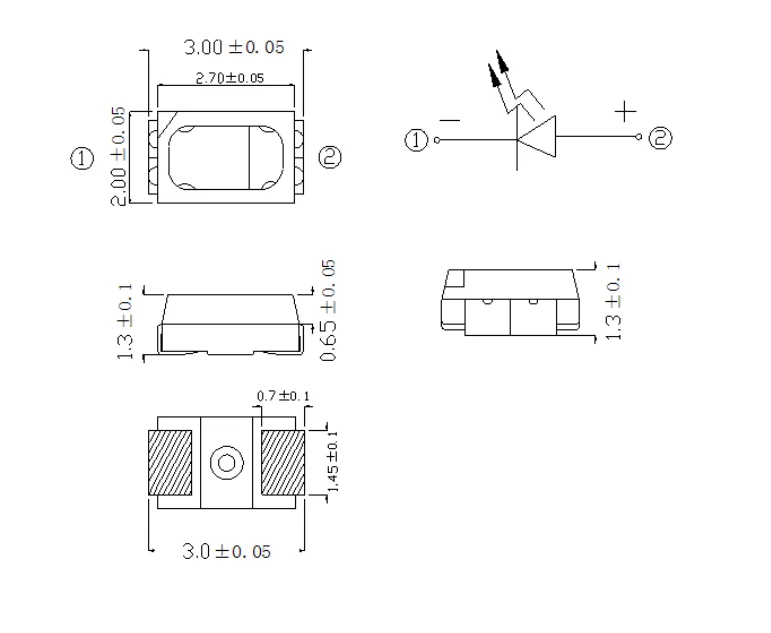

Dimensional Drawing
Notes:
1, All dimensions are in millimeters.
2, Tolerance is ±0.15mm unless otherwise noted.
3, Specifications are subject to change without notice.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
