Product Overview

Description



Product Overview

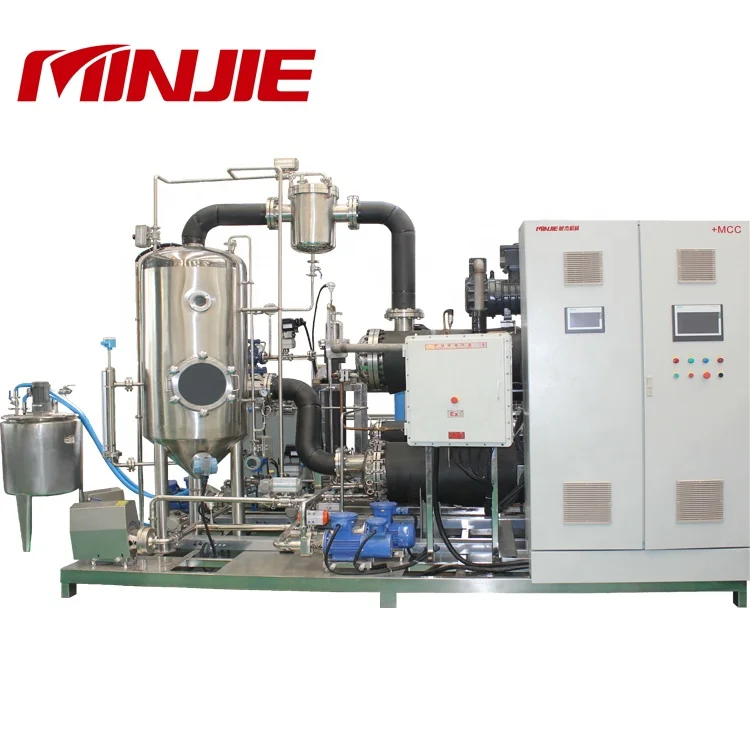

SDR Energy-Efficient Evaporator
SDR Energy-Efficient Evaporator with characteristics of intelligent, energy-saving, safe and environmental protection is
developed.


Working Principle:
Referring to the refrigeration principle, the energy-carrying medium completes the continuous cycle of gas→liquid→ gas in the
closed circulation system. During the phase change process, the medium realizes heat release and heat absorption. The heat
released is used for the heating and evaporation of the material liquid, while the heat absorbed comes from the condensation heat
of the secondary steam generated by the evaporation of the material liquid. The liquid concentration, solvent evaporation and
solvent recovery can be realized through the use of both hot and cold energy.



Model selection referencce


Model
Ethanol evaporation(L/h)
Total Power Kw
Heating Power KW/h
Evaporating Temperature (°C)
Vacuum Degree (MPa)
Weight kg
Outline
dimension m
SDR-1000
1000
(Water:600L)
           98
75
42-65
-0.05~-0.09
9500
5*2.7*4
SDR-2000
2000
(Water:1200L)
152
115
42-65
-0.05~-0.09
12200
5.5*2.7*4.2
SDR-3000
3000
(Water:1800L)
185
130
42-65
-0.05~-0.09
14800
6.2*2.7*4.3
SDR-5000
5000
(Water:3000L)
568

2254
42-65
-0.05~-0.09
19600
7.3*2.7*4.3


Application
1. food and beverage such as instant tea /cocoa powder/Molasses/Honey/Camel Milk/Malted milk drink/ovaltine powder
2. Pharmaceutical such as Herbal Medicine/Plant Extract/Pills
3. Chemical such as Lithium Battery Fluid/Polymer battery/Cobalt products/Copper products/Agricultural chemicals/Hazardous Chemical

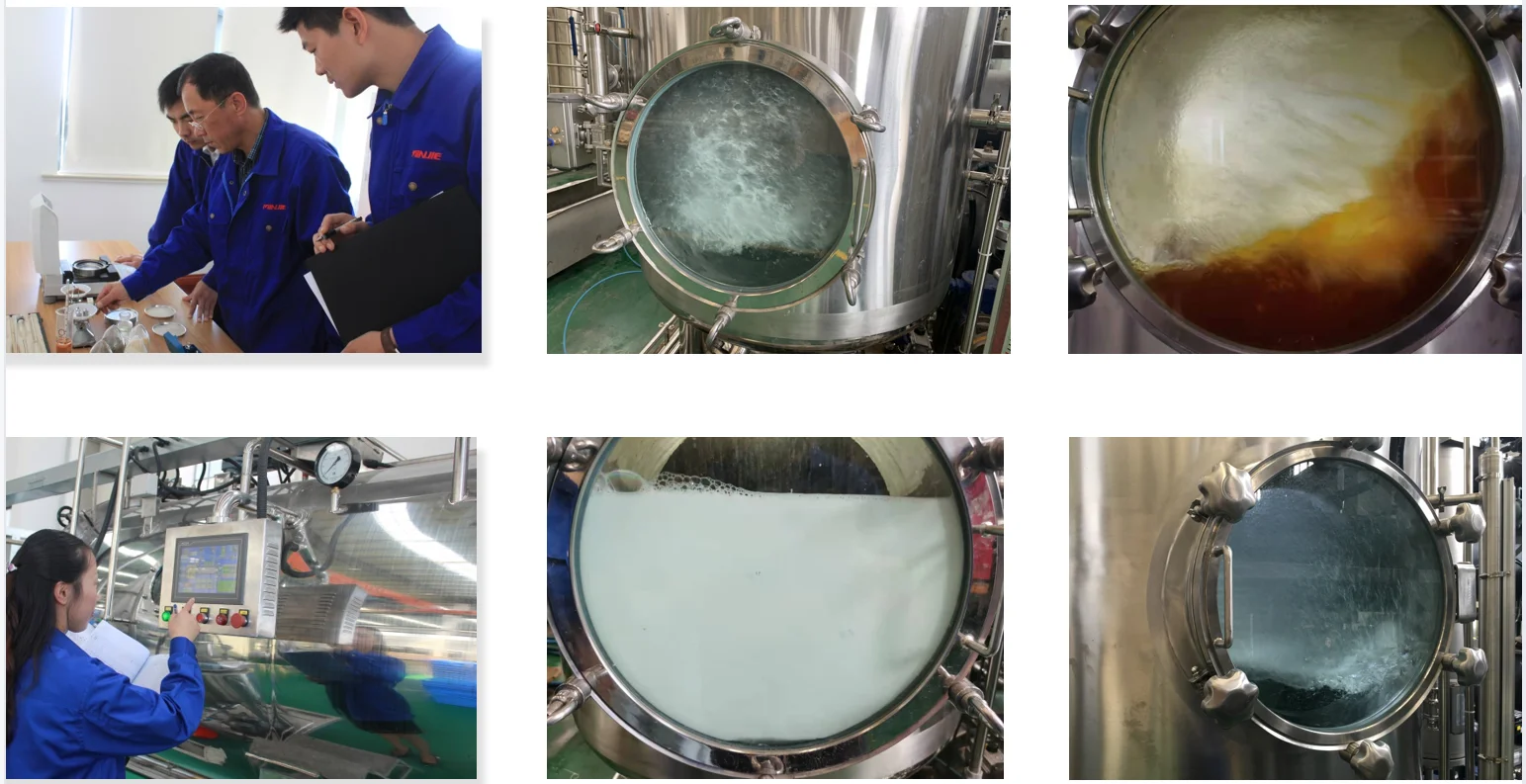

Details Images




Our Advantages










FAQ


Question 1: What is the working principle of vacuum belt dryer?
Answer: Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.

Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?
Answer: with CIP cleaning, vacuum belt dryer is the best choice for GMP performance.

Question 3: What kind of products can vacuum belt dryer dry?
Answer: all kinds of liquid material for vacuum belt dryer.

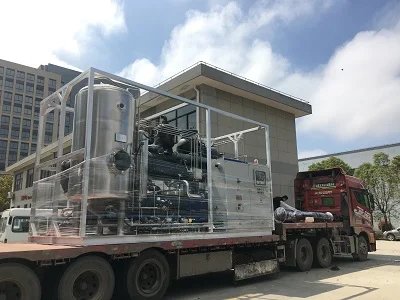

Question 4: How to ship vacuum belt dryer?
Answer: Flat Rack+container

Question 5:What is the delivery time?
Answer: 90-120 days

Question 6: What is the after-sales service type?
Answer: engineers onsite to guide installation, commissioning and training.

Question 7:How many years history of your factory?
Answer: Since 1998.

Question 8:How many sets vacuum belt dryer are been sold every year?
Answer: 80-100 sets

Question 9: What is drying temperature?
Answer: 30-150℃(adjustable)
