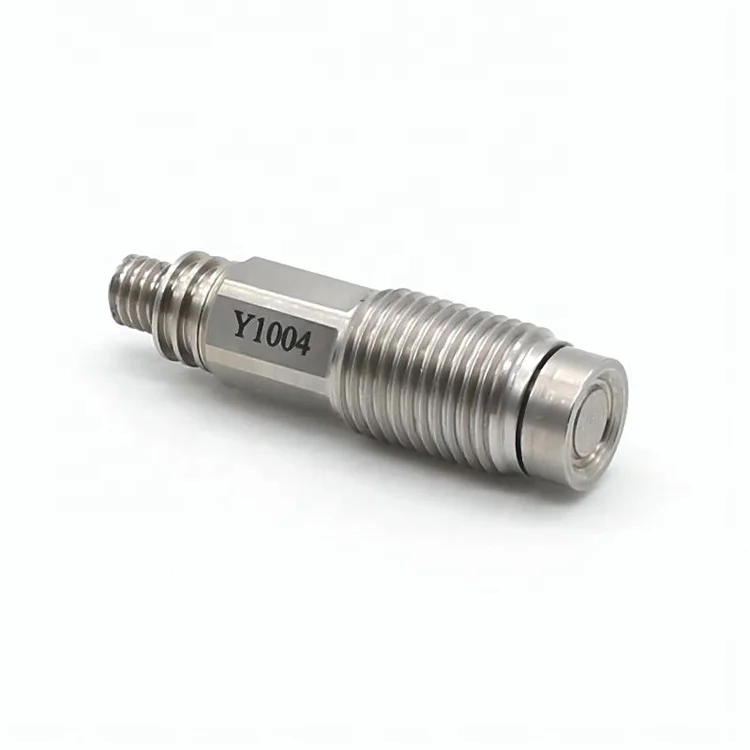

Y1004 Large Range Piezoelectricity Pressure Sensors for Measuring Pipeline Pressure and Explosion Pressure
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600535120679):
Product Overview
Description
Product Description
Characteristic:
1. Wide range.
2. Measurement of pipe pressure and explosion pressure.
3. Static calibration is supported.
4. Lent has wide frequency response and high rigidity.
2. Measurement of pipe pressure and explosion pressure.
3. Static calibration is supported.
4. Lent has wide frequency response and high rigidity.
Specification:
Static parameter | ||
Range | 0-200MPa | |
Sensitivity | 30pC/MPa | |
Overload capacity | 120% | |
Non-linearity | ＜1%FS | |
Delaying | ＜1%FS | |
Repeatability | ＜1%FS | |
Insulation resistance | >10^13Ω | |
Capacitance （1000Hz） | ~5pF | |
Dynamic parameter | ||
Natural frequency of vibration | ≥200 kHz | |
Operation Temp | -40℃～+150℃ | |
Physical parameter | ||
Shell Material | High strength stainless steel | |
Weight | 20 g | |
Piezoelectric materials | Quartz | |
Installation | M10*1 | |
Output Mode | M5 | |
Accessory | ||
Seal washer | 1 pc | |
Connecting Cable | 2 m x double end L5 low noise cable | |
Product Display

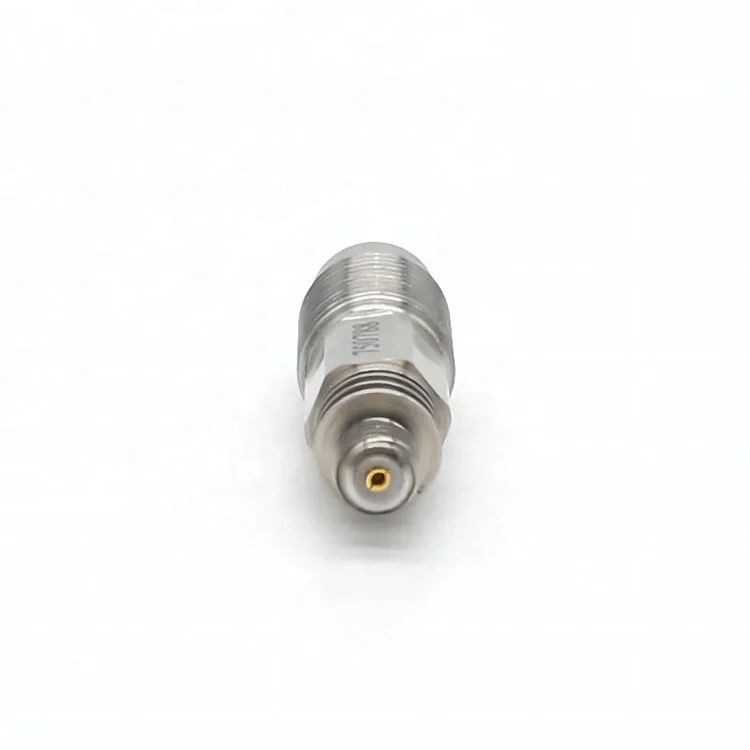

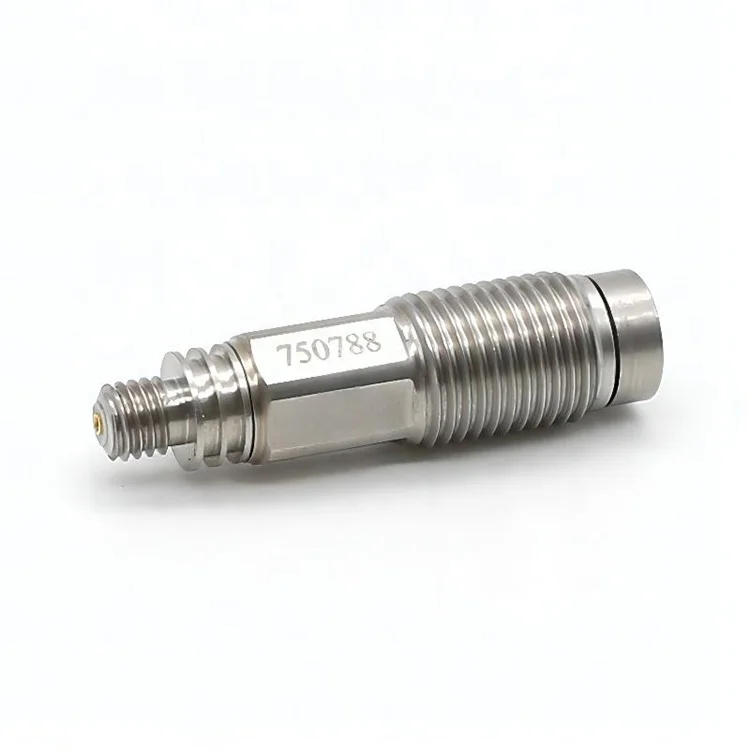

Product

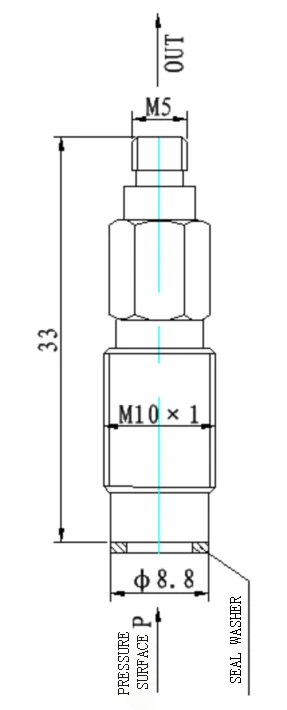

Size

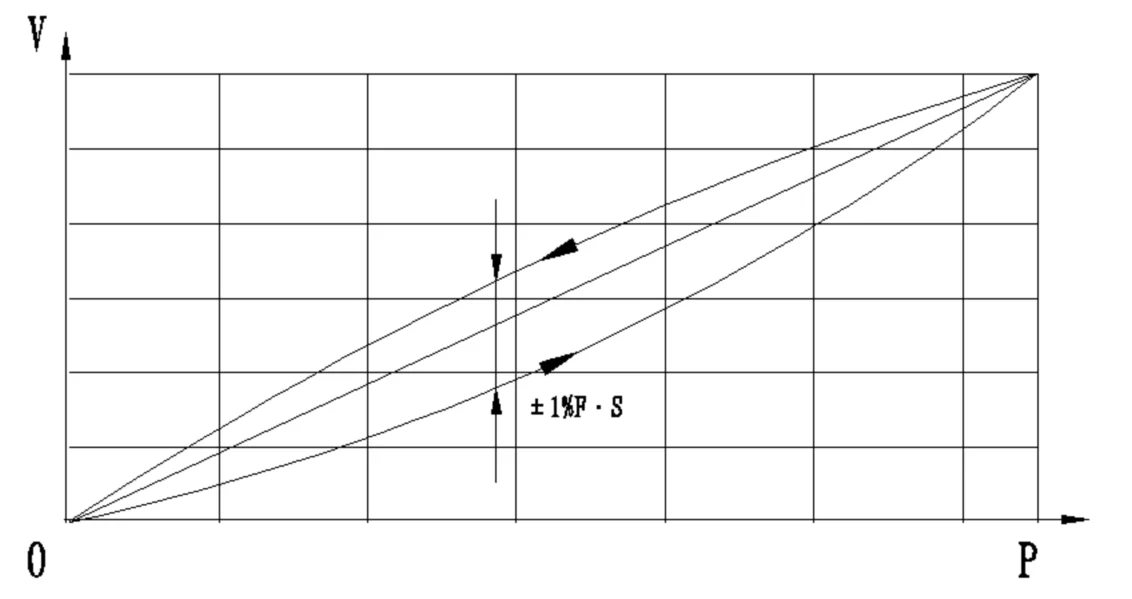

Typical Static Calibration Error Curve
