About this item

• 2 Port DisplayPort 1.4 8K KVM Switch,This DP Switchers allows you to connect from two PCs(via dp to dp or mini dp to dp,usb-c to dp,hdmi to dp cables) to One Monitors(via dp to dp or dp to hdmi cables),you can press"SELECT"button to switch between two pcs.While using,plugging one USB-A to USB-C cable in "Input DC/5V Port"to your USB Devices to power the switch is necessary.


• Connecting USB External Devices,with 3xUSB2.0 Output Port,2 PCs sharing the same one USB Keyboard,USB Mouse,USB Printer,USB Disks etc.Very Important Notes: If you would like to make your connected USB Devices work,you must connect the USB-A to USB-C Cables from the PC1 Input Port or PC2 Input Port to your comouter which you have pluged DisplayPort Cable,If not plug in,USB Devices will not work.This ensure the Switch can work like an USB Hub.


• DisplayPort 1.4 8K Video Output,with this switch,you can max output 8K@60Hz 4K@144Hz resolution in your external DisplayPort Monitor,This requires that your PCs and Relatively Cables/Monitors should both supports the max resolution you would like to output.Two Personal Computers share one Screen(Easily switching,press"select"button to switch between them).The DisplayPort 8K Cable max supports


• Widely used in many occasions,this DisplayPort 1.4 KVM Switch can be used in many occasions,Effectively solve the problem of lack of USB devices.If you have two pcs,but you have only one set of keyboard,mouse,u-disks,by using our This KVM Switch,you can easily to control two of your computers by pluging mouse,keyboard,U-disks in our switcher's USB Output Port(Switch between two PCs)

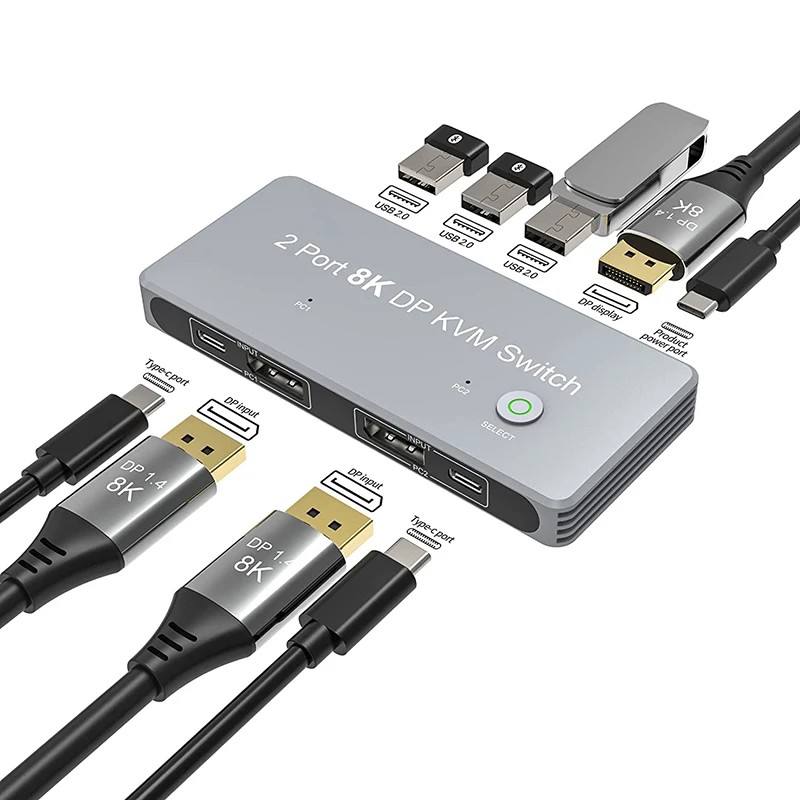

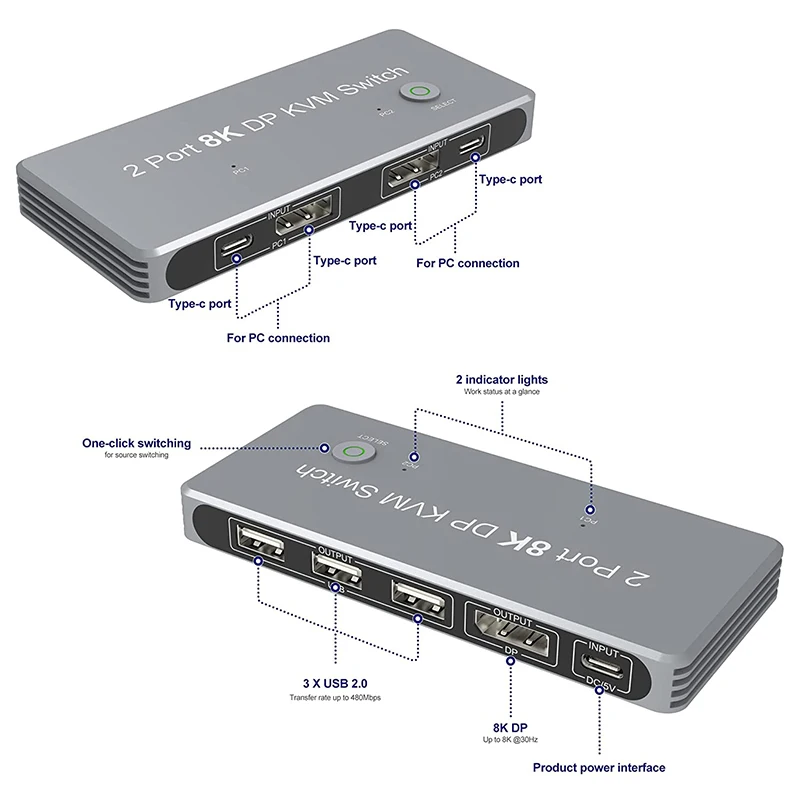

Muti interface and power function:

• 2x DP Input


• 3X USB 2.0


• 1x Power Port


• 1x DP Output


• 2x USB C Port

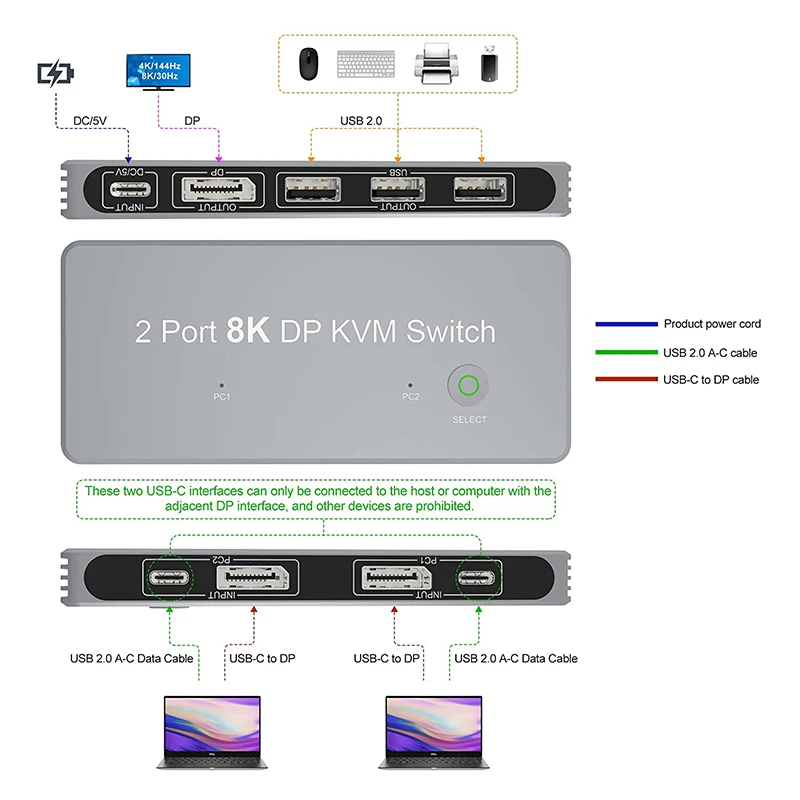

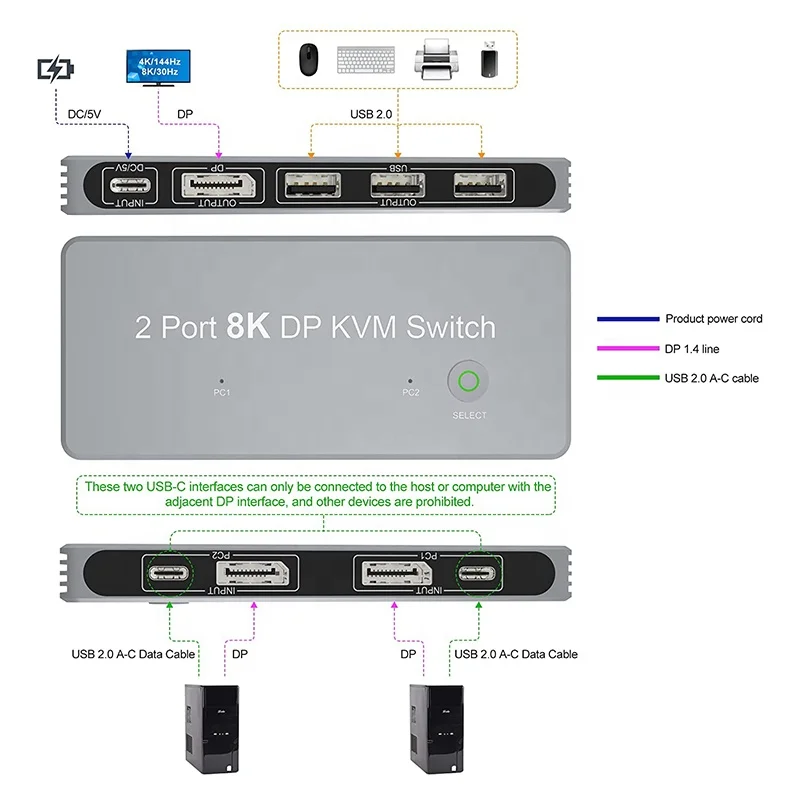

How to use it

• 1. use two dp cable connect from pc to kvm switch dp input port


• 2. Use two usbc cable connect from pc to kvm switch usbc port


• 3. Use the power cable connected from DC port to charger adapter to power the switch


• 4. use the dp cable connect from switch output to monitor input


• 5. Press the button “select”,you can switch betweem two pc


• 6. Use the usb2.0 port .you can switch the two pc while share one set usb peripherals
