Ck6140*750 mm Mini Cnc Lathe Machine
- Category: >>>
- Supplier: Tengzhou Datong Machine Tool Co. Ltd.
Share on (1600535125842):
Product Overview
Description
DTMC
Product Description
CK6140 CNC lathe Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
Specification
SPECIFICATIONS | Units | CK6140 |
Swing over bed | mm | 400 |
Swing over cross slide | mm | 210 |
Distance between centers | mm | 750/1000/1500/2000 |
Spindle bore | mm | 52(Optional 80) |
Spindle bore taper | - | MT6 |
Spindle nose type | - | C6 |
Spindle speed steps | - | Manual 2 steps |
Spindle speed range | rpm | L:100-500 H:500-1800 (Optional 90-1800 stepless) |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 230 |
Z axis travel | mm | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |
Tailstock quill diameter | mm | 65 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 130 |
Main spindle motor | kw | 4 |
Coolant pump motor | kw | 0.09 |
Weight for 750 | kg | 1700 |
Weight for 1000 | kg | 1800 |
Weight for 1500 | kg | 1900 |
Weight for 2000 | kg | 2000 |
Dimension for 750 | mm | 2200x1650x1700 |
Dimension for 1000 | mm | 2500x1650x1700 |
Dimension for 1500 | mm | 3000x1650x1700 |
Dimension for 2000 | mm | 3500x1650x1700 |

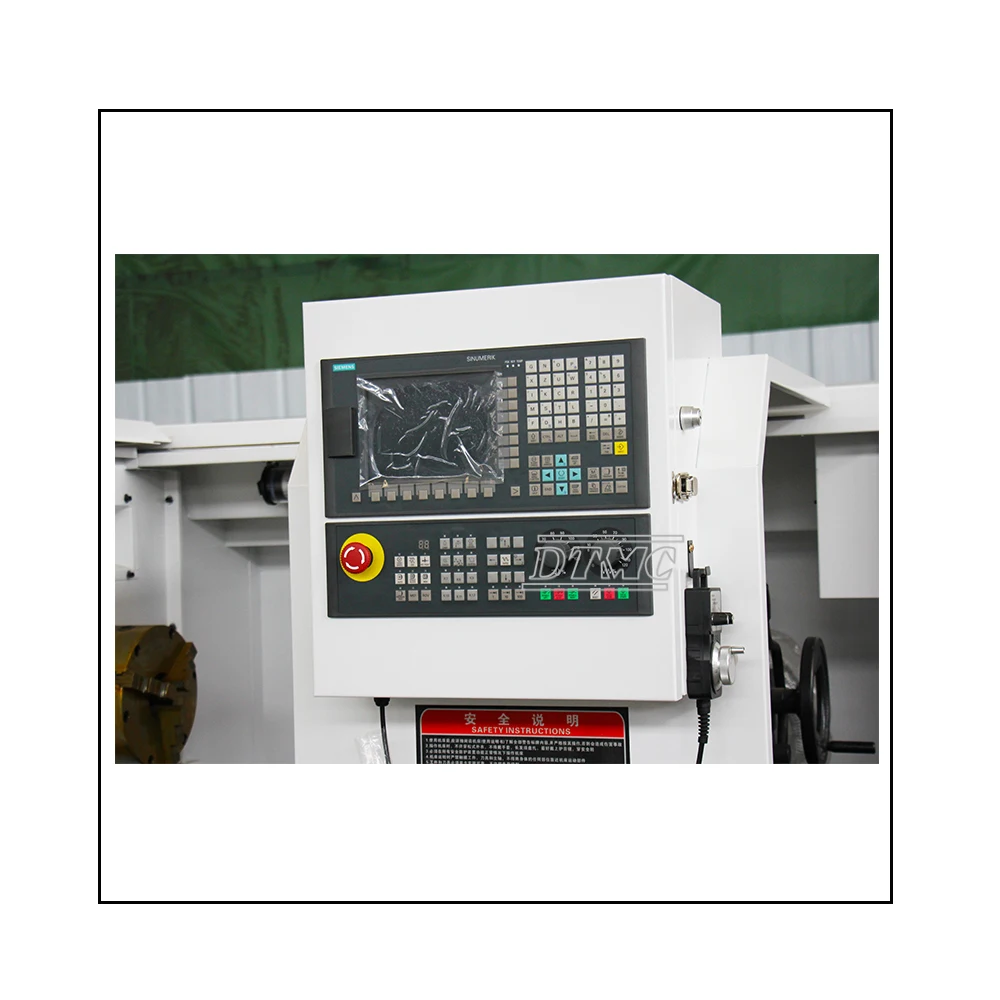

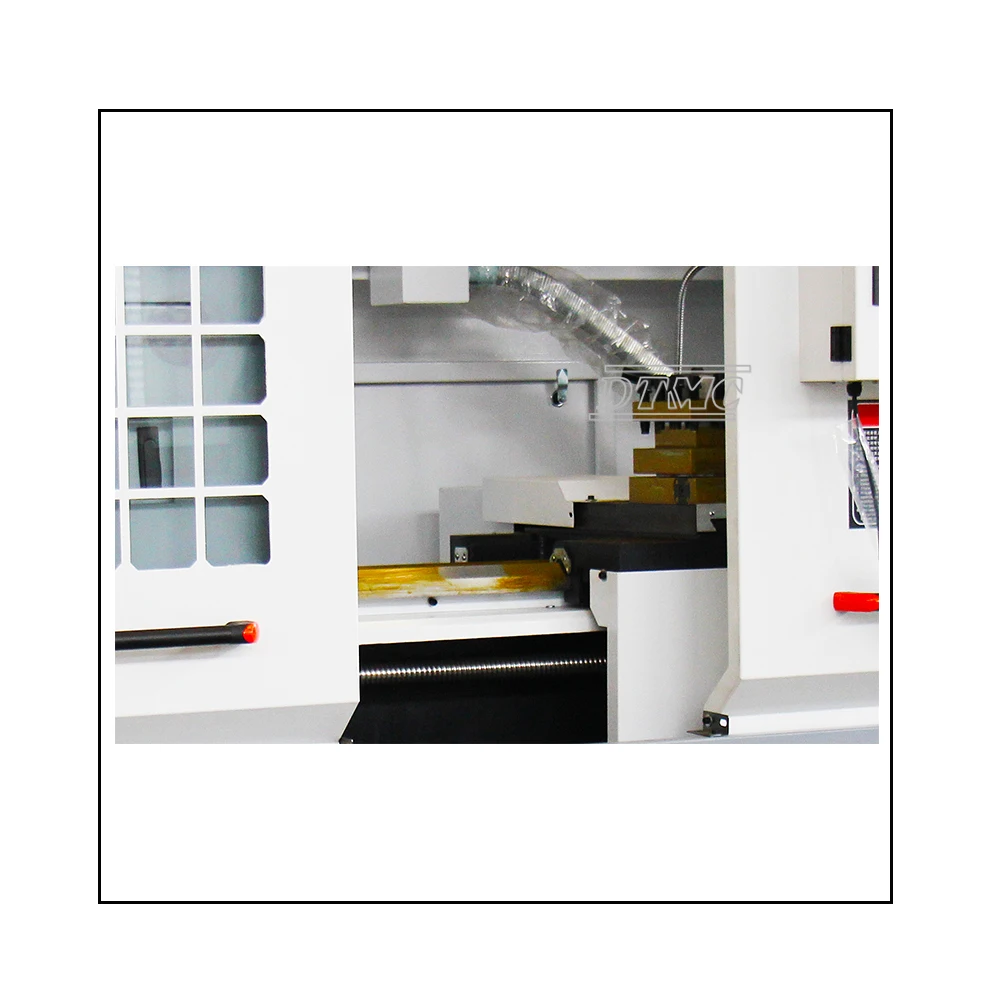

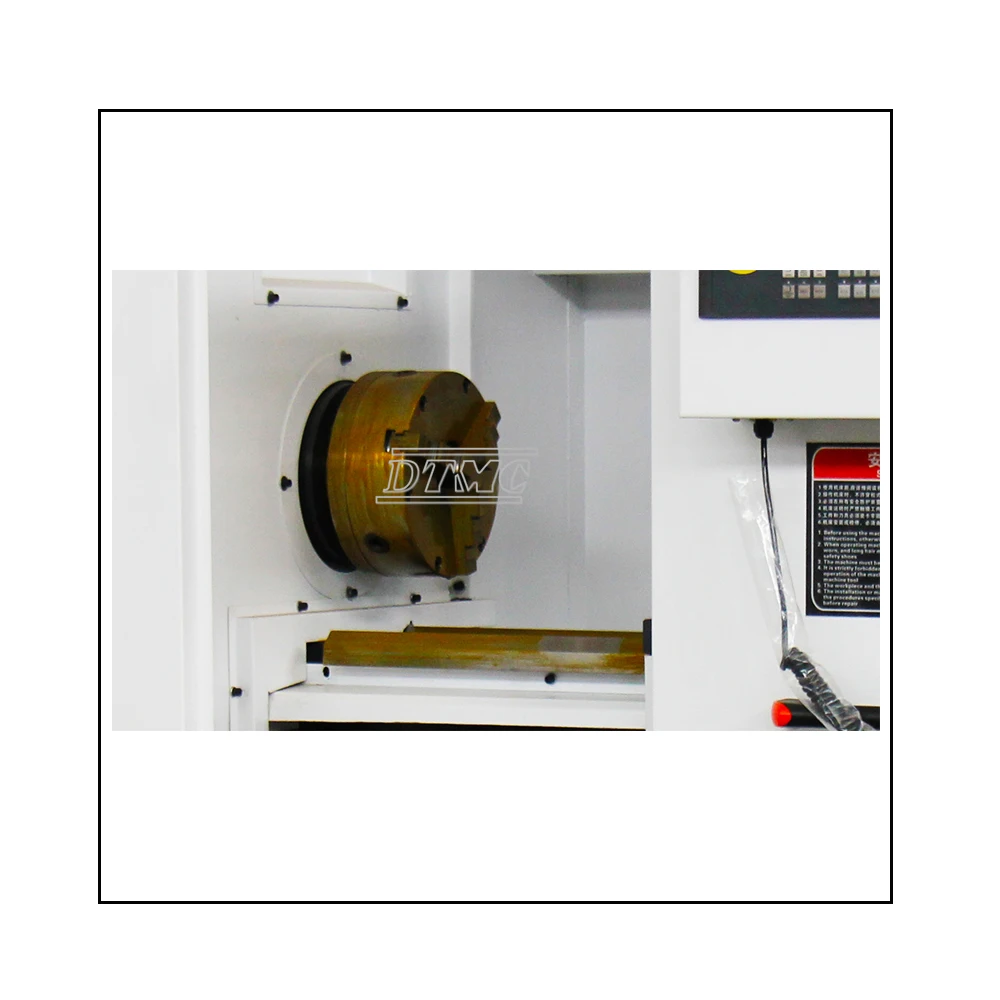

Product Display
