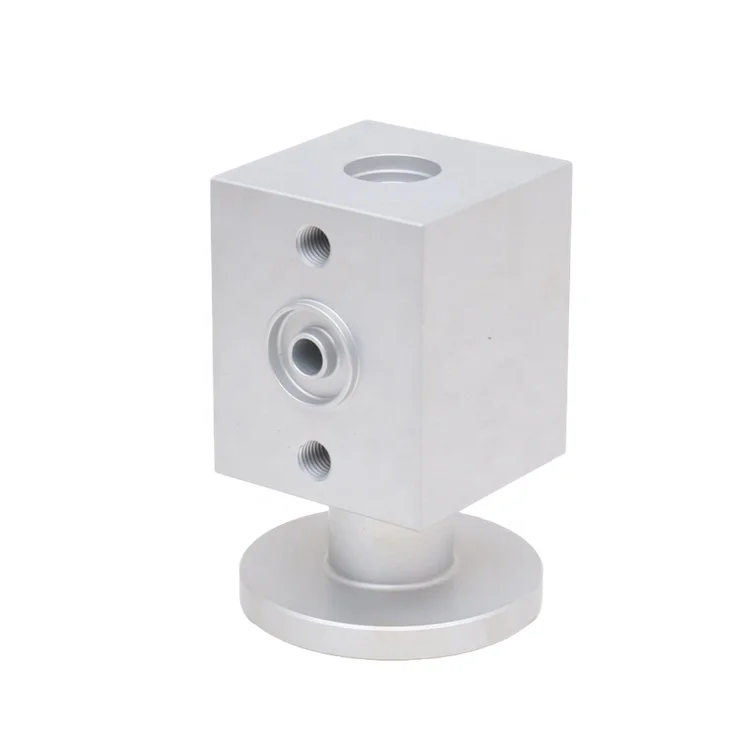

Customized die Cast Ductile Iron Sand Casting Parts Stainless Steel Aluminum Alloy Investment Casting Service
- Category: >>>
- Supplier: Ningbo Tianhui Machine Co. Ltd.
Share on (1600535147573):
Product Overview
Description
Technical | investment casting and CNC Machining |
Material | stainless steel , carbon steel , alloy steel |
Material Grade | GB, ASTM , AISI , DIN , BS, JIS, NF |
Weight | 10g~50kg |
Accuracy | casting tolerance CT6-CT7, machining tolerance ISO2768-mk |
Surface Roughness | up to Ra0.7~Ra3.2 |
Applied software | ProE (.igs , .stp) , Auto CAD , PDF, Jpeg, Jpg, Png |
Production capacity | more than 1500MT per year |
Heat Treatment | anneal,quenching,normalizing,carburizing, polishing, plating, painting |
Machining Equipment | CNC center , CNC machines, turning machines, drilling machines , milling machines, grinding machines |

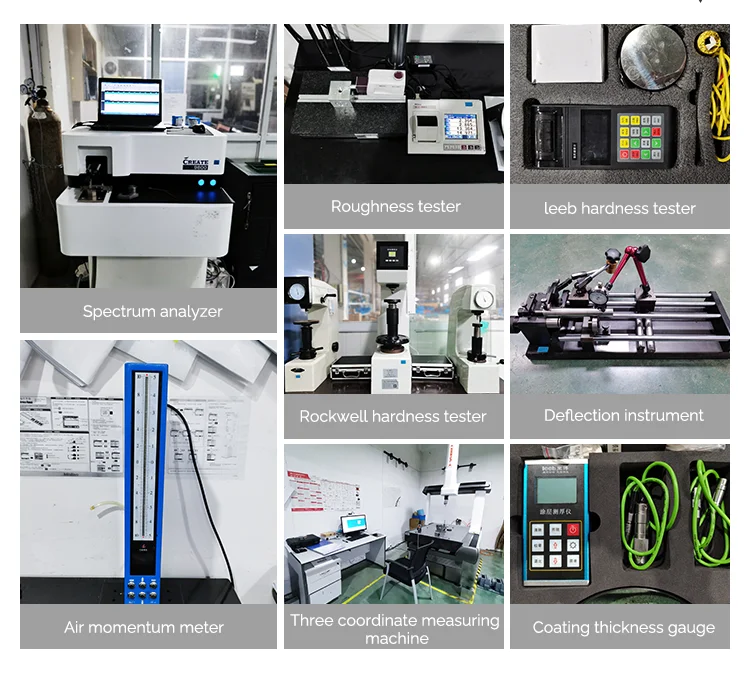

Measuring Tool | CMM , Projector, pneumatic micrometer, magnetic powder inspection, vernier caliper, depth caliper, micrometer, pin gauge, thread gauge , height gauge |
QC system | 100% inspection before shipment |
MOQ | 500kg |
Lead Time | sample fast , lot production depends on customers' request |
Certification | ISO9001:2015 |
Payment Terms | T/T , L/C, D/P , D/A |
Shipment Terms | FOB , CFR, CIF |

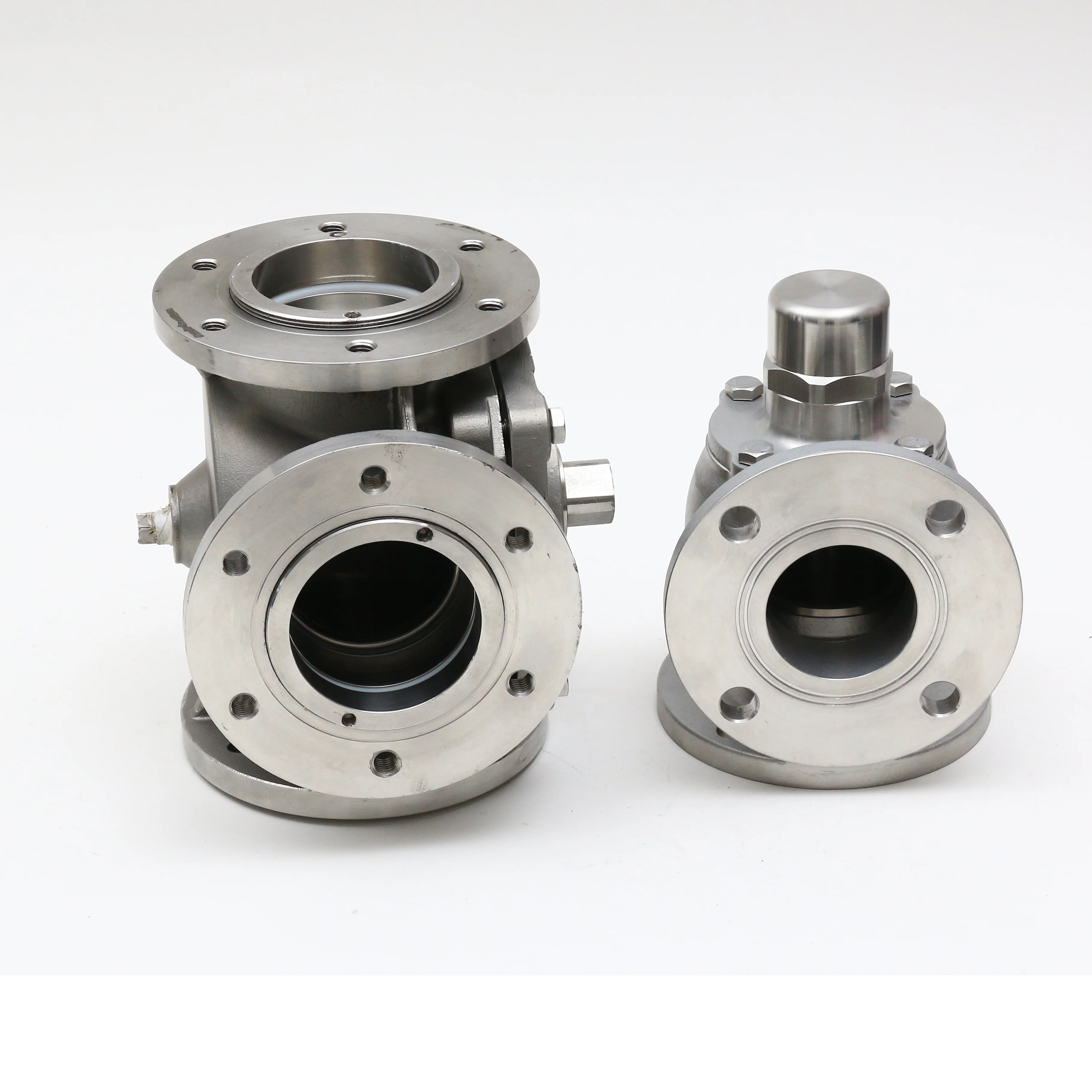

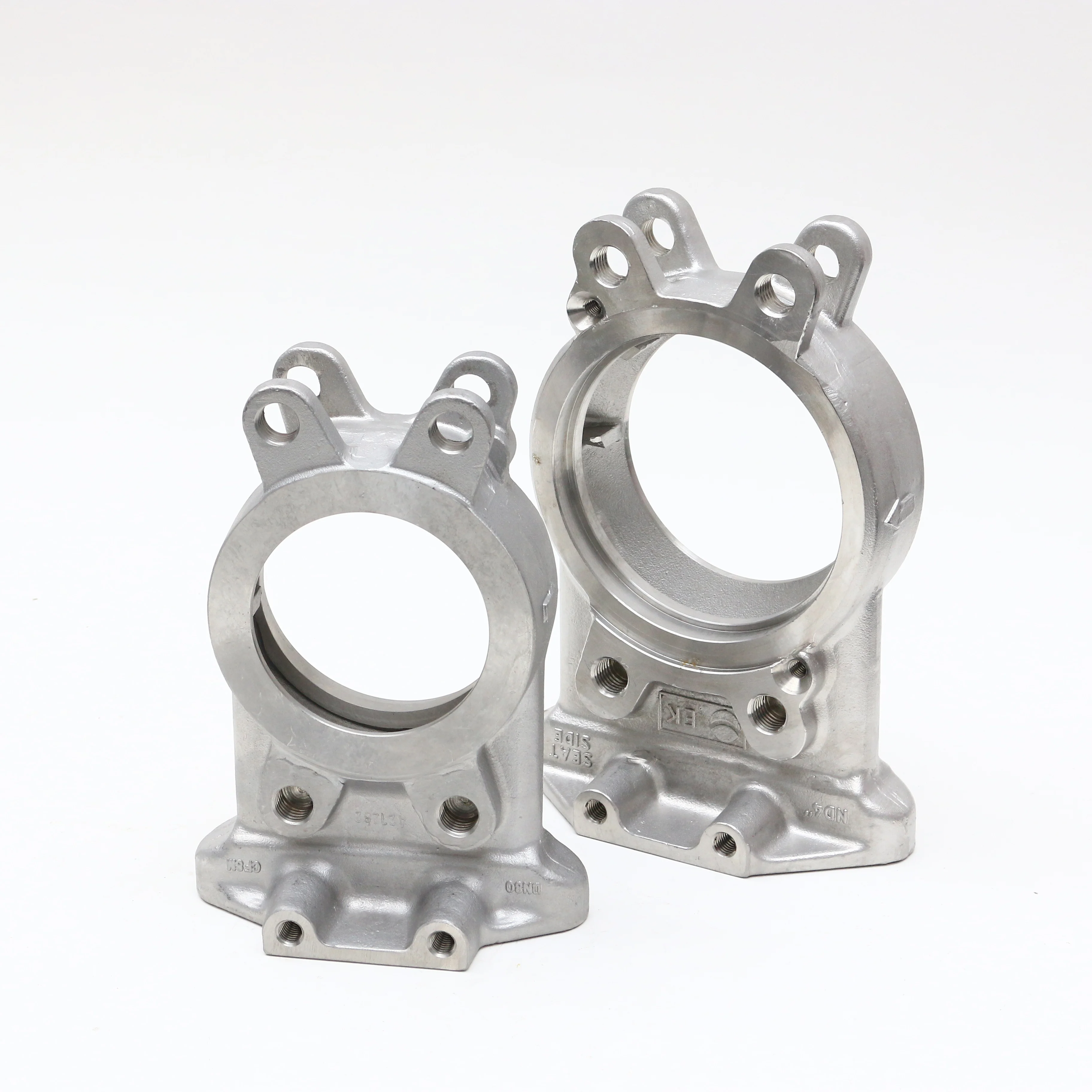

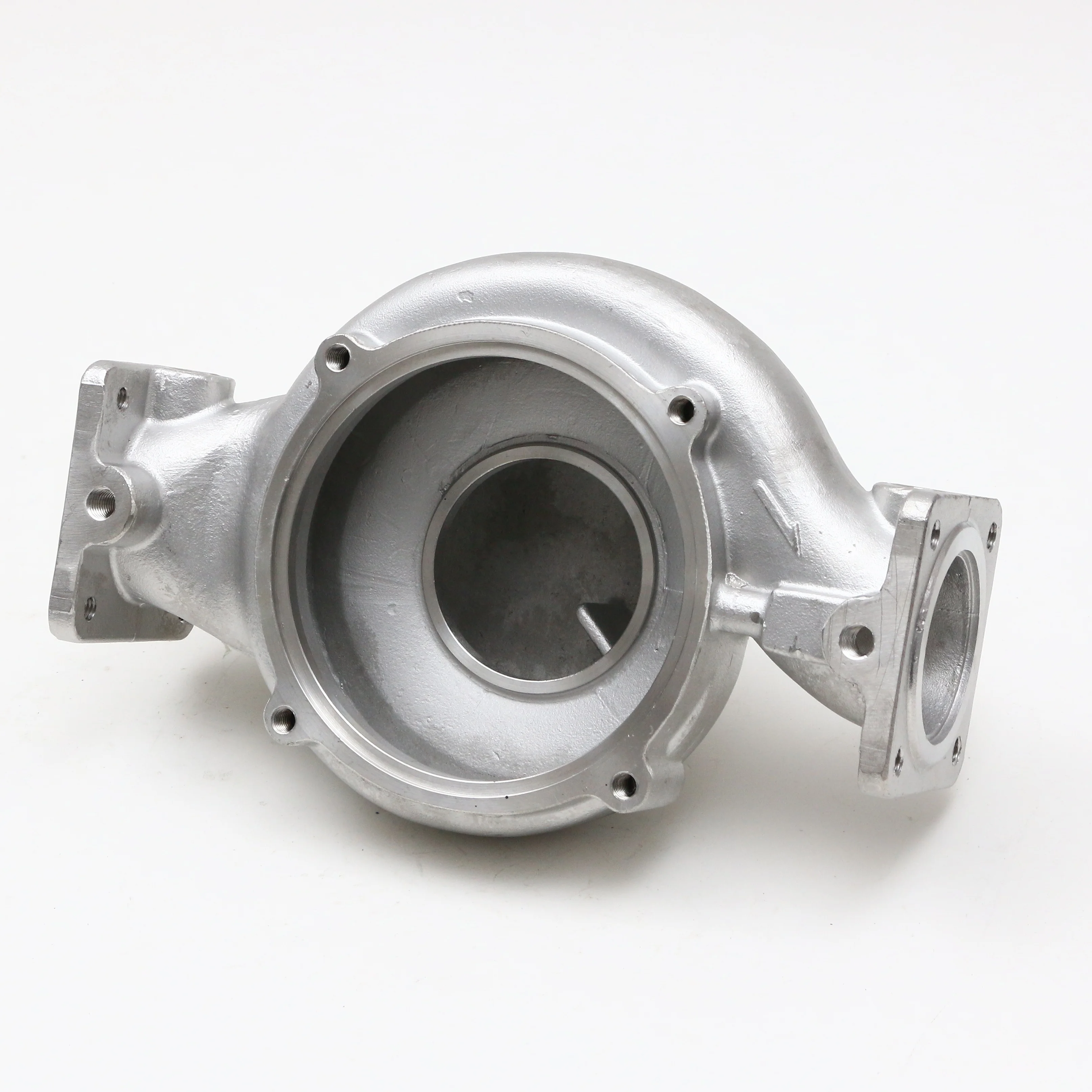

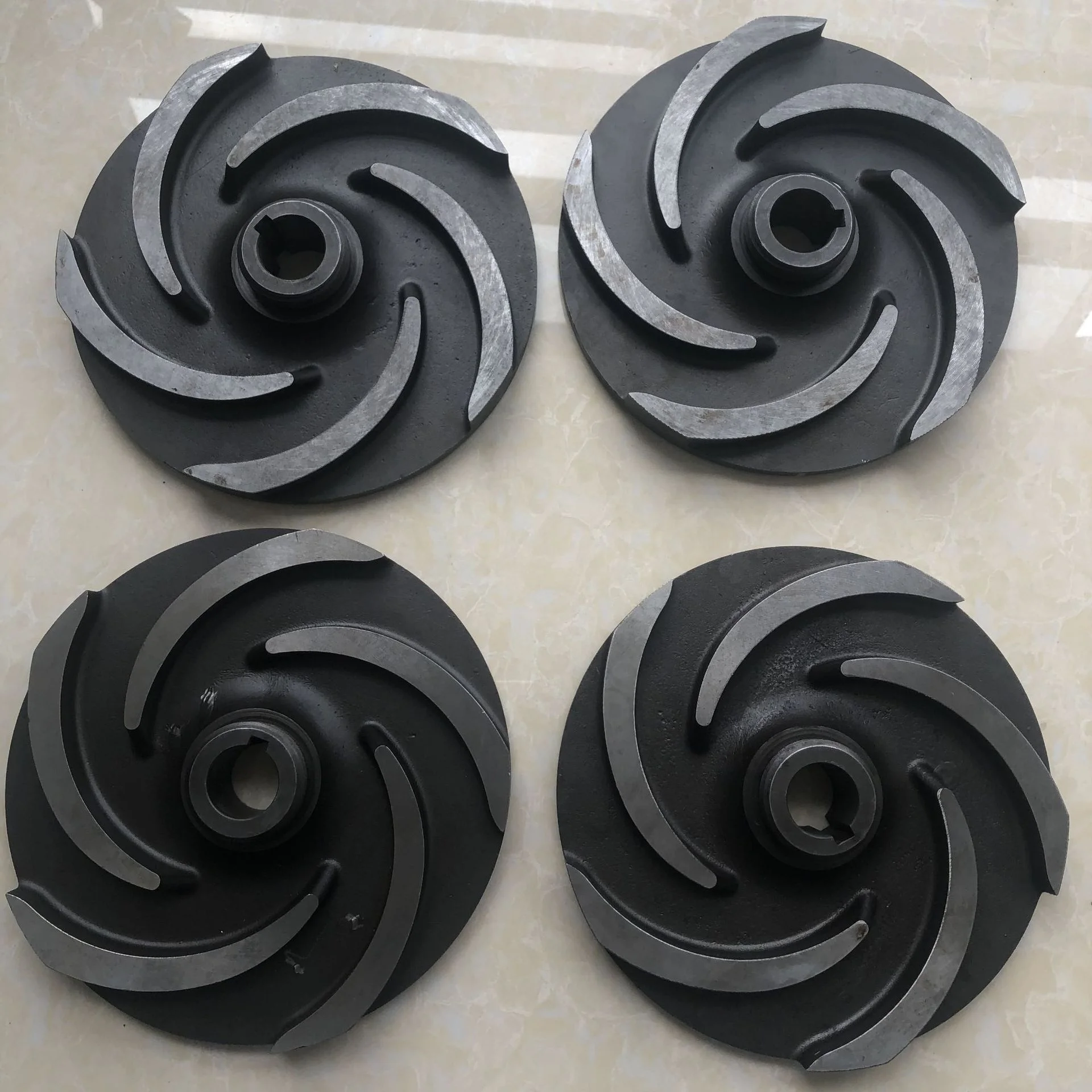

casting Pump&Valves

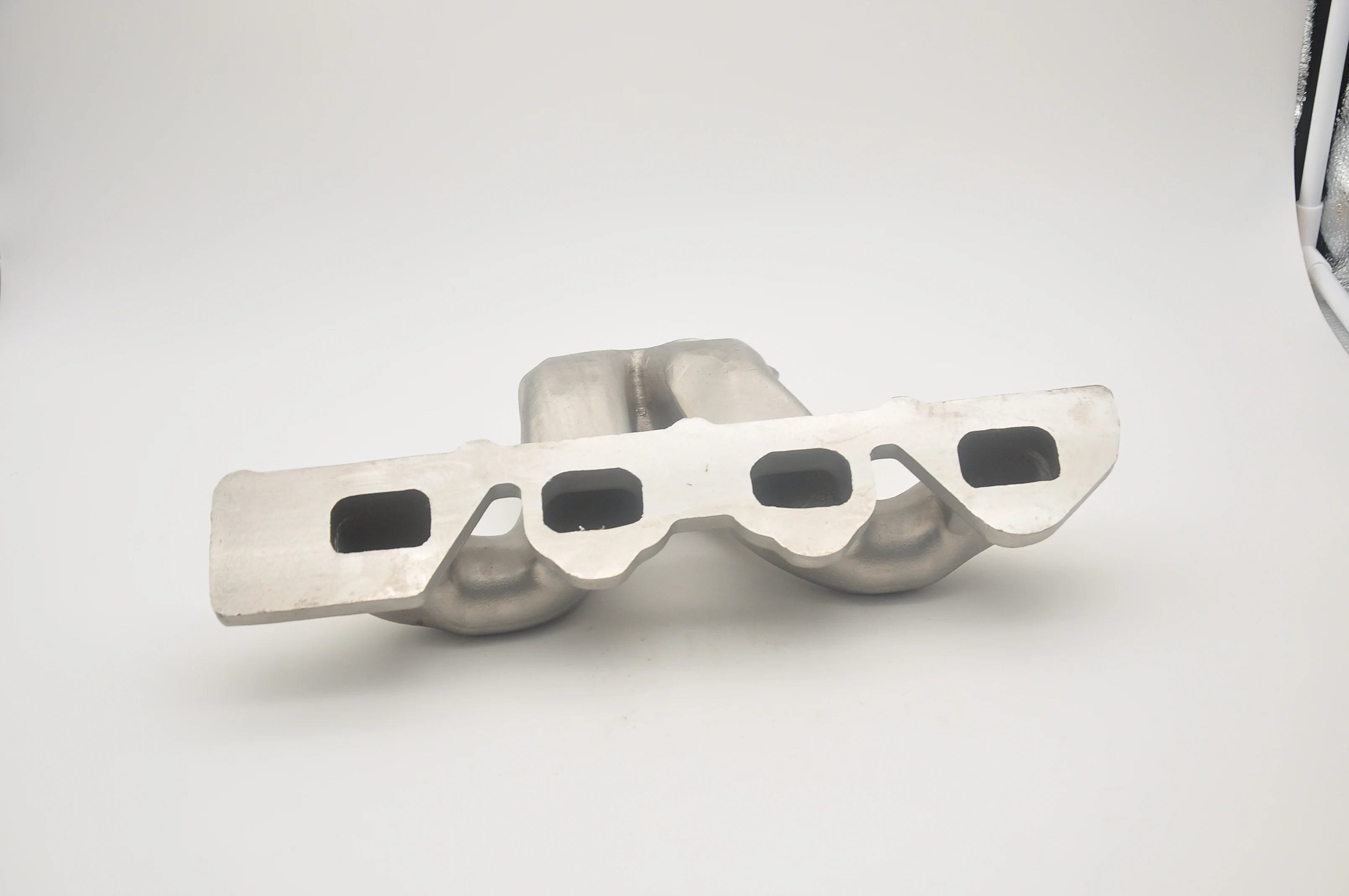

Cast exhaust manifold Sodium silicate casting

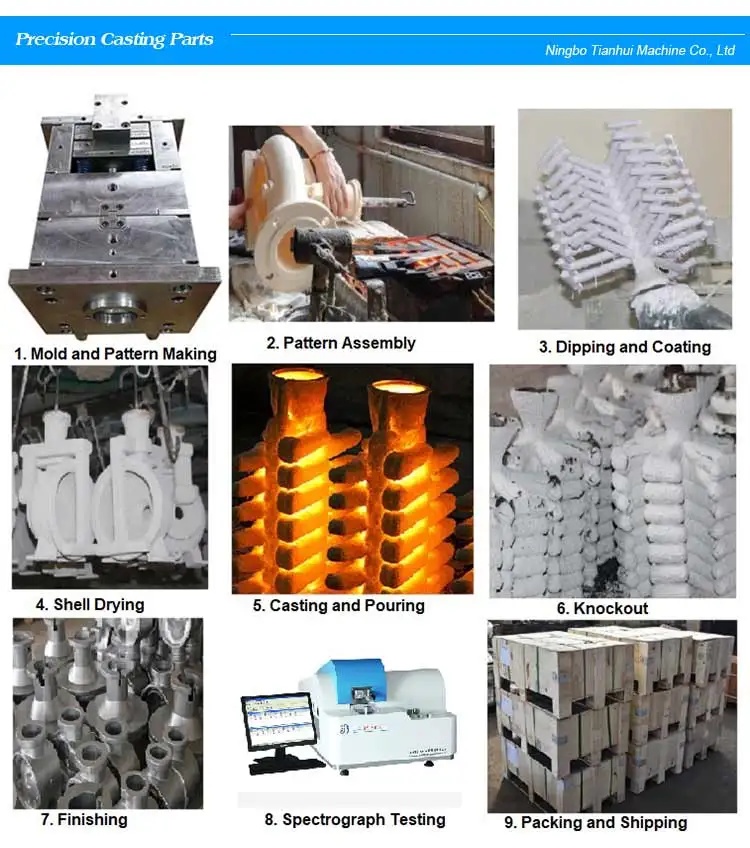

1.Mold and Pattern Making | A mold is built to customer-provided specifications. Cold wax is then injected into the mold to creat a wax pattern/prototype that will hold precise dimensional requirements in the final casting |
2. Pattern Assembly | The wax patterns are assembled onto the sprue. |
3. Dipping and Coating | Successive layers of ceramic and stucco are applied to the sprue assembly to form a hard shell. |
4. De-waxing and Firing | The molds are flash-fired to remove the wax and sprue materials and then heated to 1800° and placed on a sand bed, ready for pouring |
5. Casting | Molten metal, up to 3000°, is poured into the hollow mold and then cooled. |
6. Knockout | The ceramic shell is broken off, and the individual castings are cut away. |
7. Finishing | Excess metal is removed, surfaces are finished, and castings are heat treated. |
8. Testing and Inspection | Castings undergo thorough testing and inspection to ensure that they meet dimensional tolerances and specifications. |
9. Packing and Shipping | Castings are securely packaged for shipping to the customer. |
Investment casting also called silica sol casting, lost wax casting, precision casting. Material is stainless steel, carbon steel, alloy steel. Standard of GB, ASTM, AISI, DIN, BS, JIS, NF. Our main material grade is 1.4408, CF8, CF8M, 4140, SS304, SS316, 40Cr, 42CrMo, etc.
Advantages of Investment Casting:
1. Large application. Not limit to size, thickness and structure, all can produce by casting. Flexible mode of production. Our
casting parts mainly use for Pump & Valve industry, agricultural machinery, construction machinery, food machinery, marine hardware, auto parts, etc.
2. A wide range of materials can be used. Extensive use of used metals and renewable resources.
3. Castings have certain dimensional accuracy, small processing margins, the processing time and the metal material are saved.
4. Low cost, good comprehensive economic performance. Low energy, material consumption and cost.
Advantages of Investment Casting:
1. Large application. Not limit to size, thickness and structure, all can produce by casting. Flexible mode of production. Our
casting parts mainly use for Pump & Valve industry, agricultural machinery, construction machinery, food machinery, marine hardware, auto parts, etc.
2. A wide range of materials can be used. Extensive use of used metals and renewable resources.
3. Castings have certain dimensional accuracy, small processing margins, the processing time and the metal material are saved.
4. Low cost, good comprehensive economic performance. Low energy, material consumption and cost.
Ningbo Tianhui Machine Co., Ltd.
Tianhui machine company is a reliable and well-organized CNC Machining shops in China.We are committed to providing customers with world-class customized CNC parts.
We can machine almost all kinds of metals and plastic, and are particularly good at machining hard metal, such like stainless steel and alloy steel.
We have passed ISO9001:2015 quality system certification and are a 5S managed factory. Welcome to visit our factory.
We can machine almost all kinds of metals and plastic, and are particularly good at machining hard metal, such like stainless steel and alloy steel.
We have passed ISO9001:2015 quality system certification and are a 5S managed factory. Welcome to visit our factory.
1.Q:Are there any special capabilities that your company has that we cannot see from the website?
A:We have passed the certification of ISO9001:2008 and TS16949 , our production and quality is ensured strictly of this
certifications . For any high quality products , we can do the PPAP and Control Plan as per customer's request .
We have our own CMM , we can inspect precision dimensions that the normal calipers can't measure , and ensure the quality .
2.Q:What are the maximum sizes and weights that you can produce: forging, casting & machining?
A:The maximum size for stainless steel parts could be 700*700*700mm , and the weight could be 200kg . The maximum size for carbon
steel parts could be 1000*1000*1000mm, and the weight could be 350kg .And we could also produce sand casting parts at our
cooperation company . The material is gray iron and ductile iron . For gray iron , the material grade could be HT150, HT200,
HT250, HT300, HT350 . For ductile iron , the material grade could be QT400, QT450, QT500 , QT600 . The maximum size for sand
casting could be Φ1500*2000mm , and the weight could be 4000kg . For the above size and weight is the maximum we could do , and
for the smaller parts we could also produce .
3. Q:What are all the types of materials you can supply for forgings and for castings ?
A:Material Available: For casting , the material could be stainless steel , carbon steel , alloy steel . For forging , the
material could be stainless steel , carbon steel , alloy steel , aluminium , brass .
4. Q:What kind of payment conditions do you accept ?
A:For samples , we need 100% sample fee to be paid before start making samples . Or if there is mold , we need 50%
mold cost prepaid , the balance 50% mold cost to be paid before shipment . We will send you Inspection Reports and
photos of samples for you to approve before shipment .
For mass production , 30% T/T down payment before production , balance 70% against B/L copy .
5. Q:How long does it take to quote ?
A:Usually we can quote out in two days after we receive RFQ with all the necessary details . But if there are more
than ten types need to quote , we will need about a week to quote .
6. Q:Do you provide modification service by CAD or 3D drawings from sample ?
A:Yes , we provide modification services if you want to change the design .
7. Q:I don't have any drawing , can I send you a sample ?
A:Yes , we can create drawings per the original samples offered by our customers .
8. Q:What formats of drawings can you open ?
A:PDF , CAD , JPEG , JPG , or 3D files such as IGS , STEP , Solid-works .
9. Q:How do i ensure that my data is protected and secured ?
A:Usually , we show our machining work by displaying pictures of parts in the website , but we promise not to sell to
others . If customer don't like to show their products on our website , we will promise his require .
10. Q:Why choose China Ningbo Tianhui Machine Co., Ltd ? Any advantages ?
A:The answer is Yes . There are five advantages :
(1) Mutual Win : Our offer will be reasonable , our price will be cheaper in the same quality .
(2) Customize: We can make the products as your request , shape and quality can meet your request.
(3) OEM : Laser print your logo ; Design your packing box .
(4) Mix Order : We accept mix order , different model and small quantity order .
(5) After Service : Can reback the off-test product or ask back the payment when get the off-test goods and judged
off-test by the third testing party .
A:We have passed the certification of ISO9001:2008 and TS16949 , our production and quality is ensured strictly of this
certifications . For any high quality products , we can do the PPAP and Control Plan as per customer's request .
We have our own CMM , we can inspect precision dimensions that the normal calipers can't measure , and ensure the quality .
2.Q:What are the maximum sizes and weights that you can produce: forging, casting & machining?
A:The maximum size for stainless steel parts could be 700*700*700mm , and the weight could be 200kg . The maximum size for carbon
steel parts could be 1000*1000*1000mm, and the weight could be 350kg .And we could also produce sand casting parts at our
cooperation company . The material is gray iron and ductile iron . For gray iron , the material grade could be HT150, HT200,
HT250, HT300, HT350 . For ductile iron , the material grade could be QT400, QT450, QT500 , QT600 . The maximum size for sand
casting could be Φ1500*2000mm , and the weight could be 4000kg . For the above size and weight is the maximum we could do , and
for the smaller parts we could also produce .
3. Q:What are all the types of materials you can supply for forgings and for castings ?
A:Material Available: For casting , the material could be stainless steel , carbon steel , alloy steel . For forging , the
material could be stainless steel , carbon steel , alloy steel , aluminium , brass .
4. Q:What kind of payment conditions do you accept ?
A:For samples , we need 100% sample fee to be paid before start making samples . Or if there is mold , we need 50%
mold cost prepaid , the balance 50% mold cost to be paid before shipment . We will send you Inspection Reports and
photos of samples for you to approve before shipment .
For mass production , 30% T/T down payment before production , balance 70% against B/L copy .
5. Q:How long does it take to quote ?
A:Usually we can quote out in two days after we receive RFQ with all the necessary details . But if there are more
than ten types need to quote , we will need about a week to quote .
6. Q:Do you provide modification service by CAD or 3D drawings from sample ?
A:Yes , we provide modification services if you want to change the design .
7. Q:I don't have any drawing , can I send you a sample ?
A:Yes , we can create drawings per the original samples offered by our customers .
8. Q:What formats of drawings can you open ?
A:PDF , CAD , JPEG , JPG , or 3D files such as IGS , STEP , Solid-works .
9. Q:How do i ensure that my data is protected and secured ?
A:Usually , we show our machining work by displaying pictures of parts in the website , but we promise not to sell to
others . If customer don't like to show their products on our website , we will promise his require .
10. Q:Why choose China Ningbo Tianhui Machine Co., Ltd ? Any advantages ?
A:The answer is Yes . There are five advantages :
(1) Mutual Win : Our offer will be reasonable , our price will be cheaper in the same quality .
(2) Customize: We can make the products as your request , shape and quality can meet your request.
(3) OEM : Laser print your logo ; Design your packing box .
(4) Mix Order : We accept mix order , different model and small quantity order .
(5) After Service : Can reback the off-test product or ask back the payment when get the off-test goods and judged
off-test by the third testing party .
