Product Overview

Description

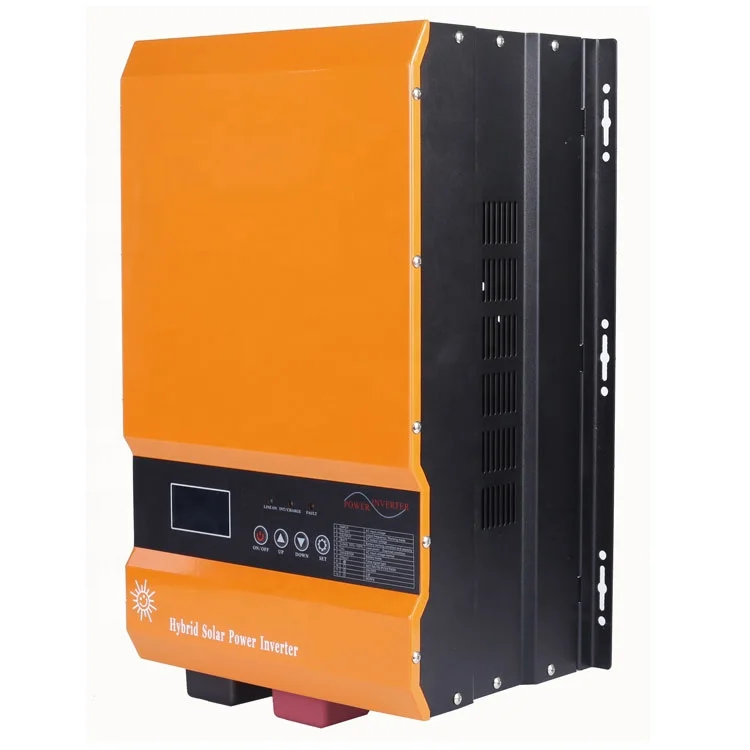

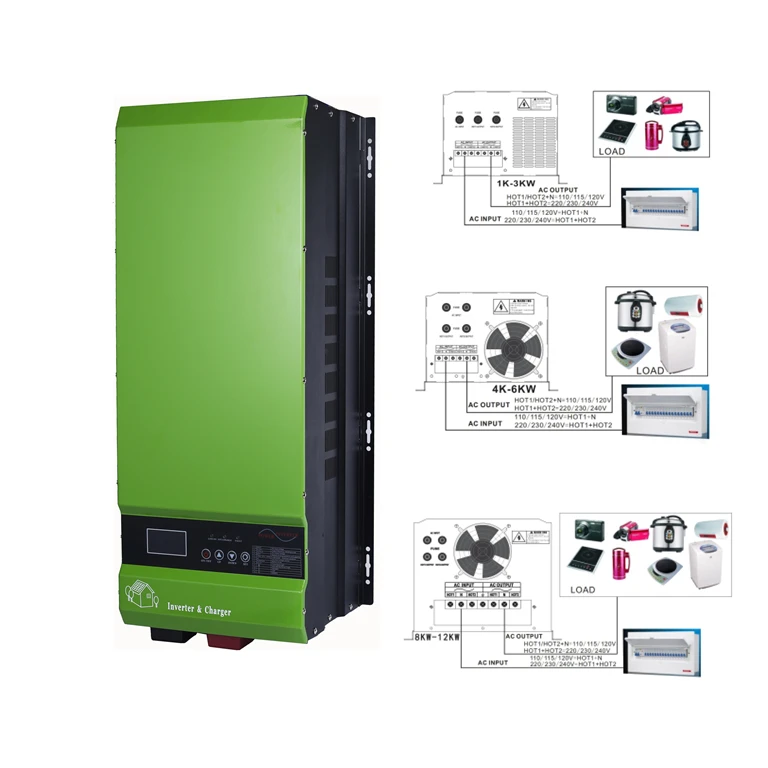

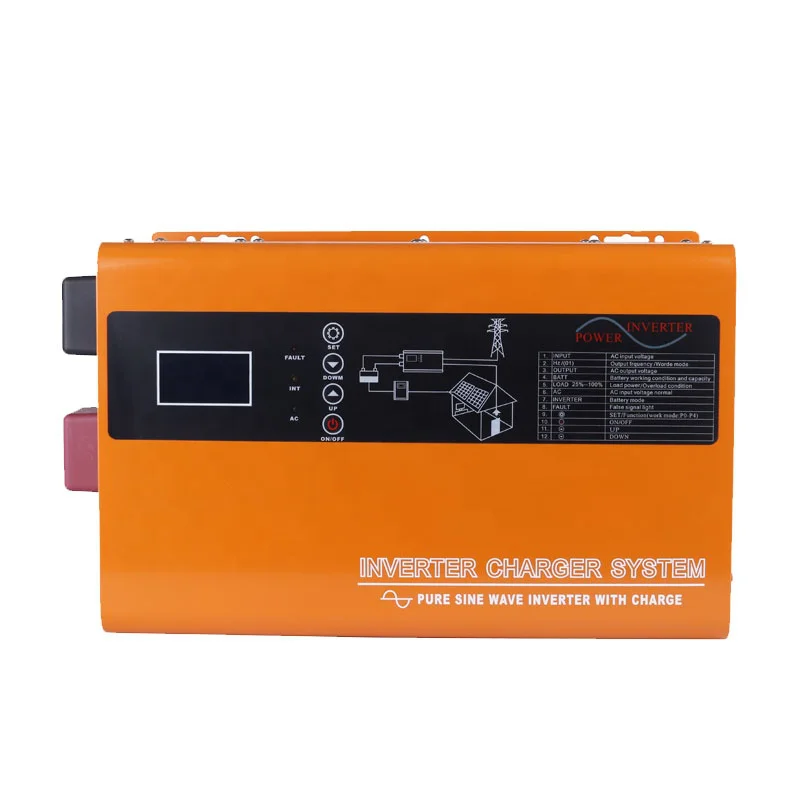

1000w 2000w 3000w 4000w 5000w 6000w 8000w 10000w 12000w US110V 220V output APP Off grid Split Phase Solar Power Inverter charger





Feature：


· Pure sine wave output

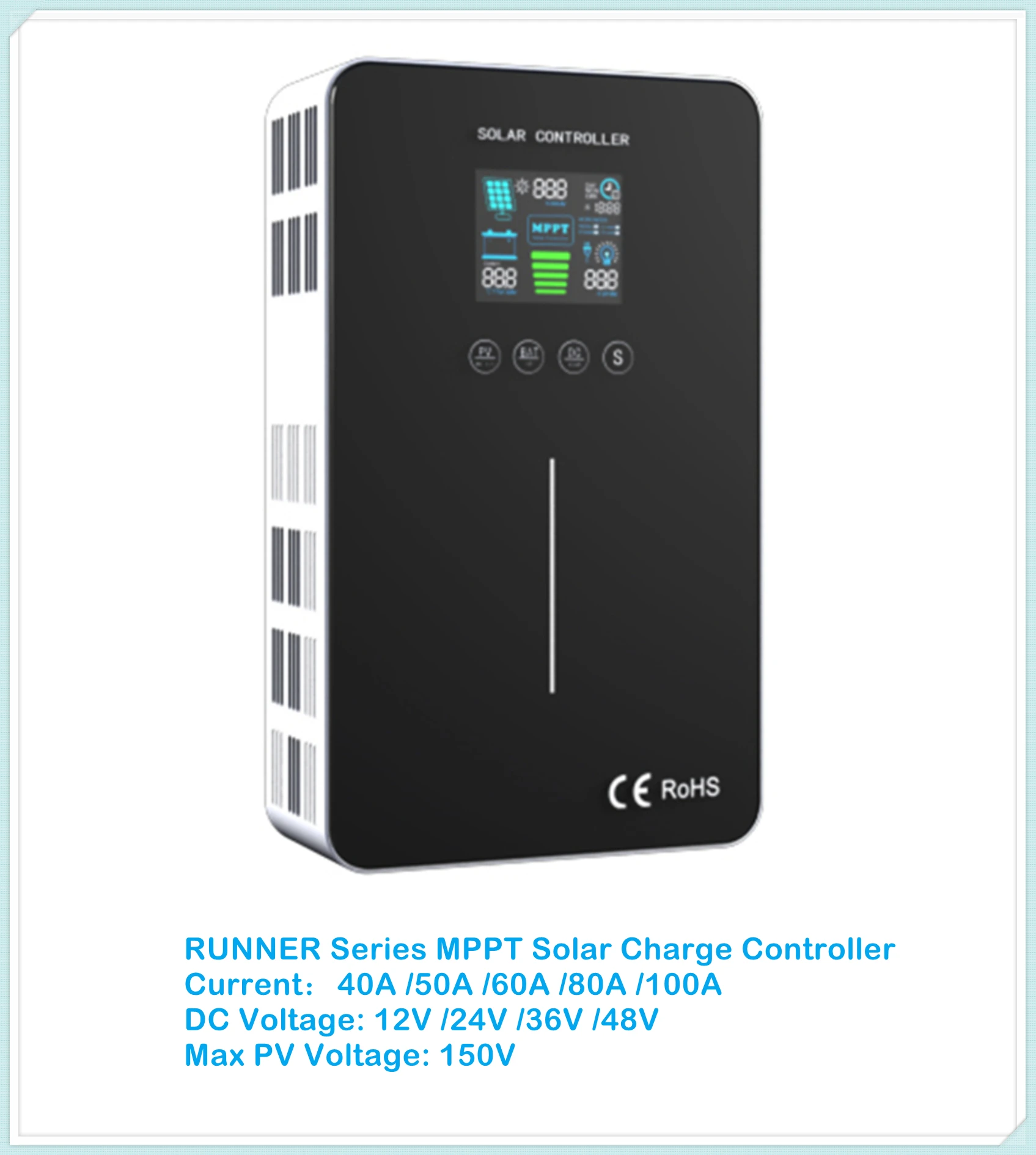

· With MPPT solar charge controller 30A-100A(Optional)
· With UPS automatic switching function,grid power charging function, AVR voltage stabilization function.
· It has perfect protection functions such as overload, high voltage,low voltage, short circuit, etc
· DSP Intelligent Chip Control, Excellent Performance
· Strong inverting capability,one-time soft start, triple output peak power, with all inductive loads
· Full personalized LCD display, it can display various data, information of inverter, solar charge controller
· Grid power priority,energy saving mode and solarenergy priority can be set freely to meet different occasions
· Battery type, charging voltage grid power charging current (0-35A) can beset freely to meet the charging
management of different types of batteries

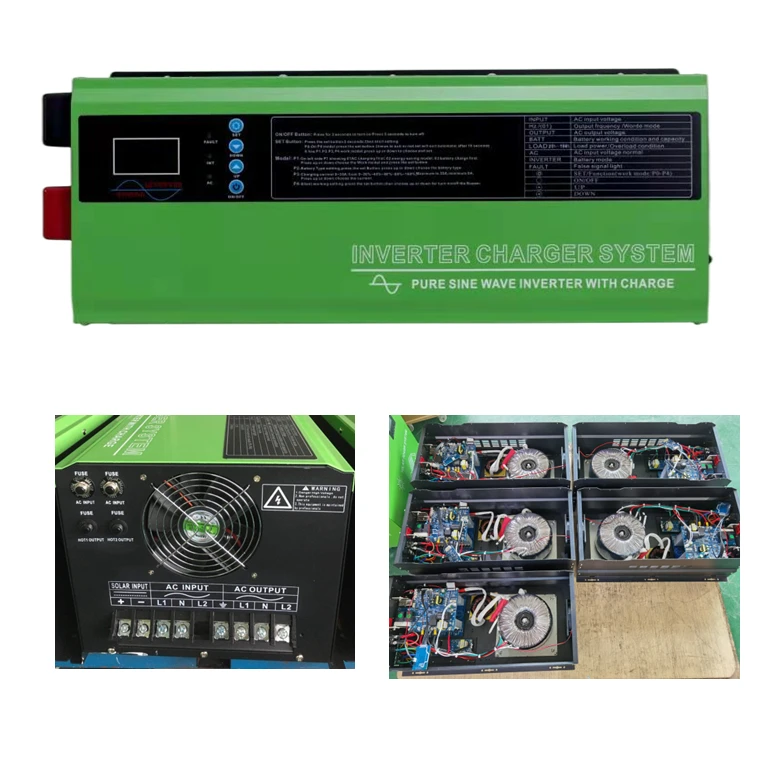

1000w 2000w 3000w 4000w 5000w 6000w 8000w 10000w 12000w US110V 220V output APP Off grid Split Phase Solar Power Inverter charger

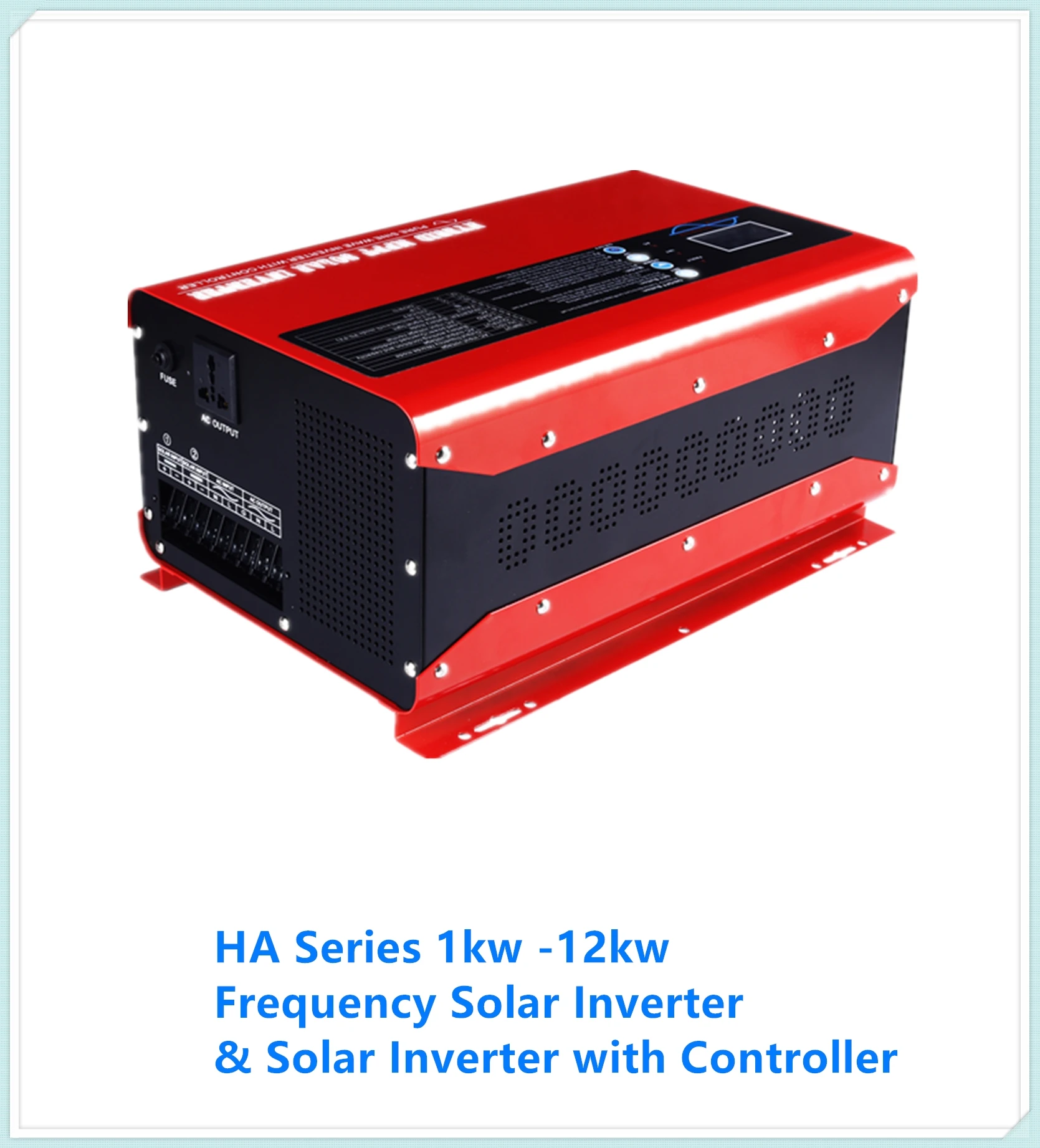

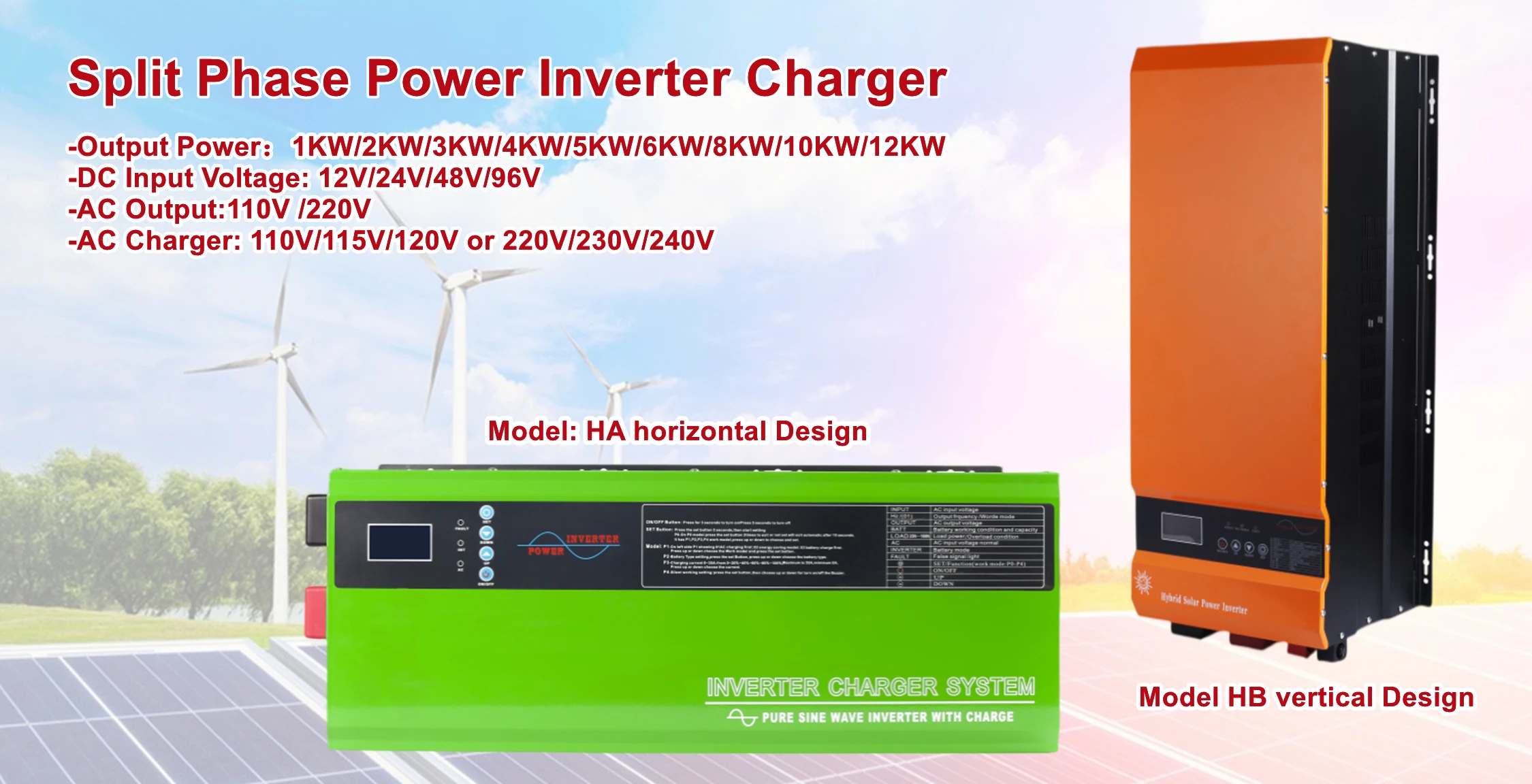

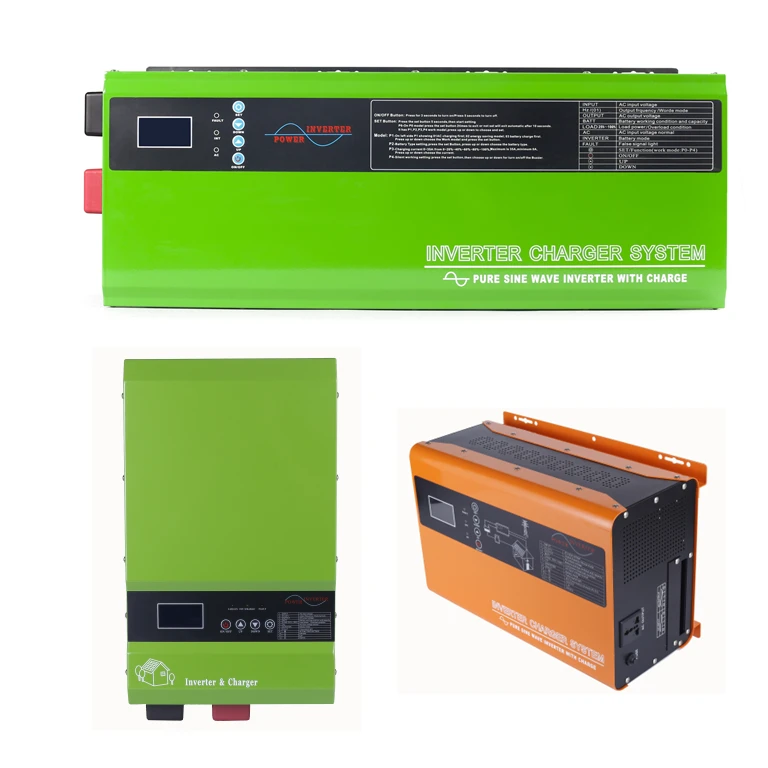

HA series Power Inverter Charger


Model: HA Power Inverter Charger

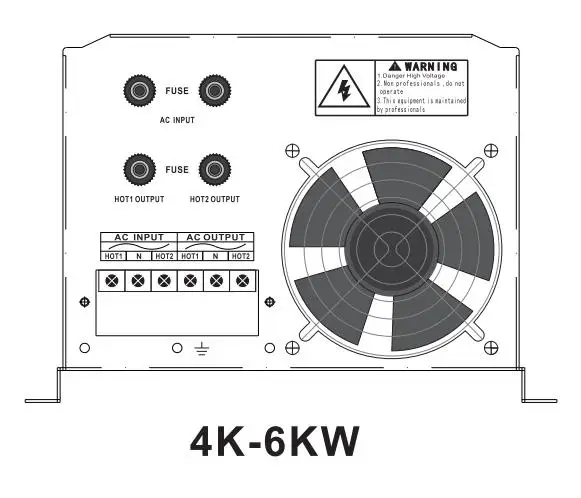

HA Power Inverter Charger Outlook Drawing

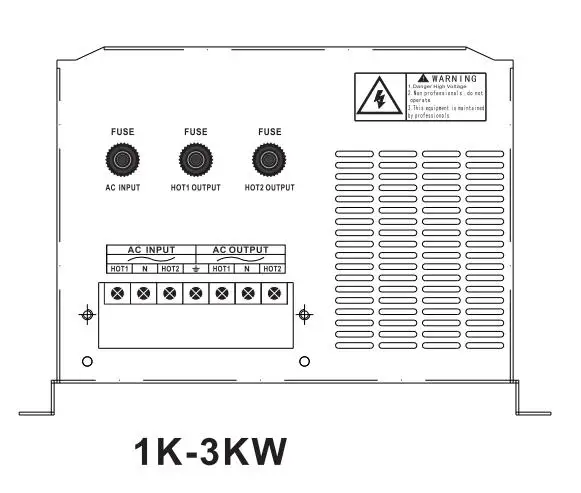

Connection Way of Input & Output of HA Power Inverter Charger

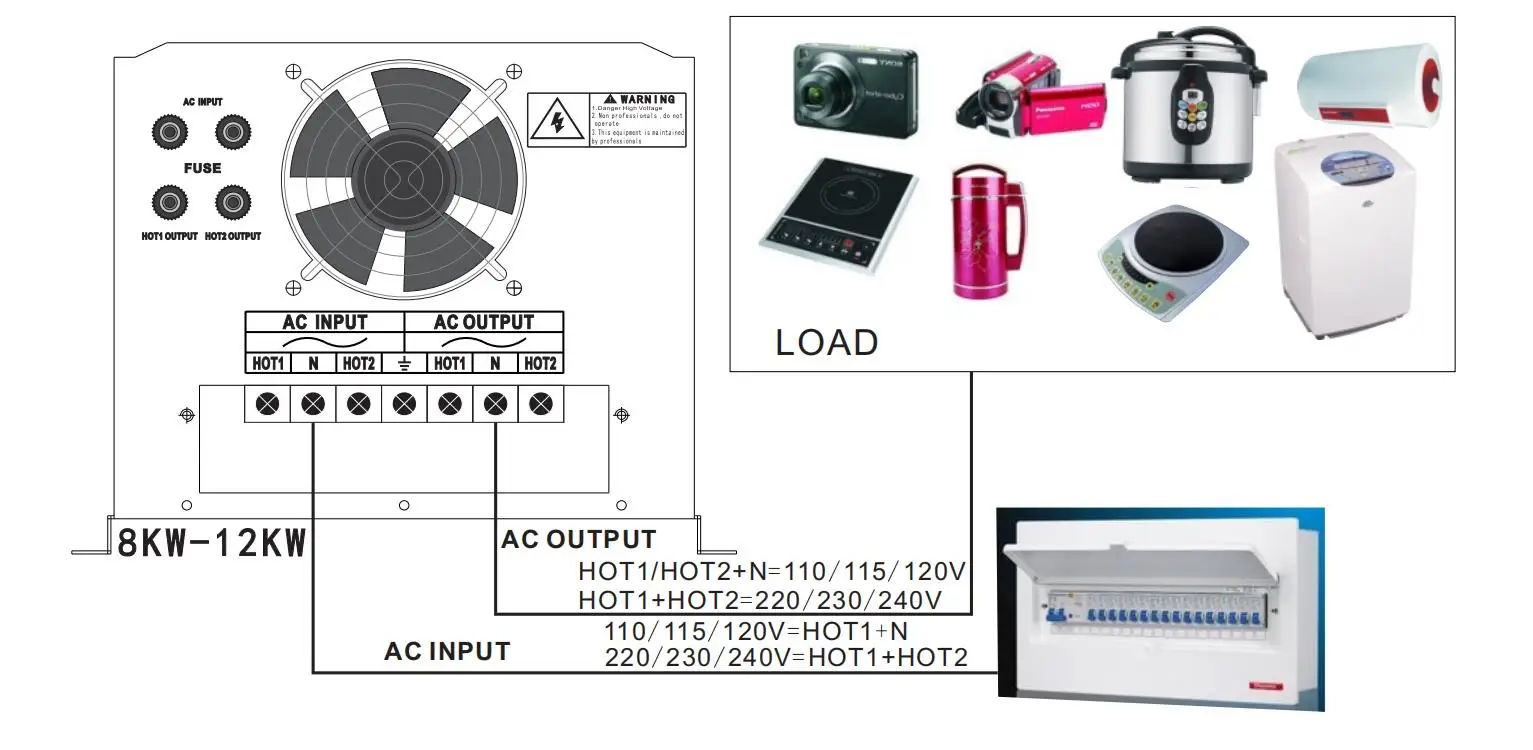

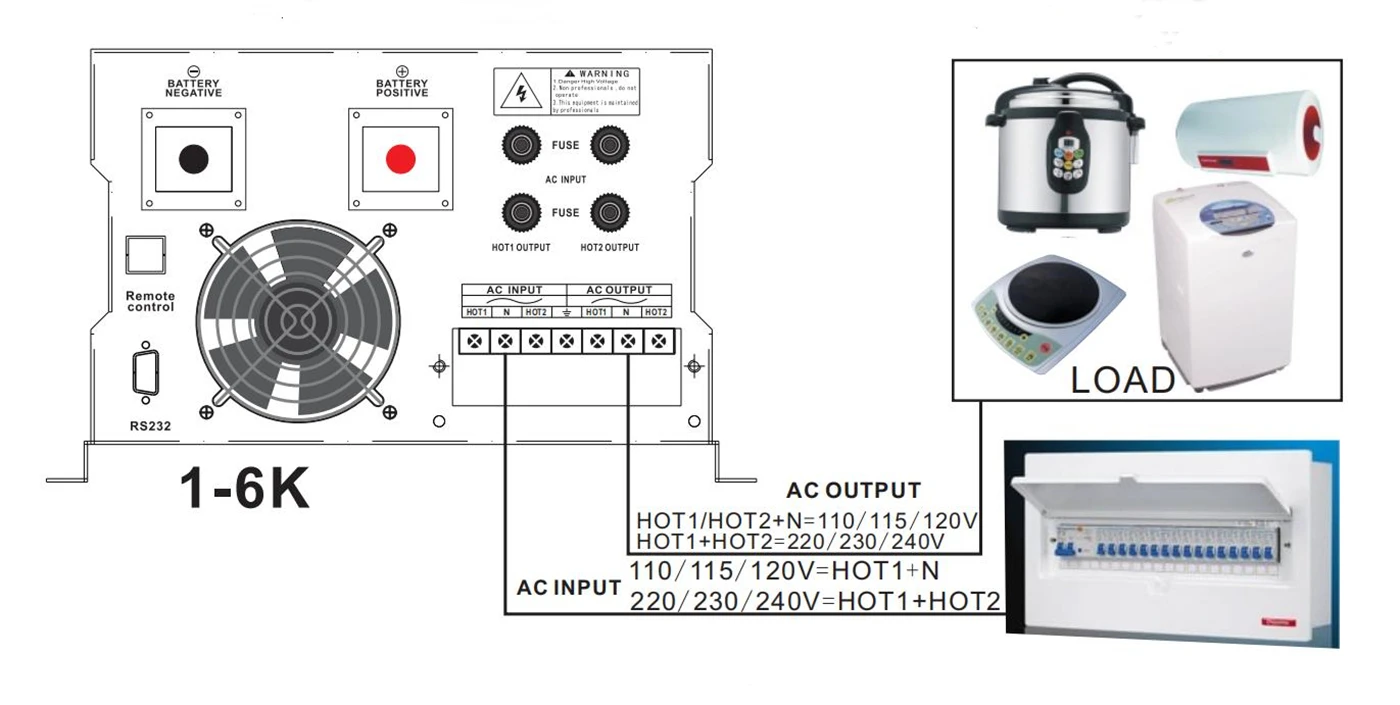

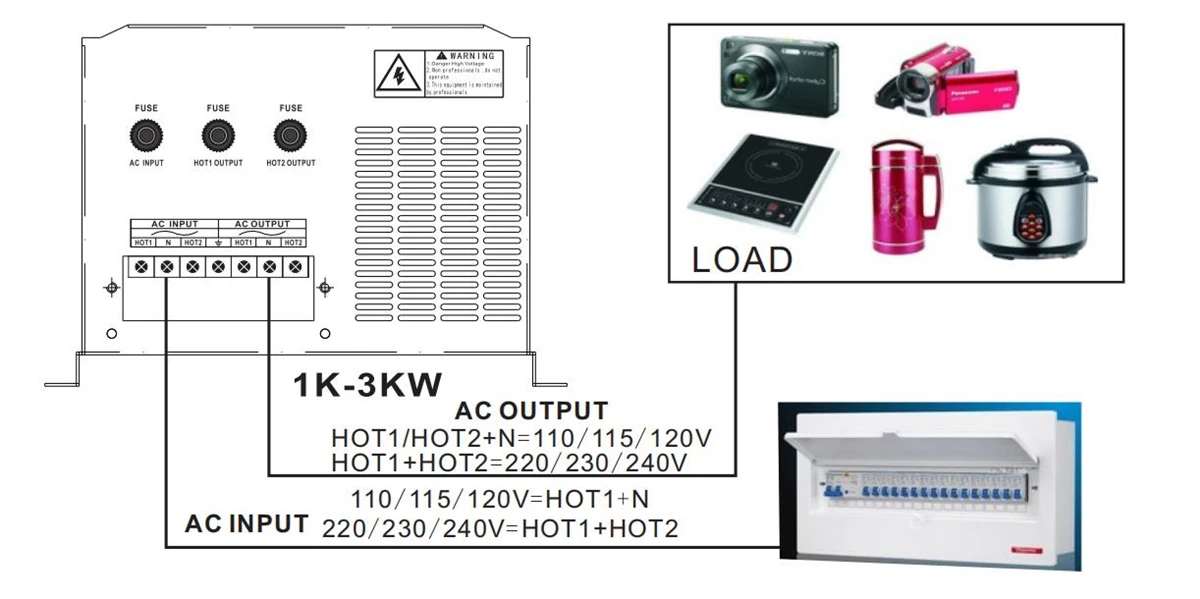

AC Input & Output Wiring Diagram of HA Power Inverter Charger






HB Series Power Inverter Charger


Model: HB Power Inverter Charger
HB Power Inverter Charger Outlook Drawing

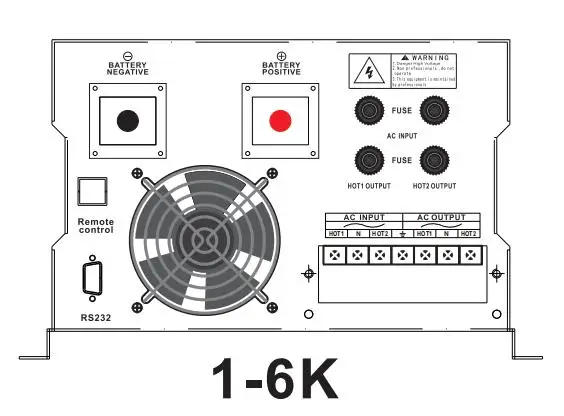

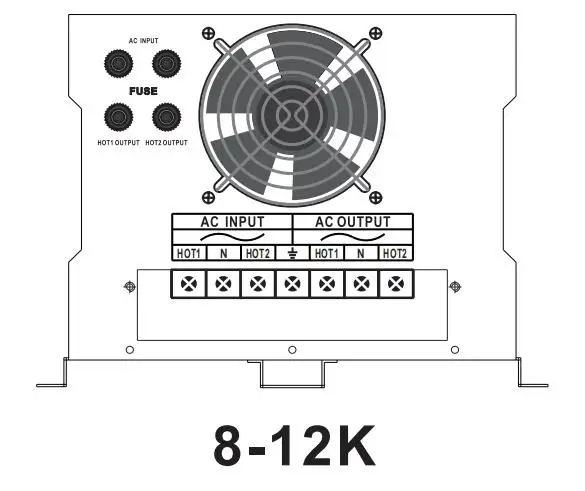

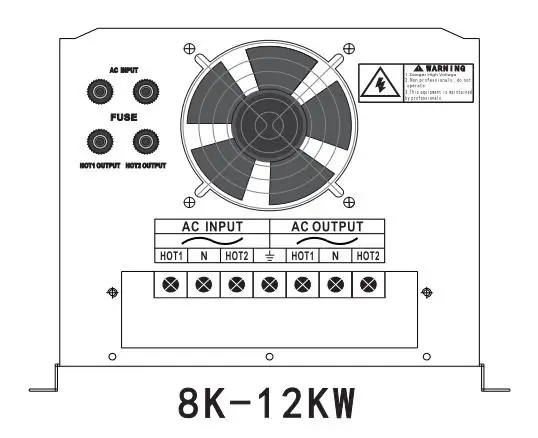

Connection Way of Input & Output of HB Power Inverter Charger




AC Input & Output Wiring Diagram of HB Power Inverter Charger

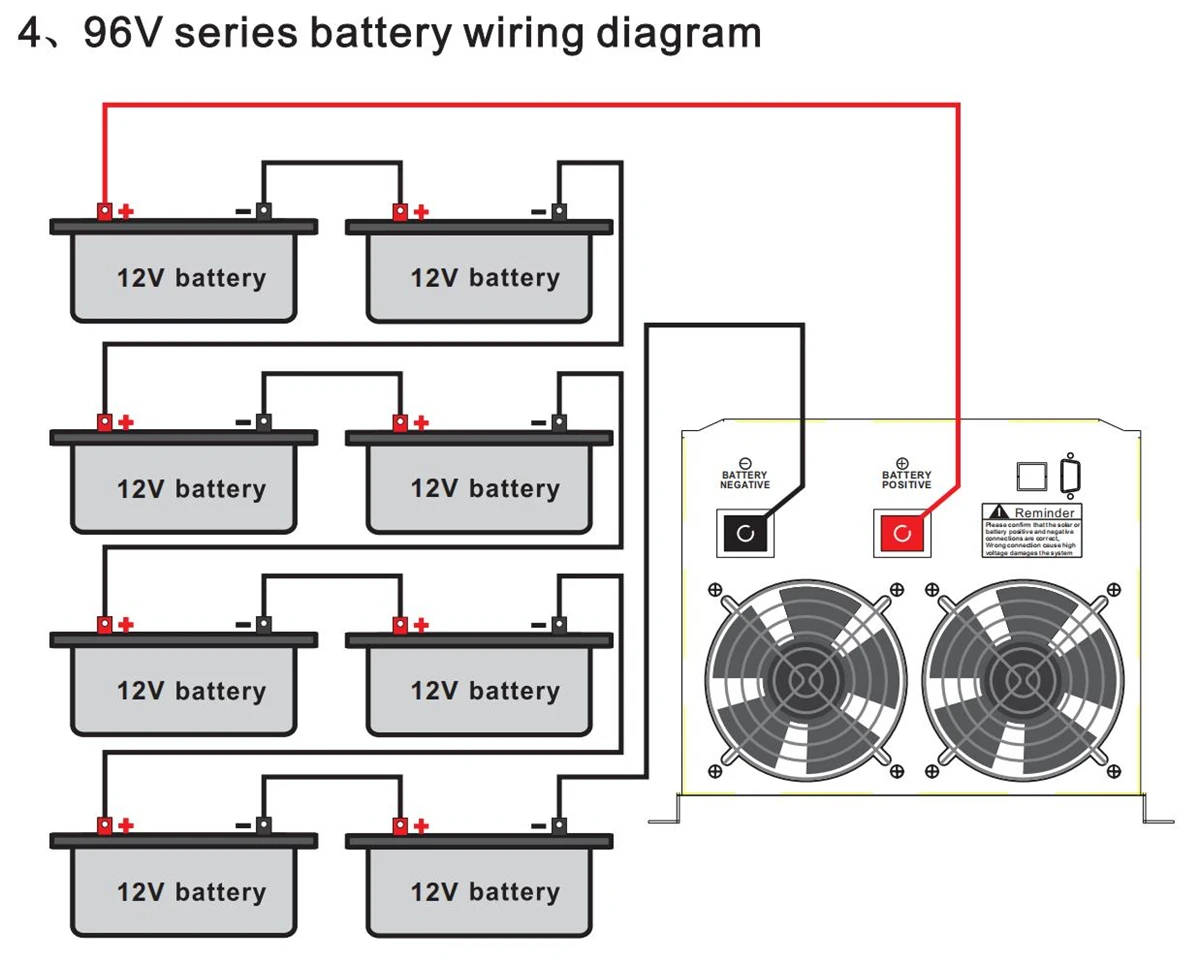

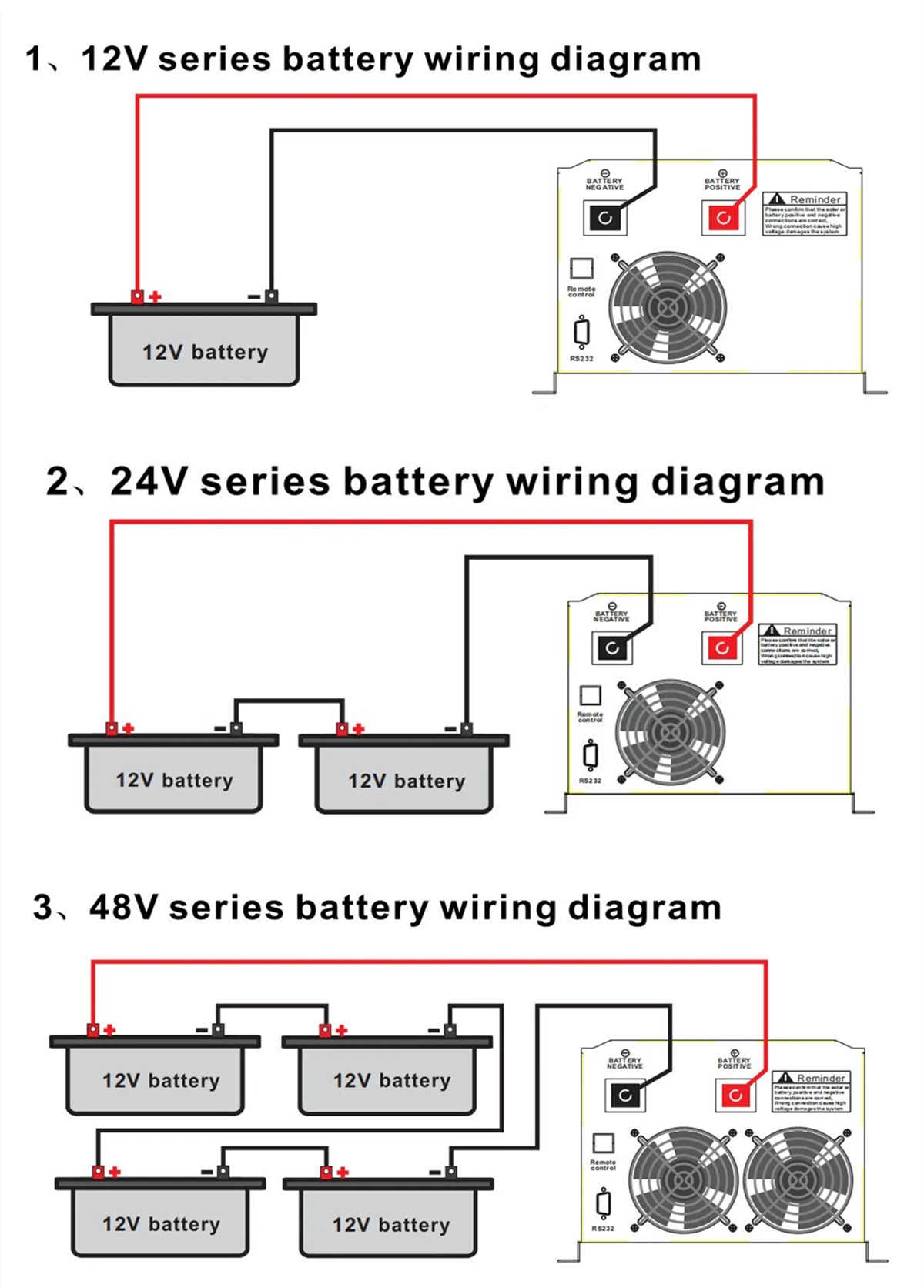

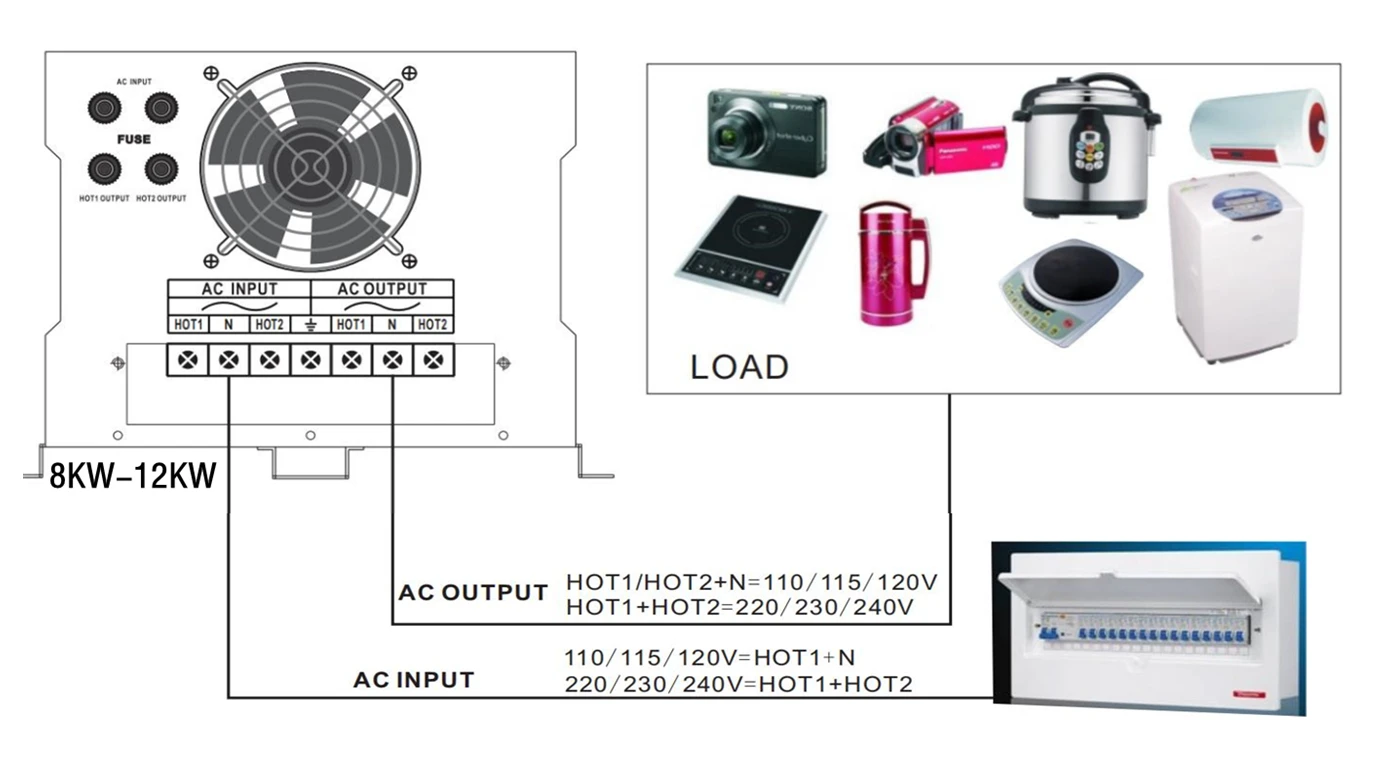

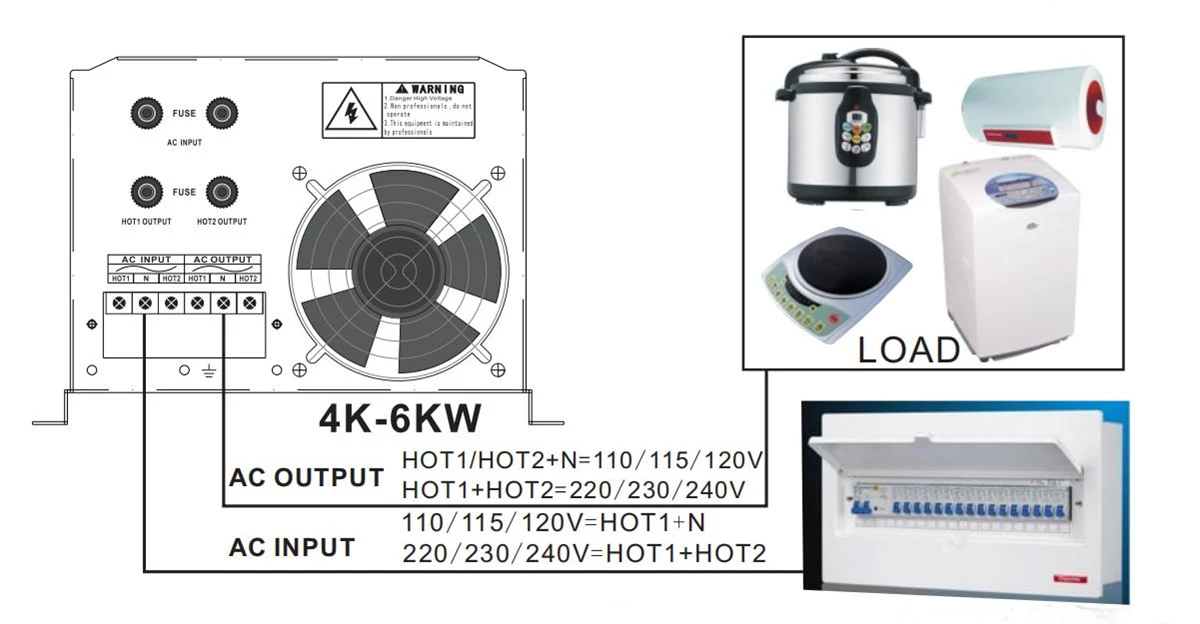

Inverter Wiring Diagram




Technical Data


(1) Inverter with AC charger - AC 220V / 230V / 240V


Model
1KW
2KW
3KW
4KW
5KW
6KW
8KW
10KW
12KW
Rated Capacity
1KW
2KW
3KW
4KW
5KW
6KW
8KW
10KW
12KW
Input Voltage
220V:170-270VAC / 230V:180-280VAC / 240V:190-290VAC
Input Frequency
45 - 65 Hz
Output Voltage
Battery Mode: AC220V/110V ± 2%
AC Mode: AC220V/110V ± 15%
Battery Mode: AC220V/110V ± 2%
AC Mode: AC180-270 / 90-135V
Output Frequency
50 / 60 Hz ± 1% (Battery Mode)
AC Output HOT1+HOT2
1KW
2KW
3KW
4KW
5KW
6KW
8KW
10KW
12KW
AC Output  HOT1/HOT2+N
500W
1KW
1.5KW
2KW
2.5KW
3KW
4KW
5KW
6KW
Output Wave
Pure Sine Wave
Efficiency
>85%
Battery
Optional
Battery Rate Voltage
12/24/48VDC
24/48/96VDC
48/96VDC
Max AC charge Current
35A (MAX)
Protect
Overload, short circuit, battery high and low voltage and AC input high and low voltage protection
Conversion Way
Interactive
Capacity of overload
110% -120% turn to bypass after 30 secs, 160% maintain 300ms and then shut down
Communication Port
RS-232
Operation Enviroment
Temperature:  -10℃ - +50℃,          Humidity: 10% - 90%
Size: L*W*H (mm)
440*275*197mm
605*282*197mm
725*315*250mm


(2) Inverter with AC charger - AC 110V / 115V / 120V


Model
1KW
2KW
3KW
4KW
5KW
6KW
Rated capacity
1KW
2KW
3KW
4KW
5KW
6KW
Input Voltage
110V: 85 -135VAC / 115V: 90 -140VAC / 120V: 95 - 145VAC
Input Frequency
45 - 65 Hz
Output Voltage
Battery mode: AC220/110V ± 2%
AC mode: AC220/110V ± 15%
Battery mode:AC220V/110V±2%
AC mode: AC180-270/90-135V
Output Frequency
50 /60Hz + 1% (battery mode)
AC Output HOT1 + HOT2
1KW
2KW
3KW
4KW
5KW
6KW
AC Output HOT1 / HOT2 + N
500W
1KW
1500W
2000W
2500W
3000W
Output Waveform
Sine wave
Efficiency
>85%
Battery
Optional
Battery Rated Voltage
12/24/48V
24/48/96V
48/96VDC
Max AC charging current
35A (MAX)
Protect
Overload, short circuit, battery high and low voltage and AC input high and low voltage protection
Conversion way
Interactive
Capacity of overload
110% - 120%  turn to bypass after 30 sces, 160% maintain 300ms and then shut dowm
Communication Port
RS - 232
Operating Enviroment
Temperature: -10℃ - +50℃          Humidity: 10% - 90%
Size: L*W*H (mm)
440*275*197mm
605*282*197mm
