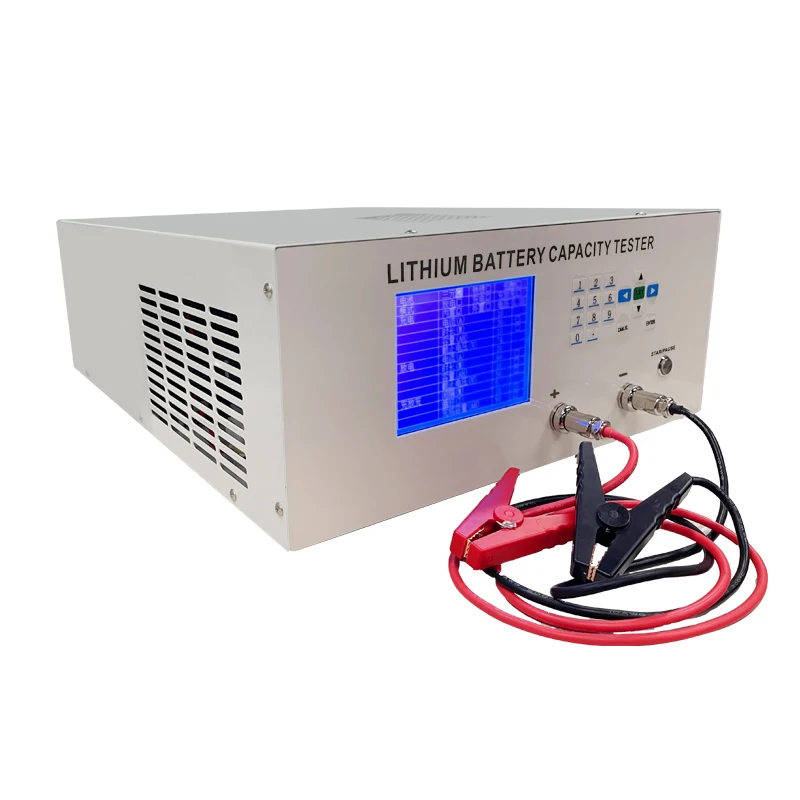

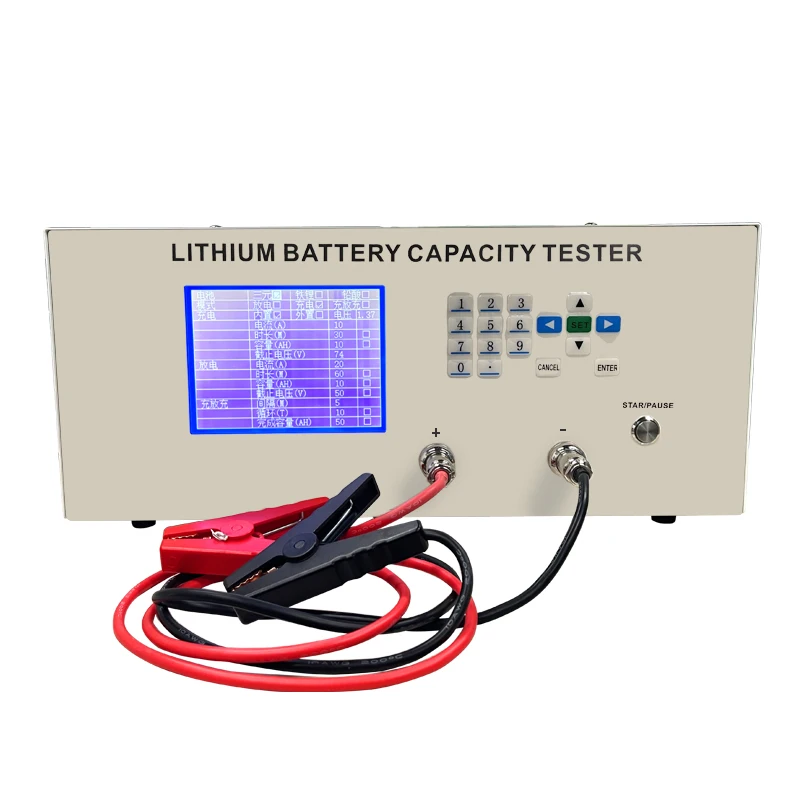

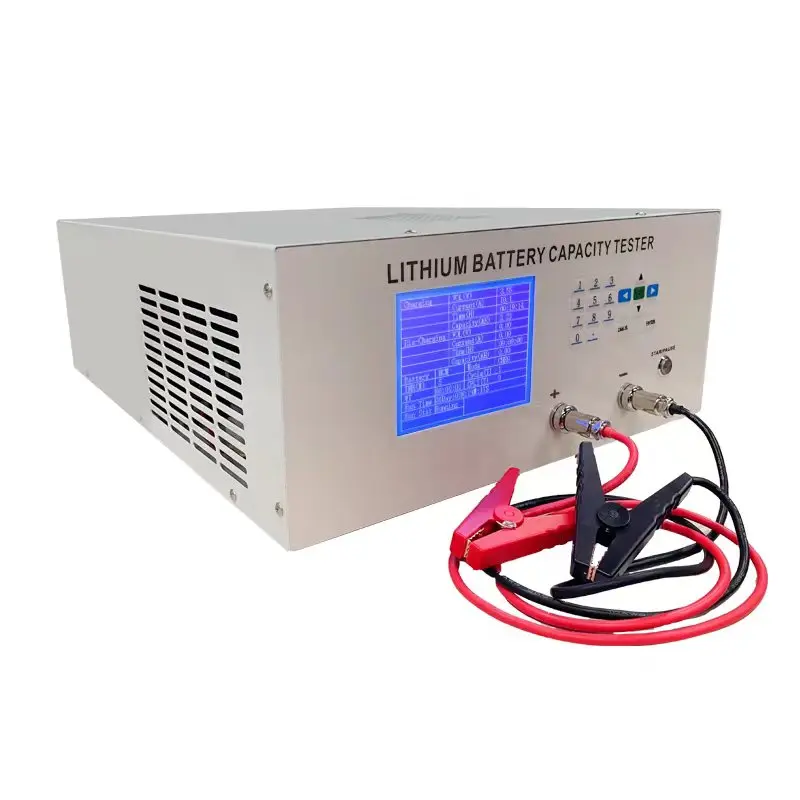

The New Model HF10020 2-100V / 1-20A Multi-Function Lithium Battery Pack Capacity Tester
Main Function:
1.Test Battery Pack Capacity
2.Charging to Battery pack
3.Discharge Battery pack
4.Charge-discharge-charge automatic cycle
5.Test Power Charger Current
6.Test circuit board overcharge and overhand parameters
7.Applicable battery pack: Single large monomer,12V,24V,36V,48,60V,72V,84V.
8.Built-in Power Charger Supply
9.Support 30 groups of data storage
10.Support battery types: Lead-acid battery, Lithium-iron battery, Ternary battery and Polymer battery
Technical Parameters:
Model | HF10020 |
Power Supply | AC 110V / 220V |
Voltage input range | 2VDC-100VDC |
Voltage accuracy | ±0.5%, two decimal places |
Maximum discharge current | 20A |
Step adjustment current | 1A |
Maximum charging current | Internal charger model - 20A, External charger model - 30A |
Current accuracy | ±1% to two decimal places |
Discharge mode | constant current discharge |
Discharge termination voltage | The minimum protection voltage of the battery pack-2V or low-voltage protection of the battery pack |
Charging mode | Charging by external charger |
Charge termination voltage | Current is less than 0.3A, the instrument opens the connection between the charger and the battery |
Capacity measurement accuracy | ±0.05AH |

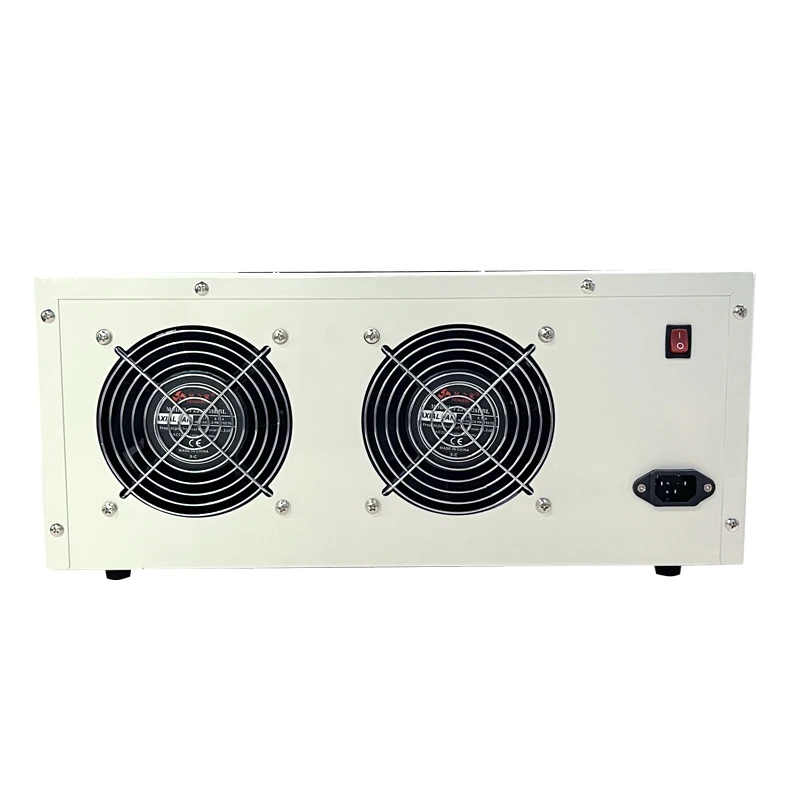

Cooling method | dual-roller high-speed cooling fan cooling |
Product Size | 603mm*428mm*426mm |
