Product Overview
Description

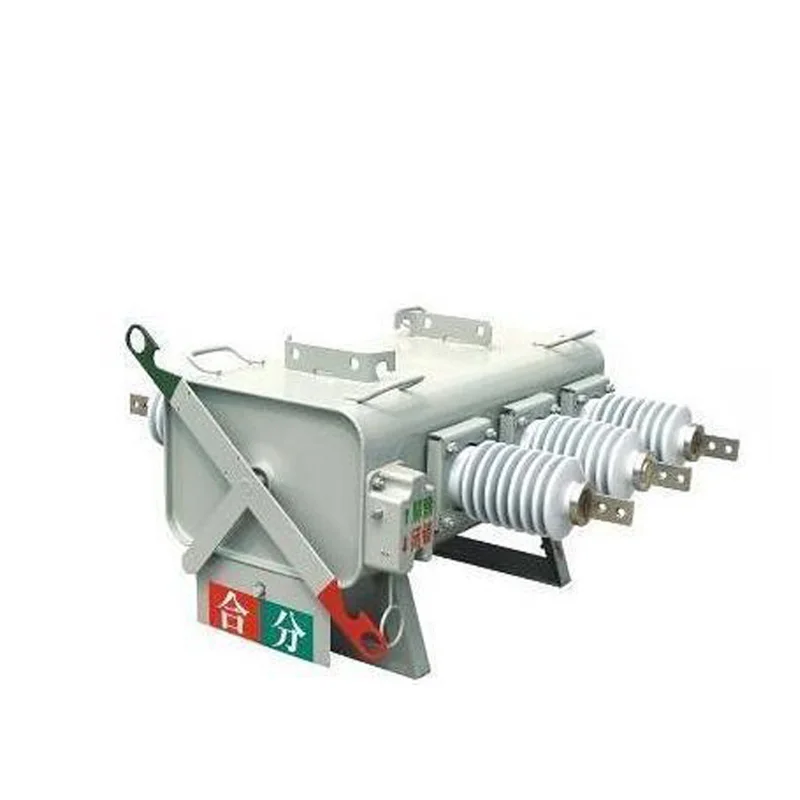

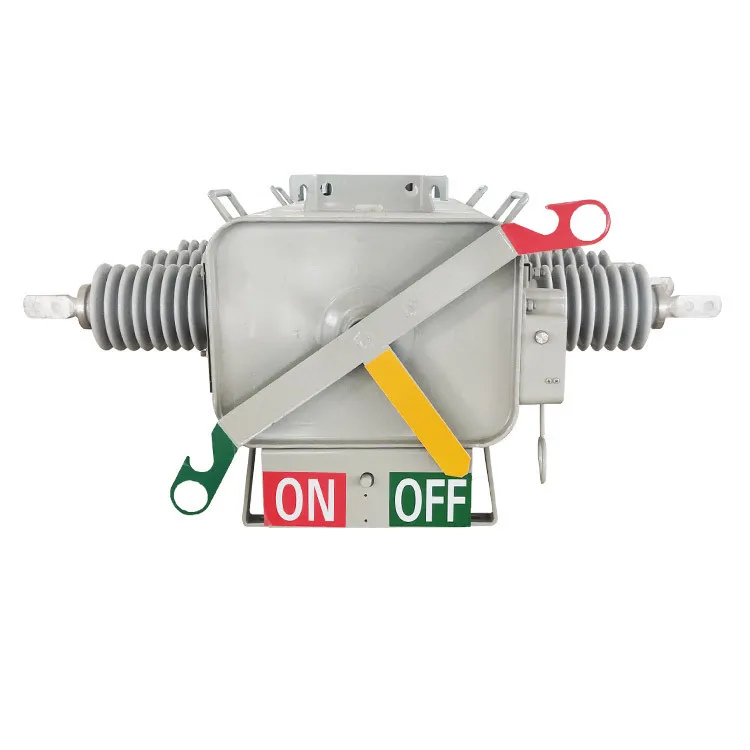

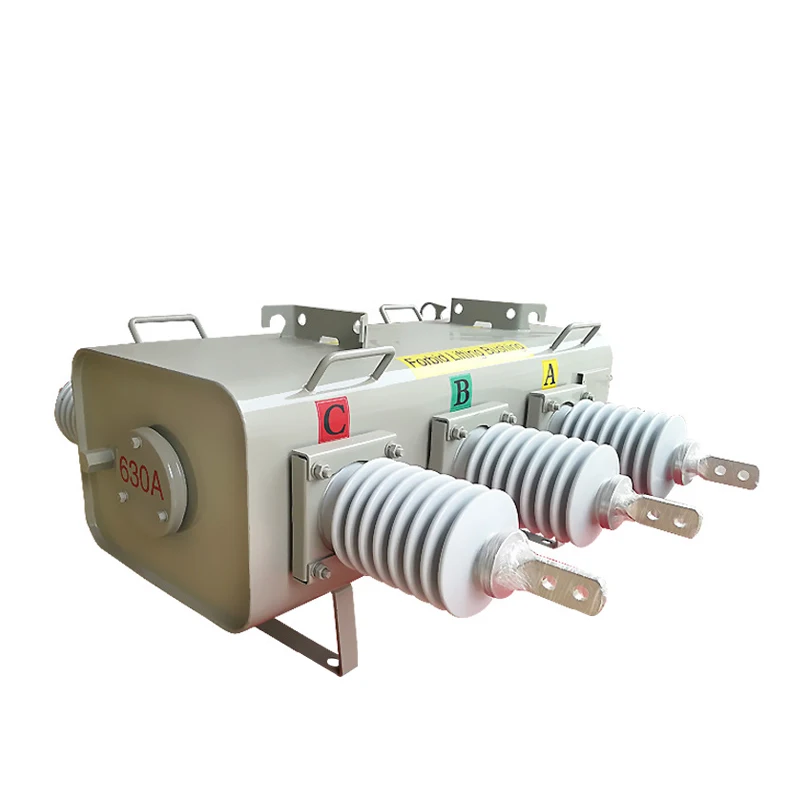

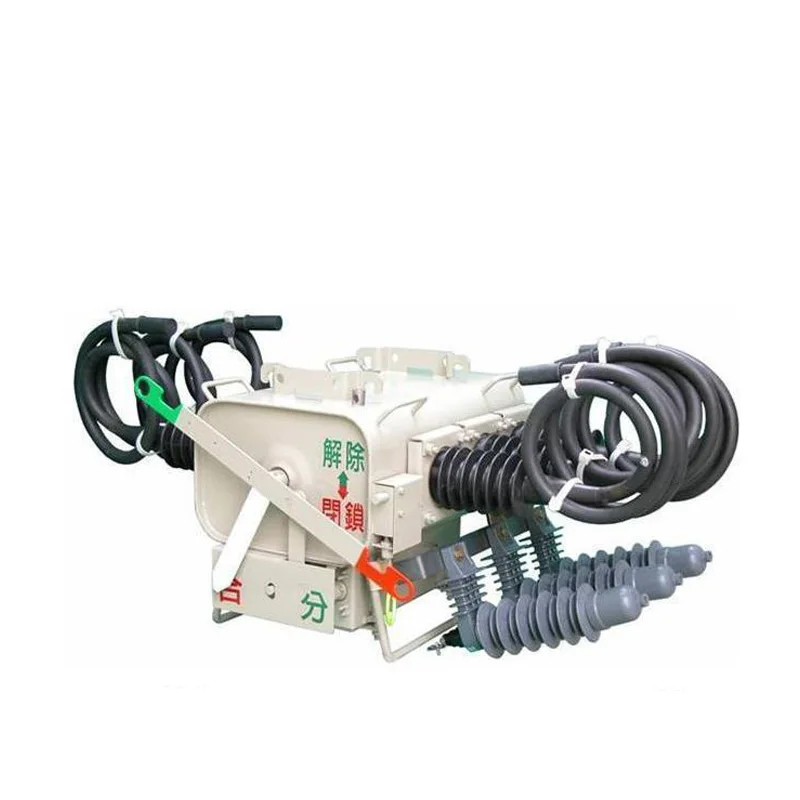

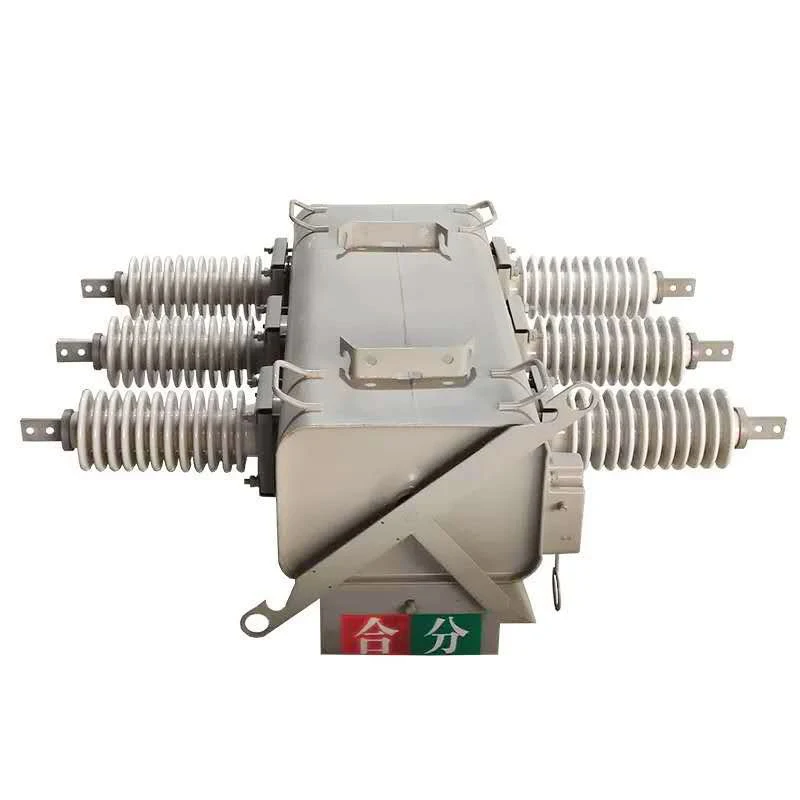

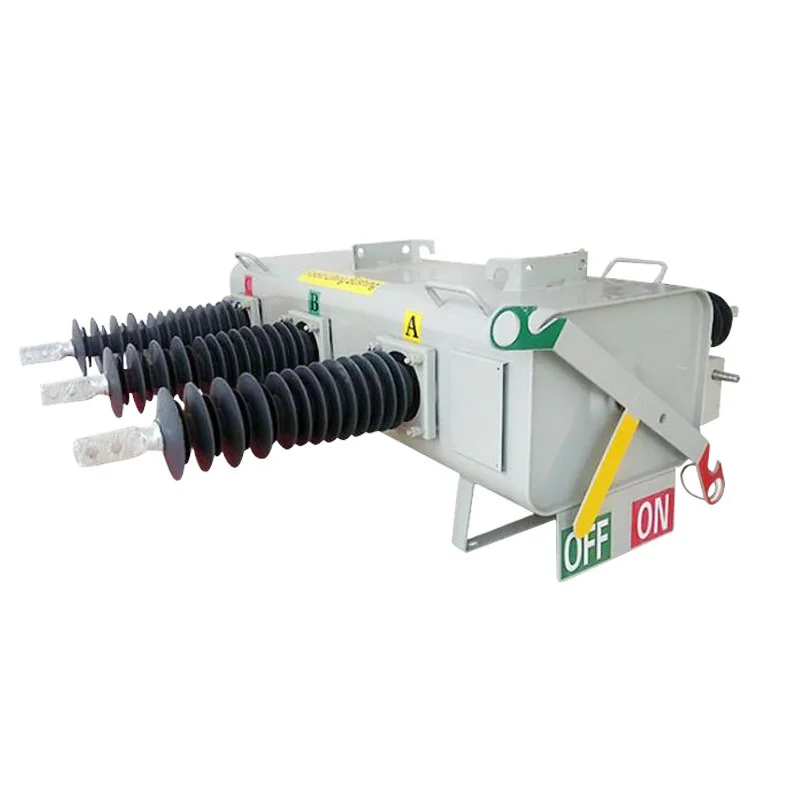

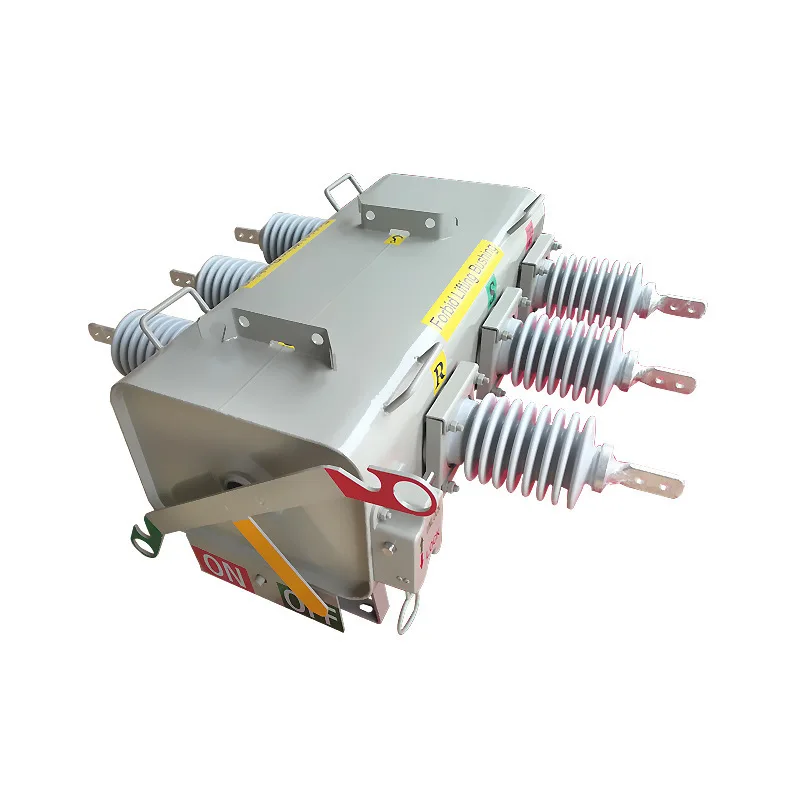

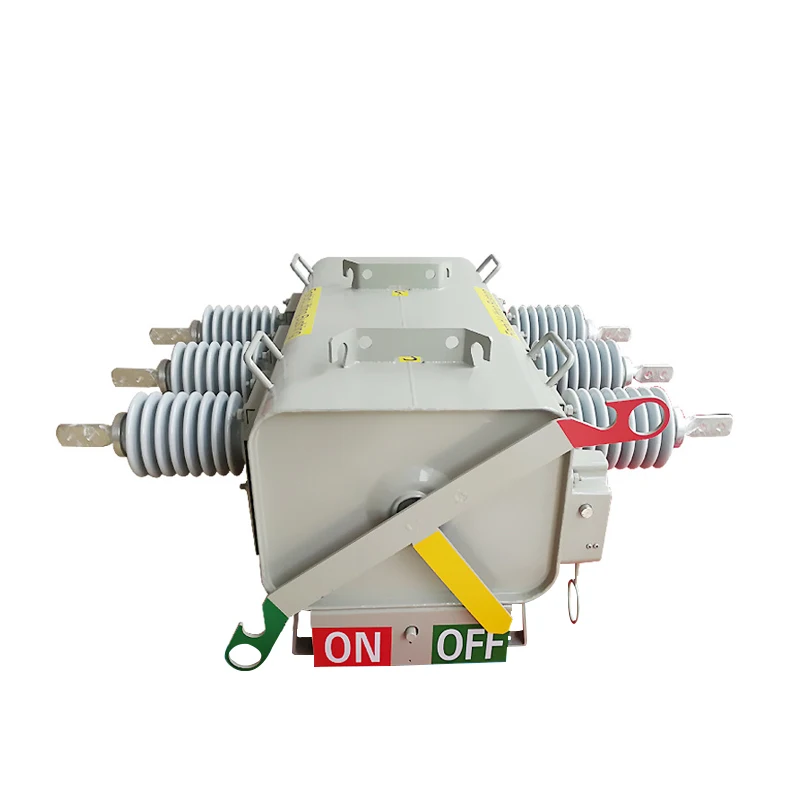

A complete set of primary and secondary integrated pole circuit breaker

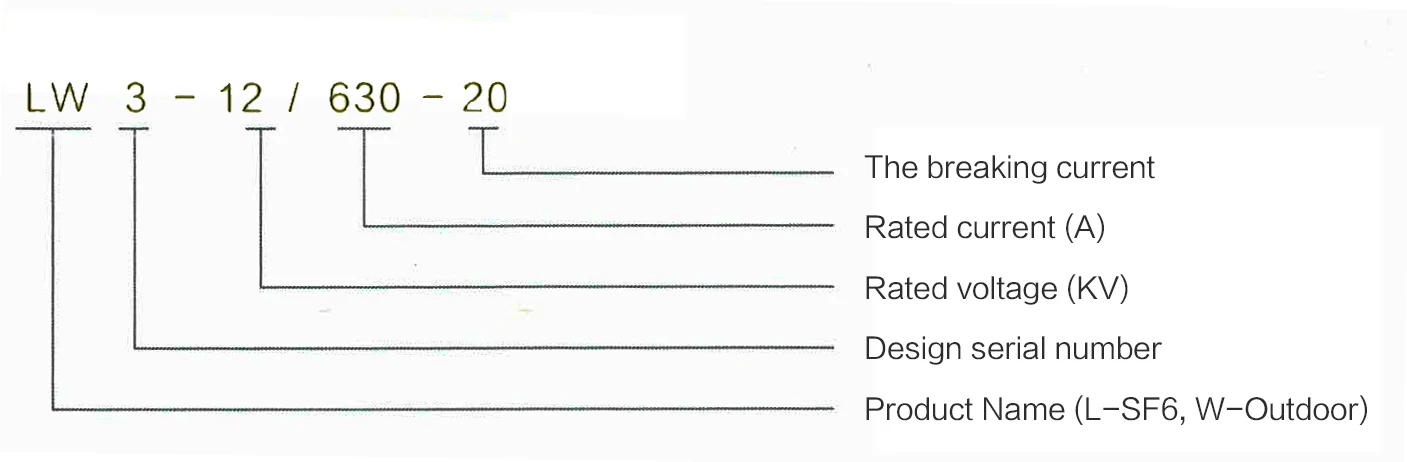

Description: ◆Type LW3-12/630-20 column mounted circuit breakers are suitable for use with a rated voltage of 12kV
◆Rated current 630A, 50/60Hz distribution network off
◆Turning off the load current and overload current in the power system can automatically separate the fault distribution circuit segments

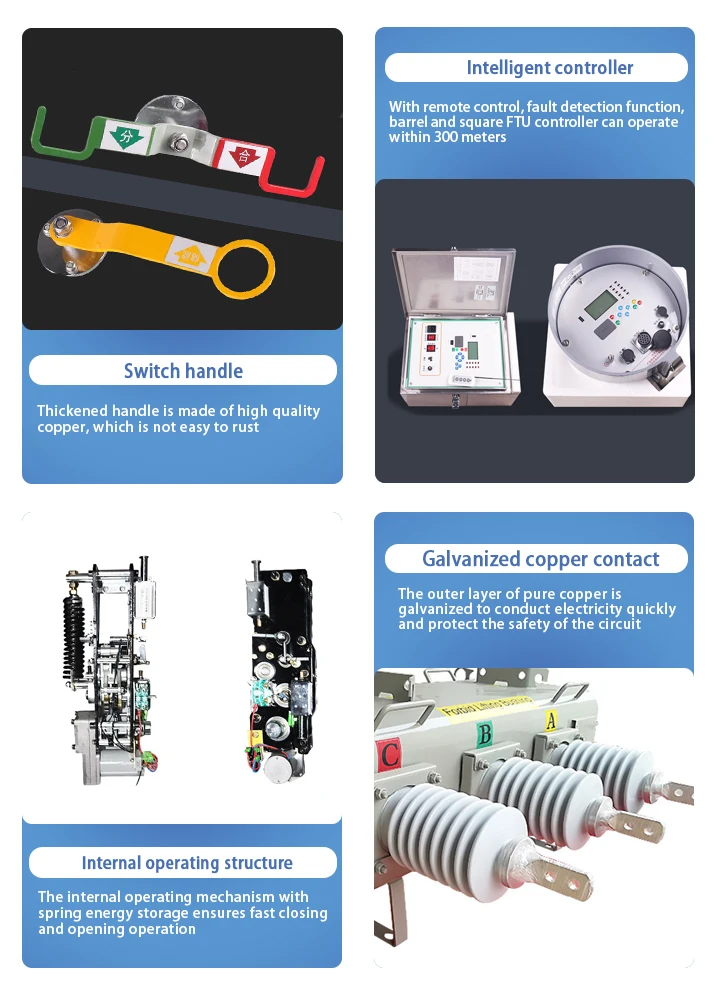

◆Switches with the latest technology of electronic controller, manual operation, electric operation and remote operation

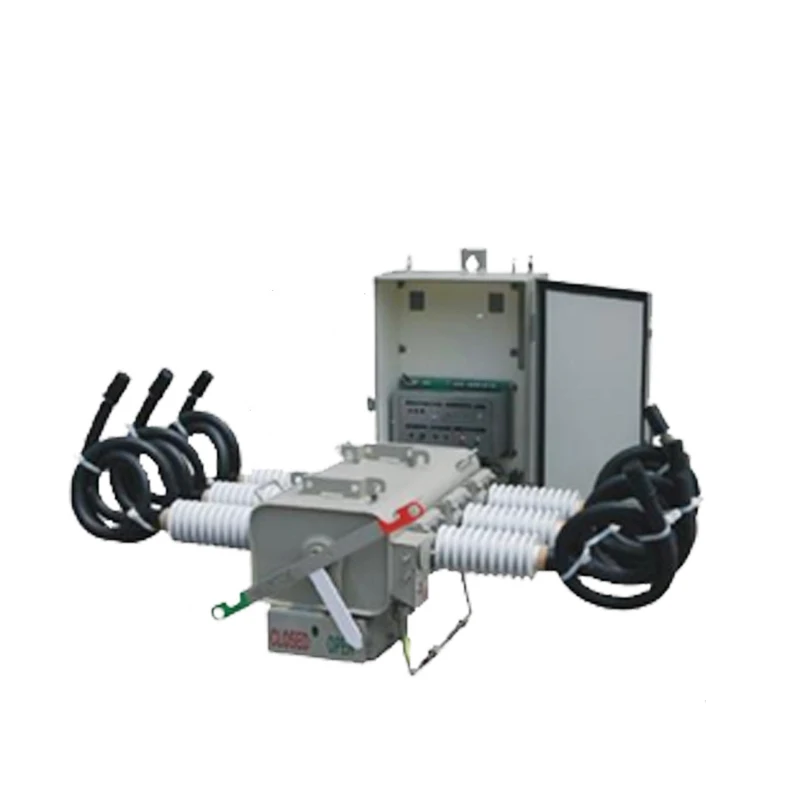

◆The electronic controller is housed in a stainless steel case and can be used in all weather conditions
◆In addition, the box can also be installed with wired and wireless modems, which can achieve remote monitoring and control
◆Simple column installation and arrangement is convenient and fast, reducing the construction cost.
The technical parameters of the form are for reference only.
Customized products can consult online customer service!
Rated parameters | Other technical parameters | Power frequency withstand voltage | ||||||||
The rated voltage | 12kV | Internal arc test | 20kA/0.1sec | 10sec (wet test) | 45kV | |||||
Rated current | 630A | Arc suppression medium | SF6Gas | 1min (dry test) | 50kV | |||||
Rated frequency | 50/60Hz | Insulating medium | SF6Gas | 1min (dry test) | 50kV | |||||
Short-time Tolerance Current (RMS) | 20ｋA/4sec | Creep distance (porcelain casing) | 550mm | |||||||
Creep distance (silicone sleeve) | 615mm | |||||||||
Protection grade | 54 | |||||||||
Mechanical properties of | <0.1sec | Impact pressure (1.2×50μs) | gas pressure | |||||||
Closing/opening time | 10,000 times | relatively | 85kV | rated working pressure（kgf/cm2G，at20℃） | 0.7 | |||||
Mechanical stability operation | -25(-40)~70℃ | Between the fracture | 95kV | Explosion-proof device operating pressure（kgf/cm2G） | 4~6 | |||||
Ambient temperature | minimum operating pressure（kgf/cm2G） | 0.05 | ||||||||
Gas leakage rate（cc/sec） | 1.1×10－7 | |||||||||
1. Temperature of ambient air: upper limit +50℃, lower limit -40℃.
2. Relative humidity: 110%
3. The altitude does not exceed 3000m.
4. Wind pressure should not exceed 700Pa (equivalent to wind speed 34m/s).
5. Earthquake intensity: 8 degrees.
6 installation site: no fire, explosion danger, no chemical corrosion and frequent violent vibration.
7. Filth level: Class 3, 4.
2. Relative humidity: 110%
3. The altitude does not exceed 3000m.
4. Wind pressure should not exceed 700Pa (equivalent to wind speed 34m/s).
5. Earthquake intensity: 8 degrees.
6 installation site: no fire, explosion danger, no chemical corrosion and frequent violent vibration.
7. Filth level: Class 3, 4.
