YTB 41000 high speed 4 colour chamber doctor blade flexo printing plastic film machine
- Category: >>>
- Supplier: Ruian Hwasen Machinery Co. Ltd.
Share on (1600535226328):
Product Overview
Description
YTB-41000 high speed 4 colour chamber doctor blade flexo printing plastic film machine
1.Use:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
2.Characteristics:
1)Reasonable structure, advanced technology, easy operation, stable performance, accurate color register.
2)Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
3)When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.
4)The machine is equipped with blower and heater; and the heater employed central temperature control system.
5)The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6)Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
3.Suitable material
Kraft paper:40-350g/ single-sided coated paper:30-350g/copy paper:15-350g/firecrackers and paper:40-350g/paper money and incense:25-350g/silicone paper:50-350g/coated paper:30-350g/dust-free paper:25-350g/Release paper:40-350g/composite paper:30-350g/ |
PVC:10-120g/ OPP:10-120g/PE :10-120g/PET: 10-120g/CPP:10-120g |
4. Main Technical Specification
Model | YTB-4600 | YTB-4800 | YTB-41000 |
Material feeding width | 600mm | 800mm | 1000mm |
Max Printing Width | 560mm | 760mm | 960mm |
Colors | 4 colors | 4 colors | 4 colors |
Thickness of plate | 2.28mm/1.7mm | 2.28mm/1.7mm | 2.28mm/1.7mm |
Printing length | 280-1000mm,standard less than 400mm | ||
Machine speed | 100m/min | 100m/min | 100m/min |
Printing speed | 90m/min | 90m/min | 90m/min |
Register precision | ±0.03mm | ±0.03mm | ±0.03mm |
Total power | 22kw | 25KW | 30KW |
Gross weight | 3600KG | 4000KG | 4500KG |
Dimension | 5.2×1.8×2.6M | 5.2×2×2.6M | 5.2×2.2×2.6M |
5. Detail Part Parameter
5.1 Feeding material part:
roller length: 600mm effective printing roller length: 560mm
roller core diameter: 76mm discharge maximum diameter: 1000mm
5.2 Printing sections: printing consists of: plate roller, ceramic anilox roller, rubber roller,press roller, doctor bladeplate roller circumference: 280-1000mm print material: resin plate or rubber plate Transmission: 0 helical gear drive printing chromatography: 360-degree rotation adjustment method: Manual rise and fall of plate roller: Hydraulic
5.3 Electrical parts: Main Motor: 2.2kw
Ink Motor: 0.75kw Speed using frequency converter control
5.4 Rewinding Part:roll core diameter: 76mm
discharge maximum diameter: 1000mm
6. Detail picture display

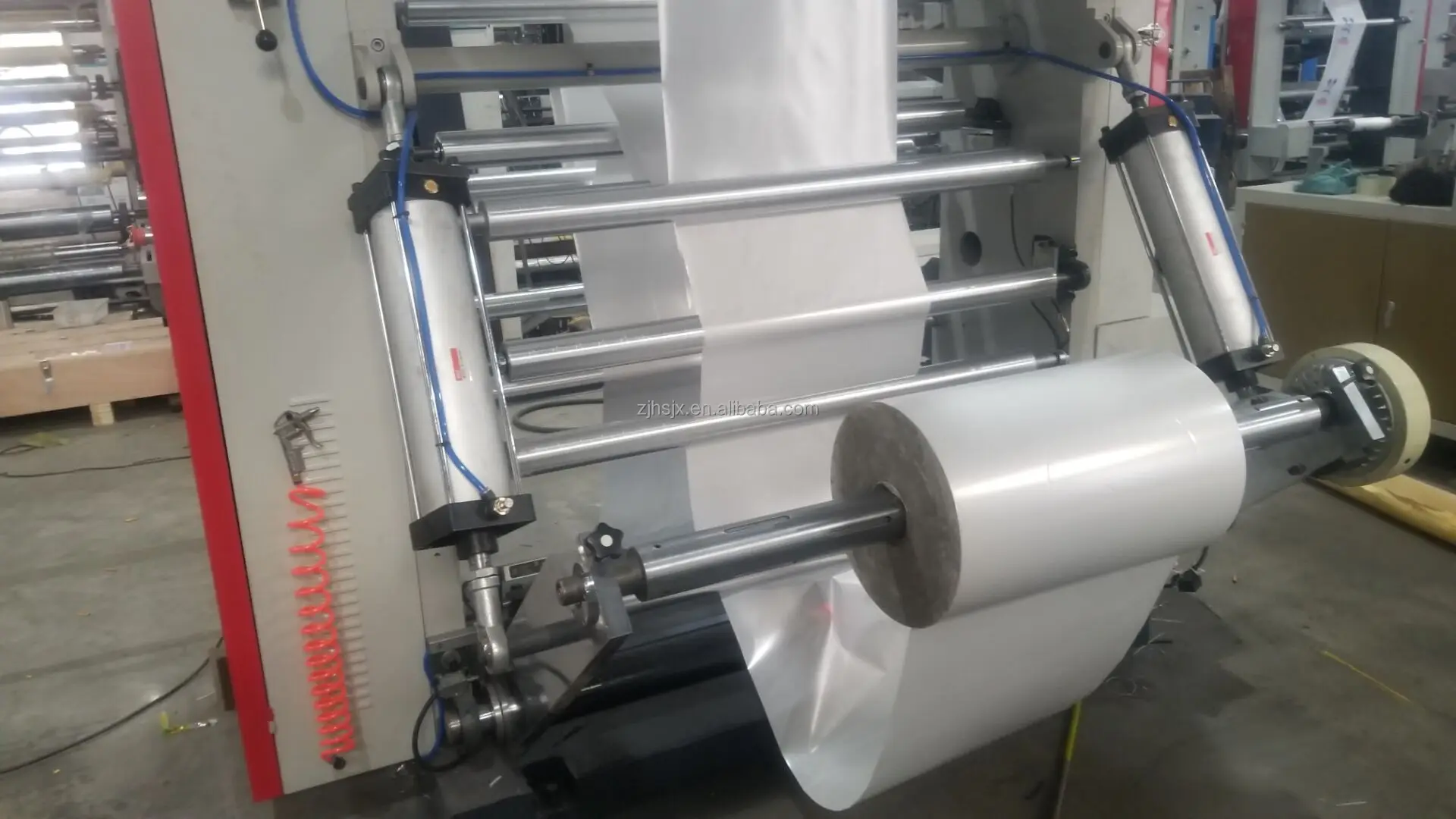

1) unwind
2) VIDEO INSPECTION SYSTEM
3)EPC system and auto tension controller

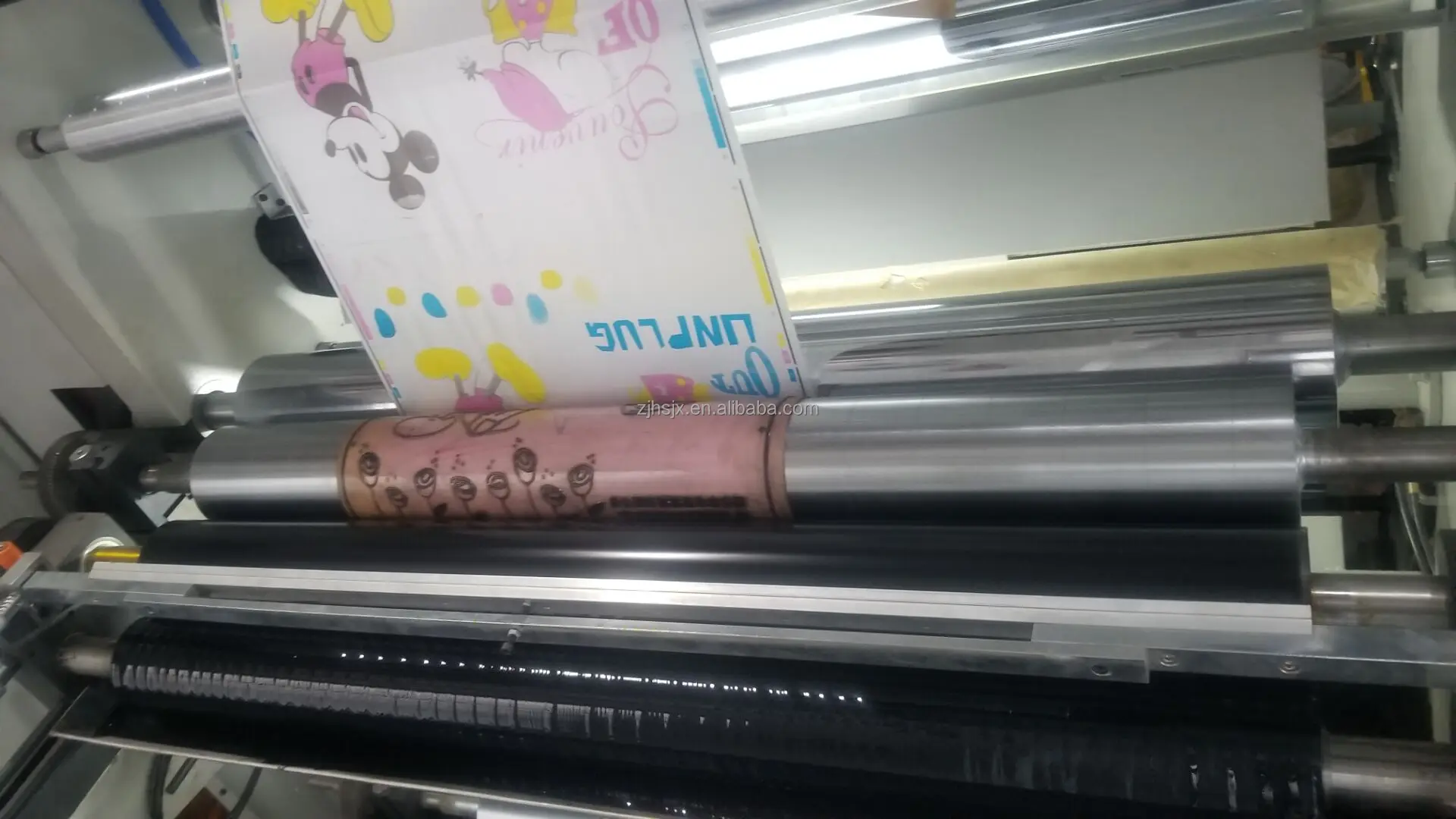

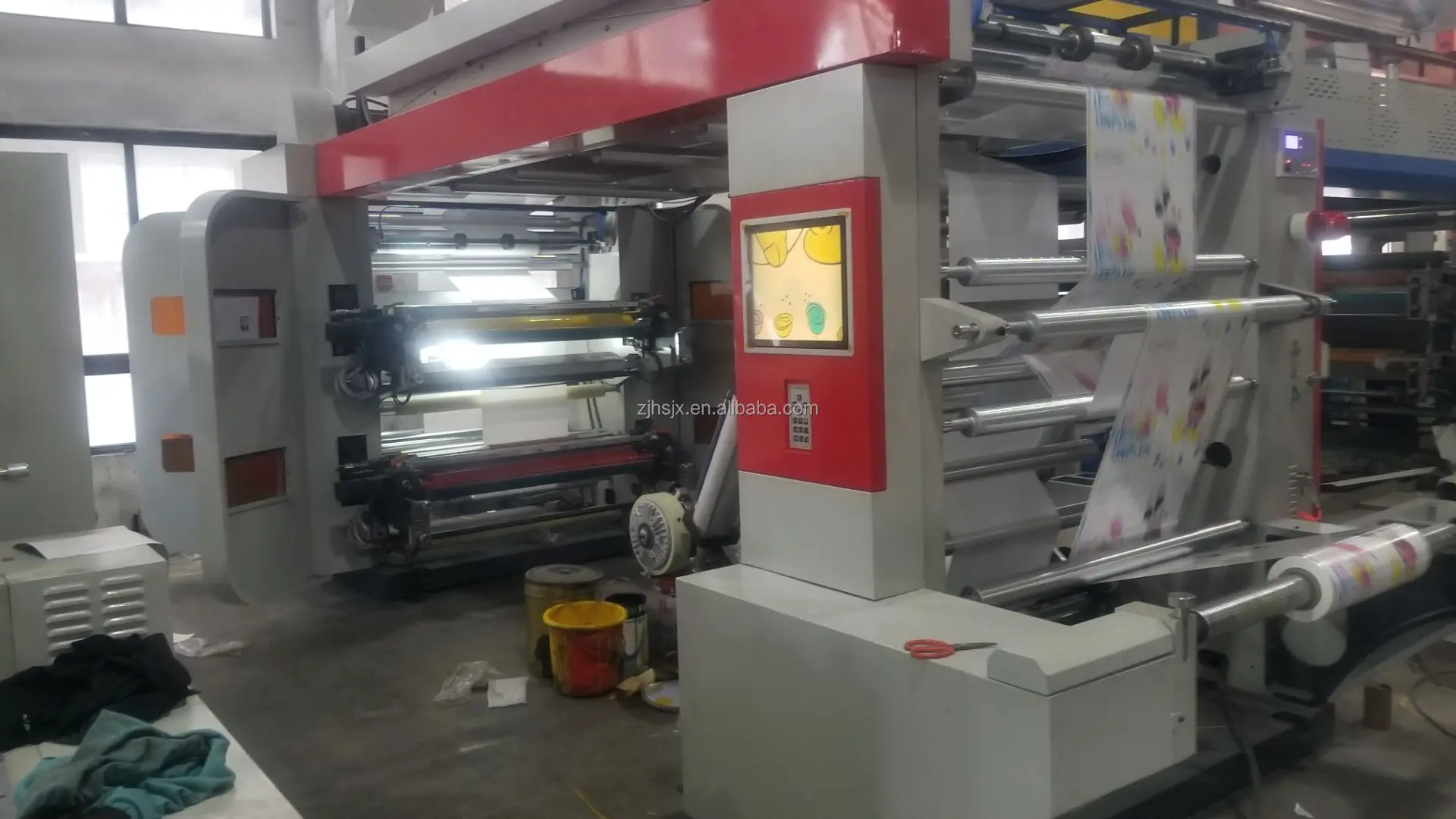

4) printing unit

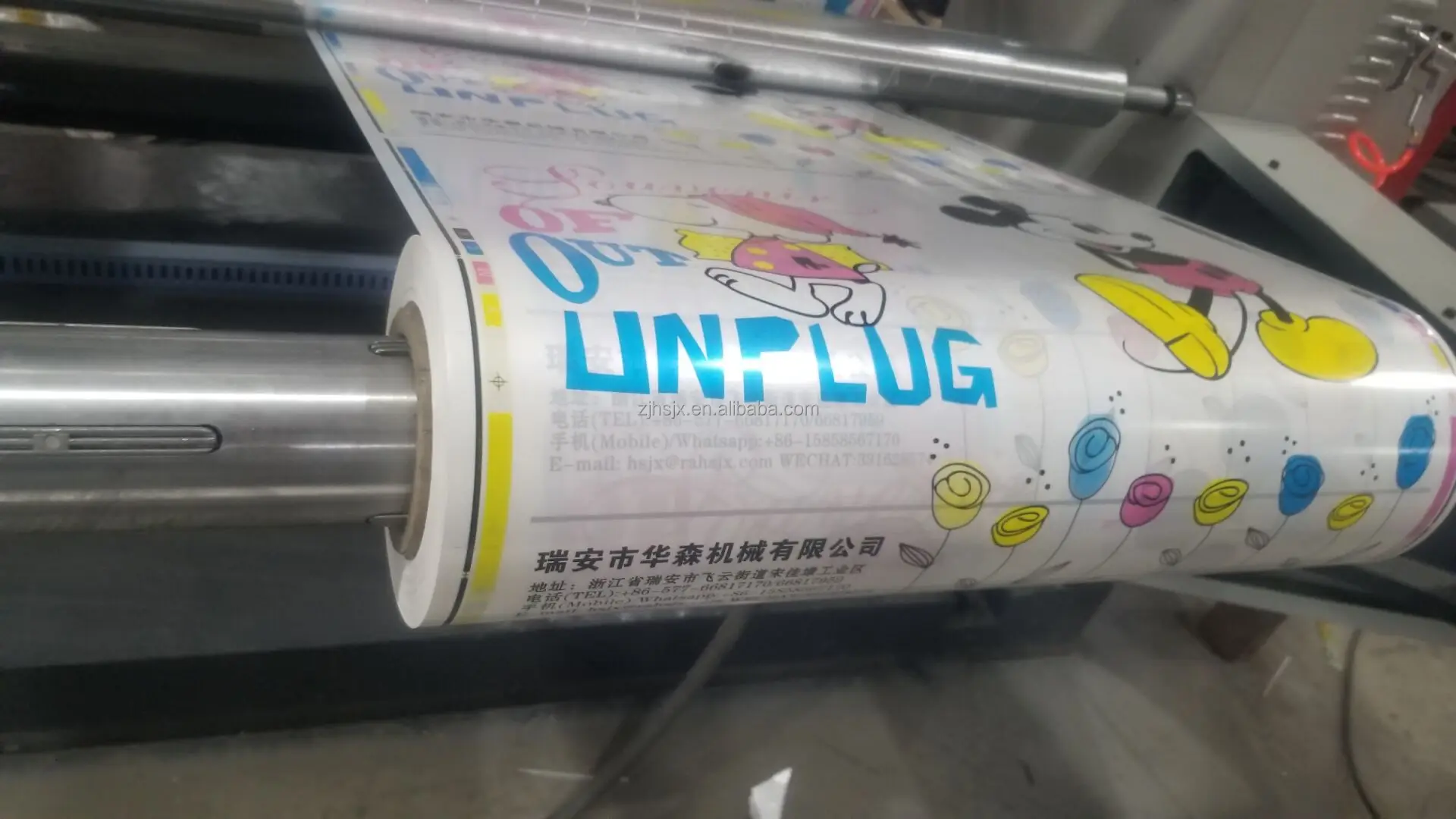

5) rewind side view

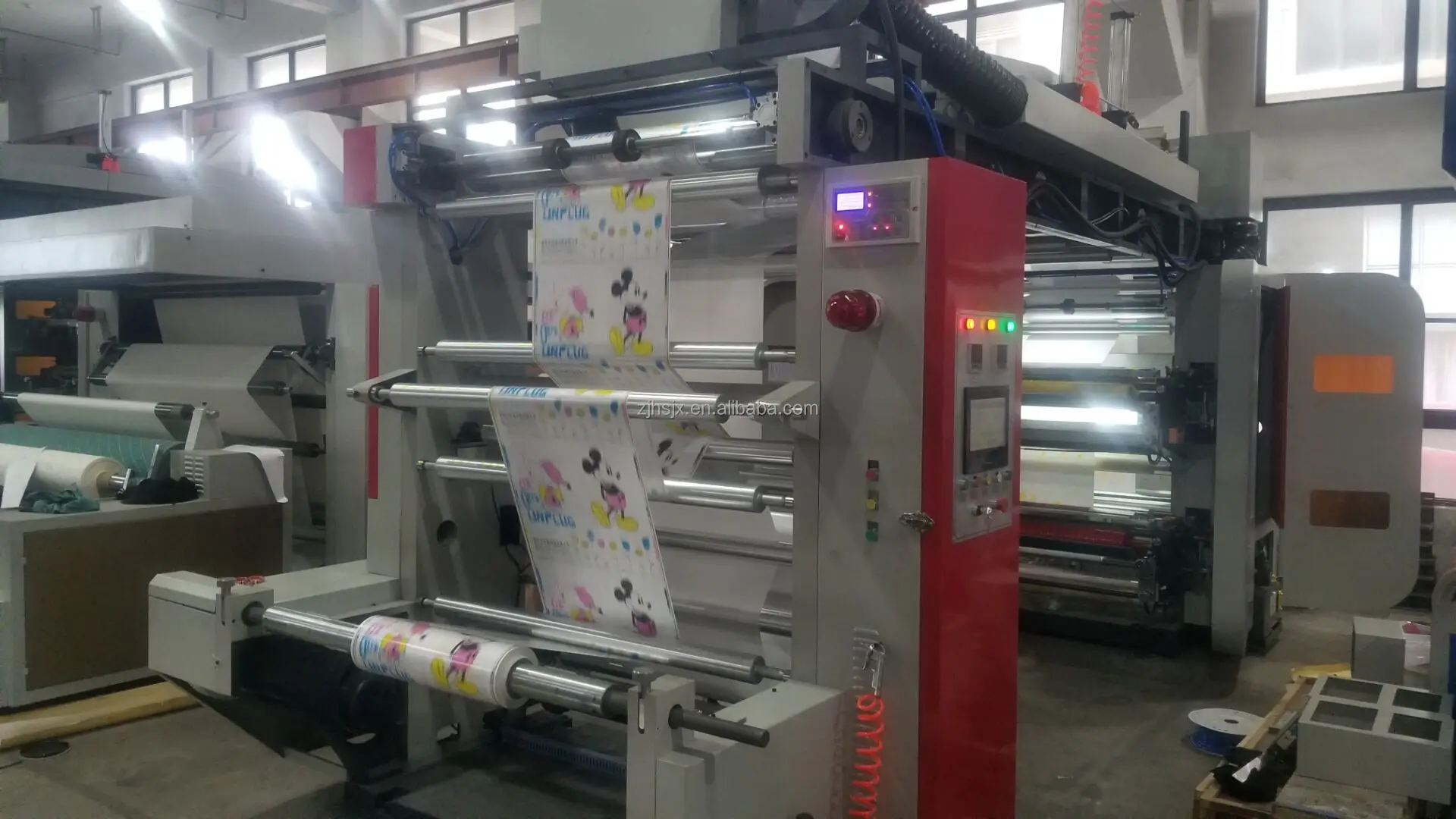

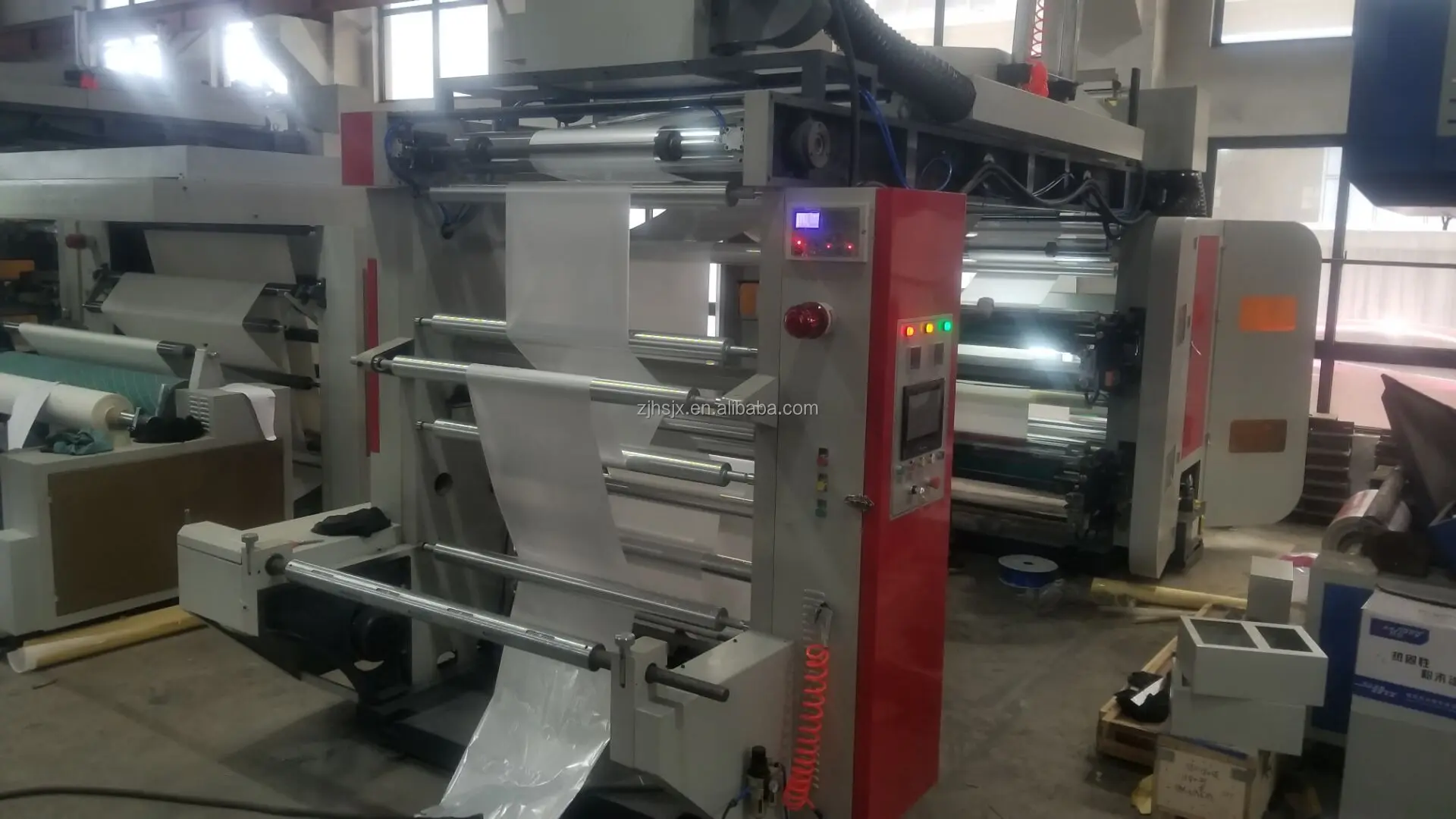

6)front view
7) printing quality show-CMYK
More Products
Packaging & Shipping
Certifications
Company Information
RUIAN HUASEN MACHINERY CO., LTD located in RUIAN,WENZHOU city, which with convenient transportation, our company main engaged in Film blowing machine, bag making machine, printing machine, extruder machine and slitting cutting machine manufacture and sales, our product widely sales to South Asia, West Asia, Africa, Europe, America, etc country and regions market.Our company always insist on the belief of "Faith first, quality first, efficiency first", keep customer's request in our heat, contribute the high quality product and fruitful before sales service, after sales service to customer. RUIAN HUASEN MACHINERY COMPANY is willing with domestic and foreign friends hand in hand, create brilliant future, and welcome all over the world customer visit us, calling us and write letter to us
FAQ
Q1: Are you factory or trading company?
A1: We are machinery factory and trading company in one.
Q2: How does your factory do quality control?
A2: We have profession engineers' team to prove and ensure machine quality.
Q3: Machine warranty?Q3: Machine warranty?
A3: one year since machines arrived your port.
Q4: What's your delivery time?
A4: Normally, it need 15 to 25 working days since get the deposit.
Q5: How do you keep the after-sales service?
A5: We do business based on faith, we insist on " quality is the first and most
important" . We will carefully check the material, produce, test and adjust machine, we have oversea technician service,to help you install the machine.
Q6: Where's your company located? how can we visit?
A6: Our company located inRuian city, Zhejiang province, if you take by flight can fly to Wenzhou airport, , and also can by train from Shanghai/Shenzhen to my city Ruian train station directly.
Q7: What’s the payment method?
A:We can accepted T/T,L/C,Western Union,etc..
Q8: Can we order on ALIBABA.COM ?
A:Yes! Of course! We also we give you more discount if you order on alibaba.com.
