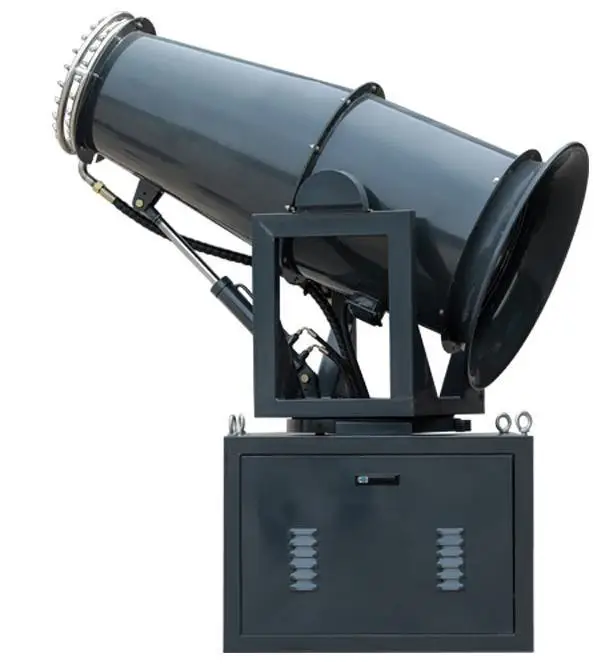

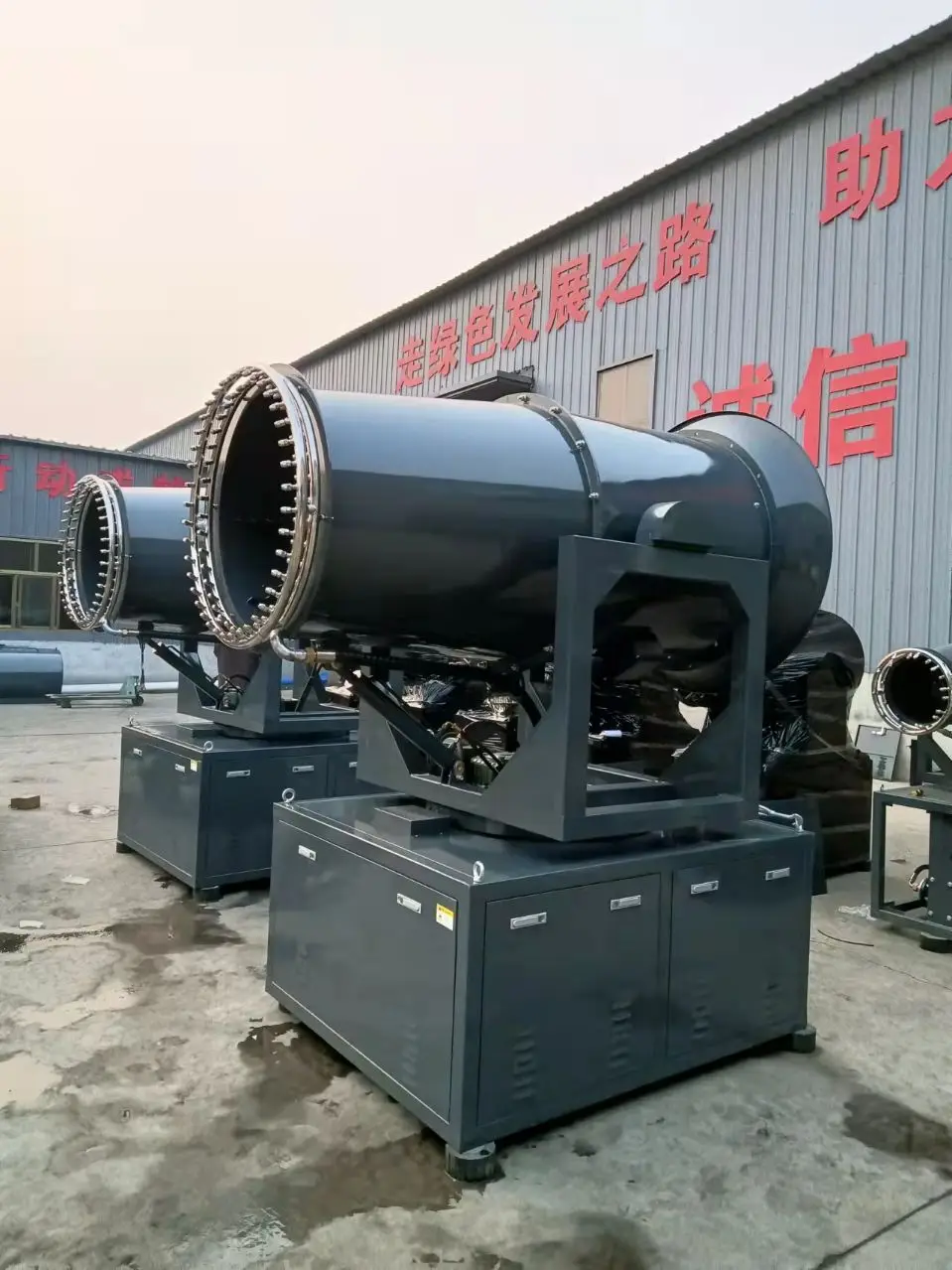

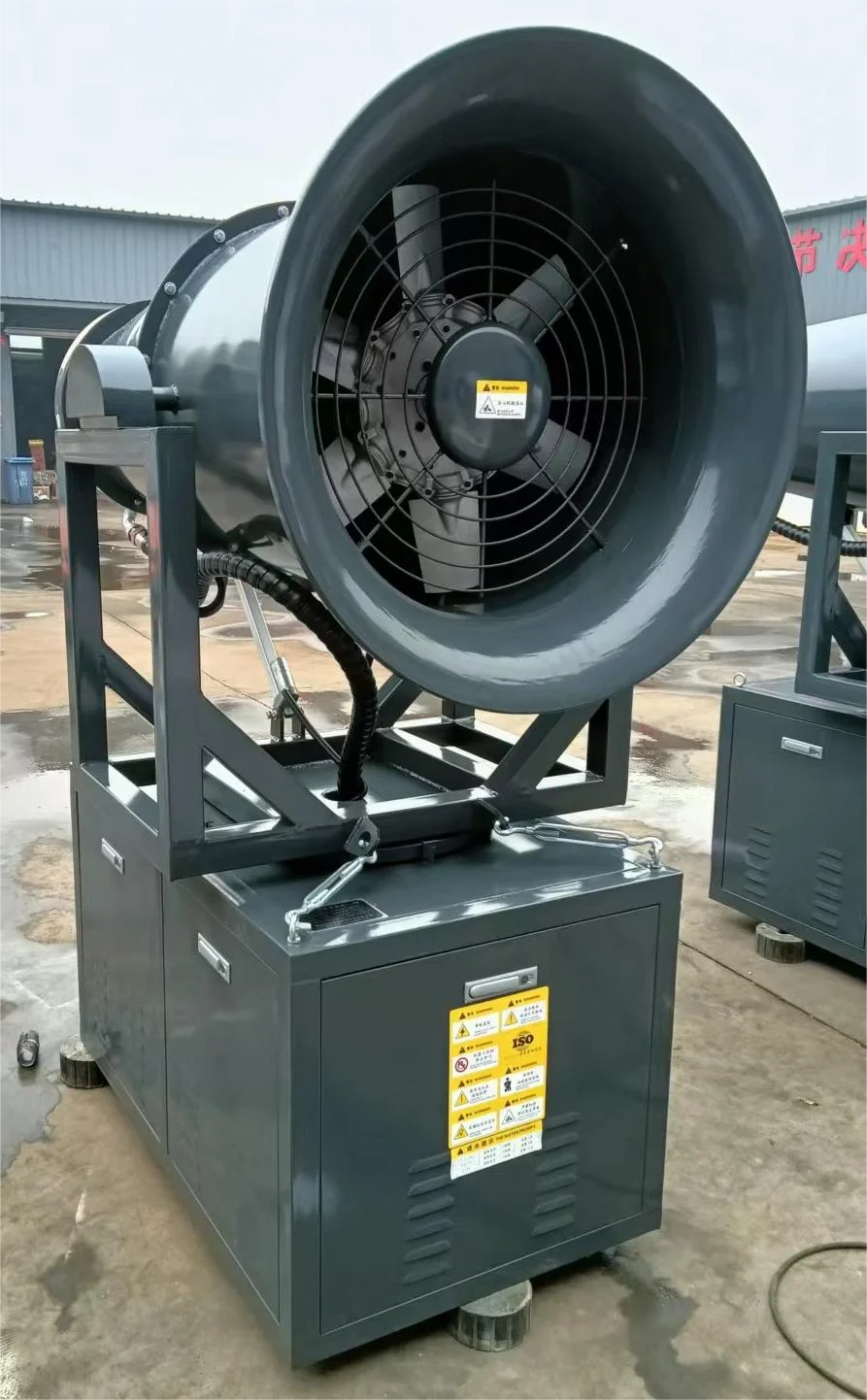

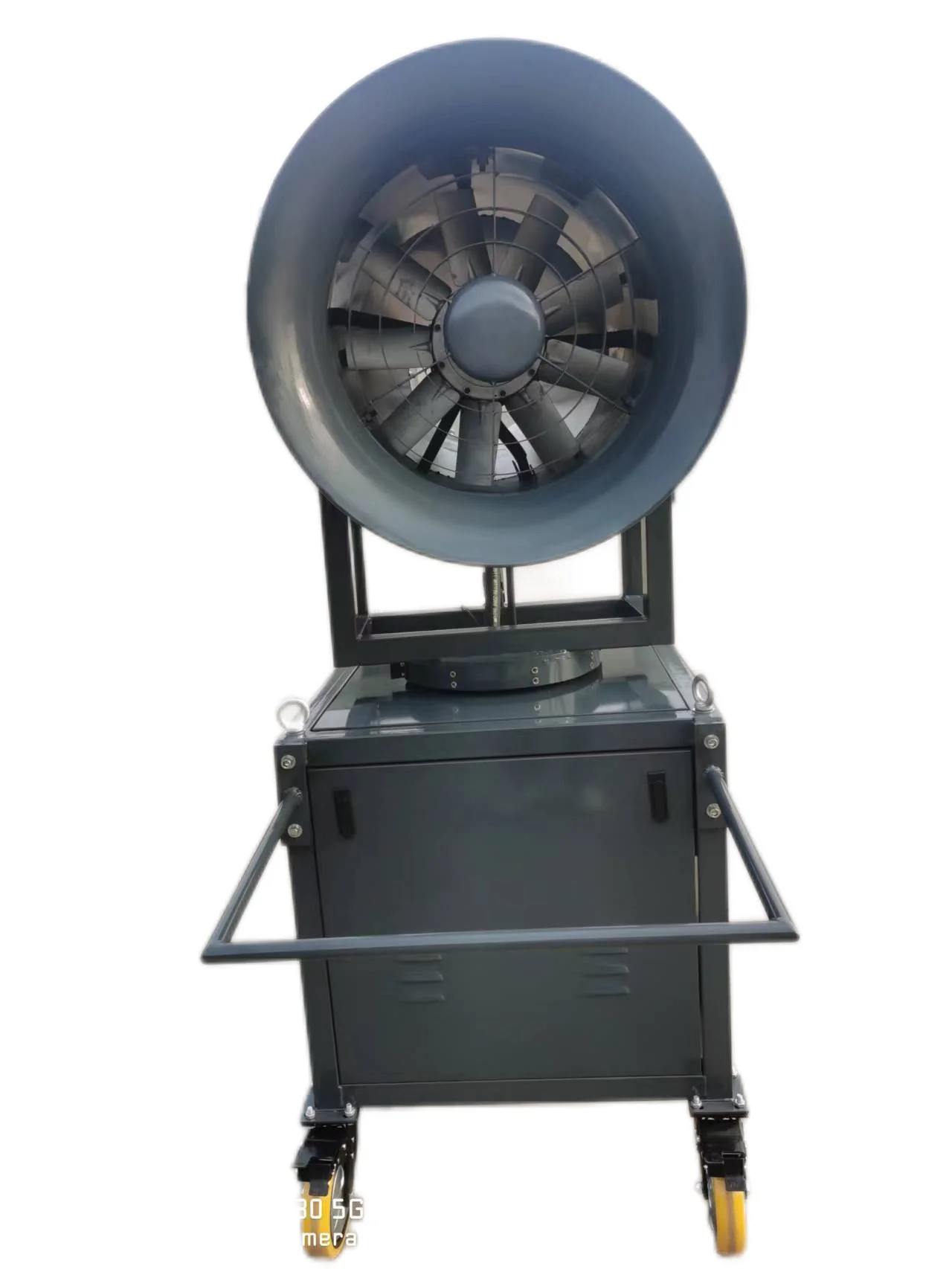

30m Water Mist Cannon Sprayer Fog Cannon Nozzle Power sprayers Vehicle mounted fog cannon

Product Overview

Description



Agriculture sprayer cannon for orchard pest control forest protect RDSS-30

    According to the principle of air delivery, the dust removal gun machine uses an advanced stainless steel centrifugal pump and fine atomizing nozzle to atomize the water, and then uses the air volume and wind pressure of the fan to send the atomized water mist to a longer distance, so that the water mist reaches At a long distance, it can cover a larger volume at the same time. These tiny artificial fog particles can float and suspend in the air for a long time. The fog length generated by a single nozzle can reach 3-5 meters, the fog width is 1 meter, and the water mist and dust condense After landing, so as to achieve the purpose of dust reduction.

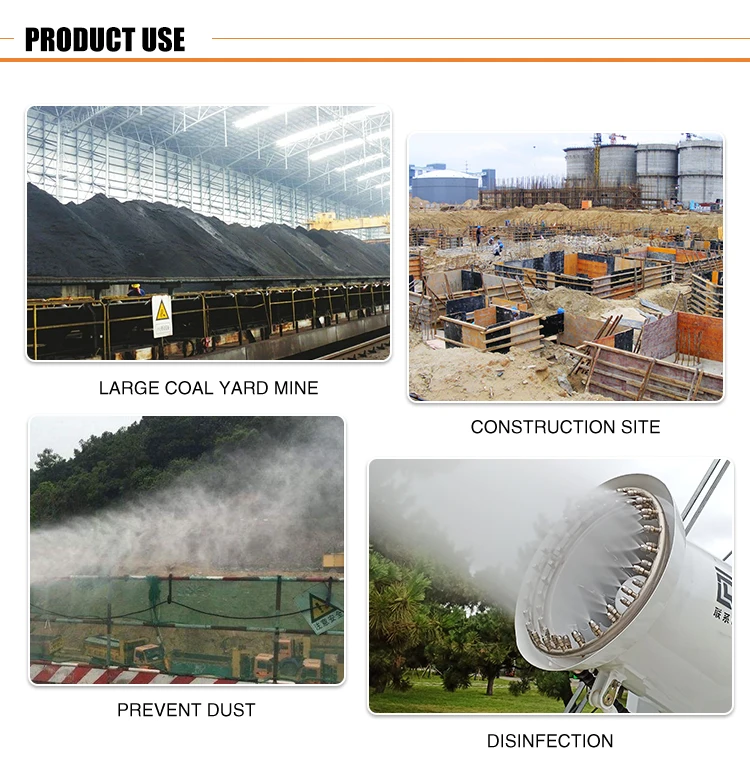

    Fog cannon sprayer can be used for urban demolition, mining areas, thermal power plants, port terminals, urban air pollution, excessive dust area, metallurgy, chemical, coal, steel, construction, gardens, public places and other places mist dust, cooling.





model	30
Theoretical throw distance	30m
Rings of nozzles	1

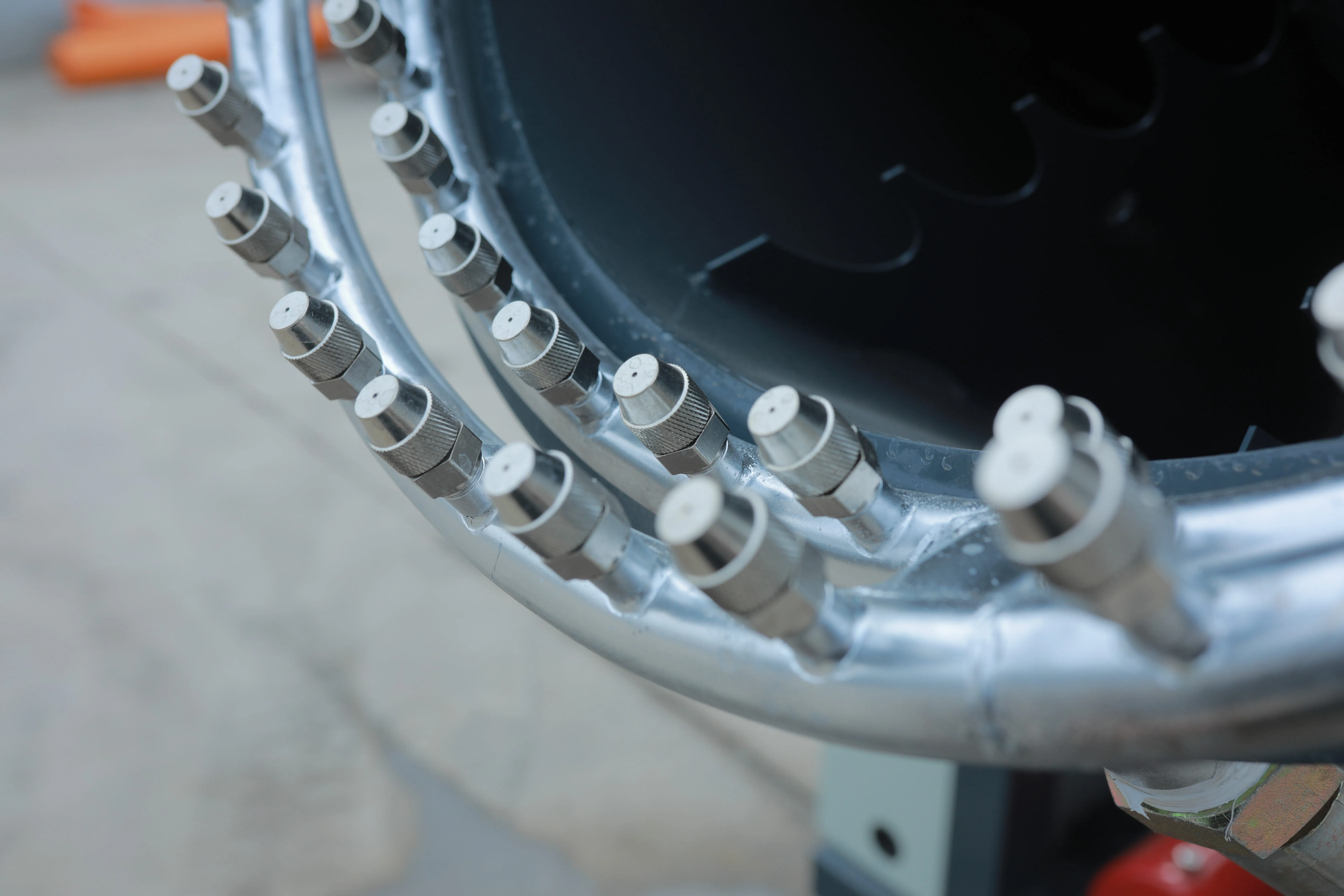

Number of nozzles	30
Type nozzles	stainless steel

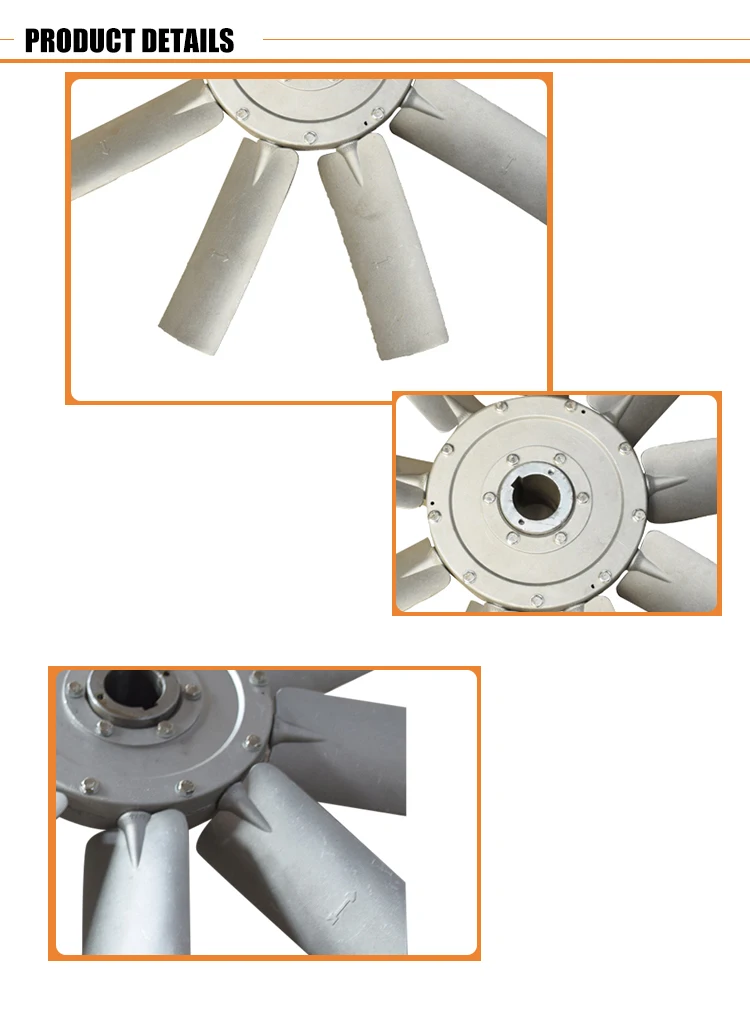

Nominal fan power	3kw

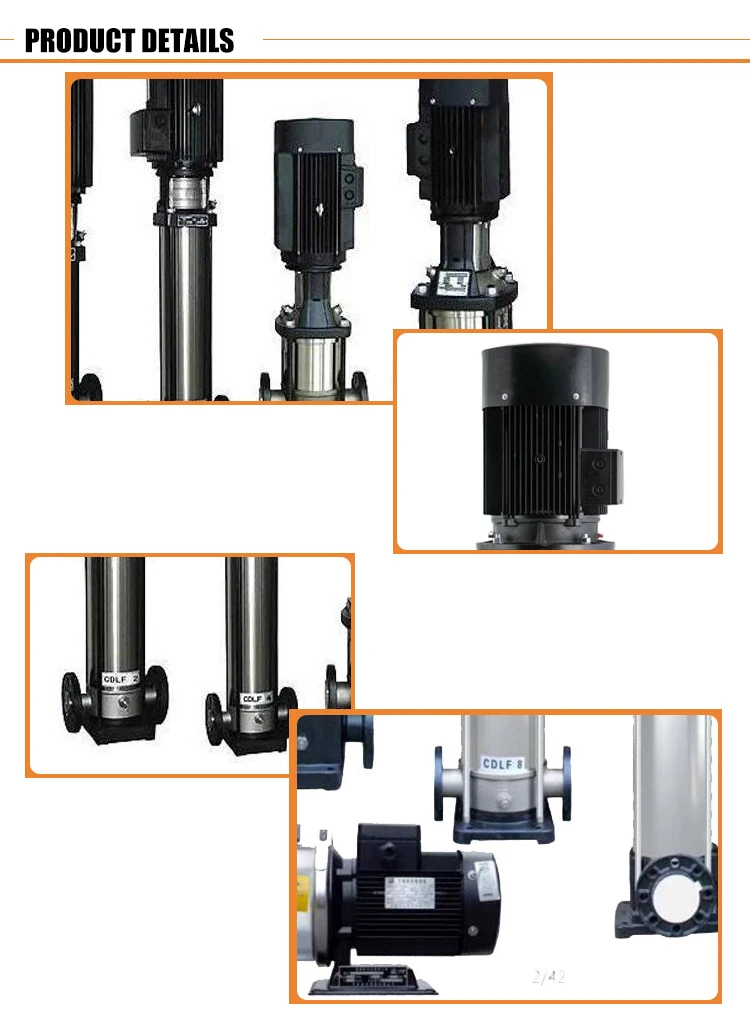

Pump (optional)	1.5kw
Manual Angle of rotation	0-320°, ±160°
Elevation anglePitch angle	-10°-45°
Electrical connection	380V 50h z 3P+T (customizable)
Protection rating	IP 55
Water filter with extractable cartridge	Water filter with extractable cartridge
Water consumption	4m³/h
Weight (Kg)	258kg
Control mode	Manual/remote
Optional	anti-explosion/freeze-proof/noise reduction
packaging size	1440*800*1800mm



Q1: How long is your delivery time?

A1: It is according to the model and quantity.

     Generally it is 3-5 days if the machines are in stock.

     It will be 15-30 days if you want to customize the machines.



Q2: Do you provide samples? Is it free or extra?

A2: Yes, we could offer you the sample machine.

      But it's not free. You need to pay for the sample and the cost of freight.



Q3: What is your terms of payment?

A3: We accept T/T, Western Union, Alibaba Trade Assurance.
