Product Overview

Description


Epoxy Pipe Lining-BeiSai


Cast Iron Epoxy Pipe conforming to DIN19522/EN877/BS EN877/ISO6594


Material:Cast Iron with flake graphite


Qualilty:GJL-150 according to EN1561


Coating: SML,KML,BML,TML


Size:DN40-DN300

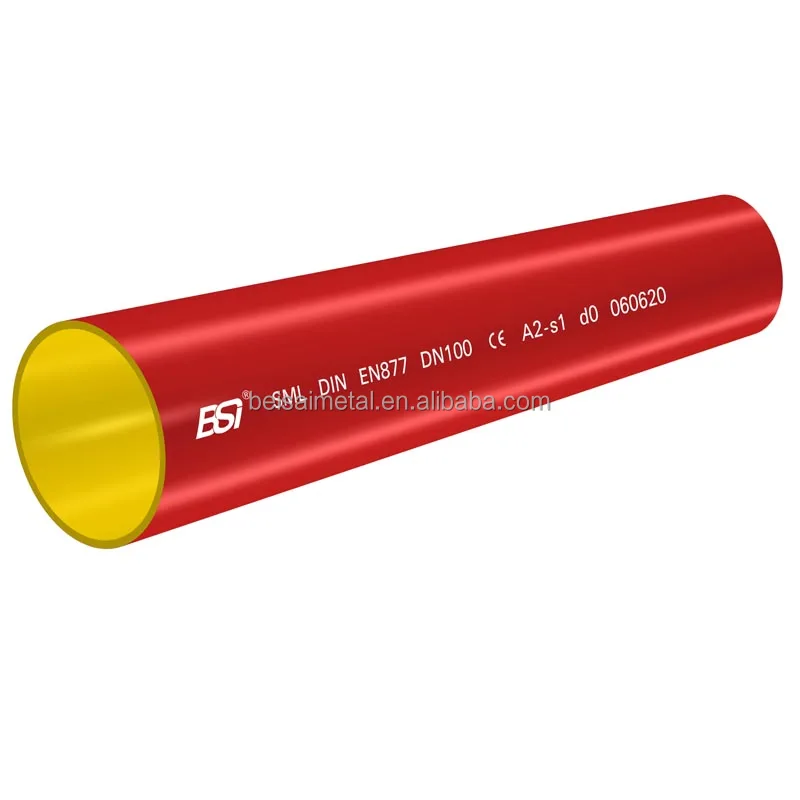

003 (2)






































































































DNExternal diameter DE(mm)Wall thickness (mm) TUnit weightLength L
Nominal valueToleranceNominal valueMinimum valuekg/pc(mm)
4048+2  -13.02.512.903000+/-20
50583.53.013.00
70783.53.017.70
70753.53.017.70
75/80833.53.018.90
1001103.53.025.20
125135+2  -24.03.535.40
1501604.03.542.20
200210+2.5  -2.55.04.069.30
2502745.54.599.80
3003266.05.0129.70


The DIN19522/EN877gray cast iron soil pipes produced by centrifugal technology which are used in drainage sewer system and ventilation ducts system through a flexible linkage. which have following advantages :


---Flat straight, even pipe wall light heavy.


---high strength and density


---high smoothness internal and external surface, no casting defect,


---Easy installation, easy maintain, long using life,


---Fireproof  and fire resistance


---No noise

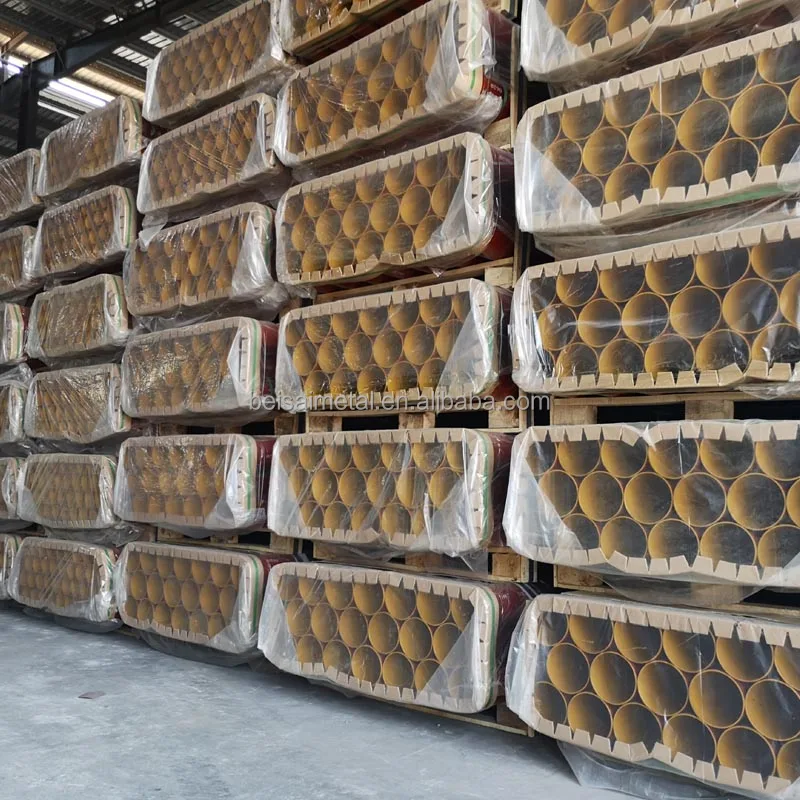

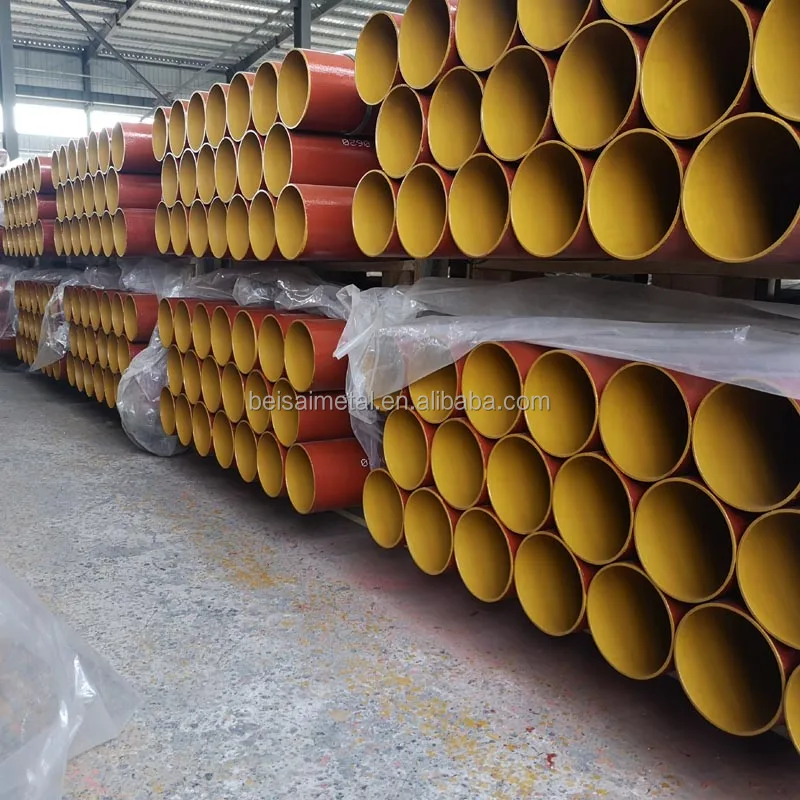

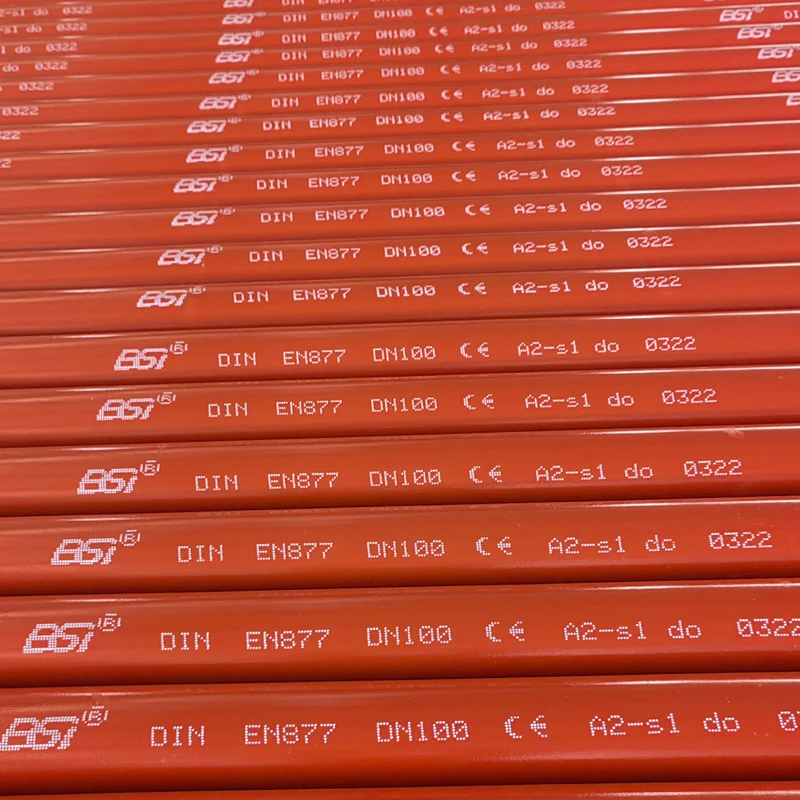

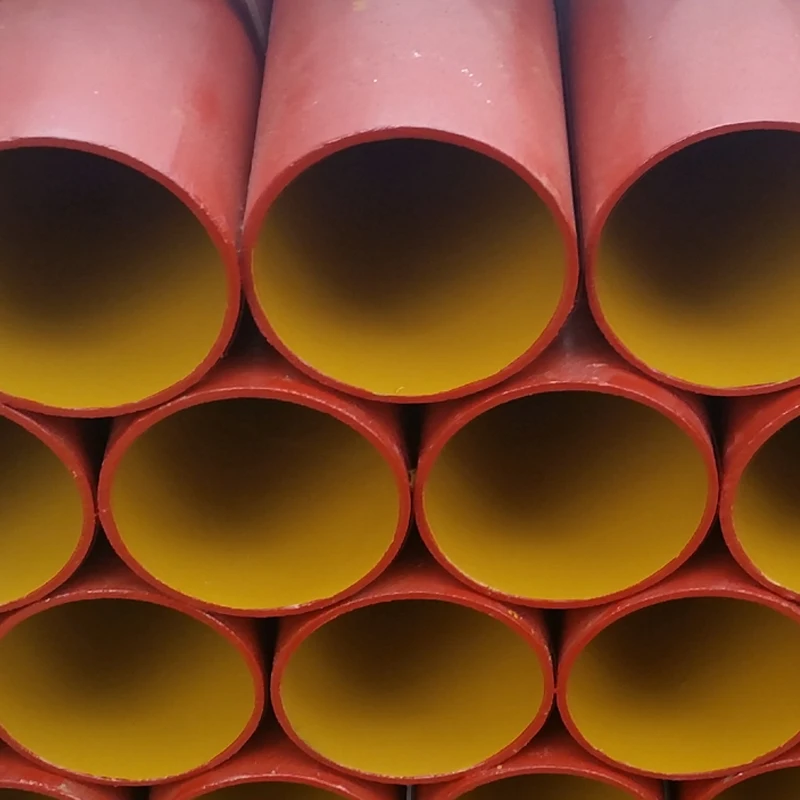

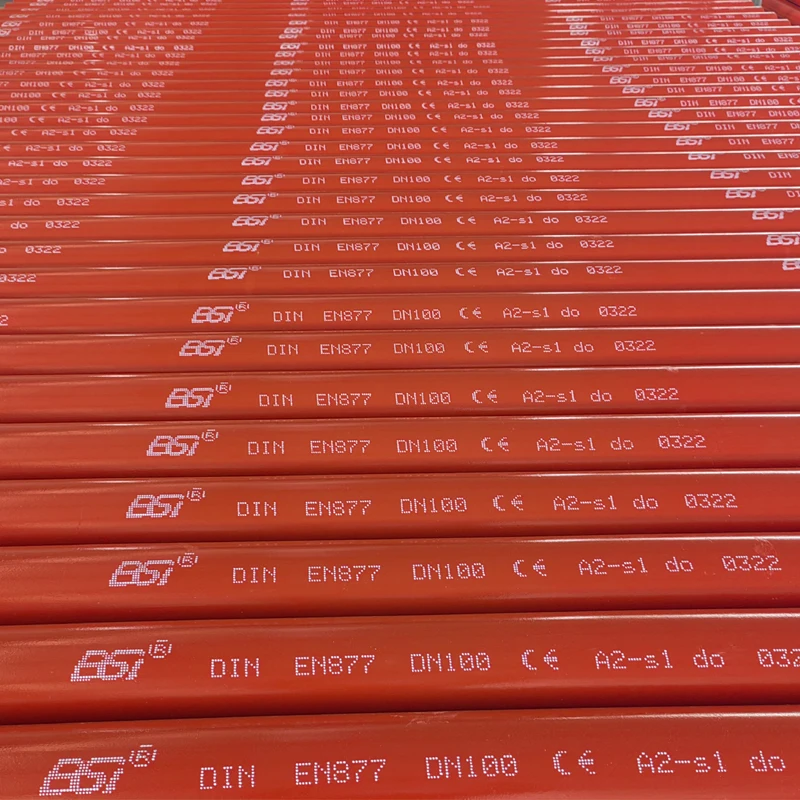

 P0000069 (7)P0000069 (4)P0000069 (2)0002000100008.jpg
