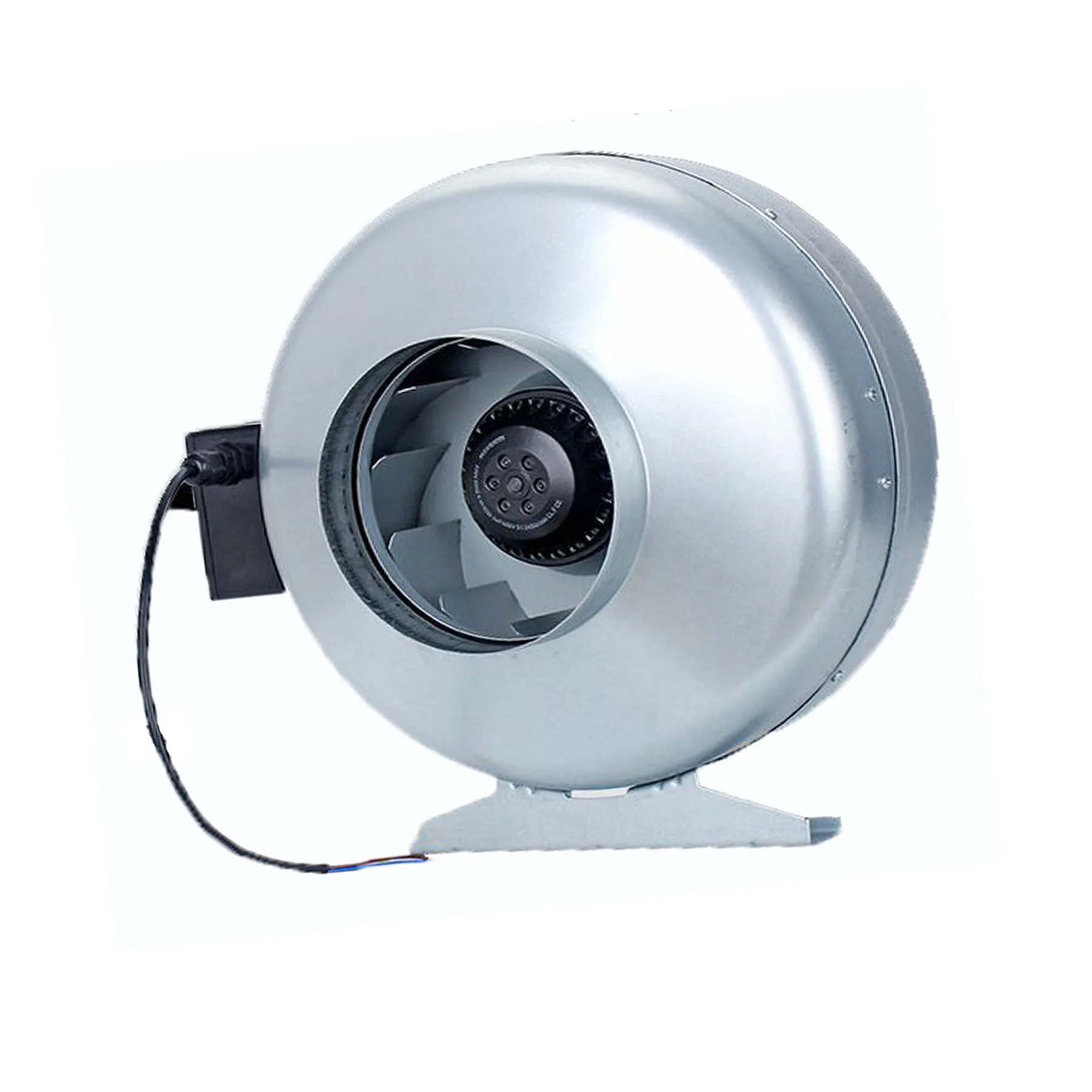

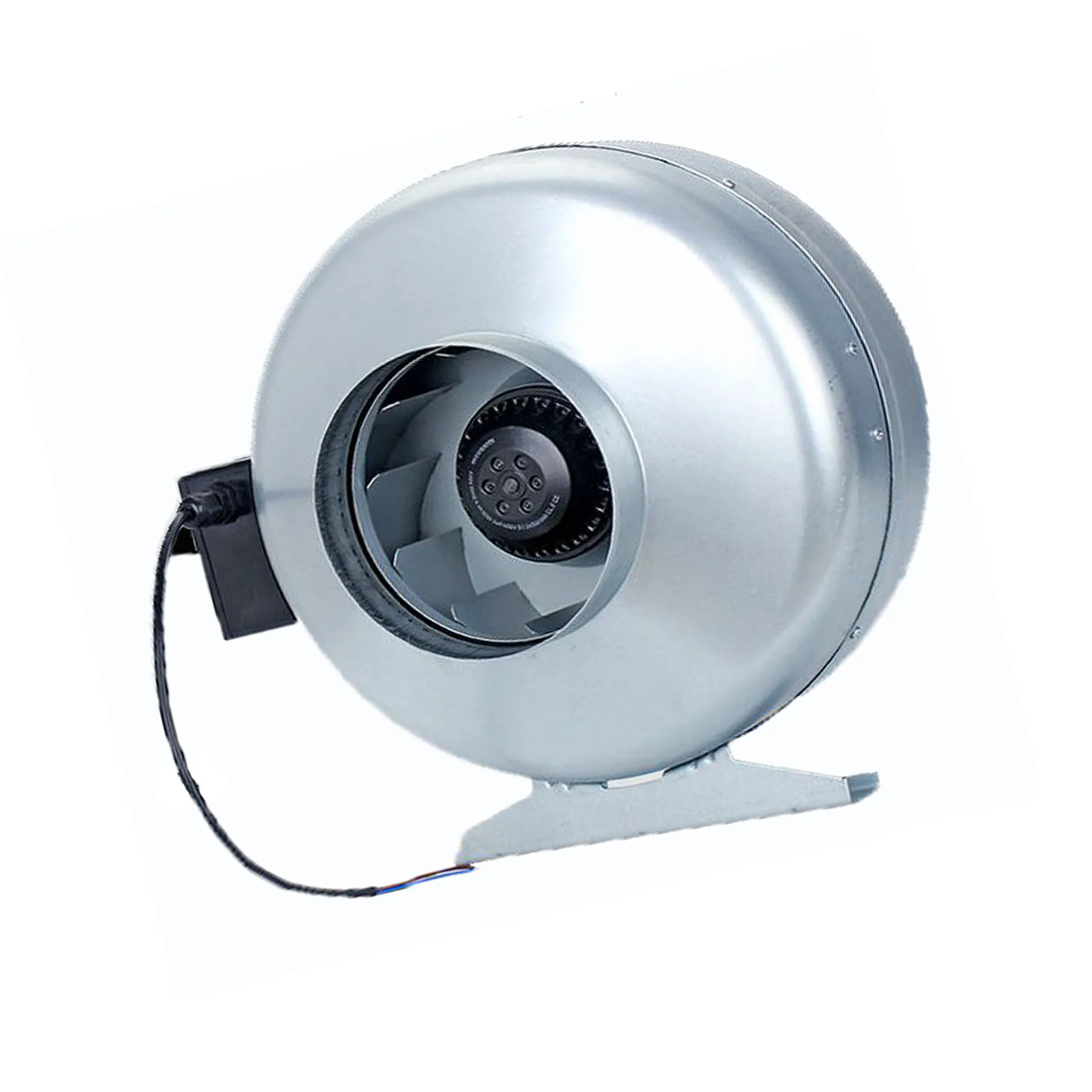

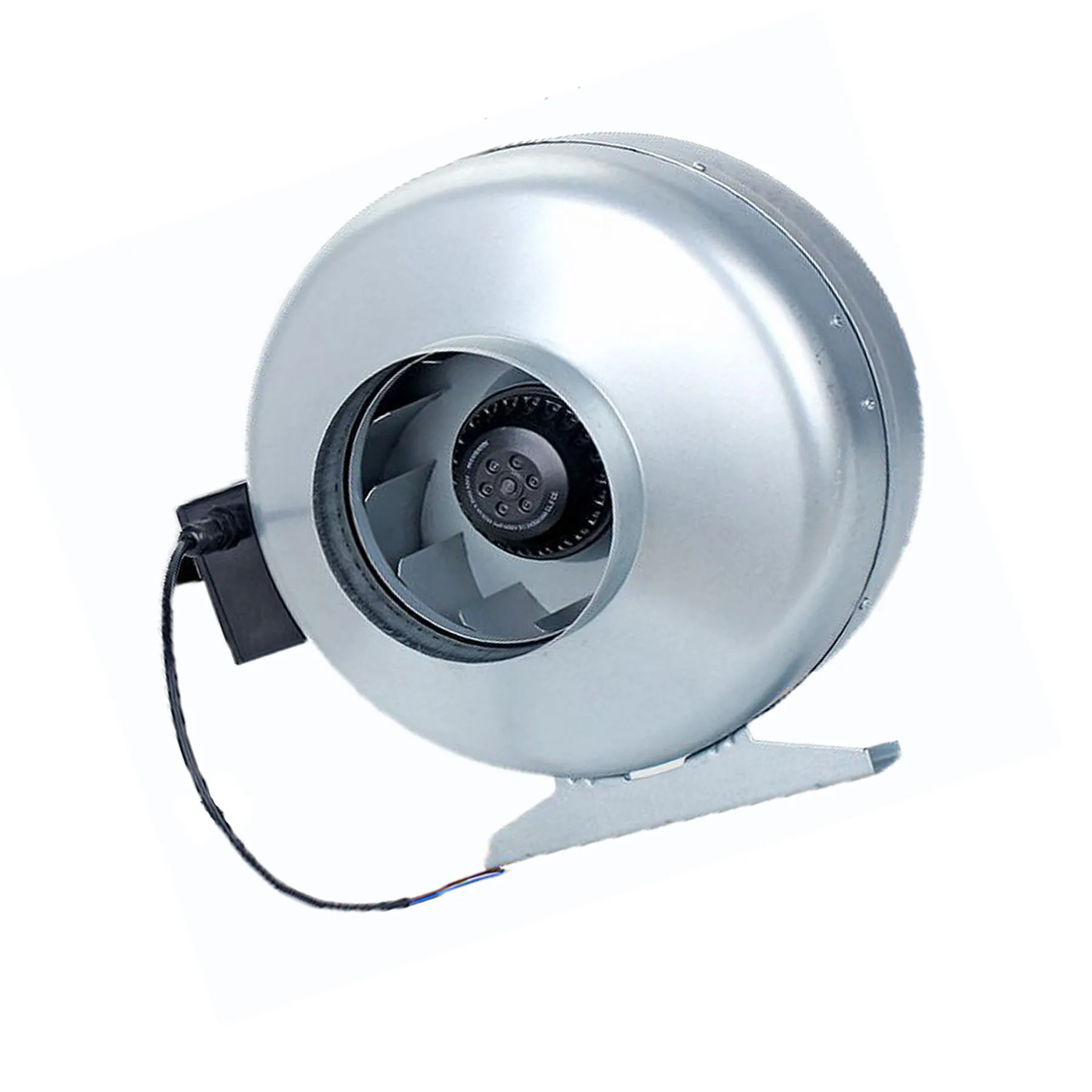

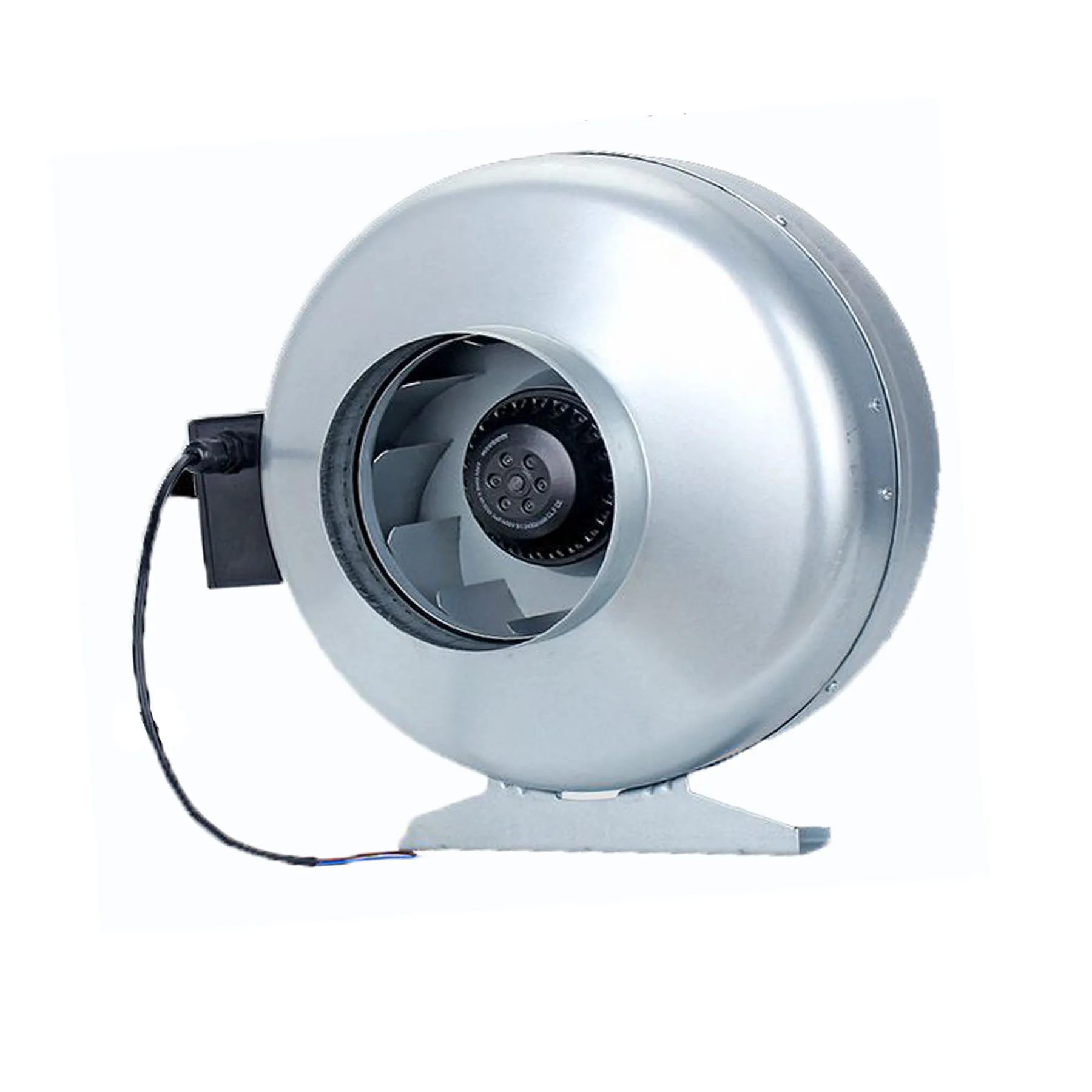

10inch pipeline duct fan silent pipe fan for building ventilation system
- Category: >>>
- Supplier: Dongguan Kuhong Electronics Co. Ltd.
Share on (1600535246746):
Product Overview
Description
Product Description
Description
Material
1.\tmaterial : steel + aluminum
features
Coolcom duct fan with is a ideal ventilator with good performance and appearance with easy installation ,light weight ,low noise, long life span,ideal for blow wind,exhaust air,return air or purify air procissing to provide motive force,high air pressure available to connect the pipe with length of tens of meters,one ventilator to control centralize ventilation of multi-areas
widely application on buildings,room ventilation&air exchange,or pipeline pressure, meet the requirement of civil application, medical treatment,national defense and chemical industrial
Storage temperature range : -40~+80 C°
Operating temperature range : -40~ +70C°
Bearing type : ball bearing NMB or other equivalent brand
Life time : above 35000hours
What is EC ?
Variable speed control of EC fan can be realized/ achieved via 0-10V speed adjustment and/or external circuit impulse modulation.
Constant torque, constant speed and constant airflow of EC fan can be fulfilled via 180°sine SVPWM( space Vector PWM)to meet customer needs.
Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as many as 255 fans.
EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage,locked-rotor, over current and temperature protection.
What is AC ?
1.\tConnect the impeller and outer rotor directly, make full use of the space.
2.\tThe double –single balance of the whole unit makes the fan operate more smoothly and durable.
3.\tOperating life is more durable through selecting the high-end deep groove ball bearing.
4.\tThe built-in thermal protector make AC blower more secure.
5.\tThe sealed motor design can adapt to the extreme working environment.
6.\tScientific Design and simulation of fan blade makes lower noise and higher efficiency.
Related Products
CM17562CB12
CM160080CB12
CM14039CB12
Our Company
DONGGUAN COOLCOM ELECTRONICS CO LIMITED and IT'S subsidiary company "DONGGUAN KUHONG ELECTRONICS CO LTD" is a professional and powerful electronic company with manufacturer of different series of fans,adapters and other hot sale electronic products, we had abundant experience in this industial and more than 1000 products range and engineer solutions to customers over 10 countries!
for fan products : we specialized in EC ,DC,AC fans with brushless motor which widely application on Communication products, optoelectronic products, consumer electronics, automotive, Home Appliances, IT Telecommunication...
KUHONG & COOLCOM group is your business partner in electronic industrial in ASIA established in 2012, our goal is to become a lead exporter of the electronic products, with strongest engineer team and excellent RD team, well trained quality team for inspection and quality assurance. we believe that long term partnership is a consequence of high quality products, value-based pricing, exceptional flexible service and good communication and better understanding for customer's requirement.
KUHONG & COOLCOM group are an energetic company, most of the engineer and sales staff are young people belongs to 80 and 90 generation, our company had wide range market with wide network versatile manufactures: we can even help our customer with consolidation of shipment from various electronics product suppliers to save the transport cost and support documentation, Most of our products are RoHS compliant and designed to meet the toughest standards of UL, CSA, TUV and VCE . our main market are : U.S ,Europe ,Middle East and other countries;
We are committed to supporting our customers with high quality products, value-based pricing and exceptional flexible service.To provide high quality products with right cost production is our strength and motivation!!
Certifications
Packing & Delivery
Packing
with inner box each 2pcs , then 4-8pcs be packed in a export carton
will provide detailed packing list
Delivery
DHL ,UPS ,TNT or Fedex all available for delivery
ship cost pls refer to the quotation list of each express line
customer pay the ship cost for sample order or small order quantity below 500pcs , FOB terms for purchase quantity 500pcs or above
ship cost pls refer to the quotation list of each express line
customer pay the ship cost for sample order or small order quantity below 500pcs , FOB terms for purchase quantity 500pcs or above
FAQ
1 Why choose us for your business partner
1) Our quality is 100% guaranteed because we had strong QC team with strict quality control system;
2) our Price is competitive
3) we provide superior customer services
2 .What is your warranty ?
we offer an 12months warranty and on line engineer support
3. what payment method do you accept ?
TT,L/C,paypal etc
4.can you provide OEM/ODM services?
sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Pls kindly click the link or contact us by email, skype, whatsapp if any comments ,suggestion or demand , we will reply to you immediately!
