Plastic tube tomato paste processing line starch sugar mixing and filling system machines in high working efficiency
- Category: >>>
- Supplier: Shanghai Jump Machinery & Technology Co. Ltd.
Share on (1600535275000):
Product Overview
Description
Products Description
1 | Brand Name | SHJUMP |
2 | Factory location | Shanghai city, China |
3 | Raw material | fresh fruits or tomato paste in bulk package |
4 | Main workflow (customized based on specific prejects) | fresh tomato→ washing → sorting → crushing → preheating → pulping → evaporating → steriling → filling in aseptic or blending---packaging in small package |
5 | End products package | ketchup in standing pouc&flat pouch/glass bottle/plastic bottle/carton brick/box etc |
6 | Capacity | 100kg--5tons Per Hour |
7 | End product | ketchup, tomato sauce etc. |
Whole Project description

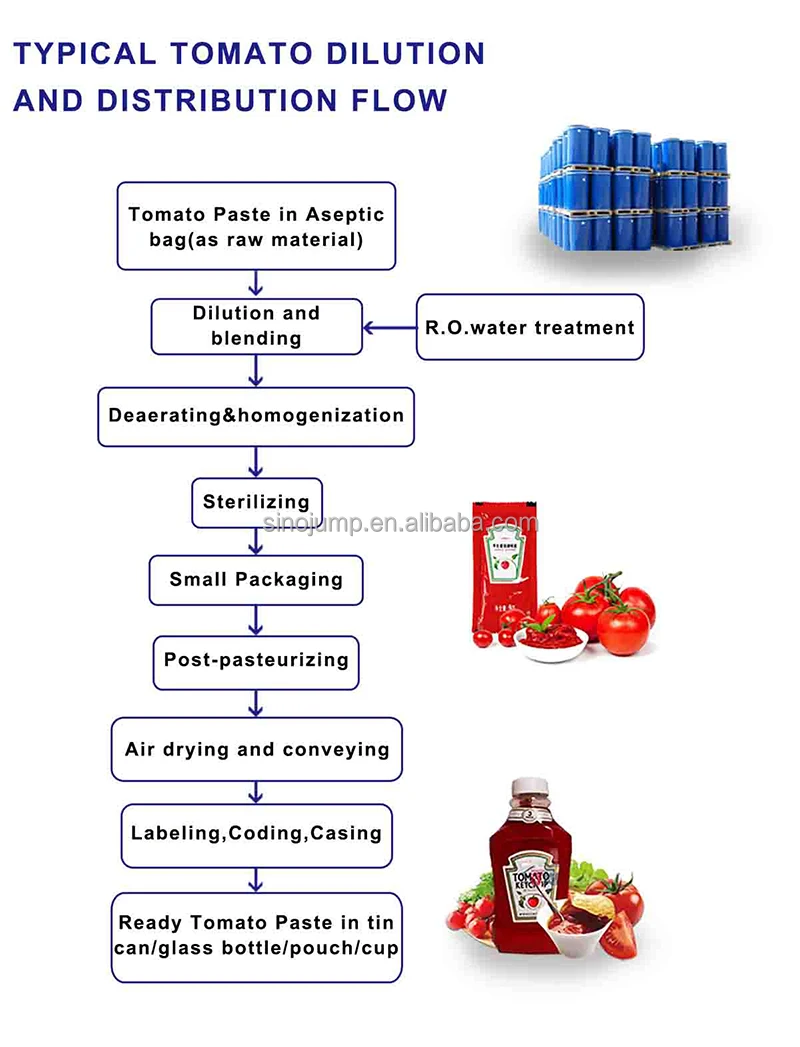

Tomato sauce processing project overview:
Normally tomato ketchup is being produced from existing tomato paste during the off season, rarely is produced on-line from fresh tomatoes.This processing line combines with RO water treatment section, hot water generating section, high-speed dissolving section, blending section, degasser, homogenizer, pasteurizer, filling& seaming section, empty tin can depalletizing section, tin can flusher, conveyor system, cooling tunnel pasteurizer section, air-knife dryer and ink jet code. With advanced design philosophy, high degree of automation; Main equipments are all made of high quality food grade stainless steel, accords with the hygienic requirements of food processing.
Machinery list for processing tomato sauce:
Main machine name | Description |
High-speed sugar dissolving tank | Special cutting and emulsifying head insides using American technique to ensure the high efficiency of dissolving all kinds of ingredients such as sugar, salt etc. |
Extraction pump | Extract tomato paste from aseptic bag. |
Blending tanks | In order to ensure the continuity of operation, there are two blending tanks. When one is ready, the other one is on blending and preparation. with heating function and agitator. |
Vacuum De-aerator | Used to remove the air mixed in tomato sauce One vacuum pump and one vacuum gauge included |
Homogenizer | For paste and jam refinement, make the paste even |

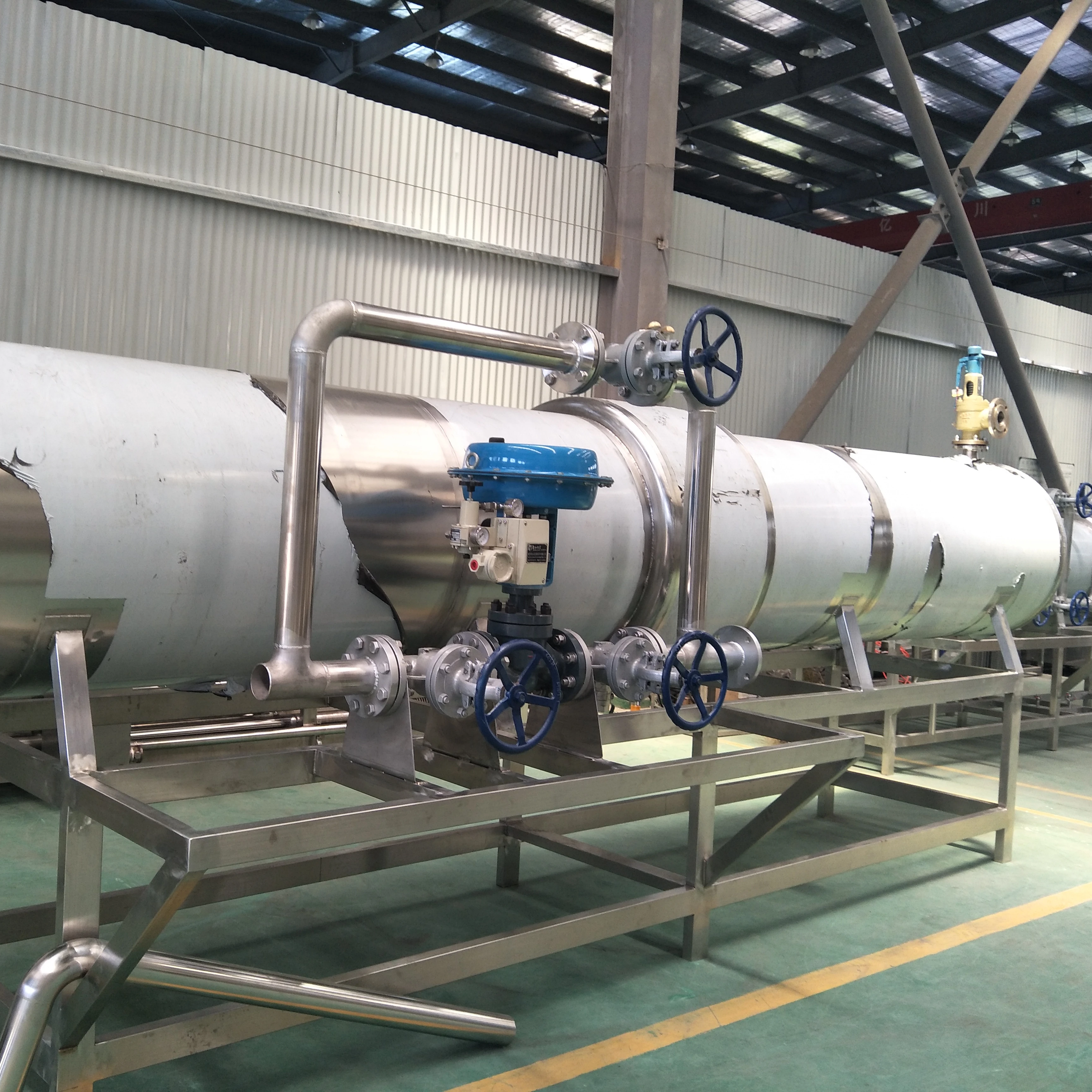

Tubular sterilizer | SS304 structure, To sterilize the paste before filling |

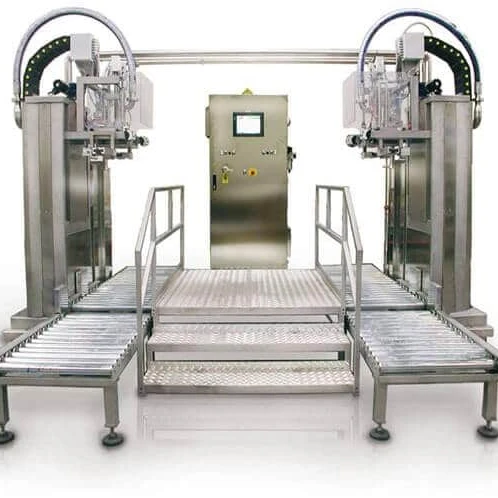

Filling system | Including empty tin can depalletizing section, tin can flusher, filling& seaming section, The filling and sealing machines will be customized based on user’s specific package---tin can, pouch(flat sachet, or standing pouch with or without cap), glass bottle, PET bottle or carton board. |
Post- pasteurizer (water-bath sterilizer) | To continuously and automatically sterilize after package to ensure product quality -three working stages: heating, sterilizing and cooling -Sterilizing time and temperature adjustable as per different sterilizing formula (such as 85-90℃/25-30min) |
air dryer | -To dry the water on the surface of the can -Made by stainless steel |
Post-package system | Labeling machine, coding machine, automatic carton packing machine etc. |
Our Advantages
Only one !
We are the unique supplier in China, and among the world---we make machines, as well as make fruit juice. We have machinery manufacturing factory, and we have fruit juice manufacturing factory, and we have products trading company. We are the only one !
So we can offer you:
full-line machines
+ machine running experience
+factory management experience
+ product marketing experience
+ full-chain material supply (fruit juice concentrate, packing material drums/aseptic bags/pouches etc, can making machine etc.)

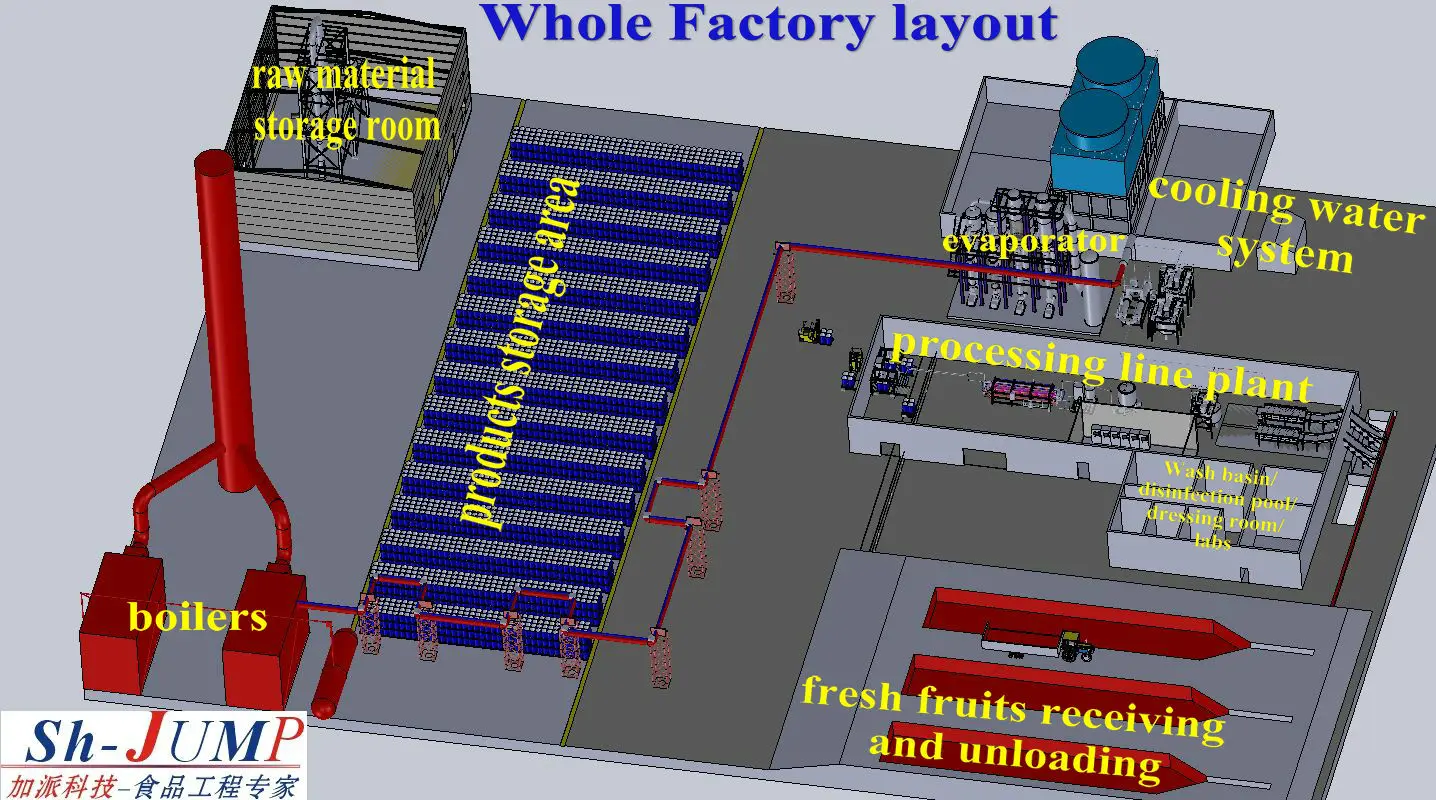

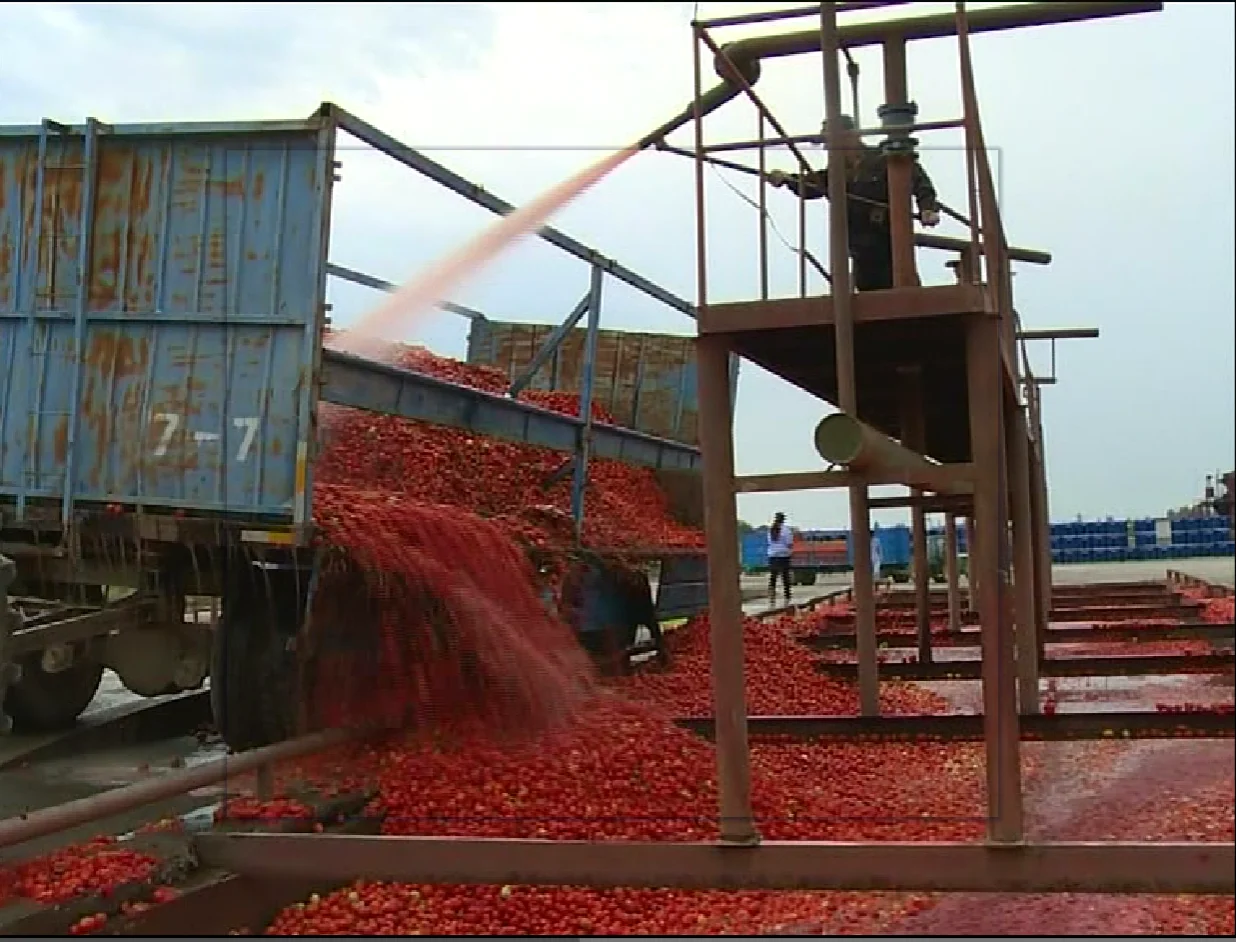

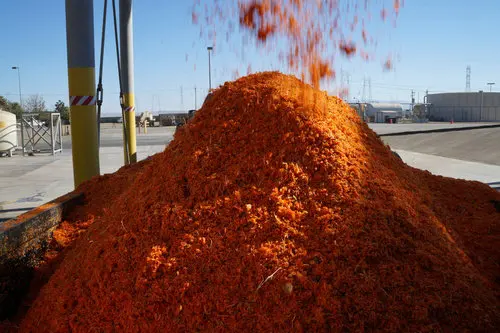

Site show of tomato paste processing factory:
300+ history projects,
customers worldwide
For more than 40 years, SHJUMP has more than 300 fruit juice, jam and plant extract production lines in worldwide and has formed the company's unique process, engineering technical style. Safe, stable, long-term, full-load, and high-quality operation is the basic principle of production line supplied by SHJUMP.
Design for versatilty
Our design has good versatility to ensure one processing line with multiple functions, which is convenient for product modification when
people's consumption and eating habits change. The production line can effectively meet the needs of the production of multiple
varieties of products;
people's consumption and eating habits change. The production line can effectively meet the needs of the production of multiple
varieties of products;
World top brands parts
We only use world top brands parts in our production. For example, Siemens PLC, Spirax Sarco steam valves on sterilizer, ABB motor , Kronne & E+H flowmeter on the filler, Messalina refractometer on the concentrator for real-time brix measurement.
Turnkey solution
from A to Z
We can provide tailored solutions according to your requirements in a scientific way.
we can offer you:
full-line machines
+ machine running experience
+factory management experience
+ product marketing experience
+ full-chain material supply
full-line machines
+ machine running experience
+factory management experience
+ product marketing experience
+ full-chain material supply
Production Process

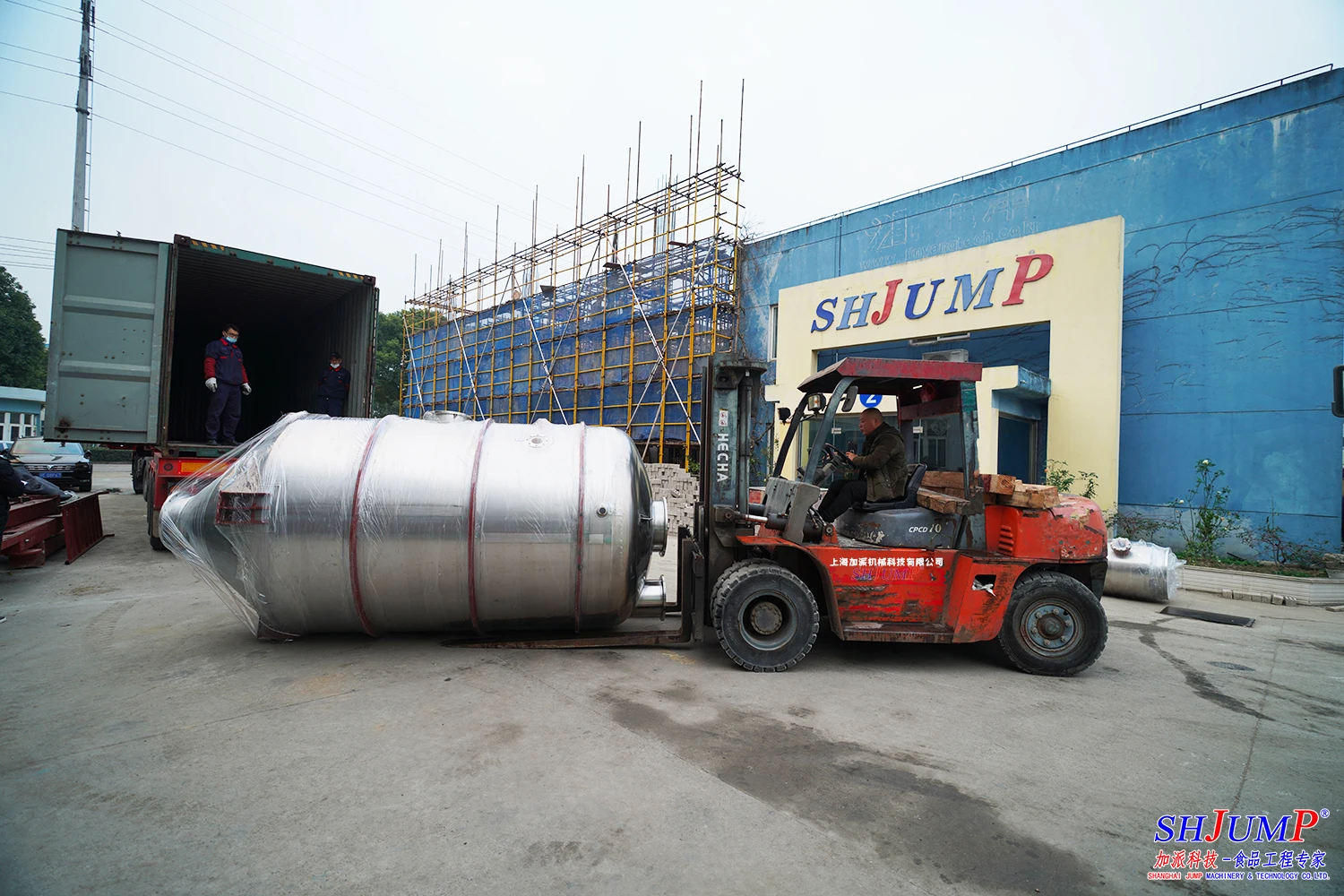

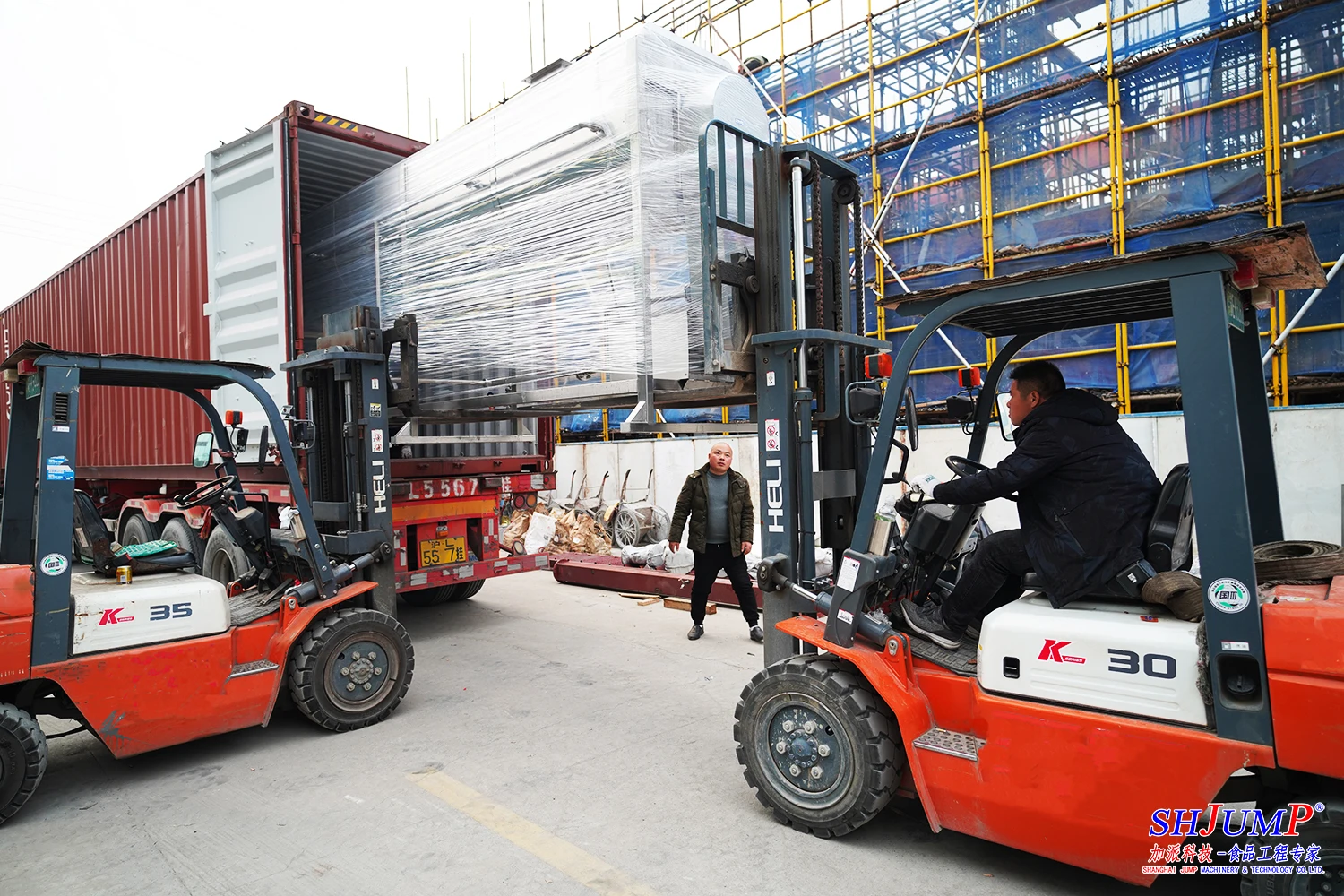

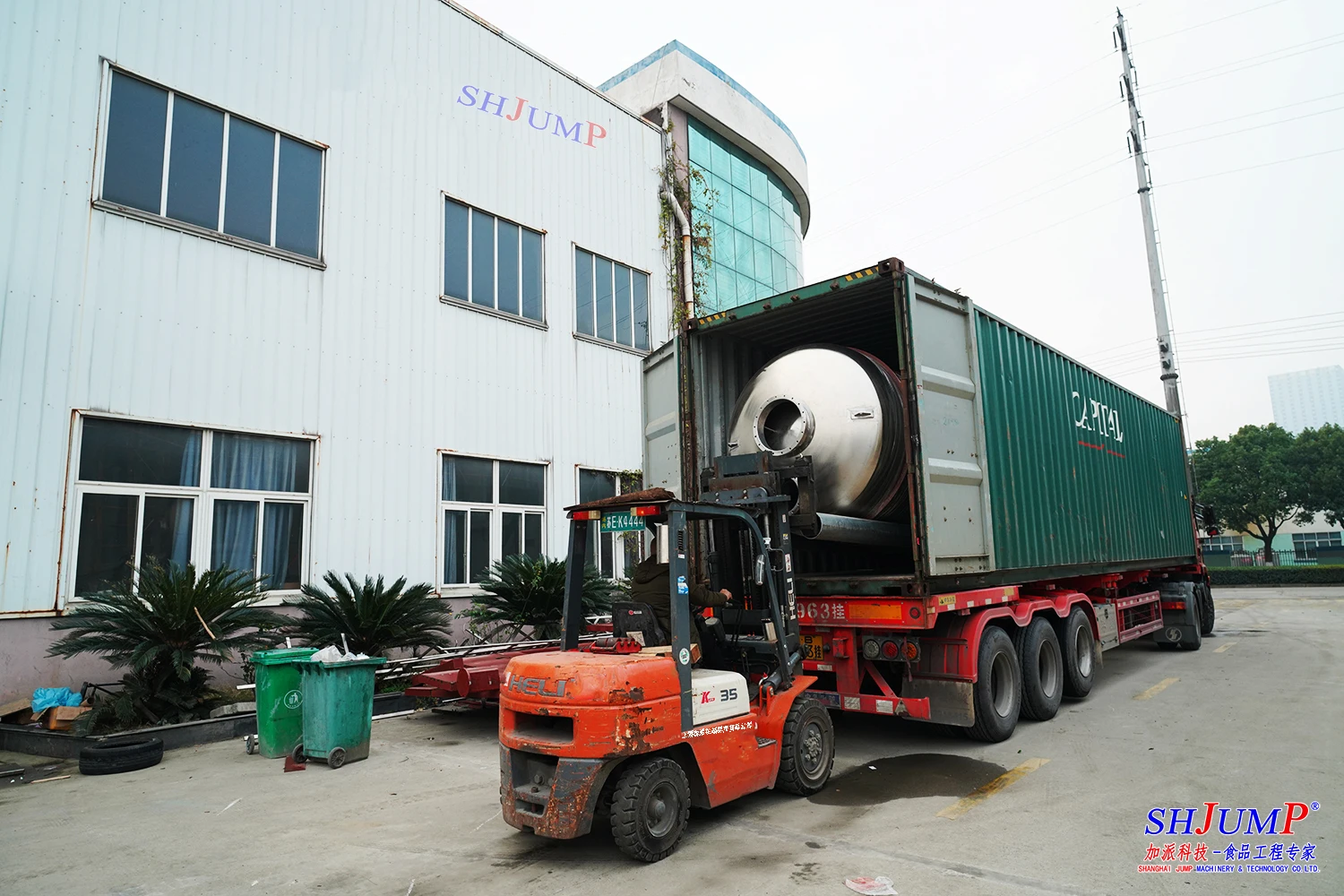

Packing&Shipping
