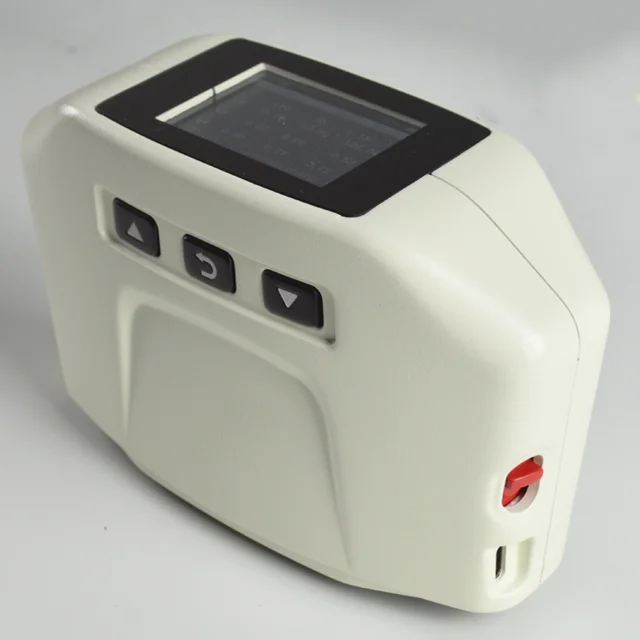

High precision Three Angles Spectrophotometer for Metallic Paint Color Matching
- Category: >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (1600535278247):
Product Overview
Description

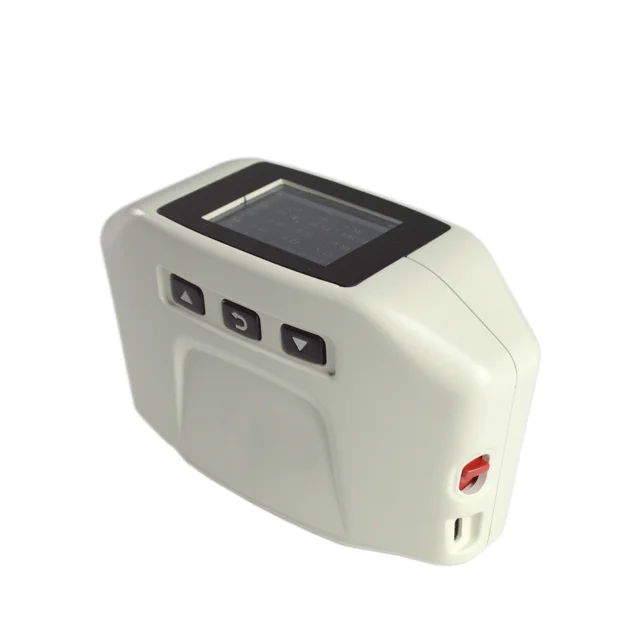

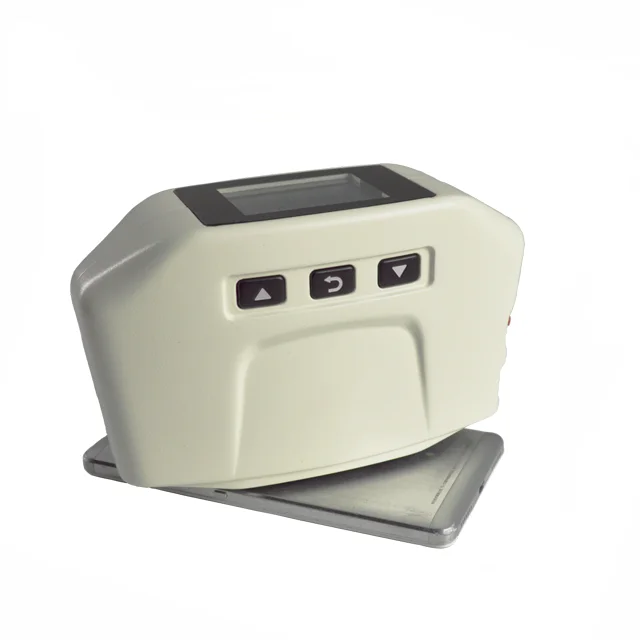

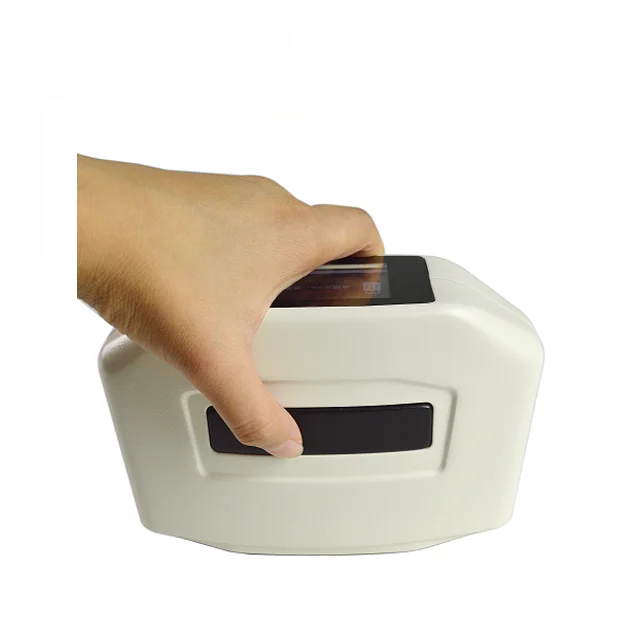

High precision Three Angles Spectrophotometer for Metallic Paint Color Matching
This is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.
Features

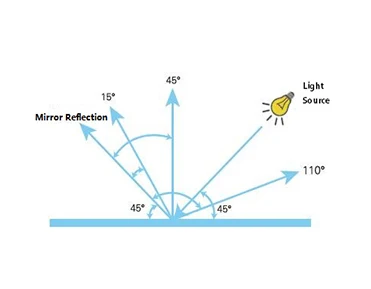

Measure at angles of 15 degree, 45 degree, 110 degree.

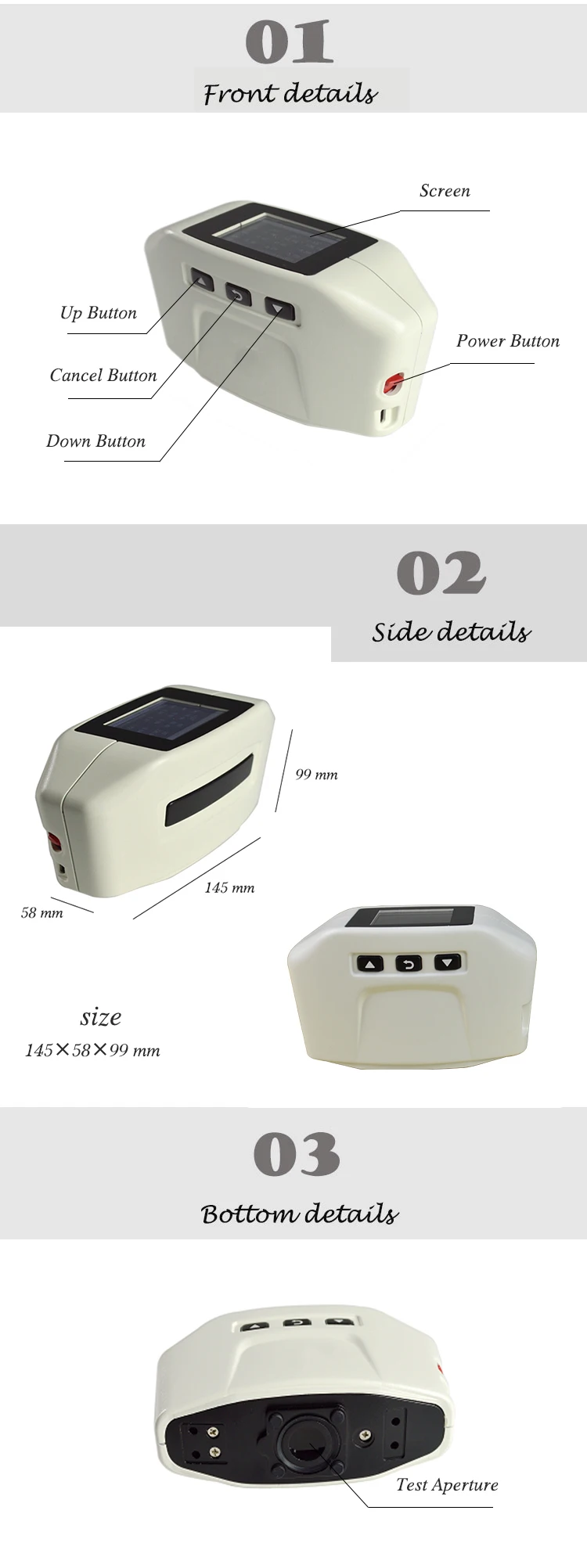

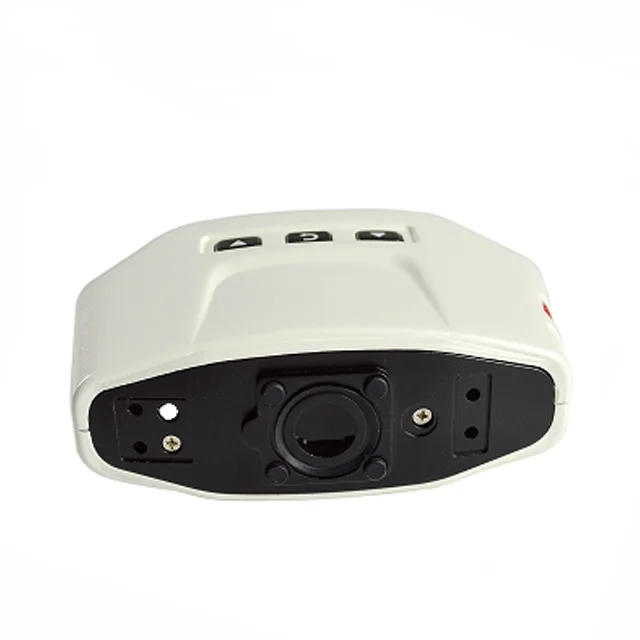

Four contact buttons are on the bottom of the instrument to guarantee the test repeatability.
It is suitable for evaluating the surface characteristics of pigments.
It designed to measure color data and surface graininess evaluation.
Application
Three angles color spectrophotometer CS-392 is specially designed for metallic paint, laser paper, mobile phone cases, comestic and other materials whose color is different viewing from different angles. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.
Details
Product Paramenters
Illumination Angle | 45° |

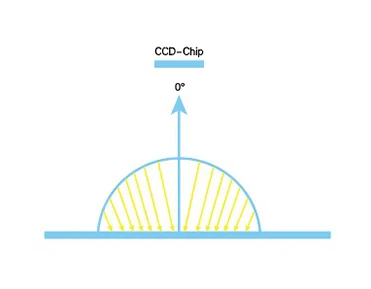

Measurement Angles | Color Measurement Angle: 15°, 45°, 110° Graininess Measure Angle: Integrating Sphere Diffuse |
Parameters | Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000 Graininess Lever (G) |
Wavelength Range | 400-700nm |
Resolution | 0.01% |
Light Source | LED |
Measurement Time | Less than 6s |
Inter-instrument Agreement | dE≤0.5 Average measurement of BCRA II color tiles |
Illuminants | A,C,D50,D65, F2, F7, F11, F12 |
Instrument Weight | 476g |
Size | 181×73×112mm |
