Product Overview
Description
Product Description
Characteristic:
1. Large shock measurement, isolation floating.
2. Buy a Built-in IEPE preamplifier.
3. Lends light weight, high stiffness, fast response, and good temperature characteristics.
2. Buy a Built-in IEPE preamplifier.
3. Lends light weight, high stiffness, fast response, and good temperature characteristics.
Specification:
Dynamic Properties | ||
Range(peak) | ±10,000g | |
Sensitivity(25℃) | 0.5mV/g (160Hz) | |
Frequency Response（±1dB) | 1-10,000Hz | |
Transverse Sensitivity Ratio | ≤5% | |
Electrical Properties | ||
Driving Voltage | 18VDC-28VDC (current source) | |
Constant current source excitation（mA） | 2-10mA | |
Output Impedance | ＜100 Ω | |
Full range output (peak) | ±5V | |
Noise | ＜50μV | |
Bias voltage | +9-+13V | |
Install Ground Insulation | ≥10^9 | |
Environment Properties | ||
Operation Temp | -20℃～+80℃ | |
Temperature Response | Attached Temperature Curve | |
Physics Properties | ||
Structural Style | Cutting | |
Shell Material | High strength stainless steel | |
Output Mode | Top M5/The whole line | |
Installation | M5 | |
Piezoelectric Materials | Ceramic shear | |
Weight | ～10g | |
Accessory | ||
Erection Bolt | M5 | |
Cable | Double end M5 low noise shielded cable x 2m | |

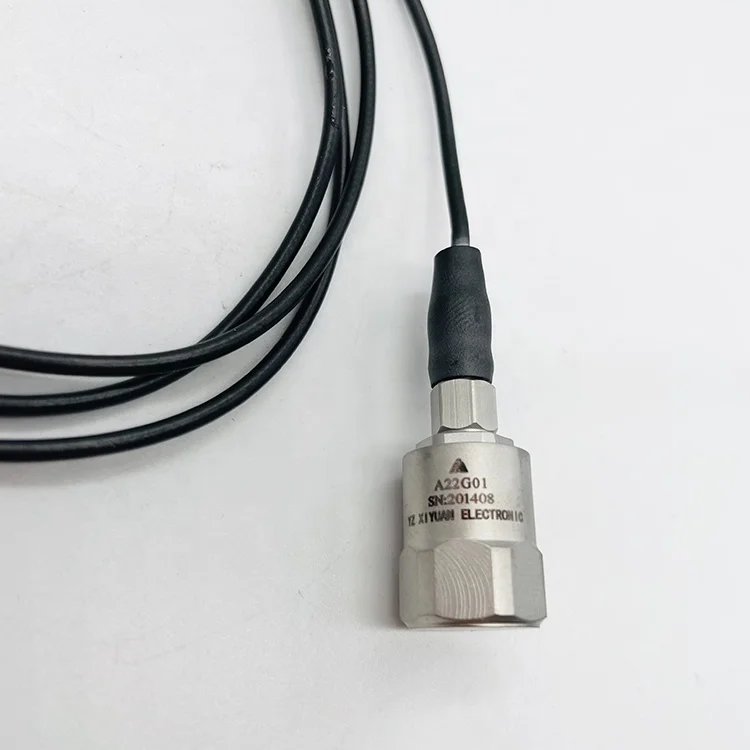

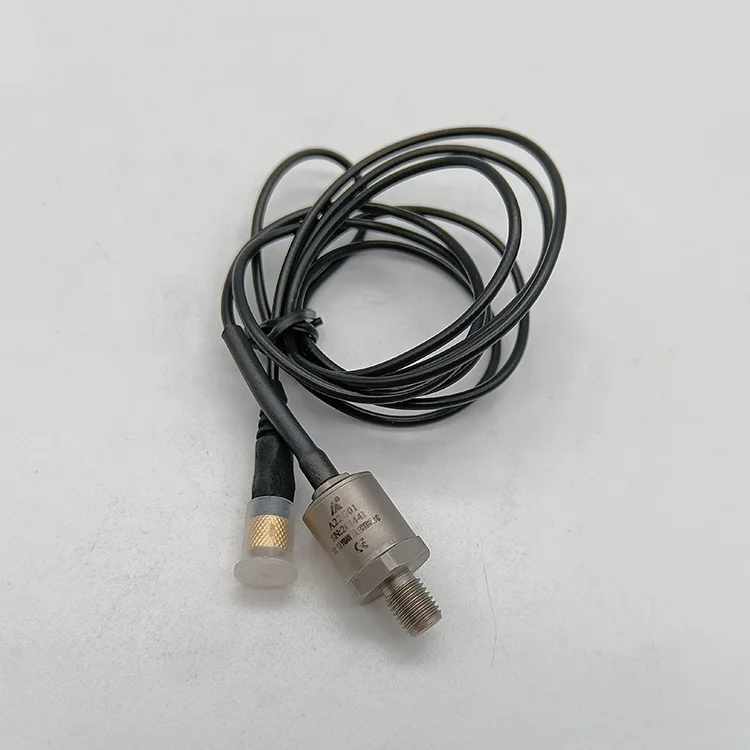

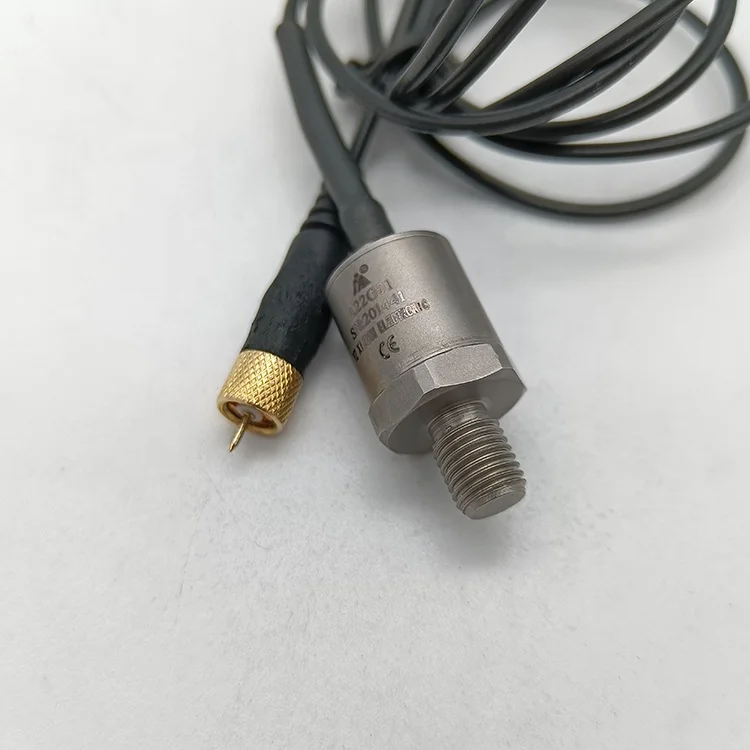

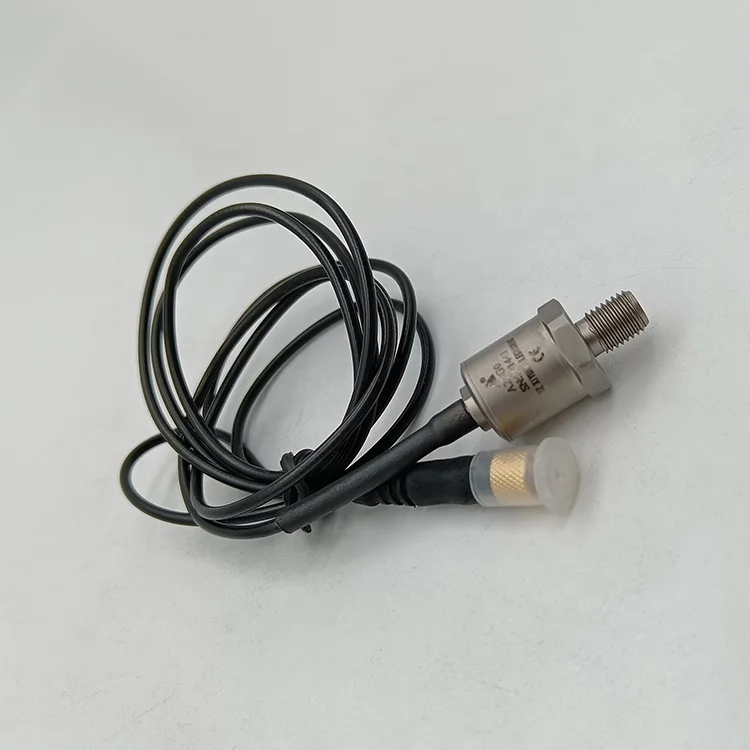

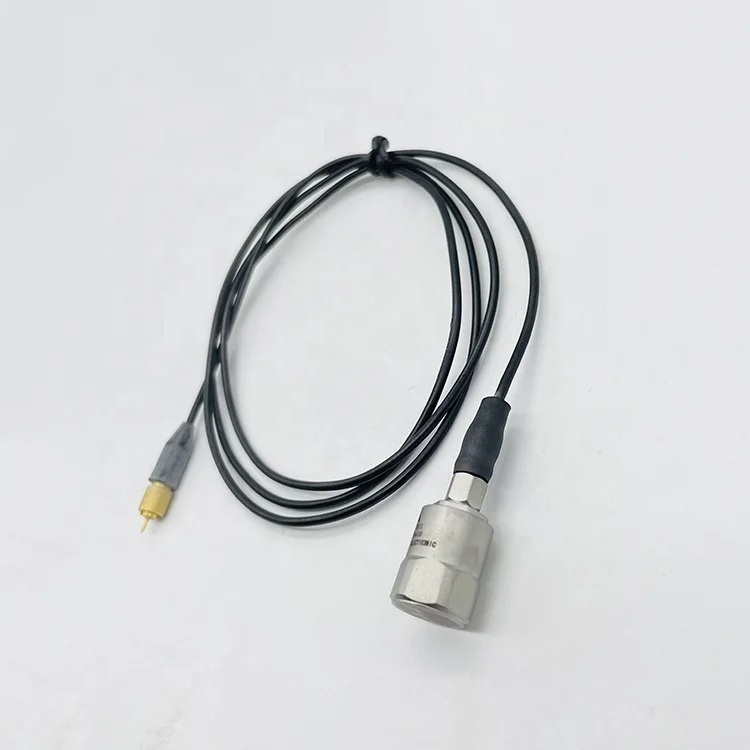

Product Display
Product
Size
Temperature Curve
Typical Frequency Response Curves
PRODUCT DISPLAY
