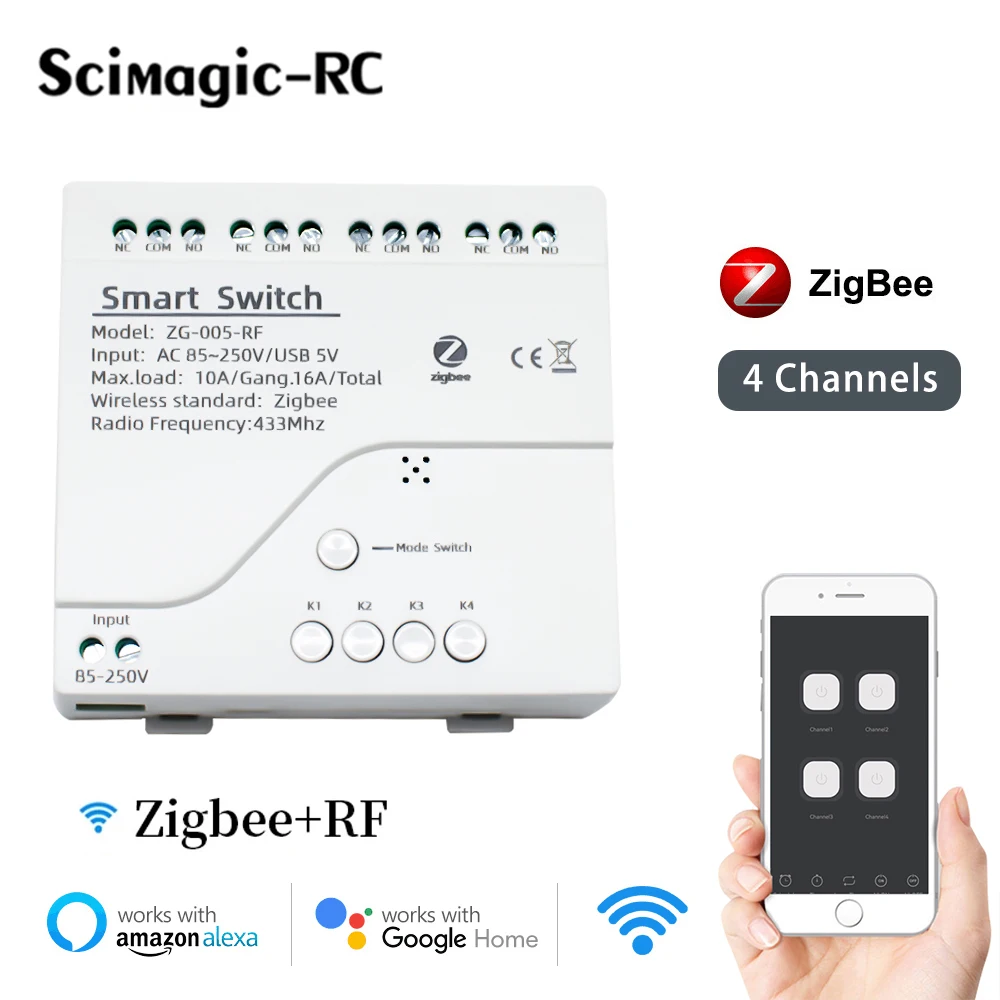

4CH Zigbee Smart Light Switch Module 110V 220V 85 250V RF433 Receiver 10A Relays Work with Alexa Google Assistant MQTT protocol
- Category: >>>
- Supplier: Shenzhen Scimagic Development Technology Co. Ltd.
Share on (1600535294806):
Product Overview
Description

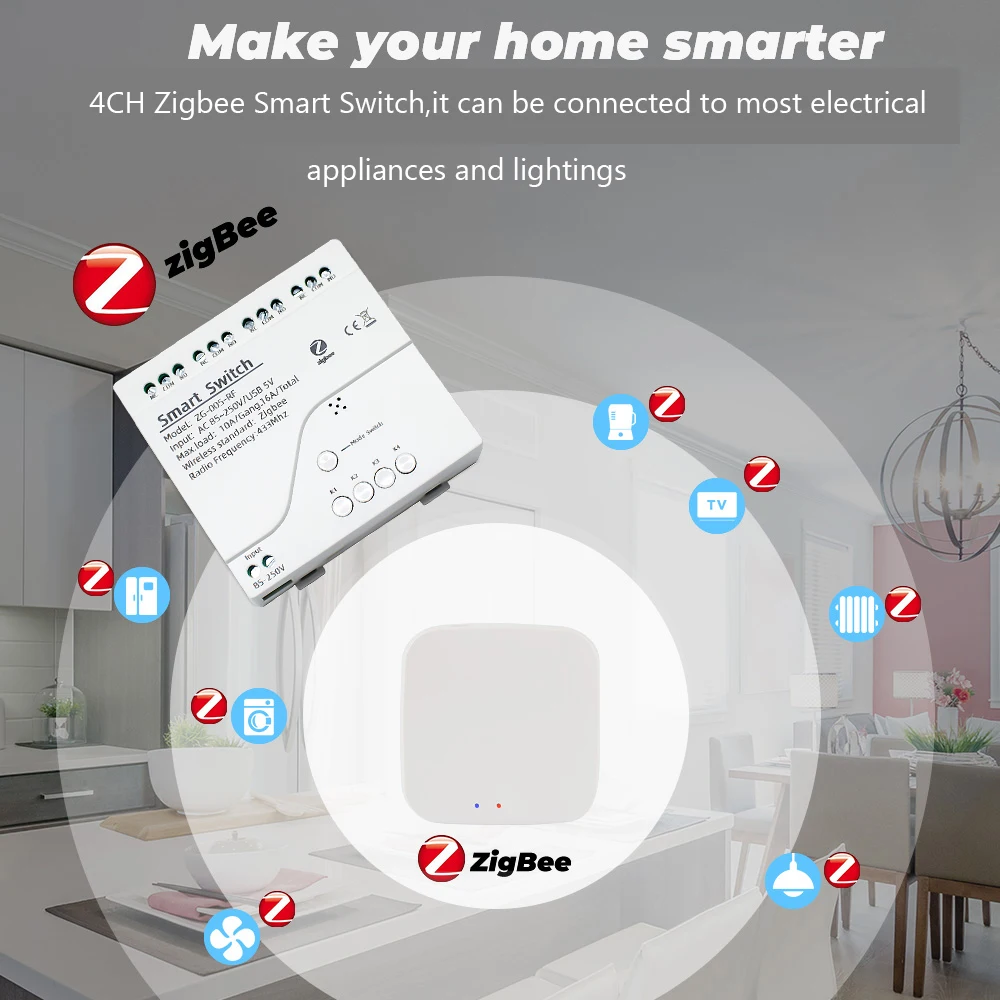

Zigbee 4 Channel Switch Module Relay makes your home smarter
Three Working Modes
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.
Features:
*Supports zigbee gateway control.
*Supports manage numerous zigbee smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain,
access control etc.
*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz remote control.
*Supports status tracking: device status timely feedback to the APP.
*Supports manage numerous zigbee smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain,
access control etc.
*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz remote control.
*Supports status tracking: device status timely feedback to the APP.
Description:
Working voltage: AC 85-250 / USB 5V.
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Max load : 10A/Gang 16A/Total.
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Max load : 10A/Gang 16A/Total.

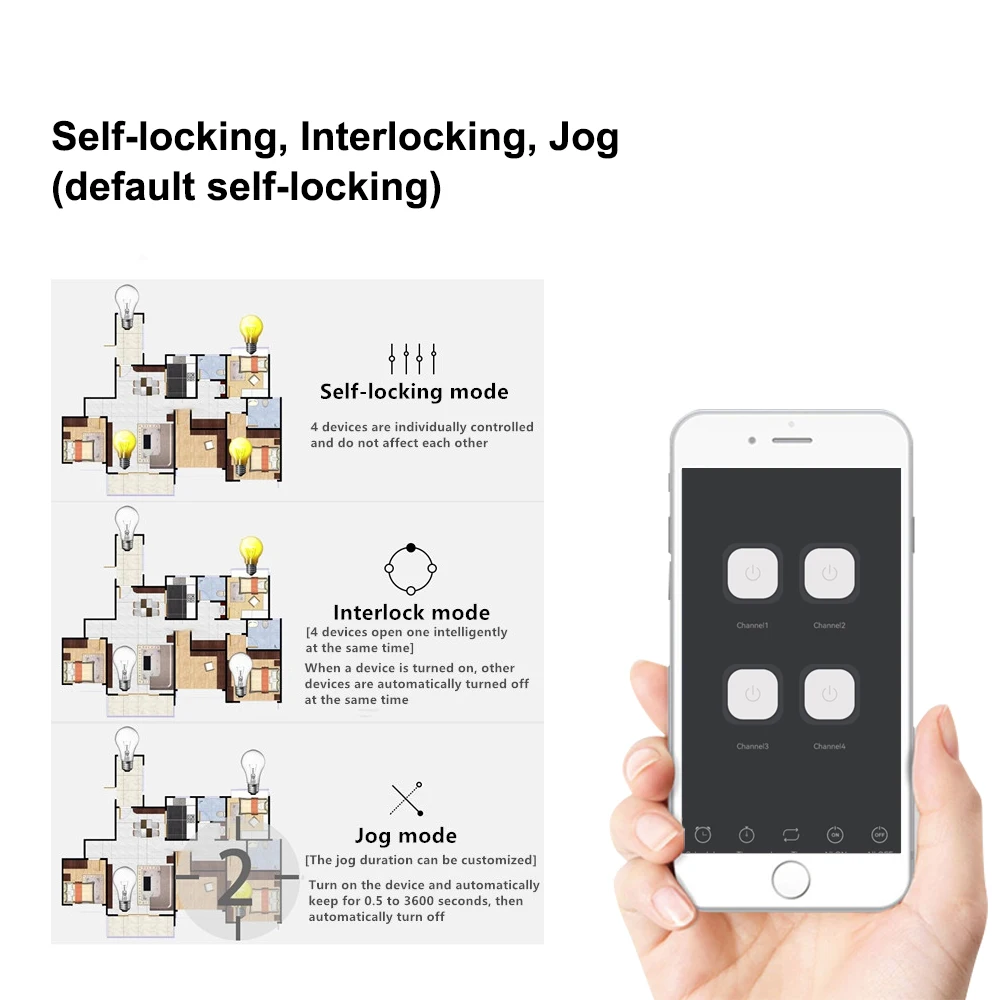

3 Working Modes
1.Inching mode : Switch on channel 1,channel 1 will be automatically closed after 1 seconds . The inching time can set in the APP
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or
interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or
interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button

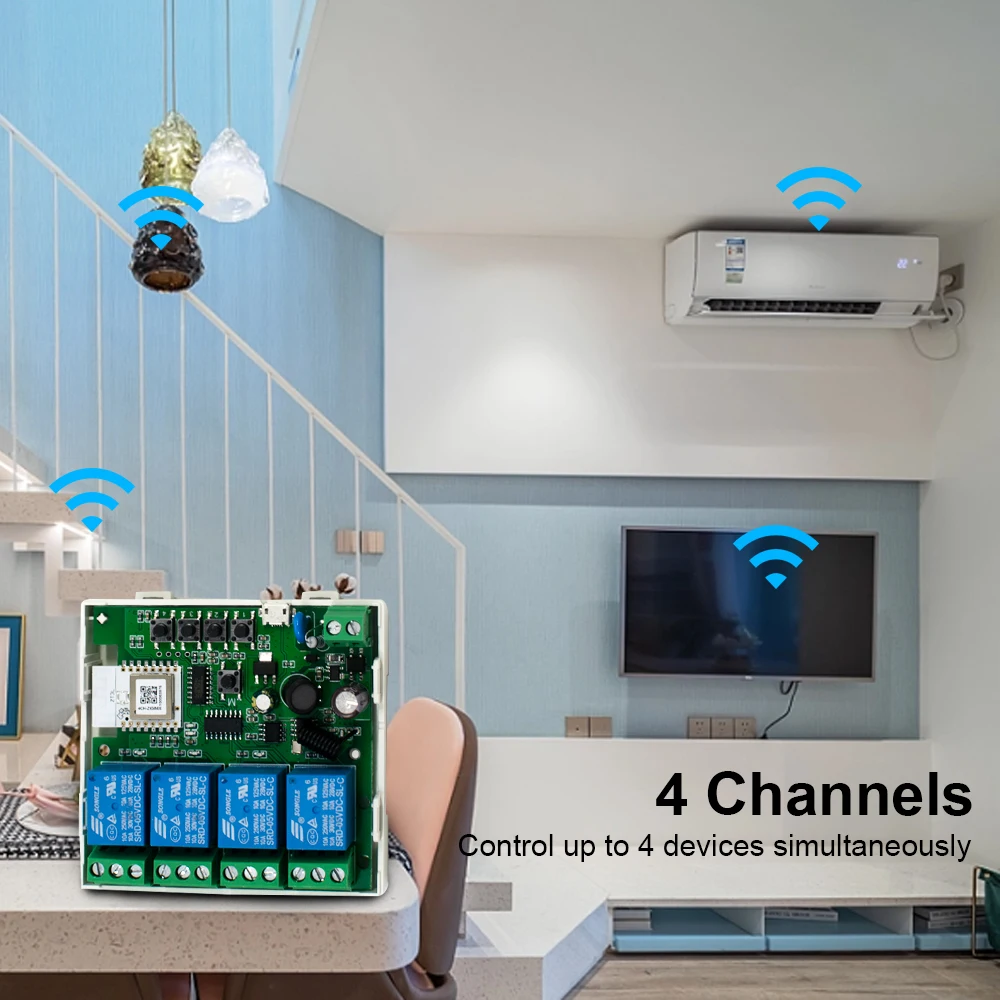

Physical picture
