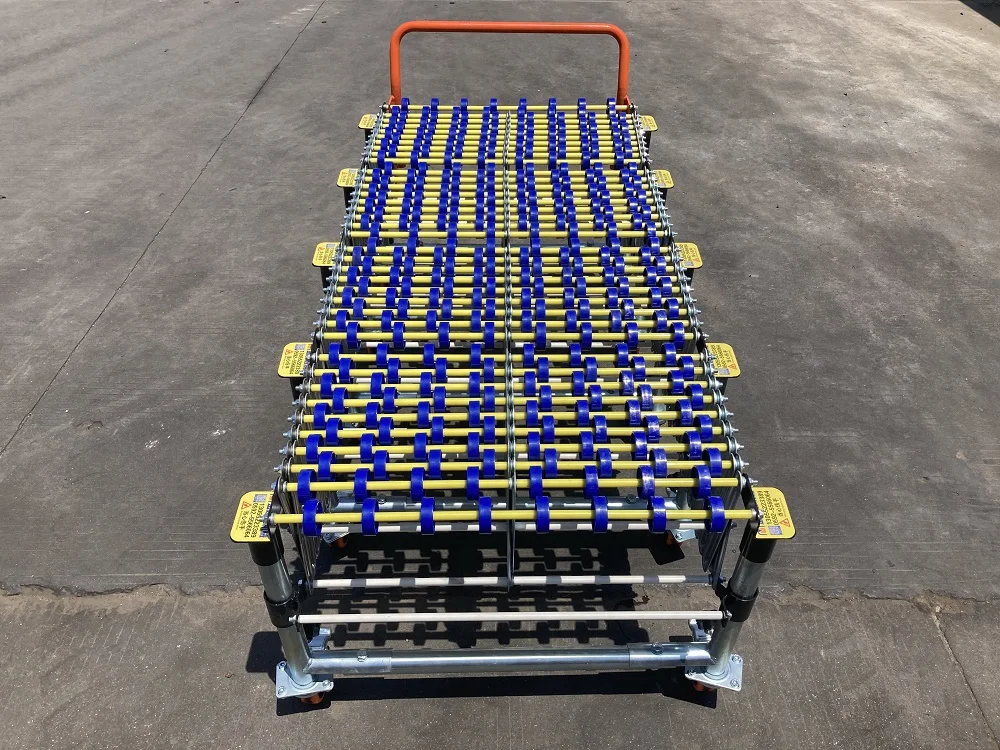

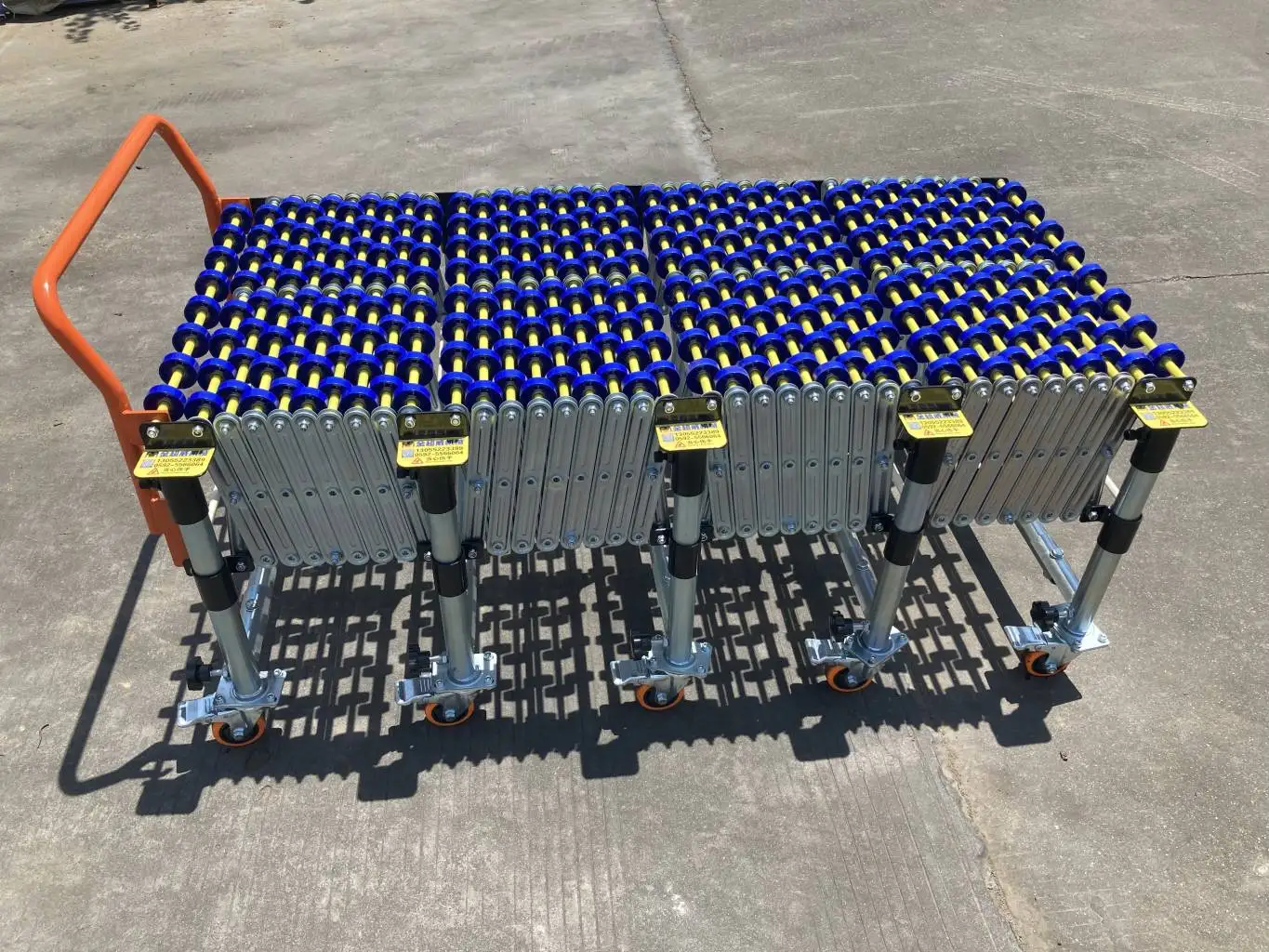

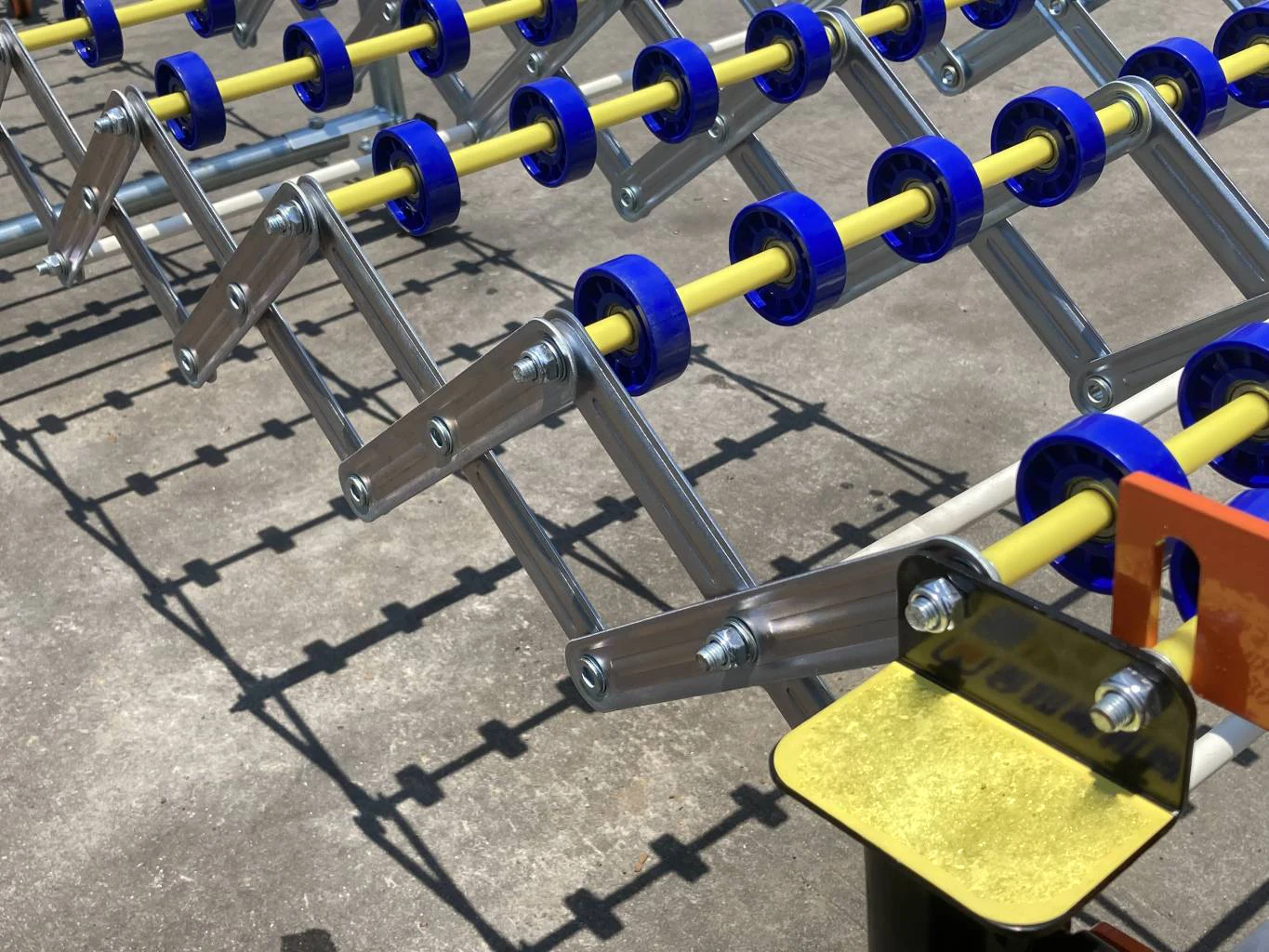

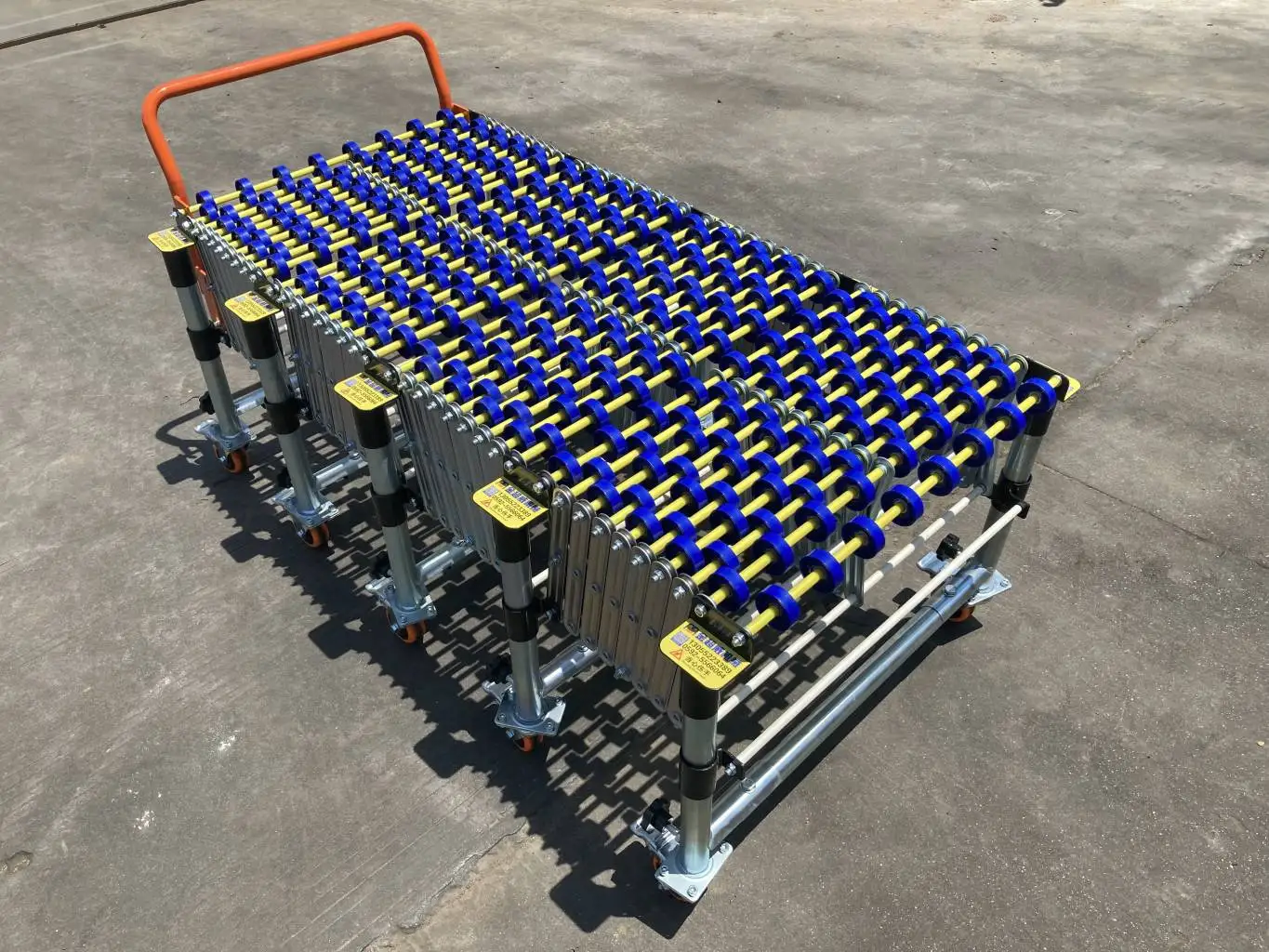

ABS plastic gravity expandable flexible roller conveyor
- Category: >>>
- Supplier: Xiamen Shenzhou Packing Machine Co. Ltd.
Share on (1600535315000):
Product Overview
Description

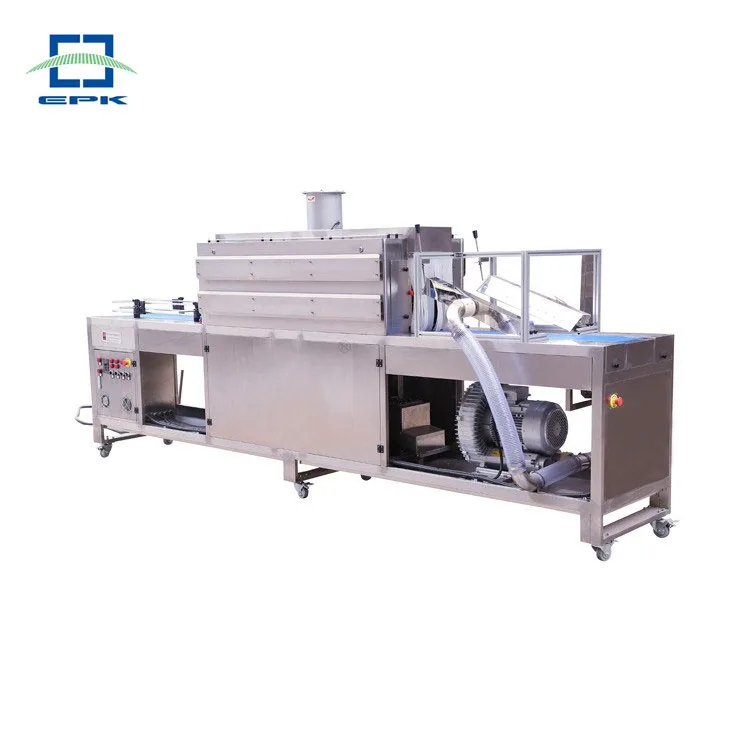

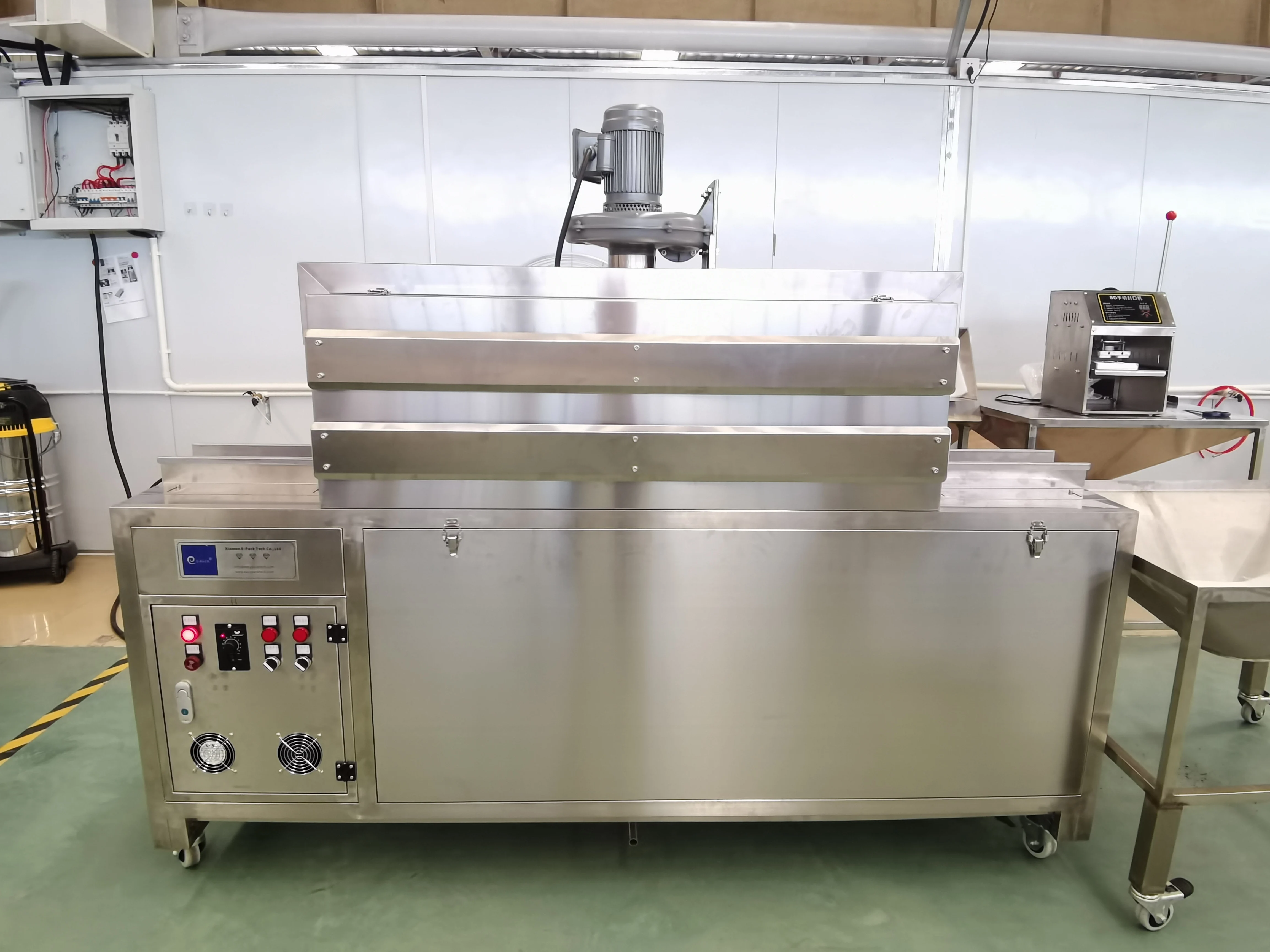

EPS-1A Heat Steam Shrink Tunnel Packing Machine for Bottles
This Steam shrink tunnel is made of stainless steel with heat preservation, it not only saves energy, but also match with the international safety standard.It have high performance for sealing the bottle tight with plastic shrink sleeves on the bottle neck. A hygienically and solid solution for transportation and to ensure the liquid is fresh on delivery.
The sleeve has to mounted on the bottle neck manually or by another facility before sealing.
The sleeve has to mounted on the bottle neck manually or by another facility before sealing.
PRODUCT SPECIFICATIONS
Style | Shrink tunnel machine |
Model | EPS-1A |
Accept Bottle, Diameter | Up to 120 mm (4.7") |
Accept Bottle, Height | Up to 250 mm (9.8") |
Shrinkage Capability | 40 to 120 BPM |
Steam Generator | Built-in, 24 kw |
Electrical | Optional, 380 v, 50 hz, 3 ph or 220 v, 60 hz, 1 ph |
Power Consumption | 26 kw |
Water Consumption | 10 L/H |
Weight | 200kg |

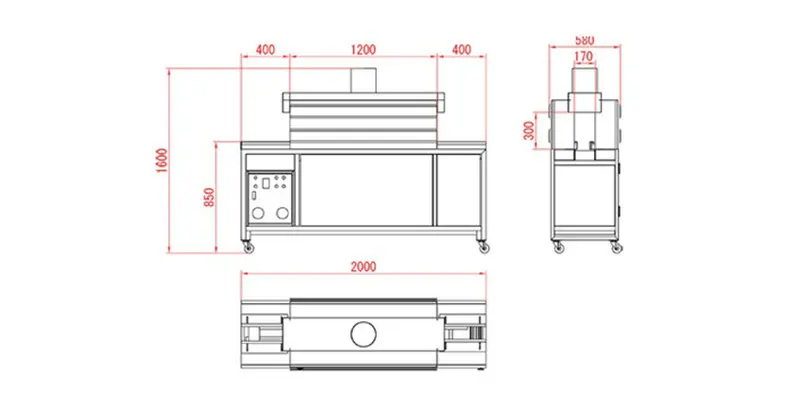

Demension | 2,000 x 580 x 1,600 mm (79" x 23" x 63") |
We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Details Images
1.Best choice for low to high speed shrink-wrap application on heat shrinkable decorative sleeve labels and tamper evident;
2.Ideal for applications that demand precise sleeve label registration and container shape conformance;
3.Perfect shrinkage without creating bubble marks, wrinkles, color bleeding or sleeve shifting;
4.Excellent option for flammable or under pressure product, e.g. aerosol can;
5.Eliminate the risk of plastic container distortion;
6.Easily integrate into existing production line or install stand alone.
3.Perfect shrinkage without creating bubble marks, wrinkles, color bleeding or sleeve shifting;
4.Excellent option for flammable or under pressure product, e.g. aerosol can;
5.Eliminate the risk of plastic container distortion;
6.Easily integrate into existing production line or install stand alone.
Accommodate containers up to diameter 120 mm (4.7")
and height 250 mm (9.8")
40 to 120 BPM shrinkage capability
Accept empty or filled container
Accept plastic, aluminium or glass container
Variable speed conveyor adjustable within a broad range

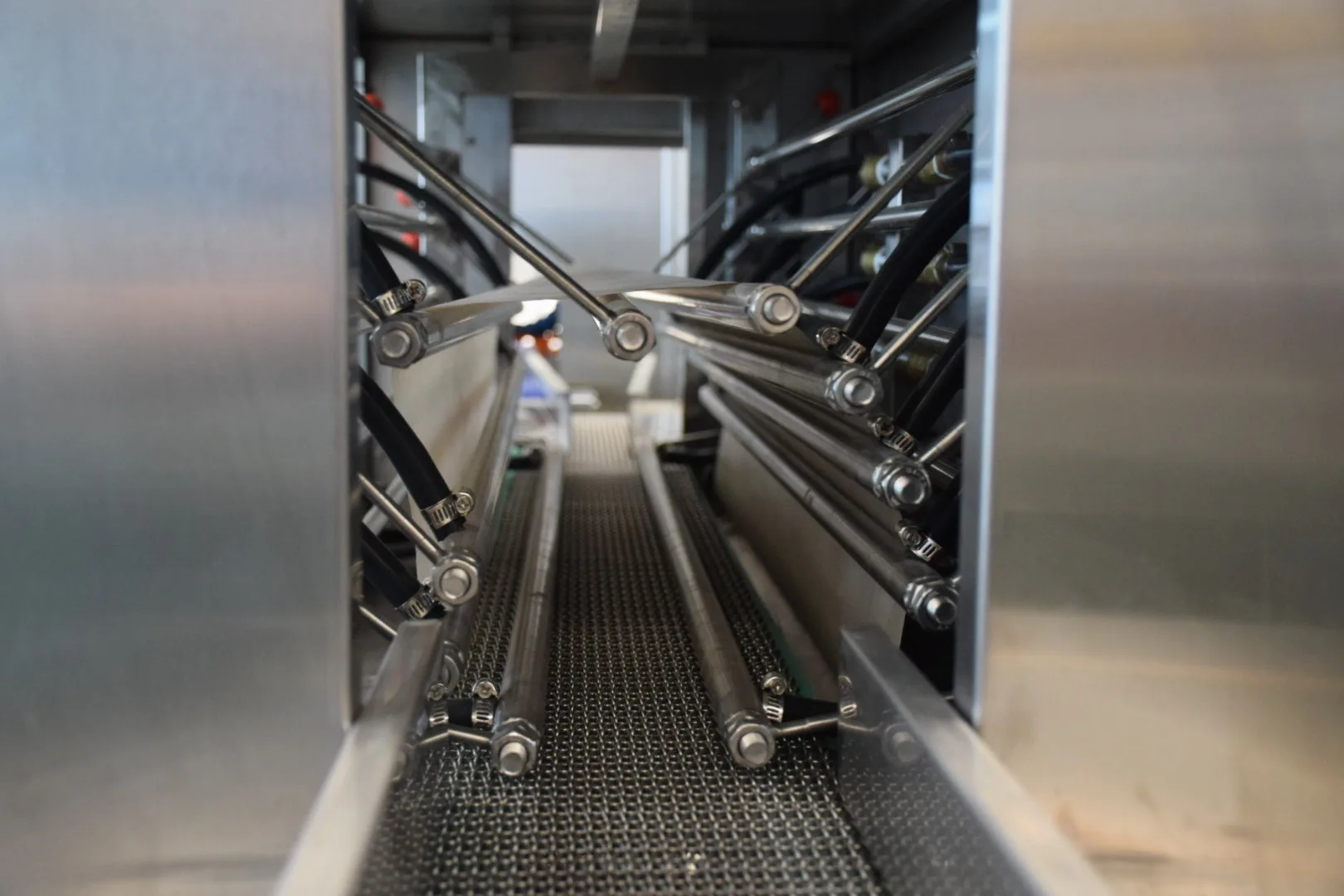

Steam Distribution System
Tool-free adjustment
All Steam Pipes open/close respectively depend on needs
Easy Steam Pipe format reset for quick bottle changeover
Allow precise application of steam to specific points on container
Each Steam Pipe individually adjustable for steam volume, flow and rotary nozzle position

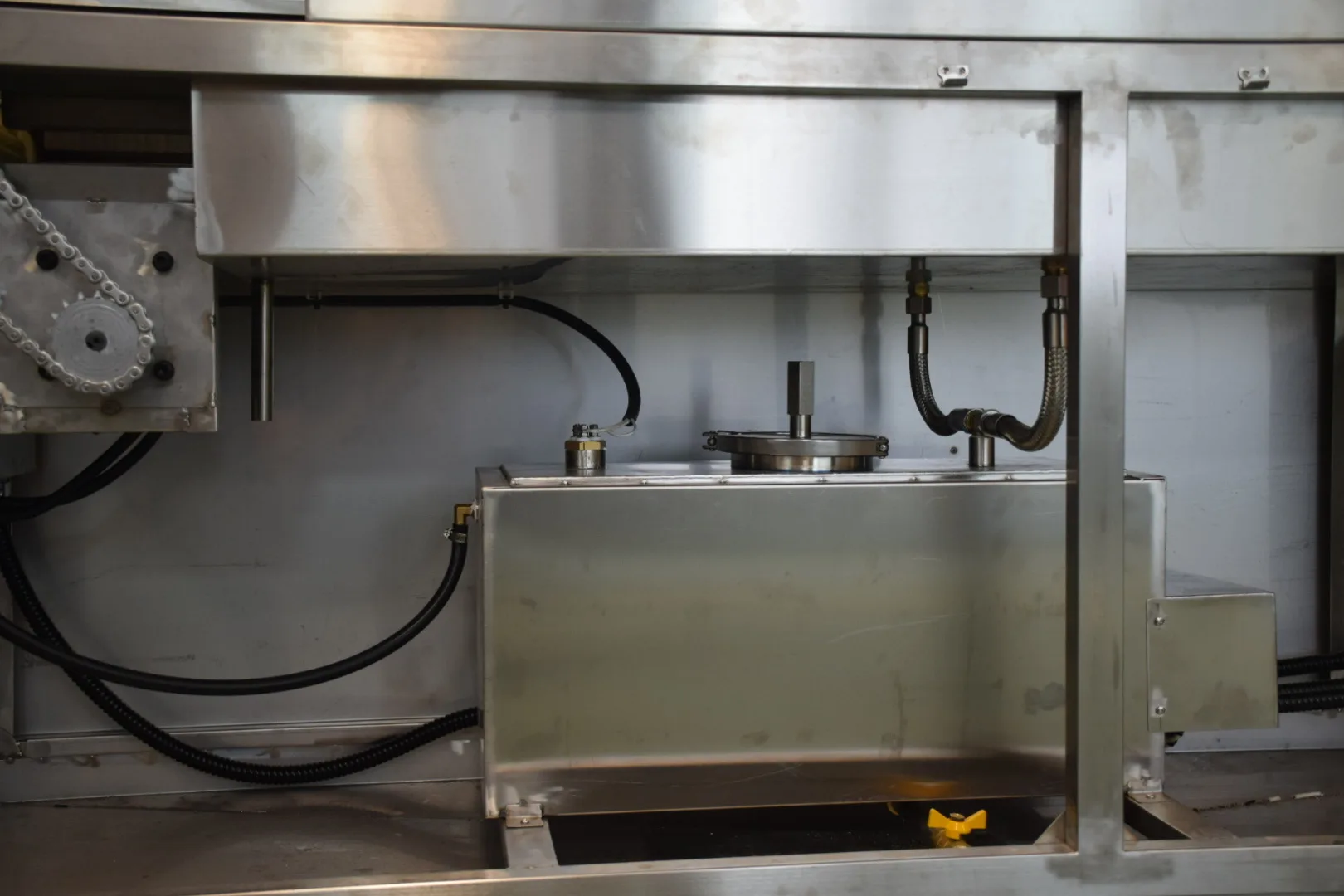

Steam Generator
Built-in, 24 kw
Low pressure design assures maximum work safety
No need to build separate boiler rooms to house external high pressure Steam Generator
No need to hire engineers to design and permit high pressure Steam Generator rooms
No need for costly overhead insulated steam pipe infrastructure
No need professional special licensed engineers for operation
Industrial Safety Standard Compliance
Emergency stop switch Short circuit protection
Automatic shut down at low water level Waterproof design
International standard Industrial electricity adaptor Thermal shield
Dual Zone
Either zone close/open individually
User may choose to work with only one zone to reduce production cost
Easy to Operate
Low maintenance
Simple to understand
No special training required
Quick changeover from one container size to another
Applications
Pharmaceuticals | Toys | Vitamin | Hardware tools |
Cosmetic | Stationery | Shower Gel | Daily necessities |
Bottled Water | Beverage | Dairy | Records |
Champagne | Wine | Beer | Liquor |
Electronics | Detergent | Chemicals | ... and more |
Our Partner

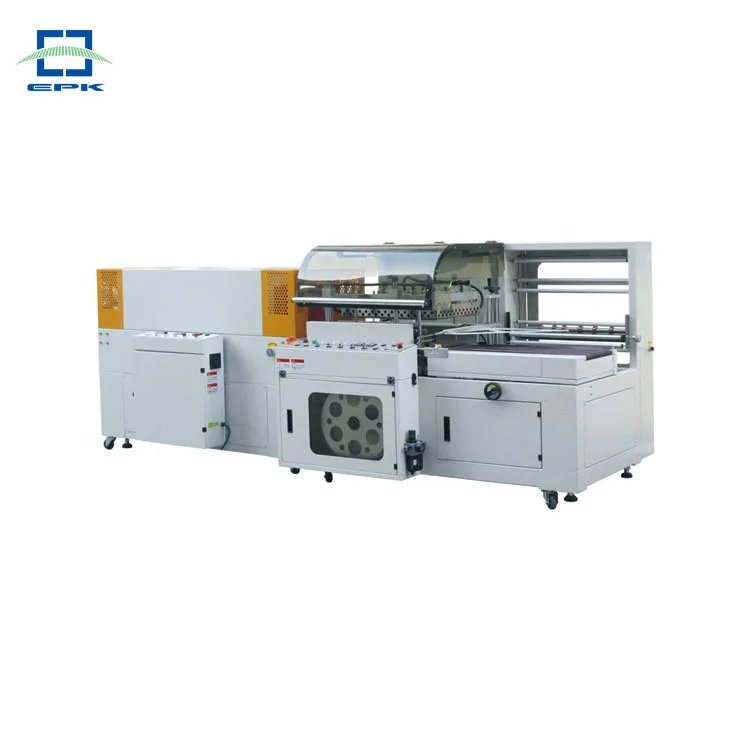

SIMILAR PRODUCTS
Packing & Delivery
Our Workshop
Xiamen EPACK is a premier designer and manufacturer of engineered packing machine, specializing in heat shrink packing solutions.
Epack is your committed partner with the equipment, technology, resources, experience, and people to deliver the results you require. Our facility has been providing millions of packing machines,materials and products over the last 20 years with astonishing quality and stellar on-time delivery performance.
We have the capability to produce your most challenging designs. Whether you are looking for a competitive quote on an existing part or if you are launching a new product, our experience will help you design, refine, validate, prototype and launch your product safely, efficiently and confidently.
Not only can we provides packing equipments to u, but we can also provide you with value added services to whatever extent you need;And customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Our rigorous APQP and ISO Quality Standards ensure that you receive parts that meet your specifications 100% of the time - on-time- and at a very competitive price.
This is our pledge to you.
Epack is your committed partner with the equipment, technology, resources, experience, and people to deliver the results you require. Our facility has been providing millions of packing machines,materials and products over the last 20 years with astonishing quality and stellar on-time delivery performance.
We have the capability to produce your most challenging designs. Whether you are looking for a competitive quote on an existing part or if you are launching a new product, our experience will help you design, refine, validate, prototype and launch your product safely, efficiently and confidently.
Not only can we provides packing equipments to u, but we can also provide you with value added services to whatever extent you need;And customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Our rigorous APQP and ISO Quality Standards ensure that you receive parts that meet your specifications 100% of the time - on-time- and at a very competitive price.
This is our pledge to you.
FAQ
Q: What's the difference of "Steam Shrink Tunnel" and "Shrink Tunnel?
A: Steam Shrink Tunnel is one of three major types of Shrink Tunnels. Other two types are Hot Air Convection Tunnel and Radiant Infrared Tunnel.
Q: How to choose a type of Shrink Tunnel?
A: Basically, a Hot Air Convection Tunnel is used for tamper evident sleeve; a Radiant Infrared Tunnel is good for dark color
neckbands; a Steam Shrink Tunnel is the best option for full body sleeve.
Q: What tunnel is recommended when graphics and registration are critical?
A: Steam Shrink Tunnel. It provides even but not excessive temperature so that the graphics and registration can be kept precisely and maintain good shape.
Q: What tunnel is recommended for containers with volatile or aerosol products?
A: Steam Shrink Tunnel. Volatile or aerosol products are low-flash and inflammable. Steam Shrink Tunnel supplies even but not excessive temperature. It shrinks wrappers evenly and quickly, and then cools containers down fast.
Q: What materials of sleeves are used for processing in a Steam Shrink Tunnel?
A: Mainly PVC, PET & OPS, while new varieties are being developed from time to time. PVC is the most common material which is the easiest to control. It is low-cost less but not environmentally friendly. PET has the highest shrink percentage. It is environmental and versatile that can be used with special attributes like a matte finish or velvety texture. OPS is one of the most expensive materials. It has the lowest vertical shrink and produces the most consistent result, particularly on squeeze bottles.
Q: What is the specialty of our Steam Shrink Tunnel?
A: We have special designs for multipurpose, a patented steam distribution system with tool-free adjustment, and a separate steam generator ideally for nearly any work space.
Q: Why us?
A: Attitude is altitude, then details can mean succeed or fail. Most of our technicians have been working in this industry for
over ten years. They are all experienced and always ready to help. Please send us samples of containers and sleeves before placing an order. We will use our Shrink Tunnel to test them well and find you a solution.
A: Steam Shrink Tunnel is one of three major types of Shrink Tunnels. Other two types are Hot Air Convection Tunnel and Radiant Infrared Tunnel.
Q: How to choose a type of Shrink Tunnel?
A: Basically, a Hot Air Convection Tunnel is used for tamper evident sleeve; a Radiant Infrared Tunnel is good for dark color
neckbands; a Steam Shrink Tunnel is the best option for full body sleeve.
Q: What tunnel is recommended when graphics and registration are critical?
A: Steam Shrink Tunnel. It provides even but not excessive temperature so that the graphics and registration can be kept precisely and maintain good shape.
Q: What tunnel is recommended for containers with volatile or aerosol products?
A: Steam Shrink Tunnel. Volatile or aerosol products are low-flash and inflammable. Steam Shrink Tunnel supplies even but not excessive temperature. It shrinks wrappers evenly and quickly, and then cools containers down fast.
Q: What materials of sleeves are used for processing in a Steam Shrink Tunnel?
A: Mainly PVC, PET & OPS, while new varieties are being developed from time to time. PVC is the most common material which is the easiest to control. It is low-cost less but not environmentally friendly. PET has the highest shrink percentage. It is environmental and versatile that can be used with special attributes like a matte finish or velvety texture. OPS is one of the most expensive materials. It has the lowest vertical shrink and produces the most consistent result, particularly on squeeze bottles.
Q: What is the specialty of our Steam Shrink Tunnel?
A: We have special designs for multipurpose, a patented steam distribution system with tool-free adjustment, and a separate steam generator ideally for nearly any work space.
Q: Why us?
A: Attitude is altitude, then details can mean succeed or fail. Most of our technicians have been working in this industry for
over ten years. They are all experienced and always ready to help. Please send us samples of containers and sleeves before placing an order. We will use our Shrink Tunnel to test them well and find you a solution.
