Products Description

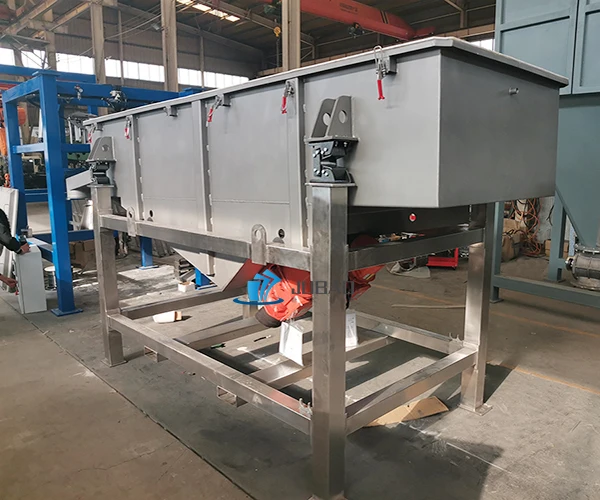

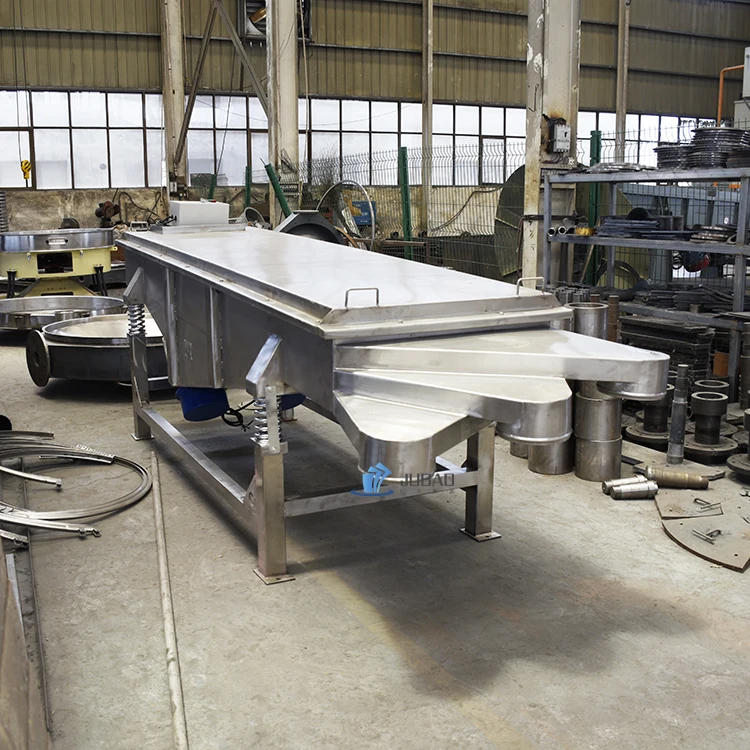

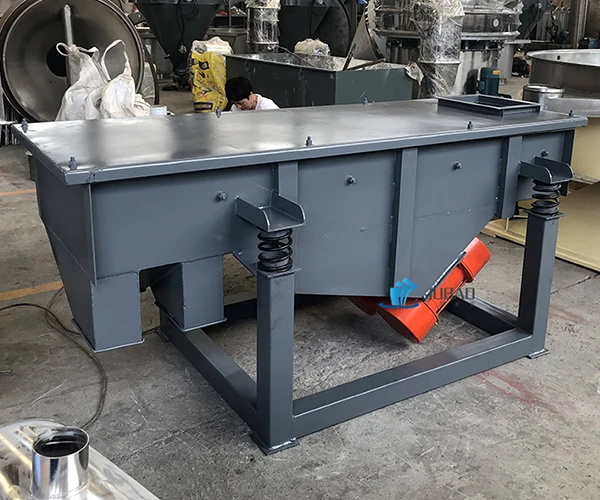

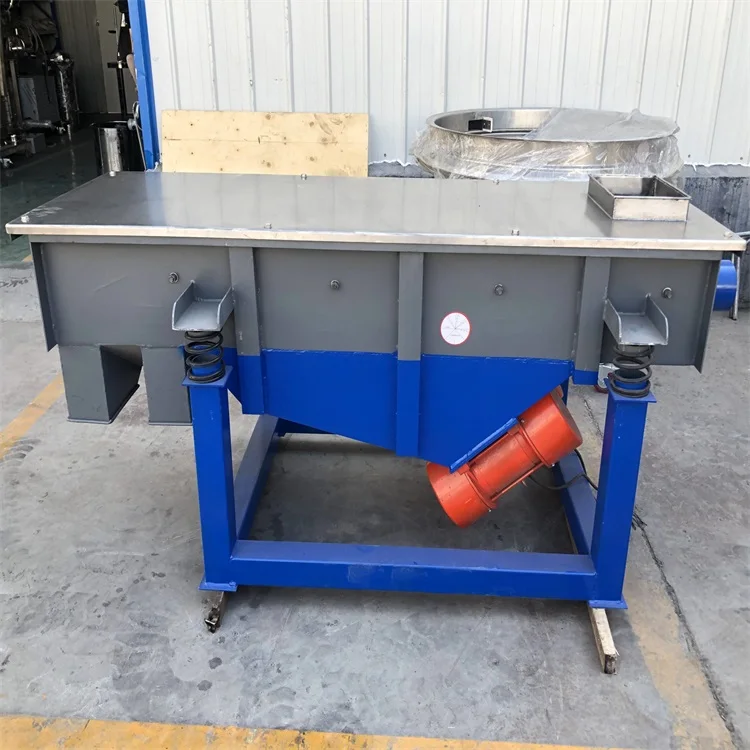

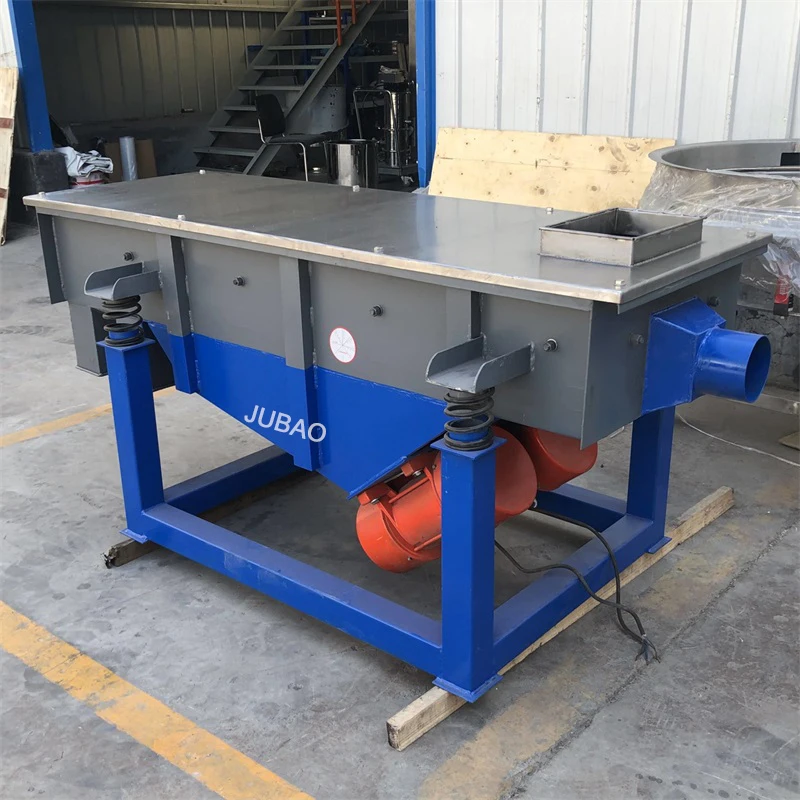

stainless steel linear vibrating sieve vibrating sieve
Our linear vibrating screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level. Any dry material with a diameter of 0.074mm-20 mm could be handled. The maximum granule diameter should be less than 30 mm. As a multi-layer screen, this machine could come with six layers of screen at most.




Features of linear vibrating screen
1.It supports at most 6 layers. But 3 layers at most is highly recommended.
2.The dimension size and voltage are both supported to be customized.
3.It has 4 available material, all stainless steel 304 or 316 or touching part sus 304 or carbon steel Q 235A.
4.With large capacity, small volume, high screening efficiency, high frequency, easily changed screen and good safe performance.
5.It is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove
6.Additional parts can be installed for better usage such as mobile running wheels, inspection hole, noise-proof basement, special feeding hole and capacity-controlling device.










Model
Layer
Screening
Mesh size
Particle Size
Capacity
Power
Dual
Area(mm)
(mm)
(mm)
(t/h)
(kw)
Amplitude (mm)
DZSF-612
1 to 5
600*1200
0.02-20
≤20
≤3
0.37×2
6 to 10
DZSF-520
1 to 5
500*2000
0.02-20
≤20
≤5
0.37×2
6 to 10
DZSF-525
1 to 5
500*2500
0.02-20
≤20
≤8
0.37×2
6 to 10
DZSF-1020
1 to 5
1000*2000
0.02-20
≤20
≤12
0.75×2
6 to 10
DZSF-1025
1 to 5
1000*2500
0.02-20
≤20
≤16
0.75×2
6 to 10
DZSF-1030
1 to 5
1000*3000
0.02-20
≤20
≤20
1.1×2
6 to 10
DZSF-1224
1 to 5
1200*2400
0.02-20
≤20
≤23
1.5×2
6 to 10
DZSF-1525
1 to 5
1500*2500
0.02-20
≤20
≤28
1.5×2
6 to 10
DZSF-1530
1 to 5
1500*3000
0.02-20
≤20
≤32
2.2×2
6 to 10

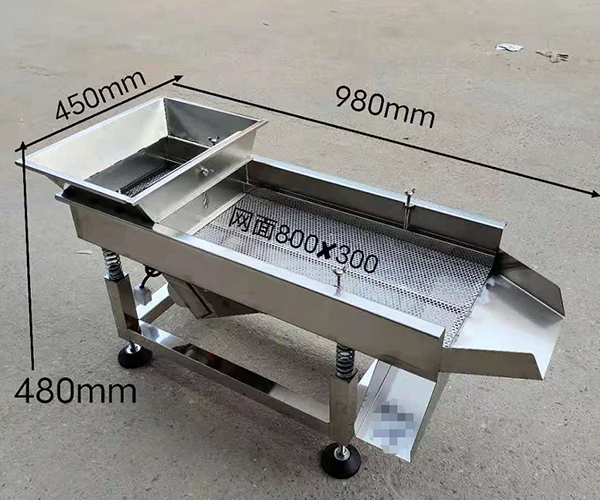

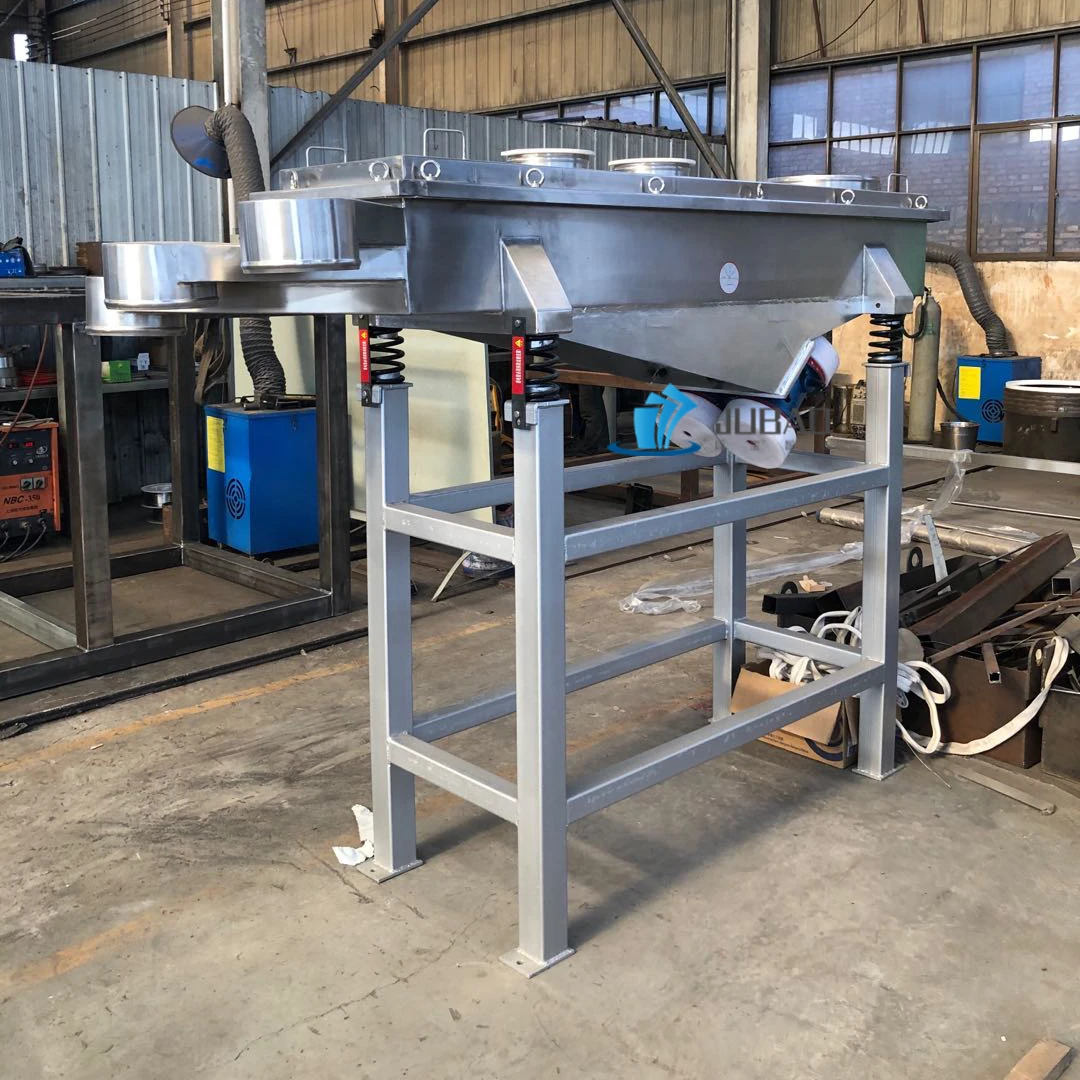

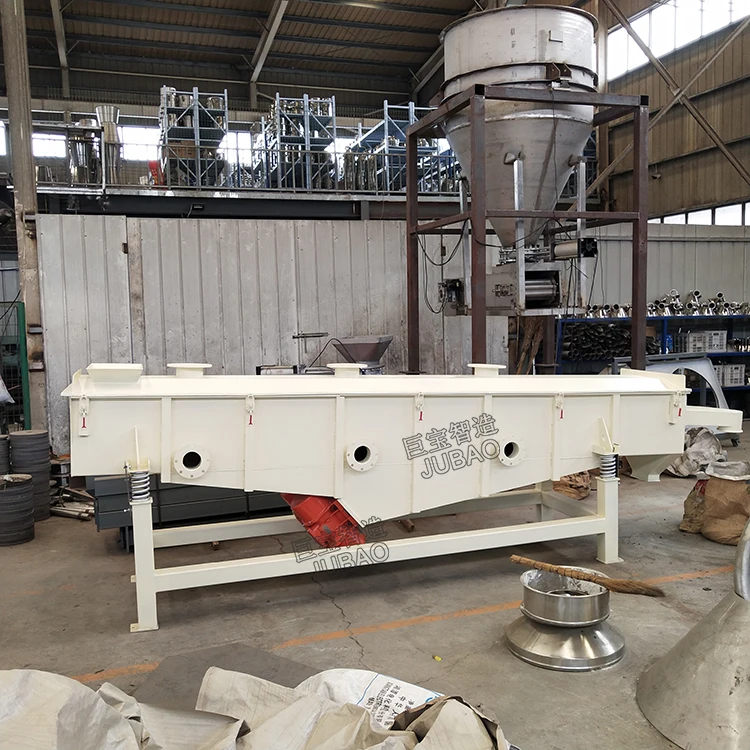

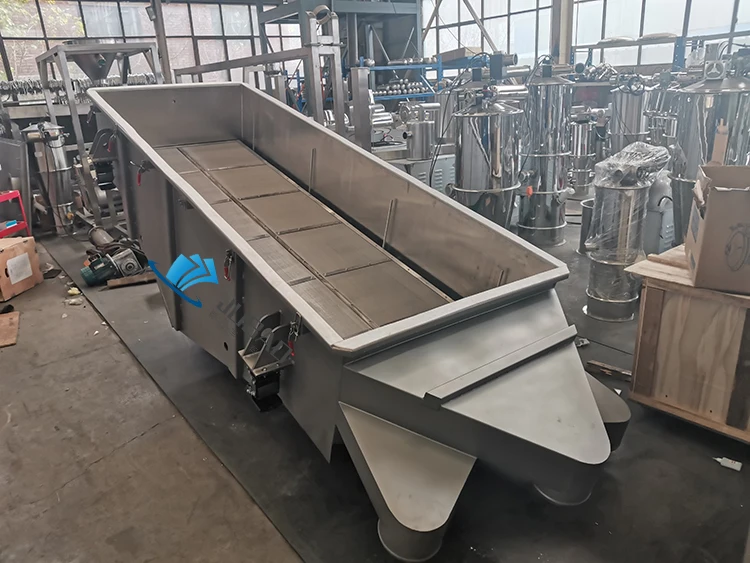

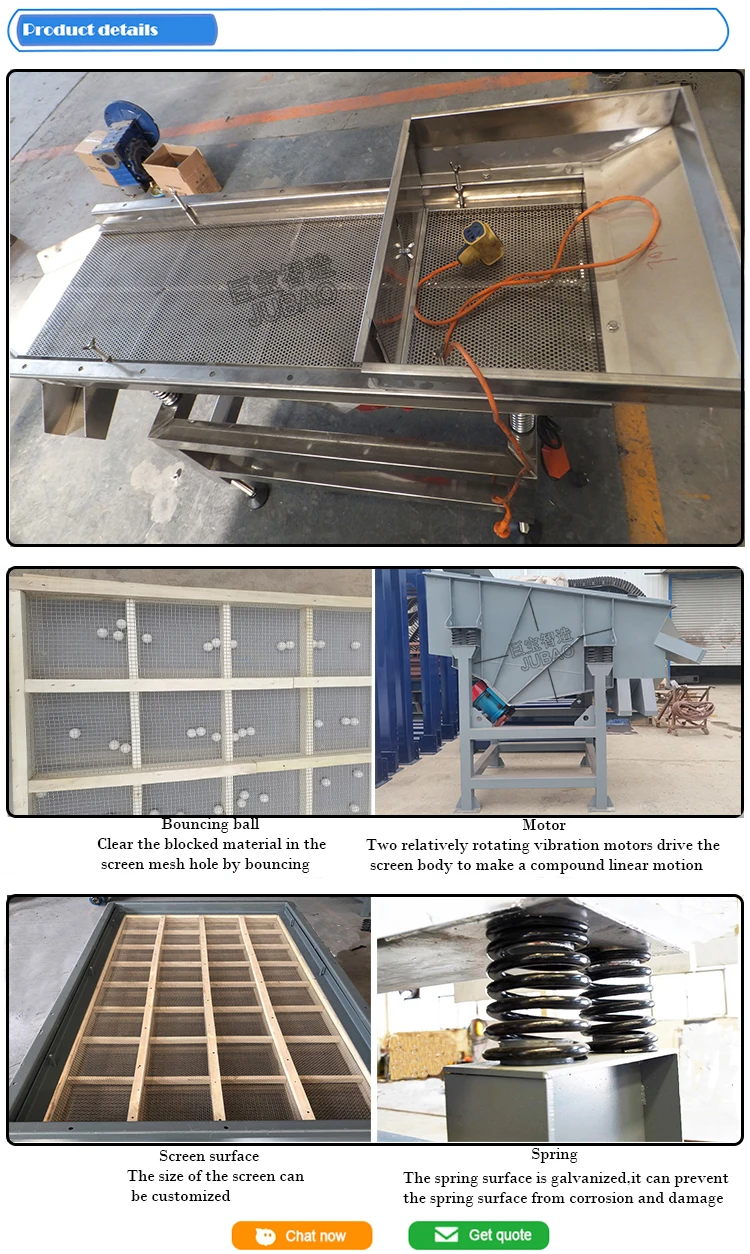

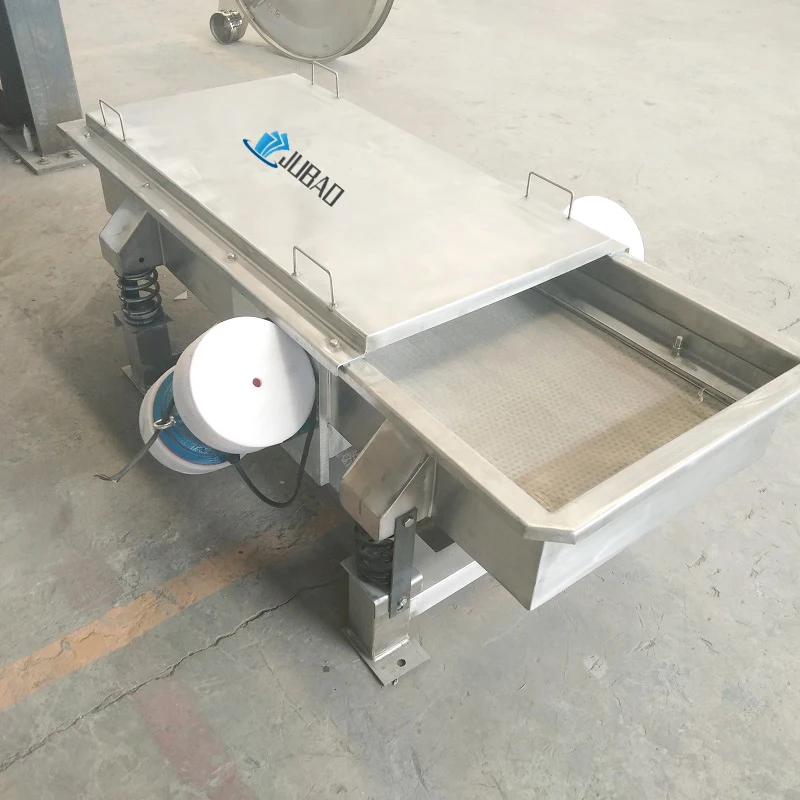

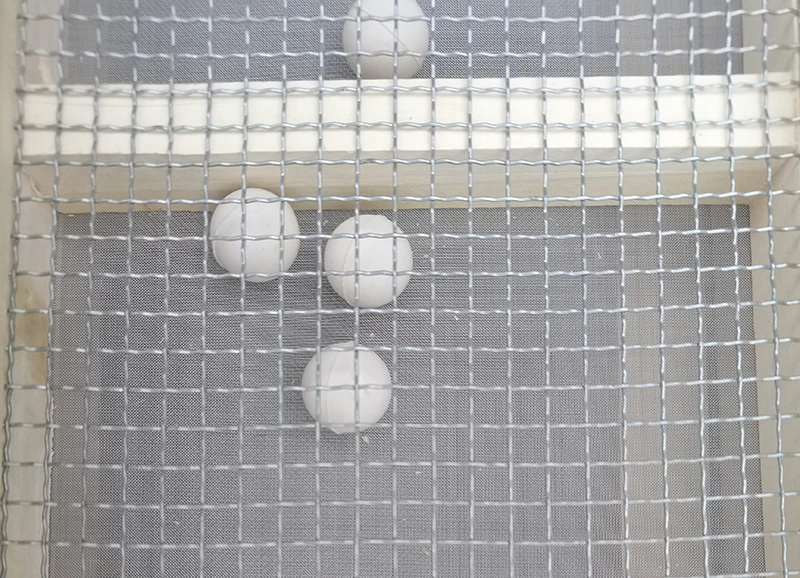

Details Images

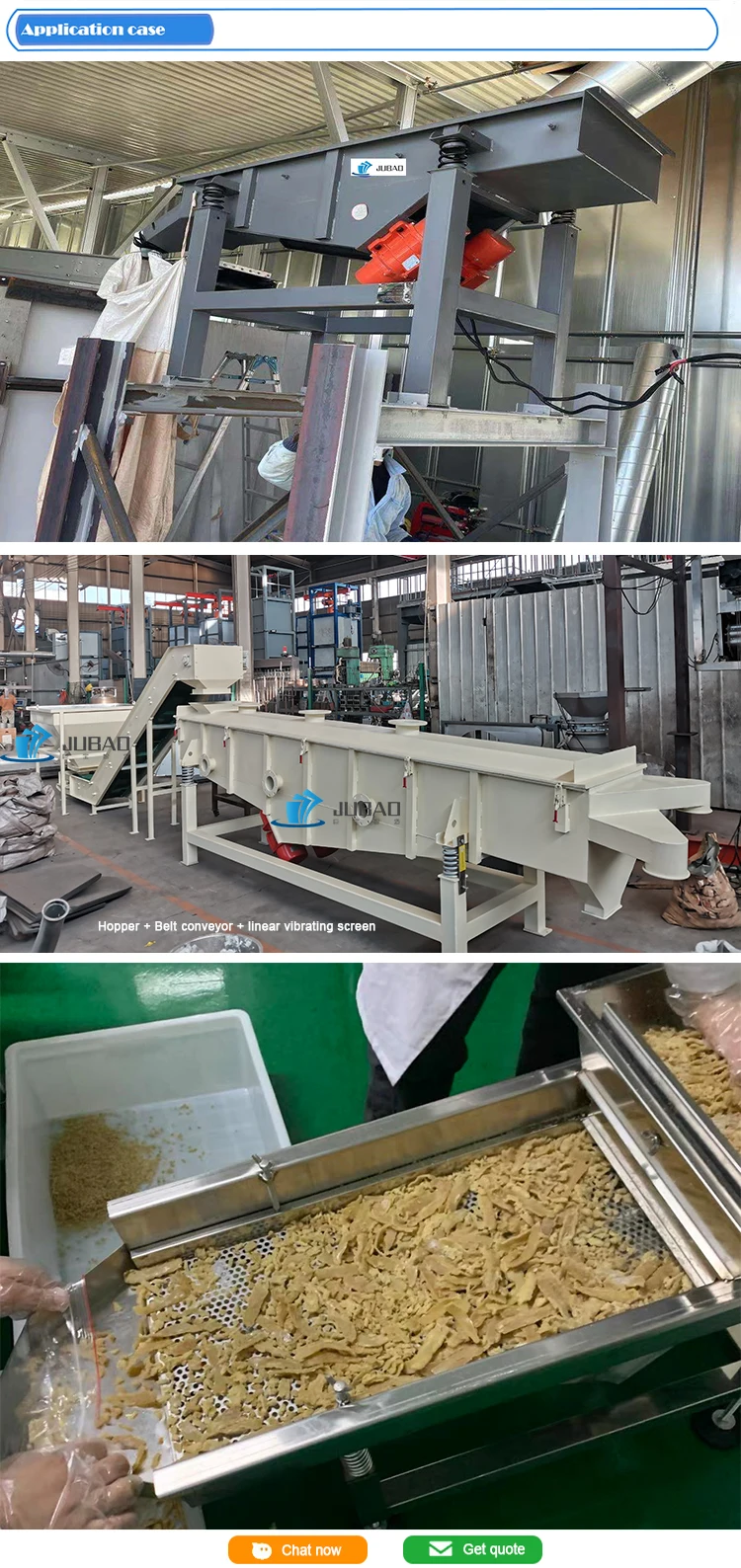

Application

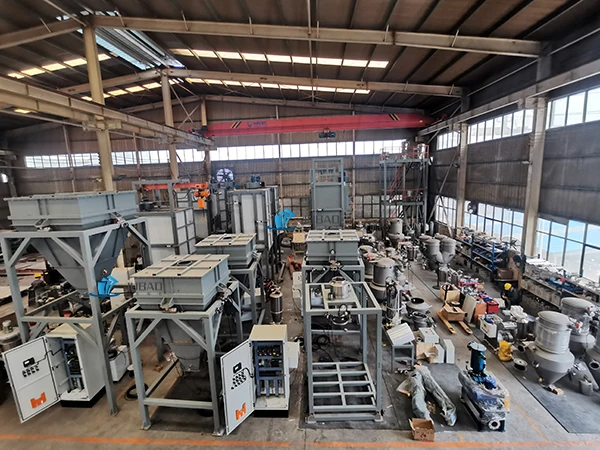

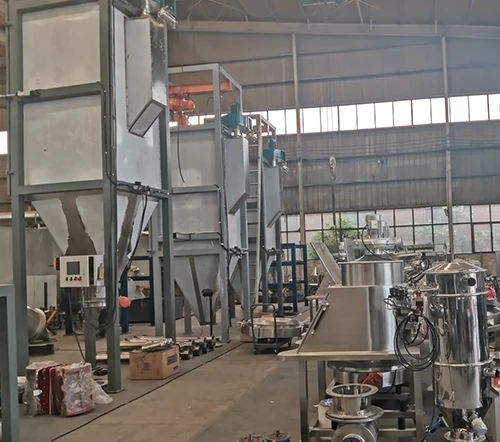

Company Profile




Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co.ltd. has become a leading enterprise in screening industry after over 10 years' fast development. Every year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers in China and around the world. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao. Jubao Intelligent Manufacturing-your excellent option for sieving, dust-free conveying and Intelligent integrated solution!














FAQ


Q1：How to provide us the detailed need.( important!!)
A1：
1. Material (name) that you want to process, with the bulk density, water content(%).
2.The necessary process capacity (per hour)
3.Material contact part, SS304, SS316L and Q235 for option.
4.The different dimension of the machine can be designed for you.
5.Additional parts, like the Mobile wheel and noise-proof base, can be easily fixed and maintained.

The proper selection of vibrating screen depends on the material, mesh size, output
required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
