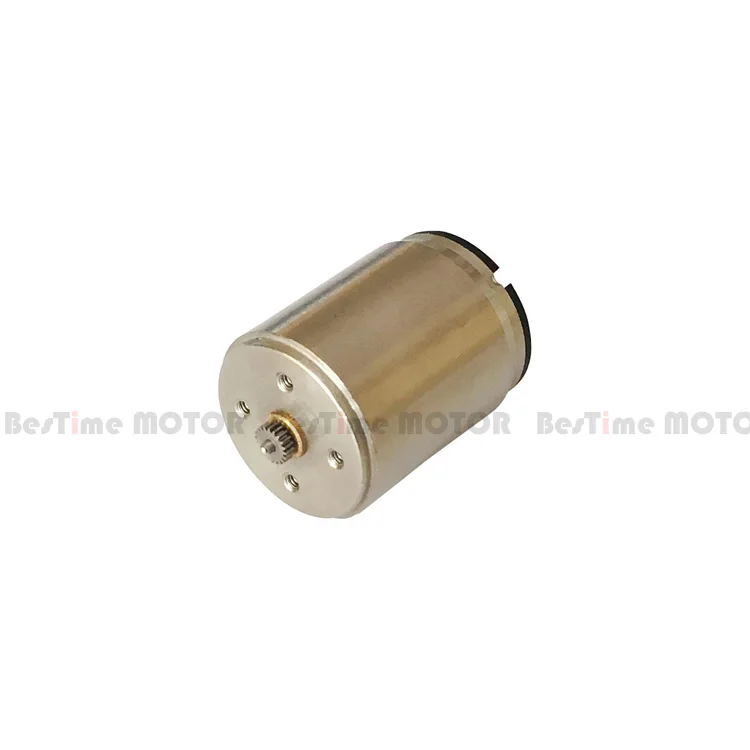

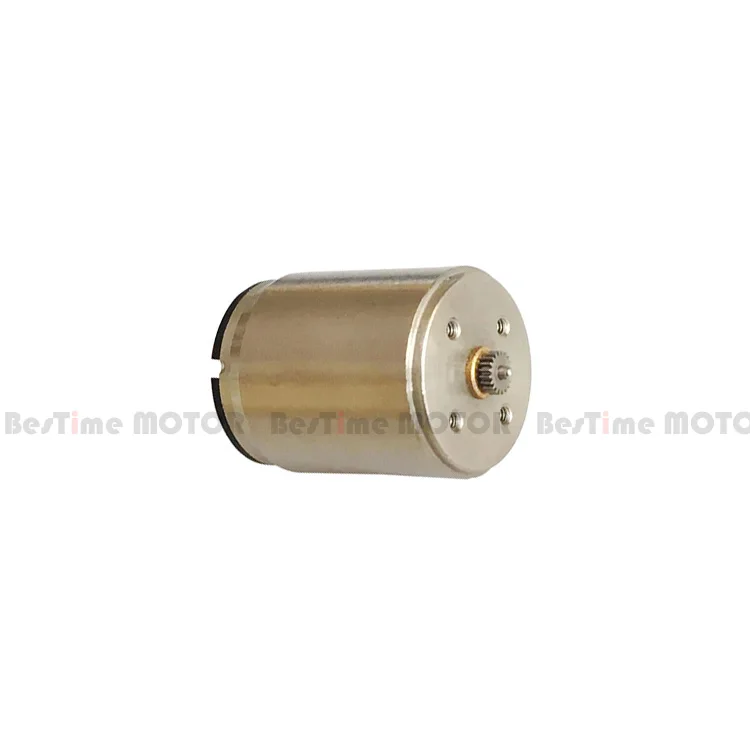

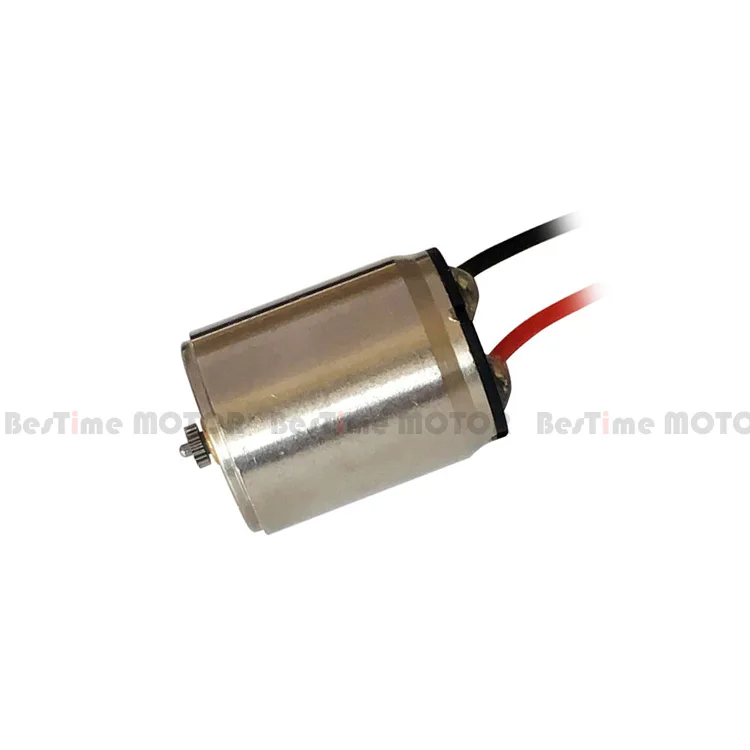

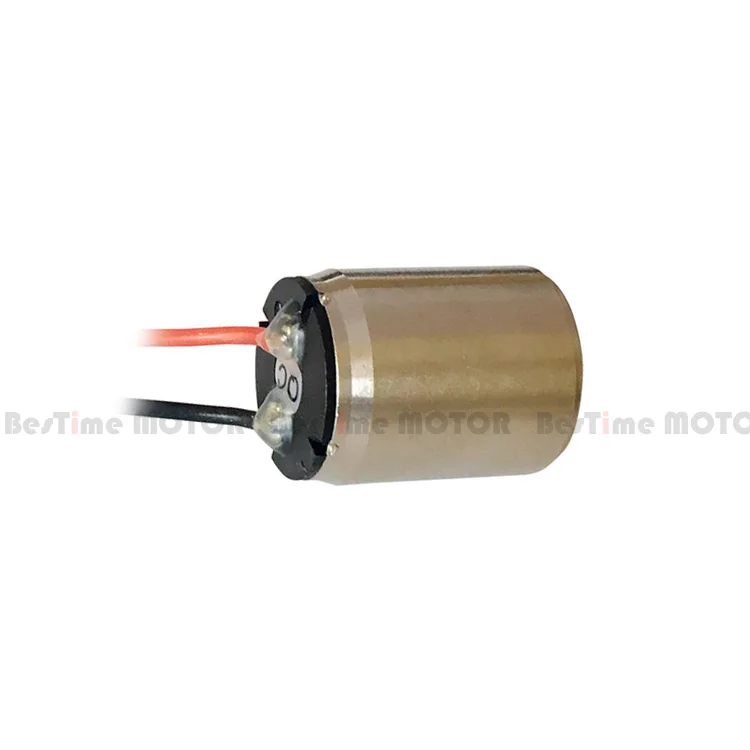

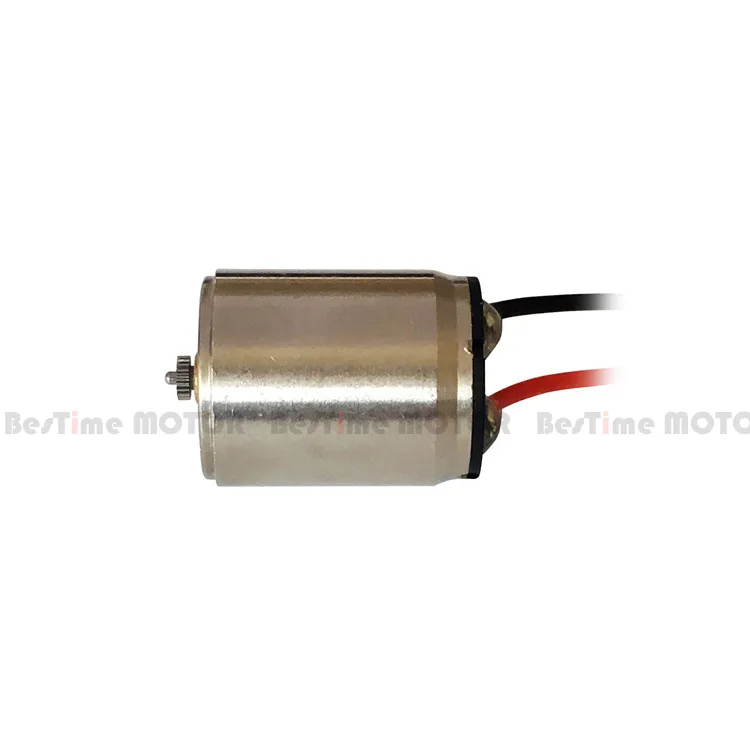

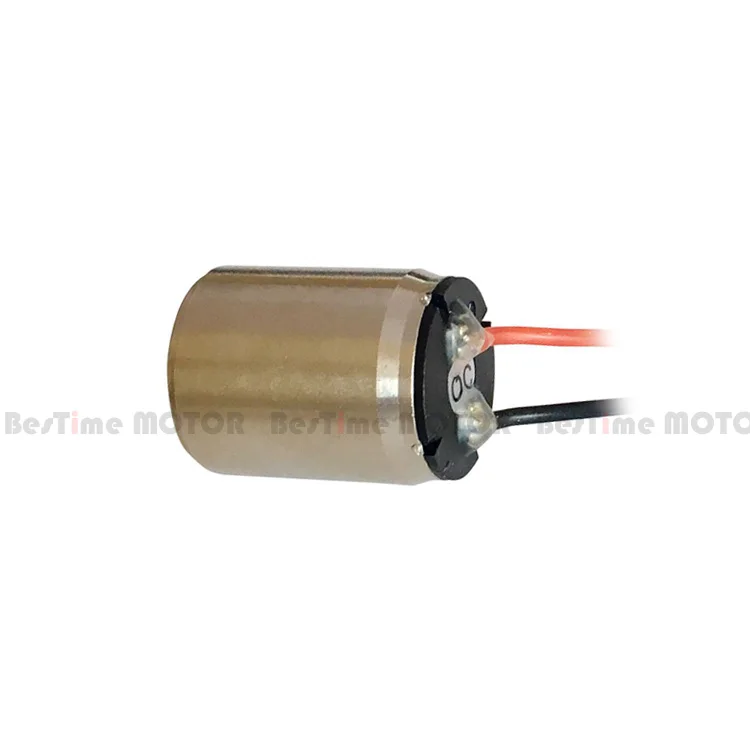

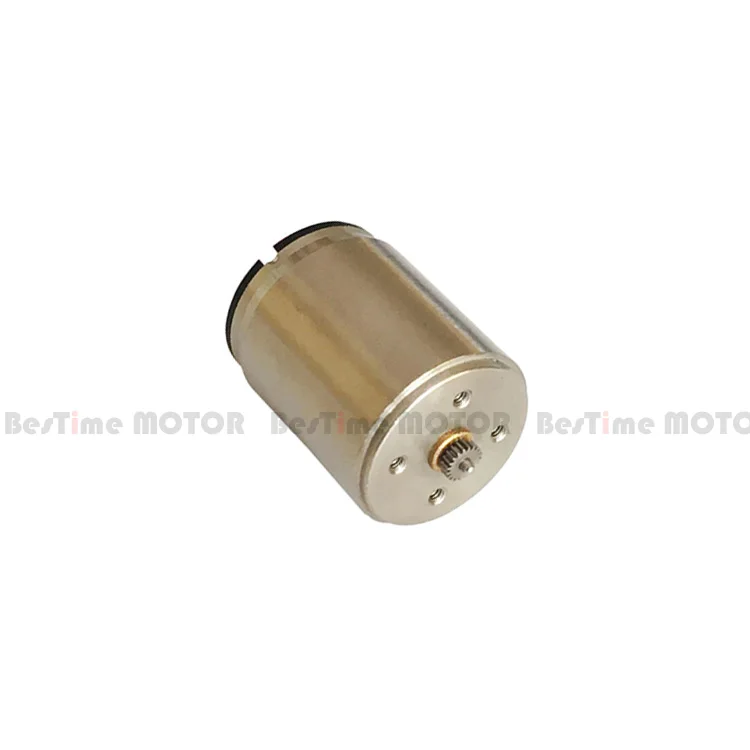

Small size 16mm 3 v 24 volt dc coreless brush motor
- Category: >>>
- Supplier: Shenzhen Jiatai Motor Technology Co. Ltd.
Share on (1600535334249):
Product Overview
Description
Product Description
Small size 16mm 3 v 24 volt dc coreless brush motor
Characteristics:
- Structure: Coreless rotor + Permanent magnet stator + Metal brushes
- Small compact size and light weight
- No iron losses, long service life time
- Low noise and high reliability
- Nd-Fe-B magnet, high power density
- Welcom OEM/ODM

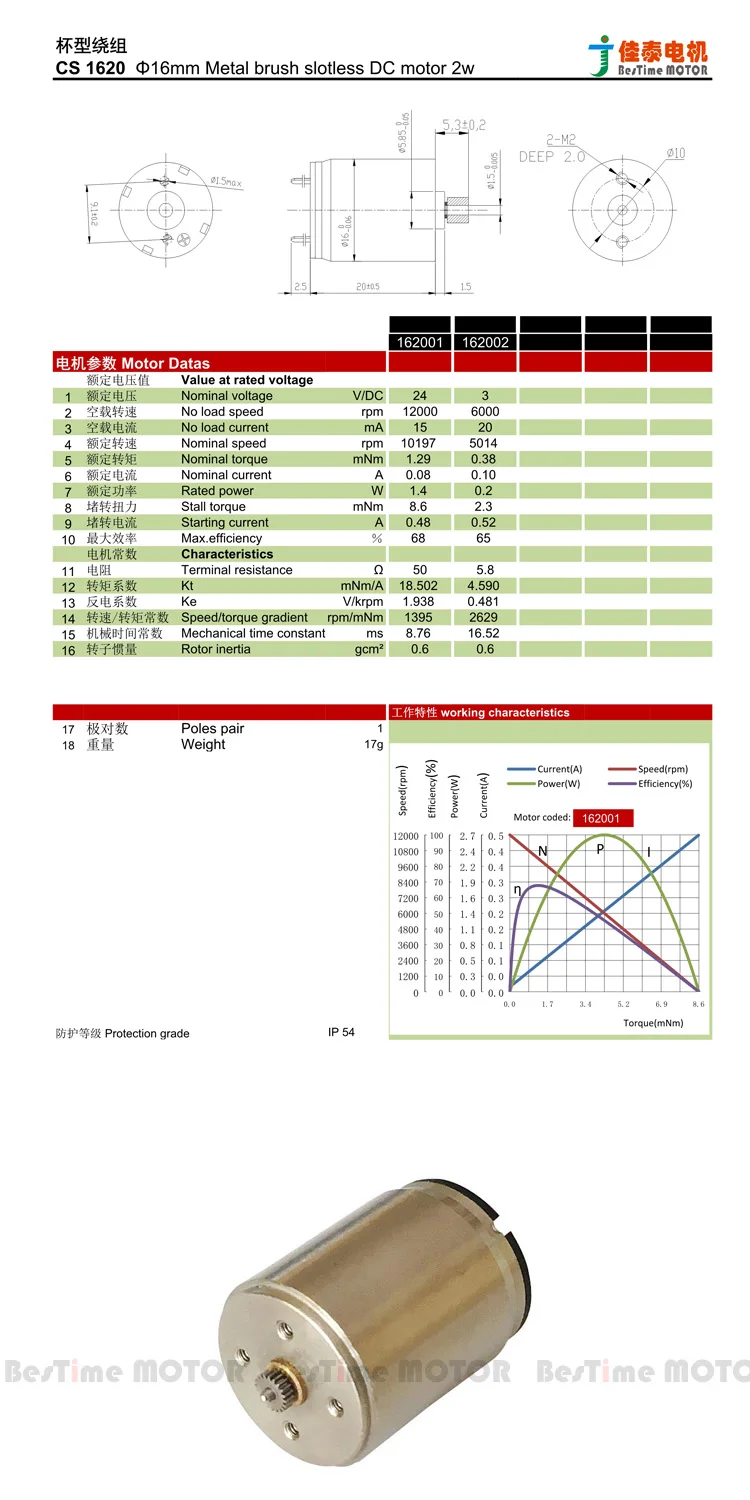

Specifications:
| Product Name: | Coreless brush dc motor |
| Dimensions: | Φ16mm x 20mm |
| Shaft Diameter: | 1.5mm |
| Input Voltage: | DC 3V 24V |
| Life Time: | 10,000 hours |
| Operation Temperature: | -30℃ to 85℃ |
| Storage Temperature: | -30℃ to 105℃ |
| Number of Pole Pairs: | 1 |
| Motor Features: | Coreless no cogging fast response no delay |
| Keywords: | dc coreless brush motor |
