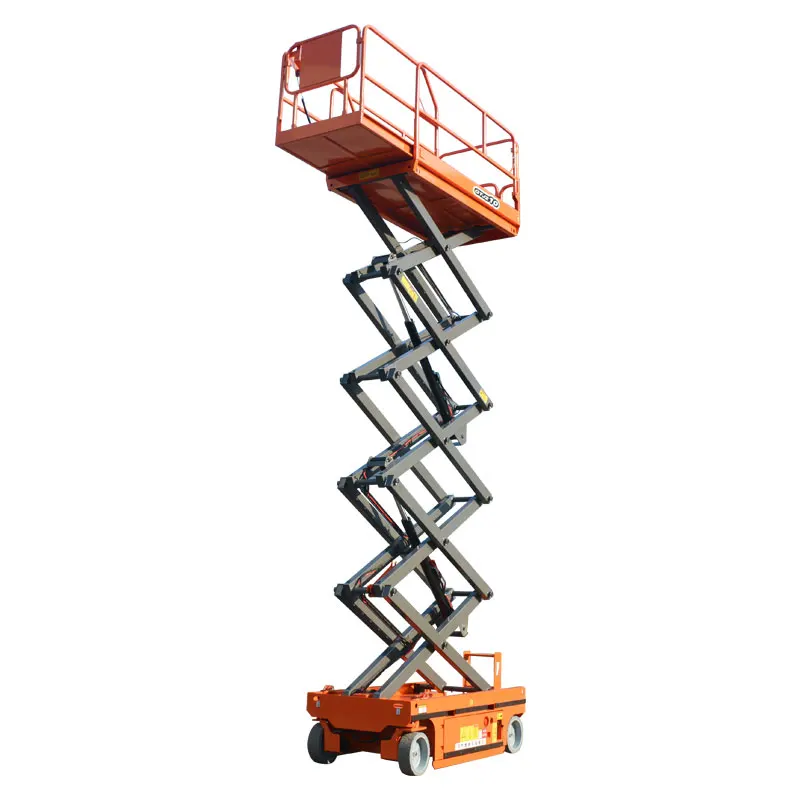

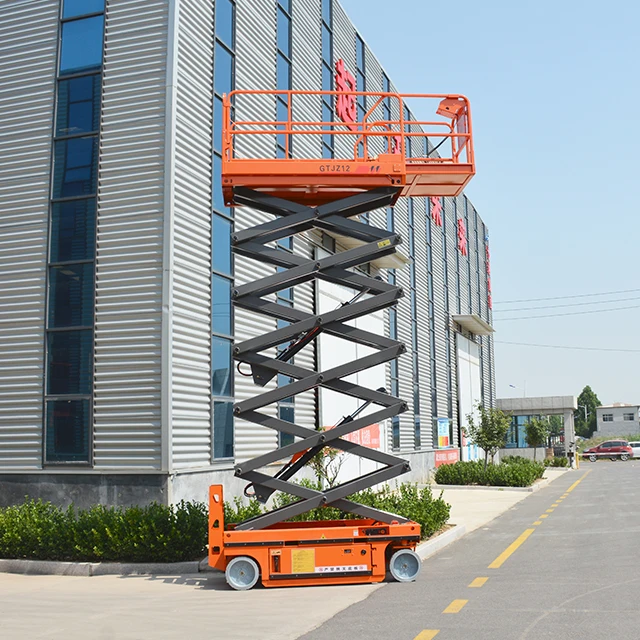

Qiyun Kinglift Mobile Hydraulic and Electric Self Propelled Scissor Lift Table for Aerial Work



Product Description


Self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It can walk even in the highest height. It is widely used for building. It is made up of rack, bracket and under frame. Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram. The extension of platform can be 90centimeter and carry 113 kg. The rack is made of square tube, and can be folded. The bracket is made from Q235 manganese steel, and for high configuration, it is made from Q500 manganese steel.








Features





 ♦The metal structure is treated with electrophoresis and has strong antirust and anti- corrosion ability.


 ♦Small turning radius: tire outer turning radius is 1.98m, inner turning radius is 0m


 ♦Sufficient power:  usage of imported American Trojan batteries, four series, battery capacity is 225Ah, normal use of more than 8 hours


 ♦Advanced technology: Usage of United States Deltatech control system,  self-diagnosis technology, anti-collision induction device


 ♦High reliability: The key parts are original imported, the waterproof grade of the main electrical components reached IP65


 ♦Good security: Equipped with horizontal switch, optional weighing sensor to ensure equipment and personnel safety


 ♦Easy maintenance: structure of double revolving door, easy to maintenance


 ♦Energy-saving and environmental protection: low noise, no pollution,  achieve standards of energy-saving environmental protection





Parameters

















































































Model



Table size (mm)



Load (kg)



Lifting height (m)



Dimensiones (mm)






Extended table size (mm)



Weight (kg)



GTJZ-6A



2260*810



380



6



2475*810*2158



900



1850



GTJZ-6



2260*1130



550



6



2475*1150*2158



900



2060



GTJZ-8A



2260*810



230



8



2475*810*2286



900



1980



GTJZ-8



2260*1130



450



8



2475*1150*2286



900



2190



GTJZ-10



2260*1130



320



10



2475*1150*2414



900



2430



GTJZ-12



2260*1130



320



11.8



2475*1150*2542



900



2960



GTJZ-14



2640*1130



227



13.8



2840*1390*2590



900



3320
