P2.5 Indoor Flexible Led Advertising Screen Soft Display Video Wall Full Color Round Led
- Category: >>>
- Supplier: Chipstar LED Co. Ltd.
Share on (1600535350737):
Product Overview
Description
Application

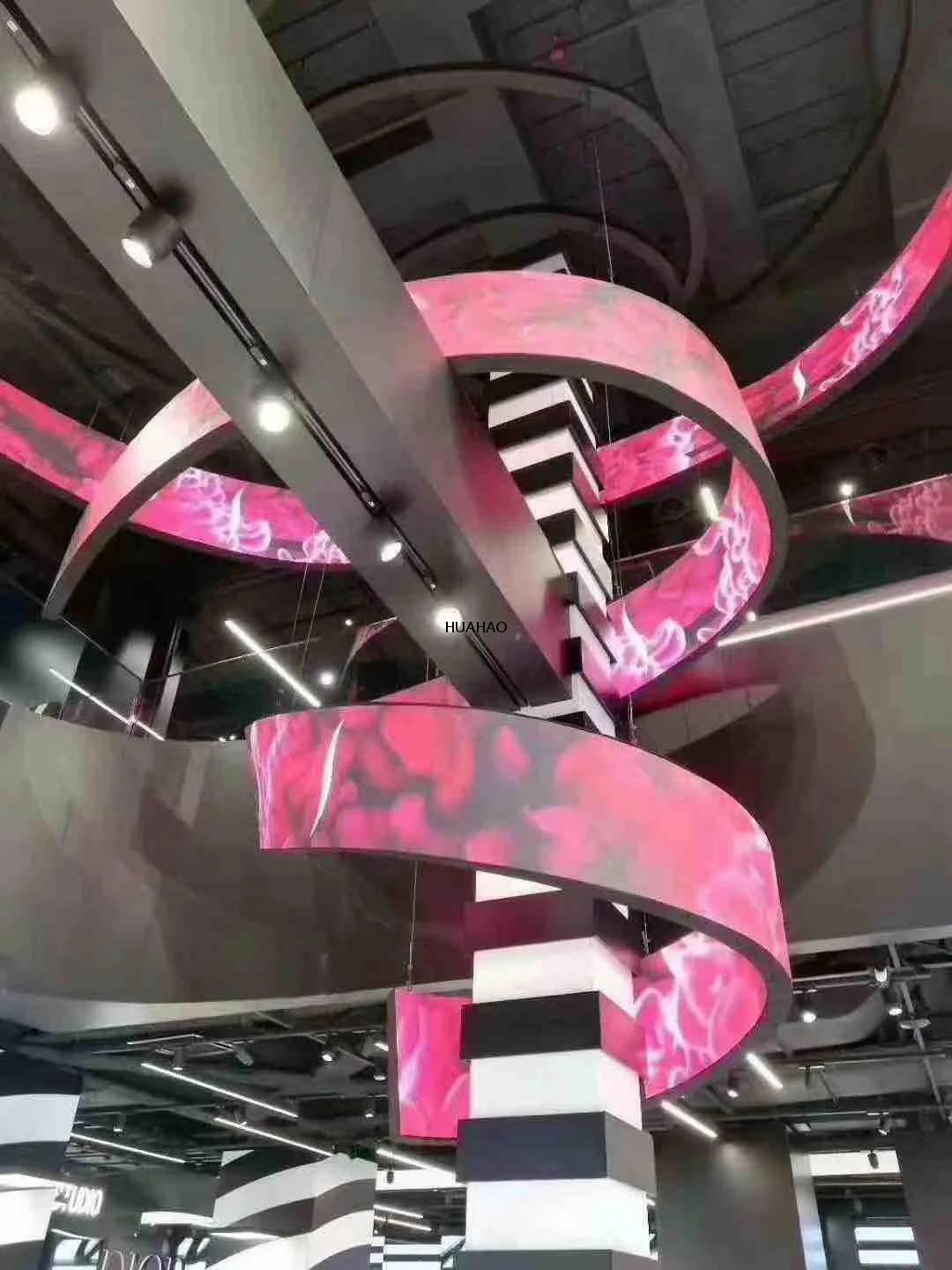

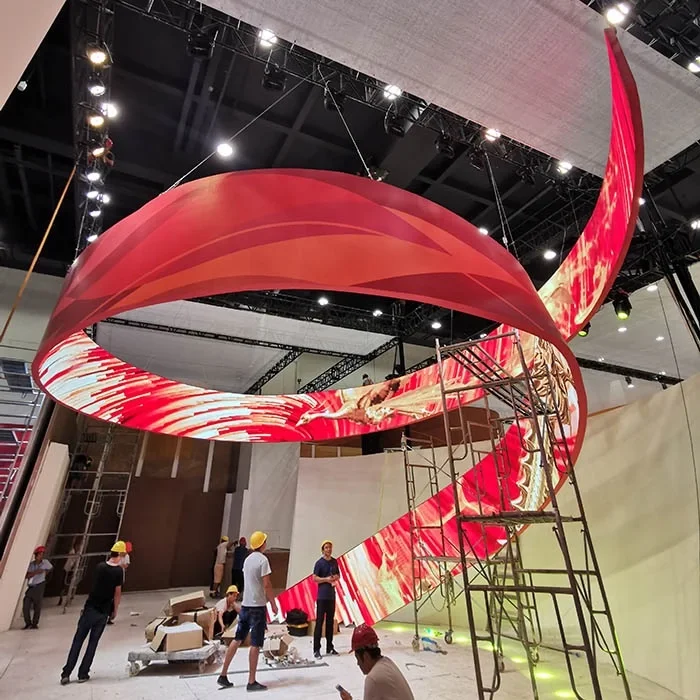

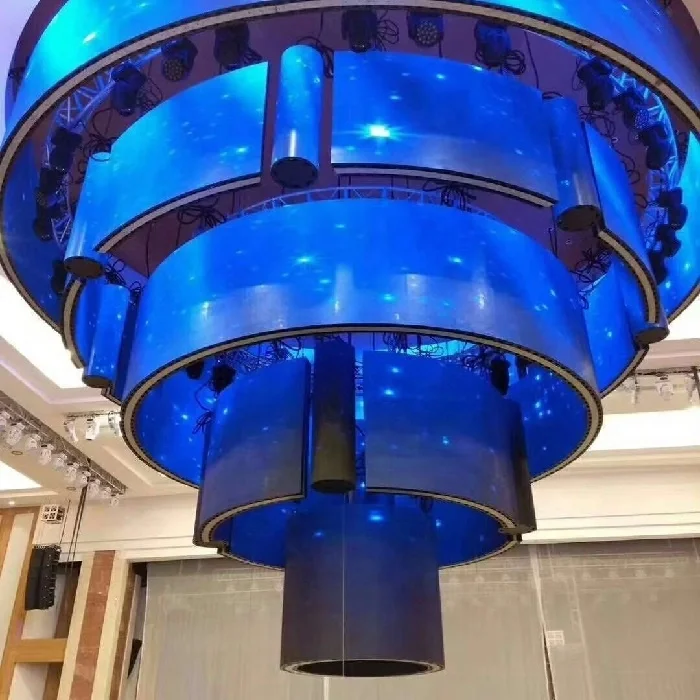

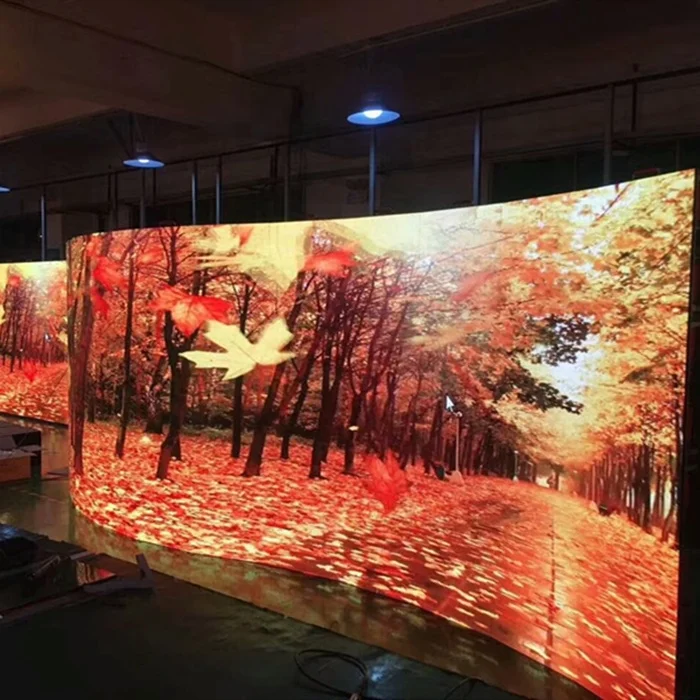

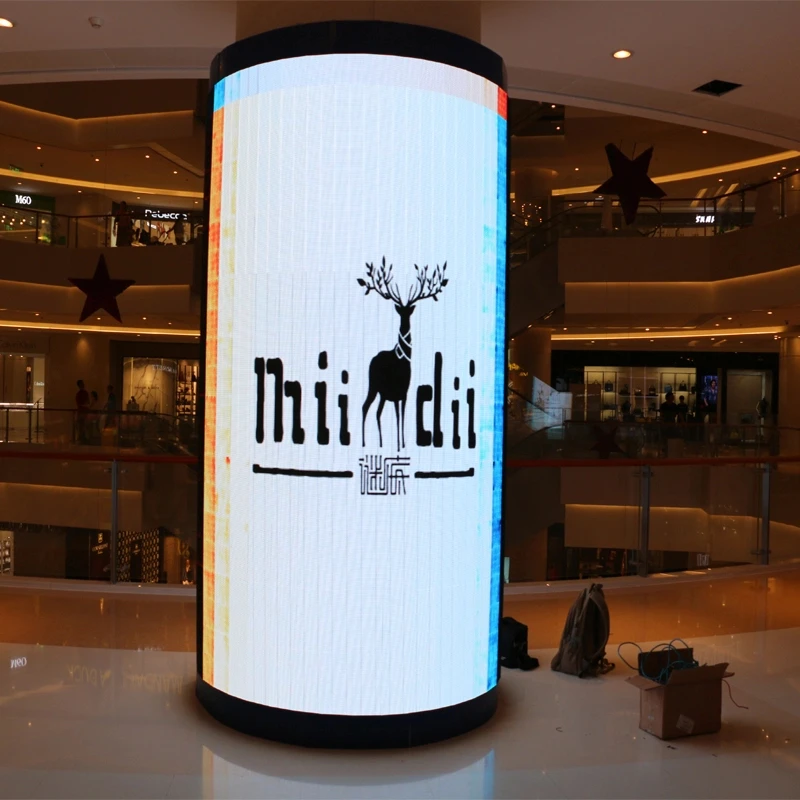

Flexible LED video wall can be used in various fields and application, such as shopping center, mall, bar, disco, stage, indoor building, outdoor building, television, exhibition, show. especially for all kinds of irregular buildings, UNIT flexible LED screen is suitable very well.
Customized Shape

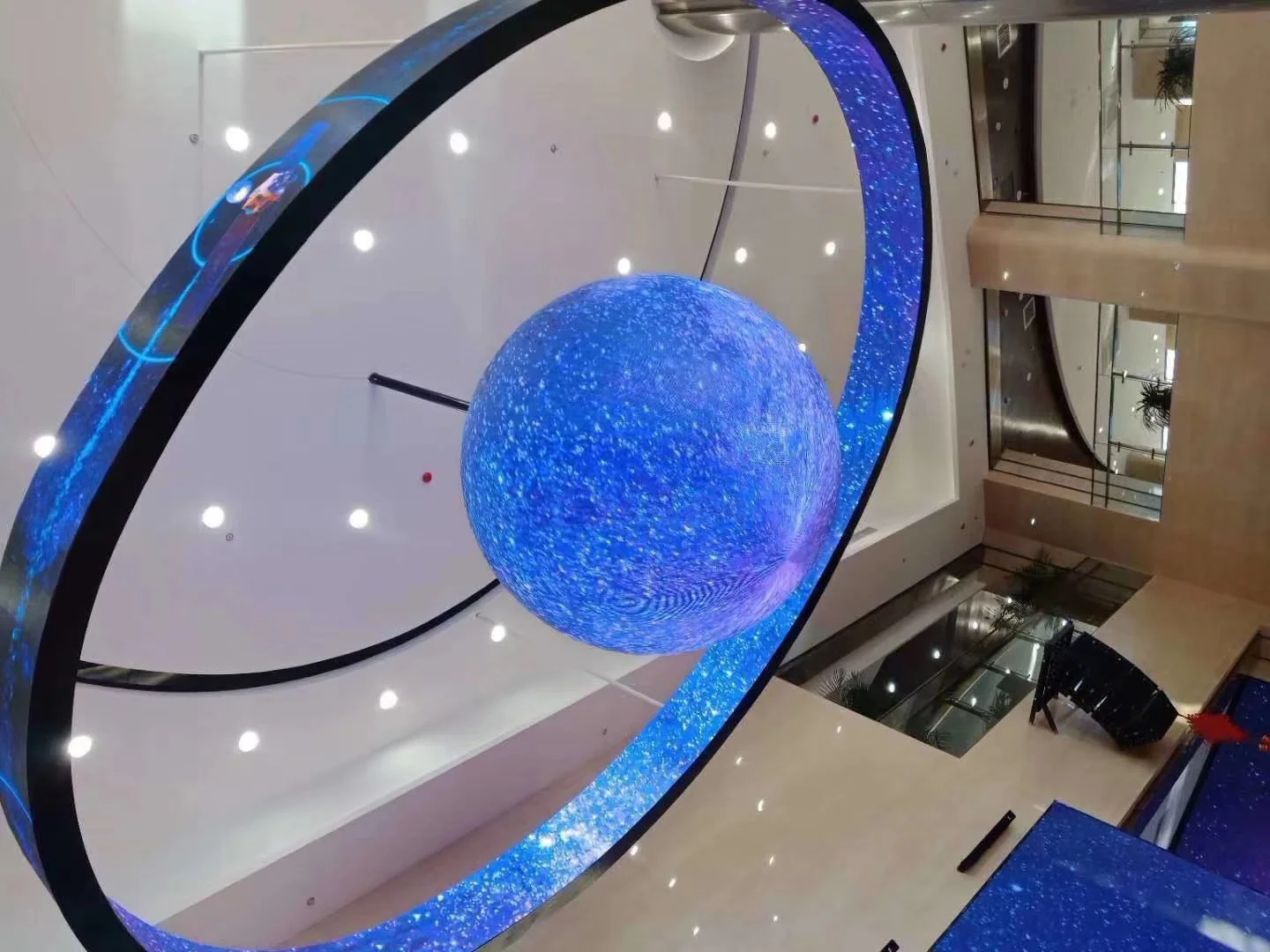

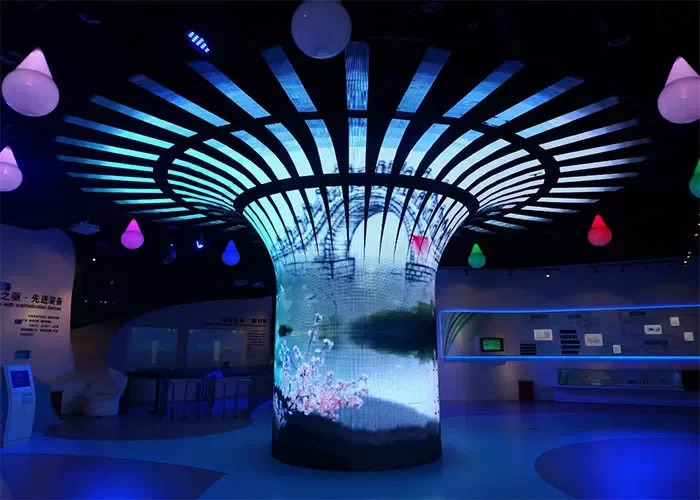

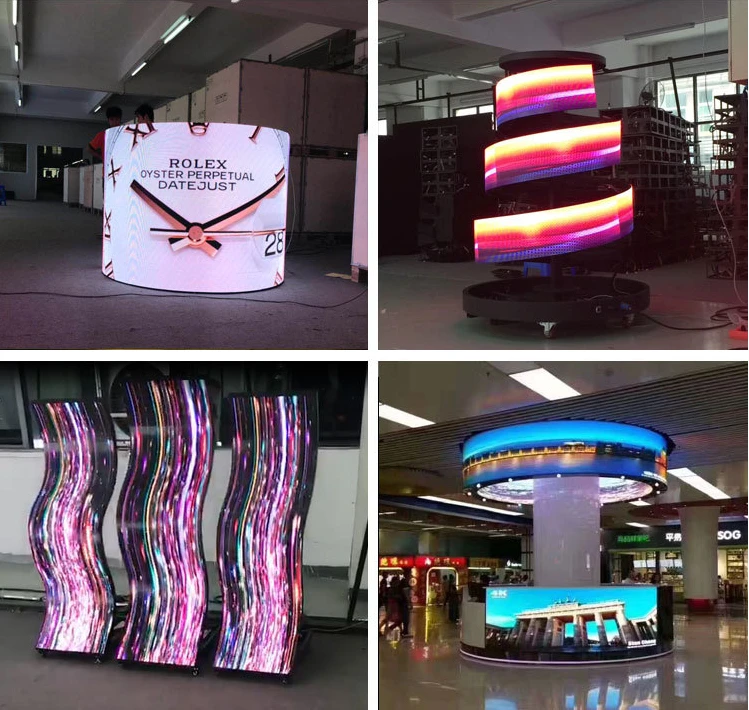

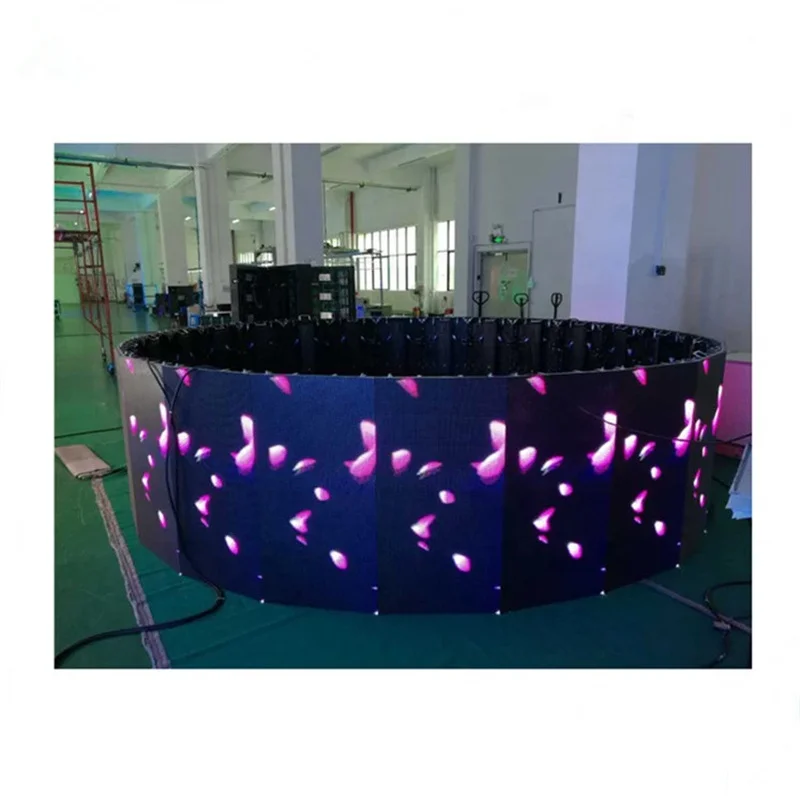

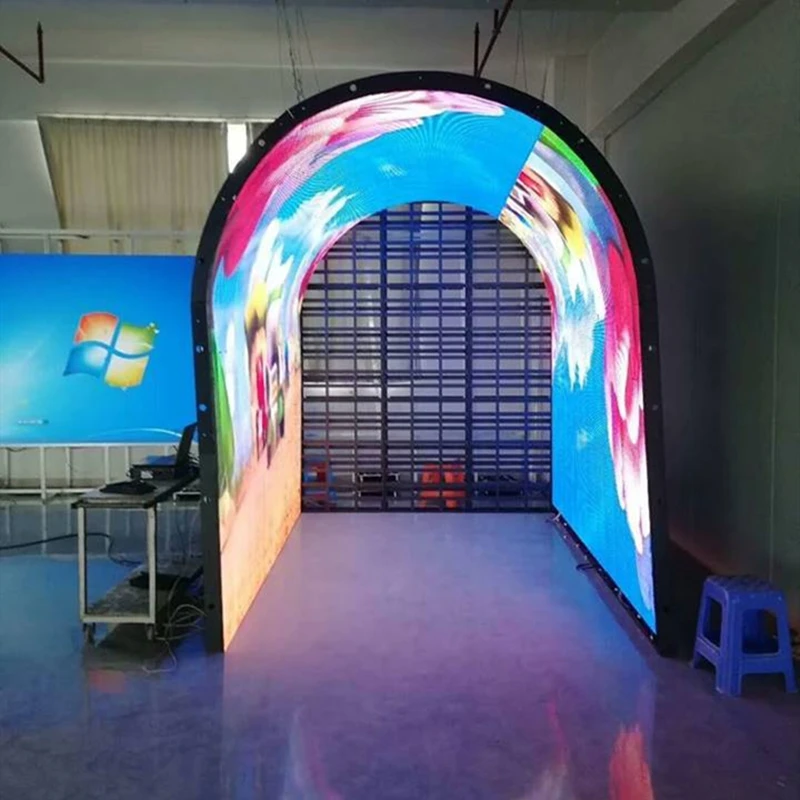

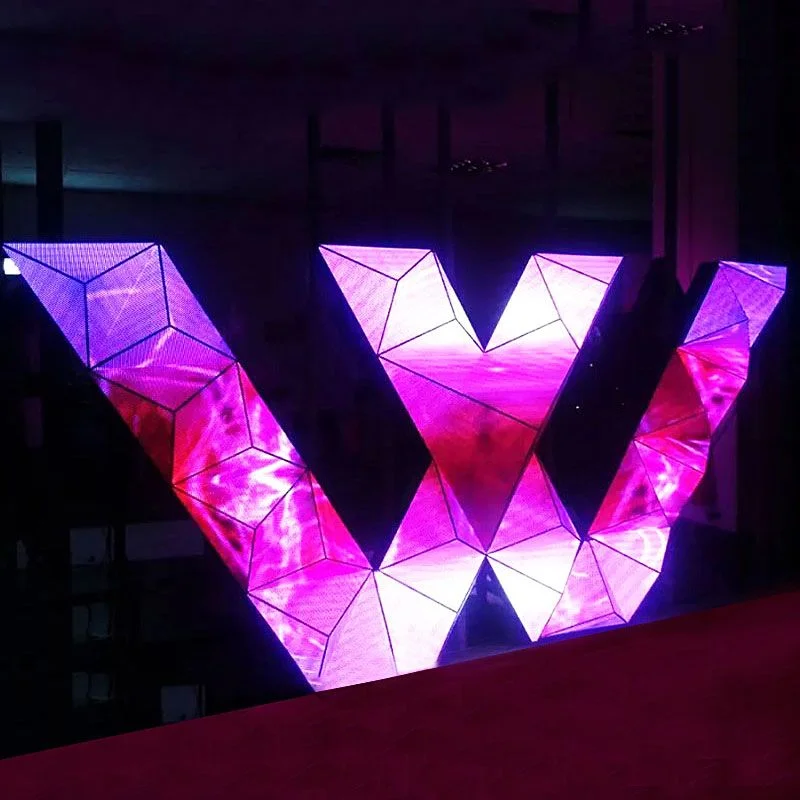

Flexible LED sign can be customized any shape as customer’s need. We have a range of sizes to meet led display requirements. Such as ball LED display, cube LED display, cylindrical LED display, round LED display, Oval LED display, wavy LED Screen and so on.
Product Description

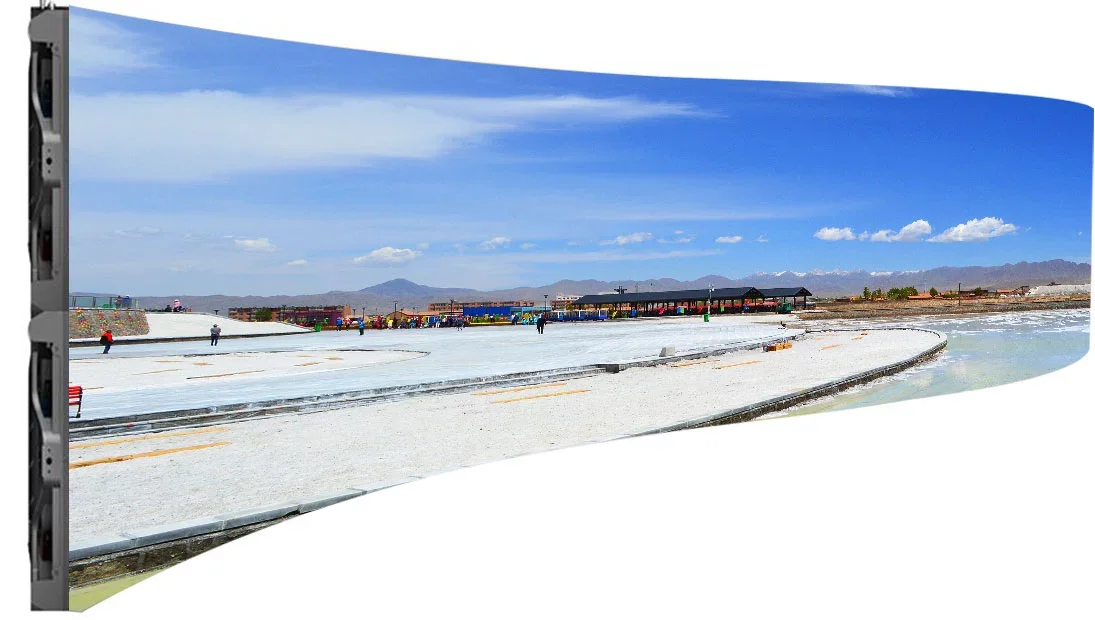

Flexible LED Display is also called as flexible LED screen or soft LED display or soft LED screen. the main feature of those LED display is that the LED panel is soft, flexible. Compare to indoor fixed LED display and outdoor fixed LED display, the flexible LED panel can be any designed, bend and swing to do any shape LED video wall as you want.
Our Advantages

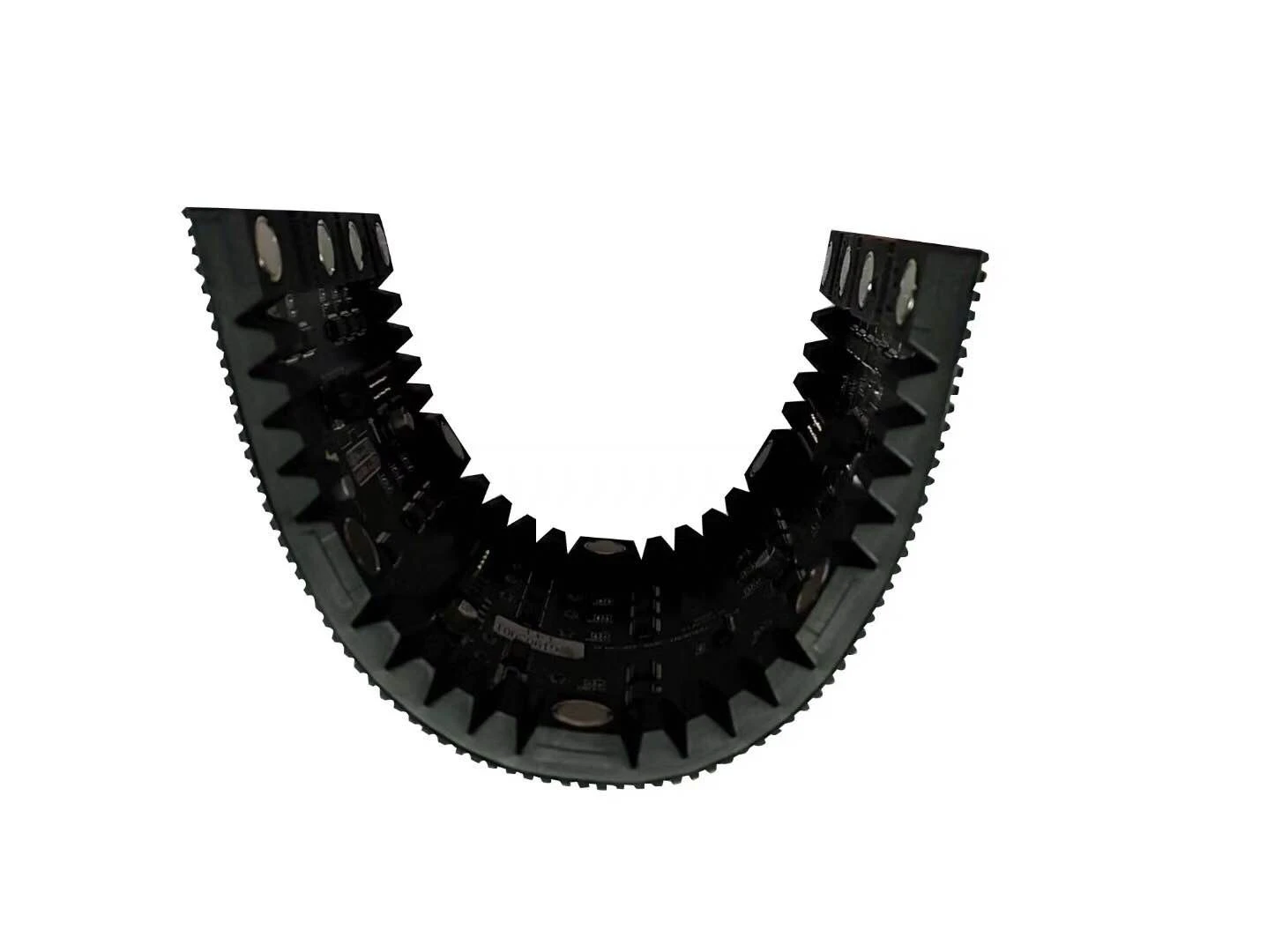

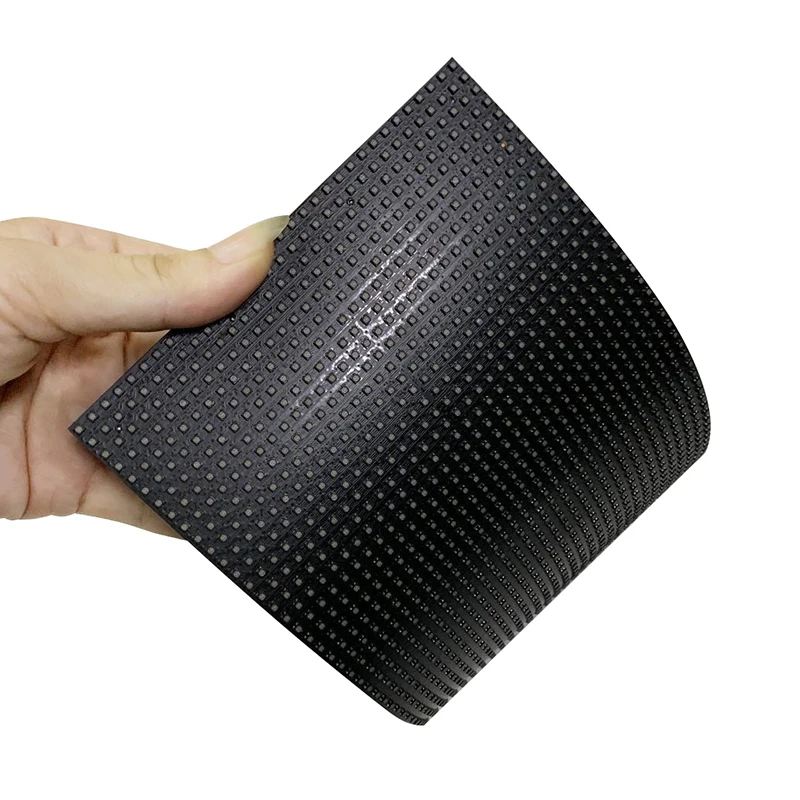

Benefit of the special material silicone mask. One of the main features of the flexible LED Panel is its ability to bend without breaking. Excellent flexibility, stable and high quality to make more complicated shapes for the LED display as customer’s requirements.

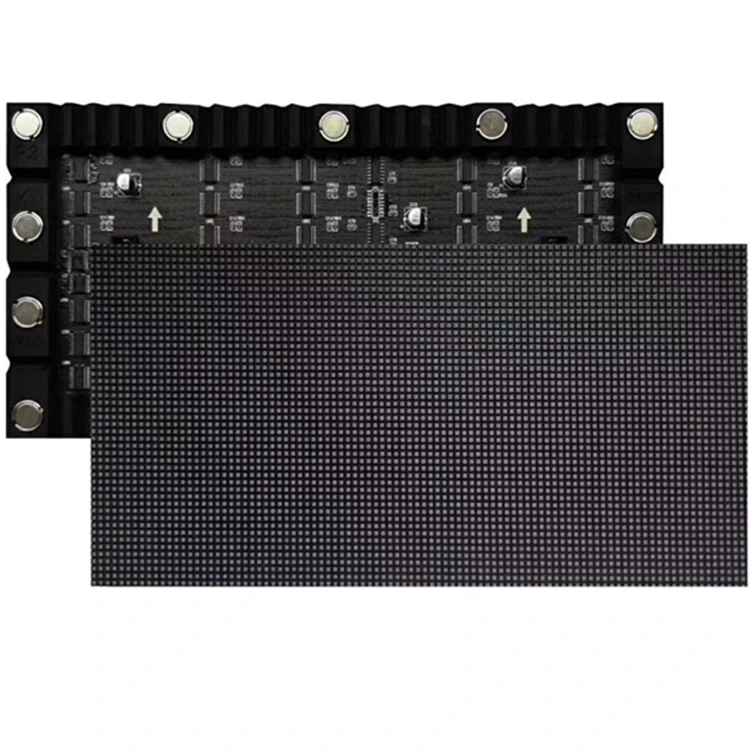

Unlike the common PCB made LED display modules , flexible LED display panel is only weight 75g without bottom frame and mask, the weight is only 150g with bottom frame and mask. Super thin and Super soft can reduce the LED display structure load capacity greatly.
Front Service

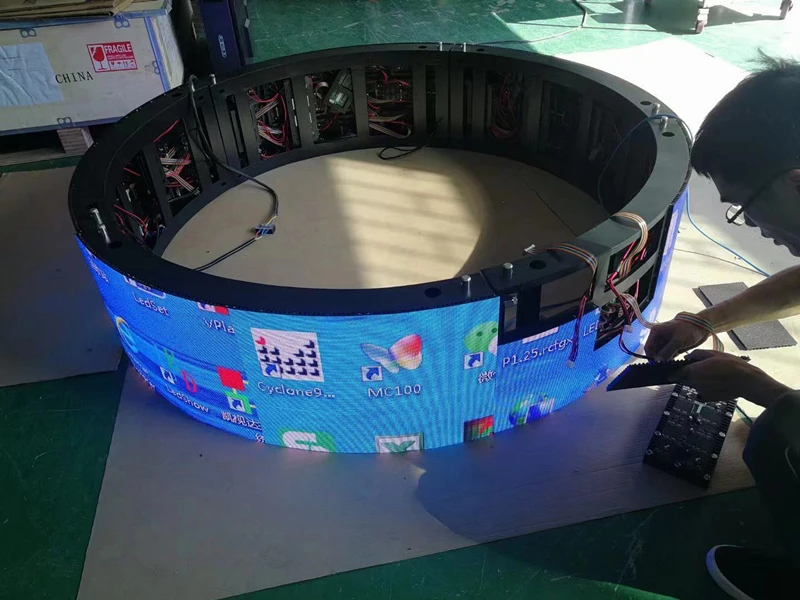

flexible LED screen panel adapts ultra strong magnet install to make LED display is available for front maintenance. Quick and convenient for installation. Assembling the modules just a few seconds without any tools easily. Save you time and labor greatly.
Specification
Module Number | PH1.86 | PH2 | PH2.5 | PH5 |
1.Pixel Pitch | 1.86mm | 2mm | 2.5mm | 5mm |
Physical Density | 289050 pixels/m2 | 250000 pixels/m2 | 160000 pixels/m2 | 40000 pixels/m2 |
Led Arrangement | 3 in 1SMD | 3 in 1SMD | 3 in 1 SMD | 3 in 1 SMD |
Module Resolution | 172*86 pixels | 160*80 pixels | 128*64 pixels | 64*32 pixels |
Module Dimensions | 320*160 mm | 320*160 mm | 320*160 mm | 320*160 mm |
Cabinet Resolution | A/N | A/N | A/N | A/N |
Cabinet Dimensions | custom size | custom size | custom size | custom size |
Cabinet Weight | A/N | A/N | A/N | A/N |
Brightness | 800nits | 800 nits | 800 nits | 800 nits |
Max Power Consumption | 45w/panel | 45w/panel | 45w/panel | 45w/panel |
Ave Power Consumption | 15w/panel | 15w/panel | 15w/panel | 15w/panel |
Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
IP Rating | IP30 | IP30 | IP30 | IP30 |
Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
Verification | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE |
Company Profile

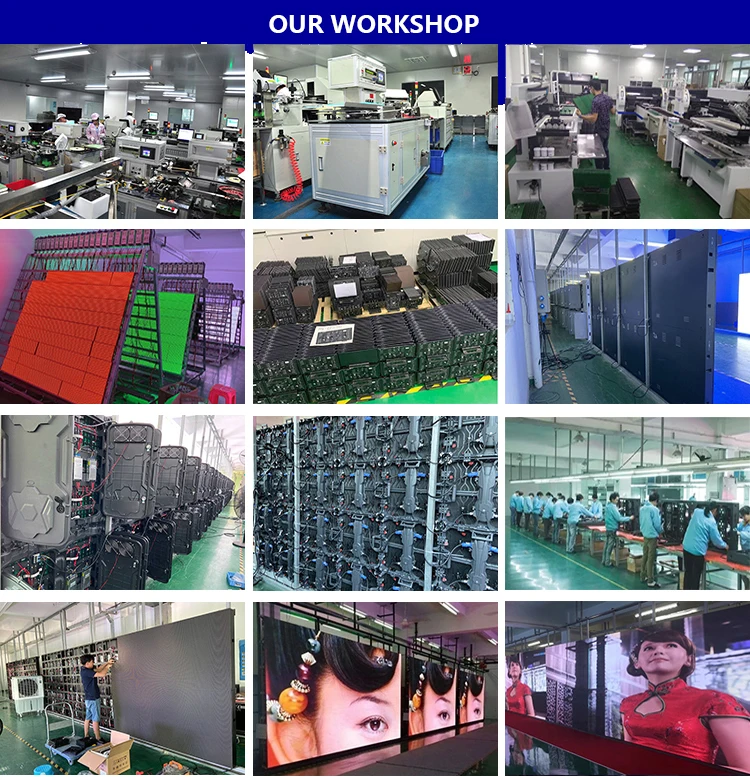

Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display, LED lighting and lighting application products. Our company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers.
Our products has passed CE, RoHS, ETL, FCC and CCC certificates. reliable quality, advanced technology, perfect technology, automation of from a complete set of production equipment, standard production line, perfect sales network and good pre-sales and after-sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, , Canada, Singapore, Japan,etc.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, , Canada, Singapore, Japan,etc.
Customer Praise
Packing & Delivery
Packaging and Shipment
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing
Shipping Method:
Shipping Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
