Automatic Small Carbonated Soft Drink Production Machine For Complete Production Line
- Category: >>>
- Supplier: Zhangjiagang City Xinmao Drink Machinery Co. Ltd.
Share on (1600535379096):
Product Overview
Description

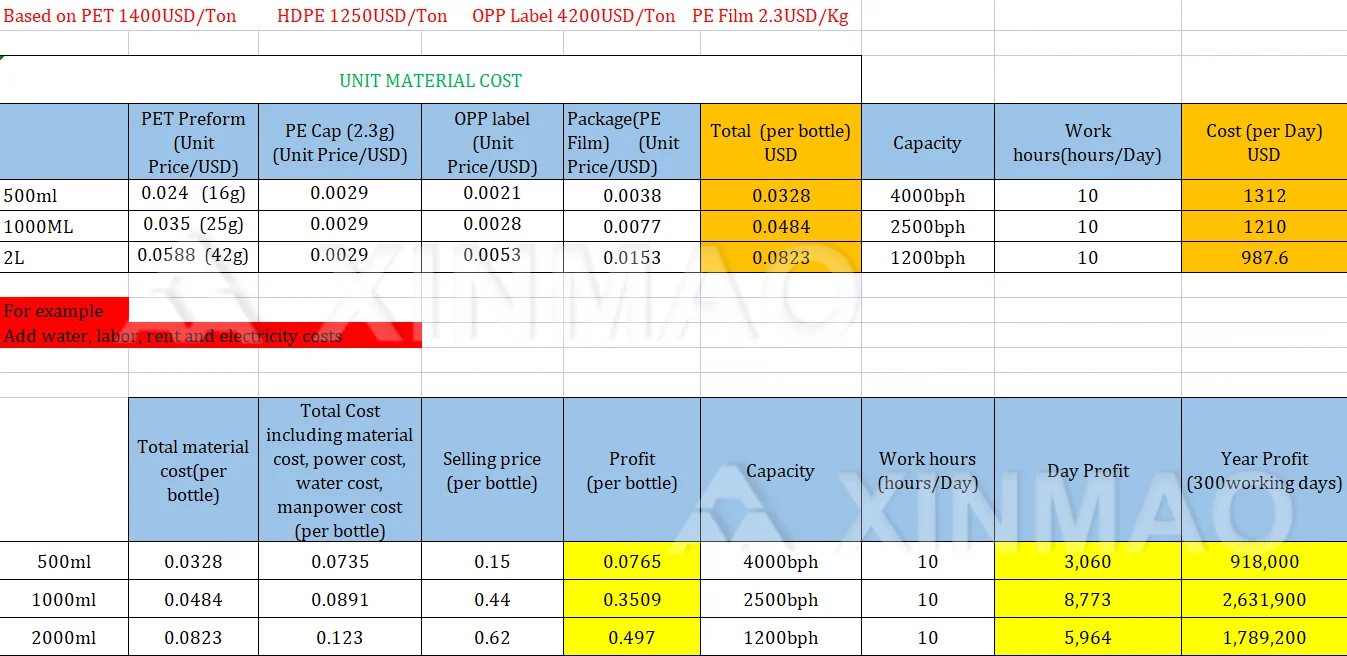

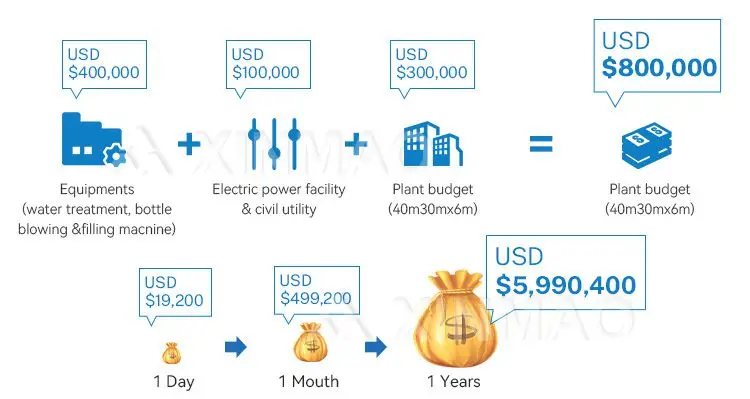

Investment Profit Analysis Form
Product introduction
Factory Cost Price Full Automatic Integrated Drinking Mineral Pure Water Bottle Filling Machine Plant
*We supply complete solution for the pure drinking mineral water PET bottle filling plant . Including : Water Filtration treatment system / PET Bottle Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system / Automatic film wrapping machine and son on.
Product introduction

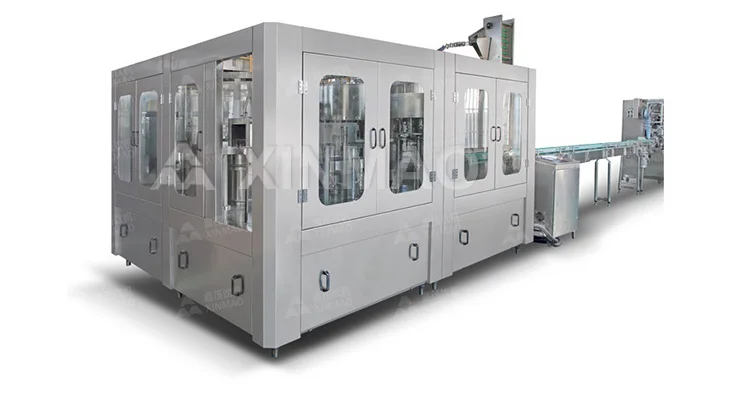

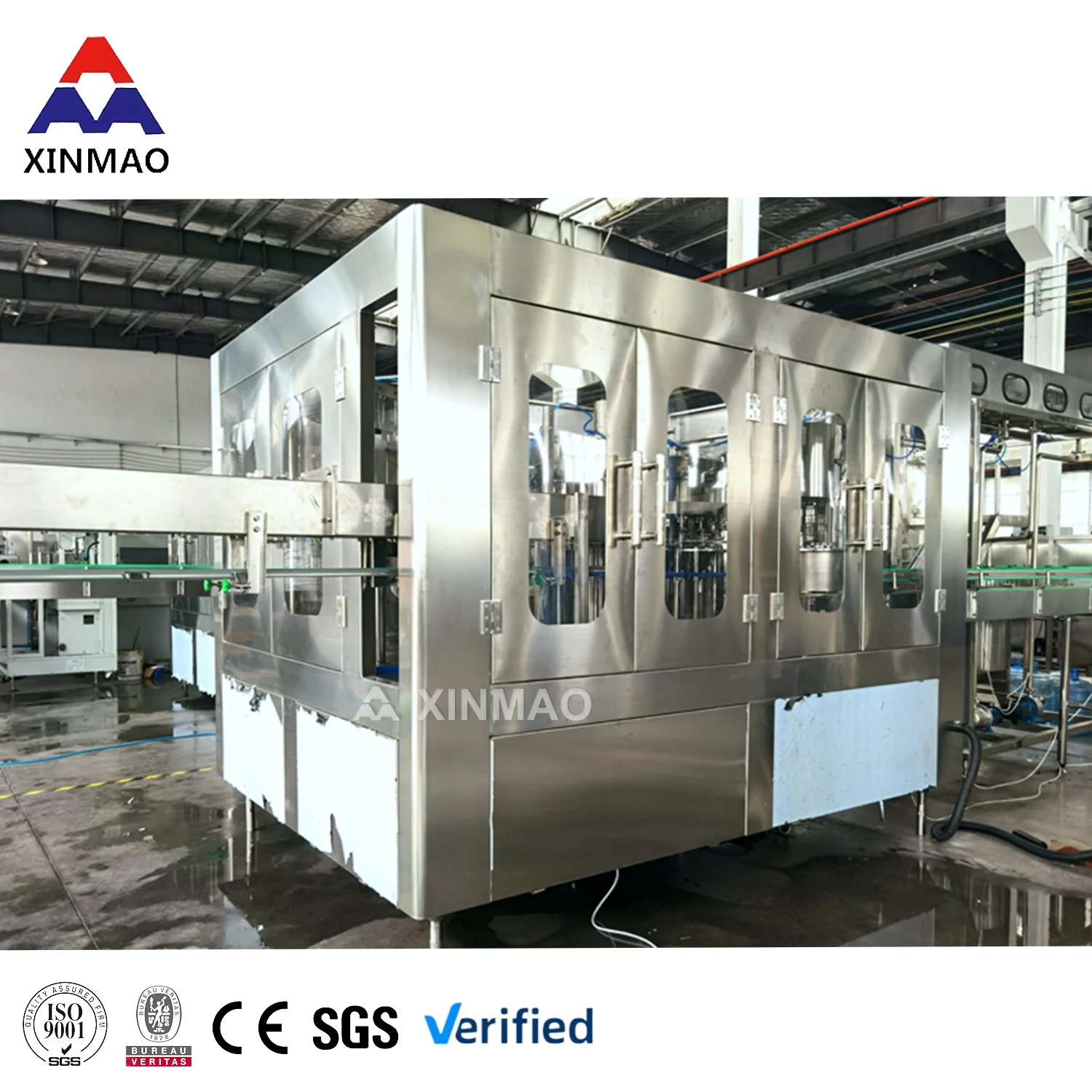

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations.
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
XINMAO Bottle line automatic water filling machine/water filling machine for sale
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
XINMAO Bottle line automatic water filling machine/water filling machine for sale
Washing Part
Function : washing bottle inside and outside dust .<1>All 304/316 Stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

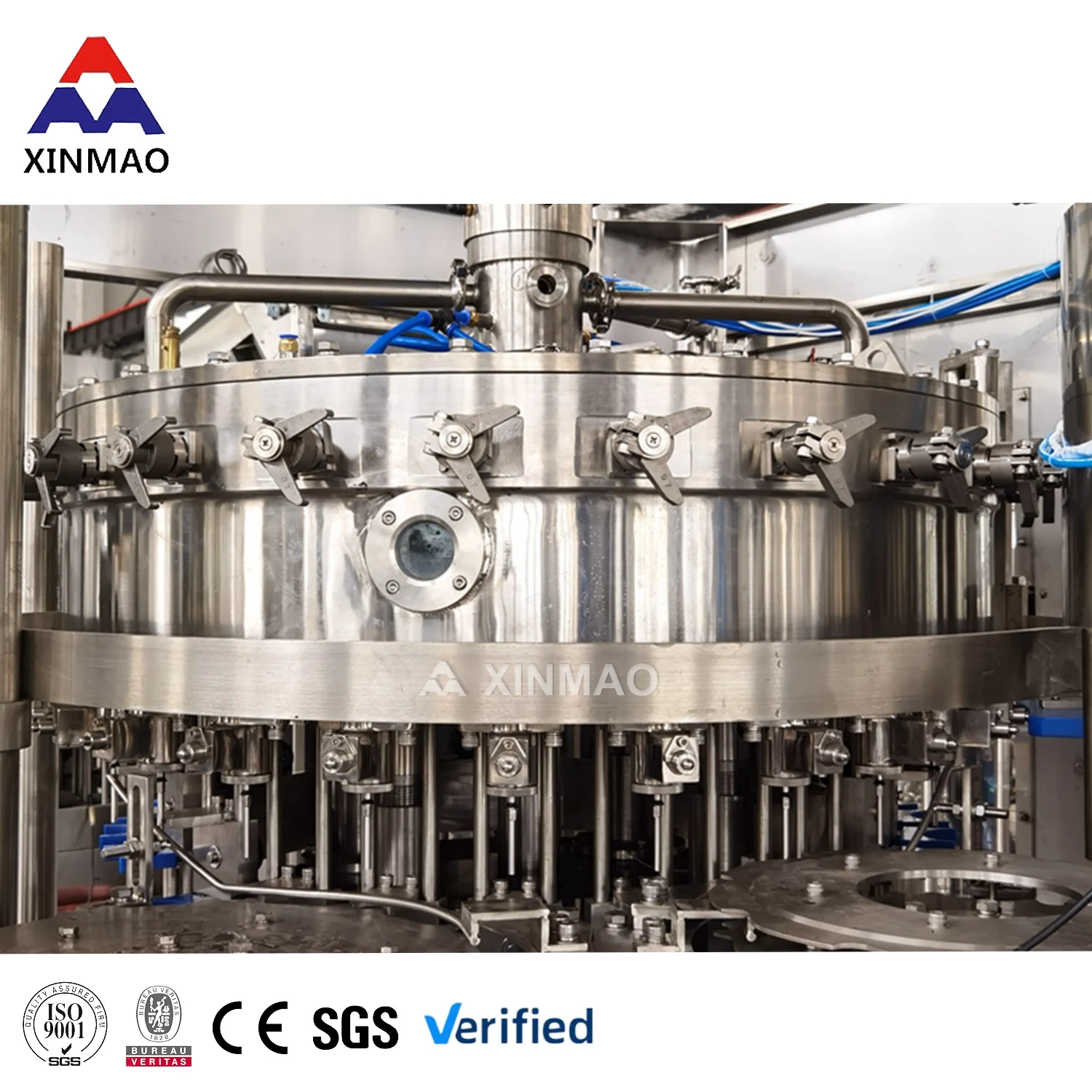

Filling Part

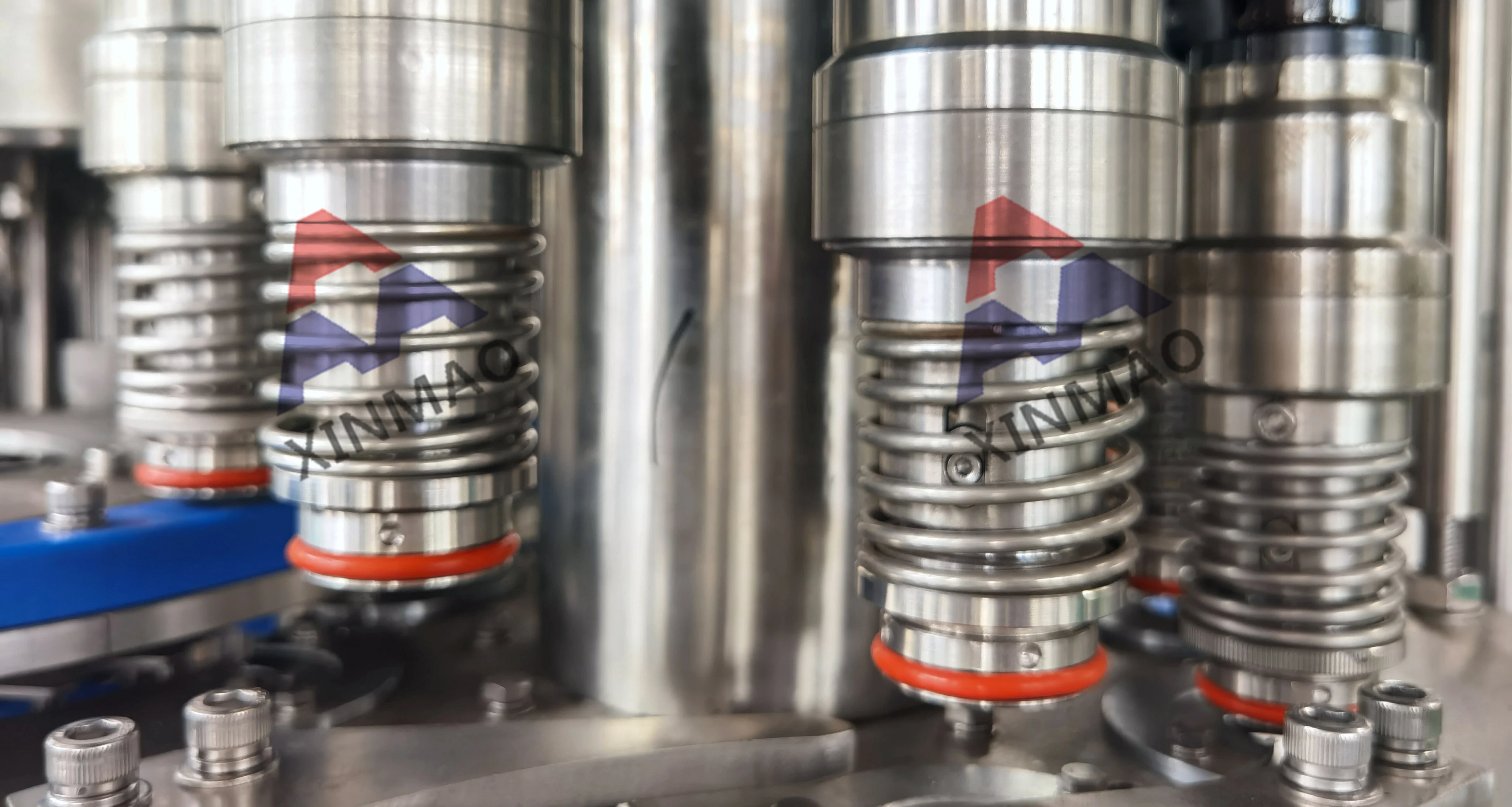

Fucntion : filling water into bottle .<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

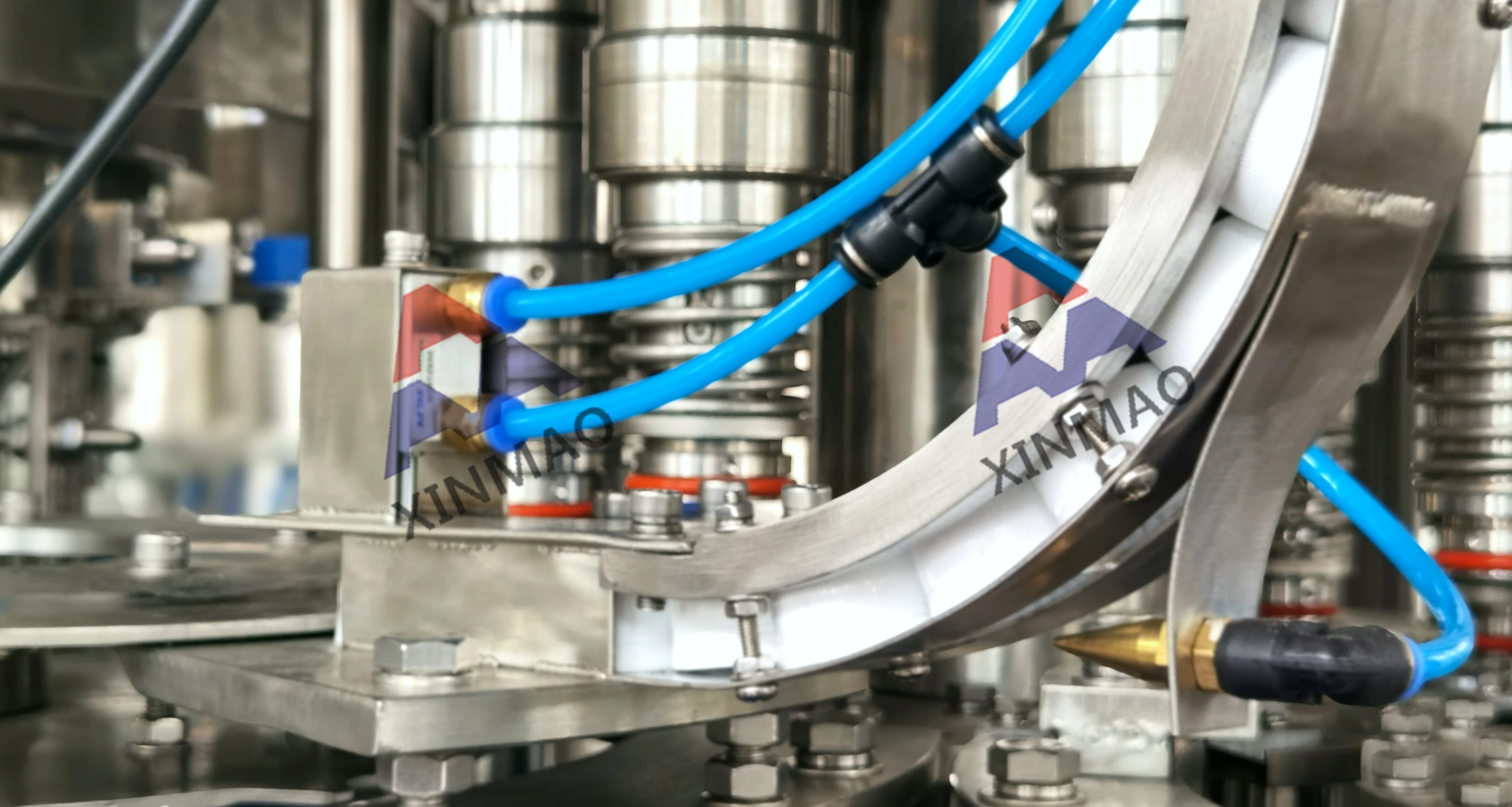

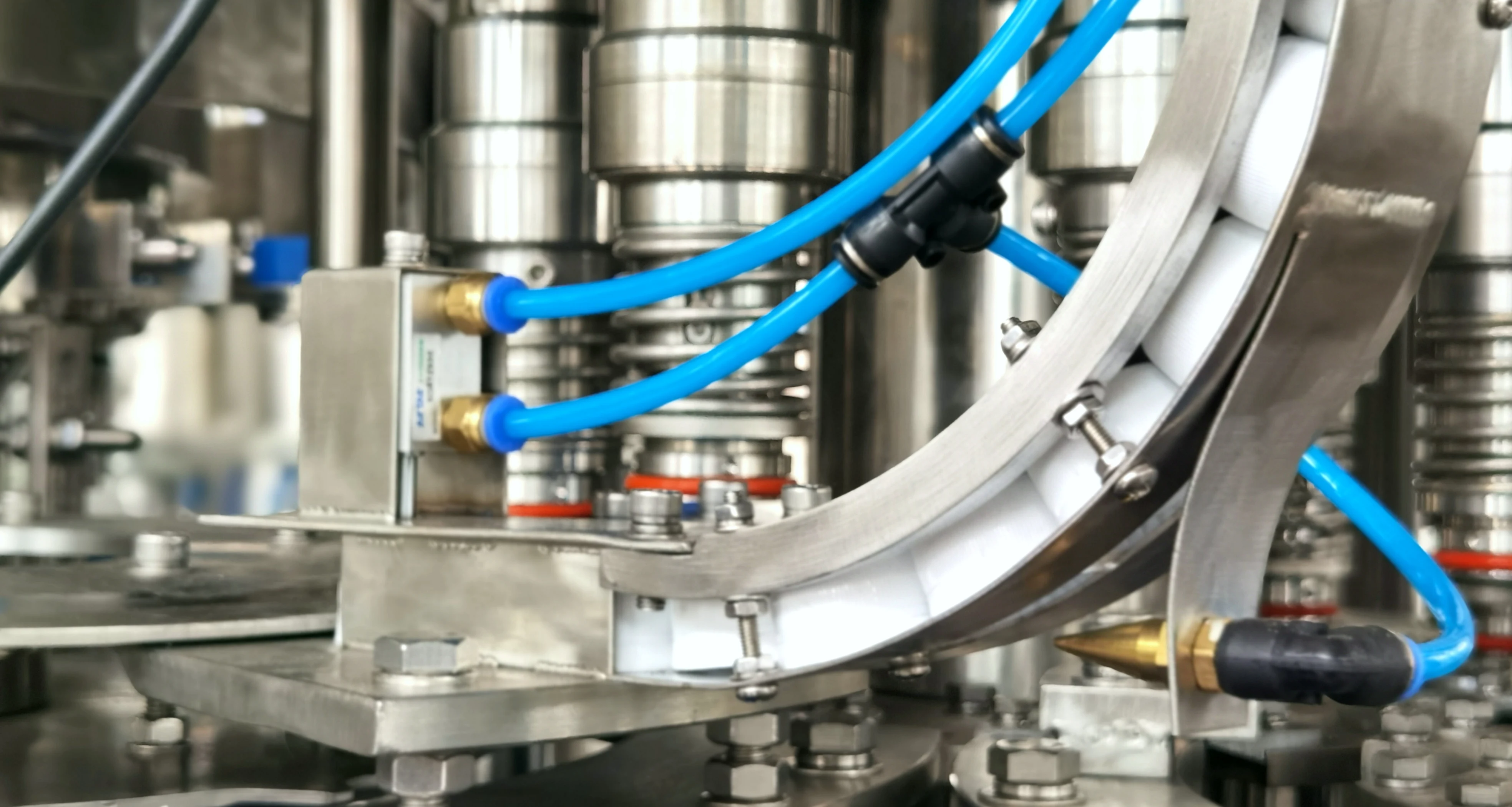

Capping Part
Function : put caps on bottle .<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash
during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Products Parameters
We supply complete solution for the pure drinking mineral water PET bottle filling plant. Including: Water Filtration treatmentsystem/PET Bottle Washing filling capping machine/Code sprayer /Automatic labeling machine/ Automatic packing machine / Automatic Palletizer system/ Automatic film wrapping machine and son on
200ml to 2L Bottle Sizes
5L & 10L Bottle Sizes
3Gallon to 5Gallon Bottle sizes
Model | CGF 8-8-3 | CGF14-12-5 | CGF16-16-5 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
Capacity (BPH) | 1000-2000 | 3000-5000 | 6000-8000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 |
Power supply | 1.5KW | 1.5 KW | 2.2 KW | 3 KW | 4 KW | 7.5 KW | 9.5 KW |
Overall dimension | 2000×1550×2650 | 2360×1770×2700 | 2760×2060×2700 | 2800×2230×2700 | 3550×2650×2700 | 4700×3320×2700 | 5900×4150×2700 |
Weight (KG) | 1100 | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 |
Water Treatment System

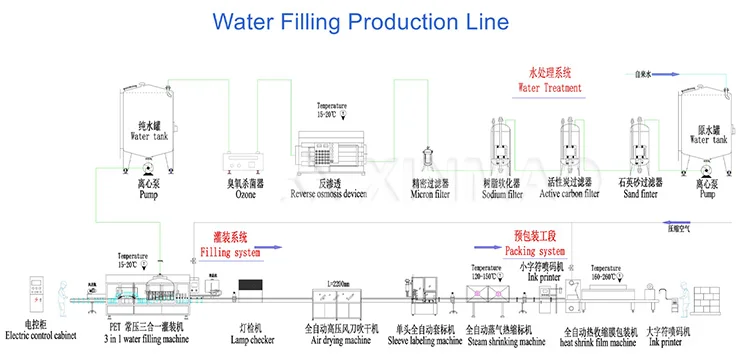

This water treatment system is made by the raw water tank through the pretreatment to reverse osmosis desalting device to get pure water. Pretreatment is by silica sand filter, activated carbon filter, sodium ion exchanger and the precision filter composition.The reverse osmosis device the core parts adopt the world famous water pump and reverse osmosis RO membrane.
Full Electric Blow Molding Machine
Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food,beverages,cosmetics,pharmaceutical industry.
Automatic PVC Shrink Labeling Machine
Application: PVC / PET / OPS label sleeve * Stainless steel Main Machine Frame / Famous electrical components
Automatic PE Film Shrink Wrapping Machine
Shrink wrapping machine is suitable for wrapping and packaging of such products as pop-top, mineral water, bottles beer, drinks etc without bottom-tray(or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing of shrink wrapping machine process adopt the Germany advanced technology. It main parts of shrink wrapping machine are imported from international famous companies, capability stable and using long-time.

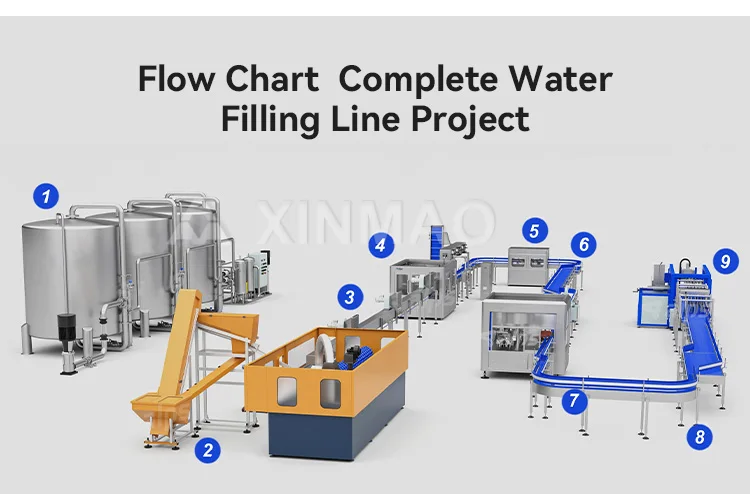

1.Water treatment system (Reverse Osmosis) 2.Automatic PET bottle blowing machine 3. Air conveyor system (Empty bottle) 4.Washingfilling capping 3in1 machine 5. Blow dryer 6. Code Sprayer 7.Automatic bottle labeling machine 8.Conveyor system (filled bottle) 9.Automatic packing machine

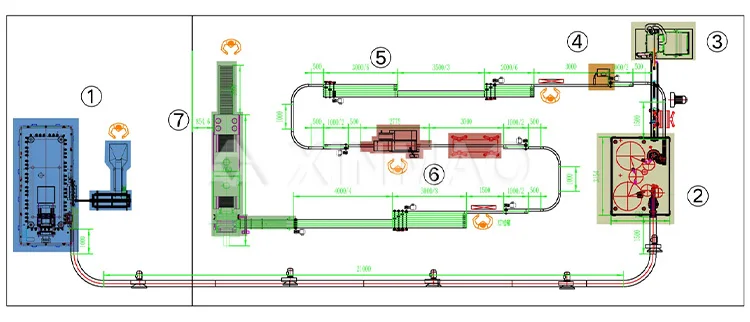

Layout Drawings Design (CAD )
1.PET Bottle Blowing Machine 2.Washing Filling Capping Machine 3.Cap elevator 4.Code sprayer 5.Conveyor System 6.Automatic labeling Machine 7. Auotmatic PE film shrink wrapping machine
Real Picture Of Customer Factory
Company Profile
About XINMAO MACHINERY
Zhangjiagang City Xinmao Drink Machinery Co.,Ltd. founded at 2005.Itd is located at Jinfeng Economic Development Zone Of
Zhangjiagang City. The company has more than 17 years of production practice experience and absorbs advanced technology at home and abroad. Our company is a professional manufacturer integrating research,development,and production of various water,juice,soda,and can beverage machinery.We are a leading enterprise in research and production of beverage filling and packing machines. we also supply turnkey project according to customers’ request, including workshop design, machine layout design, water,gas, electic cable layout design, label and bottle design.
Zhangjiagang City. The company has more than 17 years of production practice experience and absorbs advanced technology at home and abroad. Our company is a professional manufacturer integrating research,development,and production of various water,juice,soda,and can beverage machinery.We are a leading enterprise in research and production of beverage filling and packing machines. we also supply turnkey project according to customers’ request, including workshop design, machine layout design, water,gas, electic cable layout design, label and bottle design.
Factory Display
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your localmarket. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install themachines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work inyour factory as a production manager.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q How can I know the quality of your machines before I order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.
You are also very welcome to visit our company in China to see the machine running in our factory.
Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your localmarket. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install themachines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work inyour factory as a production manager.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q How can I know the quality of your machines before I order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.
You are also very welcome to visit our company in China to see the machine running in our factory.
Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
