Product Overview
Description
Product Description

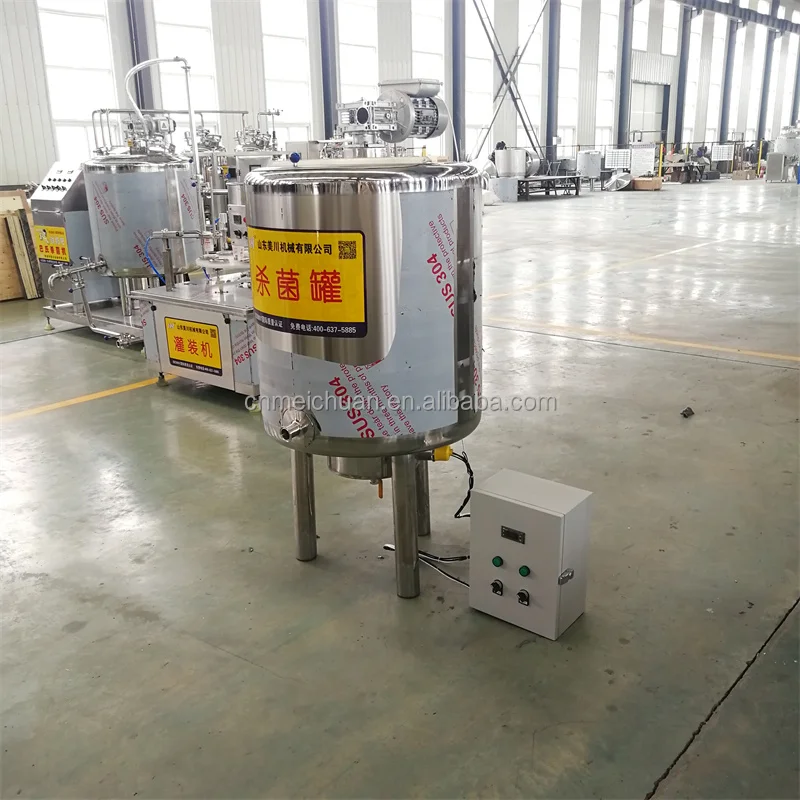

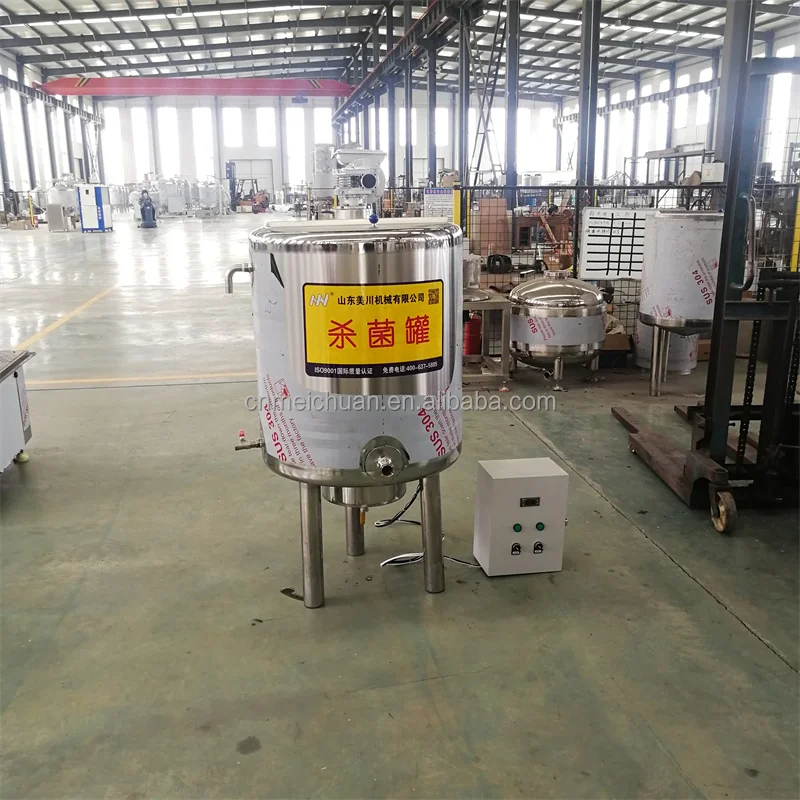

Single pot Fresh milk Pasteurizer
Product advantages:
①Our products can be customized according to customer needs.
②Our company is factory direct sales, which can provide the most favorable price.
③The product has a long service life and reliable quality.
④Our company has complete products and can provide one-stop service.
⑤Our company has strong independent research and development capabilities, and we have a patent certificate.
②Our company is factory direct sales, which can provide the most favorable price.
③The product has a long service life and reliable quality.
④Our company has complete products and can provide one-stop service.
⑤Our company has strong independent research and development capabilities, and we have a patent certificate.
Equipment parameters:
Model | MC-DG- 50/75/100/150/200 |
Capacity | 50/75/100/150/200 L/batch |
Material | SUS304 stainless steel |
Usage | Fresh milk Pasteurization |
Sterilization temperature | 60~95℃ (Adjustable) |
Sterilization time | 15s~30 min (Adjustable) |
Heating mode | Water bath heating |
Refrigeration mode | Tap water cooling |
Heating power | 220V/ 6kW, 380V/ 9/ 12kW |
Total power | 220V/ 6.5kW, 380V/ 9.5/ 12.5kW |
Weight | 50/60/800/100 kg |
Dimensions | 950*750*1000 mm |
Equipment characteristics:
①Tap water circulation to cool down.
②SUS304 stainless steel, tank bottom heating.
③The circulating water pump can be installed at the bottom of the tank to reduce the temperature difference between the upper and lower parts in the sterilization process.
④Suitable for small store and businesses without 380V power supply.
③The circulating water pump can be installed at the bottom of the tank to reduce the temperature difference between the upper and lower parts in the sterilization process.
④Suitable for small store and businesses without 380V power supply.
Pasteurization of Fresh milk:
①Low temperature sterilization. Heat the fresh milk to 75~95°C (85°C is generally selected), keep it for 15~16 seconds. The pasteurization time is short and the work efficiency is high.
②At this temperature, can kill harmful bacteria, retain beneficial bacteria, nutrients basically do not lose.
③It can not only meet the safe drinking standard, but also retain the original flavor, taste and nutrients of fresh milk to the greatest extent.
④Pasteurized milk can be stored at 2 ~ 6 ℃ for about 7 days.
②At this temperature, can kill harmful bacteria, retain beneficial bacteria, nutrients basically do not lose.
③It can not only meet the safe drinking standard, but also retain the original flavor, taste and nutrients of fresh milk to the greatest extent.
④Pasteurized milk can be stored at 2 ~ 6 ℃ for about 7 days.
Application of Pasteurizer:
Pasteurizer, also called pasteurization machine or sterilization machine, widely used to process fresh milk, yogurt, cow milk, goat milk, camel milk, juice, beverages, egg liquid and condiments. It can be used in ranch, milk bar, cold drink shop, fast food shop, central kitchen, etc.
Details Images
Milk outlet:
Milk flows from the milk outlet.

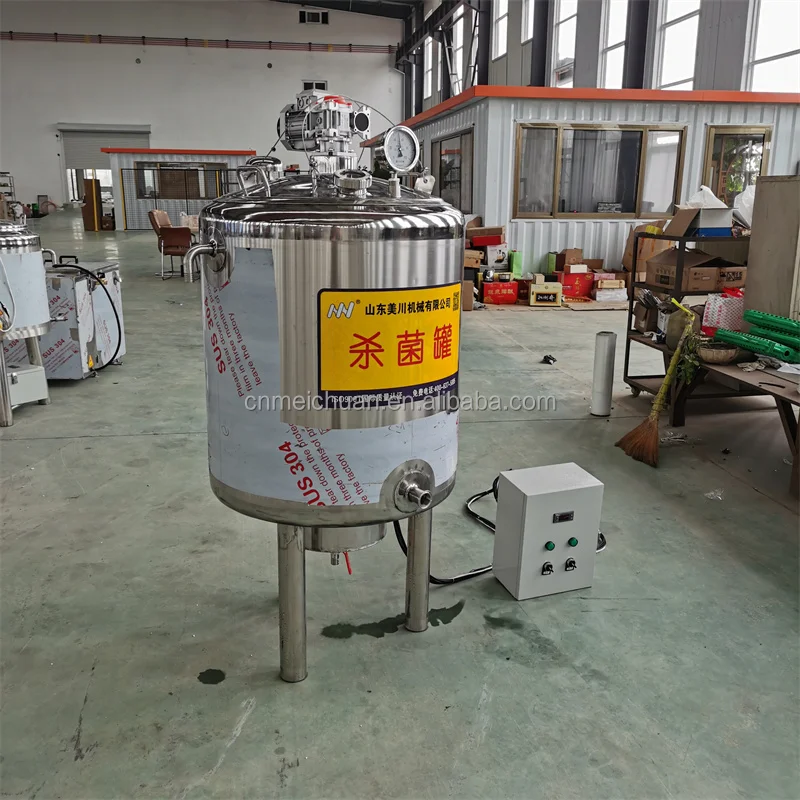

Milk thermometer:
With a thermometer, it can display the milk temperature during pasteurization.

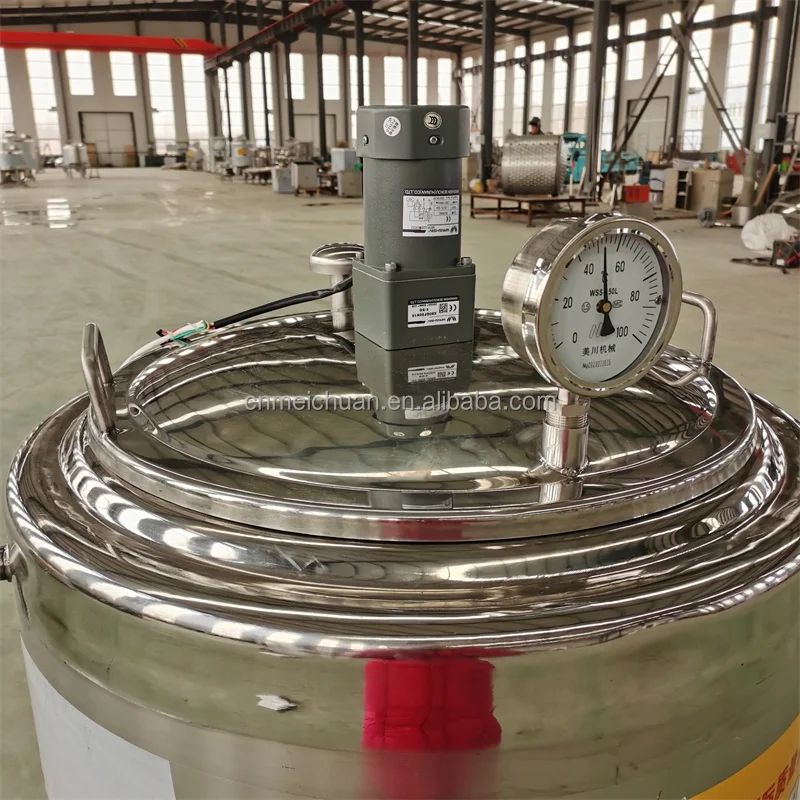

Stirring motor:
Drive the stirrer.
Milk pot:
The milk pot is divided into three layers, the outermost layer is the insulation layer, the middle layer is hot water sterilization, and the inner layer is milk.
Related Products
Packing & Delivery
We use the wooden box to pack.
Company Profile
Zhucheng Michon Machinery Co., Ltd.
Established in 2009, is a specialized company integrating research and development, production and sales, and technical services of dairy machinery and equipment. There are fresh milk pasteurizer, refrigeration pasteurizer, yogurt machine, fresh milk packaging machine and other products. We provide one-stop service, you can find a complete fresh milk or yogurt production line here!
Test report of fresh milk and yoghurt:
The test results are normal.
FAQ
1. Are you manufacturer?
Yes, we are. Welcome to visit our factory at any time. We'll meet you at the airport or the train station.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about warranty and after-sale service?
One year warranty and provide you with lifelong free equipment technical support.
After production, we will debug the machine, take photos, videos and send them to you by email or instant tools.
According to the customer requirements, we can arrange the engineer to install and train on-line or at the customer's factory.
4. How to contact you?
Contact person: Toya
Tel/ Whatsapp/ Wechat: +86 13953622675
Mail: toyamc@163.com
Company: Zhucheng Michon Machinery Co., Ltd.
Address: No.1, Caozhen Park, Industrial Avenue, Mizhou street, Zhucheng City, Weifang City, Shandong Province, China
Yes, we are. Welcome to visit our factory at any time. We'll meet you at the airport or the train station.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about warranty and after-sale service?
One year warranty and provide you with lifelong free equipment technical support.
After production, we will debug the machine, take photos, videos and send them to you by email or instant tools.
According to the customer requirements, we can arrange the engineer to install and train on-line or at the customer's factory.
4. How to contact you?
Contact person: Toya
Tel/ Whatsapp/ Wechat: +86 13953622675
Mail: toyamc@163.com
Company: Zhucheng Michon Machinery Co., Ltd.
Address: No.1, Caozhen Park, Industrial Avenue, Mizhou street, Zhucheng City, Weifang City, Shandong Province, China
Please contact me if any questions.
