Product Overview

Description



Product Description






Specification




Wing Opening Form
1, The hydraulic system is adopted to open, and the opening angle is ≤78°; the lower oil pipe of the box body is arranged on the
inner side of the two sub-frame longitudinal beams;

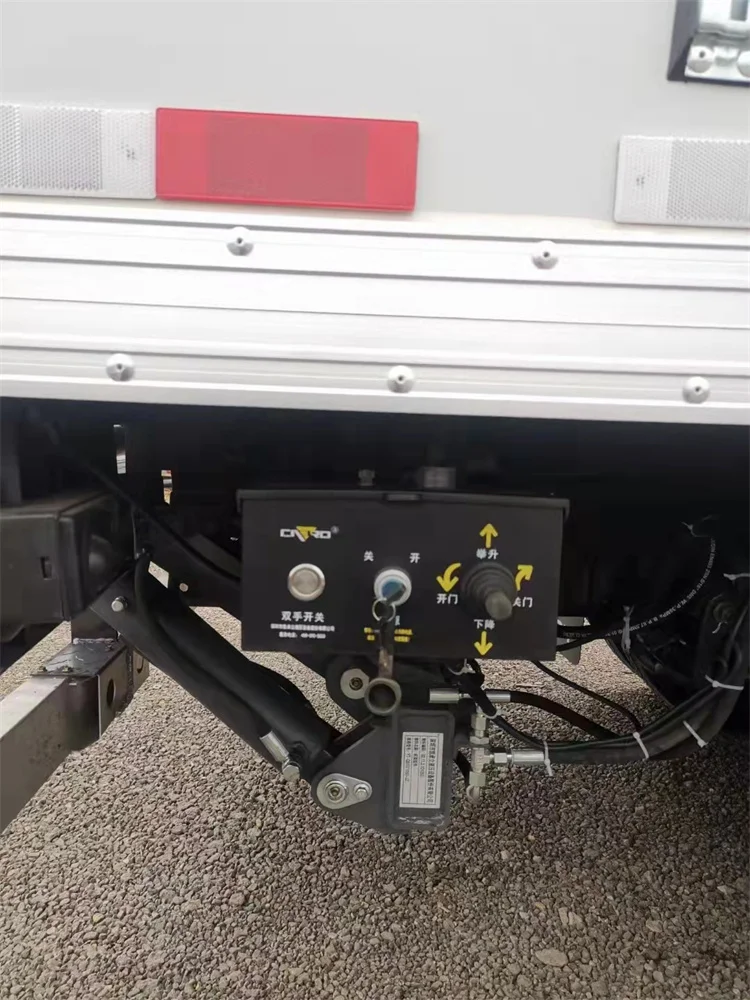

2, The operation switch is arranged under the rear part, with a box.
Wing Material
1, 0.8mm aluminum alloy corrugated sheet for outer skin + steel frame + 0.6mm galvanized sheet for inner panel; solid rivets are
used on the outside;
2, 1 additional guard plate (galvanized part) from front to back in the middle of the inner side of the wing;
3, The distance between the rivets at the lower end of the aluminum alloy corrugated plate outside the wing is 50mm
Front Plate
No outer skin, steel frame + inner plate is 1.5mm iron plate
Upper Plate
0.8mm aluminum alloy flat plate + steel frame + 5mm white waterproof plywood, the top of the center beam is rain cloth structure
Back Plate
1, Double-opening rear door: 21mm plywood, open 2700, 4 hinges on one side;
2, Locks: 4 rods (2 on each side);
3, The rear hardware is stainless steel;
Bottom Plate
1, 3mm iron checkered plate.
2, vInstall lifting rings on both sides of the bottom plate, 500mm away from the front plate, add one every 1000mm.
Lower Side Plates on Both Sides
Material
1, Aluminum alloy gusset;2, 1 additional guard plate (galvanized part) from front to back on the upper part of the inner side
Structure
Divided into two sections, the middle column is a flip structure
Height
700mm
Interior Lights
1. Number of indoor lights: 2. LED white light
2. Requirements for lamp position: Subject to design.
Related Standard Configuration
1. Side protection (aluminum alloy + vertical frame is steel frame), which can be turned outwards;
2. Rear lower protective device (steel frame);
3. Marker lights, side marker lights;
Optional Configuration
1. Paste reflective stickers;
2. Mudguard tile (2mm thick).
3. An iron tool box (with lock), size 1200*400*400mm


Company Profile








Shandong Shenghao Special Purpose Vehicle Co., Ltd. was established in 2020 and more than 78 Employees (6 professional technology R & D). It is located in Zhucheng truck production base, coastal blue economic zone of Shandong Peninsula. At present, our company is mainly engaged in the R & D, manufacturing and sales design of special vehicles, including refrigerated vehicle body, dry truck body, truck body, truck body panel, meat transport vehicle body and other types of van body you want, as well as refrigerated compartment, insulation compartment, wingspan compartment, FRP honeycomb panel compartment, logistics stowage transport vehicle, van transport vehicle, medical garbage vehicle, livestock and poultry transport vehicle, corrugated board, aluminum plate, warehouse grid compartment Hydraulic tail plate transporter, etc.
The company has advanced technology and equipment in the international industry. It adopts today's European and American classic structure and advanced refrigeration compartment plate making technology. The product quality and performance have reached the international leading level. The products sell well at home and abroad and are widely praised by customers. Such as South America, East Asia, Africa, domestic market and Central America.








Cooperative Client








Package & Transport






for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing




FAQ




1. What are your shipping terms?
Usually, we ship our truck bodies CKD (fully disassembled) or SKD (semi disassembled) by container, and assembled trucks are also
shipped by container, but in small quantities
2. Our truck is a Korean or Japanese brand, does your truck body fit it?
Of course, the general global light truck can be divided into 10ft, 11ft, 12ft, 14ft, 15ft, 16ft, 18ft according to the length of
the cargo box, and the medium truck has 20-32ft. The body can be matched with different brands of trucks just by adjusting the distance of the beam.
3. Is it difficult to install the body CKD or SKD?
Our company has ten years of truck body export experience. We can provide the easiest to assemble truck body ckd
4. Why should you buy from us instead of other suppliers?
For the past 10 years, our company has only produced truck bodies. Our more specialized truck body.
5. What are your payment terms?
T/T 30% as deposit, 70% for copy of bill of lading
6. What are your delivery terms?
EXW,FOB,CFR,CIF
7. What is your delivery time?
Usually within 10 days
8. Can it be produced according to customer requirements?
Yes, we can produce according to customer's technical drawings and specifications
