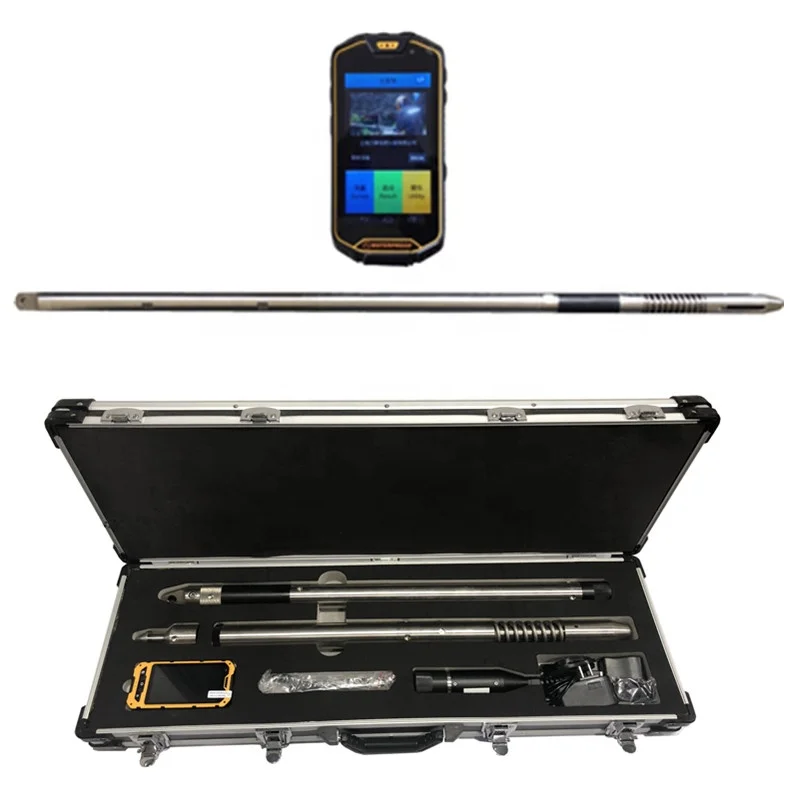

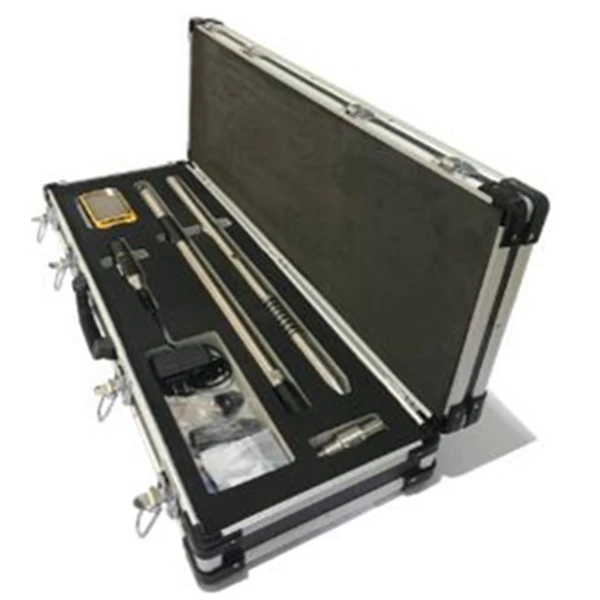

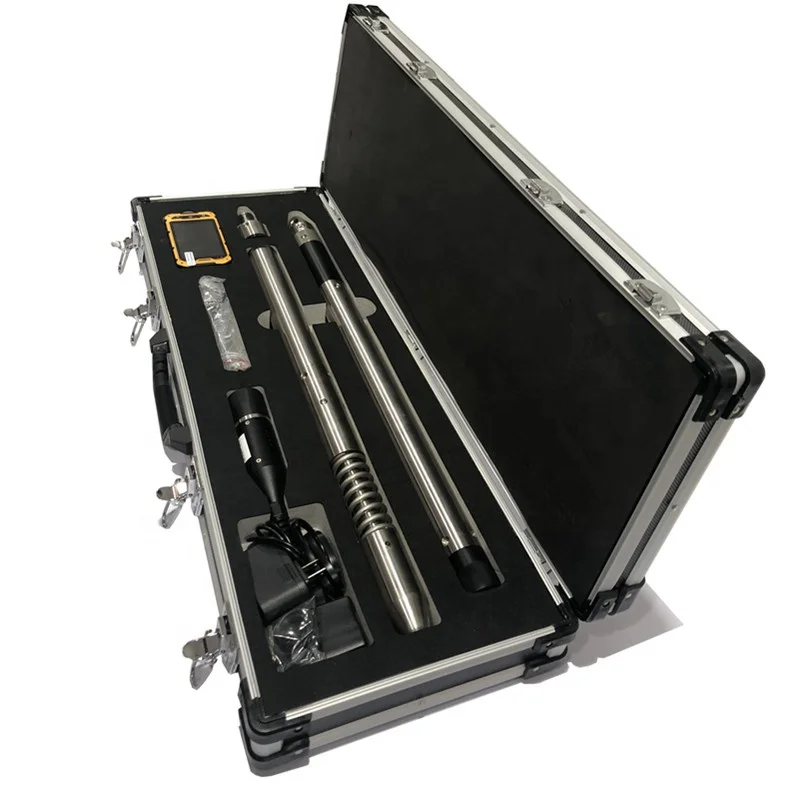

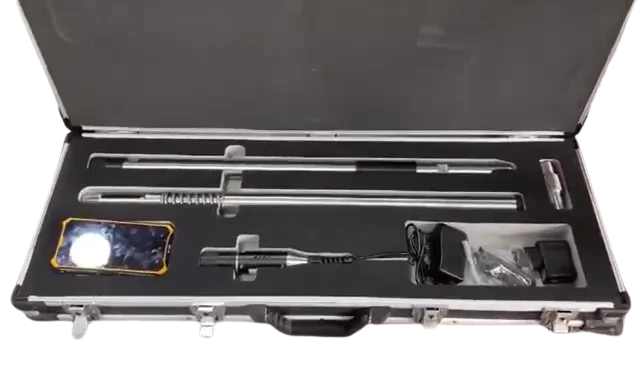

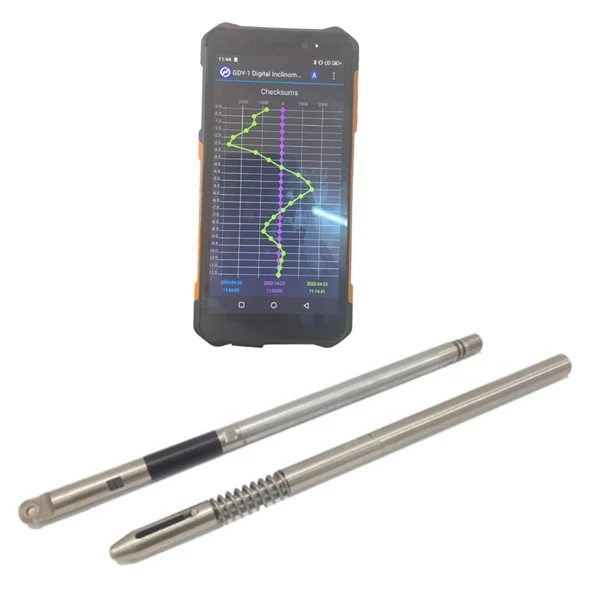

Full Direction Borehole Survey Tool Inclination And Deviation Instrument
Small diameter digital compass omnidirectional inclinometer is suitable for using in non-magnetic or weakly magnetic areas . It can be used in geology, petroleum, coal field and other industries in the drilling process to guide drilling, testing hole quality. In water conservancy construction, highway, railway, bridge, tunnel and other basic engineering drilling can also be used.
The instrument adopt modern technology sensors and digital processing technology to complete the measurement of drilling apex Angle and azimuth Angle by remote control. With high measurement accuracy, easy operation, no maintenance, reliability, wide range of applications and other significant characteristics.
Technical specification
| 1. Applicable drilling depth: vertical 1500 meters, water pressure resistance 15MPa |
| 2. Applicable drilling temperature: 0~75°C |
| 3. Applicable drilling diameter: not less than φ40mm |
| 4. Measurement parameters: apex Angle 0°~ 180°; Azimuth Angle 0 ~ 360 ° |
| 5. Azimuth measurement accuracy: 40 (60°≤ crest Angle ≤120°); Others: no more than 5°; Resolution of 0.010 |
| 6. Apex Angle measurement accuracy: +0.1° (45°≤ apex Angle ≤135°); Others: not greater than +0.3°; Resolution of 0.010 |

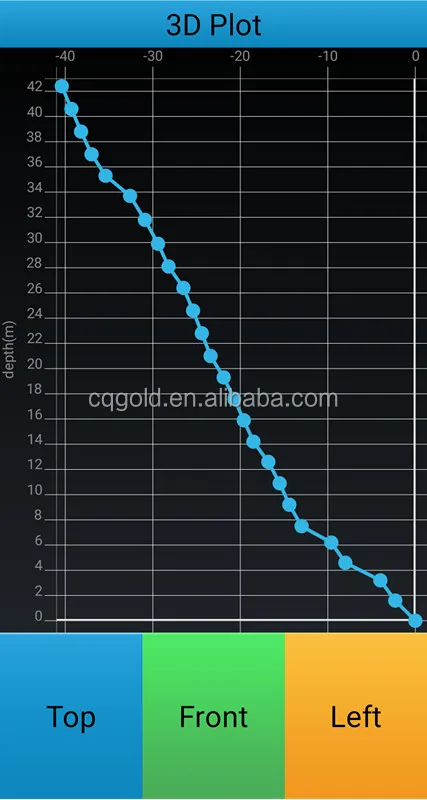

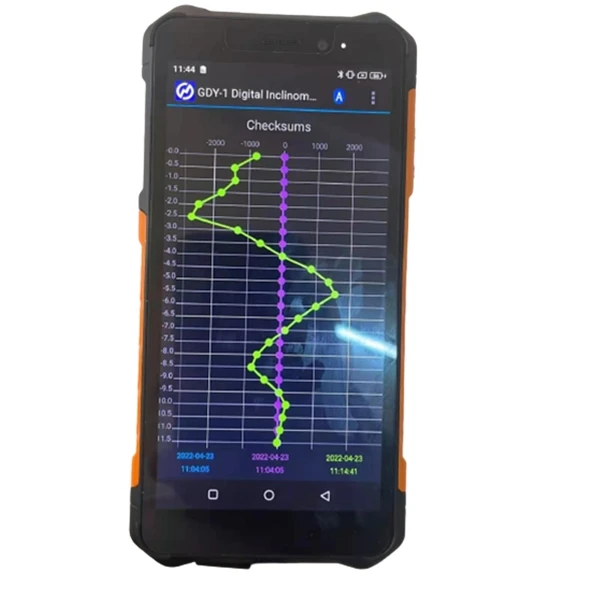

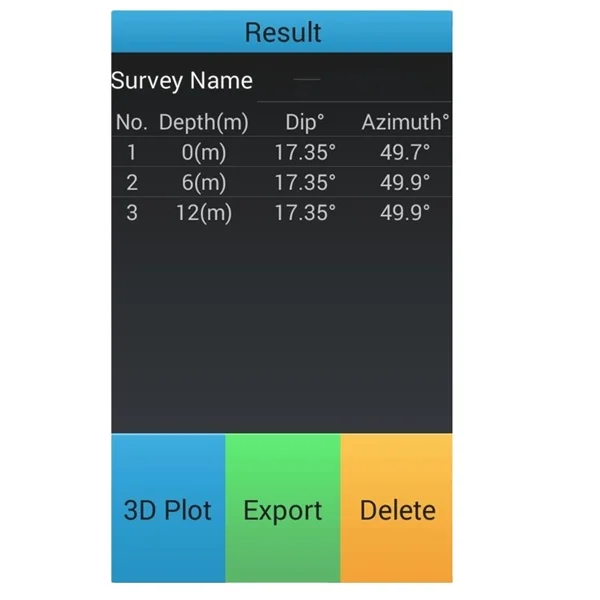

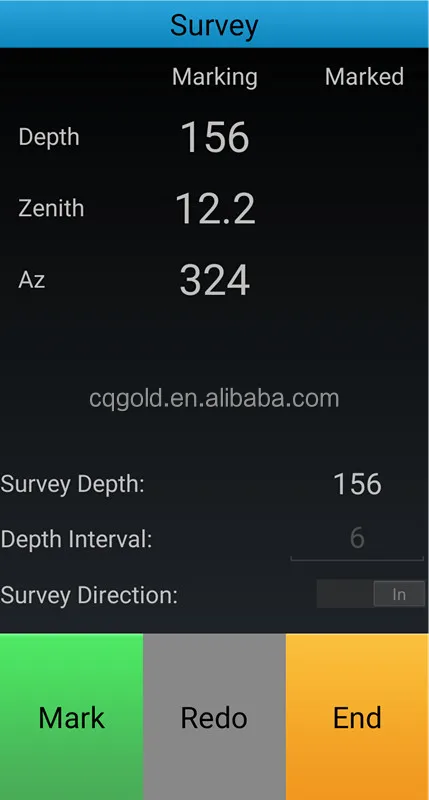

| 7. Measurement method: point measurement; Remotely measure and record inclination and azimuth by handheld. |
| 8 depth setting range: 0~9999 meters |
| 9. Number of measurable points: 1~99 |
| 10. Built-in power supply: maintenance-free rechargeable lithium battery can work continuously for more than 30 hours after sufficient |
| 11. Contour of downhole instrument: φ30x 1090mm |
| 12. Net weight of downhole instrument: less than 4kg |
| 13. Downhole instrument charger: dedicated lithium battery charger. |
