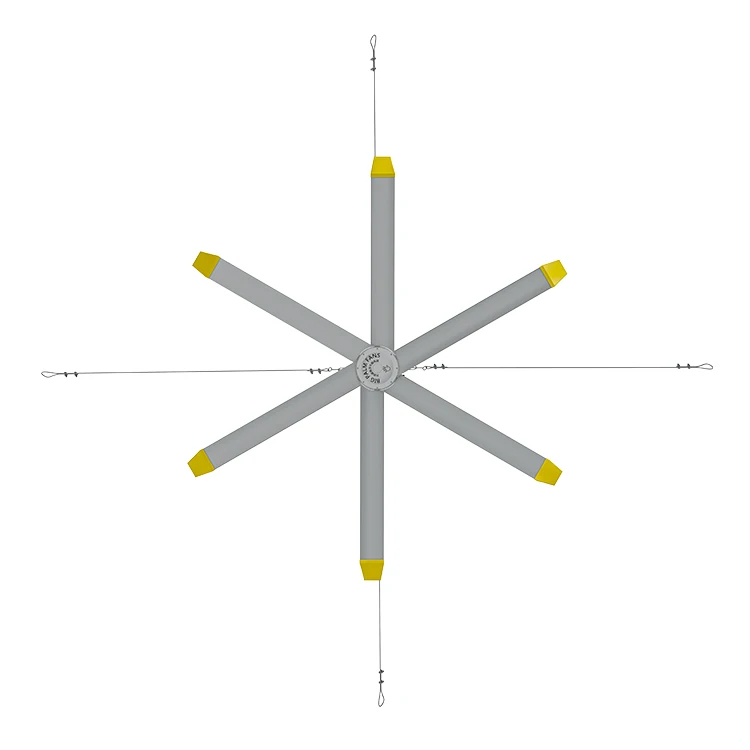

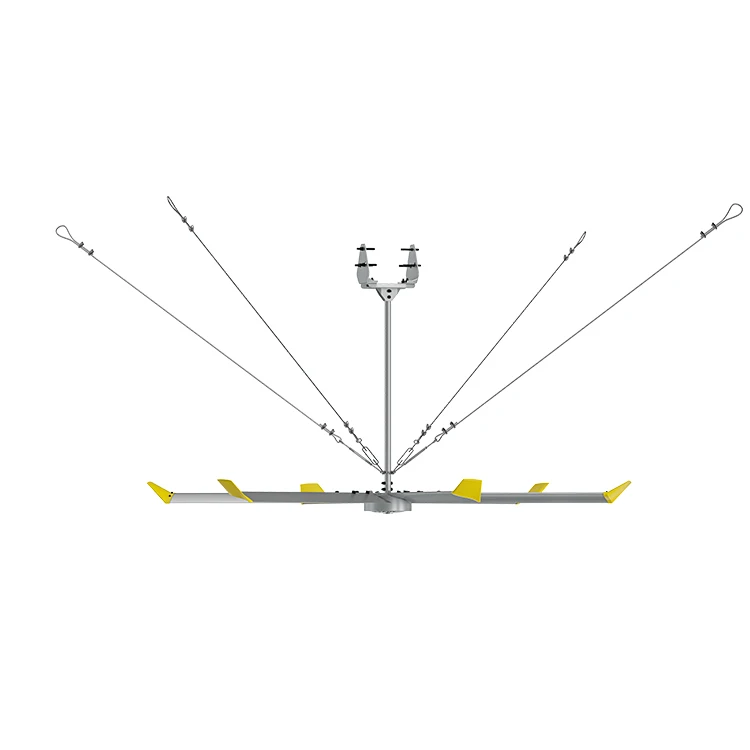

Применимо к вентиляторам с несколькими сценариями, 6 лопастный коммерческий потолочный вентилятор Hvls среднего размера 6 футов/8 футов/10 футов
- Category: Ventilation Fans >>>
- Supplier: Zhejiang Xingyan Electrical Equipment Co. Ltd.
Share on (1600535408023):
Product Overview
Description
Product Information
Model | XY-OR18 | XY-OR24 | XY-OR30 | ||
Diameter | 3M/12FT | 4.2M/14FT | 4.8M/16FT | ||
Blade Quantity | 6 | 6 | 6 | ||
Max Speed | 80RPM | 80RPM | 75RPM | ||
Air Volume | 7100m³/min | 8723m³/min | 9462m³/min | ||
Max Air Speed | 2.0m/s | 2.6m/s | 2.6m/s | ||
Max Power | 200W | 0.31KW | 0.4KW | ||
Voltage | 1P/3P 220V | ||||
Sound | ＜40db | ||||
Standard Installation Height | 4.0m | 5m | 5.5m | ||
Fan Drop Height | 40cm | 40cm | 40cm | ||
Cover Area | 240㎡-450㎡ | 300㎡-610㎡ | 370㎡-730㎡ | ||
Fan Weight | 48kg | 53KG | 90KG | ||
Motor | “EM”Magnetic Suspension Motor Technology | ||||
Controller | Wall Controller | ||||
Guarantee Period | Three Year | ||||
Product Category
Company Profile
Certificate
Exhibition

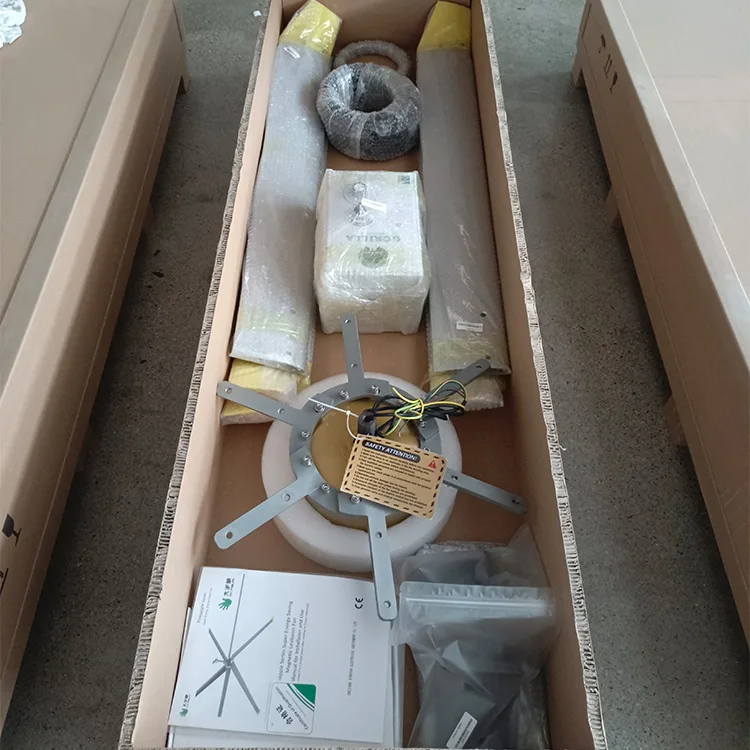

Packaging & Transportation
FAQ
Q : Are you manufacturer ?
A : Yes , we are the supplier of hvls large ceiling fan /solar ceiling fan /ceiling fan with light .
Q : What countries do you export ?
A : Our main customers in Southeast Asia / India/America ,etc...
Q : Could you send me the quotation of fans ?
A : Price is according your quantity .
Q : Do you need an agent ?
A : Of cause , we will give our best price to agent , help them to competitive with other suppliers
Q : How long is the delivery time ?
A : After receiving the payment of goods , about 30 days .
Q : How long is the warranty ?
A : we offer 3-years warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
A : Yes , we are the supplier of hvls large ceiling fan /solar ceiling fan /ceiling fan with light .
Q : What countries do you export ?
A : Our main customers in Southeast Asia / India/America ,etc...
Q : Could you send me the quotation of fans ?
A : Price is according your quantity .
Q : Do you need an agent ?
A : Of cause , we will give our best price to agent , help them to competitive with other suppliers
Q : How long is the delivery time ?
A : After receiving the payment of goods , about 30 days .
Q : How long is the warranty ?
A : we offer 3-years warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
