High Quality Monocrystalline Solar Panels 75W Solar Energy Sources 150w flexible solar panel solarfam outdoor Solar Power
- Category: >>>
- Supplier: Zhejiang Sikaimeng New Energy Co. Ltd.
Share on (1600535408263):
Product Overview
Description
Product Details
Features
Flexible High-efficiency By having a bendability up to 30 degrees, it allows the user to fit this flexible solar panel in places
that rigid panels won’t. The solar panel uses the cutting edge ETFE laminating technology, it empowers the panel to have a higher
sunlight penetration rate which can lead to higher efficiency. It is completely well waterproof and very suitable for outdoor use.
Applicable for curved surfaces of RV, boat, yachts, tent, camper van, car, trucks, trailers, etc.
Flexible High-efficiency By having a bendability up to 30 degrees, it allows the user to fit this flexible solar panel in places
that rigid panels won’t. The solar panel uses the cutting edge ETFE laminating technology, it empowers the panel to have a higher
sunlight penetration rate which can lead to higher efficiency. It is completely well waterproof and very suitable for outdoor use.
Applicable for curved surfaces of RV, boat, yachts, tent, camper van, car, trucks, trailers, etc.

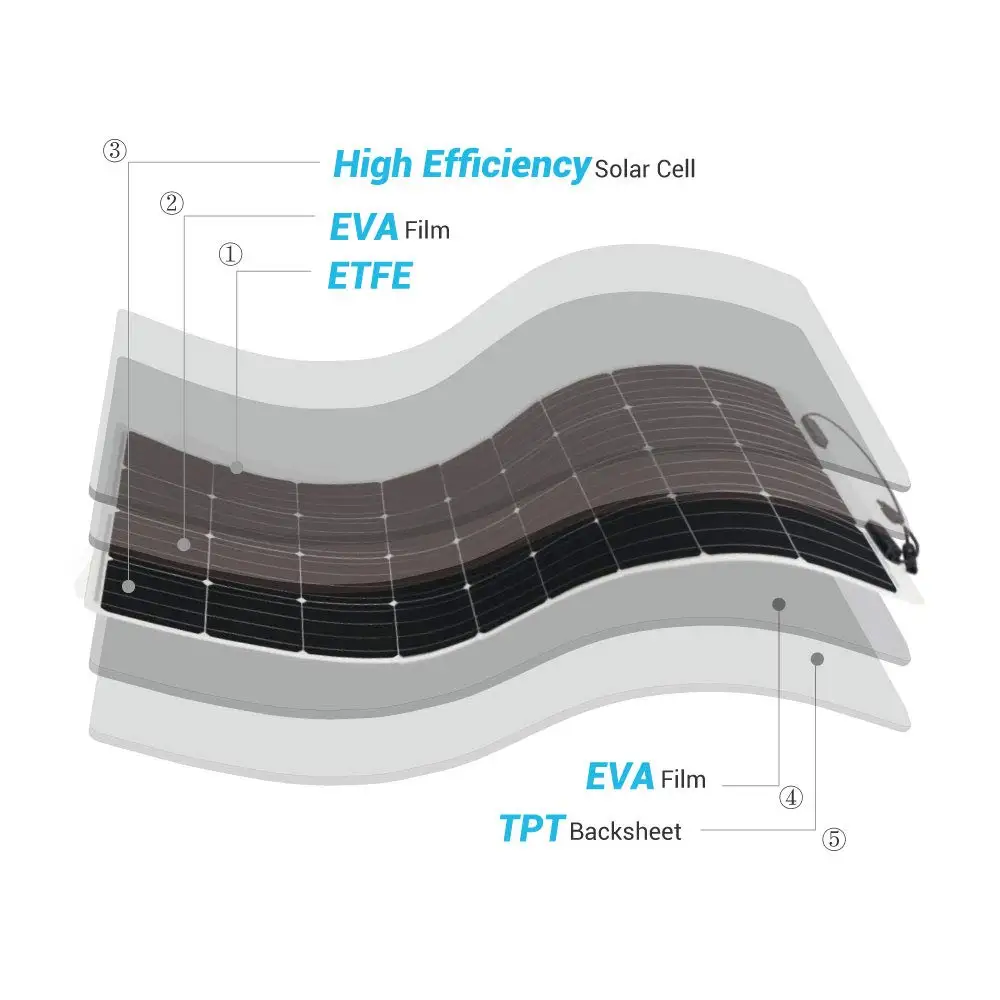

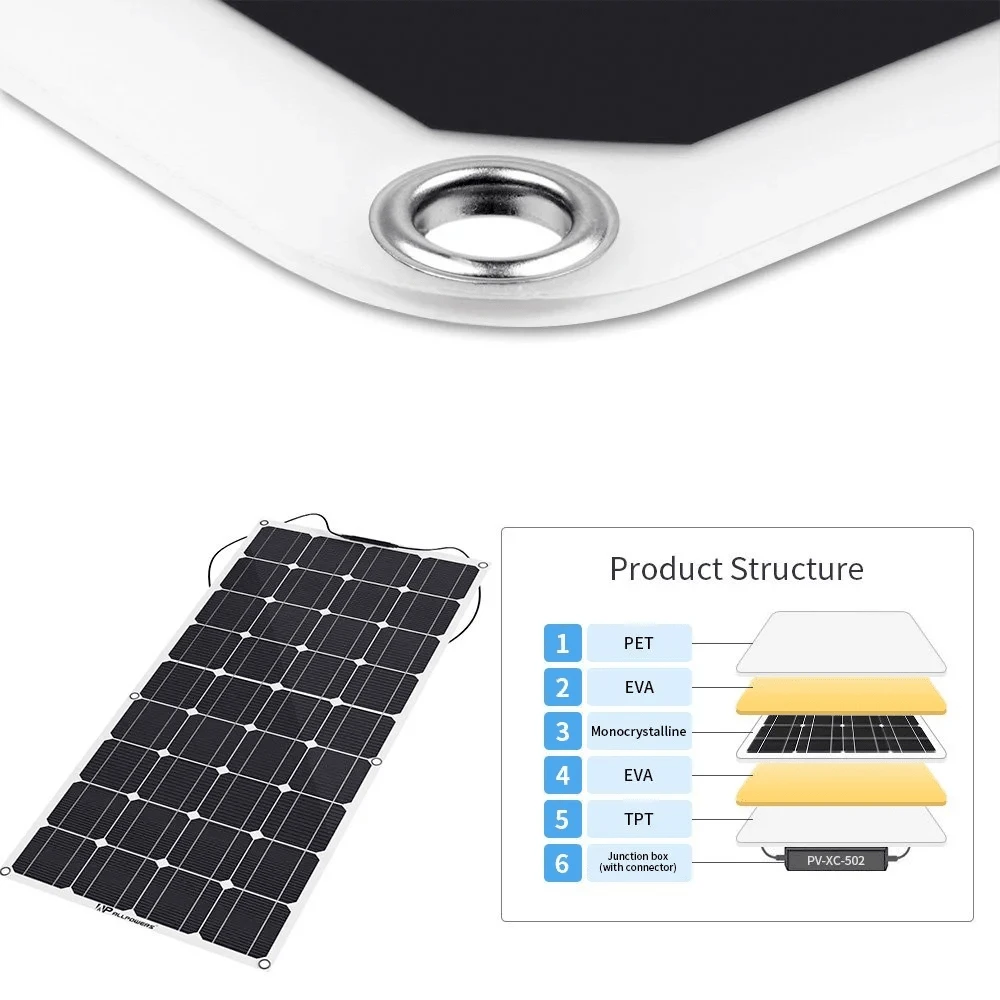

Material
PET/ETFE
EVA
Solar Cell
TPT Anti-Corrosion Frame
EVA
Solar Cell
TPT Anti-Corrosion Frame
Solar cell
Efficiency 23%

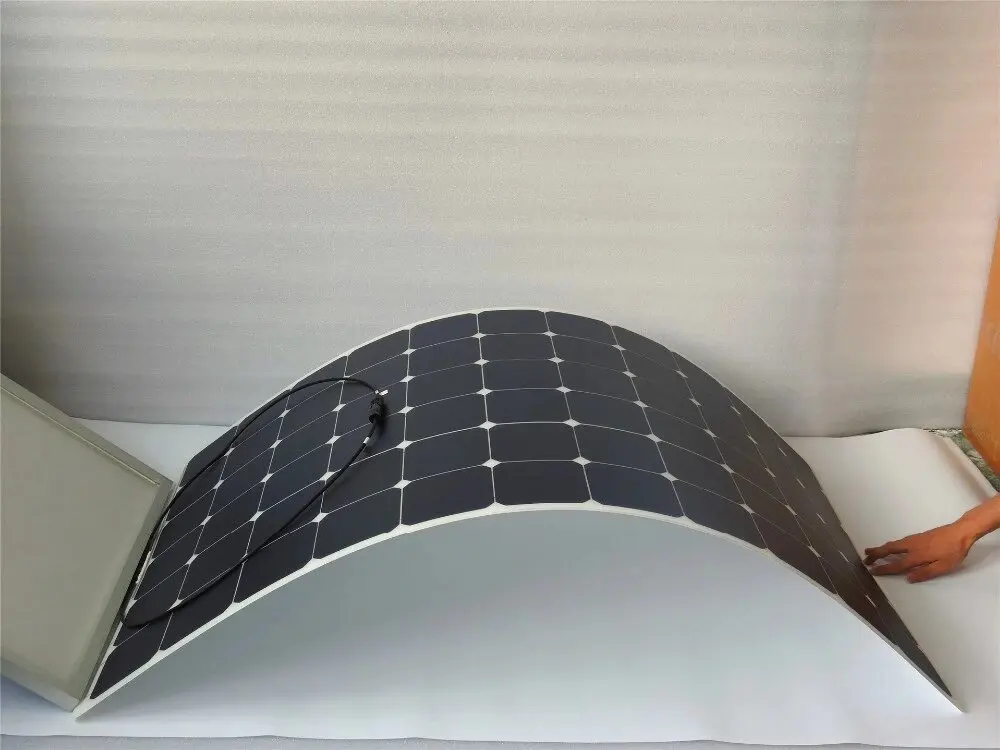

Bend 30 degrees
Efficiency 23%
Bend 30 degrees
Junction box
Welding diodes
Waterproof
Waterproof
Hanging hole
Easy installation
Connector
Standard
Maximum 10 pcs in series
Standard
Maximum 10 pcs in series
More connector (optional)
Fast Charge USB
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
Solar cell | Mono |
Power | 75W |
Size | 830*515*3mm |
Weight | 1.9kg (4.18 lbs) |
Effectiveness | 23.7% |
Maximum working voltage | 18.0V |
Maximum working current | 4.17A |
Open circuit voltage | 22.3V |
Open circuit current | 4.42A |
System voltage | 600 V |
Solar panel name | Renewable Energy Solar Power 18V 75W Flexible Solar Panels for Home |
Flexible Solar Panel Date Sheet | ||||||||||
Model | Power (w) | Voltage (v) | Material | Weight (kg) | Size (mm) | |||||
T15W-F | 15W | 18V | PET/ETFE | 0.8kg (1.76 lbs) | 380*280*3mm | |||||
T20W-F | 20W | 18V | PET/ETFE | 1.0kg (2.20 lbs) | 580*280*3mm | |||||
T30W-F | 30W | 18V | PET/ETFE | 1.0kg (2.20 lbs) | 525*345*3mm | |||||
T50W-F | 50W | 18V | PET/ETFE | 1.4kg (3.08 lbs) | 630*540*3mm | |||||
T60W-F | 60W | 18V | PET/ETFE | 1.9kg (4.19 lbs) | 1040*340*3mm | |||||
T75W-F | 75W | 18V | PET/ETFE | 1.9kg (4.18 lbs) | 830*515*3mm | |||||
T80W-F | 80W | 18V | PET/ETFE | 2.2kg (4.85 lbs) | 1000*515*3mm | |||||
T90W-F | 90W | 18V | PET/ETFE | 2.5kg (5.51 lbs) | 1050*540*3mm | |||||
T100W-F | 100W | 18V | PET/ETFE | 2.8kg (6.17 lbs) | 1180*540*3mm | |||||
T120W-F | 120W | 18V | PET/ETFE | 3.0kg (6.61lbs) | 1330*520*3mm | |||||
T150W-F | 150W | 18V | PET/ETFE | 4.3kg (9.48 lbs) | 1470*670*3mm | |||||
T180W-F | 180W | 18V | PET/ETFE | 4.3kg (9.48 lbs) | 1470*670*3mm | |||||
T200W-F | 200W | 36V | PET/ETFE | 5.6kg (12.35 lbs) | 1580*808*3mm | |||||
T250W-F | 250W | 36V | PET/ETFE | 5.6kg (12.35 lbs) | 1320*990*3mm | |||||
Application
Product Packaging
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Company Profile
Certifications
FAQ
1.Do you offer OEM/ODM service?
Yes, our factory and designer team have rich experience in offering OEM/ODM service.
2.Why we can choose you?
1)Reliable——we are the real company,we dedicate in win-win.
2)Professional——we offer the products exactly you want.
3)Factory---we have factory, so have reasonable price.
3. Can you accept sample order?
Yes,we can. Before large orders, we can provide samples for your testing.
4.What is your lead time?
1)Sample orders will be delivered from our factory within 3 working days.
2)General orders will be delivered from our factory within 15 working days.
3)Big orders will be delivered from our factory within 25 working days at most.
5. What is your payment terms?
We accept Alibaba Trade Assurance payment, T/T in advance.Then Western Union, PayPal or L/C.
6.Can you accept Trade Assurance Order?
Yes,we will be appreciated if you can place Trade Assurance order on our Alibaba
7.What is your shipment?
1)By EMS,DHL,FedEx,TNT,UPS or other express.
2)By our forwarding agent(by air or by sea).
3)By your own forwarding agent.
4)By domestic forwarding agents to any city in China.
Yes, our factory and designer team have rich experience in offering OEM/ODM service.
2.Why we can choose you?
1)Reliable——we are the real company,we dedicate in win-win.
2)Professional——we offer the products exactly you want.
3)Factory---we have factory, so have reasonable price.
3. Can you accept sample order?
Yes,we can. Before large orders, we can provide samples for your testing.
4.What is your lead time?
1)Sample orders will be delivered from our factory within 3 working days.
2)General orders will be delivered from our factory within 15 working days.
3)Big orders will be delivered from our factory within 25 working days at most.
5. What is your payment terms?
We accept Alibaba Trade Assurance payment, T/T in advance.Then Western Union, PayPal or L/C.
6.Can you accept Trade Assurance Order?
Yes,we will be appreciated if you can place Trade Assurance order on our Alibaba
7.What is your shipment?
1)By EMS,DHL,FedEx,TNT,UPS or other express.
2)By our forwarding agent(by air or by sea).
3)By your own forwarding agent.
4)By domestic forwarding agents to any city in China.
