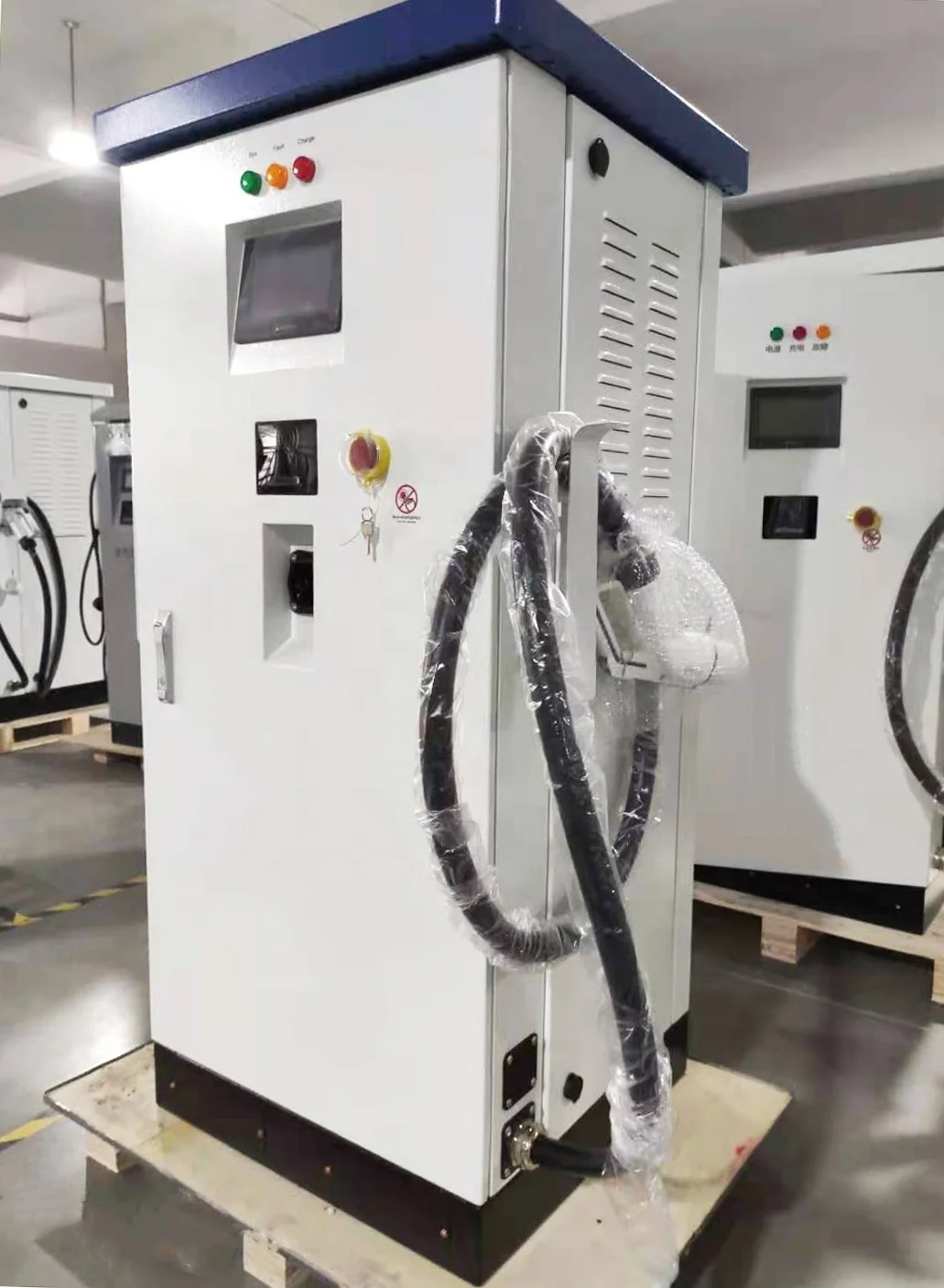

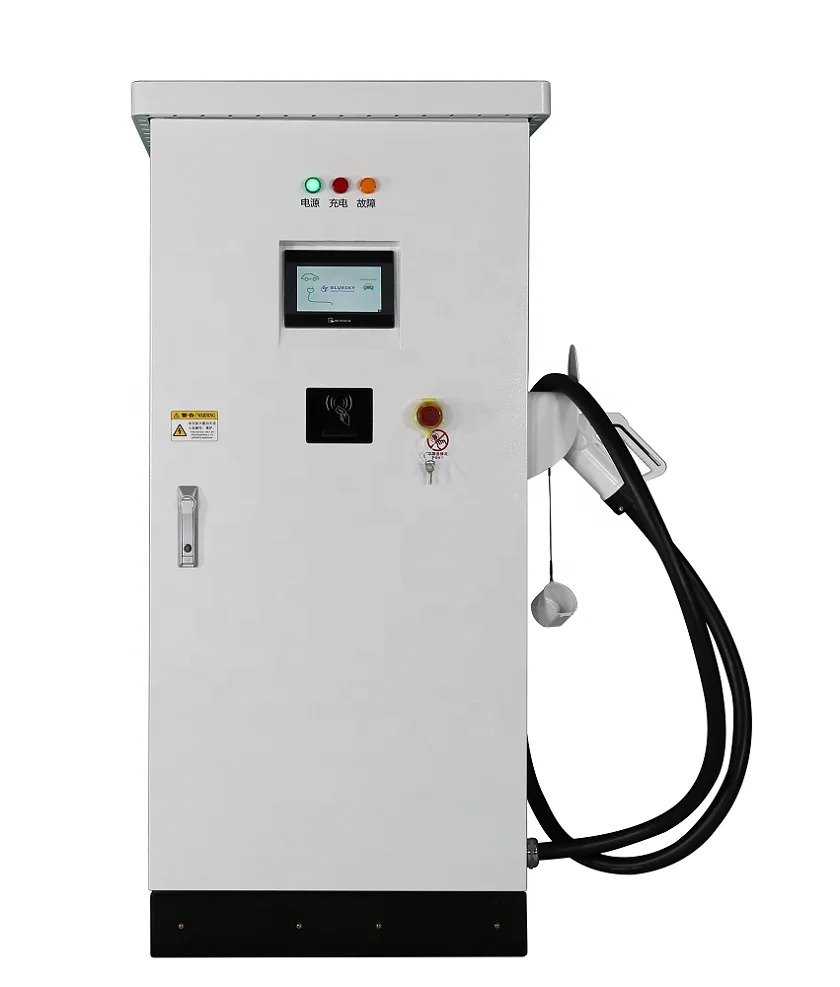

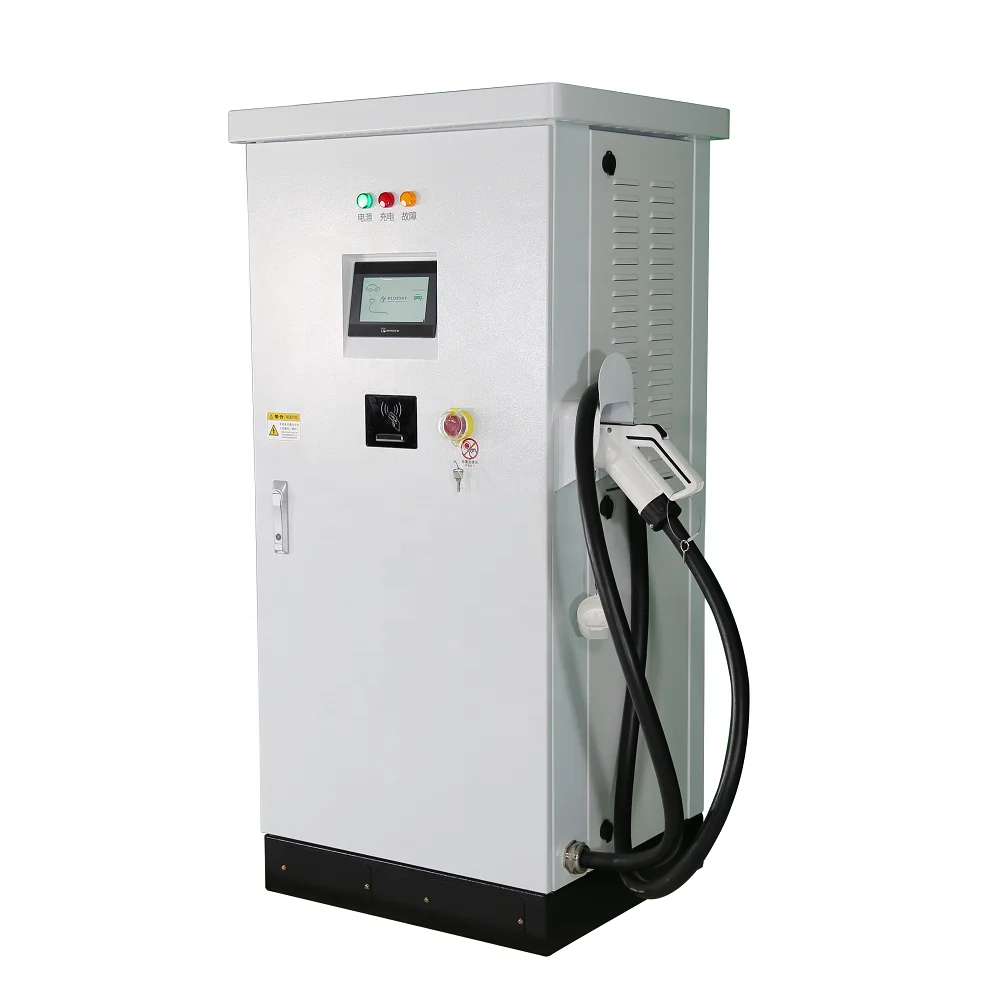

  • Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun
Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun

Bluesky Tuv Ce Certificated 90kw Dc Ev Charger Station Ccs 1 Or Ccs 2 Ocpp 1.6j Dc Ev Charger With Charging Gun

Share on (1600535410170):


Price:$6,900.00 - $7,900.00

Quantity:


Product Overview

Description









AC Input
Input frequency
50Hz/60Hz
Input voltage
400Vac±10%
Power factor
>0.99
Overall efficiency
95%
DC Output
Output voltage
200-500Vac
200-500Vac
200-750Vac
200-750Vac
Max current
150A
200A
200A
200A
Output power
30/60KW
80KW
100KW
120KW
Output mode
DC outputs(Mode-4)
Output interface
CCS 1 / CCS 2 / CHAdeMO / GB/T
Number of Outputs
single charging gun
General
Network connection
Ethernet/No/4G
Communication Protocol
OCPP1.6 / No
LCD Display
7 inch TFT Color screen
Language
English
RFID
Yes/No
RCD Type
Type A/Type B

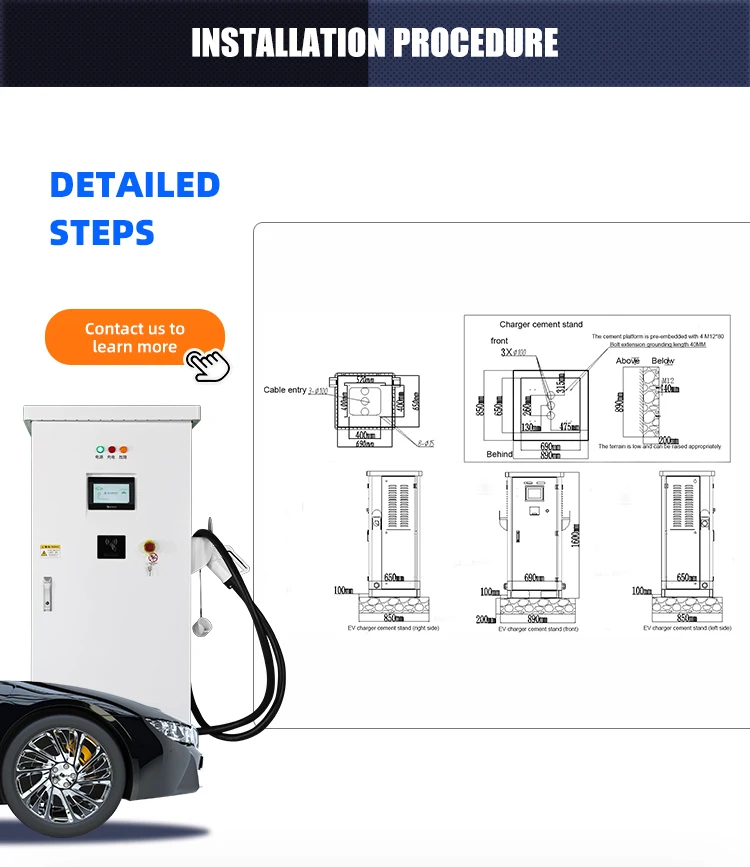

Installation method
floor-mounted
Dimension(W/H/D)
900*720*1600
Weight
250KG
Certificate
CE,TUV,ISO,IP54,IK10
Environment
Cooling
Air cooling
Applicable Scene
Indoor/Outdoor
Operating temperature
-35℃~+60℃(-35℃~-20℃,heating required)
Storage temperature
-40℃~+70℃
Operating humidity
≤95% non-condensing
Acoustic noise
＜55dB
Maximum altitude
Up to 1000m














We have rich experiences in EV Charging field. Thanks to cooperation with many clients from different continents and countries, We have customized lots of products for many clients. Thus we know how to provide more suitable products and solutions according to different regions. We are totally ready to provide our customers with timely, effective and full of care service to help them solve most of the EV Charging issues.



FACTORY

We are cooperating with customers from Belgium, installed in the parking area outside their own factory not only to provide charging benefits for their employees, but also to provide a charging place for electric vehicles on the market.



SMART COMMUNITY

Cooperate with property companies in several smart communities. Install Ac charging stations in parking lots on the ground and underground. When the owner returns home at night the elec tric car can be charged. by the next morning the car will be fully charged.



New energy cars 4S shop

The client is a new energy company, located in the bustling city center, mainly selling new energy electric vehicles. Our cooperation project is a 720KW charging stack, which allows customers to experience the charging function while also doing open charging opera tions.



MALL

We cooperate with a mall owner. the project is to build a DC charging station, which can attract more customers with electric vehicles to shop in the mall. And customers who own electric cars will not have low purchasing power.



WORKPLACE

Customers are owners of some compa-nies. Install AC EV charger to provide benefits for employees. This method has the effect of attracting and retaining talents. Research shows that people who buy electric cars are usually highly educated, making them the most ideal employees.
