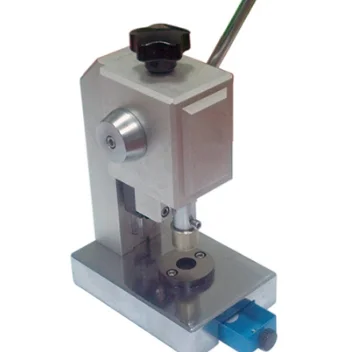

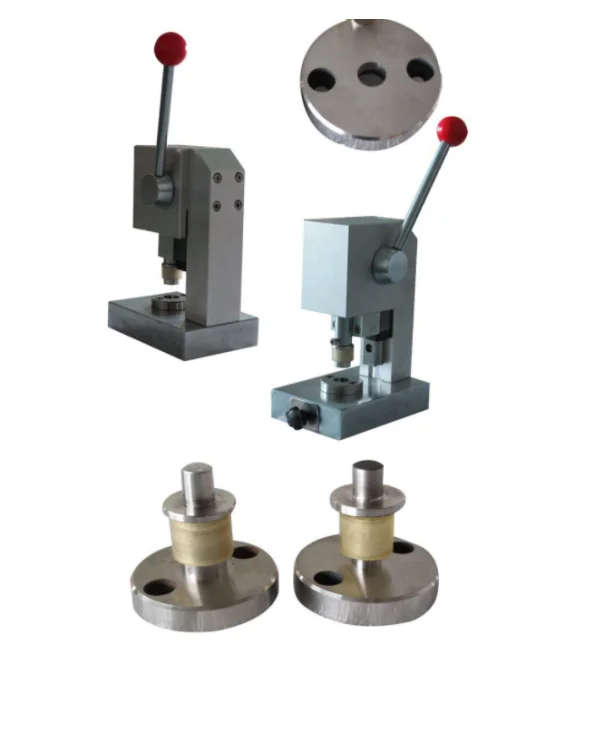

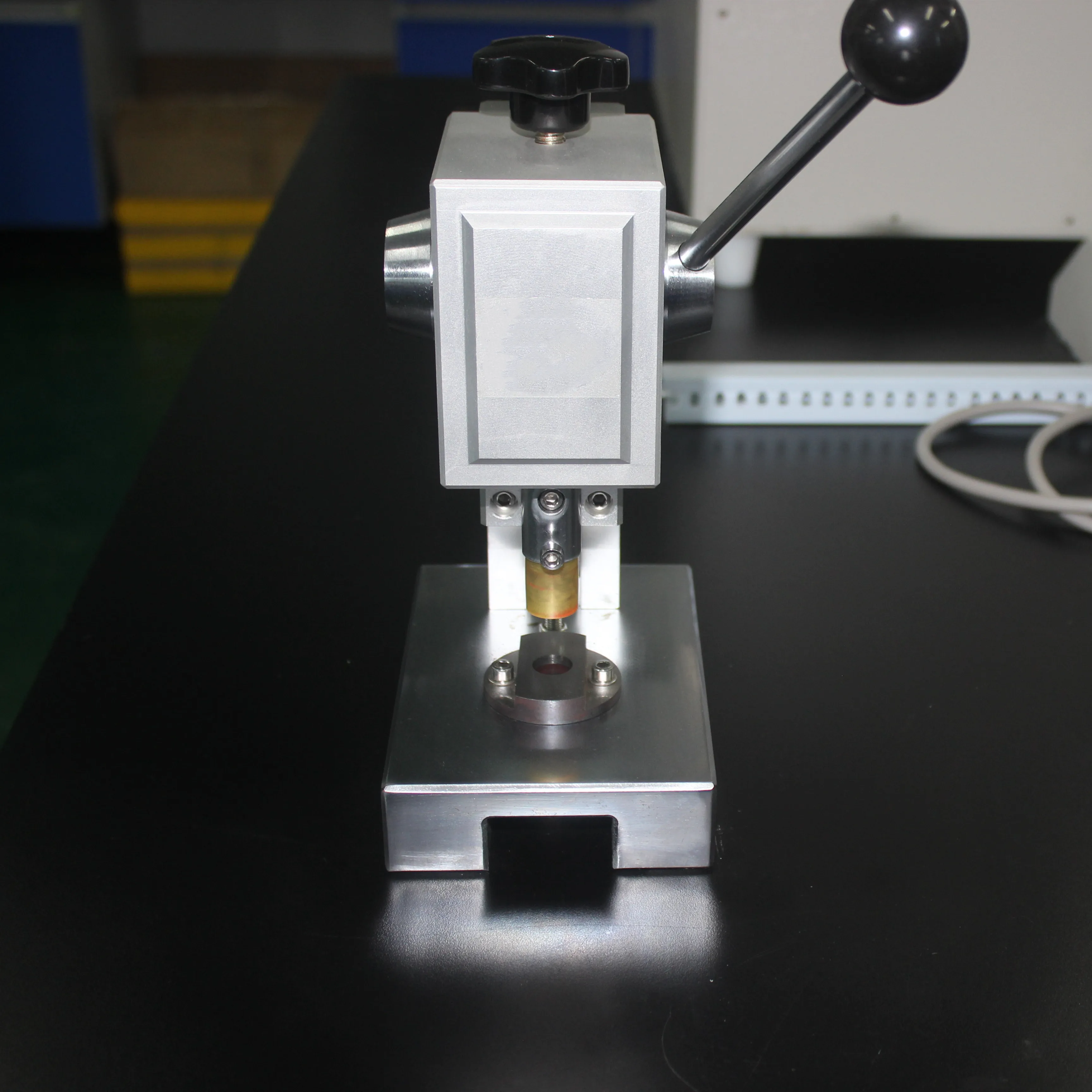

Button Cell Punching Coin Cell Crimper And Disc Cutter for Electrode Press and Separator

Structure

Major structural material: Cr Plated Steel

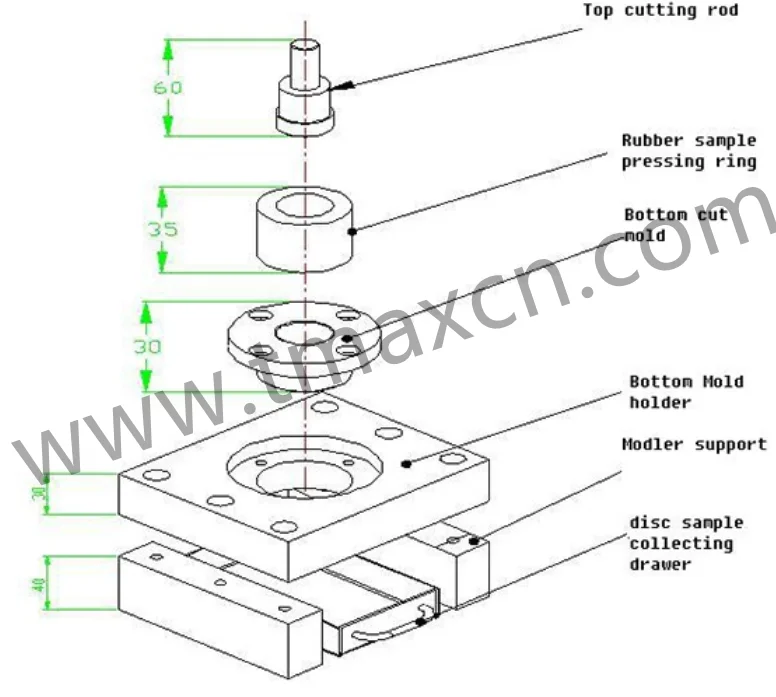

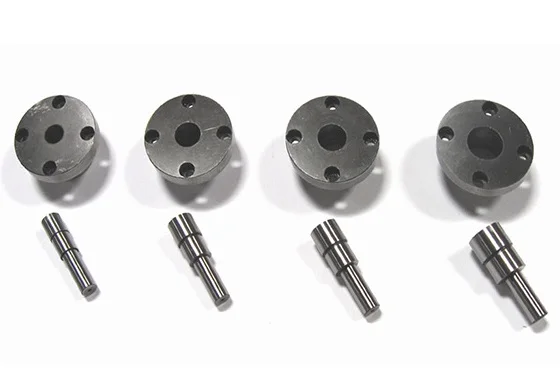

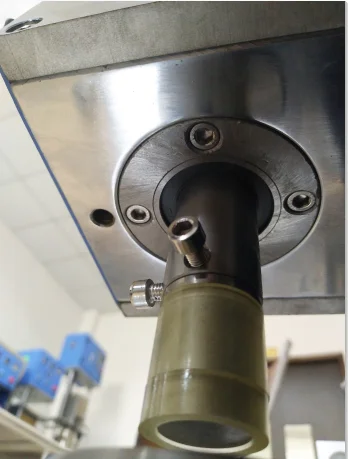

Cutting Die

Optional 3 - 24mm customized dies are available upon request

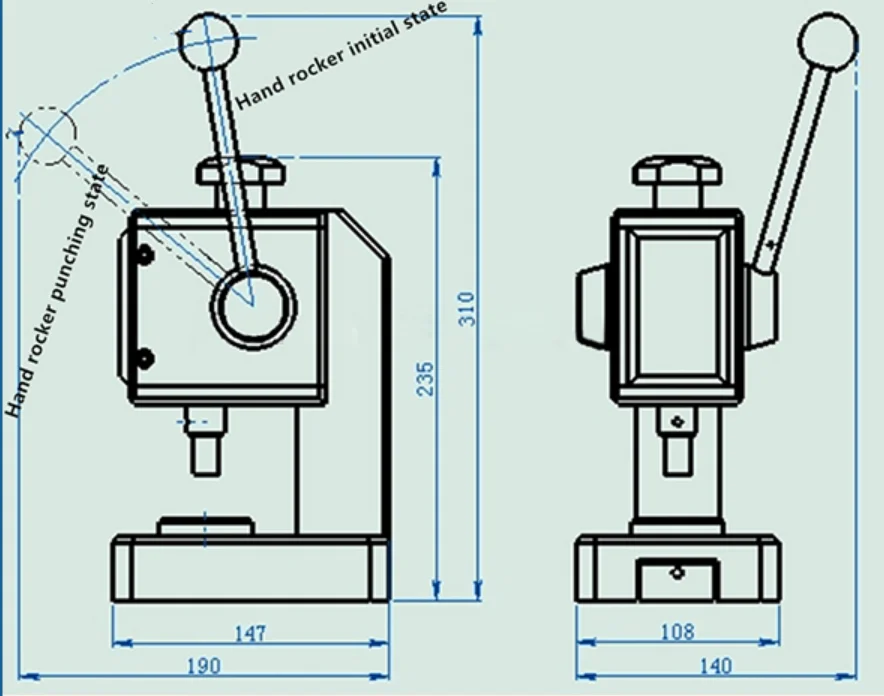

Product Dimensions

L110×W150×H235mm

Compact size which can be put into glovebox through air lock chamber

Warranty

One year limited manufacturer warranty with lifetime support.

Application Notes

1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:
    16mm (for negative side case, which is 16.5mm in diameter).
    19mm (for positive side case, which is 20mm in diameter).
    20 mm (for separator to fully separate the electrodes in both negative and positive cases).

2. For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die).

3. Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells
4. Warning: You must pay great attention to install die or change die from one size to another. The tolerance of precision die is very little. Please contact us if you have any question.

Compliance

CE Certified

Net Weight

6 kg
