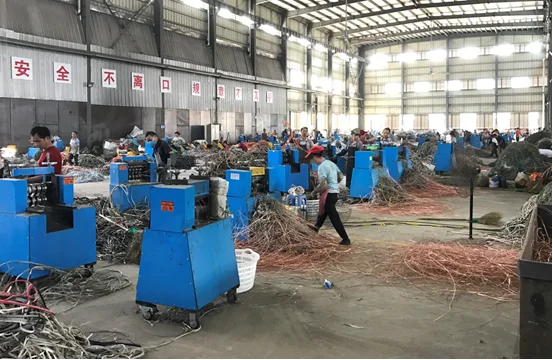

How to recycle the copper and PVC from waste wire and cable?

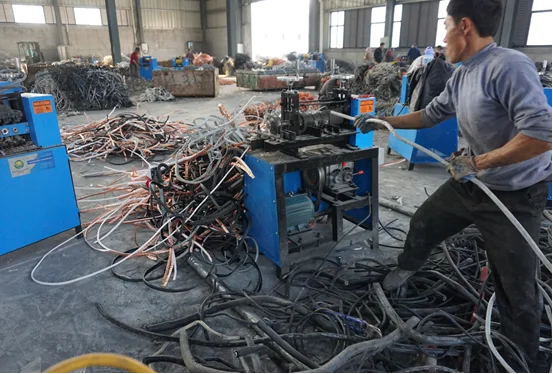

We can use wire and cable stripping machine to separate from each other.It’s function was to separate the insulation layer of cable from the conductor to recycle the copper, aluminum, plastic and rubber.
Before stripping: waste wire and cable
After stripping: separated copper wire
Products Description

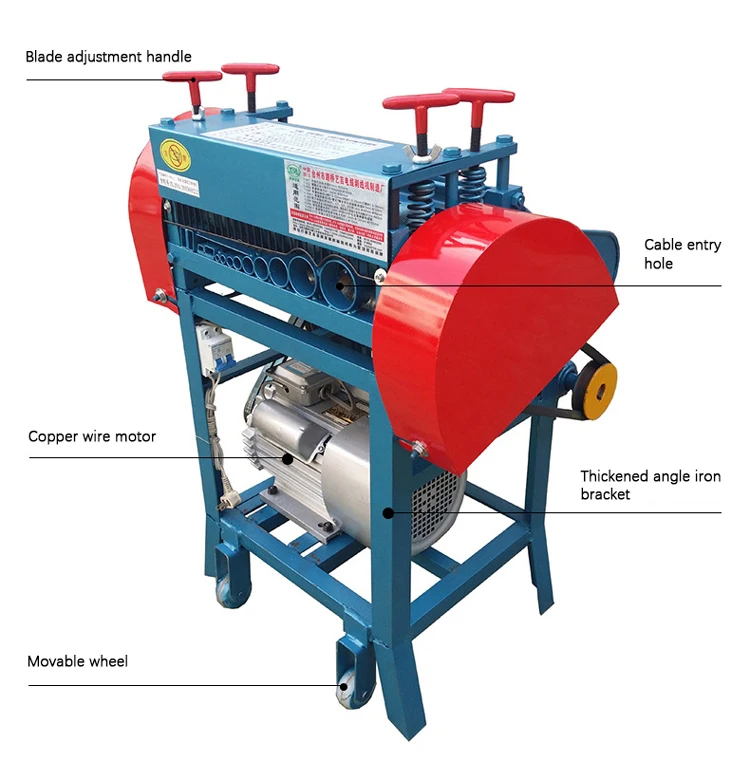

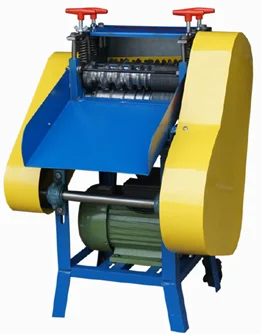

SWM- MSY50 Stripping Machine
This machine was wide used for the recycling industry of waste resources. It’s function was to separate the insulation layer of cable from the conductor to recycle the copper, aluminum, plastic and rubber etc which were convenient for the recycling. The equipment’s price was cheap and the quality was perfect; there was no loss and the economic benefit was high, the operation was easy and it was an environment-friendly machine without pollution.
COOPER CORE MOTOR
UPPERGRADED DOUBLE BLADE
Back Side
Front side
Motor
Product Paramenters
No | Item | MSY45-12 | MSY50 |
1 | Power& rate | 220V/50HZ | 220V/2.2KW/50HZ |
2 | Diameter of cable to be processed | φ2mm～φ45mm | φ2mm～φ50mm |
3 | Stripping Thickness | ≤5mm | ≤5mm |
4 | Blades | 14(5pairs) | 14(5pairs) |
5 | Hole | 2+1+9 | 2+1+9 |
6 | Processing Speed | max.40m/min | max.40m/min |
7 | Net Weight | 86Kg | 125Kg |
8 | Gross Weight | 105Kg | 147Kg |
9 | Machine Dimensions | 66*68*86（L*W*H） | 66*73*86 (L*W*H） |
10 | Package Dimension | 71*73*1010（L* W*H） | 80*71*102（L* W*H |
1、Diameter of wire and cable 2、Thickness of wire and cable 3、The structure of wire and cable
SN | Diameter | Thickness | Power | Model | Price/USD | Gross Weight | Package Dimension |
1 | φ2mm～φ45mm | ≤5mm | 220V/2.2KW/50HZ | SWM-MSY45-12 | 480 | 105Kg | 71*73*101cm （L* W*H） |
2 | φ2mm～φ50mm (round) | ≤5mm | 220V/2.2KW/50HZ | SWM-MSY-50 | 740 | 147Kg | 66*73*86cm （L* W*H） |
16mm×6mm 、12mm×6mm (W×T) (flat with single) | |||||||
3 | φ2mm～φ90mm | ≤25mm | 380V/4KW/50HZ | SWM-LP-90 | 1730 | 330Kg | 56*94*143cm （L* W*H） |
4 | φ2mm～φ120mm (round) | ≤25mm | 380V/4KW/50HZ | SWM-MSY-120-3 | 3100 | 445Kg | 86*61*133cm （L* W*H） |
≤10mmX17mm(flat) | |||||||
5 | φ30mm～φ200mm | ≤35mm | 380V/7.5KW/50HZ | SWM-LP-200 | 3650 | 350Kg | 70*105*140cm （L* W*H） |
Product Advantages
Details Images

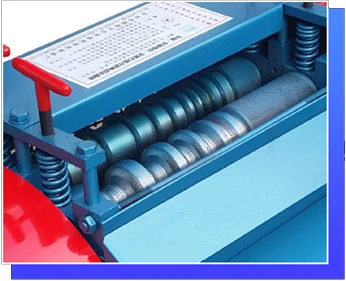

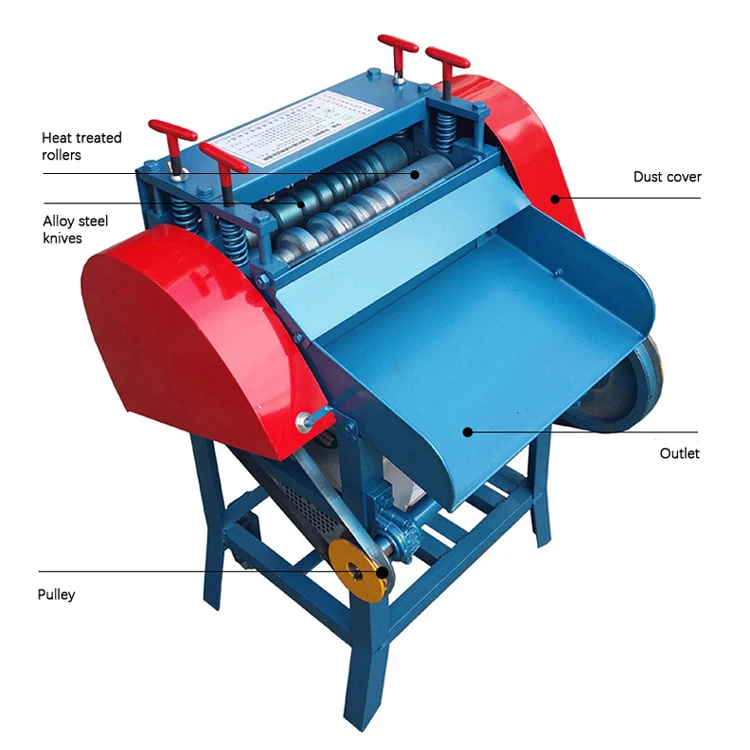

Double rollers
Adopt quenching heat treatment, high strength, not easy to wear, network pattern with large friction
Blade adjustment handle
Automatically adjust to the depth of the blade pressing down, the wire core is scratched, the handle is raised, the insulation or sheath layer is not cut, and the handle is lowered

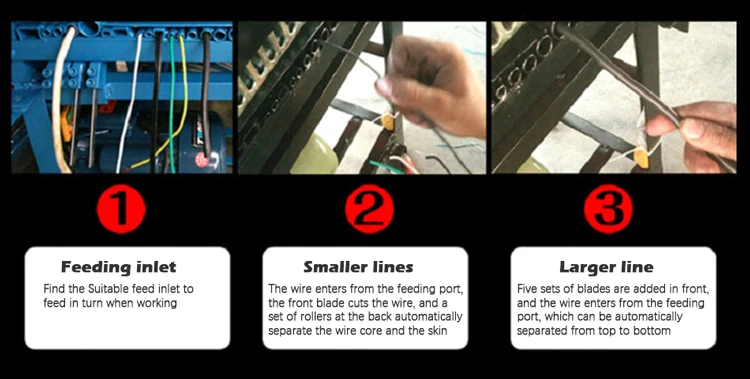

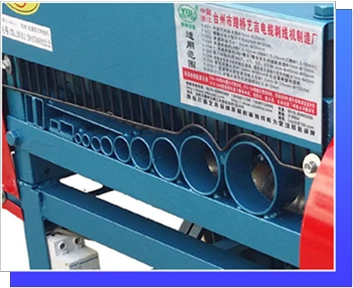

Feeding inlet

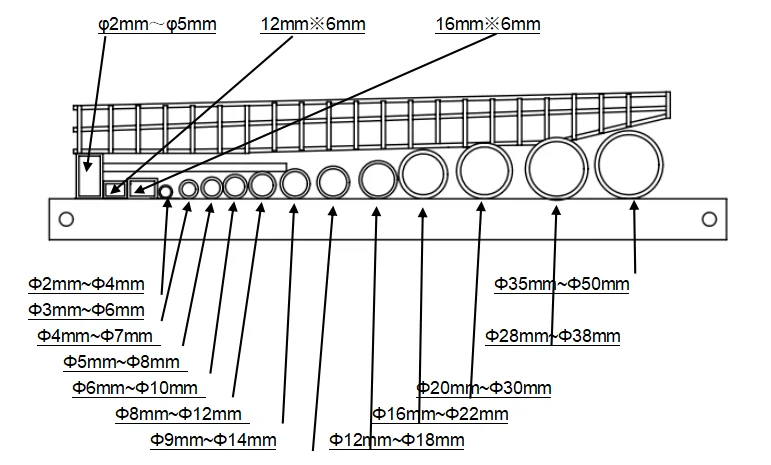

9 round holes + 2 flat holes, the scope of application: 2-45mm can be used to strip round wire, flat wire, cables, to meet your different wire stripping requirements
Protection cover
Customized with thickened plates to protect the equipment from damage and make it more secure to reliable use
Product Composition
Composition

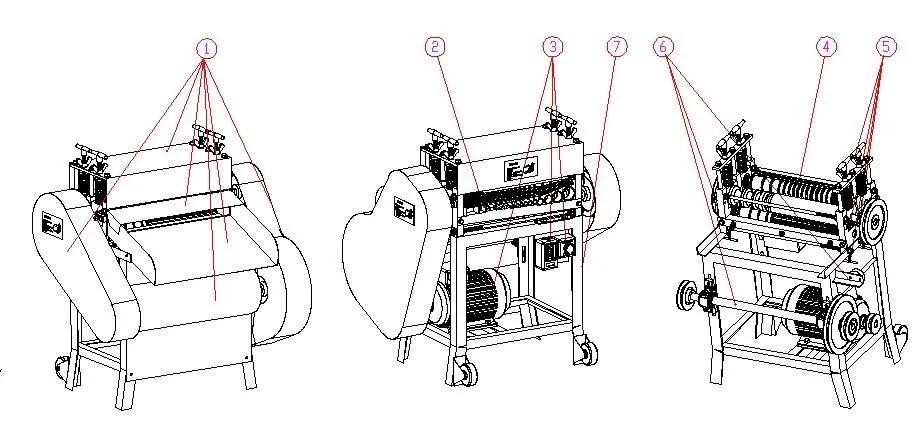

* ①protection part ②feed port part ③Electrical control part ④Wire stripping part
⑤Adjustment part ⑥Transmission part ⑦Machine rack part
Function of each part
* Protection part: It’s made of protection cover of pulley; protection cover of transmission axis, protection cover of discharge port and so on, mainly protected the operator, so that the accident happened when the machine was running.
* Adjustment part: It’s made of left and right adjustment device, up and down adjustment device.
* Up adjustment device: it’s made of following component (as pic)

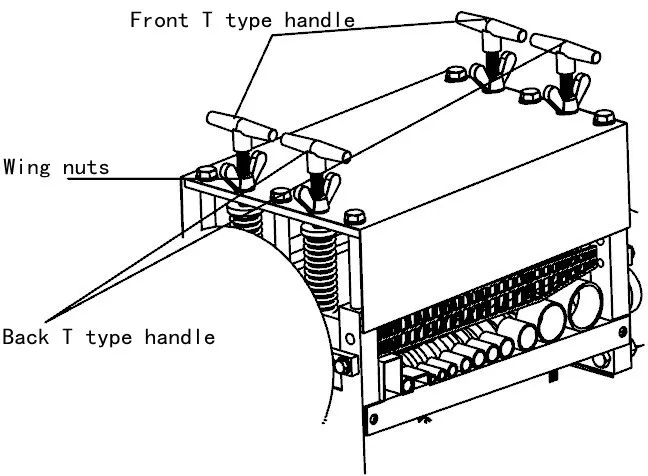

* Main function: screw down or loosen T type handle to adjust the pressure of spring to bearing pedestal.
* Back T type handle: to adjust the prompt space between axis 1 and axis 2.
* Adjustment part: It’s made of left and right adjustment device, up and down adjustment device.
* Up adjustment device: it’s made of following component (as pic)
* Main function: screw down or loosen T type handle to adjust the pressure of spring to bearing pedestal.
* Back T type handle: to adjust the prompt space between axis 1 and axis 2.
① if when stripping wire, the insulation layer ofcable wasn’t cut enough deep, operator should screw the “back T type handle” down, if when it’s adjusted to the biggest pressure and it wasn’t enough deep, user should use smaller feed port to strip wire.
② When stripping the cable whose diameter was bigger and the difficulty appeared and the conductor was cut, user should properly loosen “back T type handle” to strip wire normally.
* Front T type handle: it’s used to adjust the proper space between axis 3 and axi4 to achieve the effect of one-off stripping through grinding or secondary stripping. When the crusta was pasting the grinding wheel, user should loosen the front T type handle properly.
* If user found that the blade deviated the straight line when stripping, please adjust the device according to the 1.6.2.9 of
operation manual.
* Wing nuts: when T type adjustment handle adjusted the normal stripping, user should screw down the Wing nuts.
* Front T type handle: it’s used to adjust the proper space between axis 3 and axi4 to achieve the effect of one-off stripping through grinding or secondary stripping. When the crusta was pasting the grinding wheel, user should loosen the front T type handle properly.
* If user found that the blade deviated the straight line when stripping, please adjust the device according to the 1.6.2.9 of
operation manual.
* Wing nuts: when T type adjustment handle adjusted the normal stripping, user should screw down the Wing nuts.
Bottom adjustment device:

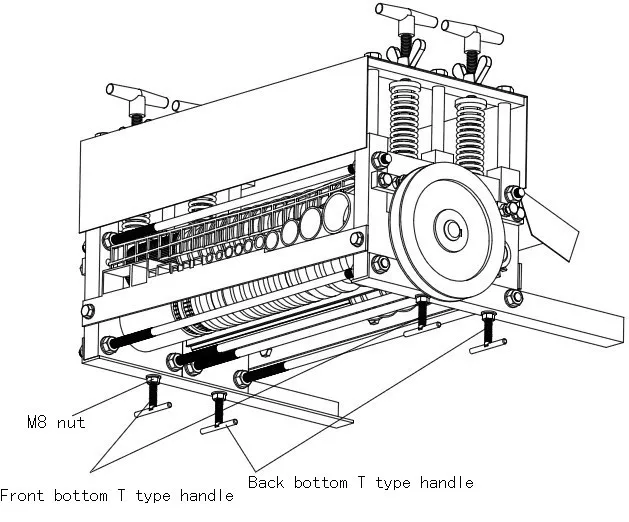

* The bottom adjustment bottom was made of the following accessories as pic. ”Front bottom T type handle” adjusted axis 3 and axis 4, “back bottom T type handle” adjusted axis 1 and axis 2. The main functions were that through screwing down or loosening “T type handle”, so as to assist “up adjustment device” to meet the cutting deep of blade to cable. As to the usage, please refer to “up adjustment device” of operation manual. The use of M8 nut was to screw down M8 nut when “T type handle” was adjusted the normal stripping.
Left and right adjustment device:
* Left and right adjustment device was mainly made of following accessories as pic.

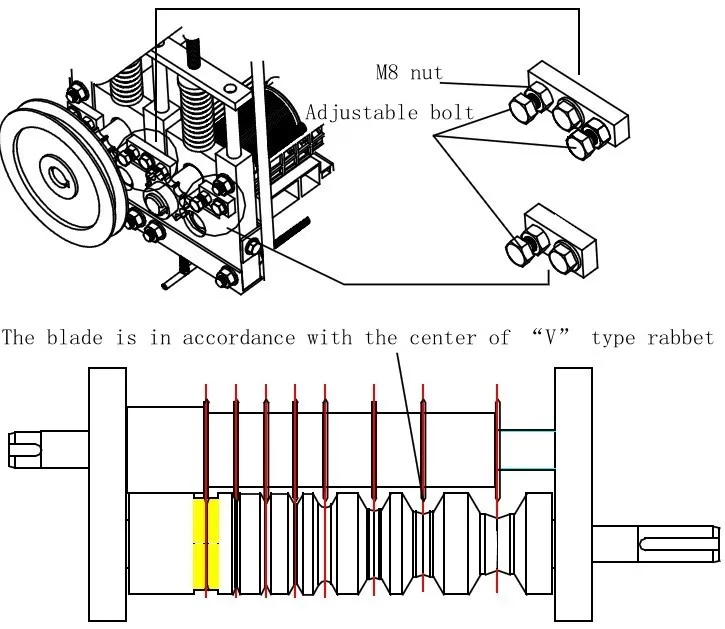

Main function: adjust bolt and make the blade center at axis 1 and axis 4 and the corresponding rabbet center at the axis 2 and axis 3 align. When the center deviated and the blade didn’t cut in straight line along with the center of cable, the breach will appear. To adjust M8 nut to fix the left and right position of axis, after adjusting well.
Main function: adjust bolt and make the blade center at axis 1 and axis 4 and the corresponding rabbet center at the axis 2 and axis 3 align. When the center deviated and the blade didn’t cut in straight line along with the center of cable, the breach will appear. To adjust M8 nut to fix the left and right position of axis, after adjusting well.
Feed port:
* Feed port: The feed port was made of following parts as pic. The main function was to guide cable into the machine to strip, when stripping, select the relevant feed port according to the diameter of processed cable (the feed range referred to pic). If there were many feed ports to be selected, the trial processing should be done according to the turn from big bore diameter to small.
* Note: The cable including the joint and plug should be removed, or else it would affect the stripping effect and damage the machine.
* Note: The cable including the joint and plug should be removed, or else it would affect the stripping effect and damage the machine.
Stripping part
* Stripping part: It mainly was made of axis (1) including the blade, transport axis (2), axis (3) including the blade, transport axis (4) and other parts. The main function was to strip the cable.
* Transmission part: It was made of secondary sheave assembly, pulley and chain wheel. The use was power transmission.
* The tightness adjustment of motor belt: The installation position of motor of machine rack was welded by the angle iron and was equipped; and the bolt fixed the motor. When the motor belt was loosened and dropped, loosen the fixed bolt of motor and move the motor till the tightness of belt was proper, screw down the fixed bolt of motor. The tightness of belt between transmission axis and main axis: there was equipped with a rabbet which was fixed by bolt at the joint of transmission axis and machine rack; the adjustment method is same as motor belt’s.
* Electric control part: The electric control part was made of electromotor, switch, power line, plug and other parts.
* The power supply of this machine: AC220V / 50Hz, use the middle line N. User must use the guard wire PE.
* Transmission part: It was made of secondary sheave assembly, pulley and chain wheel. The use was power transmission.
* The tightness adjustment of motor belt: The installation position of motor of machine rack was welded by the angle iron and was equipped; and the bolt fixed the motor. When the motor belt was loosened and dropped, loosen the fixed bolt of motor and move the motor till the tightness of belt was proper, screw down the fixed bolt of motor. The tightness of belt between transmission axis and main axis: there was equipped with a rabbet which was fixed by bolt at the joint of transmission axis and machine rack; the adjustment method is same as motor belt’s.
* Electric control part: The electric control part was made of electromotor, switch, power line, plug and other parts.
* The power supply of this machine: AC220V / 50Hz, use the middle line N. User must use the guard wire PE.

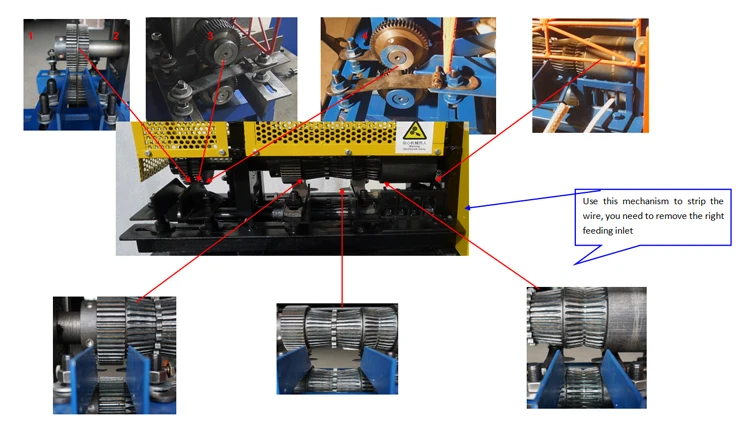

Operation Instructions
Company Profile
Shanghai Xuande International was established in 2004 and has been providing complete factory solutions for the world. In 2007,Shanghai Xing Xuande Machinery & Electrical Engineering Co., Ltd. was established. Our solutions cover ferrous metal smelting and deep processing (such as steel industry), non-ferrous metals Smelting and deep processing (copper-aluminum-aluminum alloy industry), power engineering, wire and cable industry...
Product packaging
FAQ
1. Who are we?
SHINEWORLD is based in Shanghai, China. Factory is located in Changzhou.Established in 2004, with 17 years of experience in wire and cable field trade. It only takes 1 hour from our company to the nearest airport. Welcome to visit our company!
2. How can we guarantee quality?
Online inspect facotry ,production, shipment,and aftersales service in 24 hours.
Always a pre-production sample before mass production;
Always final inspection before shipment;and provide full-process visualization services.
Mechnical parts gurantee 12months, elcctrical parts gurantee 6 months.
3.What can you buy from us?
Raw materials for wire and cable ；Extruderline for insulation and sheathing ;
Trunkey projects for wire cable plan ; Accesorries for up casting and CCR;
Pe sheet lagging.
4. During the epidemic, how to teach customers about equipment installation and commissioning?
Usually our engineers will remotely teach customers to install and debug equipment online;
Our overseas offices can also dispatch engineers to assist customers;
For customers who are far away, we can directly send engineers abroad for on-site guidance.
5. Will the price be cheaper if the order is placed in bulk?
Of course ,will make 5-10% discount.
6. What services can we provide?
We can provide free samples, packaging customization and other customized services; for details, you can contact online customer service for communication.
SHINEWORLD is based in Shanghai, China. Factory is located in Changzhou.Established in 2004, with 17 years of experience in wire and cable field trade. It only takes 1 hour from our company to the nearest airport. Welcome to visit our company!
2. How can we guarantee quality?
Online inspect facotry ,production, shipment,and aftersales service in 24 hours.
Always a pre-production sample before mass production;
Always final inspection before shipment;and provide full-process visualization services.
Mechnical parts gurantee 12months, elcctrical parts gurantee 6 months.
3.What can you buy from us?
Raw materials for wire and cable ；Extruderline for insulation and sheathing ;
Trunkey projects for wire cable plan ; Accesorries for up casting and CCR;
Pe sheet lagging.
4. During the epidemic, how to teach customers about equipment installation and commissioning?
Usually our engineers will remotely teach customers to install and debug equipment online;
Our overseas offices can also dispatch engineers to assist customers;
For customers who are far away, we can directly send engineers abroad for on-site guidance.
5. Will the price be cheaper if the order is placed in bulk?
Of course ,will make 5-10% discount.
6. What services can we provide?
We can provide free samples, packaging customization and other customized services; for details, you can contact online customer service for communication.
