Big Sale Factory Price Door Frame Metal Detector for Security Check Walk Through Metal Detector
- Category: >>>
- Supplier: Heyuan Zhonganxie Technology Co. Ltd.
Share on (1600535468631):
Product Overview
Description
Product Description
Promotion time : Jun.1st - Jun.30th. 2022

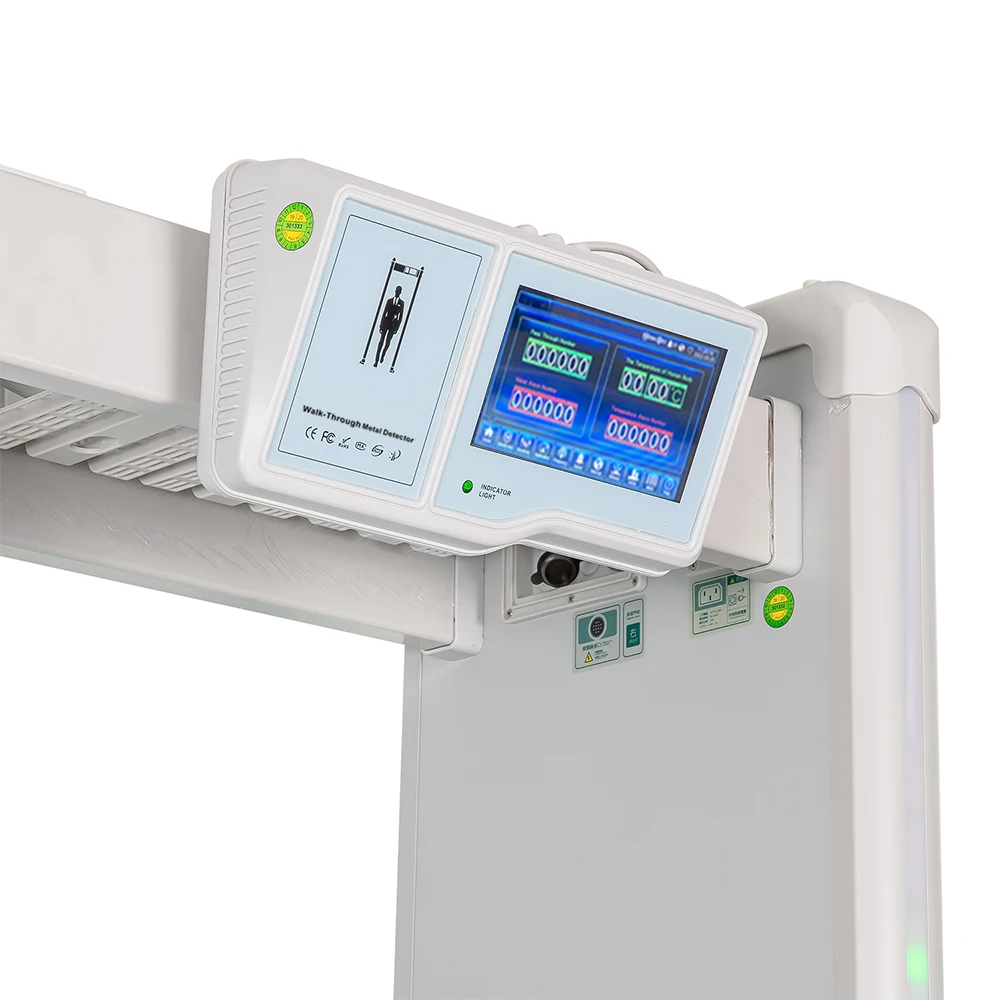

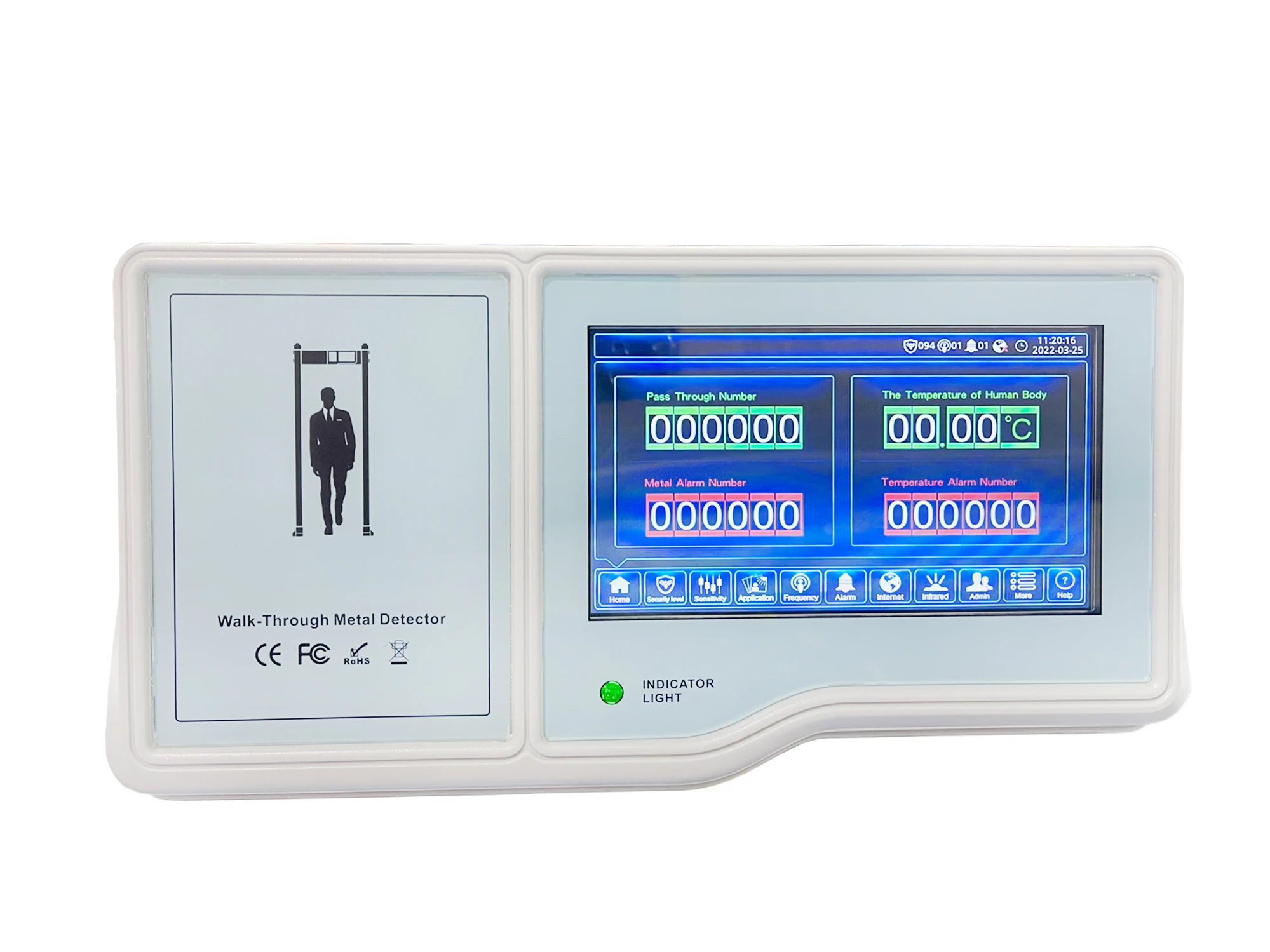

Human body metal detector with 7inch touch screen

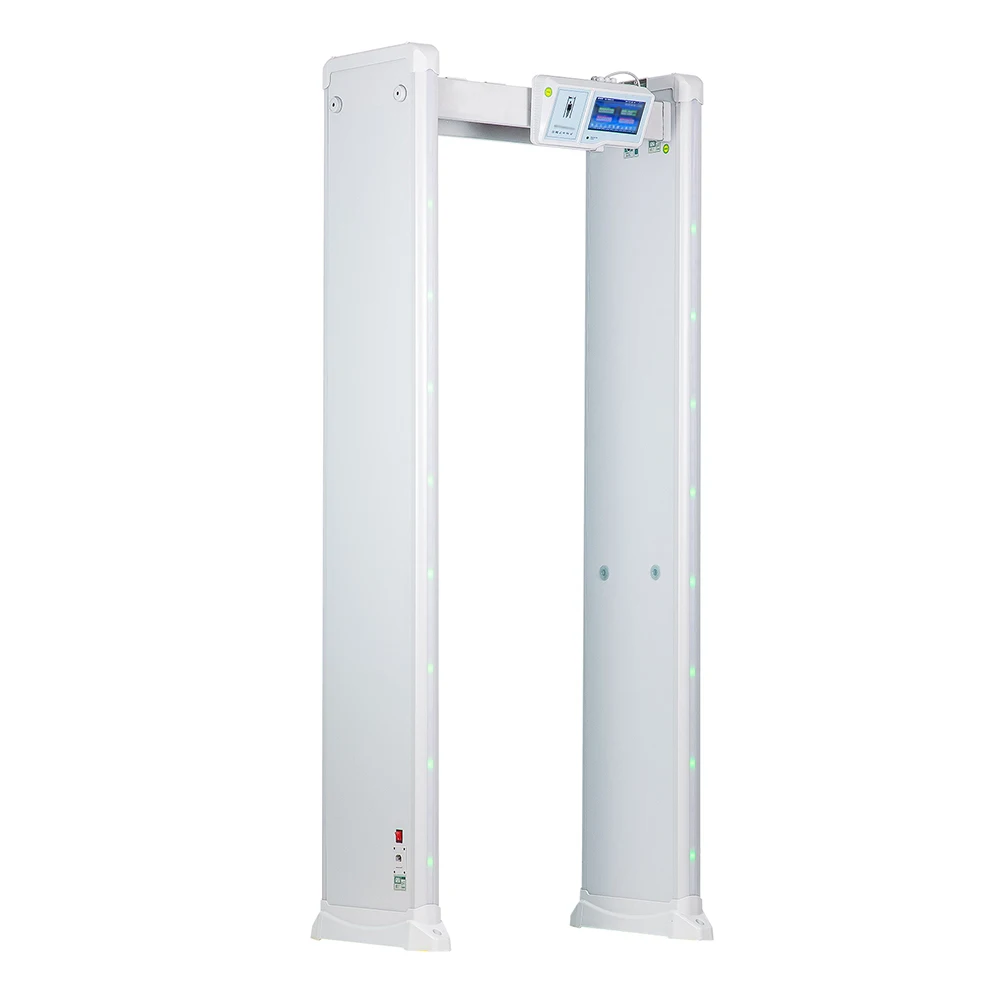

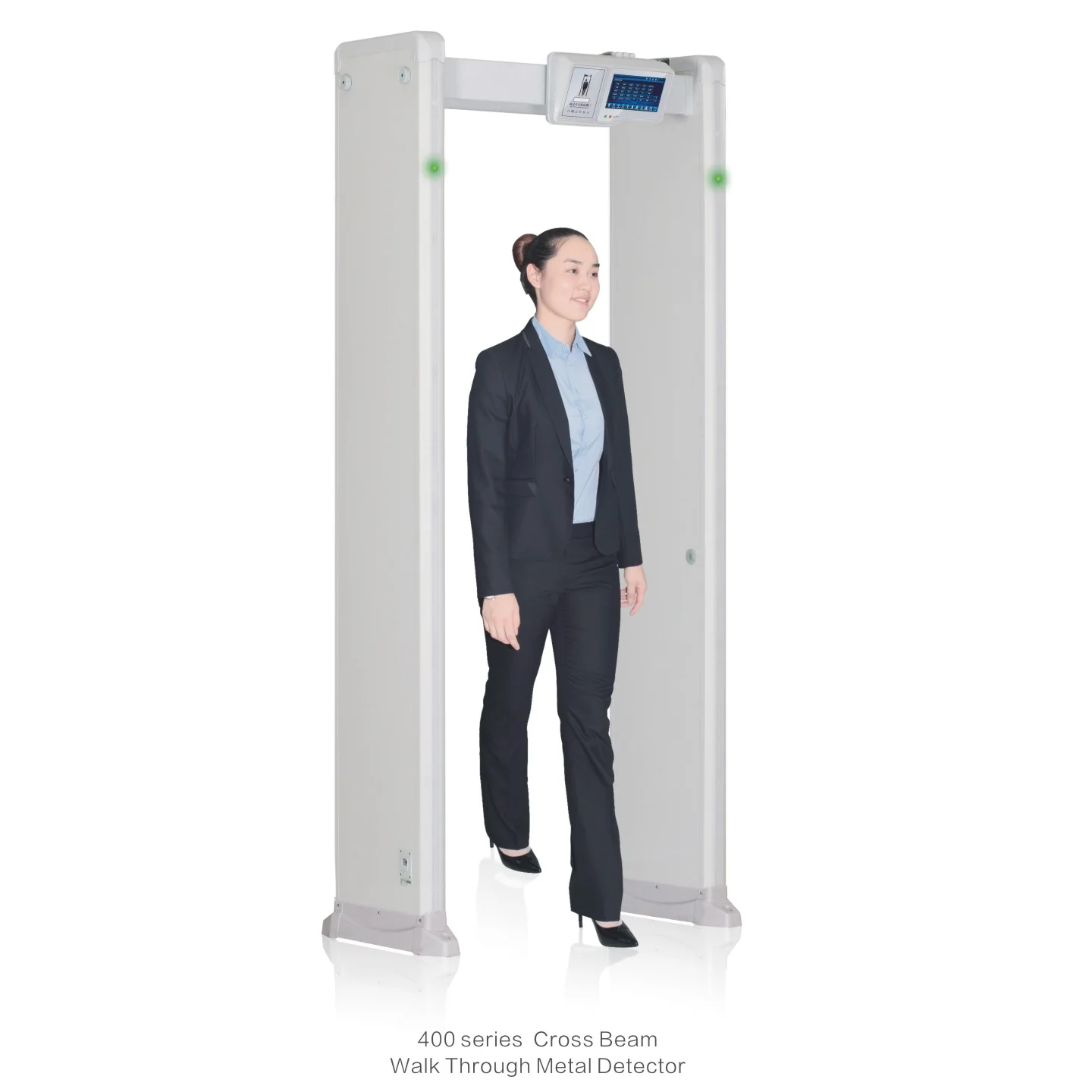

Walk-through Metal Detector
The high-performance security doors have the following advantages: high metal detection sensitivity; Strong anti-interference ability; Multiple detection regions, each region can be set separately sensitivity; Self-diagnostic program, power on self-test; Using high strength materials, can fire, corrosion, shock and so on; Background environmental interference that can be monitored in real time.
In the material selection, appearance structure, software copyright and other obtained a number of patents and copyright certificates.
Multiple Advanced Features And Functions
1. Multi-defense area technology: 24 detection defense areas, the sensitivity of each detection defense area can be adjusted arbitrarily (with adaptive adjustment technology)
2. Superior case protection technology: IP54 superior protection performance (optional).
3. Adaptive diagnosis system: system adaptive diagnosis and detection power at start-up.
4. Adaptive debugging system: adaptive debugging detection standard when the system enters the debugging system.
5. Start and stop technology: infrared device has automatic start and stop technology.
6. Alarm function: alarm light, alarm sound, arbitrary adjustment Settings.
7. Working frequency: the working frequency can be changed manually or automatically.
8. Detection technology: beyond imagination, uniform detection technology, no blind area.
9. Professional detection procedures: 72 standard procedures for detection of different occasions are built into the system (upgrade service is provided)
10. Working frequency band: super wide 100 working frequency band.
11. Safety level: with 100 safety levels
12. Detection area sensitivity: the sensitivity of a single area can be up to 0-255 level.
13. Alarm mode: the system has a variety of alarm sound optional mode, suitable for different occasions.
14. Data statistics: the system has both PASS and return dual data records, as well as FAIL and return dual data records. 15. Query function: the system has real-time information query function.
16. Intelligent standby: the system has an intelligent standby function.
17. Detection ability: it can pass the detection of more than 60-150 people in one minute.
17. Detection ability: it can pass the detection of more than 60-150 people in one minute.
18. Tips: when the security inspection door is working normally, it is equipped with a full range of 16 high-brightness LED standby indicator lights.
Product Paramenters
Technical Parameters | ||
Product model | 6 zones 7-inch touch screen | |
Vertical dimension | 2190×535x892mm | |
Vertical channel dimension | 2030x716mm | |
Probe door panel packing dimensions | 2280x700x290mm | |
Net weight of main cabinet/detection door panel | 45KG | |
Gross weight of main cabinet/detection door panel | 52KG | |
Operating voltage | AC90V～240V 50／60Hz | |
Power dissipation | 15W | |
Operating frequency range | 1—100 Bands | |
Working environmental temperature | -20℃～65℃ | |
Installation environment | (W) 100cm*(L) 200cm(metal-free minimum range) sheet transverse | |
Regional detect metal precision range | Maximum Sensitivity ≥6g Metal | |
Technical Standards | ||
Electrical refer to EN60950 safety standard | Compliance | |
Radiation refer to EN50081-1 standard | Compliance | |
Anti-interference refer to EN50082-1 standard | Compliance | |
Implementation GB15210-2003 Walk through metal detector standard | ● | |
Enterprise through IS09001:2008 quality management system certification | ● | |
Enterprise through 0HSASl 8001 Occupational health certification | ● | |
Enterprise through ISO14001 environmental management certification | ● | |
Products through the EU CE certification | ● | |
FCC | ● | |
ROHS | ● | |
Details Images
Exhibition
Company Profile
Shenzhen Zhonganxie Technology Co., Ltd (Head Office)
Heyuan Zhonganxie Technoloy Co., Ltd (Factory)
Established in 2011, has been supplying security metal detection equipment for nearly 10 years. Our company have a plant of 13,000 ㎡, product line including:
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.
