Brand New Automatic Manual Milk Cream Centrifugal Separator
- Category: >>>
- Supplier: Wuxi Rockaway Machinery Co. Ltd.
Share on (1600535488621):
Product Overview
Description
Newest Centrifugal Milk Cream Separator / Milk Separator Machine / Skimmed Milk Machine
Product Description
1)Milk separator and purifier mainly used skim milk, whey separation, butter, wheat shock shower, casein, cheese production, such as anhydrous butter production process of centrifuge enrichment. And the material contact parts are made of stainless steel, in line with food hygiene requirements.
2) The Milk Separator can also be used to liquid-solid twophase separation of similar materials in the industry of juice, beverage and Chinese traditional medicine, etc.
3)The Milk Separator adopts automatic control, and has the advantages such as high efficiency, low material consumption, convenient operation and economic maintenance cost.
4)The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.
5)The Milk Separator is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Technical Parameter
Model | HT-TZJ1 |
Output | 100L/H |
Drum speed | 11000r/min |
Motor Power | 100w 24v |
Voltage | 220v |
Slagging mode | Artificial |
Working condition | open |
Fat content | <0.03% |
Dimensions | 570*385*375mm |
Weight | 30kg |
We have several models of this machine.The following are the brief technical parameters of other models.
Model | HT-TZJ0.5 | HT-TZJ1 | HT-TZJ2 |
Output | 50L/H | 100L/H | 200L/H |
Drum speed | 8500-9700r/min | 11000r/min | 9150r/min |
Motor Power | 30w 12v | 100w 24v | 370w |
Voltage | 220v | 220v | 220v |
Slagging mode | Artificial | Artificial | Artificial |
Working condition | open | open | open |
Fat content | <0.03% | <0.03% | <0.03% |
Dimensions | 480*340*280mm | 570*385*375mm | 650*610*630mm |
Weight | 15kg | 30kg | 65kg |
Model | HT-NFLJ10A | HT-NFLJ30A | HT-NFLJ50A |
Bowl inner | 300mm | 280mm | 400mm |
Bowl speed | 7320r/min | 7320r/min | 6500r/min |
Product | 500-1000L/H | 2000-3000L/H | 5000L/H |
Separate factor | 8817 | 9165 | 9165 |
Fat output | Open | Centripetal pump | Centripetal pump |
Skim milk output | Centripetal pump | Centripetal pump | Centripetal pump |
Sludge | Manual | Manual | Manual |
Power | 380V/1.5kw | 380v/5.5kw | 380v/7.5kw |
Temperature | 35-55 ℃ | 35-55 ℃ | 35-55 ℃ |
Fat in skim milk | 0.015-0.05% | 0.015-0.04% | 0.015-0.04% |
Weight | 110kg | 500 kg | 530kg |
Dimension | 680*400*680mm | 870*600*1500 | 870*600*1500 |
Model | HT-NFLJ5B | HT-NFLJ10B | HT-NFLJ30B | HT-NFLJ50B |
Bowl inner | 200mm | 300mm | 400mm | 475mm |
Bowl speed | 7546r/min | 7320r/min | 6500r/min | 6022r/min |
Product | 500L/H | 1000L/H | 2000-3000L/H | 5000L/H |
Separate factor | 8120 | 8985 | 9120 | 9250 |
Fat output | Centripetal pump | Centripetal pump | Centripetal pump | Centripetal pump |
Skim milk output | Centripetal pump | Centripetal pump | Centripetal pump | Centripetal pump |
Sludge | PLC | PLC | PLC | PLC |
Power | 380v/1.5kw | 380V/4kw | 380v/7.5kw | 380v/7.5kw |
Temperature | 35-55 ℃ | 35-55 ℃ | 35-55 ℃ | 35-55 ℃ |
Fat in skim milk | 0.03-0.08% | 0.015-0.05% | 0.015-0.04% | 0.015-0.04% |
Weight | 120kg | 500kg | 680kg | 1100kg |
Dimension | 700*550*800mm | 850*850*1200mm | 1100*650*1550 | 1100*700*1600 |

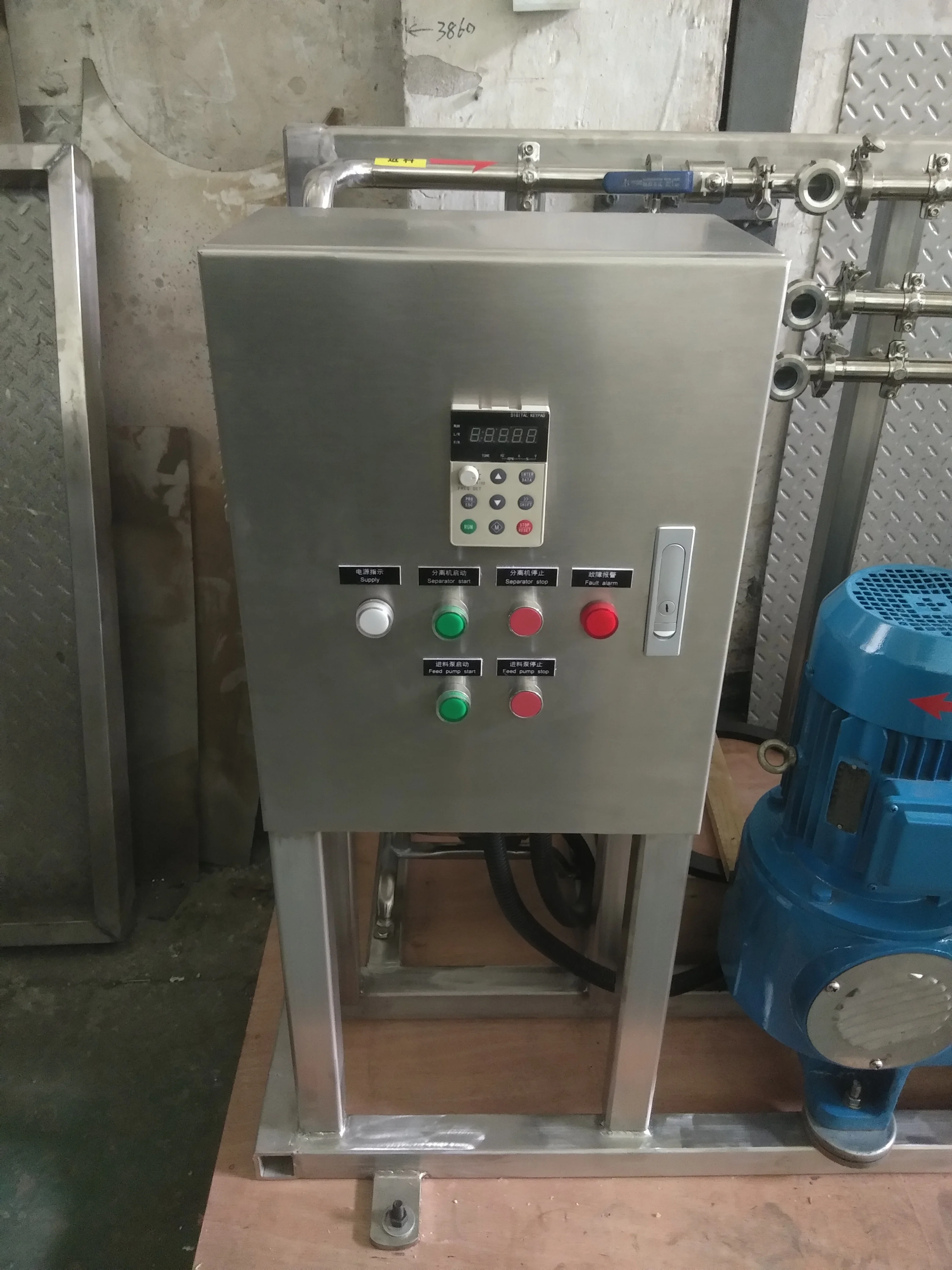

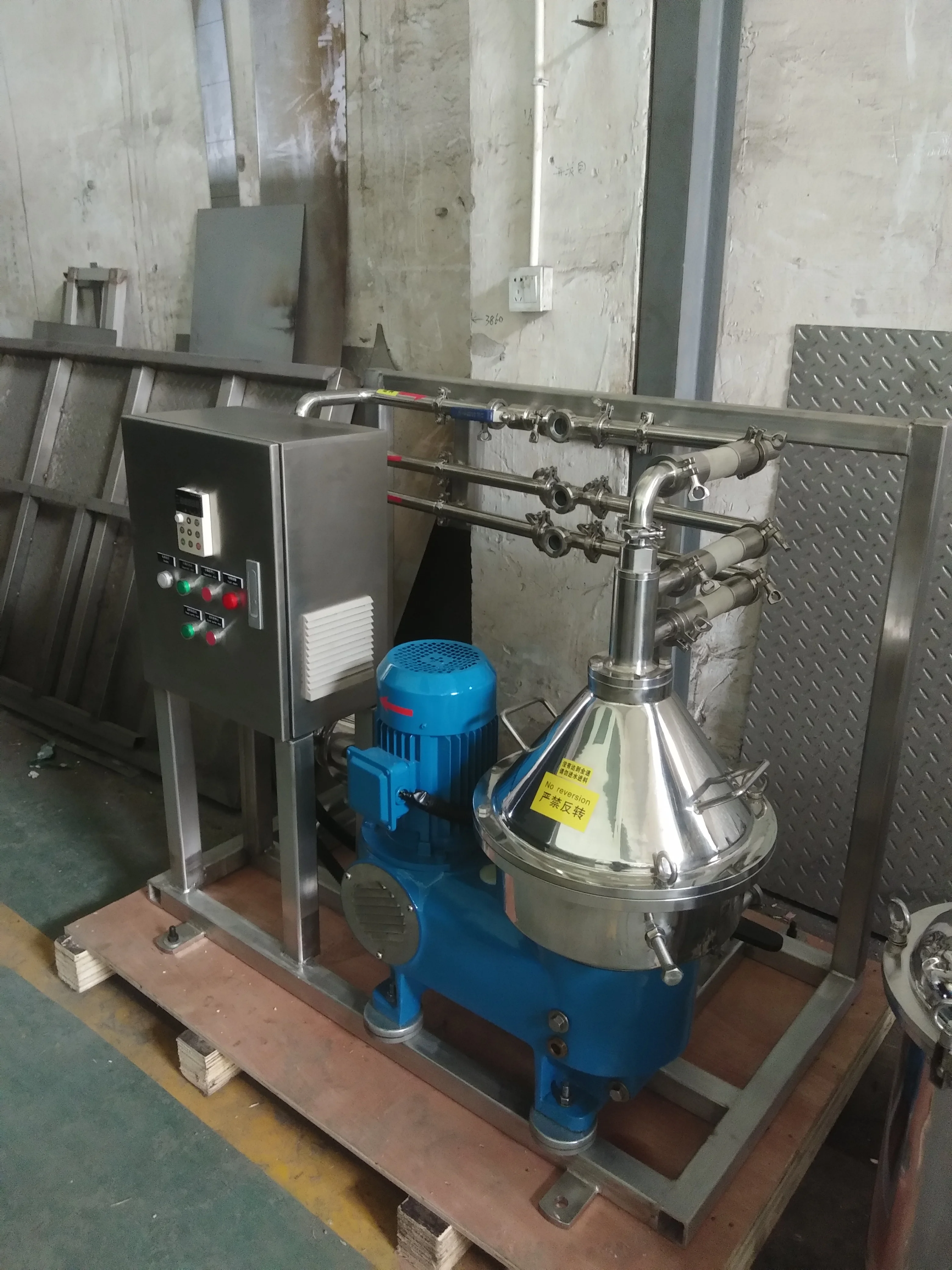

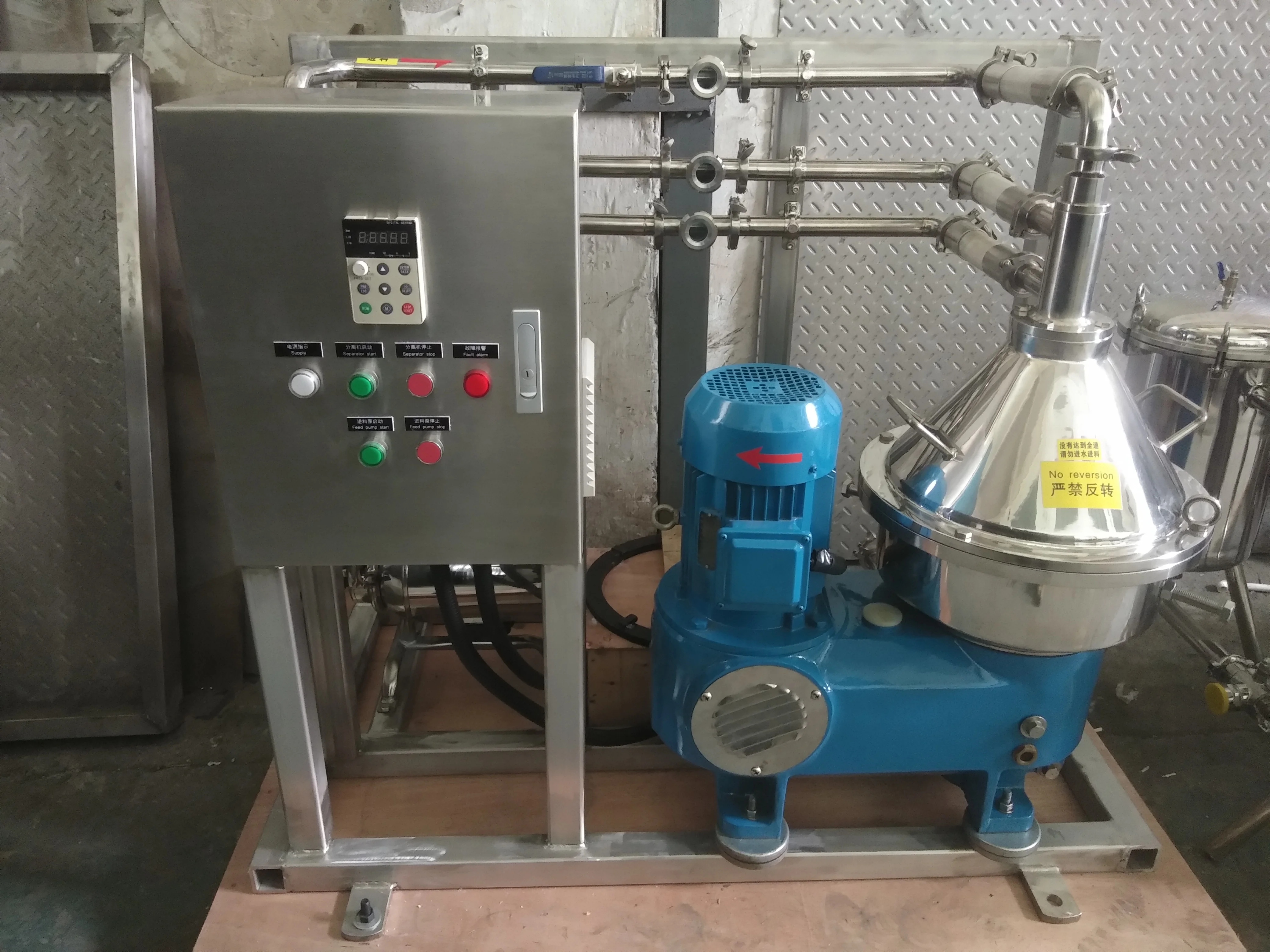

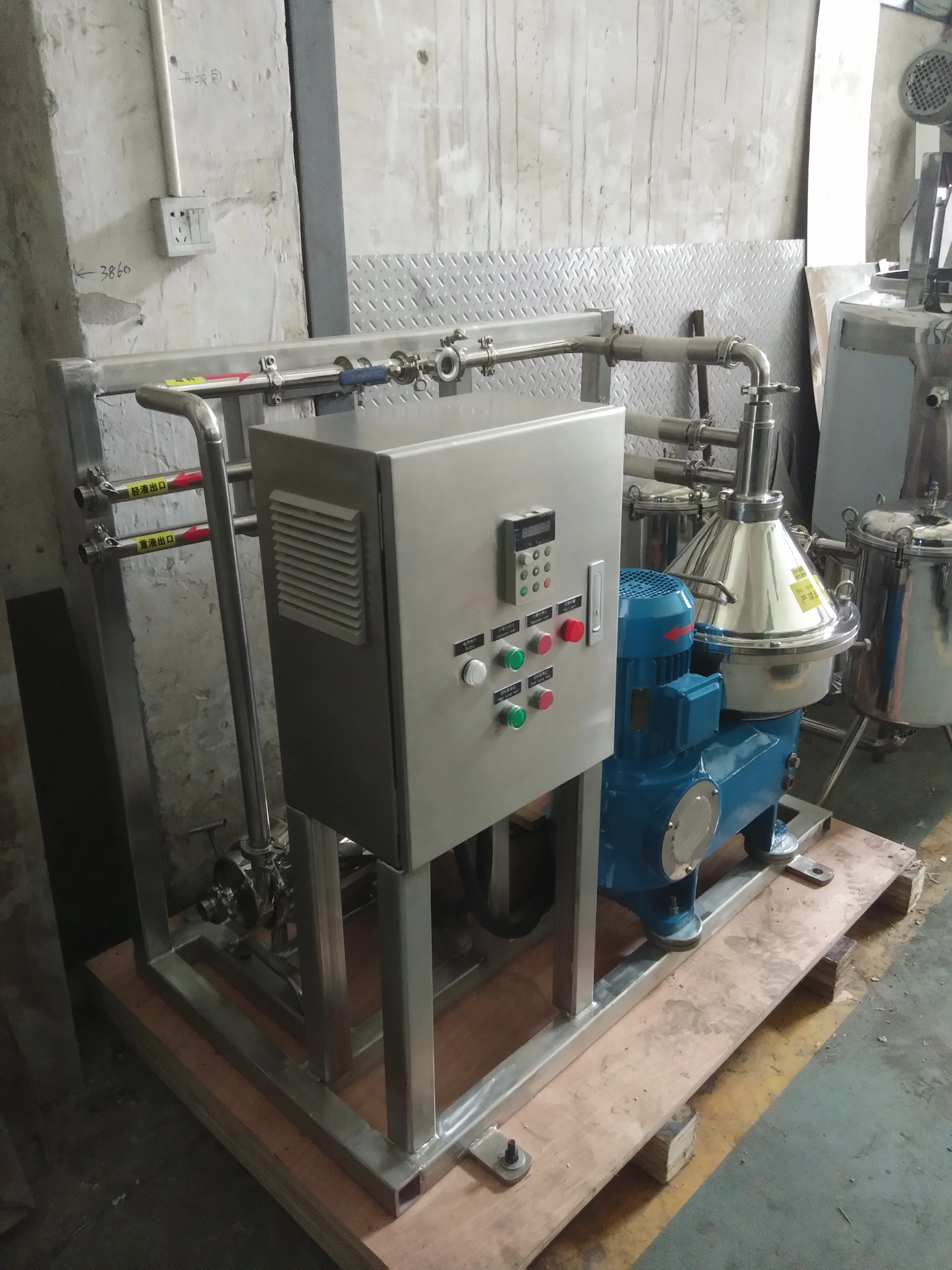

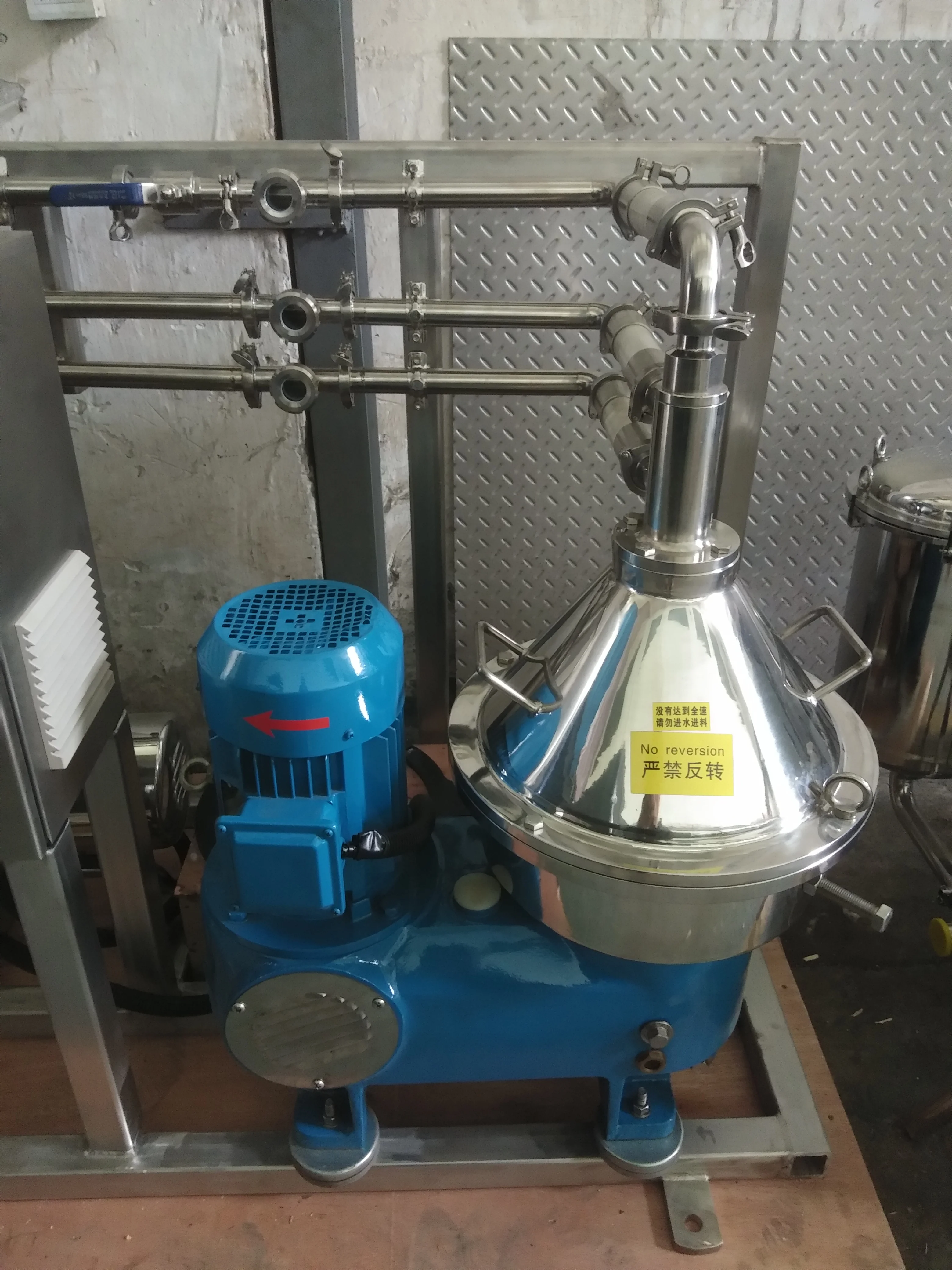

Product Pictures
