2ch mdvr gps Video Camera Box Dual Car dvr Camera ahd 1080p 720p truck antena mdvr 4g mobile dvr for vehicles
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1600535497172):
Product Overview
Description
Main Features
2ch mdvr gps ahd 1080p 720p truck antena mdvr 4g mobile dvr for vehicle
Product Advantage
* Adopt H.264 encoding and decoding, the maximum encoding resolution is 1080P 60 frames;
* Front and rear dual cameras: front lens 1080P, rear lens 720P; 2-channel 720P AHD camera can be expanded externally (with AI
algorithm, support 1-channel 720P AHD camera external expansion);
* Support 1 TF card storage, support 256G capacity;
* Support 2-way IO alarm input, support 1 RS232 interface;
* Support WIFI, 4G, GPS and other functions;

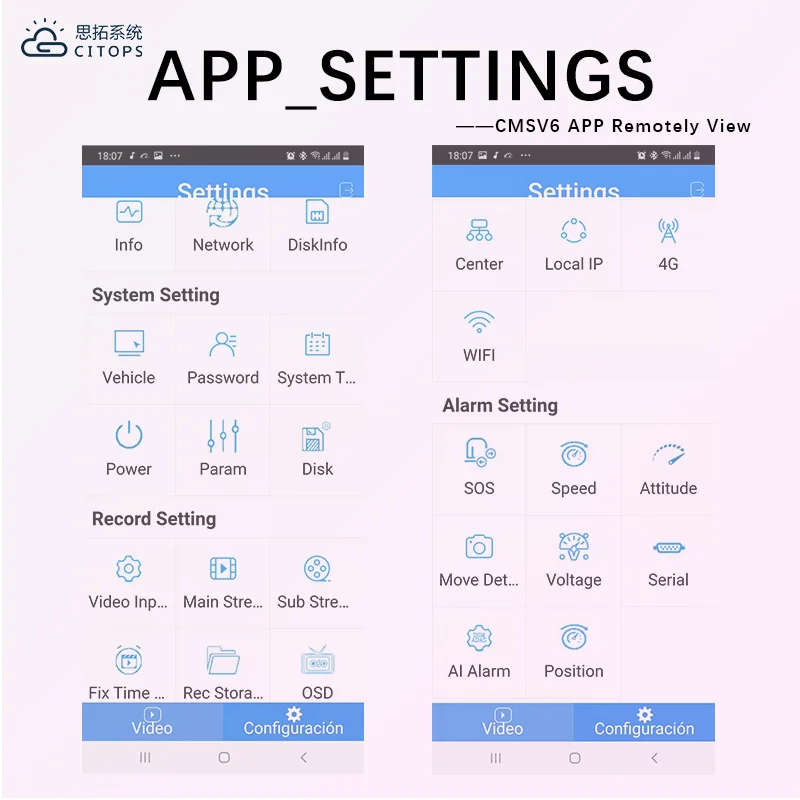

* Support mobile APP, client, platform software preview video and parameter configuration;
* Dedicated file system to improve disk read and write efficiency and more stable video recording;
* Optional AI intelligent algorithm, support ADAS, DMS, BSD detection;
* Adopt H.264 encoding and decoding, the maximum encoding resolution is 1080P 60 frames;
* Front and rear dual cameras: front lens 1080P, rear lens 720P; 2-channel 720P AHD camera can be expanded externally (with AI
algorithm, support 1-channel 720P AHD camera external expansion);
* Support 1 TF card storage, support 256G capacity;
* Support 2-way IO alarm input, support 1 RS232 interface;
* Support WIFI, 4G, GPS and other functions;
* Support mobile APP, client, platform software preview video and parameter configuration;
* Dedicated file system to improve disk read and write efficiency and more stable video recording;
* Optional AI intelligent algorithm, support ADAS, DMS, BSD detection;

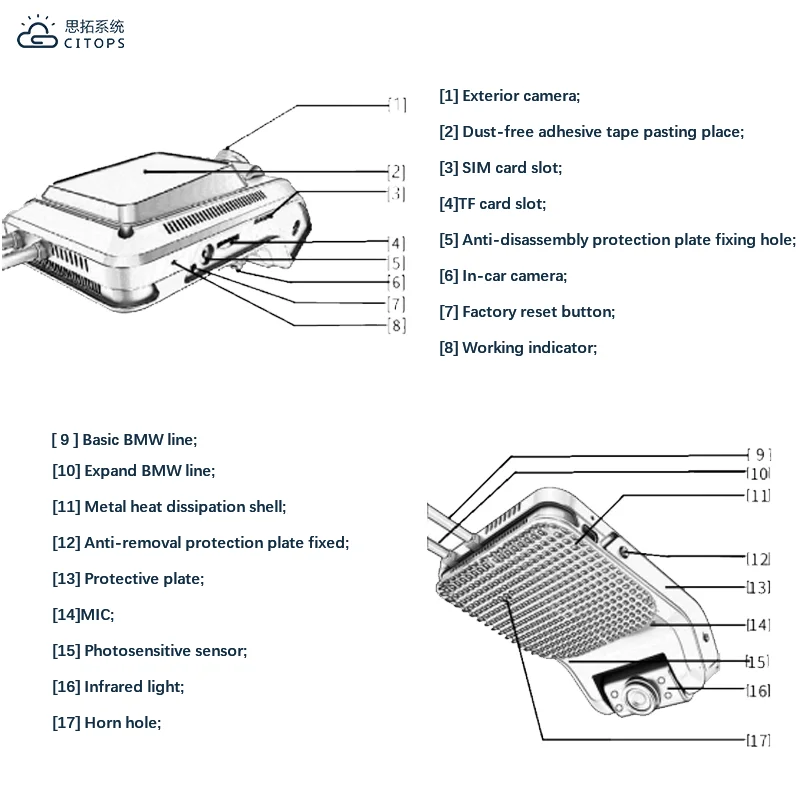

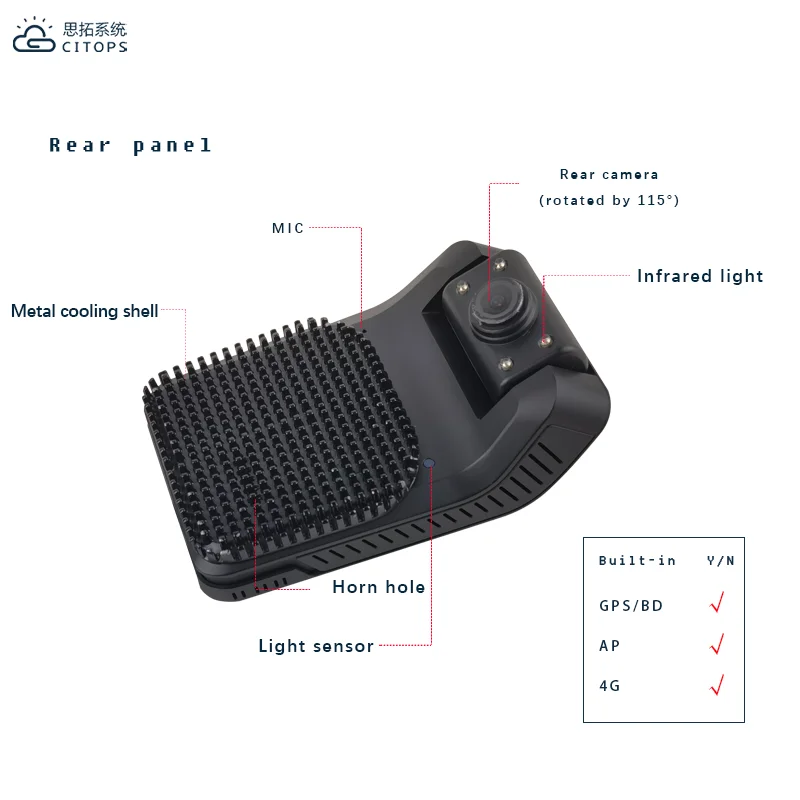

Details Images
Product Paramenters
project | parameter specification |
CPU | ARM Cortex-A7 1.0GHZ |
Memory | 2GB |
Outside camera | 2MP sensor,95 Degree.F4.3 Support wide dynamic WDR |
In-car camera | 1MP sensor,115 Degree Wide angle.F2.16 With infrared night vision, the video is clearly visible in the dark environment in the car |
Dual memory card | Support TF cards，32GB/64GB/128G/256G |
Positioning | Beidou/GPS dual-mode high-precision positioning module |
Gyro | Collision alarm, vibration alarm |
Speaker and Mic | Build in |
ADAS algorithm (optional) | Advanced driving assistance system: lane deviation alarm, forward collision alarm, and vehicle distance too close alarm |
DSM algorithm + DSM camera (optional) | Driver behavior analysis: head down, call, smoke, look around, yawn, close eyes, no face detected, cover the camera |
Face recognition algorithm (optional) | Identify the driver and report |
Video resolution | 1080P/720P/D1 |
Video format | H264 Compression format |
file format | Special file system, can export asf file |
4G | All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; Overseas support for global frequency bands； |
WIFI | 2.4G frequency, support WIFI STA/AP mode, support mobile preview |
VCC | powered by 9V-36V |
GND | Ground |
ACC | Ignition detection, control switch |

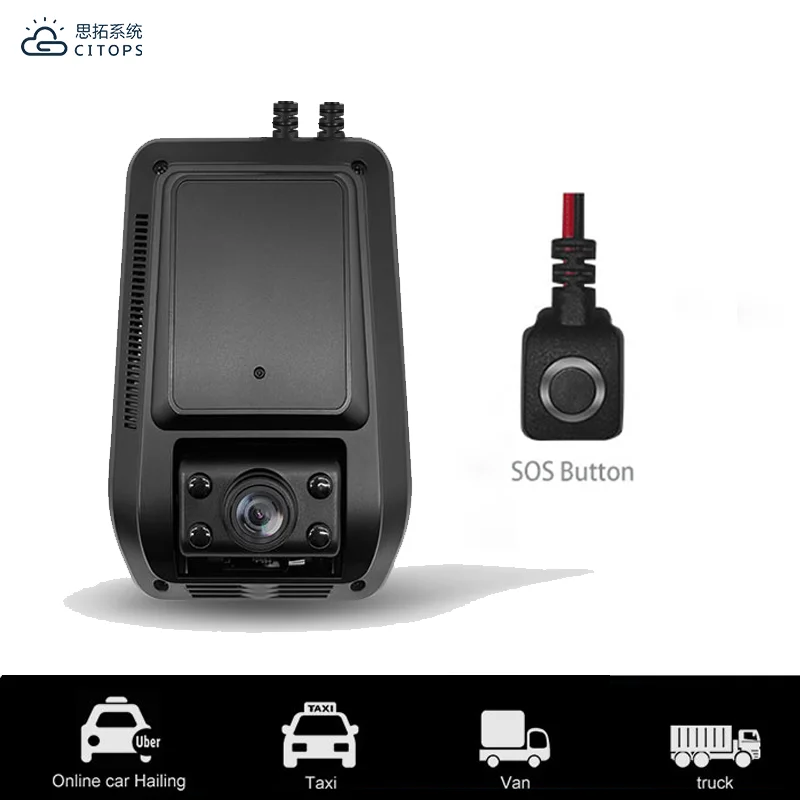

SOS button | Emergency button, video upload before and after the police |
External display(optional) | CVBS Interface, video output |
Serial port | 1xRS232, support extended functions |
external cameras | 1xAHD interface camera |
One-key restore settings | Support one-key factory reset function |
volume（mm） | 120*77*55mm |
weight | Around 240g±10g |
Operating temperature | -20℃～+70℃ |
Relative humidity | ≤93% |
